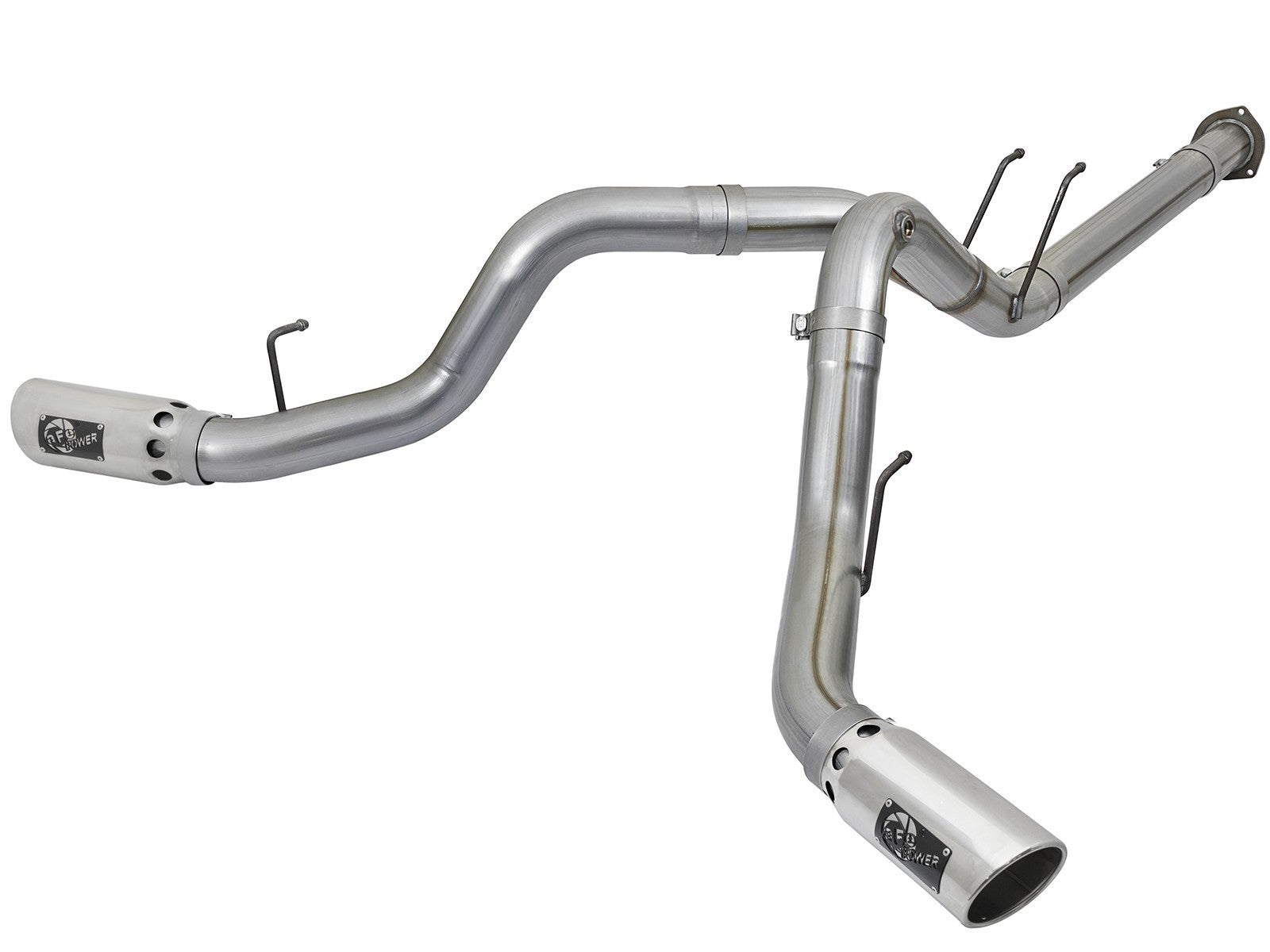

Four-inch stainless DPF-back with dual polished side exits
The aFe 49-43092-P Large Bore-HD system uses four-inch mandrel-bent 409 stainless tubing, an over-axle Y-pipe and two five-inch polished intercooled clamp-on tips. Factory-style hangers and an OE-style flange mount behind the retained particulate filter. The manufacturer specifies hand MIG welding.
Key Features
- Selected aFe part 49-43092-P.
- Four-inch 409 stainless tubing with a mitered merge collector.
- Two five-inch polished, rolled-edge angle-cut stainless tips; separate left and right references.
- The current exact manufacturer page confirms fitment with the factory fifth-wheel hitch.
- Cab-specific adapter/extension trimming and spare-tire positioning are required as described in the selected guide.
- Reuses factory hardware and the original flange gasket.
- No verified numerical power, EGT, fuel-economy or drone-free result is promised.
Fitment
The current exact manufacturer application table identifies 2017–2026 F-250 Super Duty and F-350 Super Duty with the 6.7L Power Stroke diesel. These are model/engine applications; a complete exact current named-trim table was not located, so the existing two broad saved model scopes are retained with manufacturer-supported years. No new named trims are mapped. The current selected page explicitly confirms the factory fifth-wheel hitch, and its selected current guide omits the exclusion found in an older shared guide. That older restriction is retained as a documented revision conflict, rather than borrowed from a different tip or diameter selection. Confirm the actual kit revision and installed equipment before fitting. No F-450/F-550, cab-and-chassis or gasoline application is inferred.
| Years | Make | Model | Verification / restriction |
|---|---|---|---|
| 2017–2026 | Ford | F-250 Super Duty | Named-trim approval unverified; current manufacturer 6.7L diesel model/engine scope; actual cab/bed and kit revision must match |
| 2017–2026 | Ford | F-350 Super Duty | Named-trim approval unverified; current manufacturer 6.7L diesel model/engine scope; actual cab/bed and kit revision must match |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49-43092-P |
| Product type | DPF Back |
| Tube / exits | Four-inch 409 stainless; over-axle Y-pipe and dual side exits |
| Selected stainless sections | Flange adaptor 05-144285; extension 05-144286; over-axle Y-pipe 05-144287; right tailpipe 05-144288; left tailpipe 05-144289 |
| Selected tips | Left 49T40501-P121 and right 49T40502-P121; two five-inch polished stainless tips |
| Clamps / bracket | Four four-inch bands 05-41172; hanger bracket 05-46258 |
| Factory hitch qualification | Current exact page confirms factory fifth-wheel fitment. An older shared-guide/retailer exclusion conflicts with that current statement; actual revision/equipment confirmation remains necessary. |
| Sensor instruction gap | Step 1 explicitly removes the NOx sensor before the original exhaust/extension. The selected ten-step guide does not print an explicit sensor-refitting step or full wiring procedure. Obtain the correct refitting requirements before removal; sensor omission is not an operating configuration. |
| Spare tire / protection | Loosen spare, shift right toward heat shield for left-pipe clearance, then secure it again. Guide photos show ties/heat wrap and step 10 checks them; no complete quantity, part-number or application instruction is printed. |
| Torque / service | No numerical clamp, flange, sensor or bracket torque printed. Check for leaks; at 50–100 miles check spare-tire clearance, ties/heat wrap and re-tighten bands if necessary. |
| Emissions / claims | Exact manufacturer says no CARB EO number required. Conflicting retailer restriction metadata is not a verified numbered order or blanket approval. No exact selected dyno, EGT or sound measurement was verified. |
What's Included
- The 49-43092-P kit includes one each stainless flange adaptor 05-144285, extension 05-144286, over-axle Y-pipe 05-144287, right tailpipe 05-144288 and left tailpipe 05-144289.
- Two selected polished tips: left 49T40501-P121 and right 49T40502-P121.
- Four band clamps 05-41172 and hanger bracket 05-46258. Step 7 identifies a provided rubber isolation mount, but the formal diagram does not give its part number.
- Factory flange gasket and hardware are reused. No replacement sensor, muffler, intake filter or silicone coupling is established as included. Photo-shown ties/heat wrap have no complete supplied quantity or formal part-number bill.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact current manufacturer application, dual polished selection and factory-hitch statement
- Selected ten-step manufacturer guide and component diagram
- Shop the aFe Power collection
FAQ
What is the 49-43092-P?It is the four-inch 409 stainless Large Bore-HD DPF-back system with an over-axle Y-pipe and two five-inch polished tips for the documented Ford diesel pickups.
Does the current manufacturer allow a factory fifth-wheel hitch?Yes, the exact current selected page explicitly confirms it. An older shared guide and some retailer copy say otherwise, so confirm the actual kit revision and installed equipment. Do not apply the separate five-inch single-exit system’s exclusion to this four-inch selection.
Does it remove the diesel particulate filter?No. Its flange and extension connect behind the retained DPF. It is not a particulate-filter delete or a replacement turbo-back system.
What cab-specific cuts are described?For regular/single cab long bed, trim approximately four inches from the flange adaptor and omit the extension. Extended short bed uses the flange adaptor without trimming or an extension. Extended long bed uses a 19-inch extension; crew short bed a 15-inch extension. Crew long bed uses the full extension without cutting. Measure the actual cab/bed arrangement before modifying a pipe.
Why is the spare tire repositioned?The guide moves the spare toward the right-side heat shield to create clearance from the left tailpipe, then secures it again. Check spare clearance again after 50–100 miles; no numerical clearance dimension is supplied.
What is missing from the sensor procedure?Step 1 says to remove the NOx sensor before removing the original exhaust, but no later step explicitly describes refitting it. Have the installer obtain the correct sensor-refitting and wiring requirements before starting. Do not infer that the sensor may remain omitted or disconnected.
Which tailpipe and bracket go on first?After the flange adaptor and over-axle Y-pipe, install the right tailpipe and tip. Refit any original hanger mount removed for access. Install the left hanger bracket with retained stock bolts before fitting the left tailpipe and tip. Both tip badges face the rear.
How are the joints tightened and later checked?Keep bands loose during assembly. Align everything, then tighten bands from front to rear using confirmed requirements for the actual hardware; the guide gives no numerical torque. Check for leaks, then inspect spare clearance, ties and heat wrap after 50–100 miles and re-tighten bands if necessary.
Installation Instructions
- Confirm aFe 49-43092-P against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
- Let the exhaust cool and use safe supports and protective equipment; professional installation is recommended. Confirm actual cab/bed, kit revision and installed equipment. Resolve the sensor-refitting instruction gap and the unlisted ties/heat-wrap details with the installer before removal.
- The selected guide removes the NOx sensor before the original exhaust and original extension at the rear of the DPF. Protect and reuse factory hardware and the flange gasket. Keep band clamps loose until the entire assembly is installed; do not operate with the sensor omitted or disconnected.
- Lay out all sections. Loosen the underbody spare tire, move it as far right as needed toward the heat shield for left-pipe clearance and secure it again once clearance is established. Do not leave the spare loose.
- Use the cab-specific flange/extension dimensions above: approximately four inches off the regular-cab long-bed flange adaptor with no extension; extended short bed flange only; extended long-bed extension 19 inches; crew short-bed extension 15 inches; crew long-bed extension uncut. Verify actual measurements first.
- Tighten the three-hole flange adaptor bolts at the DPF connection, then install the over-axle Y-pipe into the mid-pipe and retained rubber mounts. Fit the right tailpipe; if the original hanger mount is removed for access, bolt it back on. Position the right tip with its badge facing rearward and tighten only slightly.
- Use retained stock bolts to install hanger bracket 05-46258 before the left tailpipe. Fit the left tailpipe into the provided rubber isolation mount and position its polished tip with the badge facing rearward, initially tightening only slightly.
- Confirm correct sensor refitting under the resolved service requirements, all clearances and alignment. Tighten four-inch bands from front to rear. No numerical torque or additional sensor/protection-material procedure is invented from the photographs.
- Check for leaks after completion. After 50–100 miles, recheck clearance around the spare tire, inspect ties and heat wrap, and re-tighten band clamps if necessary.
