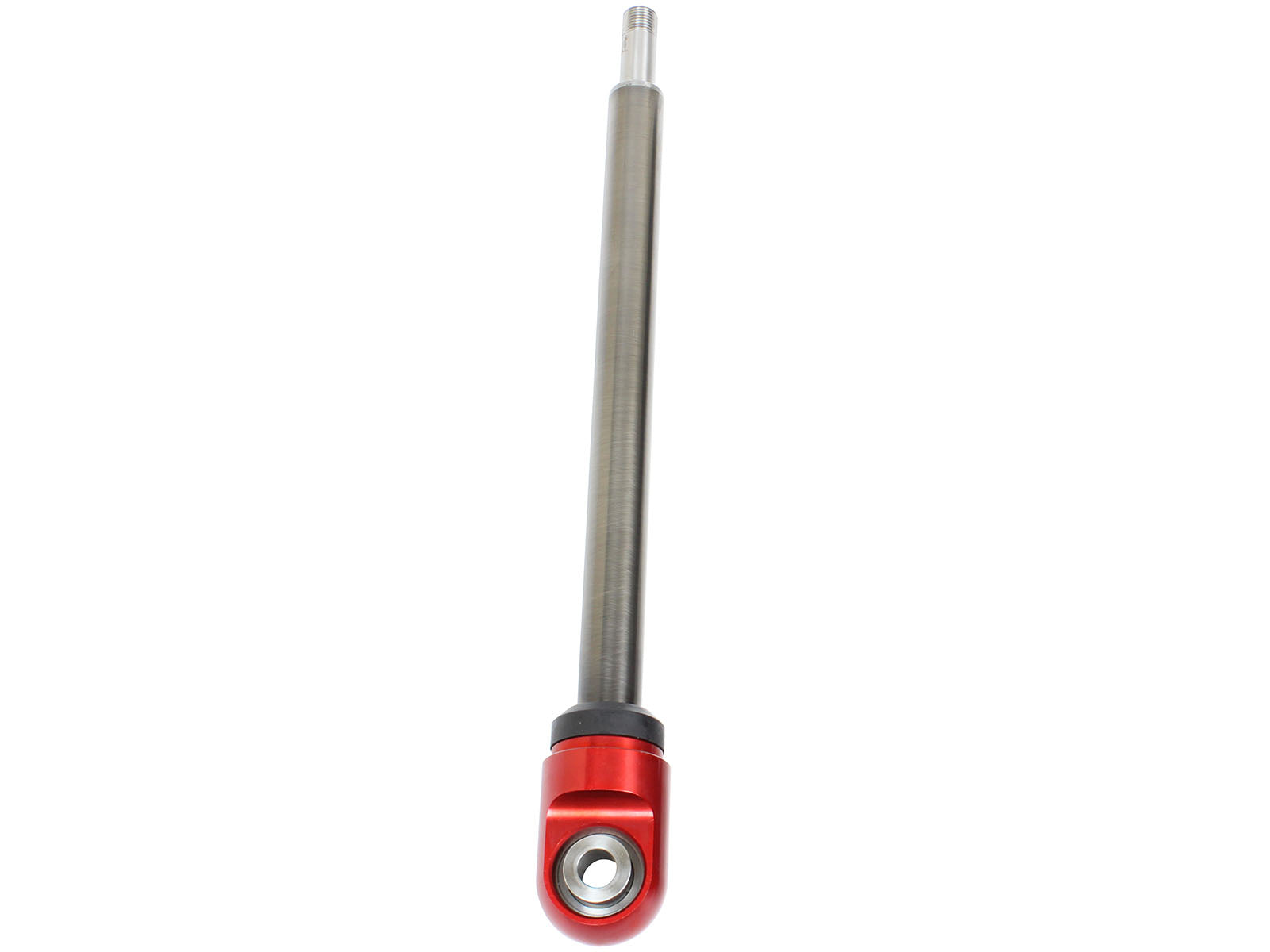

Sway-A-Way Replacement Shaft Assembly
The aFe 56060-SP14 is a replacement shaft assembly for specification-matched Sway-A-Way shocks. It combines a 7/8-inch NitroBrite shaft with a rod end, COM10 spherical bearing, misalignment spacers and rubber bumper. The selected configuration is for 14-inch stroke shocks.
Key Features
- 7/8-inch NitroBrite shaft.
- Selected 14-inch stroke configuration.
- Rod end and COM10 spherical bearing supplied with the assembly.
- Misalignment spacers and rubber bumper included.
- Manufacturer identifies compatibility with 2.0-inch and 2.5-inch diameter Sway-A-Way shocks, subject to the exact shaft and interface requirements.
Fitment
Service-part compatibility depends on the existing shock, rather than a vehicle year or trim. aFe identifies this assembly for its 2.0-inch and 2.5-inch diameter Sway-A-Way shocks. Confirm the 7/8-inch shaft, 14-inch stroke and every mating interface against the exact shock before ordering.
| Shock family | Body diameter | Shaft diameter | Selected stroke |
|---|---|---|---|
| Sway-A-Way; exact service compatibility required | 2.0 or 2.5 inches | 7/8 inch | 14 inches |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 56060-SP14 |
| Product type | Shock Rebuild Kits |
| Component | Replacement shock shaft assembly |
| Shaft diameter | 7/8 inch |
| Shaft description | NitroBrite |
| Selected shock stroke | 14 inches; not overall shaft length or vehicle lift |
| Intended shock body diameters | 2.0 and 2.5 inches; exact service compatibility required |
| Bearing designation | COM10 spherical bearing |
| CARB EO | Manufacturer states this suspension product does not require a CARB EO |
| Warning | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| UPC | 802959004869 |
What's Included
- One selected shaft assembly comprising the shaft, rod end, spherical bearing, misalignment spacers and rubber bumper.
- The manufacturer does not provide a formal itemized quantity for each separate spacer or other subcomponent on the selected page.
- A complete shock body, reservoir, coil spring, seal kit and valve stack are not identified as contents of this shaft assembly.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
FAQ
What is the 56060-SP14?It is a replacement shock shaft assembly supplied with a rod end, COM10 spherical bearing, misalignment spacers and rubber bumper. It is a service component, not a complete shock absorber or coilover.
Which shock body sizes does aFe identify?The manufacturer identifies 2.0-inch and 2.5-inch diameter Sway-A-Way shocks. Body diameter alone does not establish service compatibility; the shaft, stroke and mating interfaces must also match.
What does the 14-inch dimension describe?It identifies the selected shock stroke configuration. It is not a published overall shaft length and does not specify vehicle lift height.
What is the shaft diameter and finish description?aFe specifies a 7/8-inch NitroBrite shaft. The selected source does not establish an additional shaft material grade or thread specification.
Which bearing comes with the assembly?The exact product details identify a COM10 spherical bearing, together with the rod end and misalignment spacers. Confirm the mating mounting interfaces against the shock being serviced.
Does this include a complete shock absorber?No. This is a replacement shaft assembly. It is not a complete shock, coilover or spring kit.
Can it be selected by vehicle model alone?No. Match it to the precise Sway-A-Way shock and its service configuration. A vehicle application or a 2.0-inch or 2.5-inch body diameter by itself is insufficient.
Are service pressures, torque values and oil quantities supplied here?An exact standalone service manual was not located for this assembly. Obtain the correct service procedure for the shock being rebuilt; no gas pressure, oil quantity, valve stack, bleeding procedure or torque is established by this listing.
Installation Instructions
- Identify the exact Sway-A-Way shock and confirm its body diameter, 7/8-inch shaft, 14-inch stroke selection and mating interfaces before disassembly.
- Compare the supplied assembly with the required service configuration and inspect the shaft, rod end, bearing, spacers and bumper. Resolve any revision or interface difference with aFe before fitting it.
- Have the shock serviced using the correct manufacturer procedure and equipment for that exact shock. This listing does not supply a standalone rebuild procedure or establish gas pressure, oil volume, valve-stack settings or tightening torque.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
