aFe Power Diesel Exhaust Tip Black- 4 in In x 5 out X 12 in Long Bolt On (Right) aFe AFE49T40501-B12
aFe Power Diesel Exhaust Tip Black- 4 in In x 5 out X 12 in Long Bolt On (Right) aFe AFE49T40501-B12
aFe Power Diesel Exhaust Tip Black- 4 in In x 5 out X 12 in Long Bolt On (Right) aFe AFE49T40501-B12
aFe Power Diesel Exhaust Tip Black- 4 in In x 5 out X 12 in Long Bolt On (Right) aFe AFE49T40501-B12
Click to zoom in

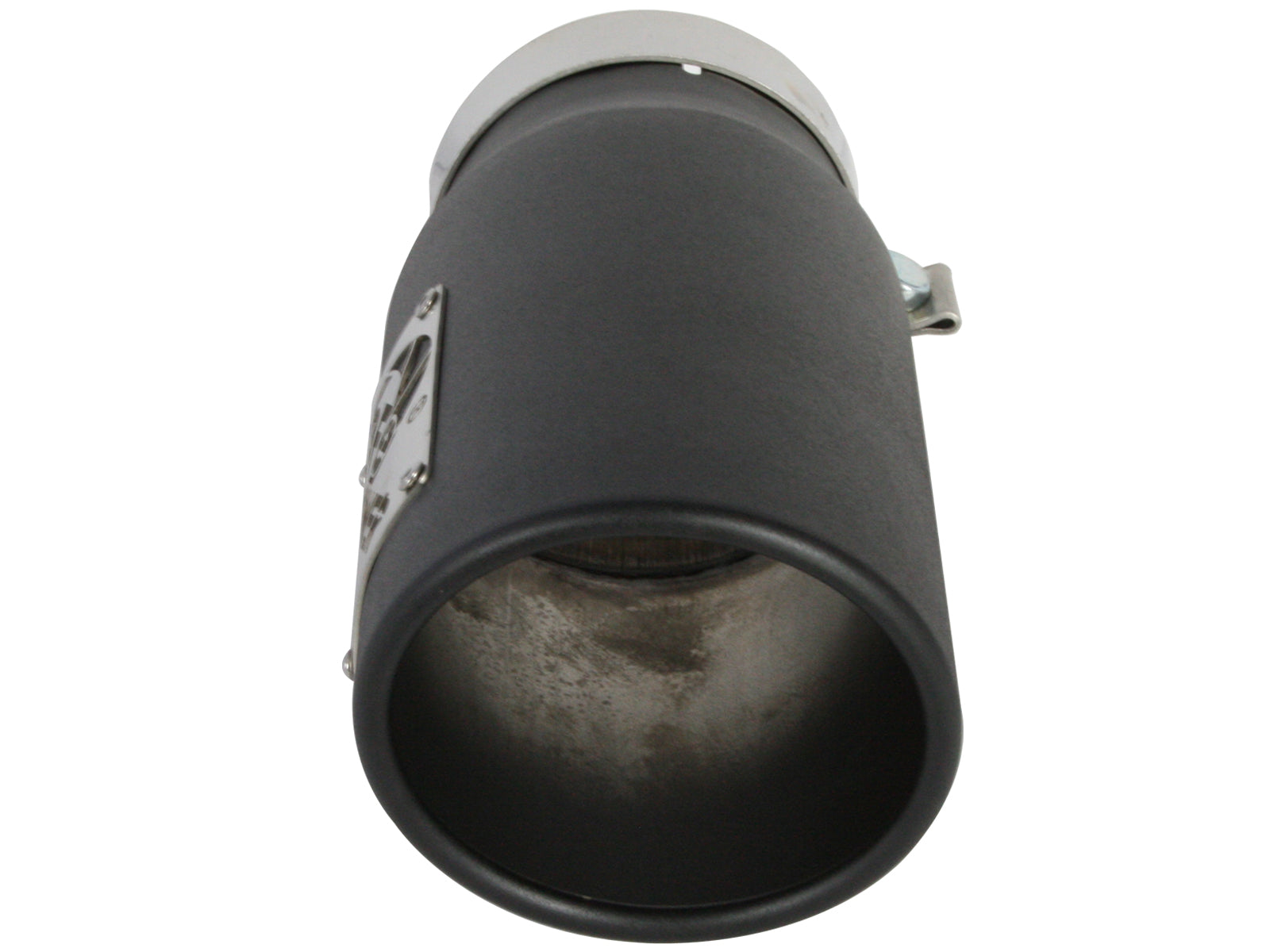

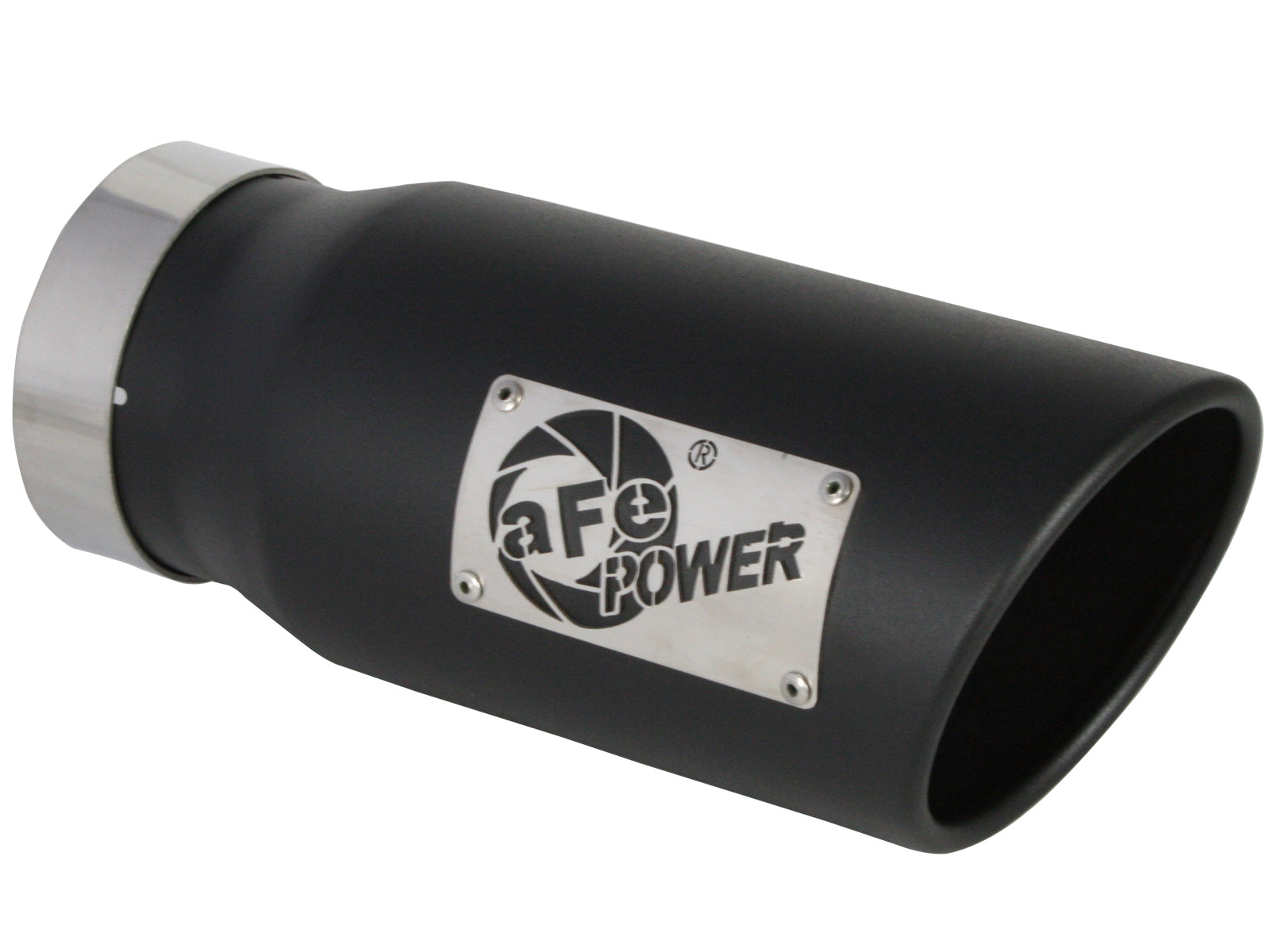

aFe Black RIGHT 4-Inlet x 5-Outlet x 12-Inch Exhaust Tip

aFe
AFE49T40501-B12
802959498934
Tips
8 Units In Stock
$ 130.00 $ 103.00
$ 103.00

Single-outlet bolt-on exhaust tip

The aFe 49T40501-B12 MACH Force-Xp tip has a 4-inch inlet, 5-inch outlet and 12-inch length. Current manufacturer specifies 409 stainless steel, a wrinkle black powder-coated finish and single-wall, slash-cut rolled edge. A 304 stainless steel band clamp secures the inlet.

Key Features

  • 4-inch inlet x 5-inch outlet x 12-inch length.
  • 409 stainless steel construction; wrinkle black powder-coated finish.
  • Single-wall, slash-cut rolled edge.

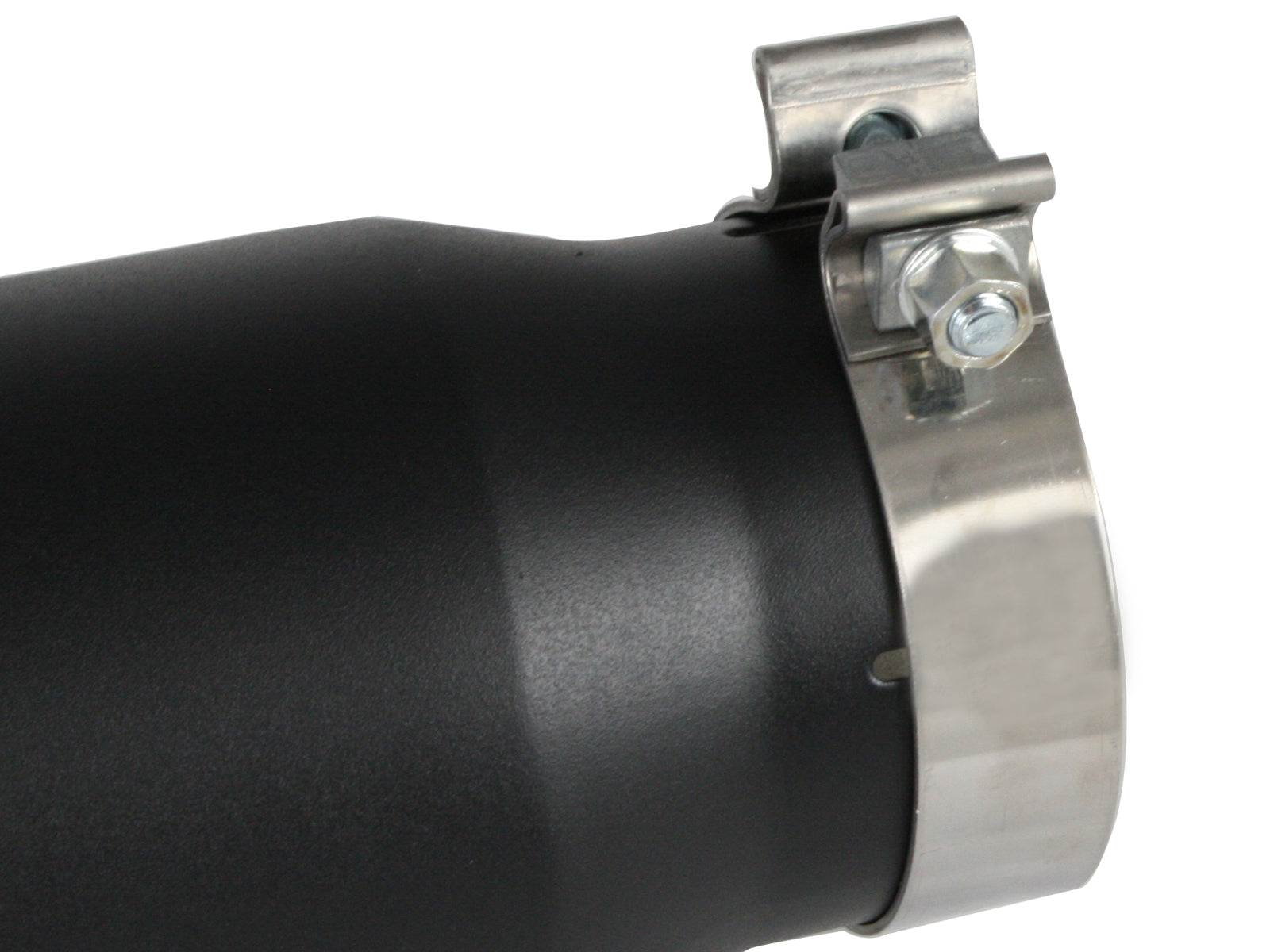

  • Included 304 stainless steel band clamp.

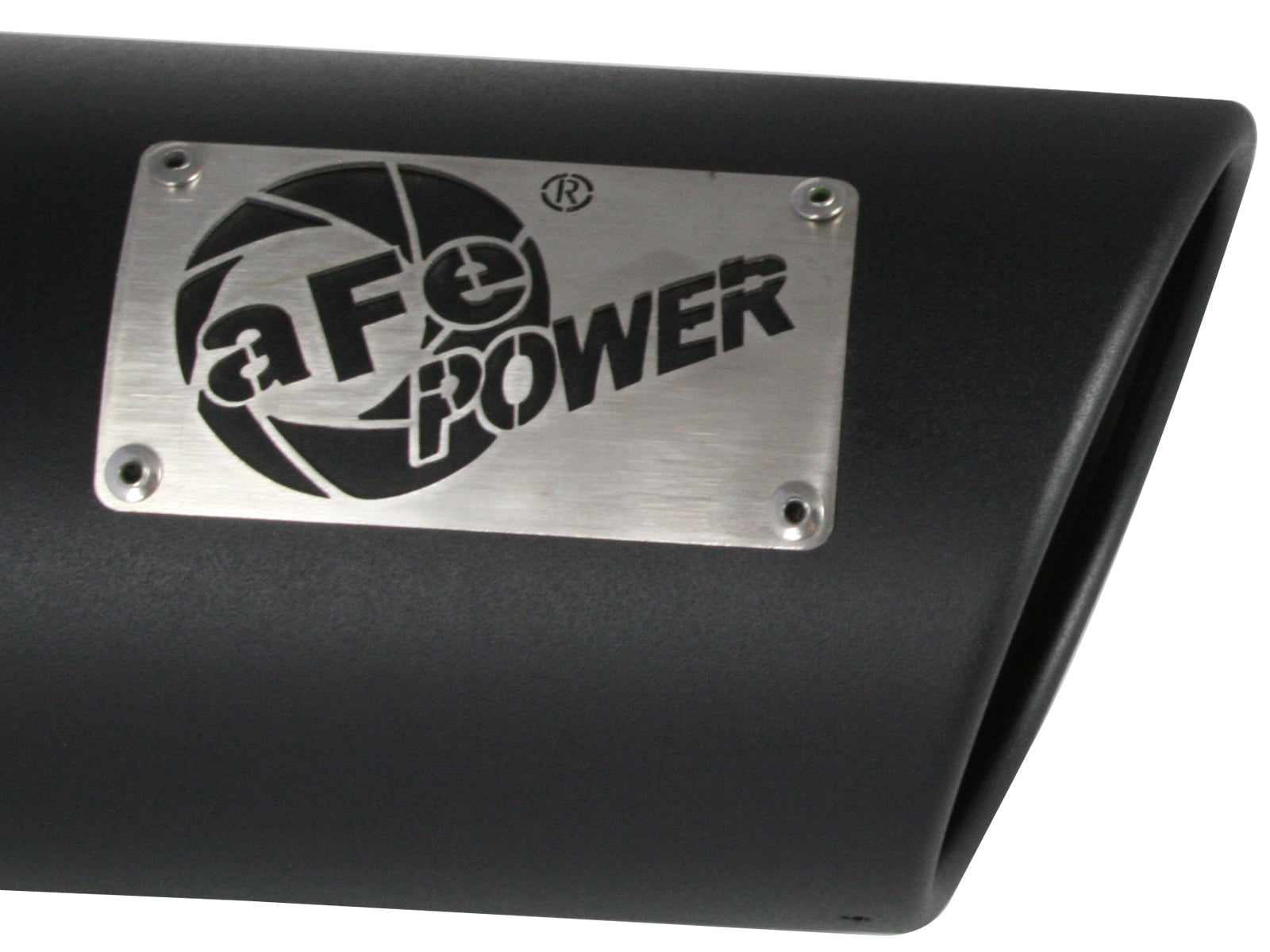

  • Current exact manufacturer specifies laser-cut aFe POWER logo plate riveted to the tip.
  • Manufacturer rates the black coating’s heat resistance up to 1600 degrees F; this is not a verified exhaust-gas temperature or temperature reduction.
  • Manufacturer labels this the RIGHT bolt-on selection.

Fitment

Application Exhaust Configuration Requirements
Specification-matched Compatible 4-inch exhaust outlet RIGHT bolt-on selection Verify actual mating pipe, overlap, clamp engagement and clearance around the 5-inch outlet and 12-inch tip

Specifications

Detail Value
Brand / line aFe POWER / MACH Force-Xp
Manufacturer Part Number 49T40501-B12
Product type Tips
Material 409 stainless steel
Finish wrinkle black powder-coated
Inlet / outlet / length 4 inches / 5 inches / 12 inches
Construction / edge single-wall, slash-cut rolled edge
Mounting Bolt-on; inlet; 304 stainless steel band clamp
Branding Current exact manufacturer specifies laser-cut aFe POWER logo plate riveted to the tip.
Orientation / drainage RIGHT selection; left-side suitability not established
Included ONE tip assembly with 304 stainless steel band clamp
Coating heat-resistance claim Up to 1600 degrees F per manufacturer; coating rating only, not a verified exhaust-gas temperature
Standalone torque / interval No numeric torque, fixed insertion depth, rotation angle or recheck mileage supplied by selected page
UPC 802959498934

What's Included

  • ONE wrinkle black powder-coated 409 stainless steel tip assembly.
  • Stainless band clamp for the inlet.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

FAQ

What is the 49T40501-B12?

One MACH Force-Xp wrinkle black powder-coated bolt-on exhaust tip with a 4-inch inlet, 5-inch outlet and 12-inch length. This is the manufacturer’s RIGHT selection.

Which dimensions must match?

Match the 4-inch inlet to the actual mating exhaust pipe and verify overlap, clamp engagement and surrounding clearance. The 5-inch outlet and 12-inch tip length need sufficient bumper/body clearance. Universal does not guarantee every installation.

What is included?

One wrinkle black powder-coated 409 stainless steel tip assembly with a 304 stainless steel band clamp. This is one exhaust-outlet accessory, not a complete cat-back, muffler, tailpipe or pair of tips. No gasket, hanger, sensor, valve motor, filter or intake coupler is itemized.

What material, edge and branding are specified?

Current exact manufacturer identifies 409 stainless steel, single-wall, slash-cut rolled edge and wrinkle black powder-coated finish. Current exact manufacturer specifies laser-cut aFe POWER logo plate riveted to the tip.

Does it replace the muffler or provide verified power gains?

No muffler or complete exhaust system is included. No actual standalone dyno, airflow or sound test is linked, so no numeric power increase or drone result is promised.

Is a left-side installation established?

The selected manufacturer headline identifies this as RIGHT. No left-side clearance or logo-orientation compatibility is established by simply rotating it. Check the actual side and outlet position before installation.

What clamp torque and recheck interval apply?

No standalone instruction link, numeric torque, insertion depth or fixed recheck mileage is supplied by this selected page. Follow the correct instructions for the supplied clamp. Do not borrow a complete exhaust system’s band-clamp torque or service interval.

Does the manufacturer supply an emissions statement?

The current exact page states that no CARB EO number is required. This does not waive local sound or usage requirements or authorize changes to unrelated emissions equipment.

Installation Instructions

  1. Allow the exhaust to cool. Compare the selected tip and clamp with the planned installation. Measure the actual mating pipe and available overlap, and confirm room for the 5-inch outlet and 12-inch length.
  2. Fit the inlet on the compatible pipe and check clamp engagement, body clearance and outlet position. Confirm the selected RIGHT-side layout; no left-side rotation compatibility is established. No fixed insertion depth or rotation angle is supplied.
  3. Secure the tip using the correct supplied-clamp instructions. The exact page provides no standalone numeric torque or fixed recheck mileage; a vehicle-specific cat-back manual’s values are not substituted.
  4. Inspect security and clearance after fitting. Have an exhaust installer assess any required trimming or fabrication. No battery-disconnection, sensor-transfer, valve-motor or coding procedure is established for this accessory.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
