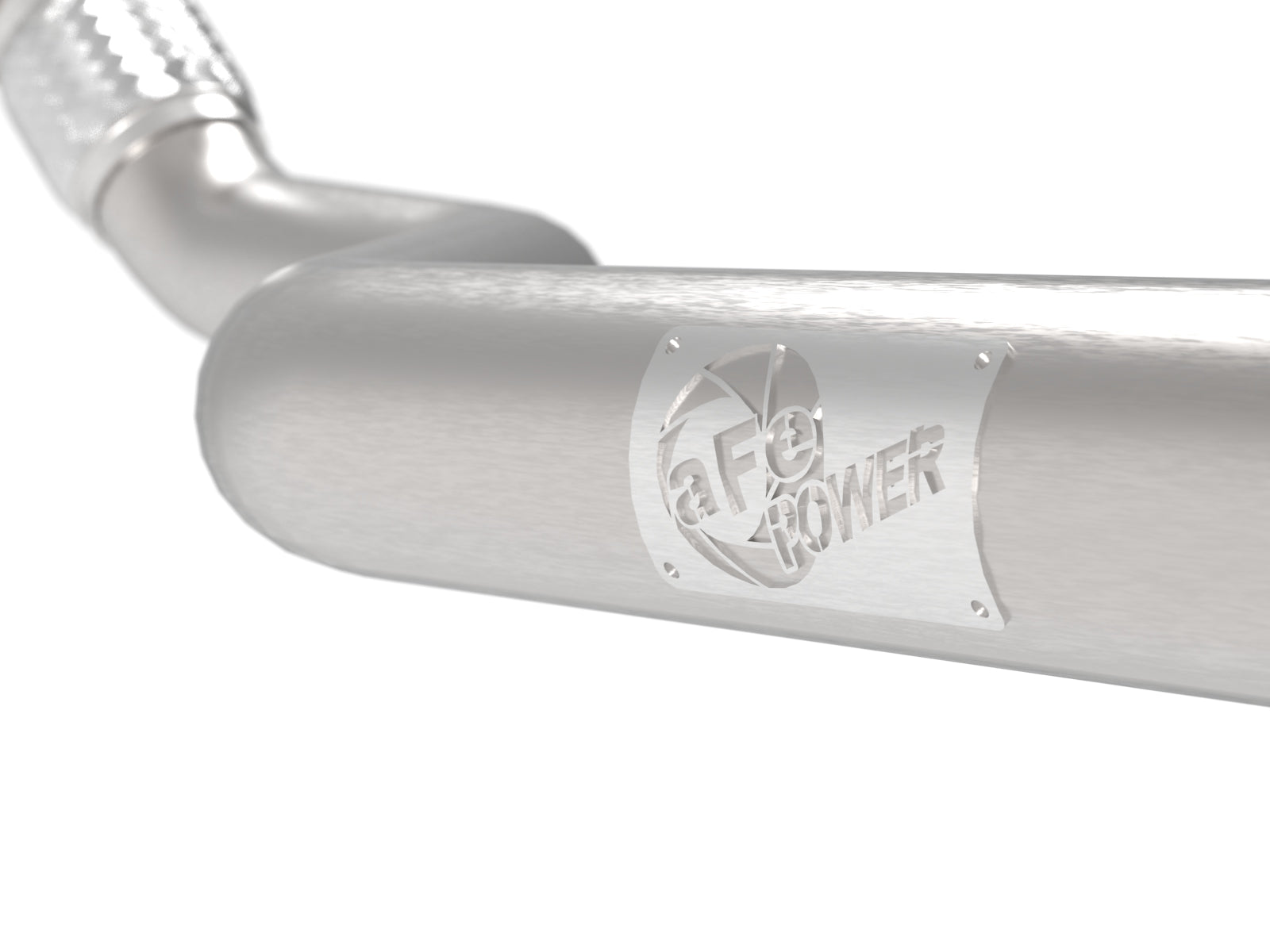

Audi MACH Force-Xp mid-pipe details

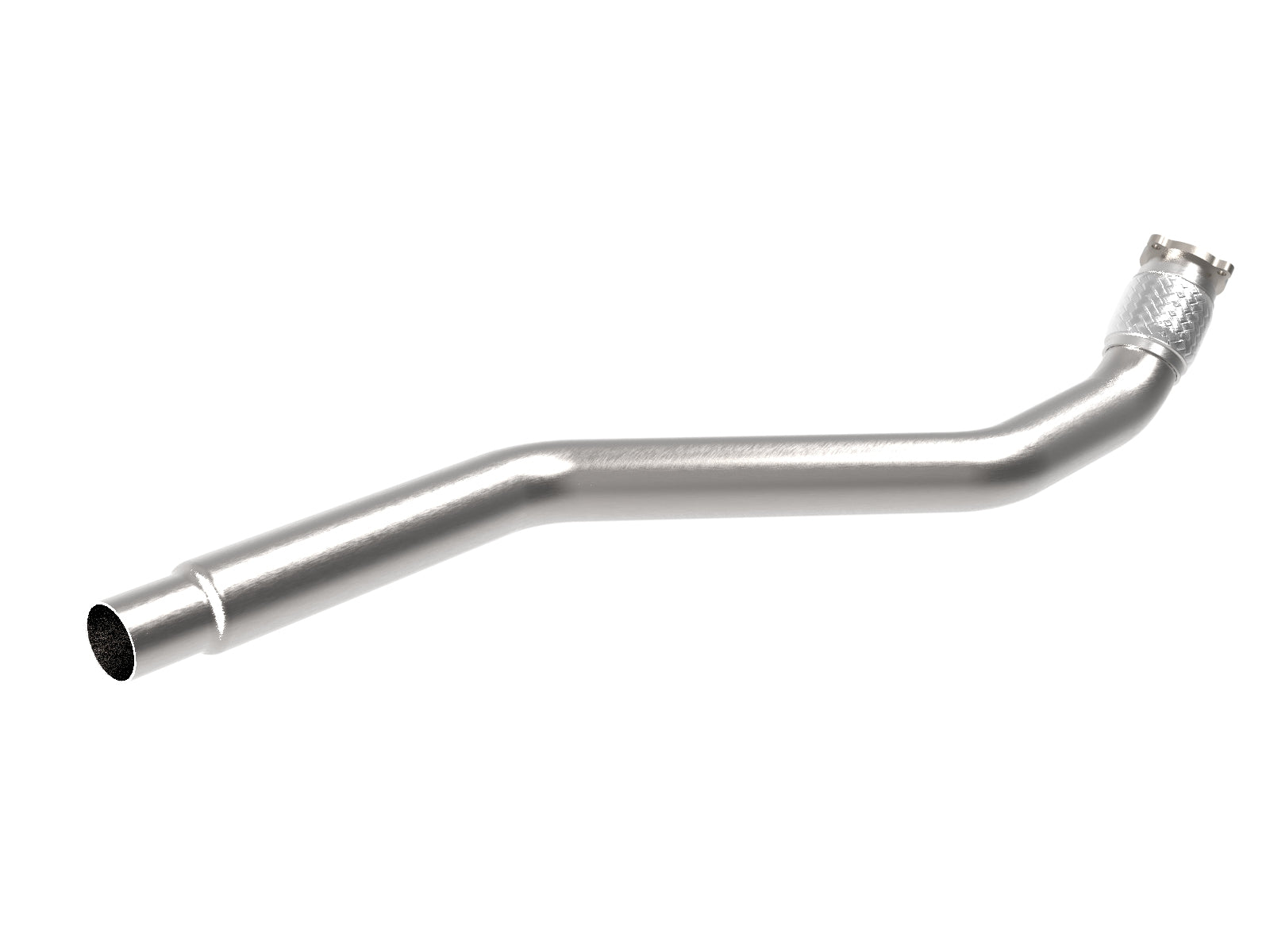

aFe 49-36428 MACH Force-Xp replaces the original front resonator with 3-inch mandrel-bent 304 stainless tubing and an interlock-lined flex section. MIG-welded construction joins the retained original turbo downpipe and rear exhaust through the specified flange and sleeve connections.
Key Features
- 3-inch mandrel-bent 304 stainless tubing.
- 100% MIG-welded construction.

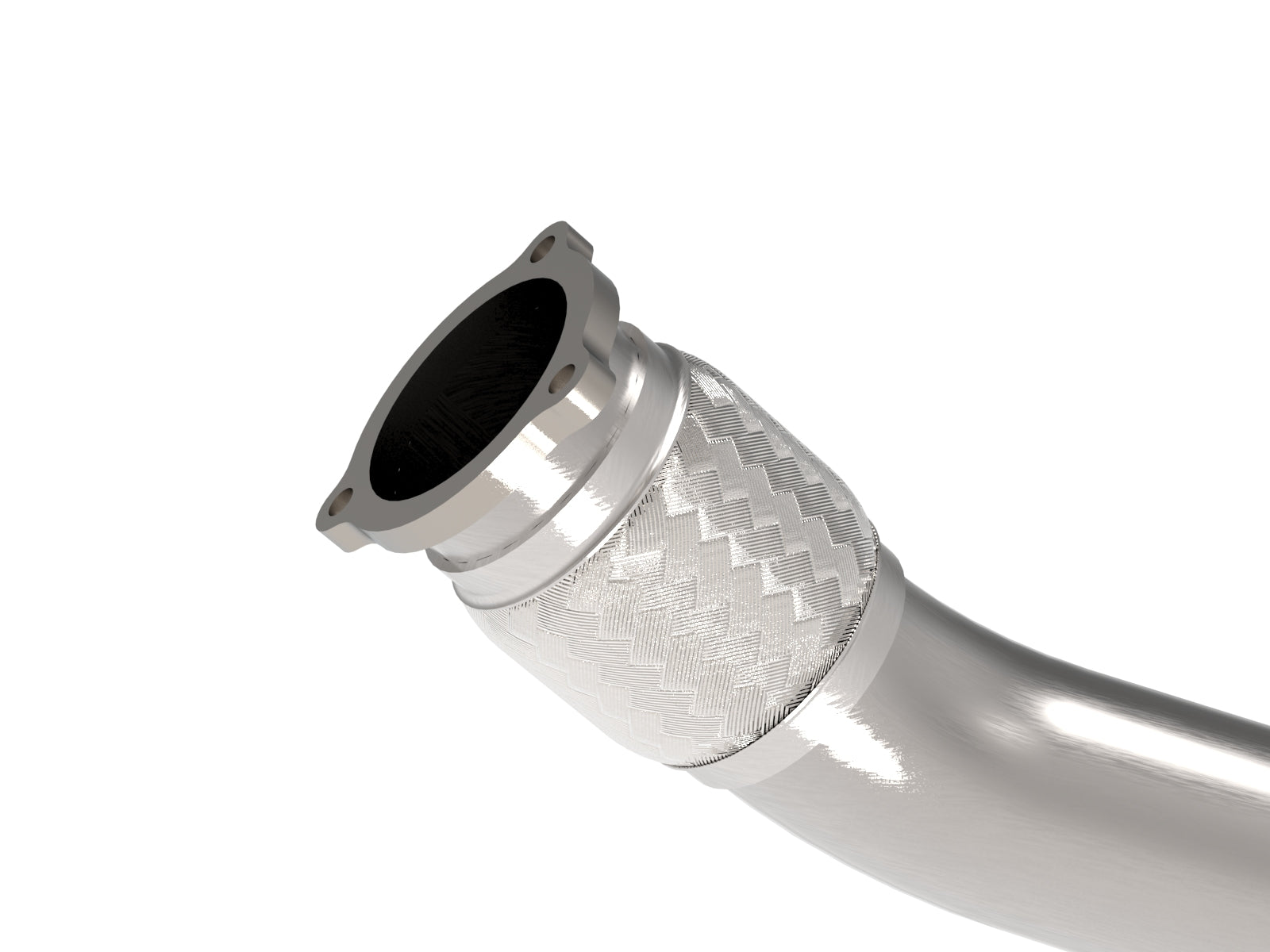

- Heavy-duty flex with internal interlock liner.
- ONE mid-pipe assembly; front resonator deleted.
- THREE M8 x 1.25 x 35 bolts and THREE M8 x 1.25 nuts.
- Original front gasket and rear sleeve clamp reused.
- Original belly pan removed and RESTORED; 50-100-mile hardware recheck.
Fitment
Audi 2.0L turbocharged four-cylinder, with FWD and AWD (Quattro) explicitly covered by own September 2026 manual: A4 2009-2016, A5 2010-2016, Q5 2011-2016 and allroad 2013-2016. Current product headline names A4/A5, while own manual explicitly includes Q5/allroad. Exact named rows are narrower: A4 Base 2009-2014, Cabriolet 2009, Premium/Premium Plus 2015-2016 and Prestige 2015; A5 Cabriolet 2010-2014; Q5 Premium/Premium Plus 2011-2012; allroad Premium/Premium Plus 2013-2016 and Prestige 2013-2015. Later missing named A5/Q5/hybrid years remain unconfirmed; no diesel, V6 or later-generation fitment is inferred. Confirm flange, original gasket and sleeve interface.
| Years | Make | Model | Named grade; actual 2.0L turbo and matching original flange/sleeve interface required |
|---|---|---|---|
| 2009-2014 | Audi | A4 | Base |
| 2015-2016 | Audi | A4 | Premium |
| 2015-2016 | Audi | A4 | Premium Plus |
| 2015 | Audi | A4 | Prestige |
| 2010-2014 | Audi | A5 | Cabriolet |
| 2011-2012 | Audi | Q5 | Premium |
| 2011-2012 | Audi | Q5 | Premium Plus |
| 2009 | Audi | A4 | Cabriolet |
| 2013-2016 | Audi | allroad | Premium |
| 2013-2016 | Audi | allroad | Premium Plus |
| 2013-2015 | Audi | allroad | Prestige |
Verify 49-36428 against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-36428 |
| System | MACH Force-Xp front resonator-delete mid-pipe; no new resonator or rear muffler |
| Material / weld | 3-inch mandrel-bent 304 stainless; MIG-welded |
| Flex | Heavy-duty interlock-lined flex section |
| Assembly | ONE 05-145971 |
| Supplied hardware | THREE M8 x 1.25 x 35 flange bolts 03-50404 and THREE M8 x 1.25 nuts 03-50403 |
| Original components | Front gasket, rear sleeve clamp, turbo downpipe, rear exhaust and belly pan retained |
| Torque qualification | Generic cover band note 40-45 ft-lb; no new band itemized or separate original-sleeve/M8 flange torque assigned |
| Recheck | Re-tighten clamps and hardware after 50-100 miles |
| Performance evidence | No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked. Manufacturer describes a moderate exhaust tone from replacing the original resonator with tubing; this does not establish a power or drone guarantee. |
| Emissions | Current manufacturer says no CARB EO number required; no converter supplied |
| UPC | 802959633410 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
What's Included
- 1 x 05-145971: Mid-pipe assembly.
- 3 x 03-50404: M8 x 1.25 x 35 hex-flange bolt.
- 3 x 03-50403: M8 x 1.25 nut.
ONE mid-pipe assembly 05-145971 with interlock-lined flex section, THREE M8 x 1.25 x 35 hex-flange bolts 03-50404 and THREE M8 x 1.25 nuts 03-50403. Reuse ORIGINAL front gasket and ORIGINAL rear sleeve clamp. No new gasket, sleeve/band clamp, resonator, muffler, decorative tip, converter, valve motor or intake filter/coupler is itemized. This pipe DELETES the original front resonator; it is not a supplied resonator or full cat-back.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 49-36428
- Exact illustrated installation manual
- Shop the complete aFe Power collection
FAQ
What is the 49-36428?ONE mid-pipe assembly 05-145971 with interlock-lined flex section, THREE M8 x 1.25 x 35 hex-flange bolts 03-50404 and THREE M8 x 1.25 nuts 03-50403. Reuse ORIGINAL front gasket and ORIGINAL rear sleeve clamp. No new gasket, sleeve/band clamp, resonator, muffler, decorative tip, converter, valve motor or intake filter/coupler is itemized. This pipe DELETES the original front resonator; it is not a supplied resonator or full cat-back.
Which Audi models and named years apply?Audi 2.0L turbocharged four-cylinder, with FWD and AWD (Quattro) explicitly covered by own September 2026 manual: A4 2009-2016, A5 2010-2016, Q5 2011-2016 and allroad 2013-2016. Current product headline names A4/A5, while own manual explicitly includes Q5/allroad. Exact named rows are narrower: A4 Base 2009-2014, Cabriolet 2009, Premium/Premium Plus 2015-2016 and Prestige 2015; A5 Cabriolet 2010-2014; Q5 Premium/Premium Plus 2011-2012; allroad Premium/Premium Plus 2013-2016 and Prestige 2013-2015. Later missing named A5/Q5/hybrid years remain unconfirmed; no diesel, V6 or later-generation fitment is inferred. Confirm flange, original gasket and sleeve interface.
Is a resonator, muffler or new gasket supplied?No. This is a front RESONATOR-DELETE pipe. Retain ORIGINAL gasket and sleeve clamp. No new resonator, muffler, decorative tip or converter is itemized.
Which hardware joins the original downpipe?THREE supplied M8 x 1.25 x 35 hex-flange bolts and THREE M8 x 1.25 nuts secure front flange using original gasket. Rear connection uses original sleeve clamp.
Does the belly pan stay removed?No. Own step 5 removes belly pan and step 10 REINSTALLS it. Retain original pan and fixing hardware.
What torque and mileage recheck apply?Cover gives a generic BAND CLAMP note of 40-45 ft-lb, but no new band is itemized and original sleeve step only says tighten. No separate original-sleeve or M8 flange torque is printed. Re-tighten clamps/hardware after 50-100 miles; do not substitute the generic number for unspecified original fasteners.
Does installation require cutting or sensor wiring?Current primary specifies no cutting/modifications. Own procedure has no drilling, battery-disconnection, sensor wiring, coding, valve transfer or installation welding step. Retain original turbo downpipe and rear exhaust.
Are power gains or cabin-drone measurements supplied?No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked. Manufacturer describes a moderate exhaust tone from replacing the original resonator with tubing; this does not establish a power or drone guarantee.
Installation Instructions
Verify aFe 49-36428.
- Read BOTH own September 2026 manual pages and all 14 steps/diagram. Inspect shipping condition, cool exhaust, wear eye/hand protection and support vehicle/exhaust independently at approved jack/stand positions. Lay out pipe and leave new joints adjustable until aligned.
- Remove the original BELLY PAN from underside using flathead screwdriver; retain pan and hardware. Loosen nuts on ORIGINAL SLEEVE CLAMP joining original resonator pipe to retained rear exhaust. Remove nuts joining original resonator pipe to turbo downpipe.

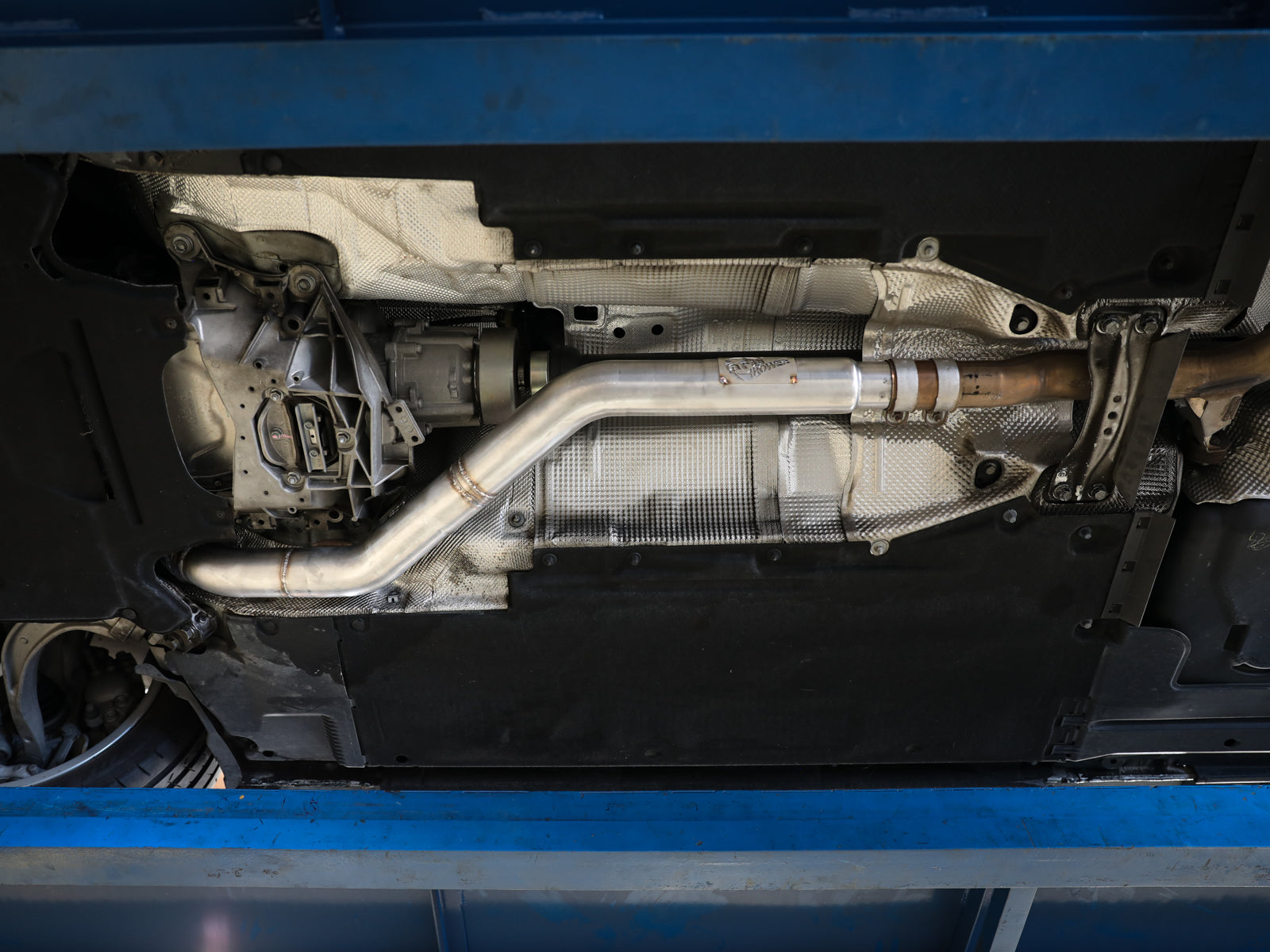

- Install new mid-pipe on ORIGINAL downpipe using ORIGINAL GASKET and THREE supplied M8 x 1.25 x 35 bolts/THREE supplied M8 x 1.25 nuts. No new gasket is itemized. Slide ORIGINAL sleeve clamp between new mid-pipe and original rear exhaust and tighten.
- REINSTALL BELLY PAN. Check alignment and safe clearance from wires, hoses, brake lines, body and tires. The own cover specifies BAND CLAMPS 40-45 FT-LB, but no new band is itemized and step 9 simply tightens original sleeve. No separate original-sleeve or M8 flange numeric torque is assigned; do not silently apply generic band value to either original component.
- Start vehicle and check/repair leaks, lower vehicle and re-tighten clamps/hardware after 50-100 miles. Current primary specifies no cutting/modifications. Own procedure supplies no drilling, battery-disconnection, sensor wiring, coding, valve transfer or installation welding step. Original turbo downpipe and rear exhaust remain.
No actual dyno or airflow chart, numeric horsepower/torque gain or measured cabin-drone result is linked. Manufacturer describes a moderate exhaust tone from replacing the original resonator with tubing; this does not establish a power or drone guarantee. Own manual extends model scope to Q5/allroad beyond current headline, with exact named retailer rows used rather than blanket grade extensions. Later Q5 hybrid named proof remains held. Generic band torque is not substituted for an unprinted original-sleeve or M8 flange number.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
