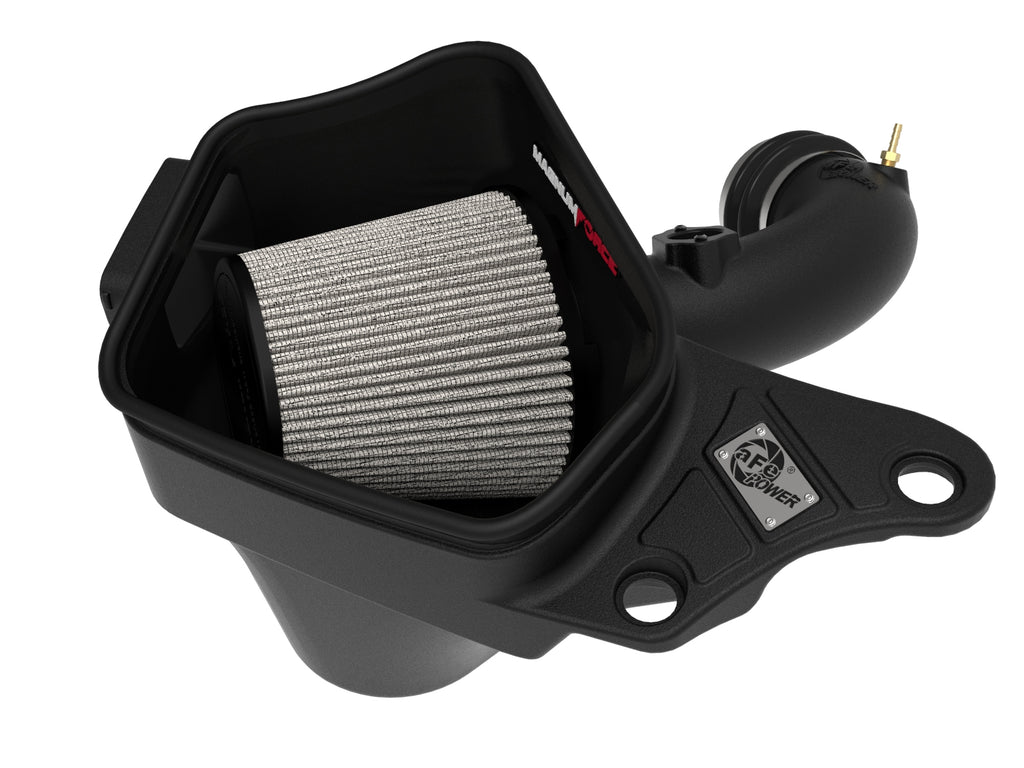

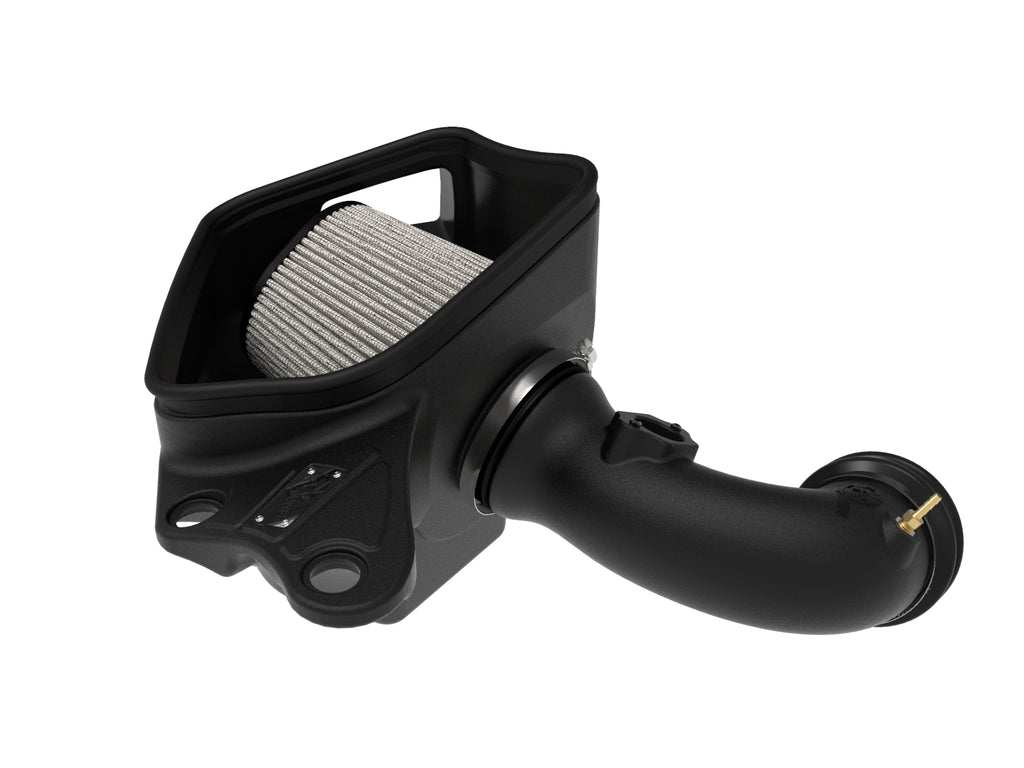

aFe 54-13053D is a Magnum FORCE Stage-2 intake for qualified BMW N52 3.0L naturally aspirated applications, using one Pro DRY S filter, an XLPE tube and an open-element XLPE housing. The original MAF, front air duct, mounting grommets/metal sleeves and mounting bolts are retained. The manual distinguishes vehicles with a CCV hose from those using the supplied plug, and provides a separate reservoir-clearance sequence where steering equipment sits above the original tube.
Current manufacturer application identifies N52 3.0L non-turbo 128i E82/E88 2008-2013 and selected E90/E91/E92/E93 3-Series applications. The manual separately lists 325i/330i 2006 and 328i 2007-2013. All eight original named rows, year bounds, gaps and native memberships below are preserved with exact selected retailer support for the xi/xDrive aliases. Confirm the actual N52 engine and E-series body; a later 328i badge alone does not establish an F-series turbo application. No N51, N54/N55, different displacement, special edition or larger-displacement compatibility is inferred from a broad model table.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2008-2013 | BMW | 128i | Base |
| 2006 | BMW | 325i | Base |
| 2006 | BMW | 325xi | Base |
| 2007-2013 | BMW | 328i | Base |
| 2009-2013 | BMW | 328i xDrive | Base |
| 2007-2008 | BMW | 328xi | Base |
| 2006 | BMW | 330i | Base |
| 2006 | BMW | 330xi | Base |
Verify 54-13053D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 54-13053D |
| System | Magnum FORCE Stage-2; Pro DRY S |
| Filter | One 21-90113; four-inch round flange, seven-inch height |
| Filter media | Three synthetic layers; oil-free |
| Tube/housing | XLPE cross-linked polyethylene |
| Bellows | 05-01542, 3.1-inch ID x 3-inch length |
| CCV port | Brass 1/8-NPT fitting OR plug according to actual vehicle hose arrangement |
| Bench flow | 460 versus stock 275 CFM at 7 inches H2O, a calculated 67.27% increase |
| Dyno comparison | At the marked 6,197 rpm, the oil-free graph shows 186.59/177.68 HP and 158.15/150.60 lb-ft: differences of 8.91 HP and 7.55 lb-ft. Legend maxima differ by 7.32 HP and 3.28 lb-ft (186.64/179.32 HP; 176.18/172.90 lb-ft). Both charts identify a 2006 BMW 325i E90 N52, original ECU/headers/exhaust, 255/35R18 tires, RWD, fourth gear, open hood, large fan and two small fans. Baseline is August 5, 2020 at 7:33 AM, SAE 1.02; intake is August 20 at 12:37 PM, SAE 1.06. Different dates and correction factors qualify the comparison; results do not certify every later listed chassis or engine. |
| Emissions | Current manufacturer page and manual: not CARB exempt; not for purchase in California or use on a California-registered vehicle |
| Post-install check | 100-200 miles; no numeric torque specified |

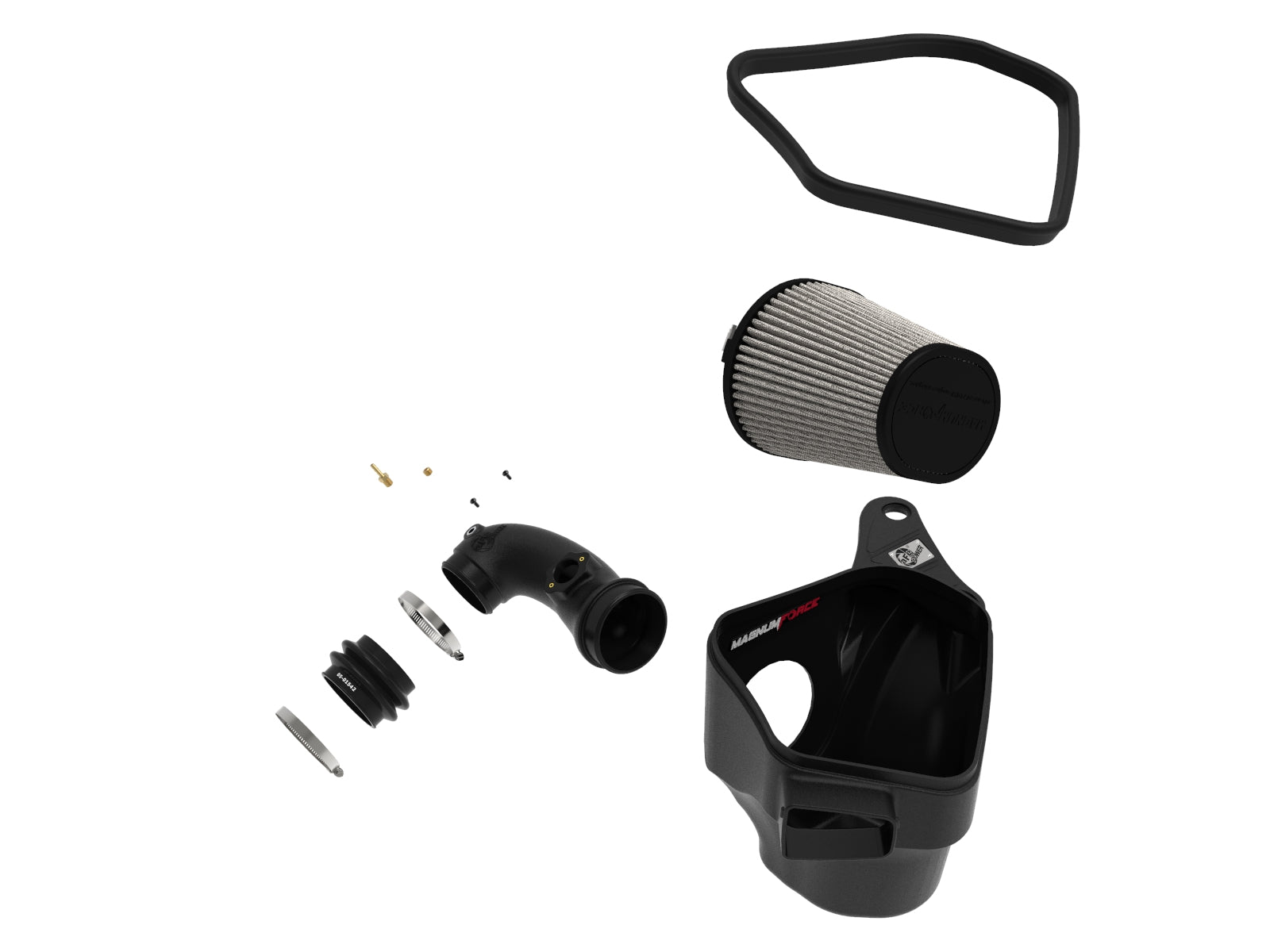

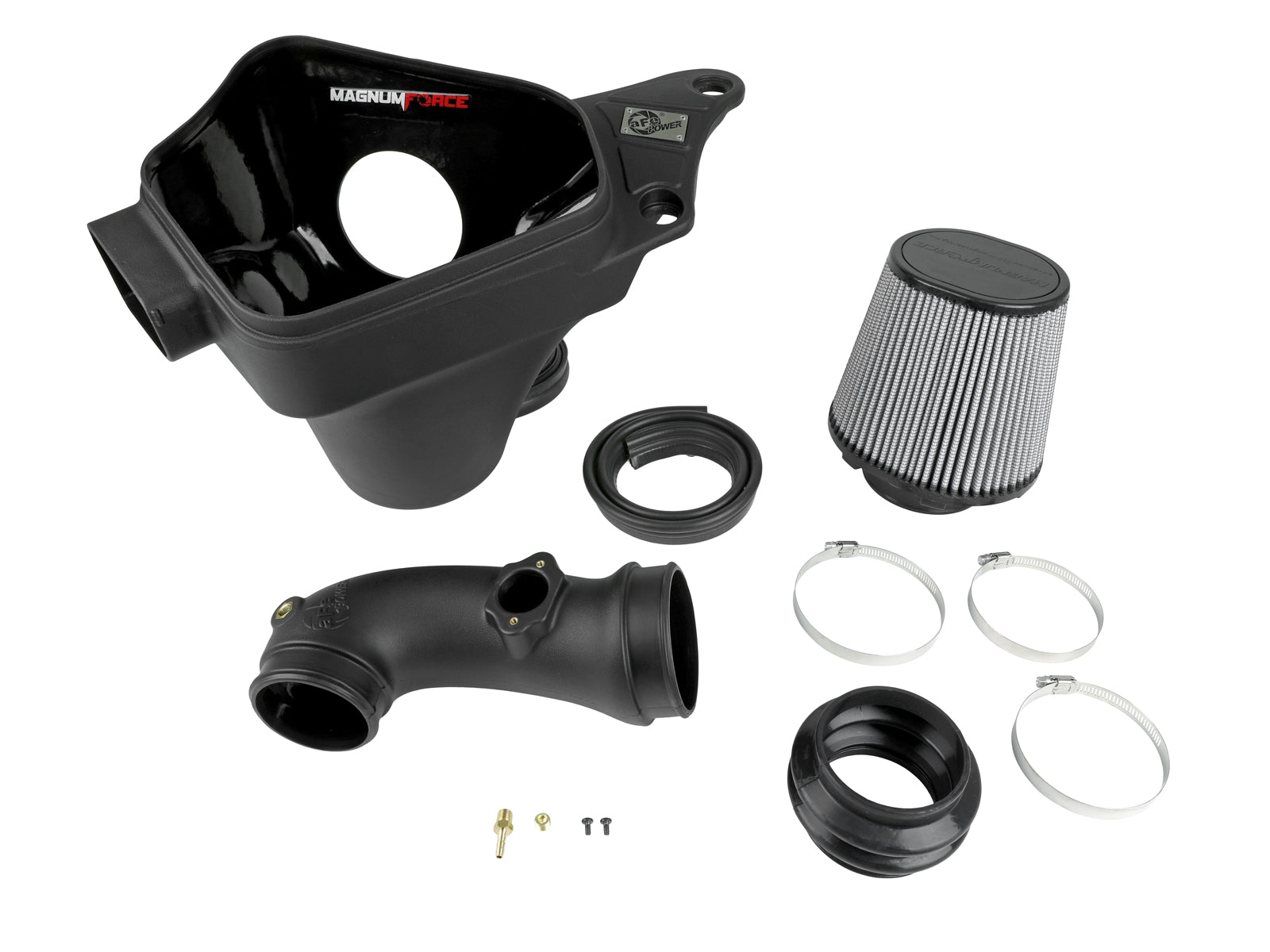

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-90113 | Selected Pro DRY S filter |
| 1 | 05-5413053B1 | XLPE intake tube |
| 1 | 05-5413053B2 | XLPE housing |
| 1 | 05-01542 | Silicone bellows, 3.1-inch ID x 3-inch length |
| 2 | 03-50007 | Size 048 clamps |
| 1 | 03-50191 | Brass 1/8-NPT fitting |
| 1 | 03-50410 | Brass 1/8-NPT plug |
| 2 | 03-50490 | M4 screws; exact bill gives no length |
| 39 inches | 05-01507 | 3/4-inch bulb trim |
One selected filter is supplied; the shared bill shows alternative dry and oiled media. The filter flange has its own clamp in addition to the two bellows clamps. Reuse the original MAF, front duct, two grommets/metal sleeves and two housing bolts. The fitting and plug are alternatives for the actual CCV configuration; the manual notes a small gap between the NPT hex and the tube. No new sensor, steering reservoir, bracket nuts or CCV hose is itemized.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

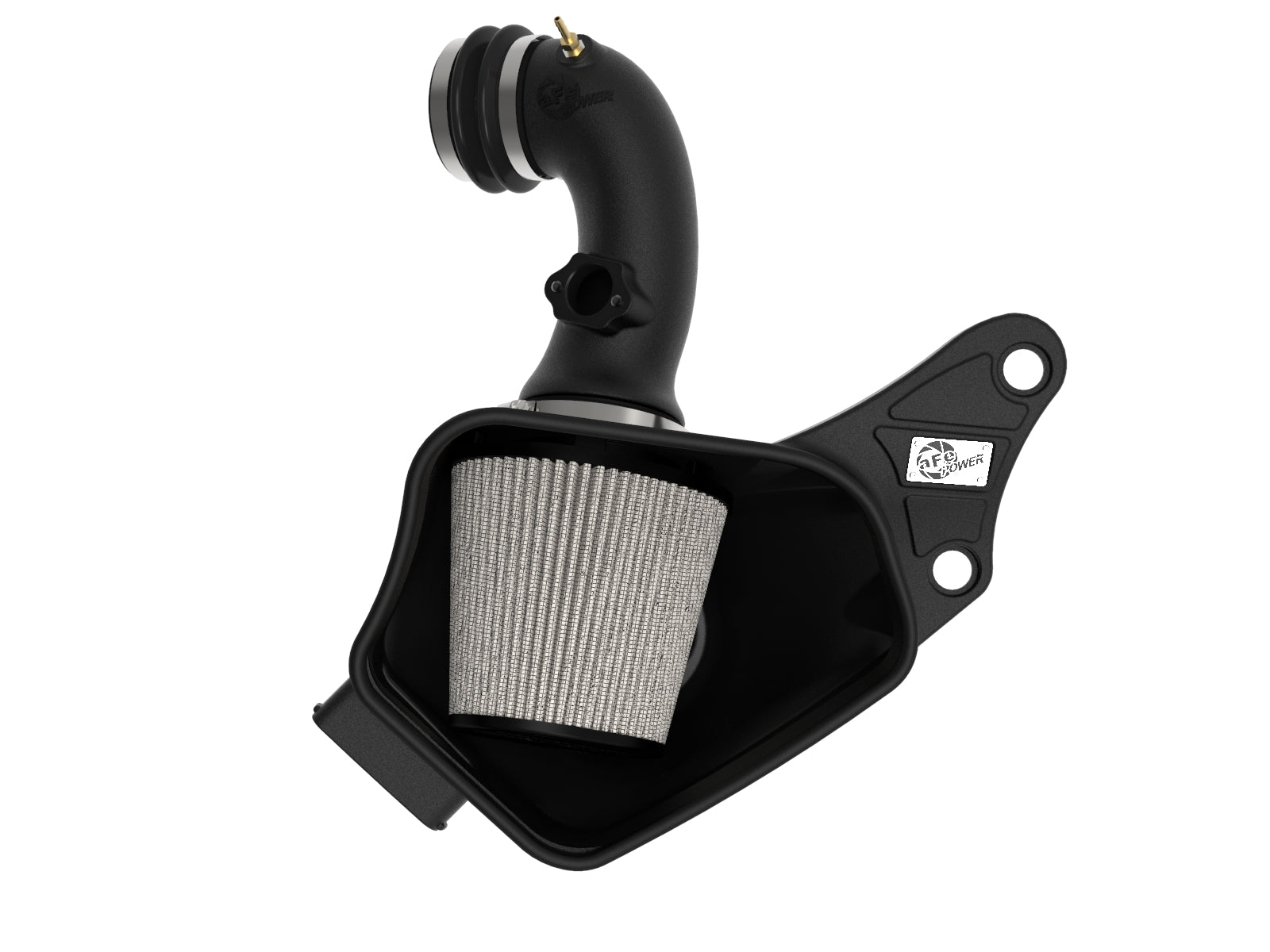

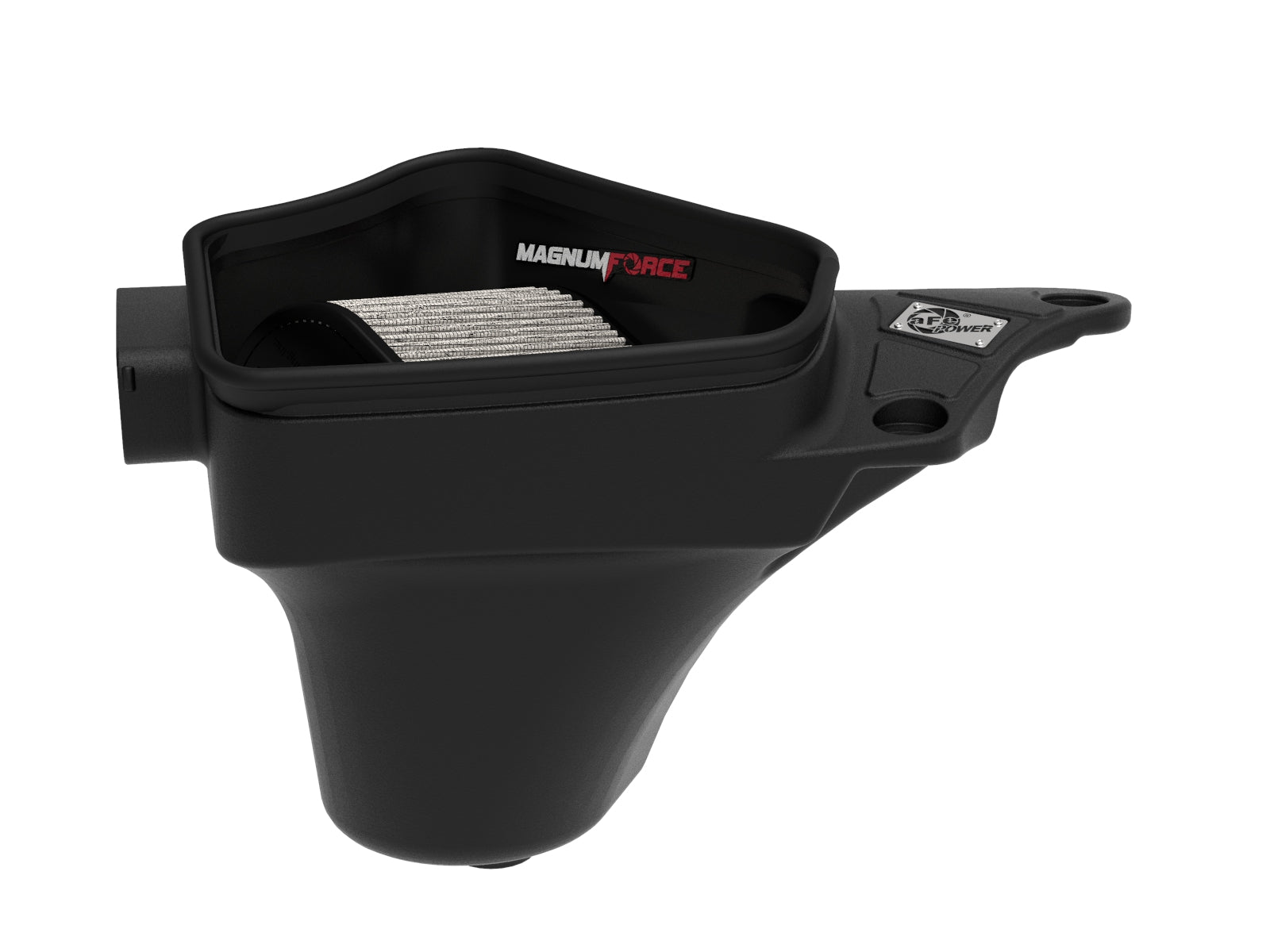

An N52 3.0L application-specific Stage-2 system with one Pro DRY S filter, an XLPE tube and an open-element XLPE housing.
Are both media filters supplied?No. This selection uses one 21-90113 Pro DRY S filter. The shared manual depicts the other media as an alternative selection.
Which way must the filter face?Snap the flange through the housing opening and rotate the filter so its wider side faces upward, as illustrated.
When is the brass fitting used instead of the plug?Use the 1/8-NPT fitting for a vehicle with the original CCV hose, and the plug when that hose is absent. The manual expects a small gap between the NPT hex and tube; do not assume it must bottom flush.
How is the throttle-body bellows seated?Engage its internal bead in the throttle-body groove. Once seated and able to rotate easily, secure the throttle-body-side clamp at its locating bead; leave the open-end clamp loose until final tube alignment.
What happens to the steering reservoir if it blocks removal?Retain its two factory nuts, move the reservoir forward as instructed and release the bracket air line. Restore the reservoir to its bracket with those nuts and reseat the original air line after tube installation.
Does a later 328i badge establish compatibility?No. Confirm the N52 3.0L non-turbo engine, correct E-series chassis and actual connections. The original broad year rows are preserved with these qualifications; turbo F-series fitment is not inferred.
What check interval and test limitations apply?Check bolts, clamps and connectors after 100-200 miles. No numeric torque or battery-disconnection step is given. Bench airflow differs by media; dyno point gains differ from peak-to-peak legend differences and used different-date runs.
Verify aFe 54-13053D. Read the complete illustrated manual and work on a cool engine. Remove and retain the two housing bolts, disconnect the MAF harness, loosen the airbox clamp and remove the housing from the factory duct. Where steering equipment sits above the intake tube, retain both reservoir nuts, detach the bracket air line and carefully move the reservoir forward for clearance. Release the throttle-body clamp and any original CCV hose, then remove the original tube. Transfer the MAF using the supplied M4 screws. Fit the brass CCV fitting or plug as appropriate, retaining the illustrated small NPT-hex gap. Remove the selected filter clamp, snap the filter flange through the new housing, rotate the WIDER SIDE UP and refit the clamp loosely. Install top trim and transfer both original grommets and metal sleeves. Seat the bellows internal bead into the throttle-body groove; once seated and able to rotate easily, tighten the throttle-body-side clamp, keeping the other end loose. Install the tube into the bellows, reconnect any CCV hose and MAF harness. Restore the steering reservoir with both original nuts and reseat its bracket air line where applicable. Lower the filter/housing assembly into place, connect tube to filter and housing to original front duct, then secure with both original bolts and tighten remaining clamps. Recheck bolts, clamps and connectors after 100-200 miles. This manual gives no battery-disconnection step or numeric torque.
Each own linked 16-page manual was read and visually inspected across all eight contact sheets, including the complete bill and Figures A-I. The dry manual leaves later accessory/warranty pages blank where the oiled copy contains historical accessory and warranty text; those pages do not add components to the kit. Both exact flow and dyno images were inspected separately. At the marked 6,197 rpm, the oil-free graph shows 186.59/177.68 HP and 158.15/150.60 lb-ft: differences of 8.91 HP and 7.55 lb-ft. Legend maxima differ by 7.32 HP and 3.28 lb-ft (186.64/179.32 HP; 176.18/172.90 lb-ft). Both charts identify a 2006 BMW 325i E90 N52, original ECU/headers/exhaust, 255/35R18 tires, RWD, fourth gear, open hood, large fan and two small fans. Baseline is August 5, 2020 at 7:33 AM, SAE 1.02; intake is August 20 at 12:37 PM, SAE 1.06. Different dates and correction factors qualify the comparison; results do not certify every later listed chassis or engine. Original fitment tags and vehicle memberships remain unchanged. Turn14 exact-product information remains unavailable without authenticated access. No fixed filter-cleaning mileage, guaranteed power, emissions exemption or price change is claimed.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
