aFe REBEL Catback — Toyota Tacoma 4.0L, Dual Black Tips

Tacoma 4.0L REBEL with dual black mid-cab outlets

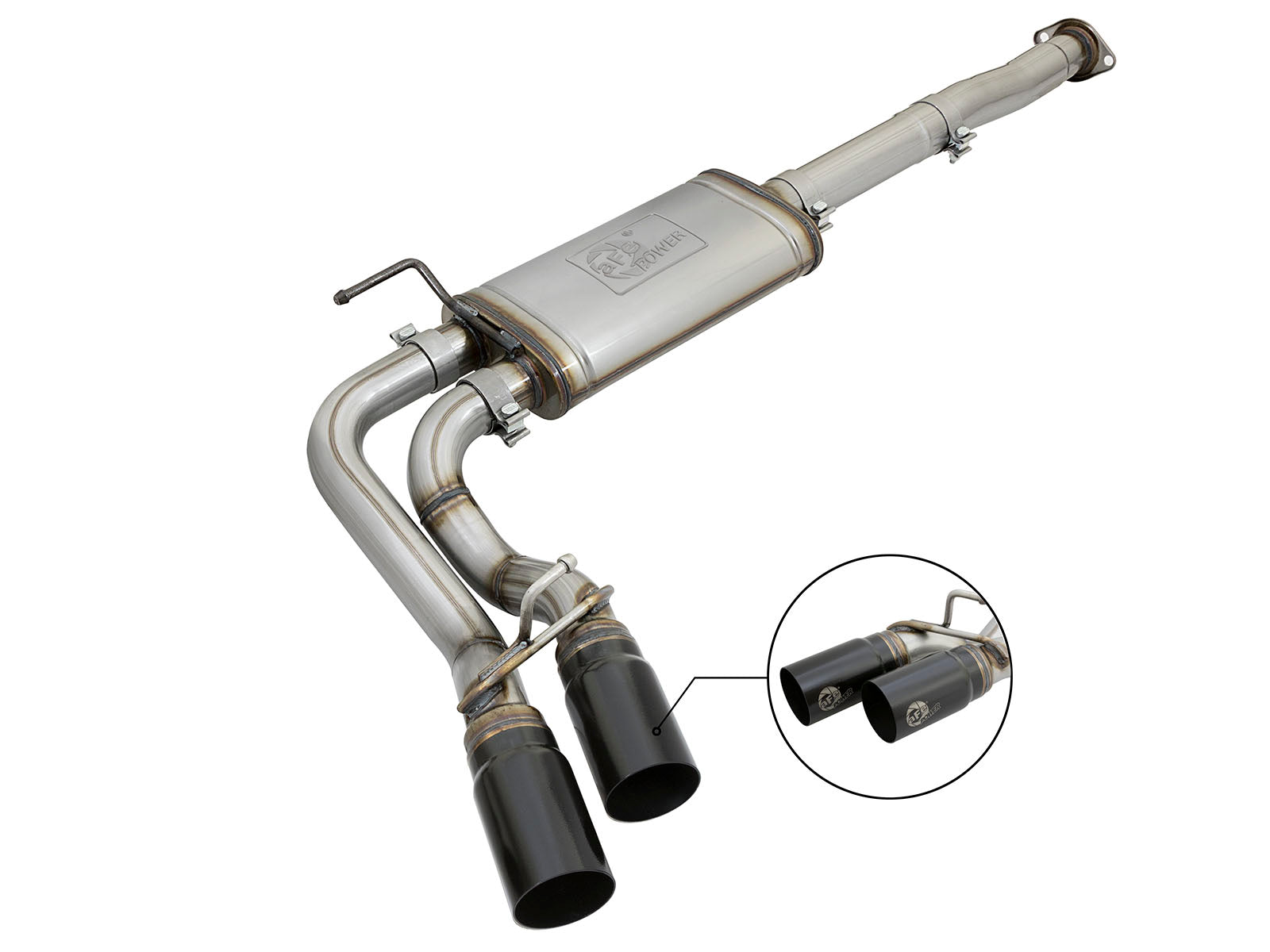

The aFe 49-46033-B REBEL uses 3-inch mandrel-bent 409 stainless main tubing, MIG welds and a high-flow muffler. Two 3-1/2-inch black 304 stainless outlets with laser-etched logos exit ahead of the passenger rear tire. The selected SKU, detailed black-tip specification, guide and native image identify black tips despite one stray polished-tip sentence. Selected body layouts are Double Cab/5-foot bed, Double Cab/6.1-foot bed and Access Cab/6.1-foot bed. The current page prints 127.4 inches for shorter layouts while the exact guide prints 127.8; both print 140.9 for Double Cab/long bed. Confirm actual cab/bed/wheelbase with aFe before ordering if these labels differ from the truck. Side steps may interfere; no regular-cab application is inferred.

Key Features

• Selected aFe part 49-46033-B.
• 3-inch mandrel-bent 409 stainless main tubing and MIG welds, with one high-flow muffler.
• Two 3-1/2-inch black 304 stainless outlets in a single passenger mid-cab exit ahead of the rear tire.
• Selected body layouts are Double Cab/5-foot bed, Double Cab/6.1-foot bed and Access Cab/6.1-foot bed. The current page prints 127.4 inches for shorter layouts while the exact guide prints 127.8; both print 140.9 for Double Cab/long bed. Confirm actual cab/bed/wheelbase with aFe before ordering if these labels differ from the truck. Side steps may interfere; no regular-cab application is inferred.
• one front pipe 05-144247, one extension pipe 05-144206, one muffler assembly 05-144248, one selected black-tip tailpipe assembly 05-144225, one mounting bracket 05-46240, two 3-inch bands 05-41055, two 2-1/2-inch bands 05-41061, two screws 03-50100 and two nuts 03-50069, as pictured in the selected labeled diagram. The polished tailpipe assembly 05-144226 is an alternative, not a second assembly supplied.
• The selected guide diagrams a front pipe and extension but its seven steps provide no explicit extension branch, length, trimming or separate front-pipe installation instruction. Confirm actual packing and the correct front/extension arrangement with aFe before disassembly; do not borrow another Tacoma REBEL system’s extension or brake-cable procedure.
• The current primary calls the dual black 304 stainless tips clamp-on, but the selected guide lists one black-tip tailpipe assembly and no separate tip part numbers or tip-fastener step; the native image shows the tips attached to that assembly. Confirm attachment and replacement requirements rather than promising two separately replaceable clamp-on tips. A stray polished-tip sentence in the overview is not the selected black finish.
• Reuse original bolts, gaskets and rubber isolation mounts and support the muffler with a jack stand. No numeric torque is printed; obtain applicable flange, band and bracket settings.
• Selected guide recommends at least 1/2–1 inch from tailpipe to body panels and retightening all exhaust components after 50–100 miles. The manufacturer claims +9 hp/+16 lb-ft from a 2006 Tacoma 4.0L test. Its linked chart instead labels generic aFe Exhaust 2.5-inch without this selected part number, finish or vehicle year printed. Point markers differ by +9.27 hp and +15.69 lb-ft at different horizontal positions, so both are not assigned the 3.101 cursor rpm. Separate maxima differ by +6.76 hp and +7.06 lb-ft at different peak rpm. The selected identity and full claimed test remain qualified; no measured guarantee is made.

Fitment

Current exact manufacturer application and selected guide identify Tacoma gasoline V6 4.0L, 2005–2015. The full exact-part secondary table confirms both original Base and Pre Runner ranges, TRD Pro 2015 and X-Runner 2005–2013. Their original tag bounds remain unchanged. Selected body layouts are Double Cab/5-foot bed, Double Cab/6.1-foot bed and Access Cab/6.1-foot bed. The current page prints 127.4 inches for shorter layouts while the exact guide prints 127.8; both print 140.9 for Double Cab/long bed. Confirm actual cab/bed/wheelbase with aFe before ordering if these labels differ from the truck. Side steps may interfere; no regular-cab application is inferred. The selected guide diagrams a front pipe and extension but its seven steps provide no explicit extension branch, length, trimming or separate front-pipe installation instruction. Confirm actual packing and the correct front/extension arrangement with aFe before disassembly; do not borrow another Tacoma REBEL system’s extension or brake-cable procedure. No exclusion or installation procedure from a different earlier single-tip system is borrowed.

Specifications

What's Included

• The 49-46033-B kit includes one front pipe 05-144247, one extension pipe 05-144206, one muffler assembly 05-144248, one selected black-tip tailpipe assembly 05-144225, one mounting bracket 05-46240, two 3-inch bands 05-41055, two 2-1/2-inch bands 05-41061, two screws 03-50100 and two nuts 03-50069, as pictured in the selected labeled diagram. The polished tailpipe assembly 05-144226 is an alternative, not a second assembly supplied.
• Reuse original bolts, gaskets and rubber isolation mounts. The one selected tailpipe assembly incorporates the two black outlets; the guide does not supply individual replacement-tip identifiers.
• The selected guide diagrams a front pipe and extension but its seven steps provide no explicit extension branch, length, trimming or separate front-pipe installation instruction. Confirm actual packing and the correct front/extension arrangement with aFe before disassembly; do not borrow another Tacoma REBEL system’s extension or brake-cable procedure.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact selected manufacturer REBEL system and body restrictions
• Complete selected seven-step guide, diagram and bracket photos
• Selected-page linked generic exhaust chart with identity qualification
• Full exact-part named application table
• Shop cat-back exhausts

FAQ

It is the selected REBEL cat-back for matching Tacoma gasoline 4.0L cab/bed layouts, with one muffler and two black mid-cab outlets.

Selected body layouts are Double Cab/5-foot bed, Double Cab/6.1-foot bed and Access Cab/6.1-foot bed. The current page prints 127.4 inches for shorter layouts while the exact guide prints 127.8; both print 140.9 for Double Cab/long bed. Confirm actual cab/bed/wheelbase with aFe before ordering if these labels differ from the truck. Side steps may interfere; no regular-cab application is inferred.

The current primary calls the dual black 304 stainless tips clamp-on, but the selected guide lists one black-tip tailpipe assembly and no separate tip part numbers or tip-fastener step; the native image shows the tips attached to that assembly. Confirm attachment and replacement requirements rather than promising two separately replaceable clamp-on tips. A stray polished-tip sentence in the overview is not the selected black finish.

one front pipe 05-144247, one extension pipe 05-144206, one muffler assembly 05-144248, one selected black-tip tailpipe assembly 05-144225, one mounting bracket 05-46240, two 3-inch bands 05-41055, two 2-1/2-inch bands 05-41061, two screws 03-50100 and two nuts 03-50069, as pictured in the selected labeled diagram. The polished tailpipe assembly 05-144226 is an alternative, not a second assembly supplied.

The selected guide diagrams a front pipe and extension but its seven steps provide no explicit extension branch, length, trimming or separate front-pipe installation instruction. Confirm actual packing and the correct front/extension arrangement with aFe before disassembly; do not borrow another Tacoma REBEL system’s extension or brake-cable procedure.

Install the supplied bracket with its supplied screws/nuts and one original isolation mount, referring to Figures A and B; then install the tailpipe assembly into that mount. No brake-cable-bracket loosening or rerouting step is printed for this selected system.

No numeric torque is printed. Obtain applicable front-flange, band, bracket and attachment settings. Keep the tailpipe at least 1/2–1 inch from body panels and retighten all exhaust components at 50–100 miles.

The manufacturer claims +9 hp/+16 lb-ft from a 2006 Tacoma 4.0L test. Its linked chart instead labels generic aFe Exhaust 2.5-inch without this selected part number, finish or vehicle year printed. Point markers differ by +9.27 hp and +15.69 lb-ft at different horizontal positions, so both are not assigned the 3.101 cursor rpm. Separate maxima differ by +6.76 hp and +7.06 lb-ft at different peak rpm. The selected identity and full claimed test remain qualified; no measured guarantee is made.

Installation Instructions

1. Confirm aFe 49-46033-B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Match exact gasoline 4.0L, named years, actual selected cab/bed and side-step clearance. Resolve printed wheelbase labels, front/extension arrangement and actual tip attachment with aFe before disassembly. Cool and safely support vehicle and original exhaust.
3. Remove original exhaust rear to front up to the catalytic-converter connection, retaining original hardware and isolation mounts. Lay out the actual components and leave clamps loose until the whole assembly is installed.
4. The guide diagrams separate front and extension pipes without their full installation branch; follow the confirmed selected arrangement. Its step 3 installs the muffler onto the stock Y-pipe using stock bolts, gaskets and original mounts, with a jack stand supporting the muffler assembly.
5. Install the provided hanger bracket using supplied hardware and one original isolation mount, following Figures A and B. Do not borrow the later Tacoma REBEL brake-cable-bracket routing operation.
6. Fit the provided 2-1/2-inch bands to the muffler outlets, slide in the selected black-tip tailpipe assembly and locate it in the supplied bracket using the original isolation mount. No separate tip-fastener setting or replacement part is invented.
7. Adjust and align to the desired position, then tighten from the front flange toward the rear using applicable specifications. No numeric torque is printed in this guide. Keep the tailpipe at least 1/2–1 inch from body panels.
8. Retighten all exhaust components after 50–100 miles. No extension cutting, battery, sensor or unrelated brake-cable procedure is added.
