aFe Impreza Sedan 2012-2016 Takeda Black Cat-Back

Impreza sedan Takeda exhaust details

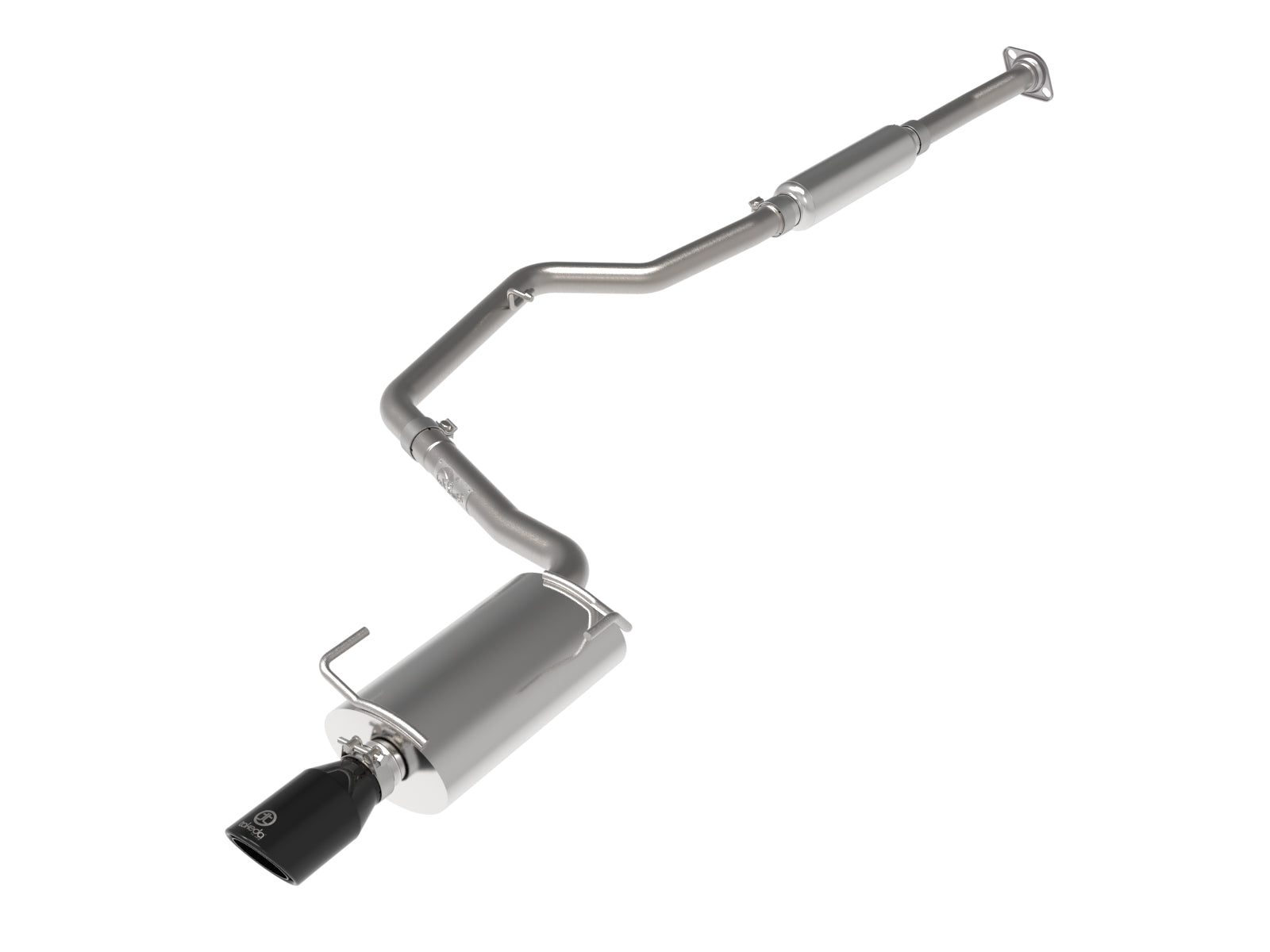

aFe 49-36052-B Takeda pairs 2.25-inch mandrel-bent 304 stainless tubing with a separate resonator, polished 304 stainless muffler and one black 4-inch clamp-on outlet. The current exact manufacturer specifies sedan body only; verify actual body before relying on named-trim listings.

Key Features

• 2.25-inch mandrel-bent 304 stainless system tubing; 100% MIG-welded.
• Separate resonator and polished high-flow 304 stainless muffler.

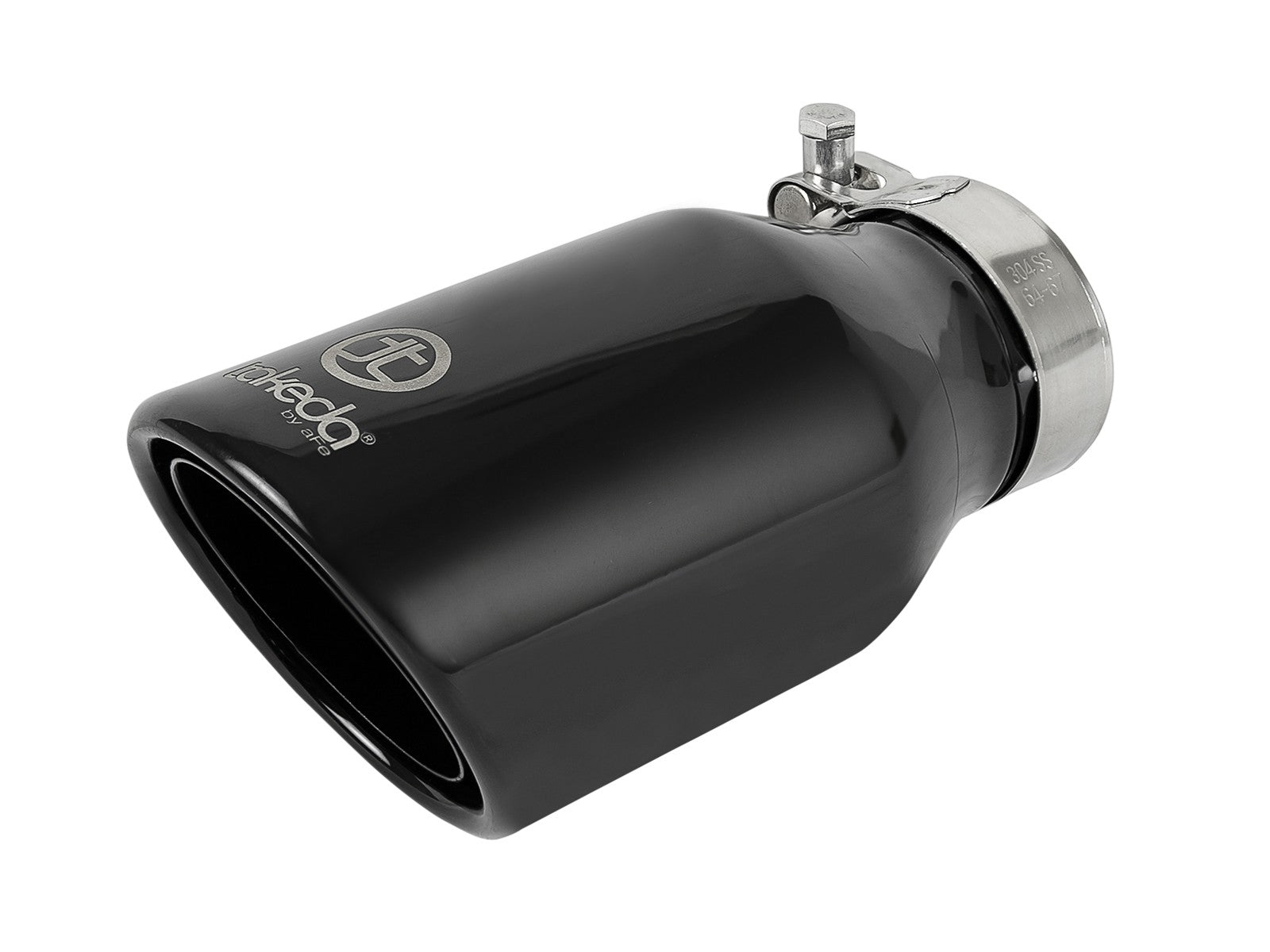

• One black 304 stainless tip, 2.5-inch inlet x 4-inch outlet x 8-inch length per exact cross-reference.
• Four main assemblies; two 2.5-inch and one 2.25-inch joint bands.
• Reuse two spring-loaded flange bolts and three rubber mounts.
• Current manufacturer SEDAN ONLY restriction requires body verification.
• Band clamps 40-45 ft-lb; re-tighten after 50-100 miles.

Fitment

2012-2016 Subaru Impreza H4 2.0L, SEDAN ONLY per exact current manufacturer. Base, Limited and Premium require actual sedan body and original flange/mount layout. Exact selected-part retailer tables also positively list Sport Limited and Sport Premium 2012-2016, while Subaru official 2016 equipment sheet places those grades in 5-door body only. Those positive listings remain a SOURCE CONFLICT requiring body/exhaust-layout confirmation; they are not proof this sedan system fits a hatchback. No WRX/STI/turbo or additional regional trim is inferred.

Verify 49-36052-B against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-245122: Front pipe assembly.
• 1 x 05-245163: Resonator.
• 1 x 05-245123: Mid-pipe assembly.
• 1 x 05-245124: Muffler assembly.
• 2 x 05-41061: 2.5-inch band clamp.
• 1 x 05-41210: 2.25-inch band clamp.
• 1 x 49T25404-B08: Selected black clamp-on tip.

FOUR main exhaust assemblies: front 05-245122, resonator 05-245163, mid 05-245123 and muffler 05-245124. TWO 2.5-inch band clamps 05-41061 and ONE 2.25-inch band 05-41210, plus ONE selected black clamp-on tip 49T25404-B08. Primary cross-reference explicitly gives this tip 2.5-inch inlet, 4-inch outlet and 8-inch length. Written tip step uses a supplied band clamp whose separate number/size is not itemized. Reuse TWO factory spring-loaded flange bolts and THREE original rubber mounts: ONE mid-pipe and TWO muffler. No new spring-bolt/gasket package, intake filter or coupler is listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-36052-B
• Exact illustrated installation manual
• Shop the complete aFe Power collection

FAQ

FOUR main exhaust assemblies: front 05-245122, resonator 05-245163, mid 05-245123 and muffler 05-245124. TWO 2.5-inch band clamps 05-41061 and ONE 2.25-inch band 05-41210, plus ONE selected black clamp-on tip 49T25404-B08. Primary cross-reference explicitly gives this tip 2.5-inch inlet, 4-inch outlet and 8-inch length. Written tip step uses a supplied band clamp whose separate number/size is not itemized. Reuse TWO factory spring-loaded flange bolts and THREE original rubber mounts: ONE mid-pipe and TWO muffler. No new spring-bolt/gasket package, intake filter or coupler is listed.

2012-2016 Subaru Impreza H4 2.0L, SEDAN ONLY per exact current manufacturer. Base, Limited and Premium require actual sedan body and original flange/mount layout. Exact selected-part retailer tables also positively list Sport Limited and Sport Premium 2012-2016, while Subaru official 2016 equipment sheet places those grades in 5-door body only. Those positive listings remain a SOURCE CONFLICT requiring body/exhaust-layout confirmation; they are not proof this sedan system fits a hatchback. No WRX/STI/turbo or additional regional trim is inferred.

Current exact primary specifies 2.25-inch tubing. Two 2.5-inch joint bands and the tip 2.5-inch inlet are connection dimensions; they do not establish a fully 2.5-inch system.

Yes. Own bill shows resonator 05-245163 and muffler assembly 05-245124 as separate assemblies, in addition to front and mid pipes. Primary specifies polished 304 stainless muffler.

Reuse two factory spring-loaded front flange bolts and three original rubber mounts. Exact steps place one on the mid-pipe and two on the muffler. No new gasket/spring-bolt package is itemized.

One black 49T25404-B08 304 stainless clamp-on tip. Exact primary cross-reference gives 2.5-inch inlet, 4-inch outlet and 8-inch length. Its supplied band clamp is mentioned but not separately numbered/sized in bill.

No cutting step is supplied. Align and tighten front-to-rear. Band clamps require 40-45 ft-lb; original spring-bolt torque is unprinted. Re-tighten clamps/hardware after 50-100 miles.

No actual flow, dyno or measured cabin sound/drone chart is linked. Manufacturer describes a deep exhaust sound; no numeric gain or drone-free cabin is certified.

Installation Instructions

Verify aFe 49-36052-B.

1. Read both September 2026 manual pages, all 17 steps, bill, diagram and installed photo. Verify 2012-2016 Impreza 2.0L SEDAN and actual flange/mount layout. Manufacturer sedan restriction conflicts with positive retailer Sport hatchback listings; resolve actual body configuration before installation. Cool exhaust, wear eye/hand protection and support vehicle/exhaust independently.
2. Remove TWO factory spring-loaded flange bolts, retain them and remove old exhaust from THREE original rubber isolation mounts using appropriate hanger tool. Transfer rubber mounts to new mid-pipe and muffler hangers.
3. Install front pipe on factory rear downpipe using TWO original spring-loaded bolts. Keep upstream factory equipment installed. Leave new connections loose for adjustment.
4. Fit resonator over front pipe with first supplied 2.5-inch BAND clamp. Join mid-pipe to resonator with second 2.5-inch BAND clamp and engage ONE original rubber mount on frame hanger.
5. Join muffler to mid-pipe with ONE 2.25-inch BAND clamp and engage TWO original rubber mounts. Fit selected black clamp-on tip using its supplied band clamp; separate tip-clamp service identity is not printed.
6. Align for safe clearance to wiring, hoses, brake lines, body and tires. Tighten evenly FRONT to REAR. BAND CLAMPS require 40-45 FT-LB; no separate original spring-bolt numeric torque is printed.
7. Start engine, inspect/repair leaks, lower vehicle and re-tighten clamps/hardware after 50-100 miles. Exact manual gives no cutting, battery-disconnection, sensor-wiring, coding or welding step.

The old 2.5-inch system description conflicts with current exact primary 2.25-inch tubing; larger joint clamps and tip inlet do not establish an entirely 2.5-inch system. Manufacturer sedan-only restriction and positive Sport trim retailer rows remain a qualified source conflict, not a physical hatchback-fit certification. No measured horsepower gain or drone-free sound is established.
