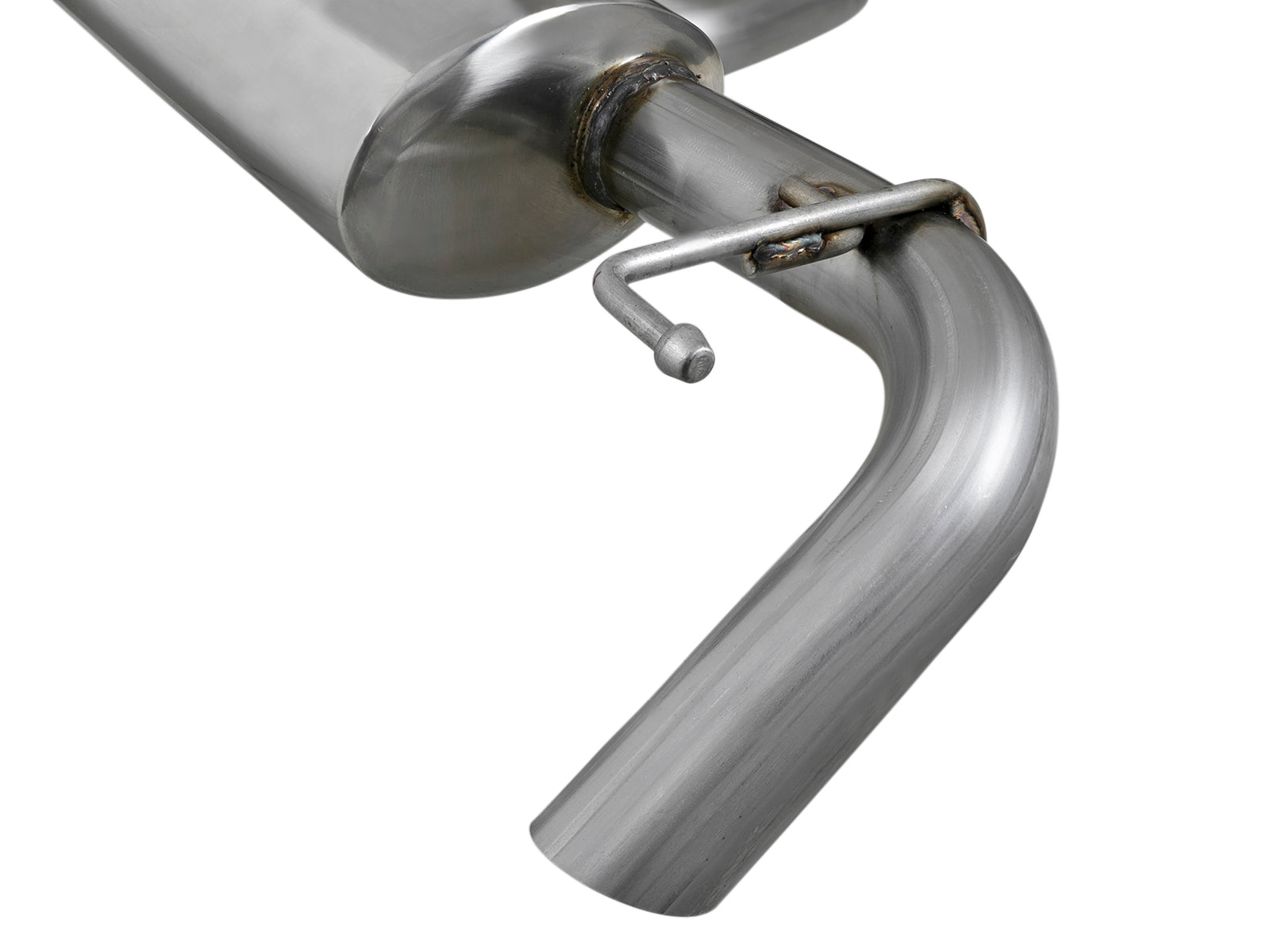

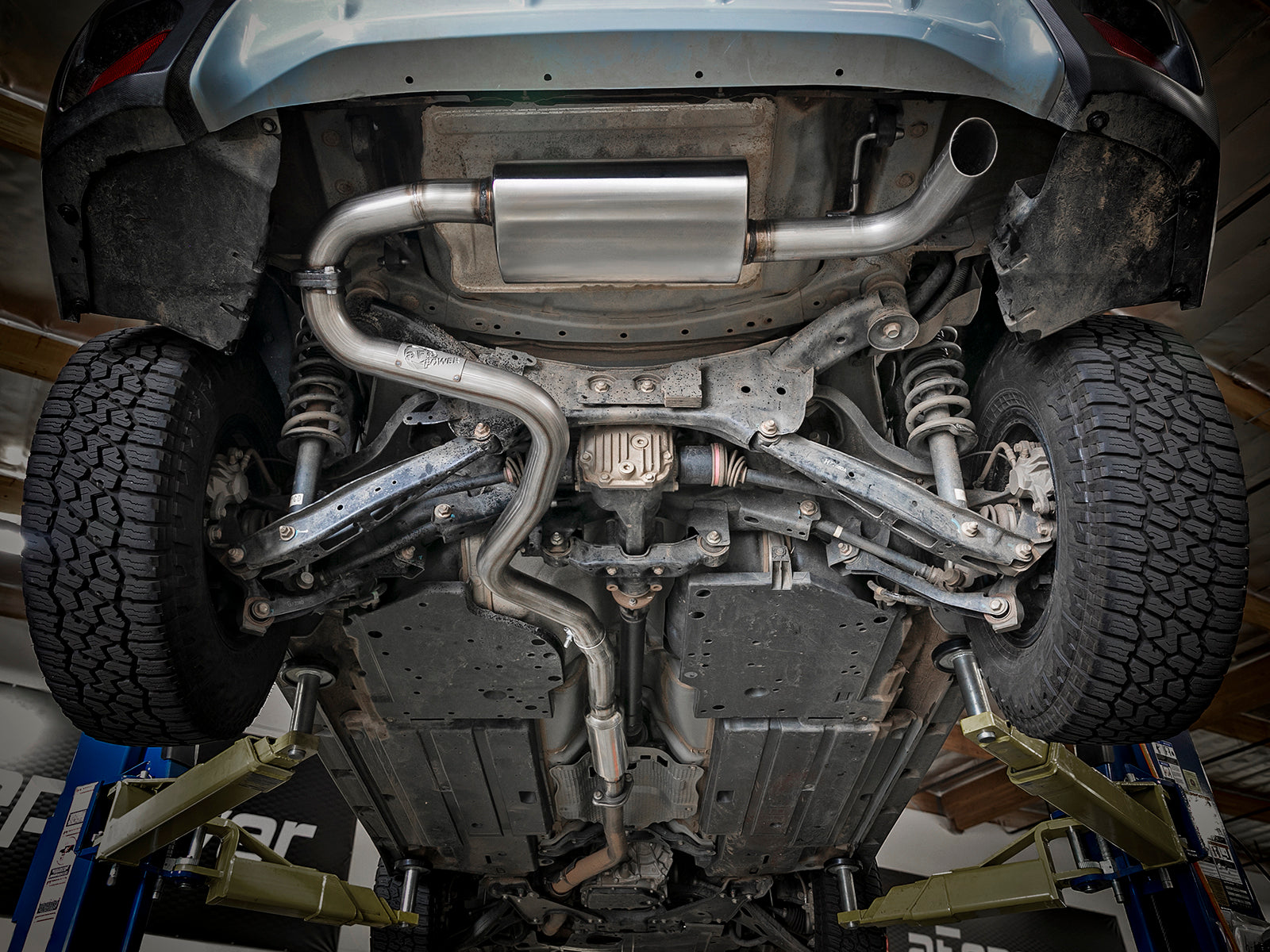

aFe 49-36803 Takeda uses 2.5-inch 304 stainless tubing, a14-inch muffler and12-inch resonator. Three exhaust sections retain the original converter connection and rubber mounts. Decorative tips are optional and sold separately.
2018-2026 Subaru Crosstrek per current exact primary and own September 2026 manual. Manual separates 2.0L 2018-2025 from 2.5L 2021-2026. Exact selected-part engine table identifies Base 2.0L through 2025/2.5L2026, Limited 2.0L2018-2020/2.5L2021-2026, Premium 2.0L2018-2024/2.5L2025-2026, Sport 2.5L2021-2026 and Wilderness2.5L2024-2026. Retained Hybrid2019 has exact retailer positive 2.0L evidence; later hybrid years/new hybrid grades are not inferred. Match actual flange, mounts and underbody layout; cat-back manual does not establish Impreza fitment.
| Years | Make | Model | Named grade; actual specified engine-year and original flange/mount layout required; Hybrid2019 only |
|---|---|---|---|
| 2018-2026 | Subaru | Crosstrek | Base |
| 2019 | Subaru | Crosstrek | Hybrid |
| 2018-2026 | Subaru | Crosstrek | Limited |
| 2018-2026 | Subaru | Crosstrek | Premium |
| 2021-2026 | Subaru | Crosstrek | Sport |
| 2024-2026 | Subaru | Crosstrek | Wilderness |
Verify 49-36803 against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-36803 |
| System | Takeda cat-back; muffler AND resonator; no decorative tip supplied |
| Tubing / welding | 2.5-inch mandrel-bent304 stainless;100% MIG |
| Silencers | 14-inch stainless muffler and12-inch stainless resonator; primary304 grade |
| Supplied joint parts | ONE 2.5-inch band05-41061; ONE bill gasket05-46300,3.00ID x4.00BC |
| Hardware quantity hold | Step 12 x2 gasket/bolts/nuts versus one bill gasket and unitemized bolt/nut service identity; boxed verification required |
| Engine years | 2.0L2018-2025;2.5L2021-2026; exact2019Hybrid retailer positive retained, no later hybrid inference |
| Torque / recheck | Actual BAND40-45ft-lb; flange-bolt values unprinted;50-100 miles |
| Dyno point / separate maxima | At3705 rpm86.8-77.7=+9.1 hp;123.1-110.1=+13.0 lb-ft. Separate maxima+5.9 hp/+6.5 lb-ft |
| Test scope | Chart identifies2018 Crosstrek, stock intake, original manifolds, second gear,235/75/15 square tires; dates/conditions qualified |
| Emissions | Manufacturer states no CARB EO required; original converter pipes retained |
| UPC | 802959632086 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |

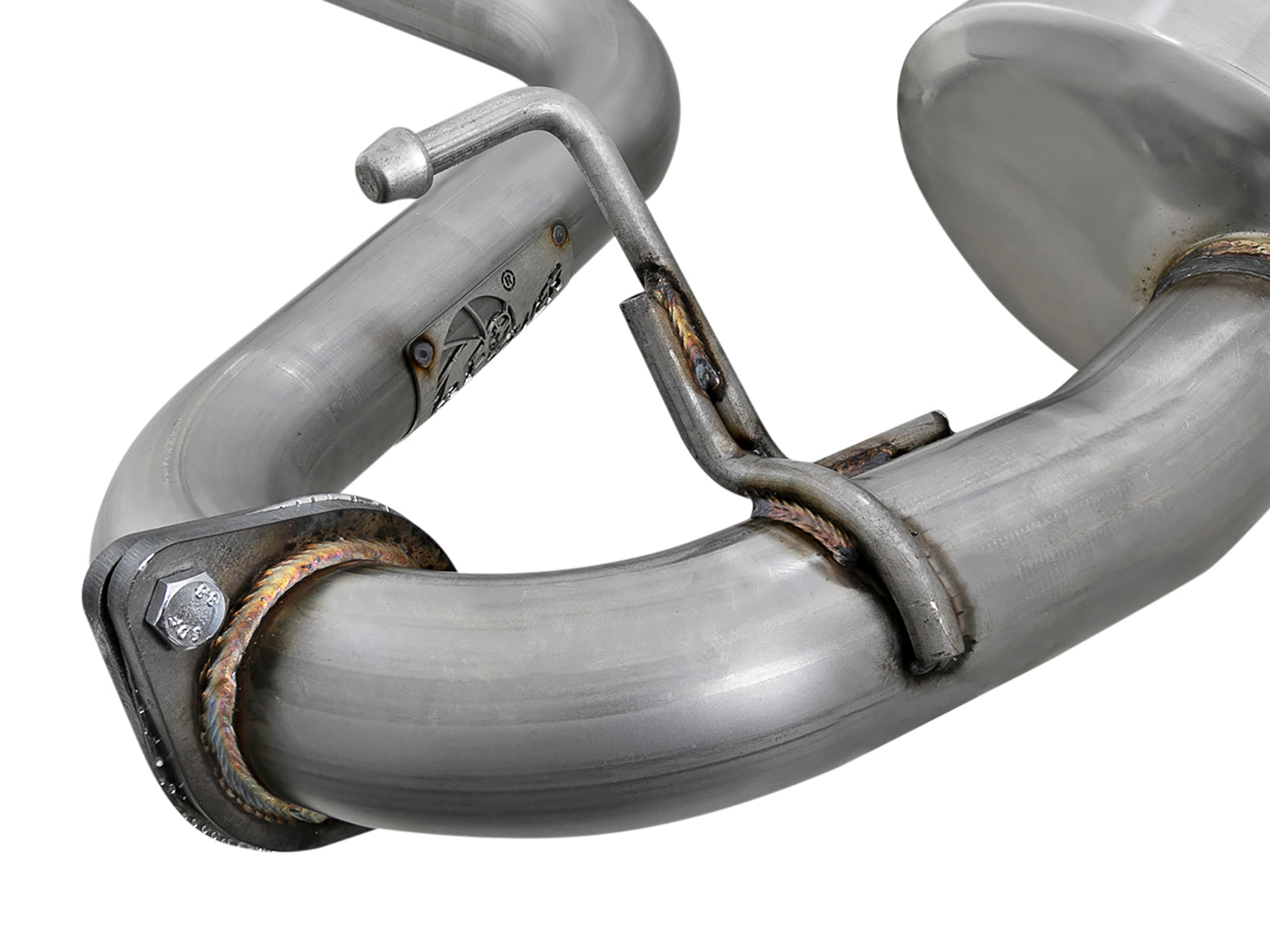

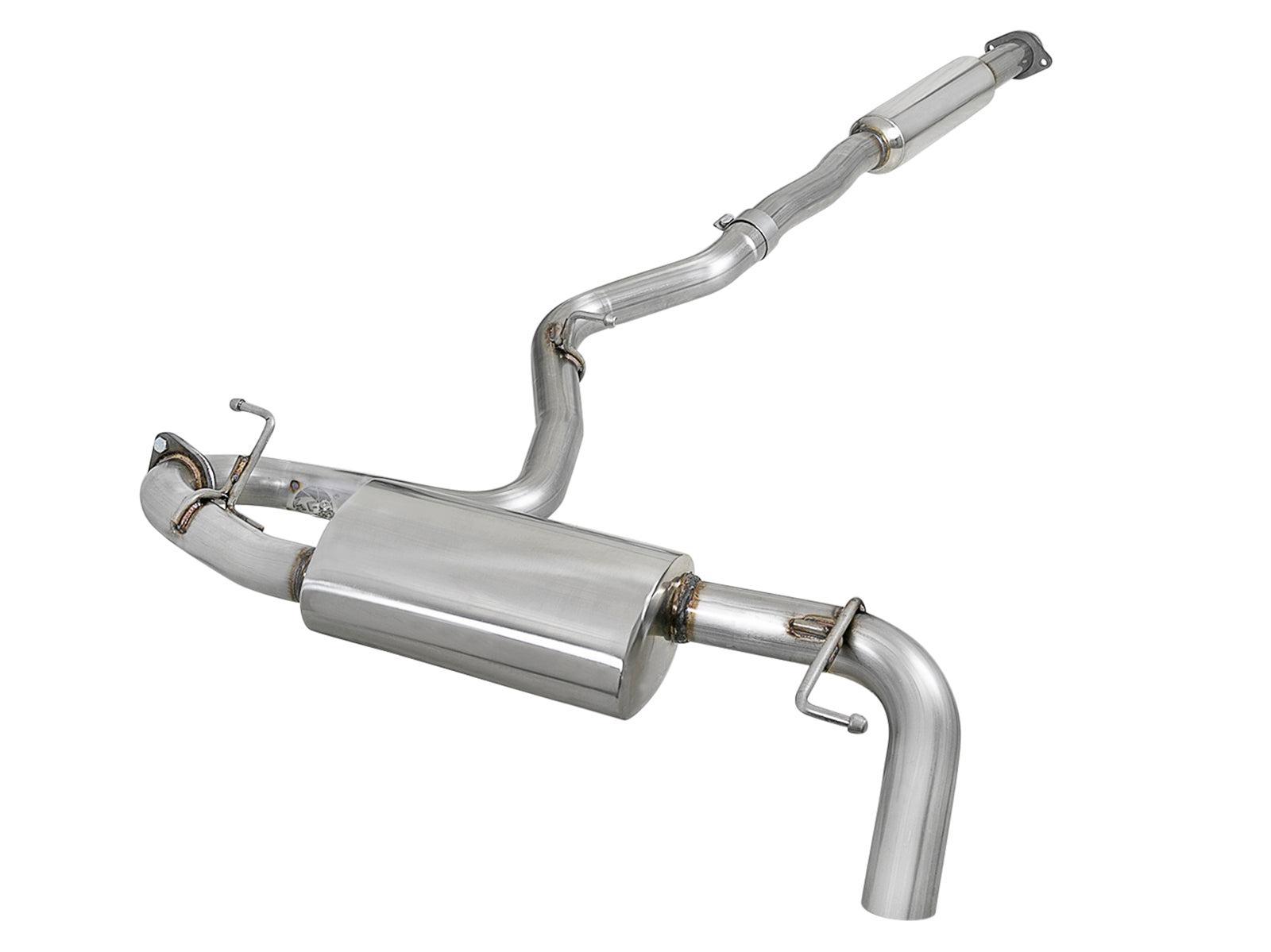

THREE exhaust assemblies: resonated front pipe05-145693, mid-pipe05-145694 and muffler05-145695; ONE 2.5-inch band05-41061 and ONE bill-listed two-bolt gasket05-46300 with3.00-inch ID/4.00-inch bolt circle. Step 12 says x2 supplied gasket/bolts/nuts, while bill lists one gasket and no separate bolt/nut identity; confirm actual boxed gasket count and hardware before disassembly. Reuse original converter-flange bolts/gasket and original rubber mounts. Optional black49T25404-B08, polished49T25404-P08, carbon49T25404-C07 and blue49T25404-L07 tips are SOLD SEPARATELY. No decorative tip, replacement converter, intake filter or coupler is itemized.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
THREE exhaust assemblies: resonated front pipe05-145693, mid-pipe05-145694 and muffler05-145695; ONE 2.5-inch band05-41061 and ONE bill-listed two-bolt gasket05-46300 with3.00-inch ID/4.00-inch bolt circle. Step 12 says x2 supplied gasket/bolts/nuts, while bill lists one gasket and no separate bolt/nut identity; confirm actual boxed gasket count and hardware before disassembly. Reuse original converter-flange bolts/gasket and original rubber mounts. Optional black49T25404-B08, polished49T25404-P08, carbon49T25404-C07 and blue49T25404-L07 tips are SOLD SEPARATELY. No decorative tip, replacement converter, intake filter or coupler is itemized.
Which engine years and hybrid application are supported?2018-2026 Subaru Crosstrek per current exact primary and own September 2026 manual. Manual separates 2.0L 2018-2025 from 2.5L 2021-2026. Exact selected-part engine table identifies Base 2.0L through 2025/2.5L2026, Limited 2.0L2018-2020/2.5L2021-2026, Premium 2.0L2018-2024/2.5L2025-2026, Sport 2.5L2021-2026 and Wilderness2.5L2024-2026. Retained Hybrid2019 has exact retailer positive 2.0L evidence; later hybrid years/new hybrid grades are not inferred. Match actual flange, mounts and underbody layout; cat-back manual does not establish Impreza fitment.
Is a decorative tip included?No. Optional black49T25404-B08, polished49T25404-P08, carbon49T25404-C07 and blue49T25404-L07 tips are separately sold. Bare supplied outlet does not imply four included tips.

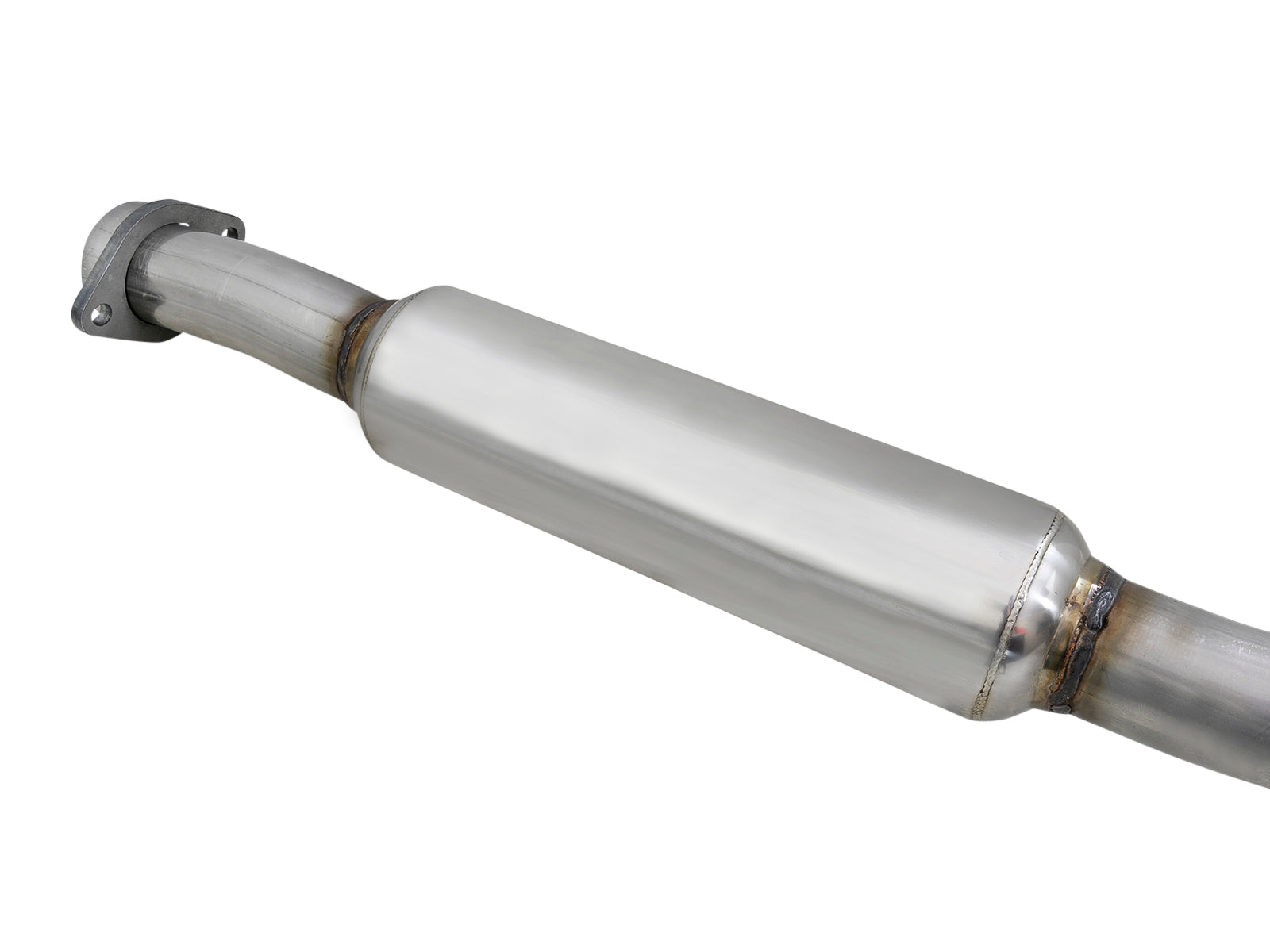

Does this include both muffler and resonator?Yes. Three main assemblies include a resonated front pipe and rear muffler, plus mid-pipe. Exact primary specifies 14-inch muffler and12-inch resonator. This is not the standalone muffler-delete axle-back.
Which gaskets and hardware must be checked?Reuse original converter-flange bolts/gasket and rubber mounts. Bill lists ONE 05-46300 gasket; step 12 x2 supplied gasket/bolts/nuts wording is ambiguous and separate bolt/nut identities are not itemized. Confirm actual boxed quantity and hardware before disassembly.
What torque, cutting and recheck apply?Supplied2.5-inch BAND clamp requires 40-45ft-lb. Flange-bolt numeric torque is unprinted. No cutting step is supplied. Re-tighten clamps/hardware after 50-100 miles.
Are9 hp/13 lb-ft gains changes in peak output?No. At3705 rpm annotated differences are 9.1 hp and13.0 lb-ft. Separate run maxima differ 5.9 hp and6.5 lb-ft. Those are different comparisons.
Are hybrid power gains or drone-free sound measured?Actual chart is2018 Crosstrek with stock intake and second gear, on different dates; engine displacement and several conditions are unprinted. It does not certify2019Hybrid or later-engine gains, nor a measured drone-free cabin.
Verify aFe 49-36803.
Actual linked chart baseline January 22 2019 12:24 PM versus cat-back May 6 2019 11:35 AM; both 2018 Crosstrek, stock intake, second gear and235/75/15 square tires. Red notes original exhaust manifolds and aFe cat-back. OBD2 RPM, Dynoware RT WB, Linx CONNECTED, smoothing5; numeric correction factors, engine displacement, fuel, weather, hood and load are unprinted. Advertised9 hp/13 lb-ft approximates point gains, not changes of separate maxima. No actual flow or measured cabin-drone chart is linked; virtually-no-drone description is not a guaranteed measurement. Later hybrid fitment is not inferred from shared engine size.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
