aFe Twisted Steel 409 Stainless Y-Pipe — Jeep Wrangler Unlimited JK

409 stainless Y-pipe for the four-door Wrangler JK

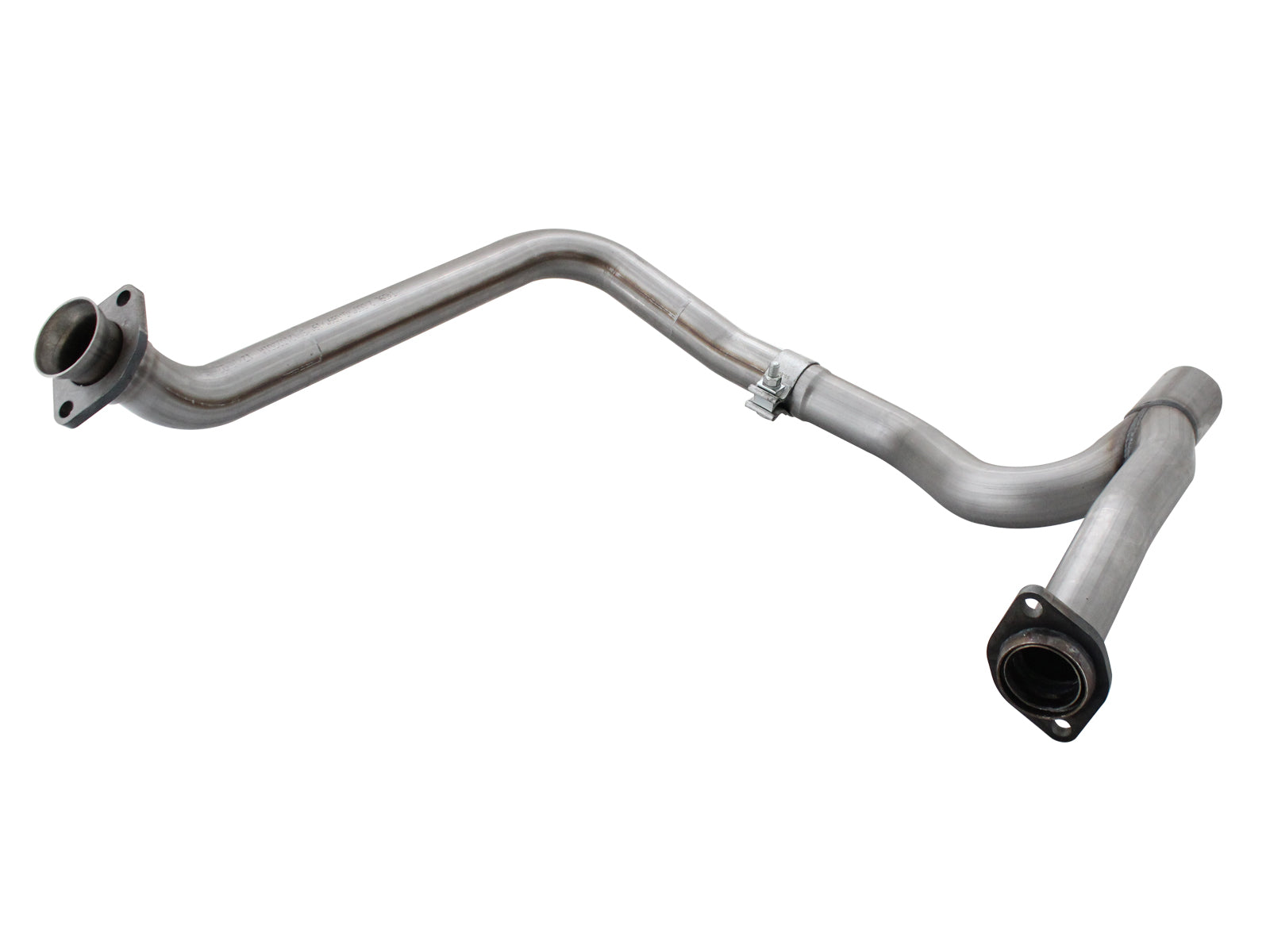

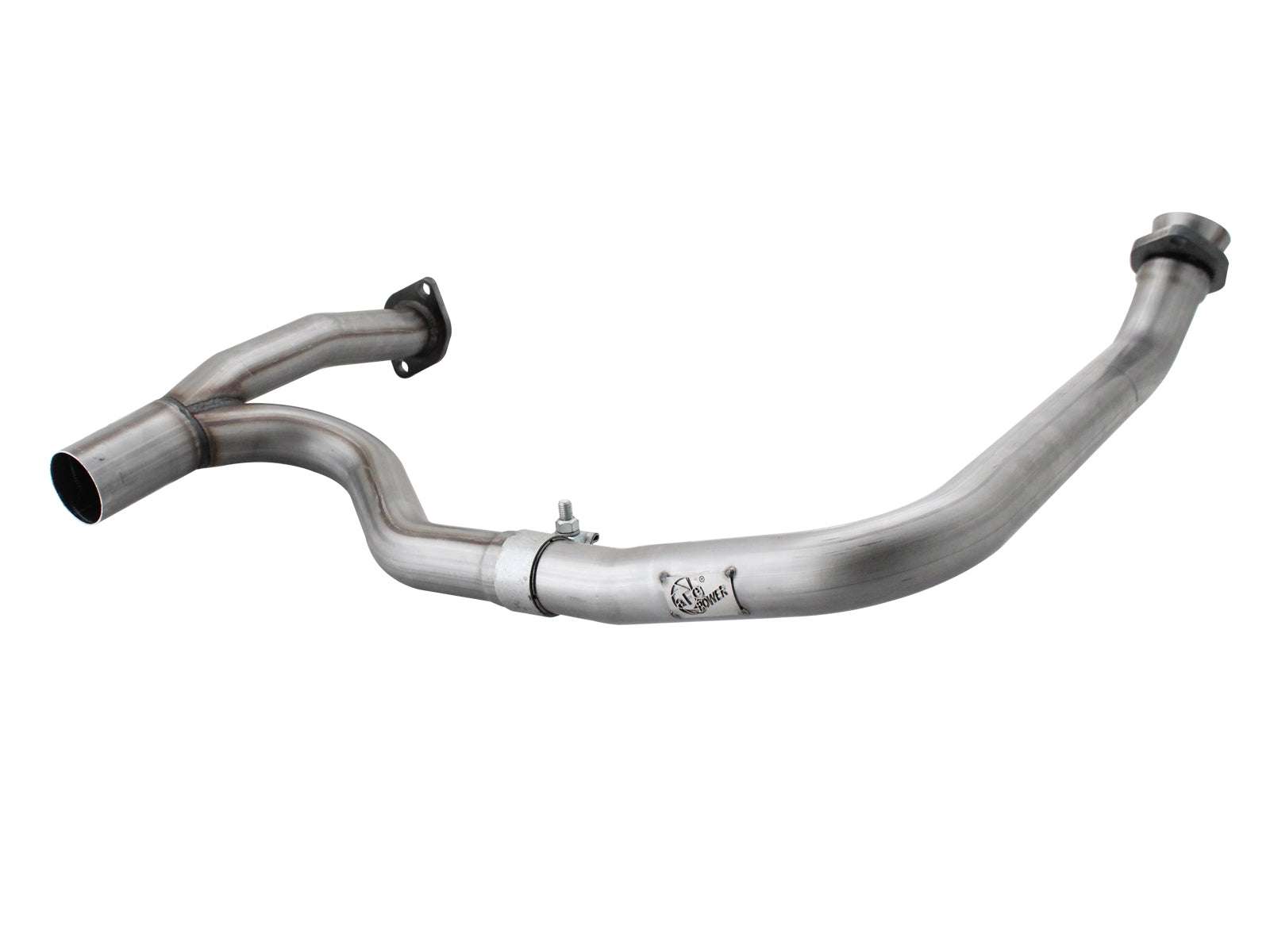

The aFe 48-46208 Twisted Steel assembly connects the original catalytic converters to the factory exhaust or the documented MACH Force-Xp exhaust connection. Two two-inch branches merge into a 2.5-inch outlet. The current manufacturer specifies hand MIG welding, and the selected guide identifies 409 stainless construction. This is a Y-pipe, not a replacement exhaust manifold or a complete cat-back system.

Key Features

• Selected aFe part 48-46208.
• Two-inch branches merge into a 2.5-inch outlet through a true merged collector.
• Selected guide identifies 409 stainless steel; current primary page specifies hand MIG welding.
• Manufacturer explicitly restricts the product to four-door Wrangler JK models.

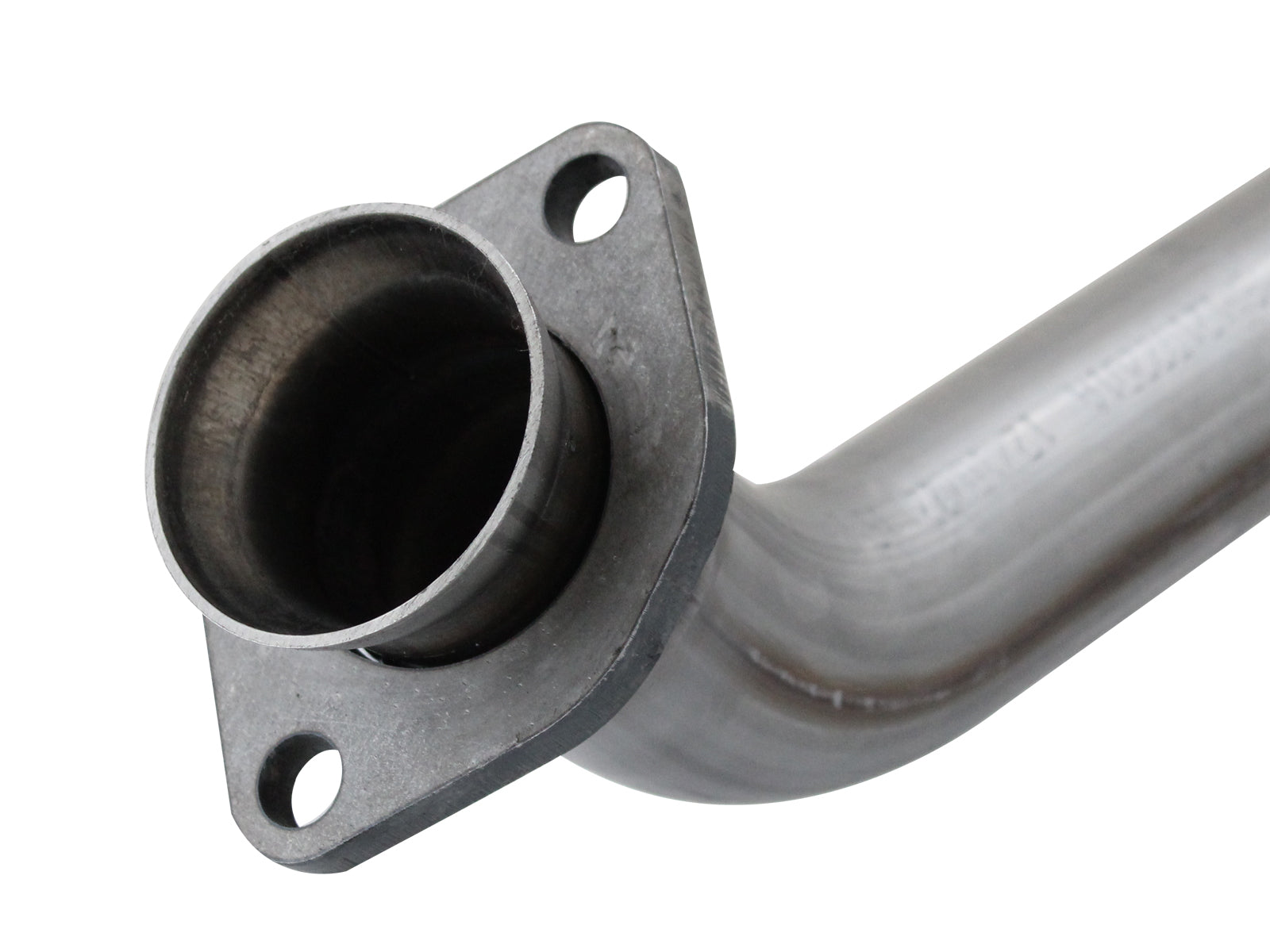

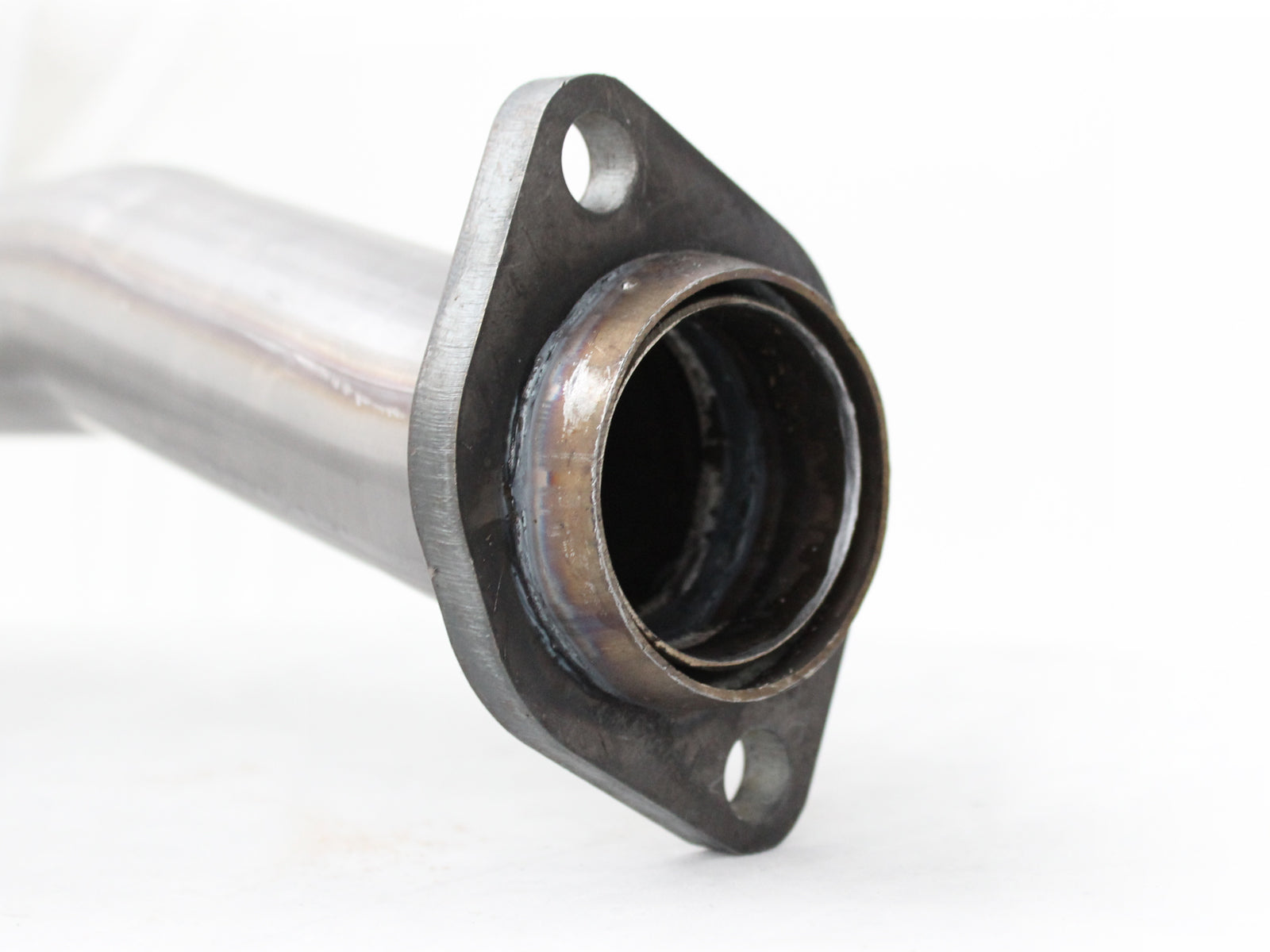

• OE-style flanges and a slip-joint band clamp connect the two-piece assembly.
• Exact guide lists three adhesive heat shields for the tank and two nearby plastic lines.
• No selected measured horsepower, torque or reduced-drone result is established.

Fitment

Current manufacturer information and the selected guide cover 2012–2018 Wrangler Unlimited JK/JKU, 3.6L V6, four-door only. The exact selected retailer table has broader two-door names, but the explicit manufacturer four-door restriction controls. Use the separate Wrangler JK model for 2018, not the new JL. Confirm transmission and actual lift equipment; one specialist retailer calls this the automatic-transmission version, but the current manufacturer page and selected guide do not independently state a transmission exclusion. No new two-door, JL, engine or universal mapping is inferred.

Specifications

What's Included

• The 48-46208 kit includes left assembly 05-44524 and right assembly 05-44525 in the selected stainless configuration.
• One 6 x 6-inch adhesive heat shield 05-40110 and two 6 x 3-inch adhesive heat shields 05-40111.

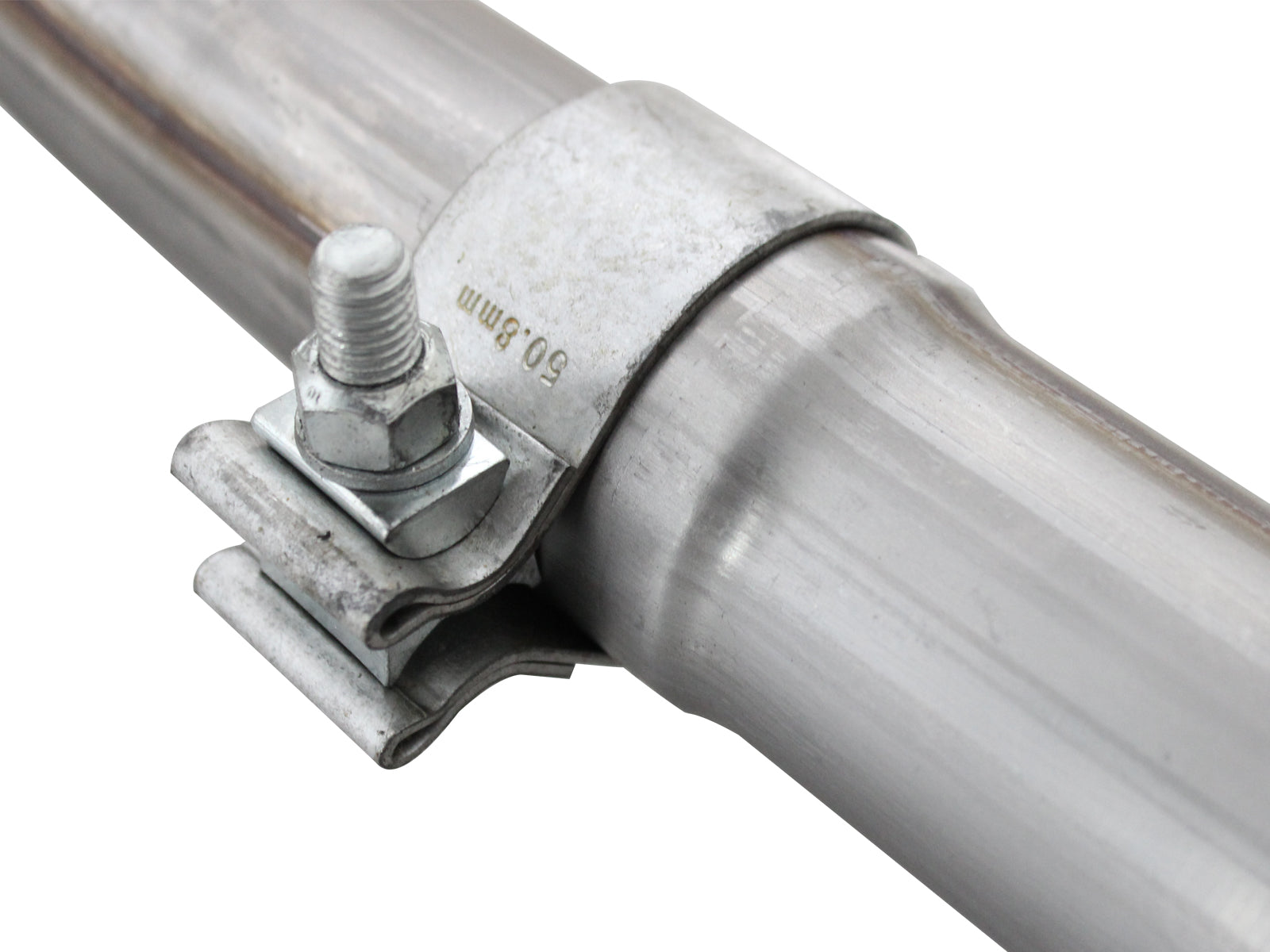

• One 2-inch band clamp 05-41235 and screws 03-50476, with screw quantity and use step unprinted.
• Reuse original converter bolts, downstream pipe/muffler, hangers, bracket and skid plate. No converters, exhaust tips, intake filter or silicone coupling are established as included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact current manufacturer construction, connections and four-door restriction
• Exact selected stainless guide, formal parts list and all 18 steps
• Exact selected named application table and retailer restriction
• Shop Y-pipes
• Shop aFe Power

FAQ

It is the selected 409 stainless two-piece Y-pipe for documented four-door Wrangler Unlimited JK 3.6L applications, with two-inch branches and a 2.5-inch outlet.

No two-door or JL application is established. The current exact manufacturer page explicitly says four-door only, and its guide identifies Wrangler Unlimited JK/JKU, 2012–2018. The 2018 Wrangler JK name must remain separate from JL.

It is the replacement Y-pipe connecting the original converters to the downstream exhaust. No new manifold, converter, muffler or complete cat-back assembly is listed.

The exact selected guide identifies 409 stainless steel. The current own page specifies hand MIG welding; generic TIG or aluminum descriptions are not adopted.

The large shield protects the front left tank corner. The two smaller shields wrap the two passenger-side plastic lines above the Y-pipe, in front of the tank. Restore this documented protection before operation.

No cut or weld step is printed, and the current manufacturer page says no modifications necessary. Check the actual exhaust/lift configuration and do not borrow a different aluminized or loop-delete kit’s cutting procedure.

The selected guide supplies no numerical torque or mileage interval. It lists screws without quantity or an explicit application step. Obtain confirmation for the screws and use verified vehicle service requirements for original hardware.

The current manufacturer page does not independently state a transmission restriction, while a specialist retailer calls this an automatic version. Manufacturer no-EO wording also conflicts with the selected retailer California restriction. Confirm the actual configuration and applicable approval before ordering.

Installation Instructions

1. Confirm aFe 48-46208 against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Read the exact selected guide, allow the exhaust to cool and use professional support and protective equipment. Support the vehicle on stands and disconnect the negative battery terminal as directed.
3. Remove and retain the downstream pipe/muffler, the bracket in front of the lower cross member, the original Y-pipe and the skid plate behind the cross member.
4. Place the clamp on the notched left assembly and loosely join the two sections. Reuse the original bolts at the converter connections and keep them loose during positioning. The documented pipe route is behind the cross member.
5. Restore the downstream exhaust and muffler in the rubber hangers and tighten their clamps. Tighten the original converter/Y-pipe bolts, then the slip-joint clamp. Step 10 refers to step 7, although the bolt attachment is in step 8; identify the actual original converter bolts.
6. Restore the skid plate and bracket. Apply the large tank shield and wrap both passenger-side plastic lines separately with the smaller shields at the documented locations. Resolve the unprinted screw application before completing the work.
7. Re-check the entire installation and clearances. Finish support removal safely and reconnect the negative battery terminal. The selected sheet prints no numeric torque or follow-up mileage.
