Catted Y-pipe for Toyota Tacoma 3.5L 4WD, 2016–2023
The aFe 48-46013-RC Y-pipe assembly uses 2-1/4–2-1/2-inch mandrel-bent 409 stainless tubing, MIG welds and factory-style machined stainless flanges. Two converter-equipped side pipes join one collector through two band clamps. Current manufacturer and selected guide specify 2016–2023 Tacoma V6 3.5L 4WD only; named trim approval below remains within independently verified years. No cutting or modifications to the factory exhaust are stated.
Key Features
- Selected aFe part 48-46013-RC.
- 2-1/4–2-1/2-inch mandrel-bent 409 stainless tubing, 100% MIG welds and factory-style laser-cut machined stainless flanges.

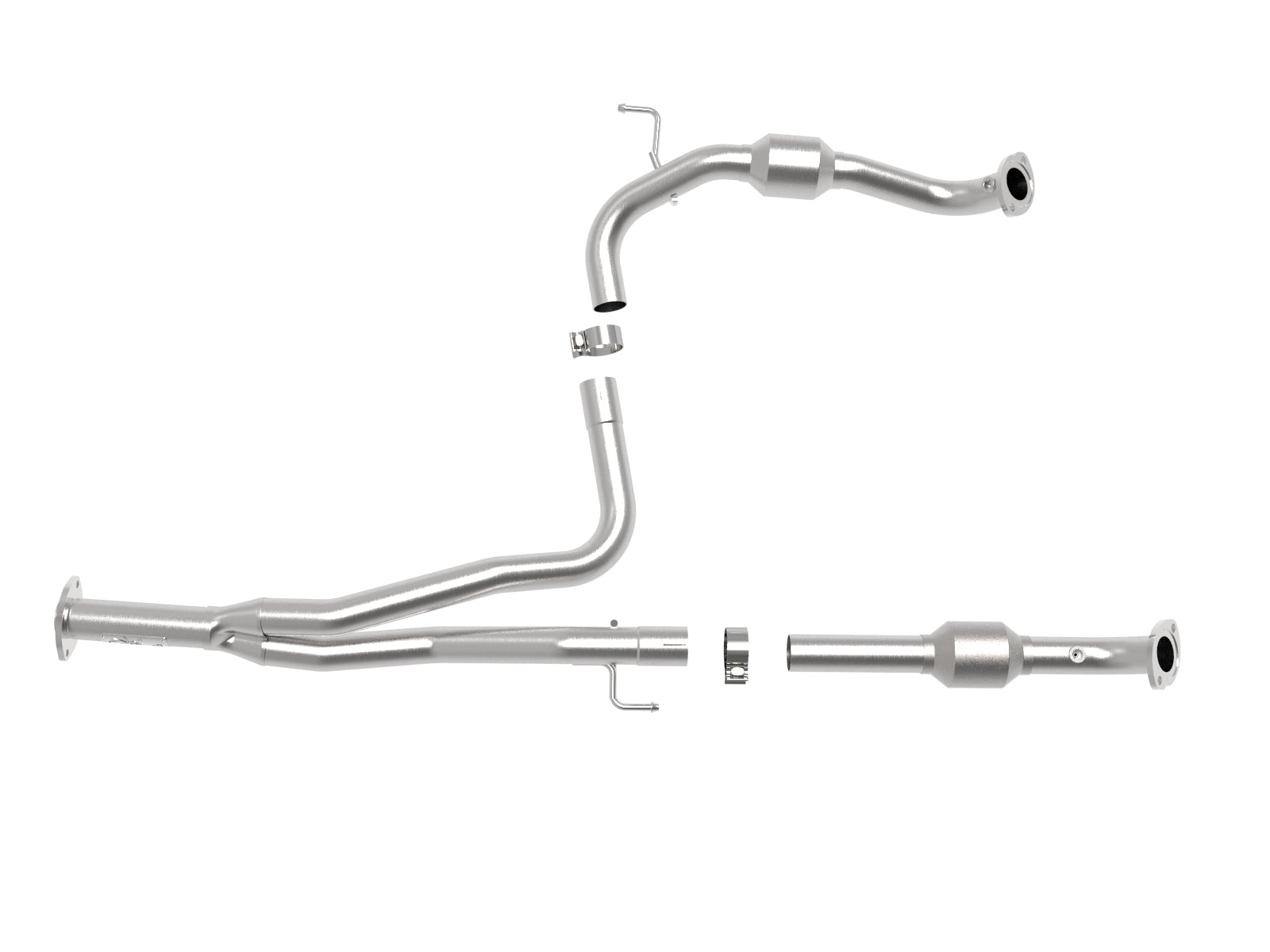

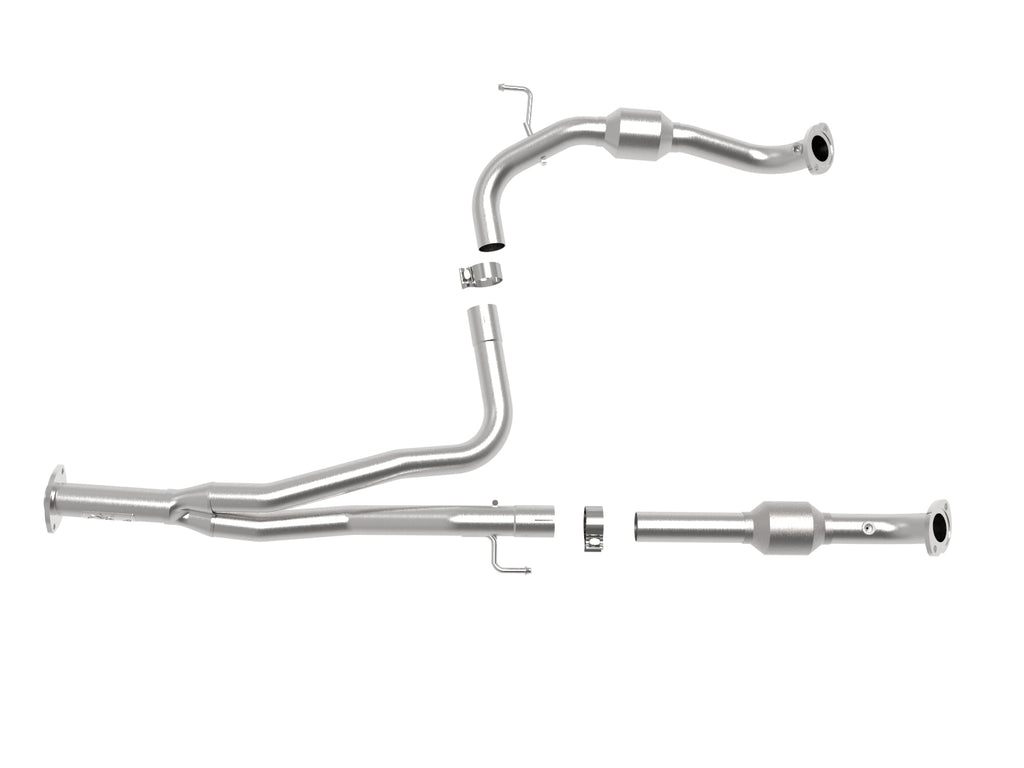

- One passenger pipe 05-144928, one driver pipe 05-144929 and one collector 05-144930.
- Two 2-1/4-inch band clamps 05-41210; two bolts 03-50401 and two nuts 03-50400; one pipe gasket 05-46420 and two crush gaskets 05-60366.
- Explicit 4WD-only fitment; manufacturer excludes 2WD applications.
- Original O2 sensors are transferred to the selected side pipes and all original electrical connections are restored.
- Selected band-clamp torque is 40–45 ft-lb only; it is not a flange, spring-bolt or sensor torque. Recheck all clamps and hardware after 50–100 miles.
- Manufacturer claims EPA compliance and excludes California-certified vehicles; the guide additionally states not CARB exempt/not available for California purchase or California DMV-registered vehicles. Verify exact eligibility.
Fitment
Current exact manufacturer and September 2026 guide specify 2016–2023 Toyota Tacoma gasoline V6 3.5L, 4WD only, expressly excluding 2WD. Full exact-MPN named proof confirms Limited, SR, SR5, TRD Off-Road and TRD Sport 2016–2020 and TRD Pro 2017–2020. Those original named bounds remain; no later named-trim extension is inferred solely from the broader manufacturer model-year range. No other engine, generation or drivetrain is approved.
| Years | Make | Model | Submodel | Required drivetrain / engine / emissions |
|---|---|---|---|---|
| 2016-2020 | Toyota | Tacoma | Limited | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
| 2016-2020 | Toyota | Tacoma | SR | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
| 2016-2020 | Toyota | Tacoma | SR5 | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
| 2016-2020 | Toyota | Tacoma | TRD Off-Road | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
| 2017-2020 | Toyota | Tacoma | TRD Pro | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
| 2016-2020 | Toyota | Tacoma | TRD Sport | Gasoline V6 3.5L; 4WD ONLY, not 2WD. Named years limited to the exact verified table. Match actual emissions certification. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 48-46013-RC |
| Product type | Y Pipes |
| Construction | 2-1/4–2-1/2-inch 409 stainless mandrel-bent tubing, MIG welds and laser-cut machined stainless flanges. Tube gauge, flange thickness and catalyst cell count are not separately printed. |
| Selected sections | Passenger 05-144928, driver 05-144929 and collector 05-144930, one each. Two side converters are shown. This is a Y-pipe, not an exhaust header or a complete cat-back. |
| Selected hardware | Two 2-1/4-inch bands 05-41210; two M10 x 1.25 x 35 mm bolts 03-50401; two M10 x 1.25 nuts 03-50400; one pipe gasket 05-46420 and two crush gaskets 05-60366. |
| Guide / original components | Two pages, all 20 steps, bill, exploded diagram and installed photo; document 06-86680, September 2026. Original manifold nuts are reused with supplied crush gaskets; supplied outlet gasket/nuts/bolts join the factory exhaust. Original O2 sensors are transferred and all harness connections restored. |
| Installation order | Support the factory exhaust; disconnect negative battery and unplug original sensors before removal. Assemble both side pipes to the collector loosely, mount at original manifolds and connect the collector to the factory exhaust. Reconnect sensors/battery, align safely and tighten from front to rear; leak-check. |
| Torque / recheck | Band clamps: 40–45 ft-lb. This is not a manifold-nut, outlet bolt, spring-bolt or O2-sensor specification. No fixed numerical clearance is printed. Retighten all clamps and hardware after 50–100 miles. |
| Emissions / performance | Manufacturer claims EPA compliance and excludes California-certified vehicles. The guide states not CARB exempt/not available for California purchase or California DMV-registered vehicles. Verify actual certification, local requirements, legitimate documented replacement need and warranty/recall status. No selected measured gain, drone-free claim, code cure or inspection pass is guaranteed. |
What's Included

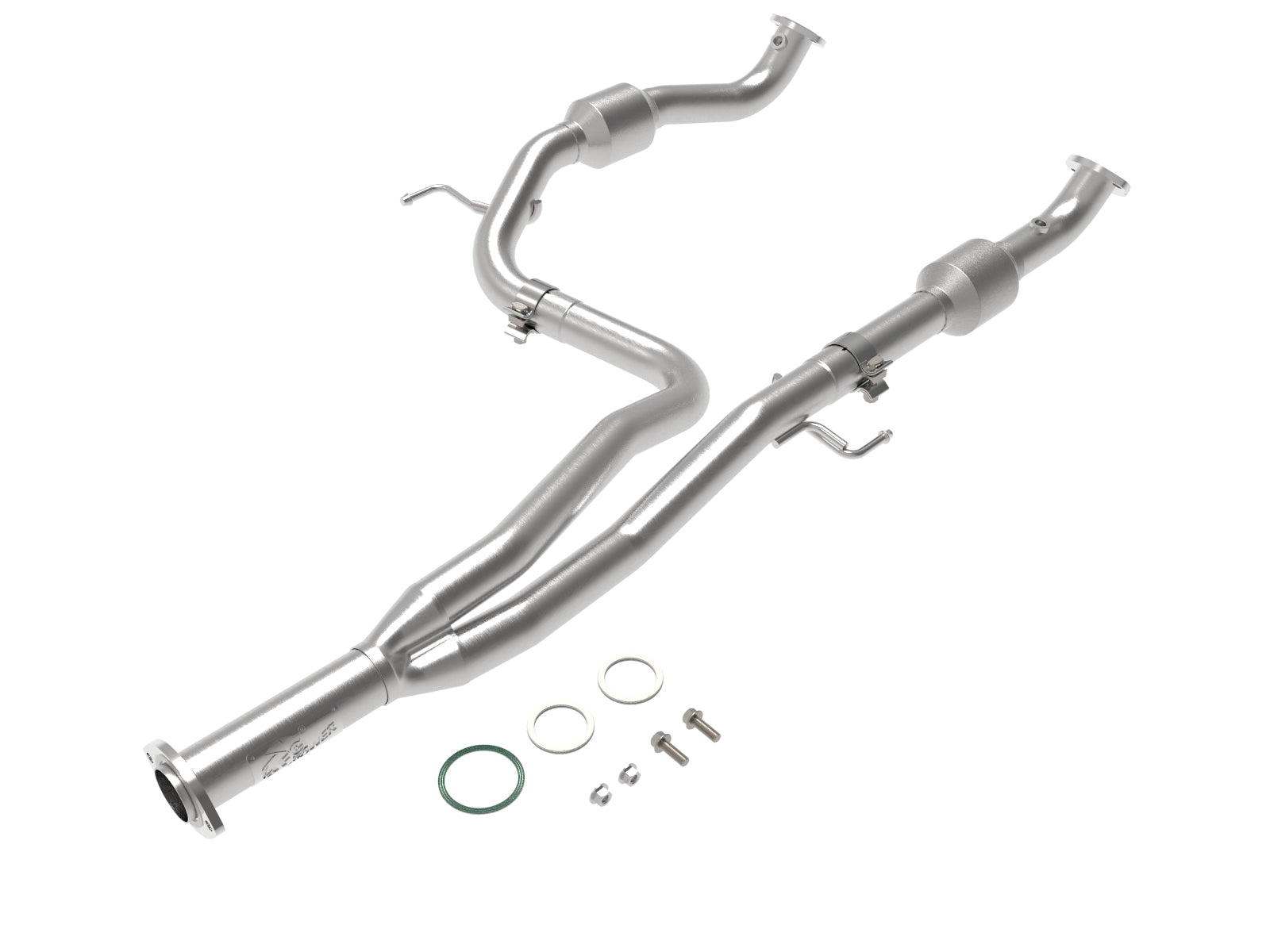

- The 48-46013-RC kit includes one passenger catted pipe 05-144928, one driver catted pipe 05-144929 and one collector assembly 05-144930.
- Two 2-1/4-inch band clamps 05-41210; two bolts 03-50401 and two nuts 03-50400.
- One pipe gasket 05-46420 and two crush gaskets 05-60366. Original sensors and applicable original manifold hardware are restored/reused. No new sensor, header, muffler, tip, filter or coupler is established as supplied.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Current exact 4WD catted Y-pipe and application
- Complete selected 20-step guide, bill and diagrams
- Full exact-MPN named application table
- EPA converter replacement guidance
- Shop Y-pipes
FAQ
What is the 48-46013-RC?It is the selected three-section catted Y-pipe assembly for listed Tacoma gasoline V6 3.5L 4WD applications, including its two band clamps, gaskets and outlet hardware.
Does it fit a two-wheel-drive Tacoma?No. Both current manufacturer and selected guide explicitly limit this selected assembly to 4WD and exclude 2WD.
Does 2016–2023 approve every named trim through 2023?No. The exact manufacturer supplies the model/engine/drivetrain scope, while the full named table currently verifies the six listed trims only through 2020. Later named-trim extensions are held until exact proof is available.
Is this a header or a Y-pipe?It is a Y-pipe: two converter-equipped side pipes and a separate collector. Original manifolds remain, so the former header classification did not describe the selected assembly.
Which gaskets and clamps are included?Two 2-1/4-inch band clamps, two crush gaskets and one outlet pipe gasket are listed, together with two outlet bolts and two nuts. The formal bill identifies the individual component numbers above.
Does installation require cutting or new O2 sensors?Manufacturer states no cutting or modifications. Original O2 sensors transfer to the selected side pipes and every original harness connector is restored; new sensors are not supplied.
Does 40–45 ft-lb apply to every fastener?No. The selected instruction explicitly labels that value for band clamps. Use exact service requirements for flange nuts, outlet bolts, spring bolts and sensors; recheck all clamps and hardware after 50–100 miles.
Can age or mileage alone establish emissions eligibility?No. Verify actual certification, applicable local requirements, documented legitimate need and warranty/recall status. The manufacturer/guide California restrictions apply; no code cure or inspection pass is guaranteed.
Installation Instructions
- Confirm aFe 48-46013-RC against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
- Verify exact 4WD Tacoma V6 3.5L, named application, original connections and emissions eligibility. Read both pages/all 20 selected steps, inventory all three sections and selected hardware, cool and safely support the vehicle and original exhaust.
- Disconnect negative battery and unplug all original O2 harness connectors. Remove the specified spring bolts, manifold nuts and outlet hardware, remove the original Y-pipe and transfer original O2 sensors into the correct selected side pipes.
- Join both selected side pipes to the collector using the two supplied 2-1/4-inch bands loosely. Install at the original manifolds with two supplied crush gaskets and original nuts; connect the collector to the factory exhaust with the supplied outlet gasket, bolts and nuts.
- Restore every O2 electrical connection and the battery. Align the full assembly with safe clearances from wires, hoses, brake lines, body and tires. Tighten from front to rear, using 40–45 ft-lb only for band clamps and exact service specifications for other connections.
- Start and leak-check; determine and correct any leak before completion, safely remove supports and retighten all clamps and hardware after 50–100 miles. No cut, sensor relocation, fixed numerical clearance or measured gain is borrowed from another kit.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
