aFe GM 2014-2019 V8 Quantum Dry S Cold Air Intake

GM Quantum intake details

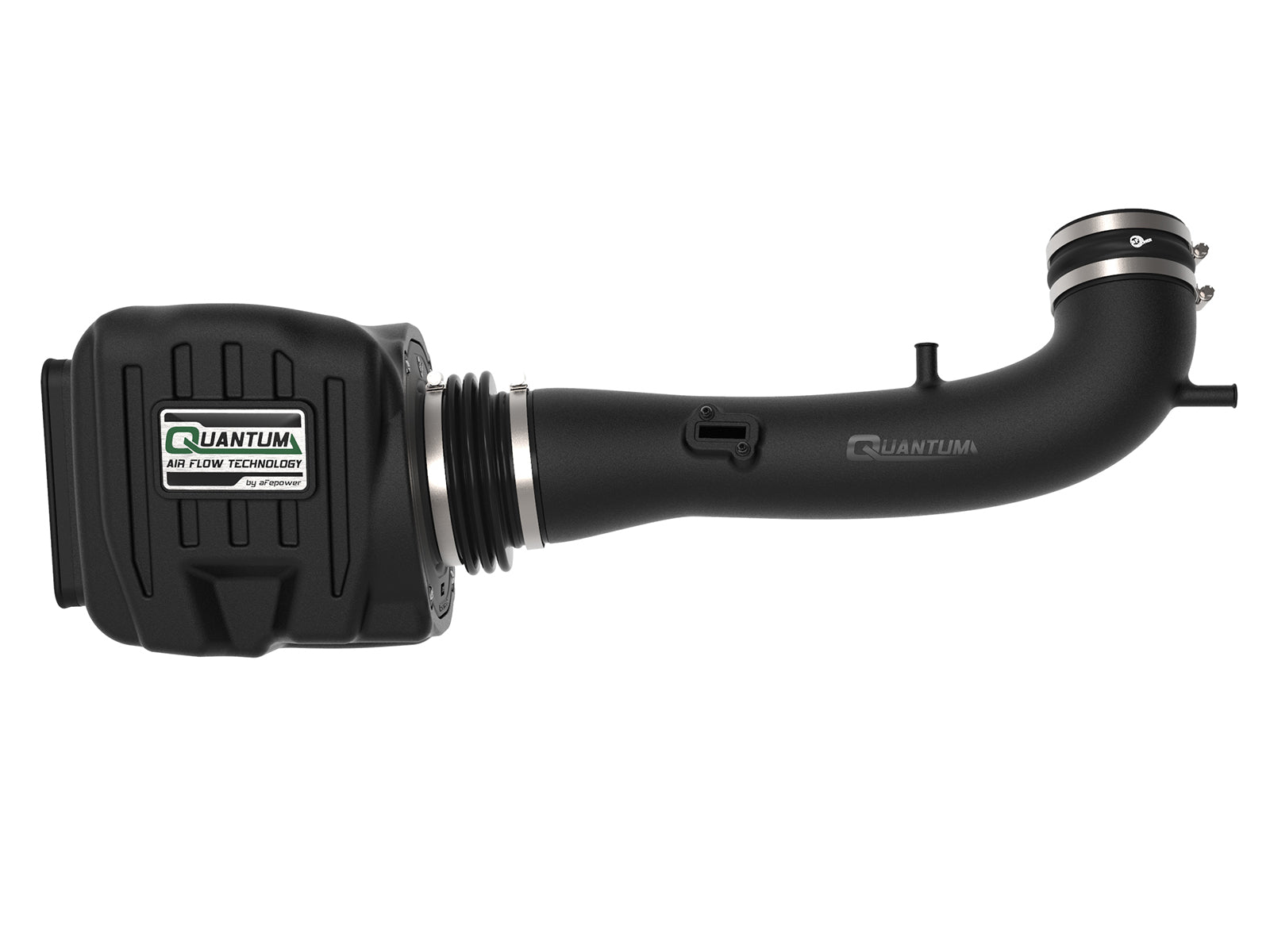

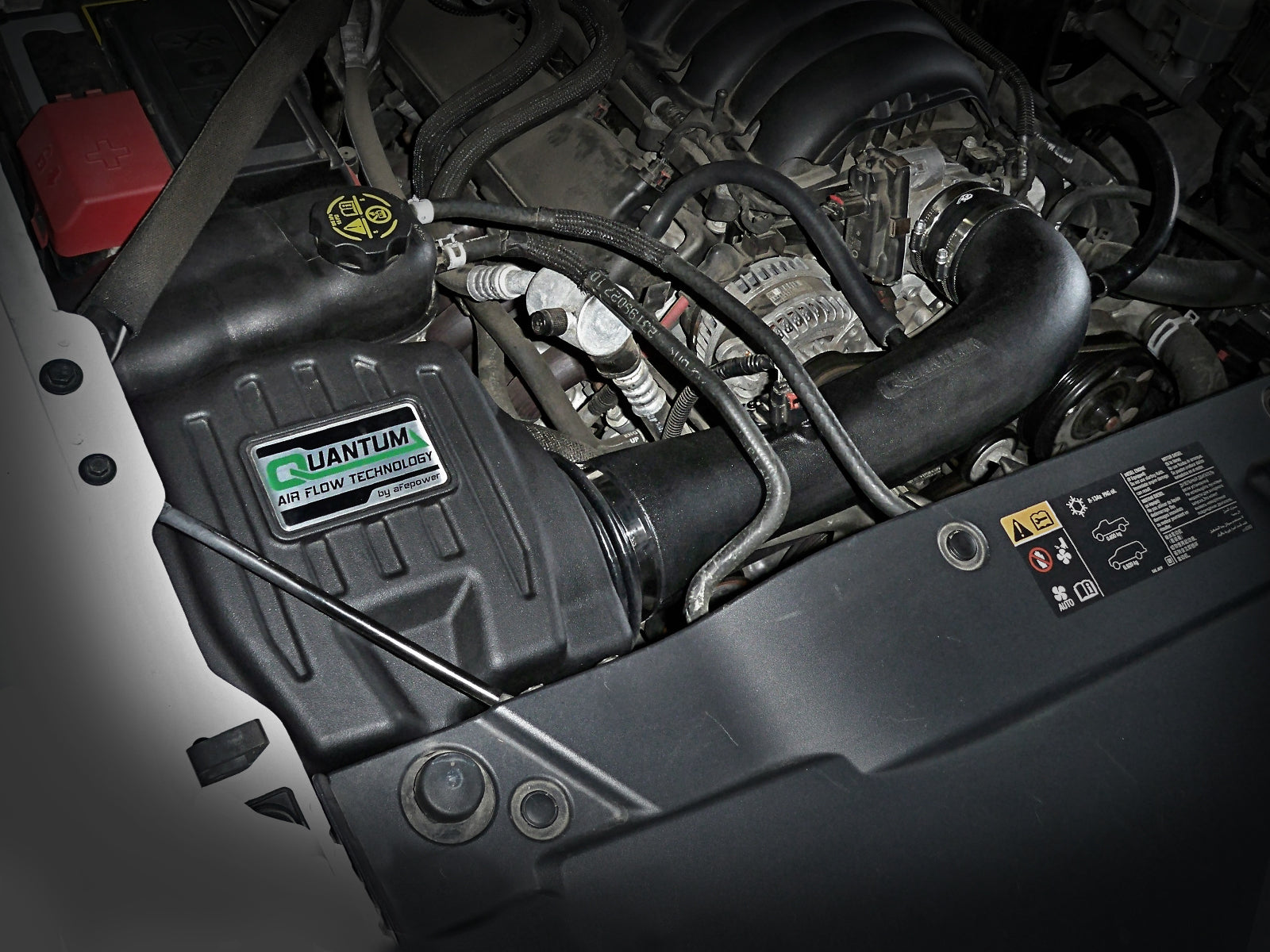

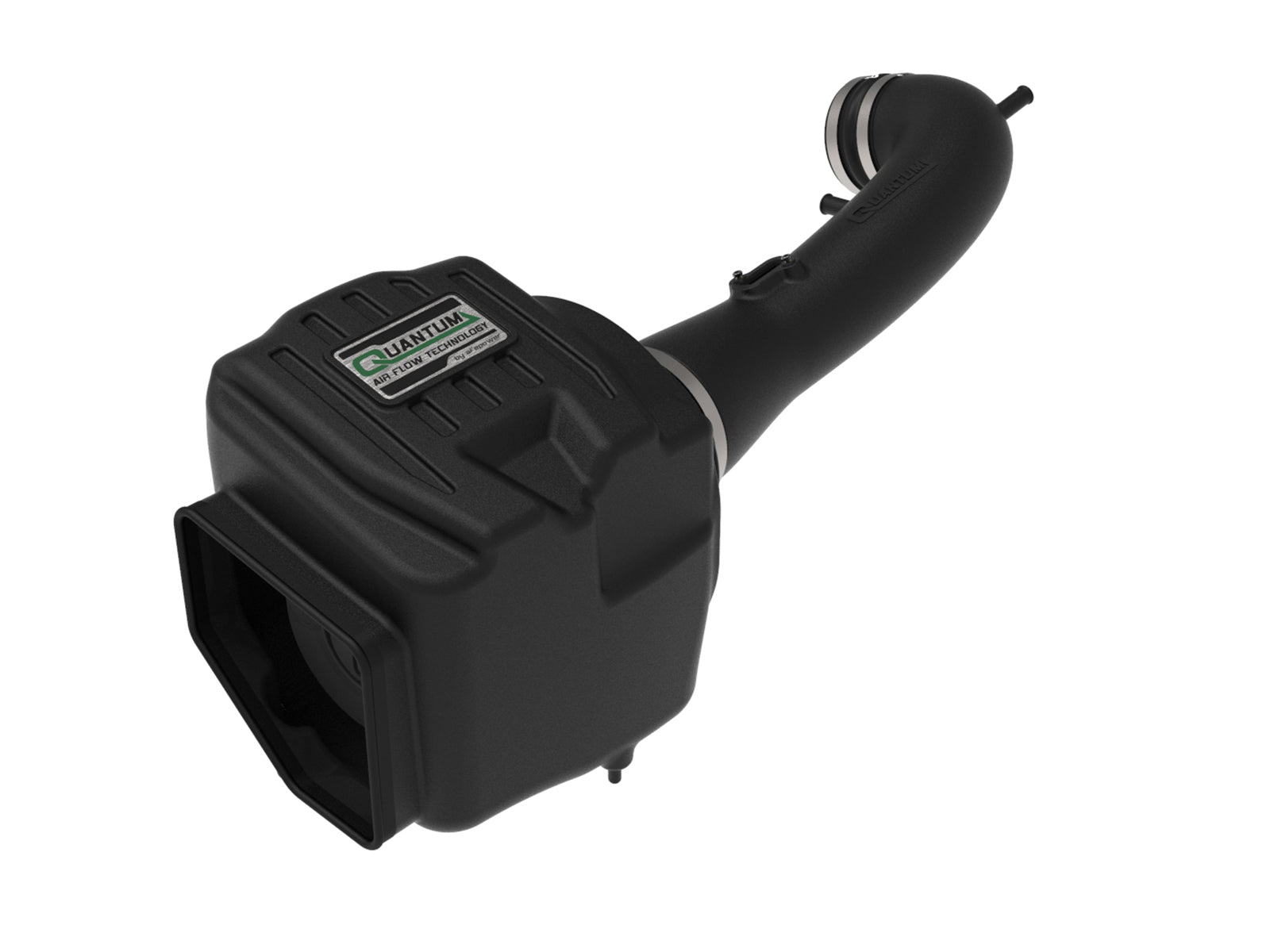

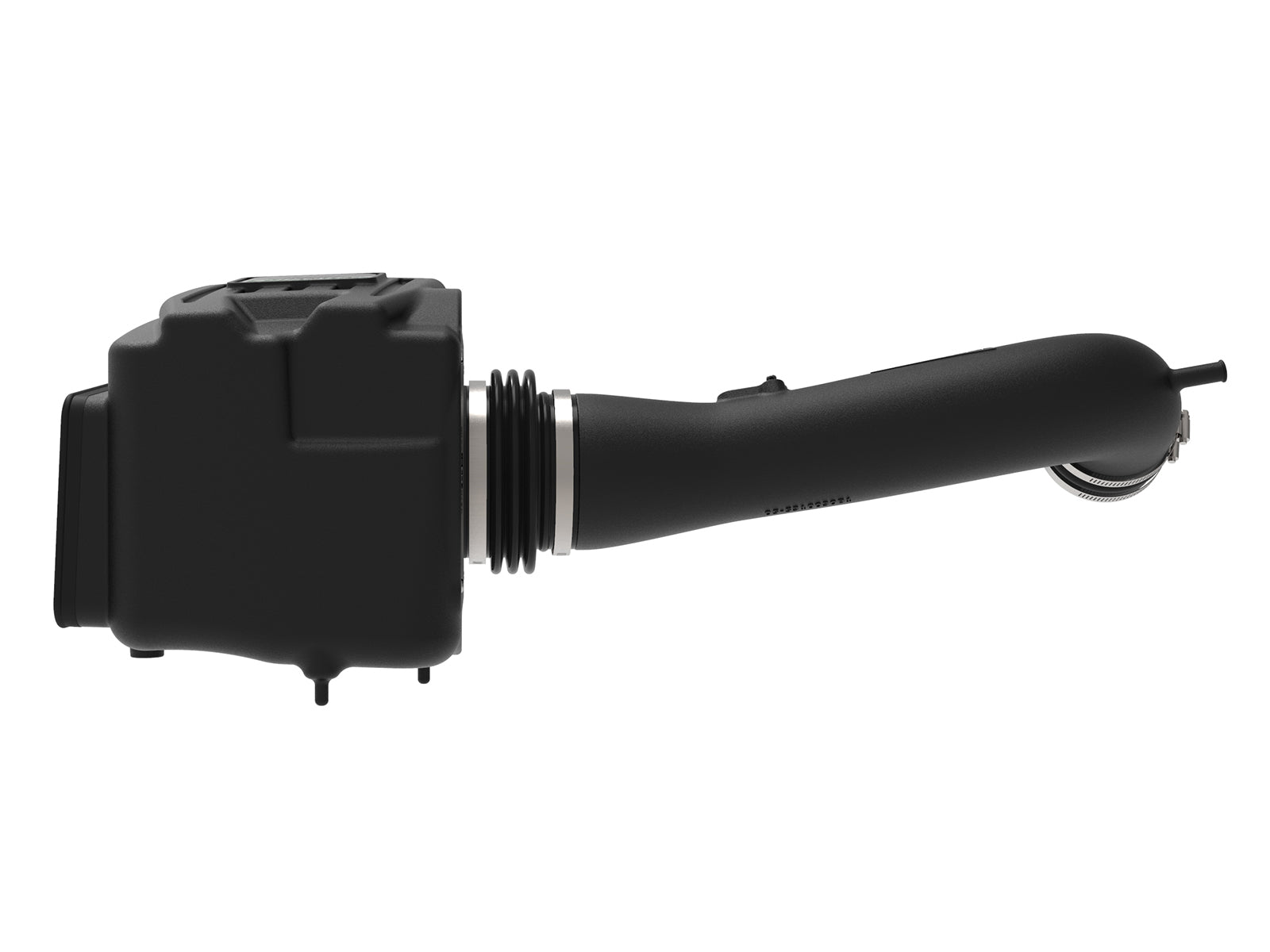

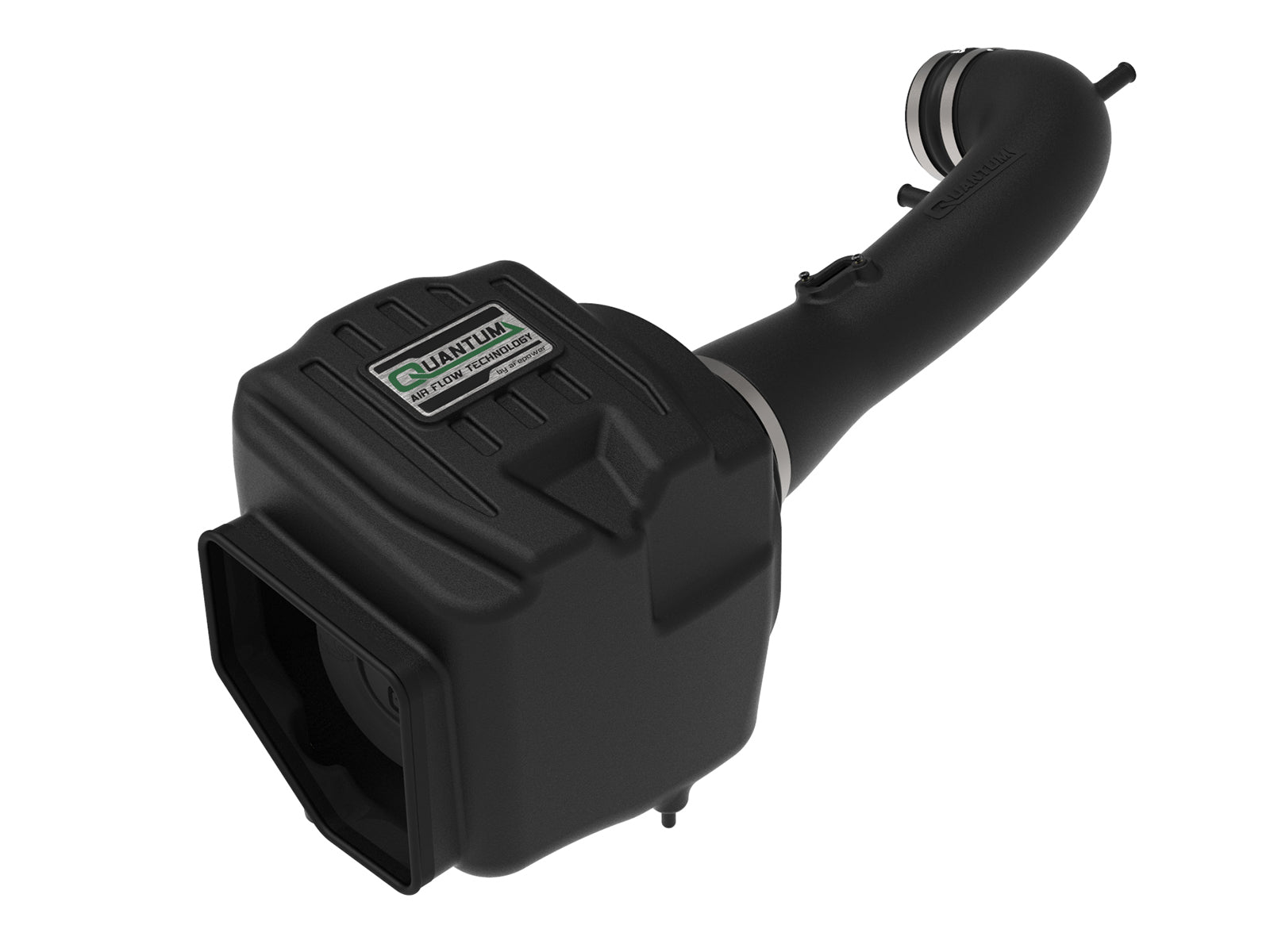

aFe 53-10030D is a Quantum intake for specified 2014-2019 Silverado/Sierra 1500 gasoline 5.3L/6.2L V8 trucks. It supplies ONE 21-90098 filter with Pro DRY S; THREE oil-free synthetic layers and retains the original MAF with its seal.

Key Features

• ONE 21-90098 filter; Pro DRY S; THREE oil-free synthetic layers; 5-inch flange / 9-inch height.
• XLPE tube 05-5310030B1 / housing 05-54006B2.
• FOUR captive filter-to-housing screws.
• THREE supplied couplings; install bellows plus engine-appropriate throttle coupling.
• 6.2L uses hump with TWO #060 clamps; 5.3L reducer uses #056 / #060.
• TWO breather hoses, 13-inch and 16-inch; fully seat at BOTH valve-cover beads.
• TWO M4 x .7 x 8mm Torx screws; original MAF SEAL retained.
• Original bottom retaining plug and mounting grommets transfer.

Fitment

Current exact primary and shared twenty-page manual specify 2014-2019 Silverado/Sierra 1500 gasoline 5.3L/6.2L V8. Exact selected-part tables also name the 2019 Silverado 1500 LD and Sierra 1500 Limited carryover trucks. Original named year bounds and gaps remain; two missing groups are restored: Silverado 1500 WT 2014-2019 and Sierra 1500 Limited Base 2019. Some retailer tables keep unsuffixed 2019 model names while another separates 2014-2018 trucks from 2019 LD/Limited; actual generation, 5.3L/6.2L engine, original housing, MAF and BOTH breather connections must match. No 2019 new-generation, 4.3L V6, diesel, HD or SUV extension is inferred.

Verify 53-10030D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

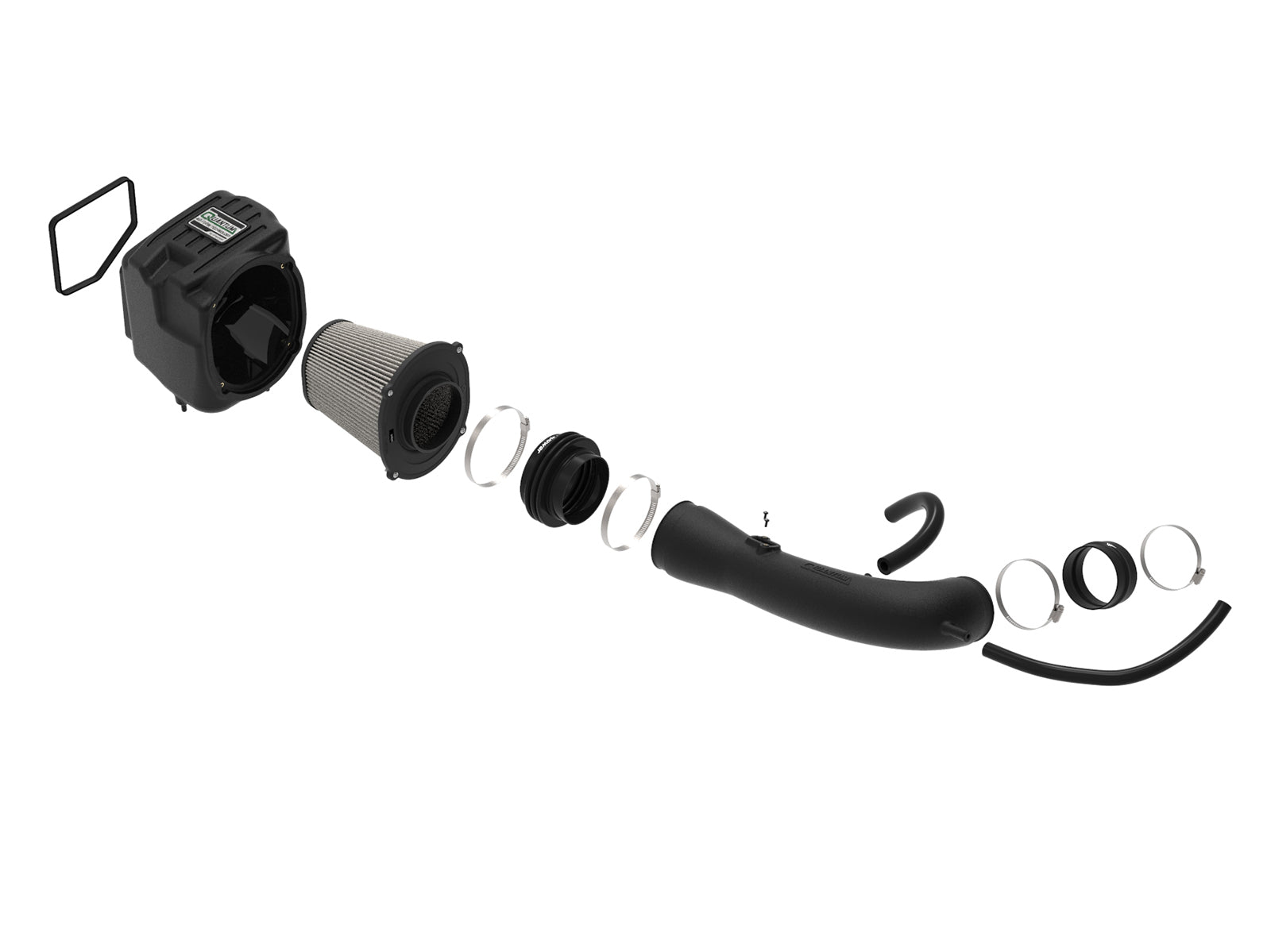

ONE 21-90098 filter with Pro DRY S; THREE oil-free synthetic layers, 5-inch flange and 9-inch height; alternate media bill entry is not a second filter. ONE XLPE tube 05-5310030B1 and housing 05-54006B2; ONE 26-inch trim seal; THREE supplied silicone couplings: bellows, reducer and hump. Only bellows plus engine-appropriate throttle-body coupling are installed. FIVE supplied large clamps: #080, #072, TWO #060 and #056; #056 is for 5.3L reducer. TWO M4 x .7 x 8mm Torx screws and TWO silicone breather hoses, 13-inch and 16-inch, both listed 05-01396. Original MAF WITH SEAL, bottom retaining plug and mounting grommets are retained. No new sensor, grommet pack, mini-clamp set or filter minder listed.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 53-10030D
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

ONE 21-90098 filter with Pro DRY S; THREE oil-free synthetic layers, 5-inch flange and 9-inch height; alternate media bill entry is not a second filter. ONE XLPE tube 05-5310030B1 and housing 05-54006B2; ONE 26-inch trim seal; THREE supplied silicone couplings: bellows, reducer and hump. Only bellows plus engine-appropriate throttle-body coupling are installed. FIVE supplied large clamps: #080, #072, TWO #060 and #056; #056 is for 5.3L reducer. TWO M4 x .7 x 8mm Torx screws and TWO silicone breather hoses, 13-inch and 16-inch, both listed 05-01396. Original MAF WITH SEAL, bottom retaining plug and mounting grommets are retained. No new sensor, grommet pack, mini-clamp set or filter minder listed.

No. THREE synthetic layers are oil-free; use the correct Pro DRY S cleaning method and do not oil. Alternate shared-manual media entry is not a second filter.

Current exact primary and shared twenty-page manual specify 2014-2019 Silverado/Sierra 1500 gasoline 5.3L/6.2L V8. Exact selected-part tables also name the 2019 Silverado 1500 LD and Sierra 1500 Limited carryover trucks. Original named year bounds and gaps remain; two missing groups are restored: Silverado 1500 WT 2014-2019 and Sierra 1500 Limited Base 2019. Some retailer tables keep unsuffixed 2019 model names while another separates 2014-2018 trucks from 2019 LD/Limited; actual generation, 5.3L/6.2L engine, original housing, MAF and BOTH breather connections must match. No 2019 new-generation, 4.3L V6, diesel, HD or SUV extension is inferred.

No. THREE couplings are supplied, but use bellows plus ONE throttle coupling: 6.2L hump with TWO #060 clamps, or 5.3L reducer SMALL end at throttle body with #056 and #060 at other end. Remaining engine-specific pieces are unused.

Original MAF WITH FACTORY SEAL, bottom retaining plug and housing mounting grommets remain. MAF uses TWO supplied M4 x .7 x 8mm screws, T15 removal / T20 installation. Keep original harness routing secure.

Insert FILTER END FIRST then throttle body. Fit BOTH 13-inch and 16-inch breather hoses at passenger/driver valve-cover fittings as illustrated, seated fully to the beads. They are crankcase breathers, not coolant hoses; no fluid-circuit opening or mini-clamp set specified.

Actual linked chart shows Pro 5R 550 CFM, Pro DRY S 515 CFM and stock 405 CFM at 7 inches H2O. Oiled increase is 35.80%, rounded to 36%; dry 27.16%, rounded to 27%. Bench-flow percentages are not horsepower gains. Dry chart at 4,000 rpm marks 252.30 versus 243.38 HP, plus 8.92 HP, and 331.32 versus 319.57 lb-ft, plus 11.75 lb-ft. Separate maxima are 299.85 versus 292.78 HP, plus 7.07 HP, and 331.36 versus 324.92 lb-ft, plus 6.44 lb-ft. Advertised 9 HP/12 lb-ft approximates marked-point comparison. Selected July 26, 2019 at 11:44:09 AM, SAE 1.04. BOTH selected and baseline chart notes identify a 2010 Chevrolet Silverado 5.3L with aFe EXHAUST, third gear and 2,000 RPM, despite current product/manual application being 2014-2019. This manufacturer-linked earlier test-vehicle label is a source conflict, not permission to map the kit to 2010 or proof of identical gains on later trucks. Baseline July 24, 2019 at 3:06:01 PM, SAE 1.05. OBD2 RPM, Dynojet 424xLC Linx, Dynoware RT WB and smoothing 5 printed. Weather, hood and fan settings are not printed. No stock-exhaust, 6.2L or later-truck power certification is implied.

Manual specifies negative-battery disconnection before work and 100-200-mile screw/clamp/connector recheck. No numeric torque, cutting or drilling specified. Current non-CARB restriction applies.

Installation Instructions

Verify aFe 53-10030D. Read all twenty pages and figures A-K. Work cool and disconnect negative battery terminal. Unplug original MAF, loosen housing/throttle clamps and release original MAF harness clip. Disconnect original crankcase breathers from BOTH valve covers and remove original tube/plenum with breather plugs attached, then factory housing. Attach selected filter to new housing with FOUR captive screws and #3 Phillips driver; secure bellows at filter with #080 clamp. Fit 26-inch seal at housing opening and TRANSFER original bottom retaining PLUG. Push housing firmly into ORIGINAL mounting grommets. Transfer original MAF using T15 removal / T20 installation and TWO M4 x .7 x 8mm screws; original MAF SEAL must stay attached. Fit #072 at filter bellows, initially loose. For 6.2L use HUMP coupling and BOTH #060 clamps at throttle body. For 5.3L use REDUCER SMALL END at throttle body with #056 clamp, and one #060 on other end. Insert tube FILTER END FIRST, then throttle-body coupling; align and tighten clamps. Install BOTH supplied breather hoses, 13 and 16 inches long, between tube and passenger/driver valve-cover fittings as illustrated; seat fully to the beads and avoid kinks/hot or moving parts. Reconnect MAF, secure original harness routing and restore battery connection. No numeric torque, cutting or drilling specified. Recheck screws, clamps and connectors after 100-200 miles.

Important Disclosures

Actual linked chart shows Pro 5R 550 CFM, Pro DRY S 515 CFM and stock 405 CFM at 7 inches H2O. Oiled increase is 35.80%, rounded to 36%; dry 27.16%, rounded to 27%. Bench-flow percentages are not horsepower gains. Dry chart at 4,000 rpm marks 252.30 versus 243.38 HP, plus 8.92 HP, and 331.32 versus 319.57 lb-ft, plus 11.75 lb-ft. Separate maxima are 299.85 versus 292.78 HP, plus 7.07 HP, and 331.36 versus 324.92 lb-ft, plus 6.44 lb-ft. Advertised 9 HP/12 lb-ft approximates marked-point comparison. Selected July 26, 2019 at 11:44:09 AM, SAE 1.04. BOTH selected and baseline chart notes identify a 2010 Chevrolet Silverado 5.3L with aFe EXHAUST, third gear and 2,000 RPM, despite current product/manual application being 2014-2019. This manufacturer-linked earlier test-vehicle label is a source conflict, not permission to map the kit to 2010 or proof of identical gains on later trucks. Baseline July 24, 2019 at 3:06:01 PM, SAE 1.05. OBD2 RPM, Dynojet 424xLC Linx, Dynoware RT WB and smoothing 5 printed. Weather, hood and fan settings are not printed. No stock-exhaust, 6.2L or later-truck power certification is implied. Current exact primary and shared twenty-page manual specify 2014-2019 Silverado/Sierra 1500 gasoline 5.3L/6.2L V8. Exact selected-part tables also name the 2019 Silverado 1500 LD and Sierra 1500 Limited carryover trucks. Original named year bounds and gaps remain; two missing groups are restored: Silverado 1500 WT 2014-2019 and Sierra 1500 Limited Base 2019. Some retailer tables keep unsuffixed 2019 model names while another separates 2014-2018 trucks from 2019 LD/Limited; actual generation, 5.3L/6.2L engine, original housing, MAF and BOTH breather connections must match. No 2019 new-generation, 4.3L V6, diesel, HD or SUV extension is inferred. Current non-CARB restriction applies.
