aFe Jeep Wrangler 2.0T Quantum 5R

Quantum intake for the specified Jeep engine

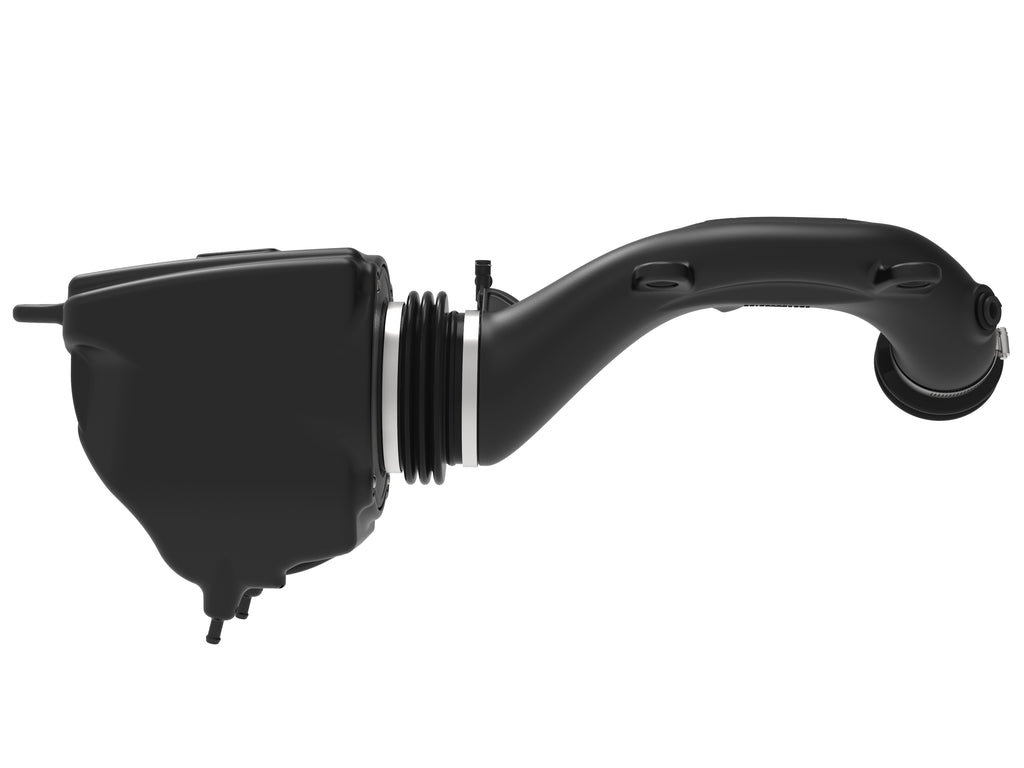

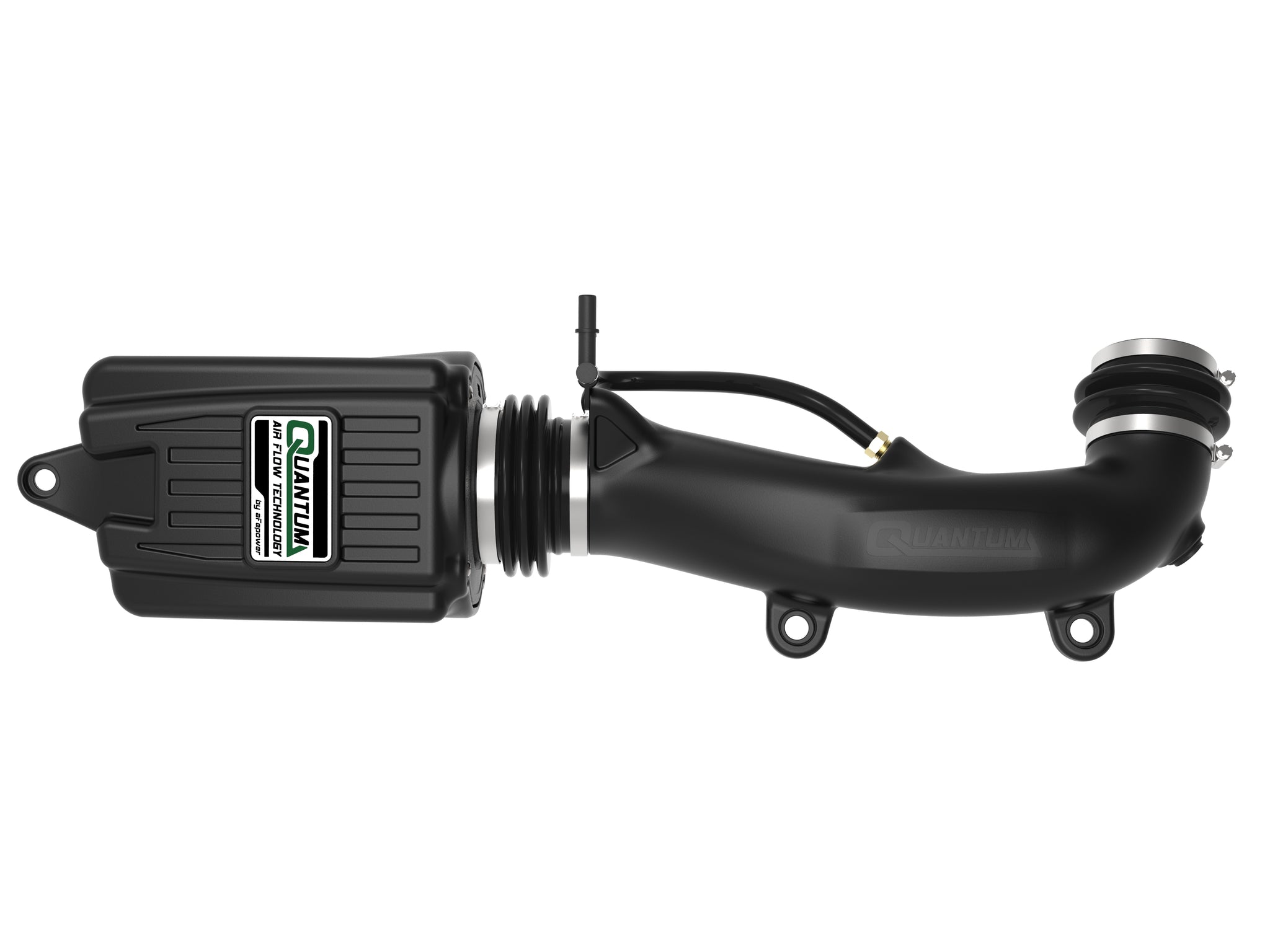

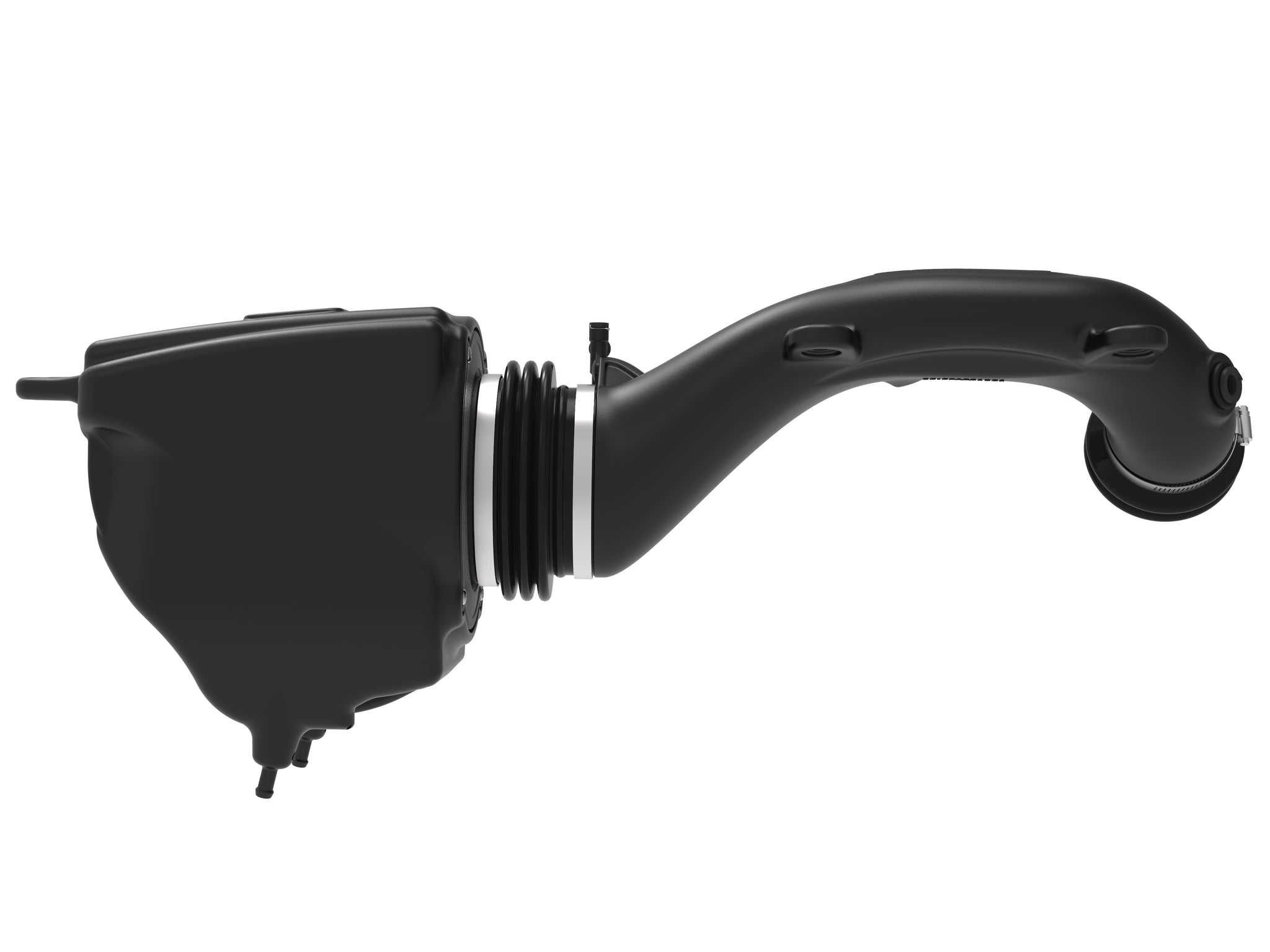

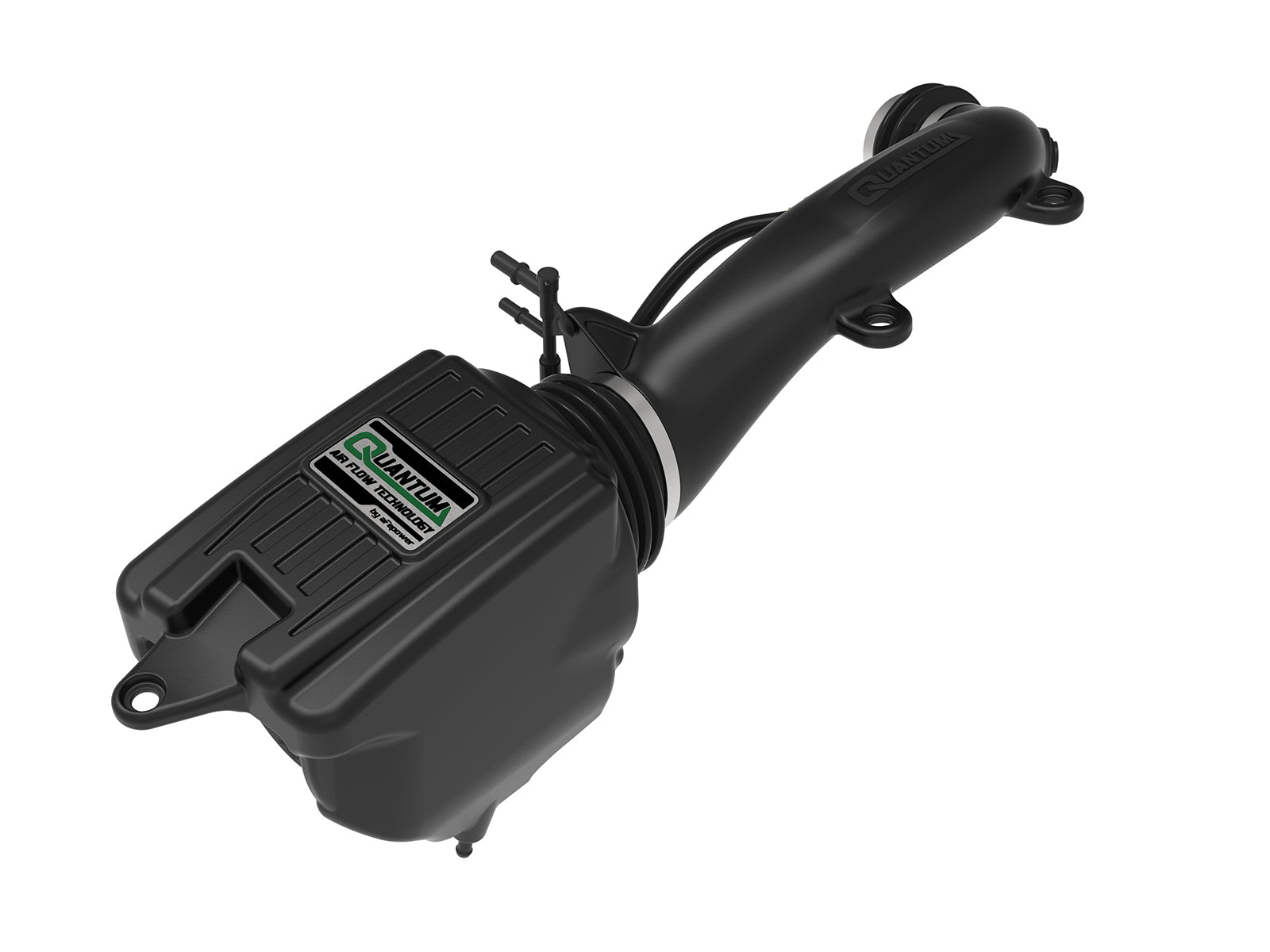

aFe 53-10019R is the Quantum Pro 5R intake for the specified Jeep 2.0L turbocharged four-cylinder. Its five-rib sealed housing mates directly to one oiled filter through four captive screws, while an application-specific XLPE tube replaces the original intake tube. This is a complete engine-specific intake rather than a universal air filter.

Key Features

• One washable, reusable Pro 5R filter with five oiled cotton-gauze layers; clean, dry and recharge with the correct aFe oil.
• Injection-molded filter base and top with a built-in three-angle velocity stack and four captive filter-to-housing screws.

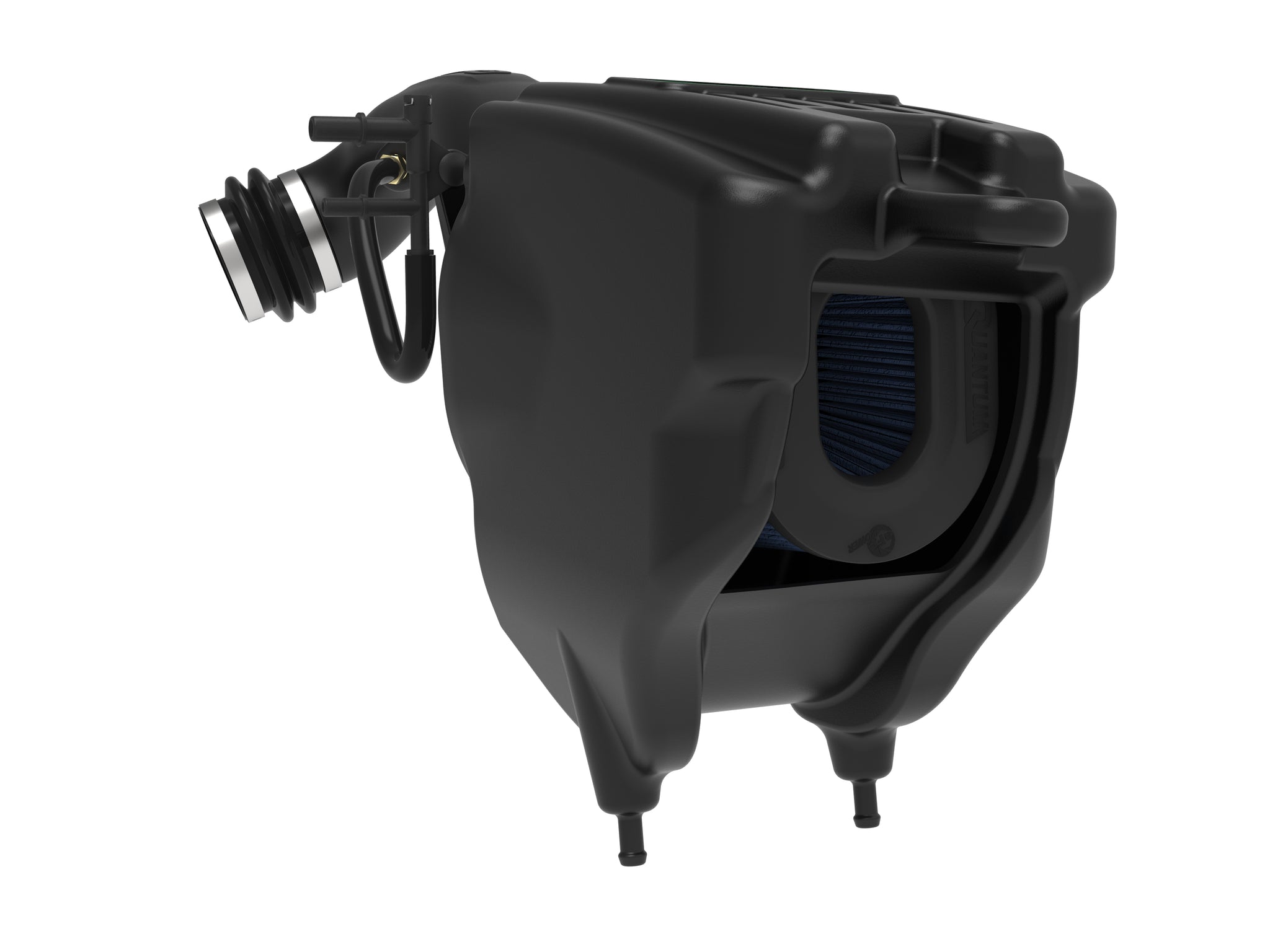

• Sealed five-rib rotomolded housing and CAD-designed XLPE intake tube; no exposed open-shield filter or retained factory lower airbox in this procedure.
• Two silicone bellows couplings, four supplied clamps, original mounting grommets and metal sleeves, and three reused original mounting screws.
• Original IAT sensor transfers into the supplied adapter and new rubber grommet; do not call it a MAF transfer.
• Bench flow at 7 inches H2O: 365 CFM versus 270 CFM stock, approximately 35% higher.

Fitment

Wrangler JL 2018–2023 with the factory 2.0L turbo engine, as listed on the current exact manufacturer page and illustrated manual. Existing named applications below retain their original year limits; the broader 2023 manufacturer headline does not independently prove each missing named trim. A retailer advertises 2024 and other exact-part retailers list hybrid applications, but the manual does not separately identify 4xe or the later valve-equipped intake revision. Those broader applications require exact engine, vent, sensor and hardware confirmation; they are not newly established by this listing.

Verify 53-10019R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

The shared manual shows both dry and oiled alternatives; this selected listing supplies only the Pro 5R filter. The four filter-retaining screws are captive in the filter assembly rather than separately enumerated BOM items. Reuse the original IAT sensor, tube and housing mounting grommets with their metal sleeves, underside vehicle mounting grommets, original vent lines, three intake mounting screws and applicable harness/hose retaining clips. No new sensor is included. This manual explicitly sizes the large reducer at 5 x 4.5-inch ID by 3.25 inches long and the small bellows at 3.25-inch ID by 3 inches long. Its final three-clamp wording conflicts with the four-clamp BOM and earlier assembly steps.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact selected-part specifications for 53-10019R
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Selected-part dyno comparison and test configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

Wrangler JL 2018–2023 with the factory 2.0L turbo engine, as listed on the current exact manufacturer page and illustrated manual. Existing named applications below retain their original year limits; the broader 2023 manufacturer headline does not independently prove each missing named trim. A retailer advertises 2024 and other exact-part retailers list hybrid applications, but the manual does not separately identify 4xe or the later valve-equipped intake revision. Those broader applications require exact engine, vent, sensor and hardware confirmation; they are not newly established by this listing.

One 23-91133 Pro 5R filter is supplied, with five oiled cotton-gauze layers and an injection-molded base/top. Wash, fully dry and recharge using the specified aFe oiled-filter procedure; the dry alternative shown in the manual is not a second included filter.

Slide the filter into the Quantum housing and tighten its four captive screws for the filter-to-housing seal. The coupling clamps connect the tube and filter flange; they do not replace those four retaining screws.

Transfer the original IAT sensor into the supplied new grommet and adapter. Seat the adapter bead fully, then turn the sensor clockwise until its tab clicks. Transfer original tube and housing mounting grommets with their metal sleeves; return underside mounting grommets to the vehicle bracket if displaced. Reuse all three mounting screws.

Install the supplied brass nipple and join the new 13-inch silicone hose to the plastic CCV vacuum-generator fitting. Secure the fitting with its push retainer, then lock BOTH original vent lines fully onto the fitting. This differs from the 3.6L kit’s single aluminum vent connection.

Two size-048, one size-072 and one size-080 clamps are in the exact BOM, for FOUR total. Earlier steps show both couplings with two clamps each, although the final line says three. Check all four installed connections; no numerical torque is stated.

The actual linked 2020 Wrangler JL 2.0T chart uses aFe cat-back exhaust and aftermarket 37/12.5/17 tires in BOTH runs, third gear from 2,000 rpm, red and silver fans and 30% load. The baseline uses an inductive rpm source while the intake run uses software-defined rpm. At about 2,700 rpm the plotted values differ by 9.67 hp and 18.70 lb-ft; separate run maxima differ by 1.63 hp and 10.83 lb-ft. Pointwise gains are not the same as peak-to-peak gains, and these results do not guarantee an otherwise-stock vehicle’s output. Bench flow is separately measured at 7 inches H2O and is not engine horsepower.

Reconnect the IAT harness and its clip, lock both vent connectors, secure all three original mounting screws and check every clamp and clearance. The exact 2.0L manual does not state a fixed mileage recheck interval. The current exact manufacturer page cites CARB EO D-550-60, while the older illustrated manual says non-exempt. The actual signed order names this exact R part but limits its stated application to 2020–2022 model-year 2.0L Jeep Wranglers. Do not extend that exemption to the entire 2018–2023 mechanical-fitment range, 2024, or an independently unverified hybrid configuration. Match the exact order conditions, application and required identification label before a California purchase or installation.

Installation Instructions

Verify aFe 53-10019R. Work on a cool engine and retain original parts. Disconnect the negative battery terminal as directed. Remove the three factory intake mounting screws and loosen the two original tube clamps. Disconnect both vent lines from the vacuum generator using the grey clips and disconnect the IAT sensor. Free the IAT harness clip. Remove the original intake tube, then lift the original housing straight up. If its underside mounting grommets come away with it, return them to the vehicle bracket. Repair displaced harness or hose attaching clips as illustrated. Transfer the original tube mounting grommets and metal sleeves to the new tube. Install the supplied brass barbed nipple, join the new 13-inch silicone hose between that nipple and the plastic CCV vacuum-generator fitting, and secure the CCV fitting with the supplied push retainer. Seat the new rubber IAT grommet and sensor adapter fully so the adapter bead cannot pop free. Lift the original IAT locking tab, turn the sensor one-quarter turn counterclockwise to remove it, then install it in the adapter and turn clockwise until the tab clicks. Transfer the original housing mounting grommet and metal sleeve into the new housing. Slide the selected filter into the housing and tighten all FOUR filter-retaining screws. Seat the housing pegs fully in the original bracket grommets and use one retained screw at the fender. Fit the small bellows coupling at the turbo inlet and the large reducing bellows at the filter, with their specified clamps. Insert the tube into the filter-side coupling and rotate it into the turbo-side coupling. Reconnect the IAT and secure its harness clip in the new tube. Use the remaining two original screws at the core support. Push both vent connectors fully onto the vacuum-generator fitting until they lock. The BOM and assembly steps list FOUR clamps (two 048, one 072 and one 080), although the final instruction says “all (3) clamps.” Verify every installed clamp without omitting a connection or overtightening. This exact 2.0L manual gives no numerical torque or fixed mileage recheck interval.

Important Disclosures

The current exact manufacturer page cites CARB EO D-550-60, while the older illustrated manual says non-exempt. The actual signed order names this exact R part but limits its stated application to 2020–2022 model-year 2.0L Jeep Wranglers. Do not extend that exemption to the entire 2018–2023 mechanical-fitment range, 2024, or an independently unverified hybrid configuration. Match the exact order conditions, application and required identification label before a California purchase or installation. A sealed intake housing is not a waterproofing or increased-fording-depth certification. The actual linked 2020 Wrangler JL 2.0T chart uses aFe cat-back exhaust and aftermarket 37/12.5/17 tires in BOTH runs, third gear from 2,000 rpm, red and silver fans and 30% load. The baseline uses an inductive rpm source while the intake run uses software-defined rpm. At about 2,700 rpm the plotted values differ by 9.67 hp and 18.70 lb-ft; separate run maxima differ by 1.63 hp and 10.83 lb-ft. Pointwise gains are not the same as peak-to-peak gains, and these results do not guarantee an otherwise-stock vehicle’s output.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
