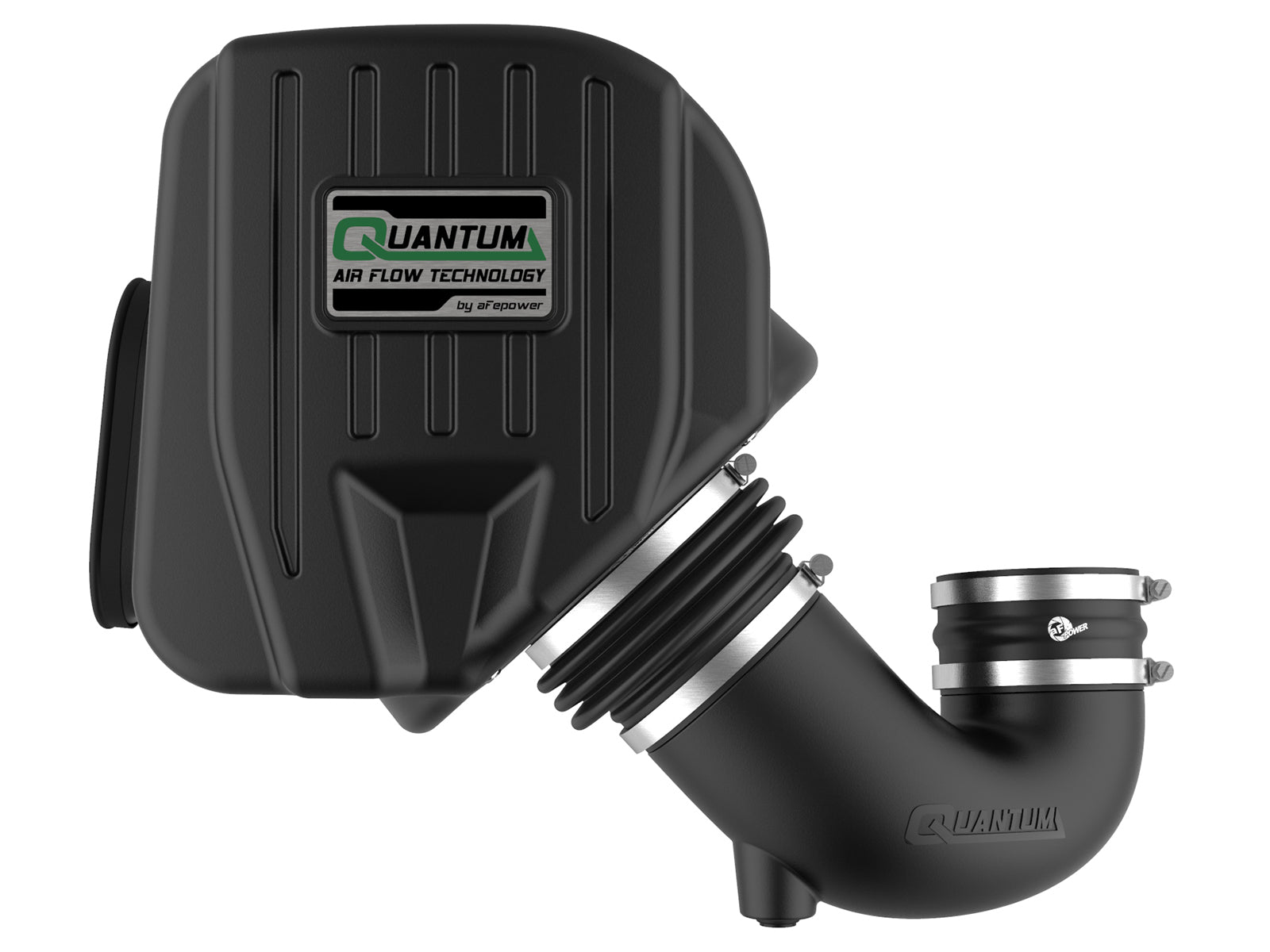

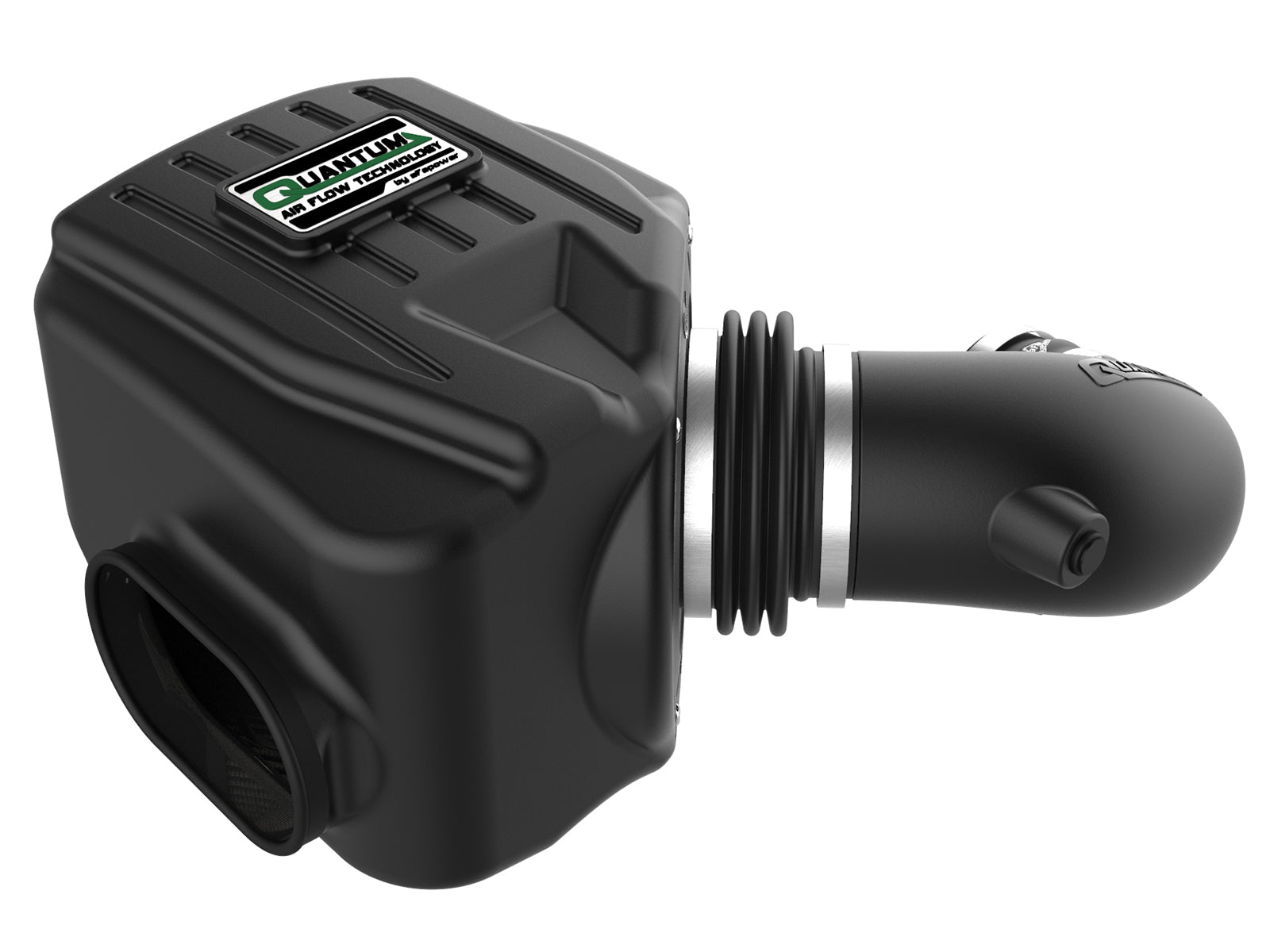

aFe 53-10001R is a Quantum intake for specified 1994-2002 Dodge Ram 2500/3500 Cummins 5.9L turbo-diesel applications. It supplies ONE Pro 5R filter assembly with FIVE oiled progressive cotton-composite layers, replacing BOTH factory airbox halves with a roto-molded housing and XLPE tube. Original mounting grommets and pin inserts remain.
Exact current selected-media primary and own sixteen-page manual specify 1994-2002 Dodge Ram 2500/3500 with turbo-diesel Cummins 5.9L inline-six. Both existing genuine Base named rows, endpoints and tags remain unchanged, supported by exact selected-part retailer listings. This is not a gasoline 5.9L, V10, Ram 1500, later 6.7L or universal intake. No additional trims or year extensions are inferred from related engines or another Quantum part.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 1994-2002 | Dodge | Ram 2500 | Base |
| 1994-2002 | Dodge | Ram 3500 | Base |
Verify 53-10001R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 53-10001R |
| Selected media | FIVE oiled progressive cotton-composite layers |
| Filter construction | Injection-molded top/base; FOUR captive screws; three-angle velocity stack |
| Housing / tube | Roto-molded XLPE |
| Couplings | 05-01332 silicone hump / 05-01457 silicone bellows; dimensions not stated in own bill |
| Original mounting | Three original rubber grommets and original plastic pin inserts |
| Minder port | Original minder/grommet OR supplied grommet/cap; no open port |
| Bench flow | Exact linked comparison measures Pro 5R 625 CFM, Pro DRY S 585 CFM and stock 543 CFM at 7 inches H2O. Selected oiled improvement is 15.10%, rounded to 15%; 8% belongs to dry media. |
| Dyno | Oiled marked 2,557-rpm values: 175.97 minus 171.49 = 4.48 HP and 361.39 minus 352.14 = 9.25 lb-ft. Separate maxima: 180.87 versus 180.14 HP = 0.73 HP and 361.39 versus 352.87 lb-ft = 8.52 lb-ft. Advertised 8-HP/18-lb-ft gains are not demonstrated by the marked point or separate maxima, so those advertised magnitudes remain unverified here. Selected run March 14, 2018 at 5:39:35 PM; 72.82 F, 29.29 inHg, 33.11% humidity. Both compare a 2000 Dodge Ram 2500 5.9L turbo diesel to baseline that day at 6:01:12 PM, 68.82 F, 29.28 inHg, 37.06% humidity. SAE 1.00, smoothing 5, original manifold/turbo/intercooler, AFTERMARKET exhaust, no tune, second gear, 50% load, blade fan and Digital 1 RPM are noted. Hood position is not printed; no independent stock-exhaust, other-year or other-media result is implied. |
| Emissions | Current selected primary states not CARB exempt; unavailable for California purchase or California-registered vehicles |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | R23-91129 | Selected Pro 5R filter assembly; other-media entry alternative |
| 1 | 05-52001B2 | Roto-molded housing |
| 1 | 05-52001B1 | XLPE tube |
| 1 | 03-50033 | Supplied grommet for optional capped minder port |
| 1 | 03-50103 | Port cap if original filter minder omitted |
| 2 | 03-50006 | Clamps #064 |
| 1 | 05-01332 | Turbo-side silicone hump coupling |
| 1 | 05-00072 | Trim seal, 18-inch length |
| 1 | 03-50010 | Clamp #072 |
| 1 | 03-50011 | Clamp #080 |
| 1 | 05-01457 | Filter-side silicone bellows coupling |

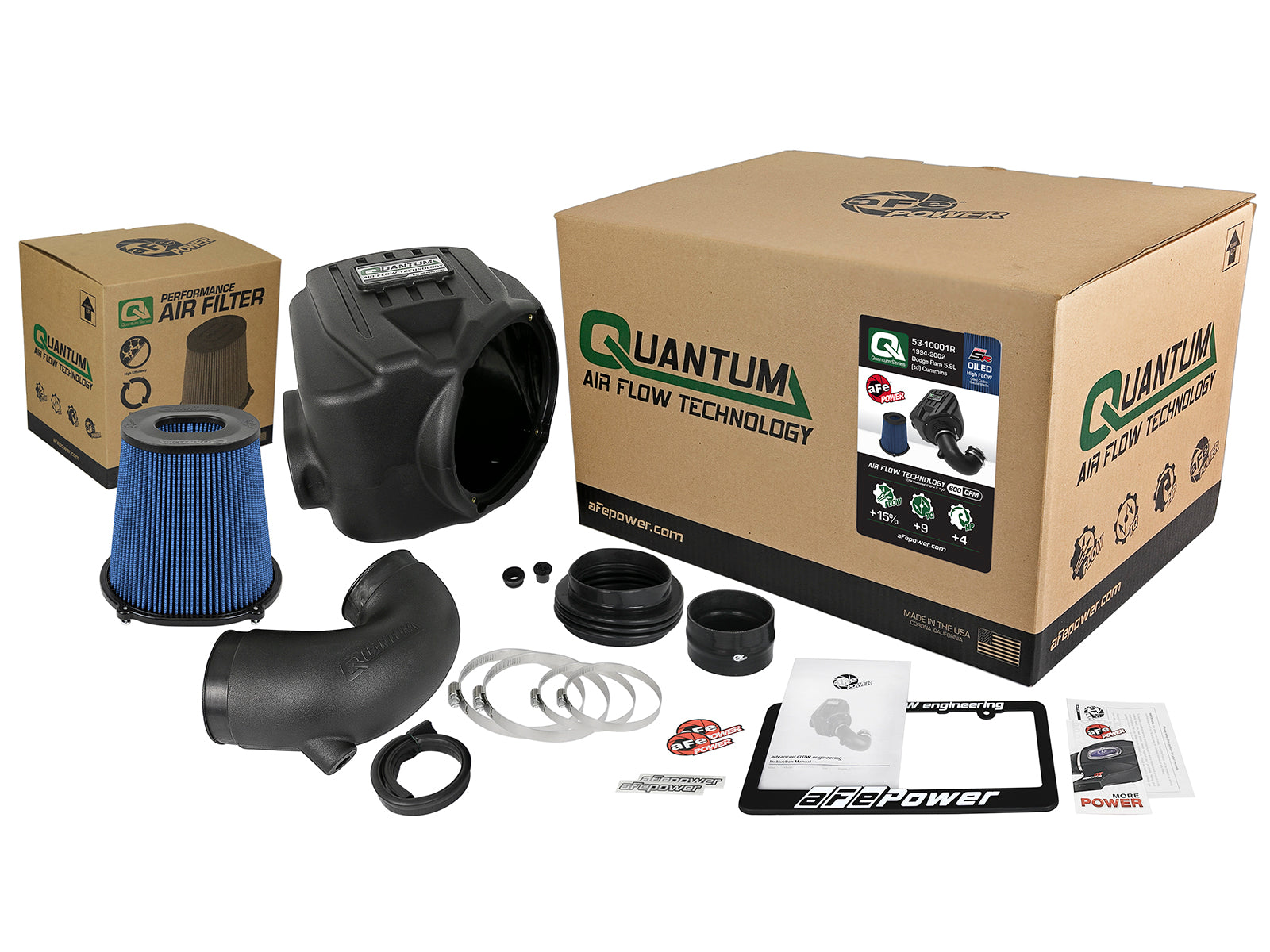

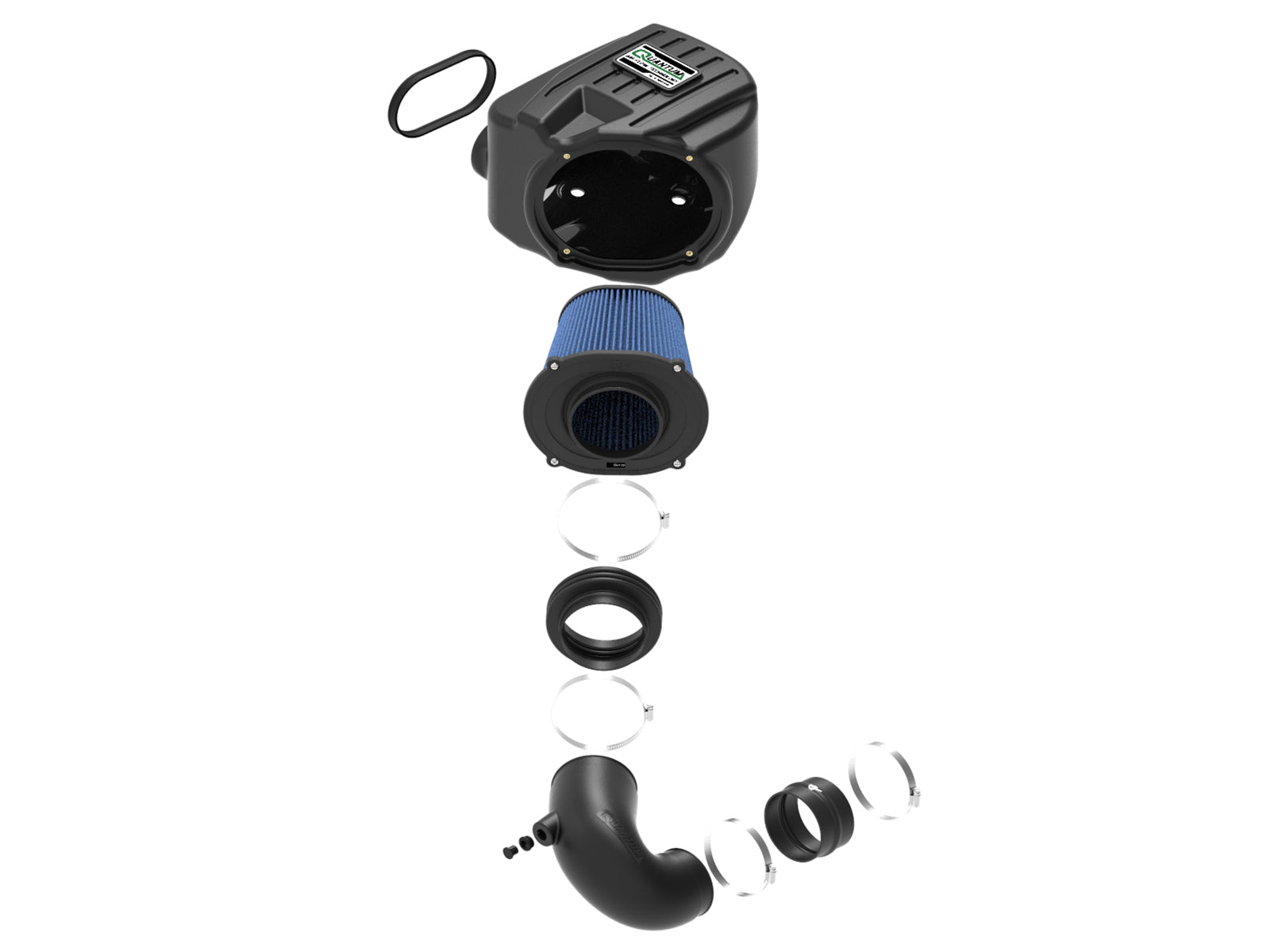

ONE R23-91129 selected filter assembly with FIVE oiled progressive cotton-composite layers; shared manual other-media entry is an alternative. Manual prints R-prefixed assembly identifiers; current oiled primary replacement reference is 23-91129. ONE roto-molded XLPE housing and ONE XLPE tube, TWO silicone couplings, FOUR clamps, 18-inch opening trim, one supplied grommet and cap. Filter base has FOUR captive screws and three-angle velocity stack. Retain THREE original mounting grommets and original plastic pin inserts. Optional original filter minder and its grommet transfer; supplied grommet/cap closes that port only if minder is omitted. No new filter minder, MAF/IAT sensor or three replacement mounting grommets are listed.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
ONE R23-91129 selected filter assembly with FIVE oiled progressive cotton-composite layers; shared manual other-media entry is an alternative. Manual prints R-prefixed assembly identifiers; current oiled primary replacement reference is 23-91129. ONE roto-molded XLPE housing and ONE XLPE tube, TWO silicone couplings, FOUR clamps, 18-inch opening trim, one supplied grommet and cap. Filter base has FOUR captive screws and three-angle velocity stack. Retain THREE original mounting grommets and original plastic pin inserts. Optional original filter minder and its grommet transfer; supplied grommet/cap closes that port only if minder is omitted. No new filter minder, MAF/IAT sensor or three replacement mounting grommets are listed.
Is this selected filter oil-free?No. Selected oiled filter uses FIVE progressive cotton-composite layers. Clean and re-oil using the correct Pro 5R procedure.
Which original mounting pieces remain?Transfer all THREE original airbox mounting grommets. Leave/refit plastic inserts on original chassis pins and press pins fully through grommets. Remove fender air duct only if equipped as manual directs.

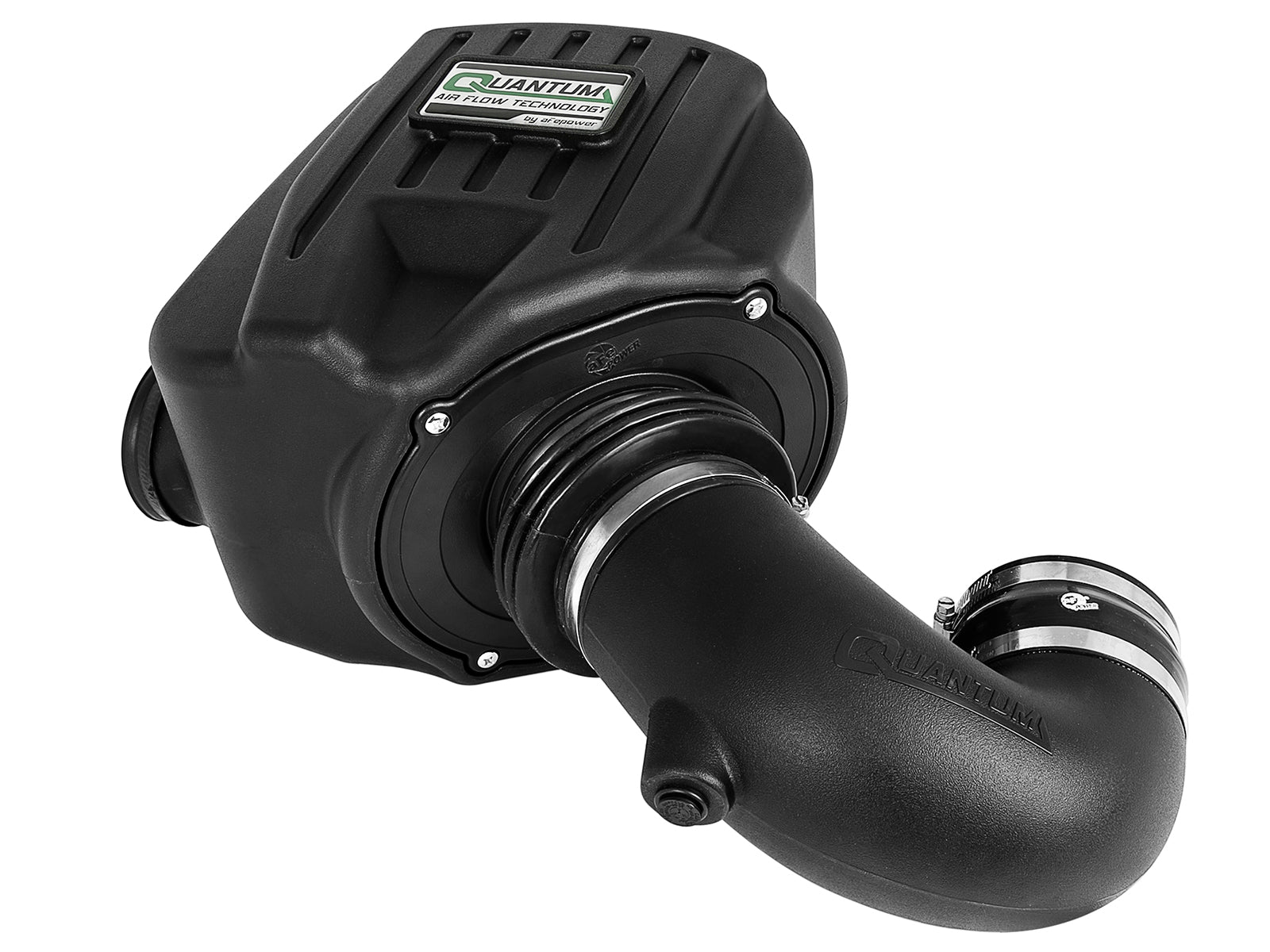

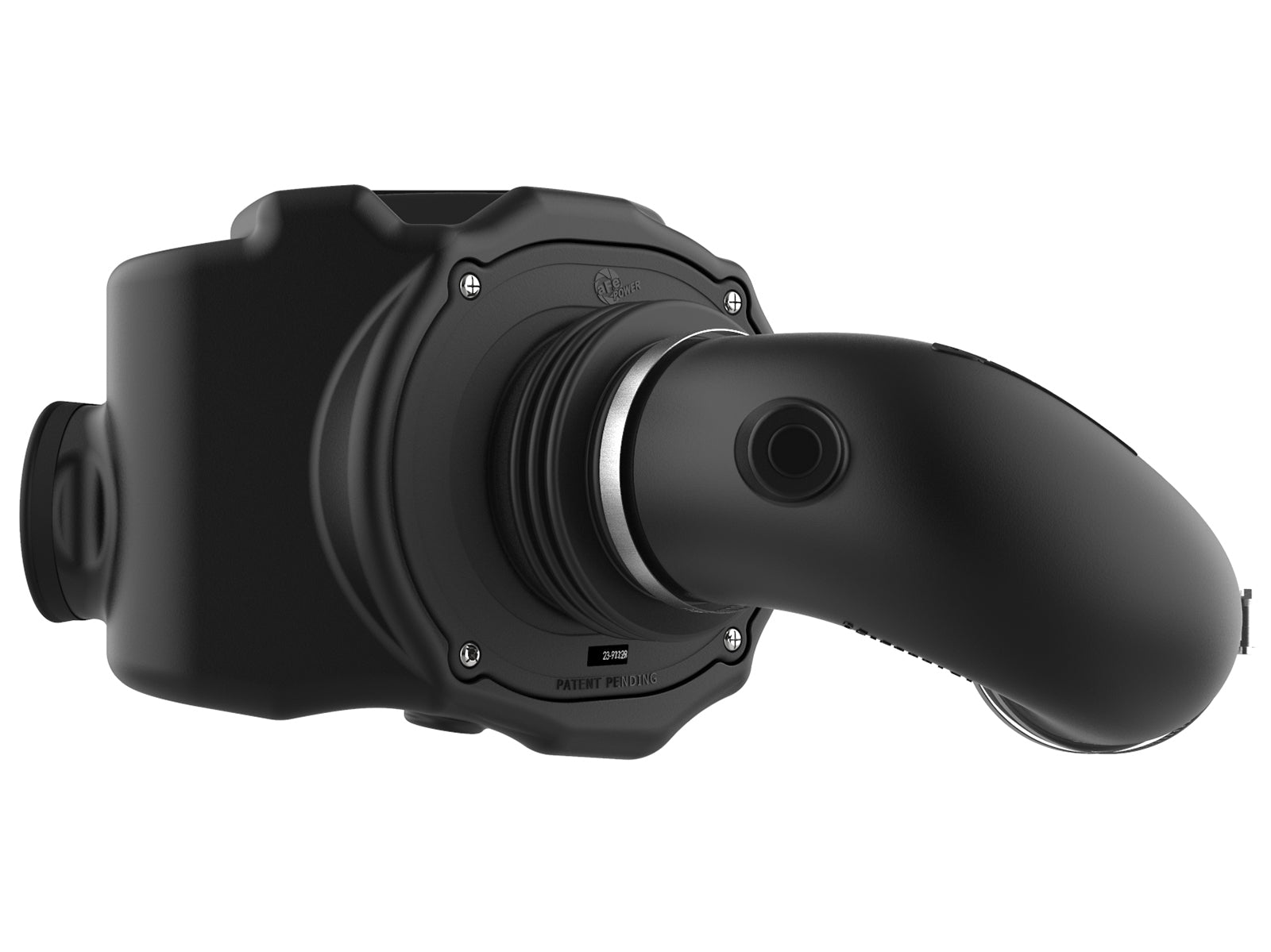

How does the filter secure to housing?Slide selected Quantum filter into housing and tighten FOUR captive Phillips screws using #3 driver. Captive hardware belongs to filter interface, not an invented separate mounting-bolt pack.
Can the original filter minder be retained?Yes. Transfer minder AND original grommet to new tube. If omitted, use supplied grommet and cap; do not leave port open. No new minder or MAF/IAT sensor is supplied.
Which coupling and clamp goes at each end?Turbo uses hump coupling with TWO #064 clamps. Filter uses bellows with #080 on filter side and #072 on tube side. Insert tube FILTER END FIRST, then turbo end.
Do the charts verify the advertised peak gains?Exact linked comparison measures Pro 5R 625 CFM, Pro DRY S 585 CFM and stock 543 CFM at 7 inches H2O. Selected oiled improvement is 15.10%, rounded to 15%; 8% belongs to dry media. Oiled marked 2,557-rpm values: 175.97 minus 171.49 = 4.48 HP and 361.39 minus 352.14 = 9.25 lb-ft. Separate maxima: 180.87 versus 180.14 HP = 0.73 HP and 361.39 versus 352.87 lb-ft = 8.52 lb-ft. Advertised 8-HP/18-lb-ft gains are not demonstrated by the marked point or separate maxima, so those advertised magnitudes remain unverified here. Selected run March 14, 2018 at 5:39:35 PM; 72.82 F, 29.29 inHg, 33.11% humidity. Both compare a 2000 Dodge Ram 2500 5.9L turbo diesel to baseline that day at 6:01:12 PM, 68.82 F, 29.28 inHg, 37.06% humidity. SAE 1.00, smoothing 5, original manifold/turbo/intercooler, AFTERMARKET exhaust, no tune, second gear, 50% load, blade fan and Digital 1 RPM are noted. Hood position is not printed; no independent stock-exhaust, other-year or other-media result is implied.
What fitment, battery, torque and recheck apply?Exact current selected-media primary and own sixteen-page manual specify 1994-2002 Dodge Ram 2500/3500 with turbo-diesel Cummins 5.9L inline-six. Both existing genuine Base named rows, endpoints and tags remain unchanged, supported by exact selected-part retailer listings. This is not a gasoline 5.9L, V10, Ram 1500, later 6.7L or universal intake. No additional trims or year extensions are inferred from related engines or another Quantum part. Own manual requires negative-battery disconnection and gives no numeric torque; recheck bolts, clamps and connectors at 100-200 miles.

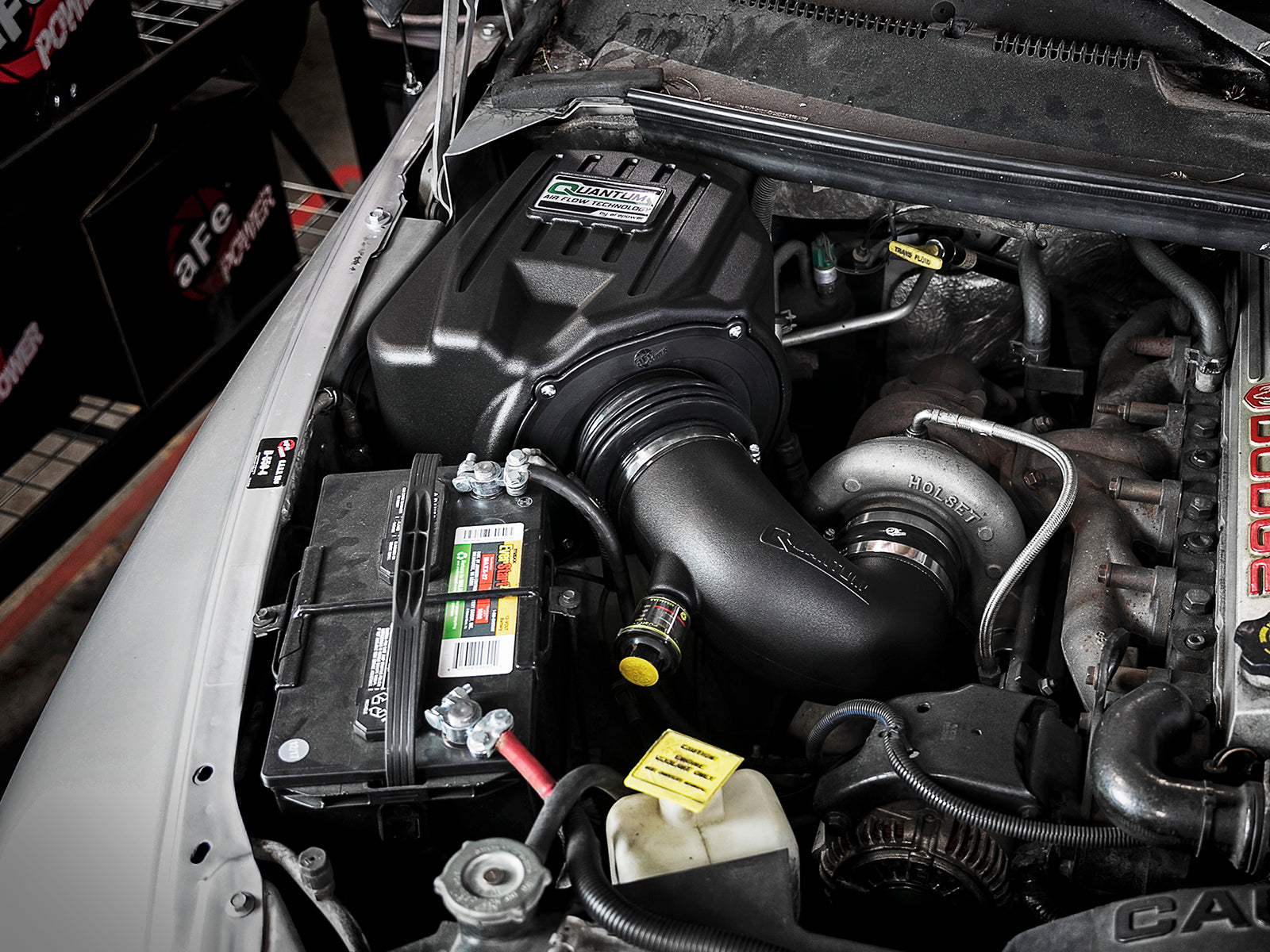

Verify aFe 53-10001R. Read all sixteen physical pages and figures A-L; printed page/figure references have numbering errors, so follow the actual illustrated sequence. Work cool and DISCONNECT NEGATIVE BATTERY terminal. Loosen original turbo/airbox clamps and remove tube; unclip upper box/filter, then pull LOWER original box from its grommets. Ensure all THREE plastic pin inserts remain on chassis mounting pins; if stuck in removed box grommets, remove and refit them to pins. Remove plastic fender air duct IF equipped. Transfer THREE original mounting grommets to new housing and fit 18-inch seal around housing inlet opening. Slide selected filter into housing and tighten FOUR CAPTIVE Phillips screws with #3 driver. Attach BELLOWS coupling to filter with #080 clamp. Push housing onto original pins until pins pass FULLY through grommets. Install HUMP coupling at turbo with first #064 clamp. Transfer original filter minder AND its original grommet to new tube, OR close port using supplied grommet and cap; do not leave open. Place remaining #064 at turbo coupling and #072 at filter coupling. Insert tube FILTER END FIRST, then into turbo coupling; align and tighten all four clamps. Verify all parts secure and restore battery connection when installation is complete. No numeric torque is specified; recheck all bolts, clamps and connectors at 100-200 miles.
Exact selected-media current primary, all sixteen physical own-manual pages, bill and figures A-L plus linked selected charts were read and viewed. Both media manuals and flow charts are identical files; dyno charts are separate. Exact linked comparison measures Pro 5R 625 CFM, Pro DRY S 585 CFM and stock 543 CFM at 7 inches H2O. Selected oiled improvement is 15.10%, rounded to 15%; 8% belongs to dry media. Oiled marked 2,557-rpm values: 175.97 minus 171.49 = 4.48 HP and 361.39 minus 352.14 = 9.25 lb-ft. Separate maxima: 180.87 versus 180.14 HP = 0.73 HP and 361.39 versus 352.87 lb-ft = 8.52 lb-ft. Advertised 8-HP/18-lb-ft gains are not demonstrated by the marked point or separate maxima, so those advertised magnitudes remain unverified here. Selected run March 14, 2018 at 5:39:35 PM; 72.82 F, 29.29 inHg, 33.11% humidity. Both compare a 2000 Dodge Ram 2500 5.9L turbo diesel to baseline that day at 6:01:12 PM, 68.82 F, 29.28 inHg, 37.06% humidity. SAE 1.00, smoothing 5, original manifold/turbo/intercooler, AFTERMARKET exhaust, no tune, second gear, 50% load, blade fan and Digital 1 RPM are noted. Hood position is not printed; no independent stock-exhaust, other-year or other-media result is implied. Exact current selected-media primary and own sixteen-page manual specify 1994-2002 Dodge Ram 2500/3500 with turbo-diesel Cummins 5.9L inline-six. Both existing genuine Base named rows, endpoints and tags remain unchanged, supported by exact selected-part retailer listings. This is not a gasoline 5.9L, V10, Ram 1500, later 6.7L or universal intake. No additional trims or year extensions are inferred from related engines or another Quantum part. Manual filter assembly uses R-prefixed service identifiers; do not substitute an unrelated clamp-on filter or borrow coupler dimensions. Current non-CARB restriction governs; older pending-EO catalog language is not an approval. Turn14 unavailable; no price change.
