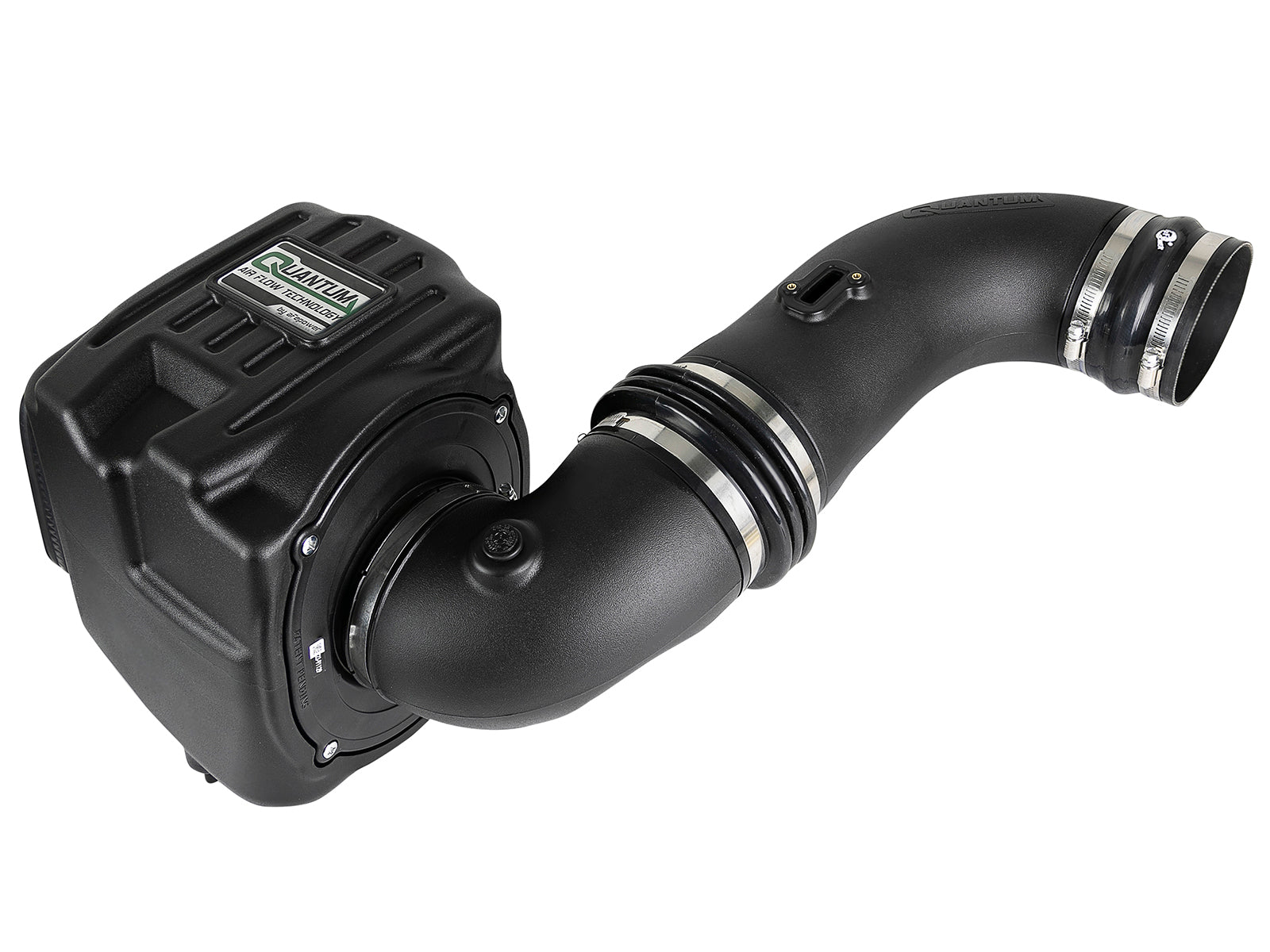

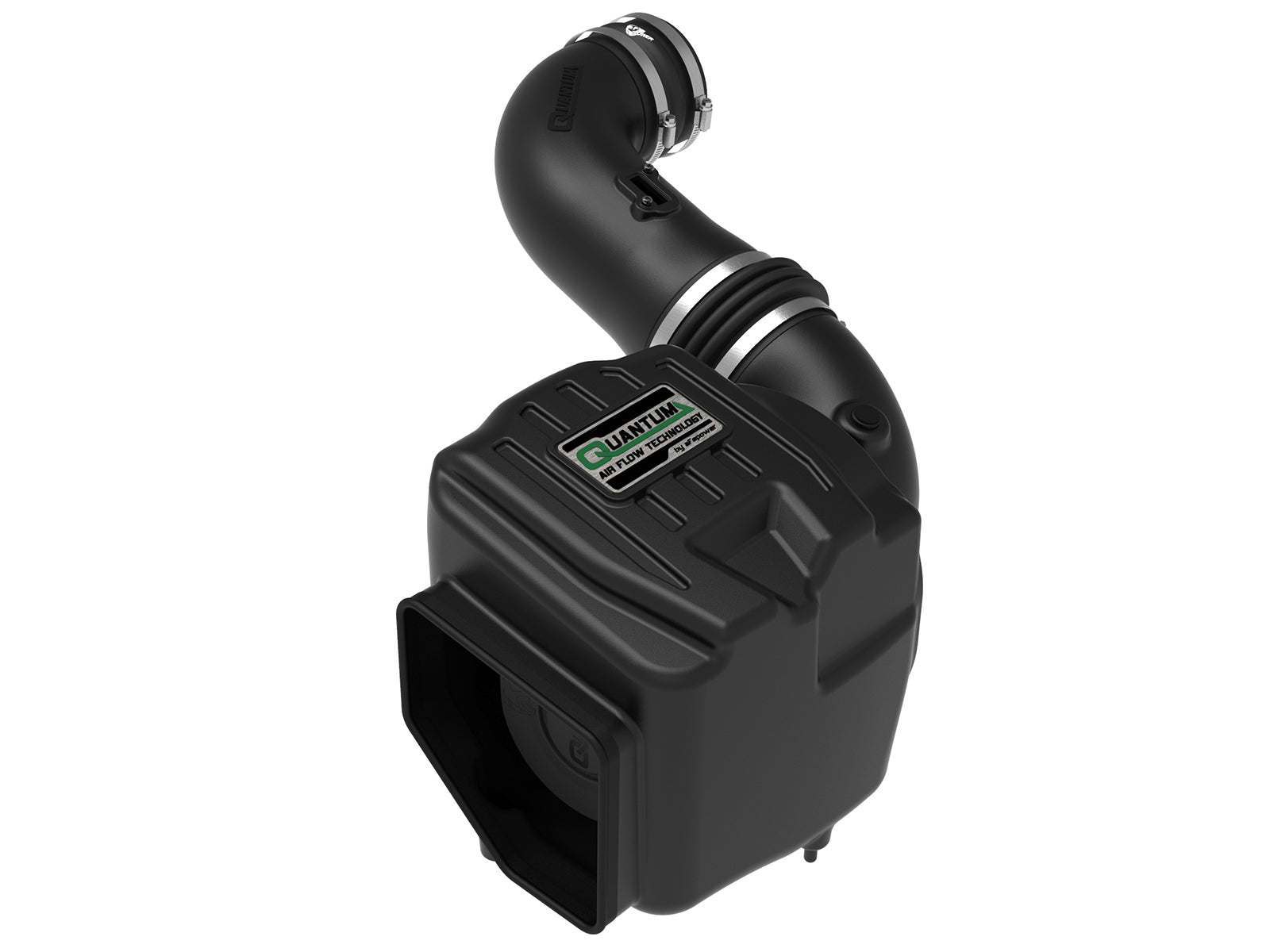

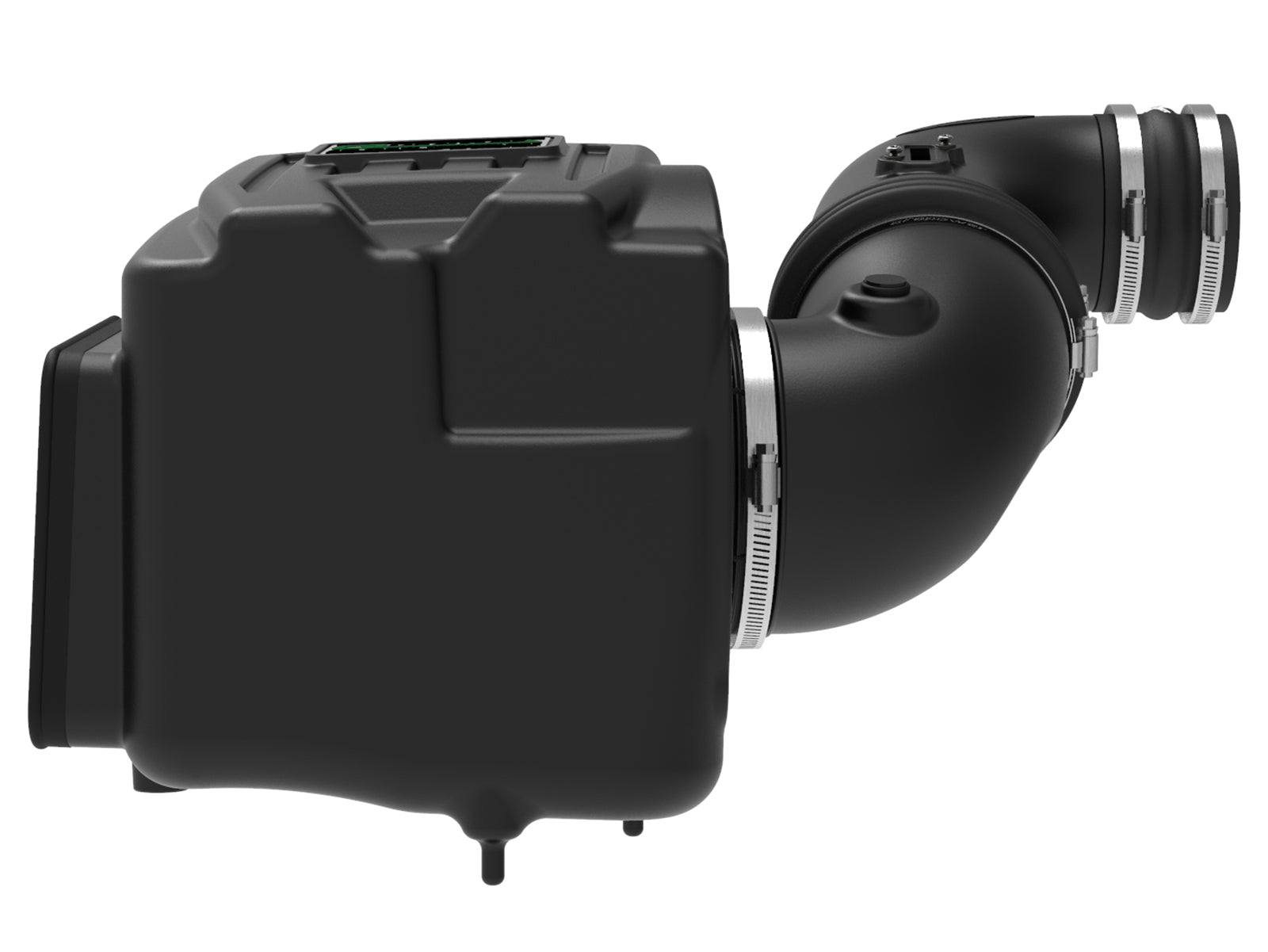

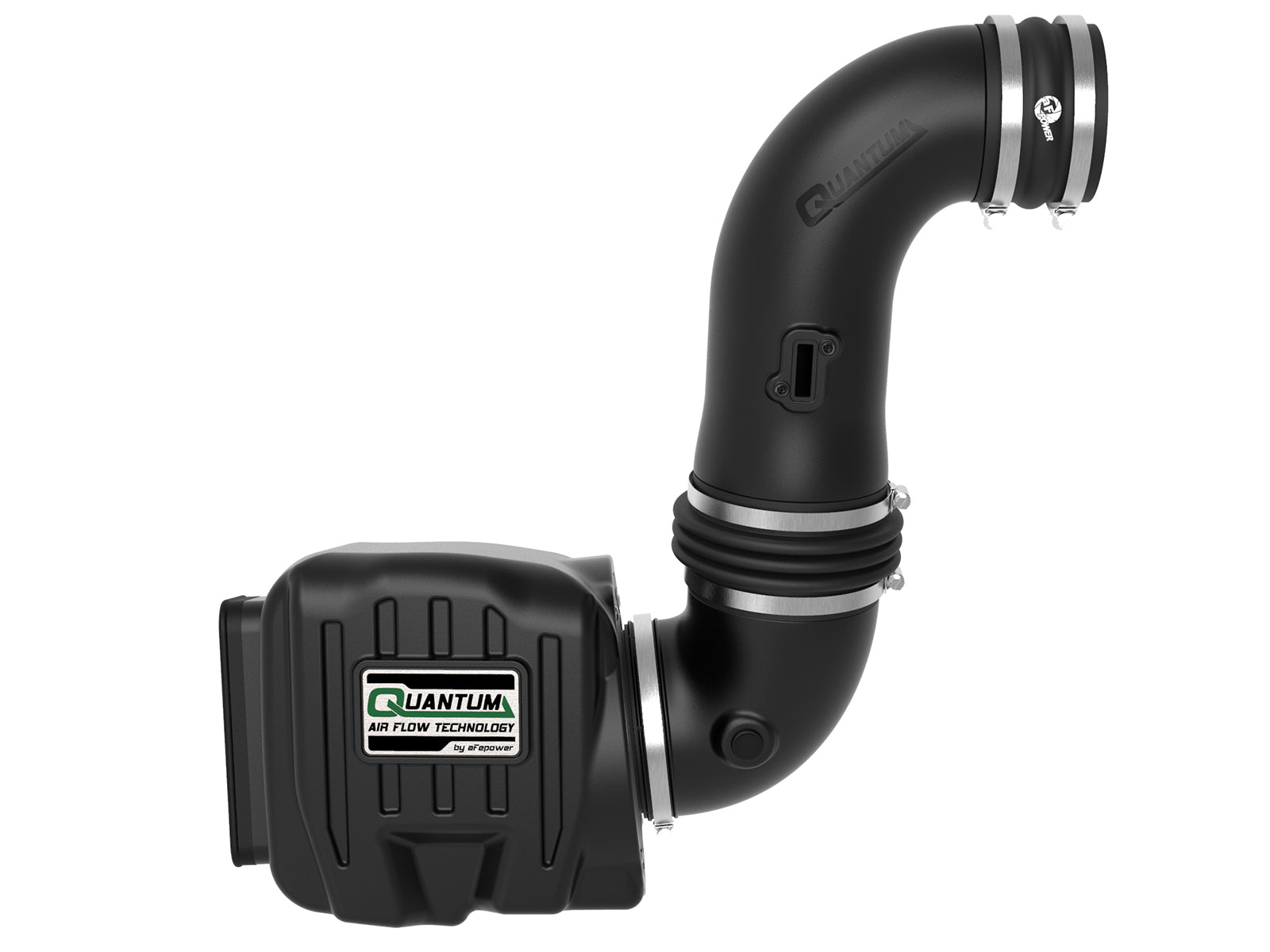

aFe 53-10005D is a Quantum oil-free intake for specified 2007.5-2010 Chevrolet Silverado HD and GMC Sierra HD Duramax LMM 6.6L turbo-diesel applications. It supplies ONE Pro DRY S filter assembly with THREE synthetic layers, a housing, separate filter elbow and main tube. Original MAF and mounting pieces remain.

Key Features

• ONE 21-90098 Pro DRY S filter with THREE oil-free synthetic layers.
• FOUR captive filter screws; injection-molded top/base and three-angle velocity stack.
• Main XLPE tube 05-54004B1, housing 05-54006B2 and separate filter elbow 05-54004B3.
• THREE connections: 05-01476 filter adaptor, 05-01456 bellows and 05-01201 hump.
• FIVE clamps: TWO #072, TWO #080 and ONE #088.
• 26-inch, 7/16-inch trim seals housing opening.
• Original bottom retaining plug transfers; front-right mounting grommet moves to left hole.
• Original MAF transfers; original filter minder/grommet transfers or supplied tabbed plug closes port.

Fitment

Exact selected dry primary and own shared sixteen-page manual specify 2007.5-2010 Chevrolet Silverado HD and GMC Sierra HD with Duramax LMM 6.6L turbo-diesel V8. Existing 2007-2010 integer-year named rows remain, requiring LMM and the mid-2007 new-body configuration; they do not cover early-2007 Classic/LBZ trucks. Exact selected-part retailer table restores Sierra 2500 HD SLE for 2007-2010 with that engine/body qualification. Manual generic Denali note conflicts with GM announcement that Sierra Denali HD first appeared for 2011; no 2007-2010 Denali row or later-year extension is inferred. No 1500, gasoline or other diesel generation is added.

Verify 53-10005D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

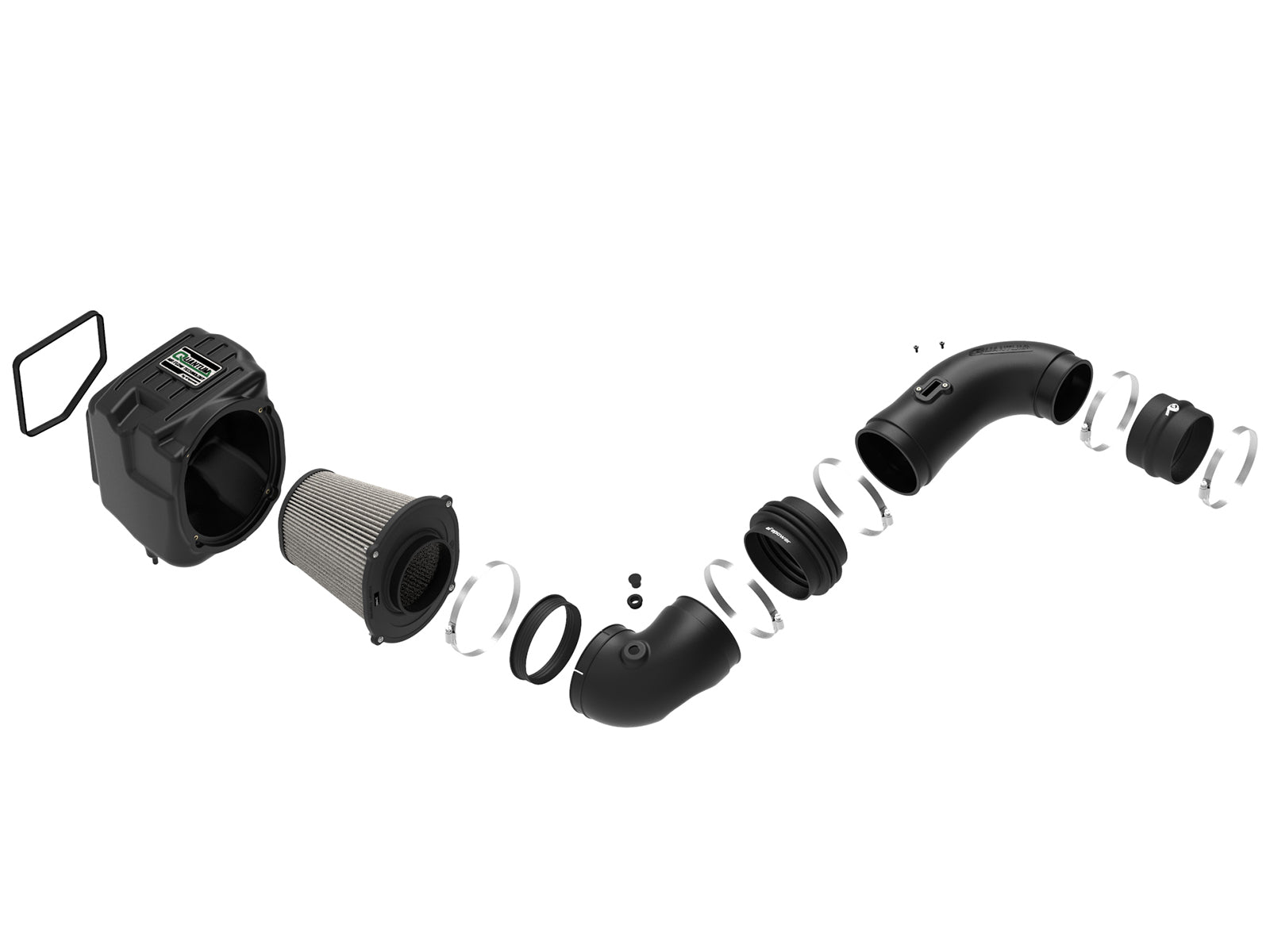

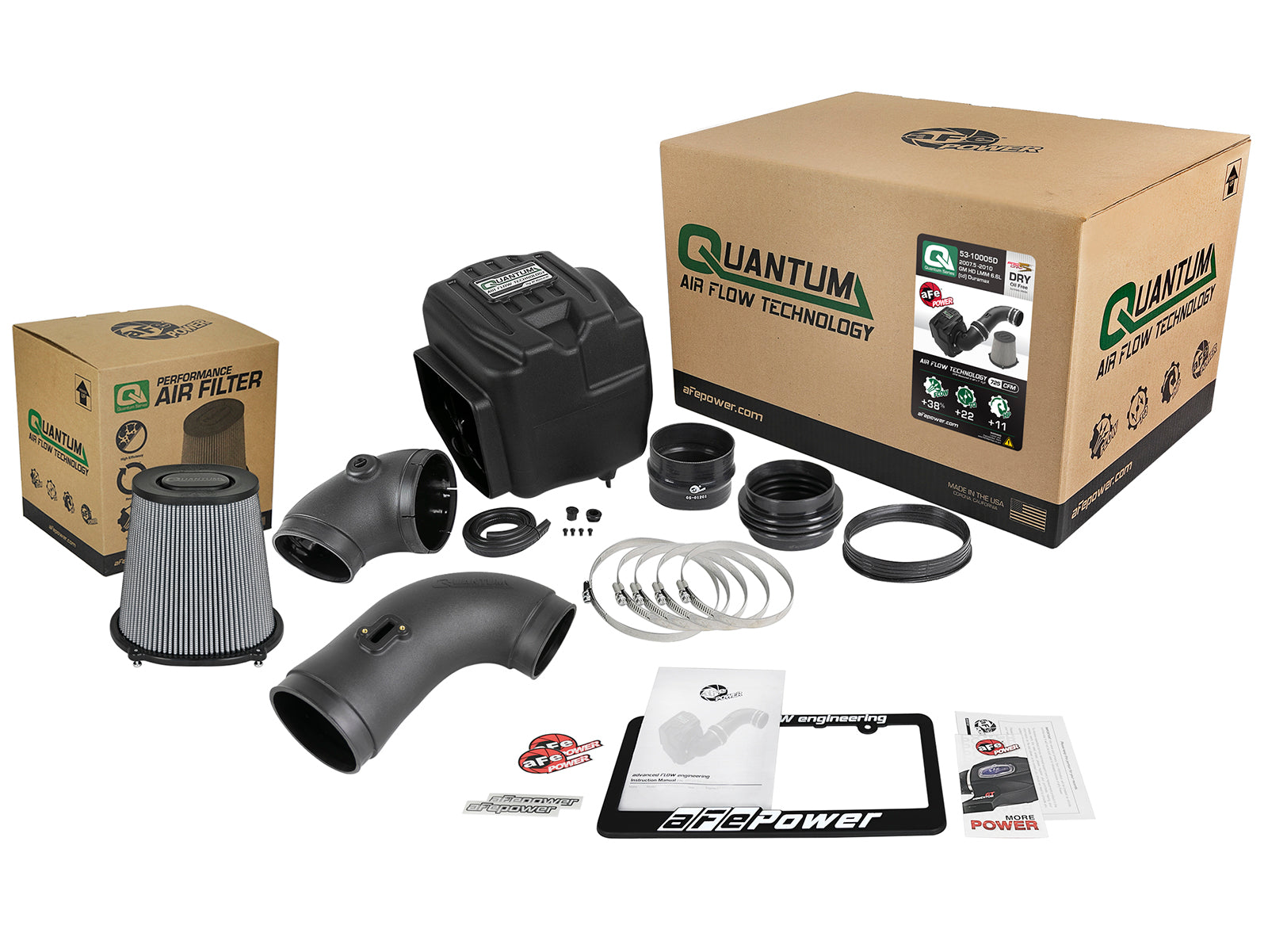

ONE 21-90098 filter assembly with THREE oil-free synthetic layers, 5-inch flange and 9-inch service height. Other-media bill entry is an alternative. ONE XLPE main tube, ONE housing, ONE separate filter elbow, THREE connecting pieces including filter adaptor, bellows and hump, FIVE clamps, TWO M4 Torx screws, ONE tabbed plug and 26-inch trim seal are itemized. Filter uses FOUR captive screws and three-angle velocity stack. Original lower-airbox retaining plug and factory mounting grommets remain; front-right mounting grommet moves to left hole on mounting plate. Original MAF and optional filter minder WITH original grommet transfer. No new MAF, minder or mounting-grommet pack is supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 53-10005D
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

ONE 21-90098 filter assembly with THREE oil-free synthetic layers, 5-inch flange and 9-inch service height. Other-media bill entry is an alternative. ONE XLPE main tube, ONE housing, ONE separate filter elbow, THREE connecting pieces including filter adaptor, bellows and hump, FIVE clamps, TWO M4 Torx screws, ONE tabbed plug and 26-inch trim seal are itemized. Filter uses FOUR captive screws and three-angle velocity stack. Original lower-airbox retaining plug and factory mounting grommets remain; front-right mounting grommet moves to left hole on mounting plate. Original MAF and optional filter minder WITH original grommet transfer. No new MAF, minder or mounting-grommet pack is supplied.

No. Selected 21-90098 filter uses THREE oil-free synthetic layers. Pro 5R in shared manual is an alternative, not another included filter. Use correct dry-filter cleaning procedure.

Exact figure D moves FRONT-RIGHT grommet to LEFT hole on original mounting plate before seating new housing. Transfer original bottom retaining plug; do not substitute a fictional new grommet pack.

Yes. Transfer original minder AND its grommet to separate filter elbow. If omitted, close port using supplied tabbed plug. No new minder is supplied.

Transfer original MAF to main tube with TWO supplied M4 Torx screws. No screw length is printed and no replacement MAF is included.

Filter adaptor joins filter to slotted elbow with #088 clamp. Bellows joins elbow to main tube using TWO #080 clamps. Hump joins main tube to turbo with TWO #072 clamps. Insert main tube bellows side first.

Exact linked chart prints Pro 5R 800 CFM, Pro DRY S 740 CFM and stock 535 CFM at 7 inches H2O. Selected dry improvement is 38.32%, rounded to 38%; oiled improvement is 49.53%, rounded to 50%. These are system bench-flow results with specified media, not horsepower percentages. Selected dry chart marked 2,774-rpm values are 286.14 versus 274.66 HP, plus 11.48 HP, and 541.66 versus 520.00 lb-ft, plus 21.66 lb-ft. Separate maxima are 324.80 versus 301.95 HP, plus 22.85 HP, and 554.08 versus 520.00 lb-ft, plus 34.08 lb-ft. Advertised 11 HP/22 lb-ft corresponds approximately to marked-point differences, not separate maxima. Test label is GM LMM 2007.5 6.6L. Selected run July 17, 2018 at 4:20:08 PM: 95.00 F, 29.18 inHg, 34.43% humidity, SAE 1.05; baseline April 30, 2018 at 5:59:21 PM: 77.90 F, 29.15 inHg, 32.54% humidity, SAE 1.02. Both retain OE exhaust; fourth gear, 40% load, regular fan, Digital 1 RPM and smoothing 5 are printed. Hood position and precise fan arrangement are not stated. Different dates and conditions limit comparison; no independent other-year or other-media certification is implied.

Exact selected dry primary and own shared sixteen-page manual specify 2007.5-2010 Chevrolet Silverado HD and GMC Sierra HD with Duramax LMM 6.6L turbo-diesel V8. Existing 2007-2010 integer-year named rows remain, requiring LMM and the mid-2007 new-body configuration; they do not cover early-2007 Classic/LBZ trucks. Exact selected-part retailer table restores Sierra 2500 HD SLE for 2007-2010 with that engine/body qualification. Manual generic Denali note conflicts with GM announcement that Sierra Denali HD first appeared for 2011; no 2007-2010 Denali row or later-year extension is inferred. No 1500, gasoline or other diesel generation is added. Own manual requires negative-battery disconnection and gives no numeric torque; recheck at 100-200 miles.

Installation Instructions

Verify aFe 53-10005D. Read all sixteen physical pages and figures A-I. Work cool and disconnect negative battery terminal. Unplug MAF, loosen original tube clamps, remove tube and pull original airbox upward to release retaining plug. Install selected filter in new housing with FOUR captive screws using #3 Phillips driver; put supplied filter-adaptor coupling on filter. Transfer original bottom RETAINING PLUG to new housing and apply 26-inch, 7/16-inch trim at housing opening. On mounting plate, move FRONT-RIGHT mounting grommet to LEFT hole as figure D shows, then push housing into original mounting grommets. Transfer original filter minder AND original grommet to separate elbow, OR close port with supplied tabbed plug if omitting minder; do not leave port open. Put #088 clamp on elbow SLOTTED/CUT end and insert elbow into filter adaptor; align but leave loose. Fit bellows to elbow with first #080 clamp. Fit hump at turbo with first #072 clamp; other #072 secures hump tube end and second #080 secures bellows main-tube end. Transfer original MAF with TWO supplied M4 Torx screws, length not stated. Insert main tube BELLOWS/FILTER SIDE FIRST, then turbo coupling; align and tighten FIVE clamps. Reconnect MAF and verify every component before restoring battery power. No numeric torque is given. Recheck bolts, clamps and connectors at 100-200 miles. Exploded illustration has an undefined N label absent from bill; no extra unidentified part is assumed.
