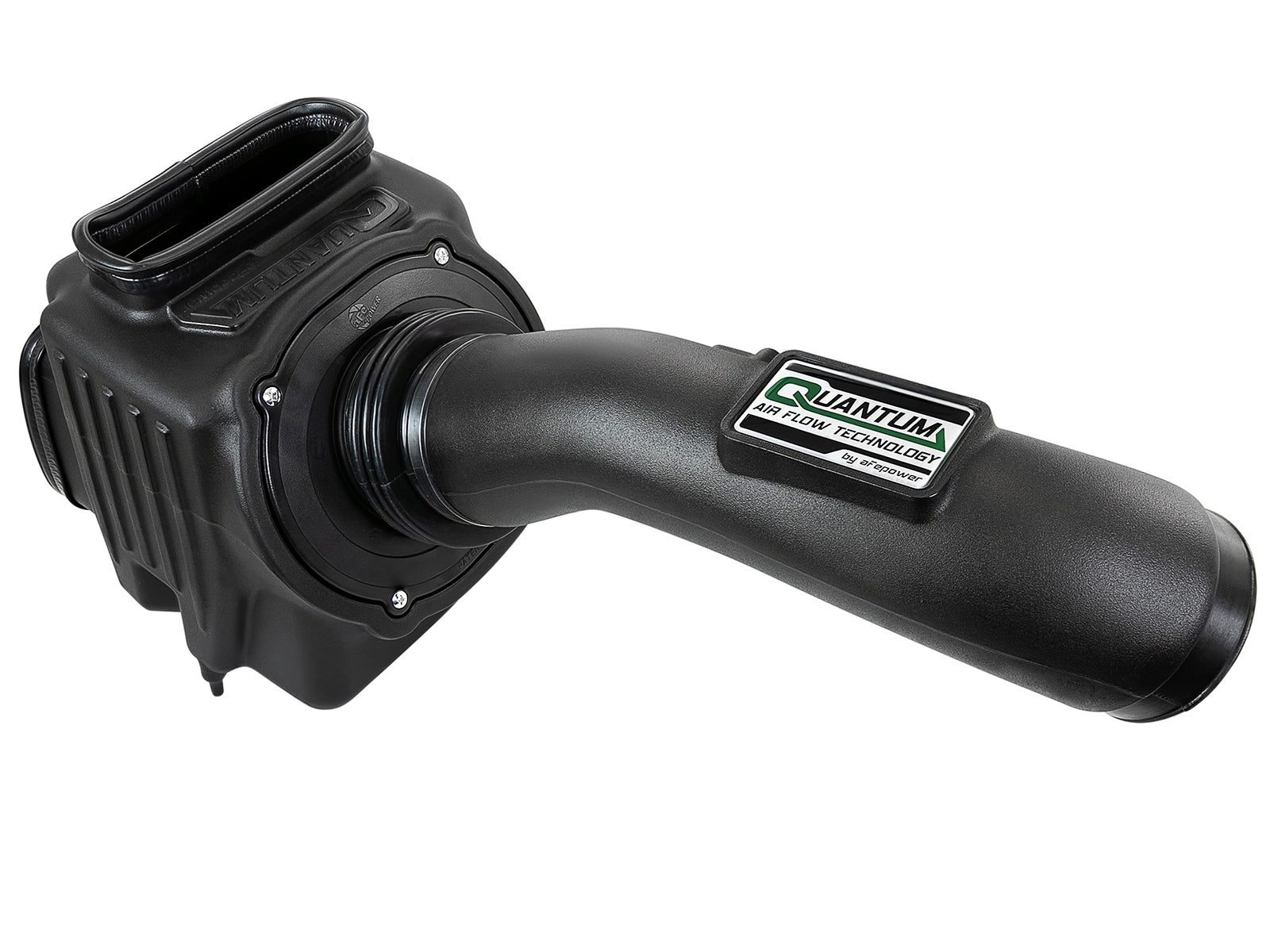

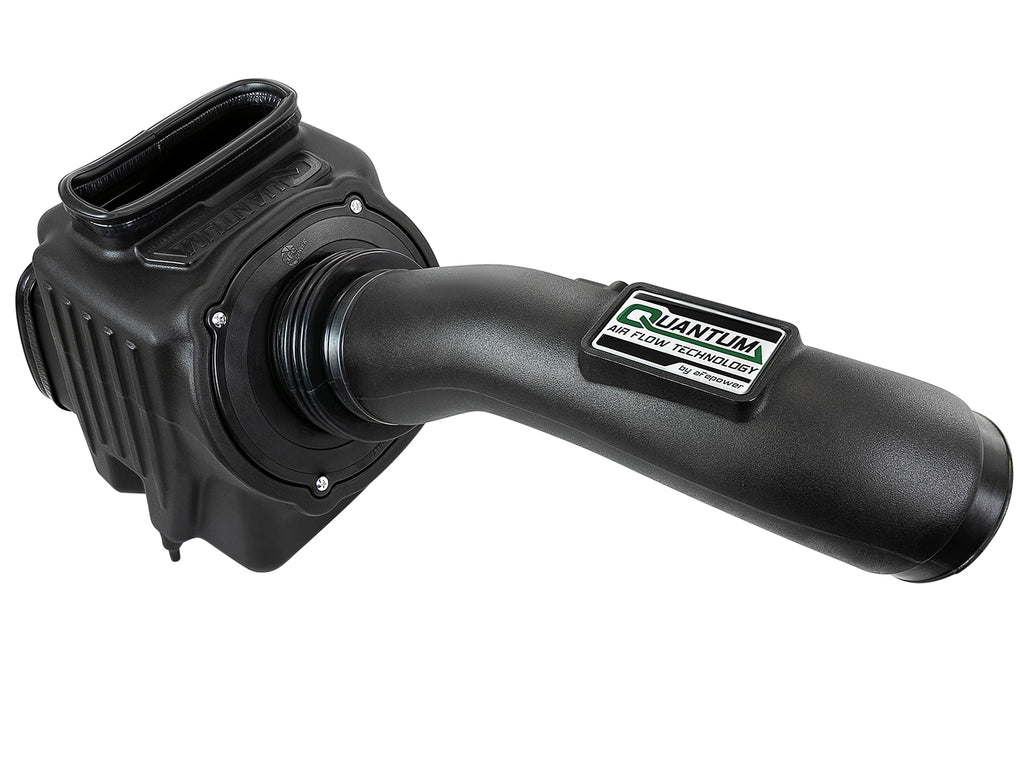

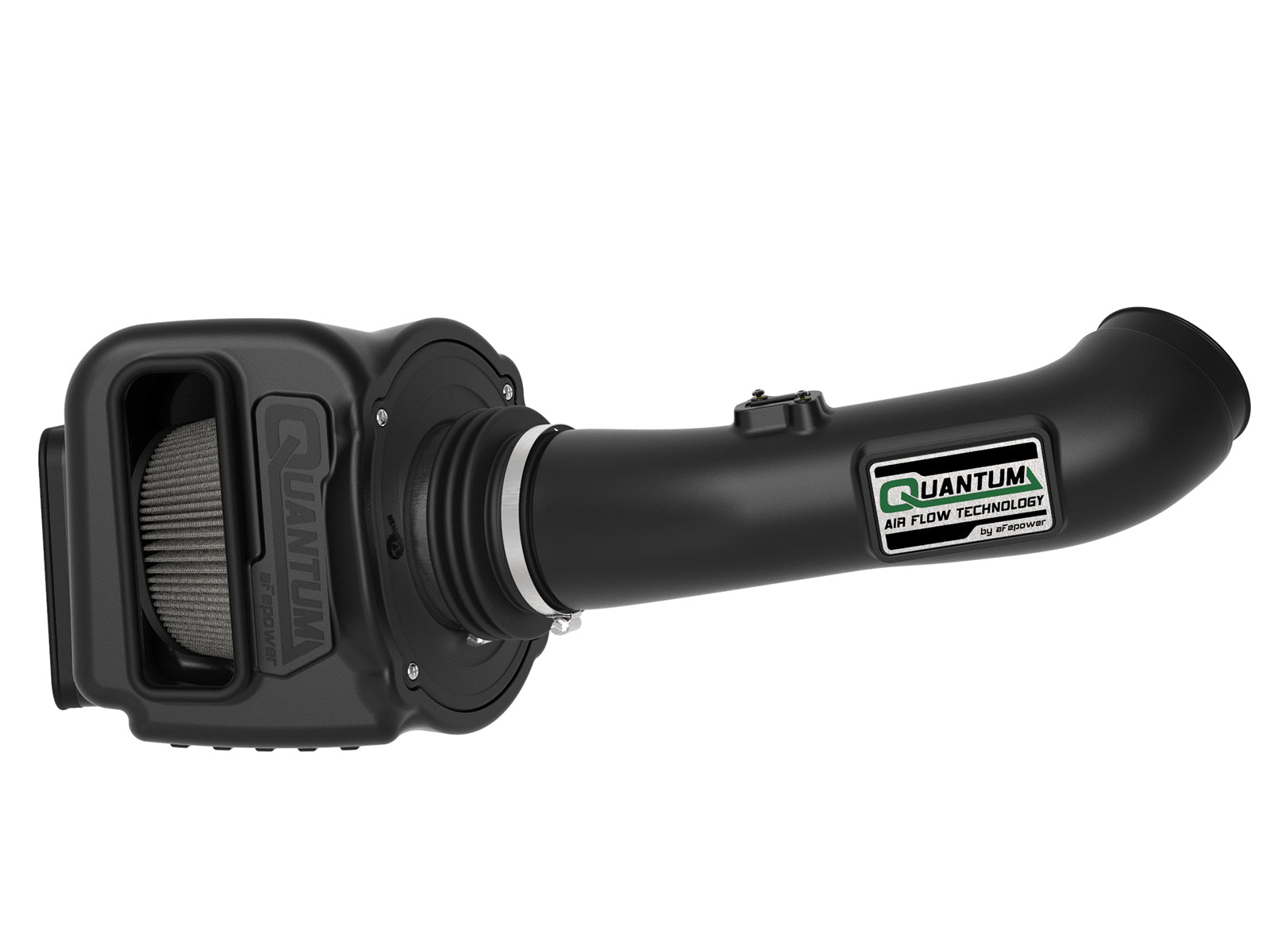

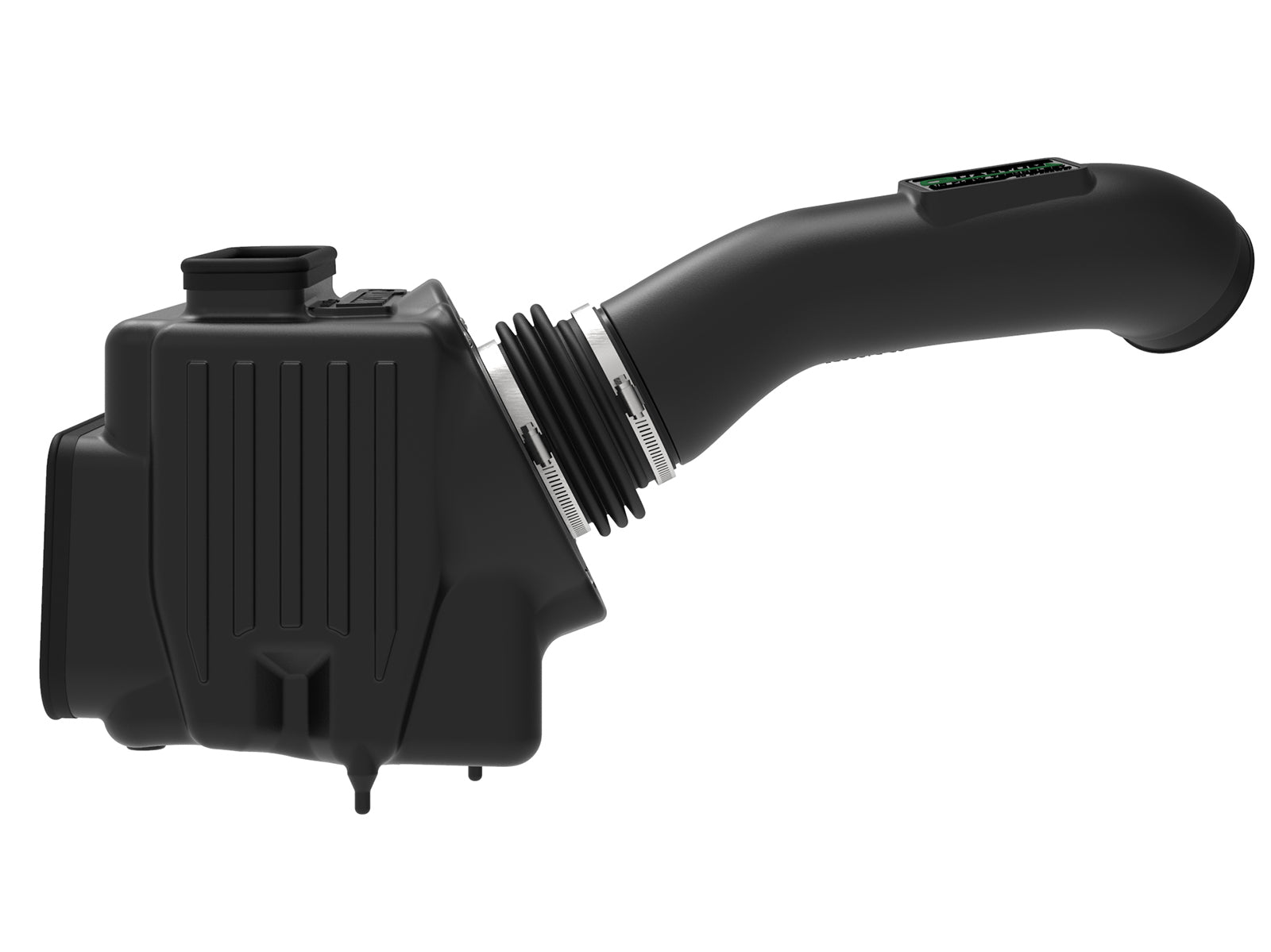

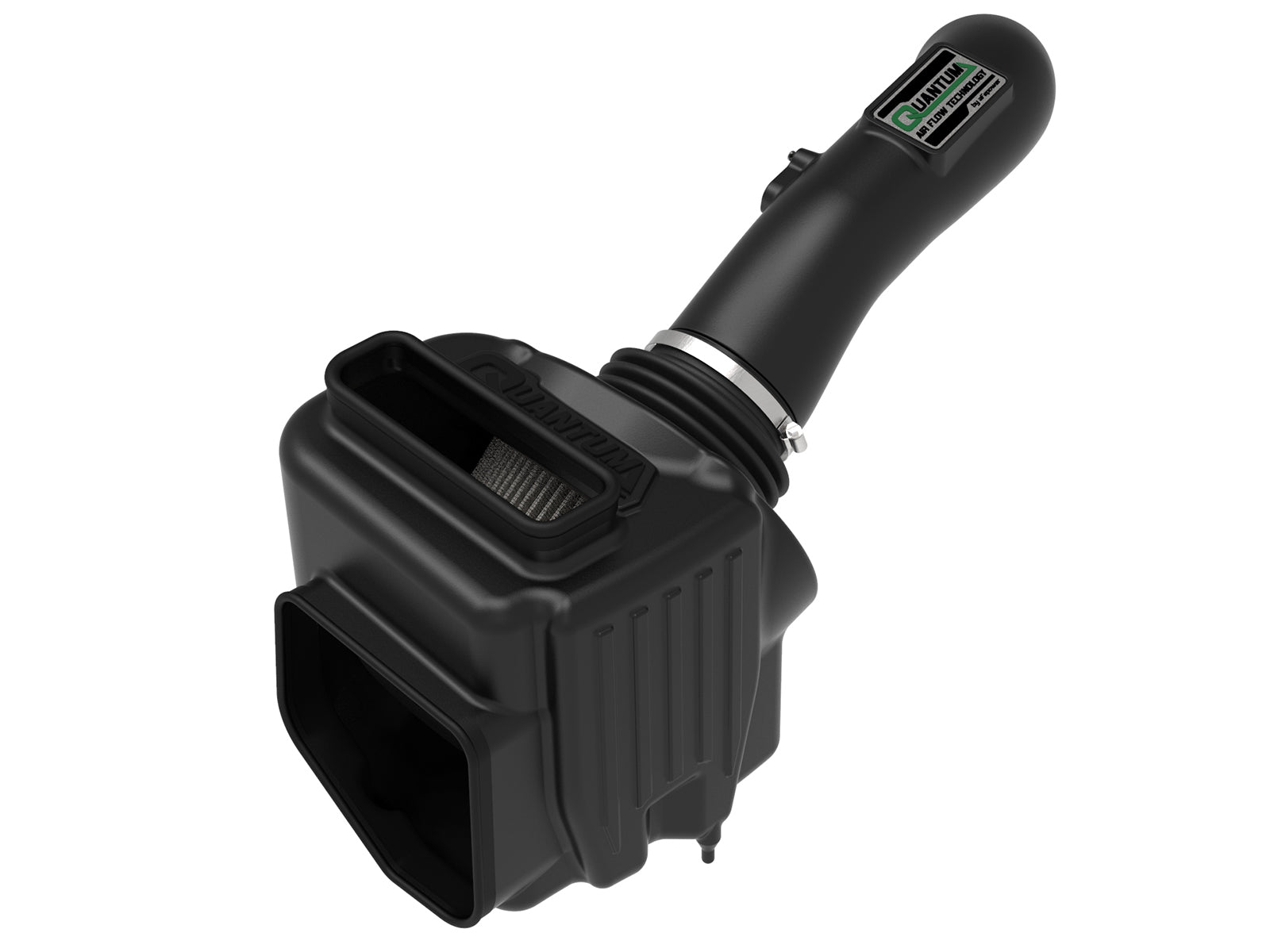

aFe 53-10007D is a Quantum intake for specified 2017-2019 Chevrolet Silverado HD and GMC Sierra HD Duramax L5P 6.6L turbo-diesel V8 trucks. It supplies ONE Pro DRY S filter assembly with THREE oil-free synthetic layers, a housing and XLPE tube. Original MAF WITH GASKET and downstream stock coupler remain.
Exact current selected-media primary and shared sixteen-page manual specify 2017-2019 Chevrolet Silverado HD and GMC Sierra HD with Duramax L5P 6.6L turbo-diesel V8, including applicable Denali trucks. This is a V8, correcting older oiled-listing V6 wording. Original fourteen named rows and endpoints remain. Exact selected-part retailer tables restore Silverado 3500 HD LT and Sierra 3500 HD Base for 2017-2019. Every row requires the specified L5P diesel and matching original MAF/gasket, downstream stock coupler and airbox mounting interfaces. No LML, 1500, gasoline engine or 2020-and-later extension is inferred.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2017-2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2017-2019 | Chevrolet | Silverado 2500 HD | LT |
| 2017-2019 | Chevrolet | Silverado 2500 HD | LTZ |
| 2017-2019 | Chevrolet | Silverado 2500 HD | WT |
| 2017-2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2017-2019 | Chevrolet | Silverado 3500 HD | LTZ |
| 2017-2019 | Chevrolet | Silverado 3500 HD | WT |
| 2017-2019 | GMC | Sierra 2500 HD | Base |
| 2017-2019 | GMC | Sierra 2500 HD | Denali |
| 2017-2019 | GMC | Sierra 2500 HD | SLE |
| 2017-2019 | GMC | Sierra 2500 HD | SLT |
| 2017-2019 | GMC | Sierra 3500 HD | Denali |
| 2017-2019 | GMC | Sierra 3500 HD | SLE |
| 2017-2019 | GMC | Sierra 3500 HD | SLT |
| 2017-2019 | Chevrolet | Silverado 3500 HD | LT |
| 2017-2019 | GMC | Sierra 3500 HD | Base |
Verify 53-10007D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 53-10007D |
| Selected media | THREE oil-free synthetic layers |
| Filter service reference | 21-90098; 5-inch flange; 9-inch height |
| Housing / tube | 05-54008B2 / 05-54008B1; tube XLPE |
| Connections | 05-01457 bellows plus retained original downstream stock coupler |
| Seal lengths | 7/16-inch profile: 21-inch TOP opening / 26-inch other housing opening |
| Original sensor | MAF WITH GASKET; TWO M4 Torx screws, length not stated |
| Resonator | Optional retention or original-coupler closure with supplied plug |
| Bench flow | Both exact linked flow images were viewed separately and print Pro 5R 755 CFM, Pro DRY S 705 CFM and stock 415 CFM at 7 inches H2O. Oiled improvement is 81.93%, rounded to 82%; selected dry improvement is 69.88%, rounded to 70%. These are bench-flow results, not horsepower percentages. |
| Selected dyno | Dry marked 2,017-rpm values are 325.06 versus 320.87 HP, plus 4.19 HP, and 846.40 versus 835.50 lb-ft, plus 10.90 lb-ft. Separate maxima are 425.40 versus 415.68 HP, plus 9.72 HP, and 849.49 versus 845.42 lb-ft, plus 4.07 lb-ft. Selected run June 18, 2018 at 8:58:41 AM: 71.34 F, 29.28 inHg, 43.03% humidity, SAE 1.01. Advertised 4 HP/11 lb-ft corresponds approximately to marked-point comparison, not both peak differences. Both compare a 2017 GM L5P 6.6L to February 6, 2018 baseline at 5:01:13 PM, 86.56 F, 29.24 inHg, 23.83% humidity, SAE 1.02. Both retain OE exhaust with fourth gear, 40% load, regular fan, OBD2 RPM and smoothing 5 printed. Dry test date and conditions differ markedly from baseline. Hood position and resonator configuration are not printed; neither optional resonator removal nor other model years are independently certified by these charts. |
| Emissions | Current primary states not CARB exempt; unavailable for California purchase or California-registered vehicles |
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-90098 | Selected Pro DRY S filter assembly; other-media entry alternative |
| 1 | 05-54008B1 | XLPE tube |
| 1 | 05-54008B2 | Housing |
| 1 | 03-50011 | Clamp #080 |
| 1 | 05-01457 | Silicone bellows coupling |
| 1 | 03-50010 | Clamp #072 |
| 1 | 05-00072 | 7/16-inch trim seal, 26-inch length |
| 2 | 03-50491 | M4 Torx screws; length not stated |
| 1 | 05-00850 | Plug for OPTIONAL resonator removal at stock coupler |
| 1 | 05-00072 | 7/16-inch trim seal, 21-inch TOP-opening length |

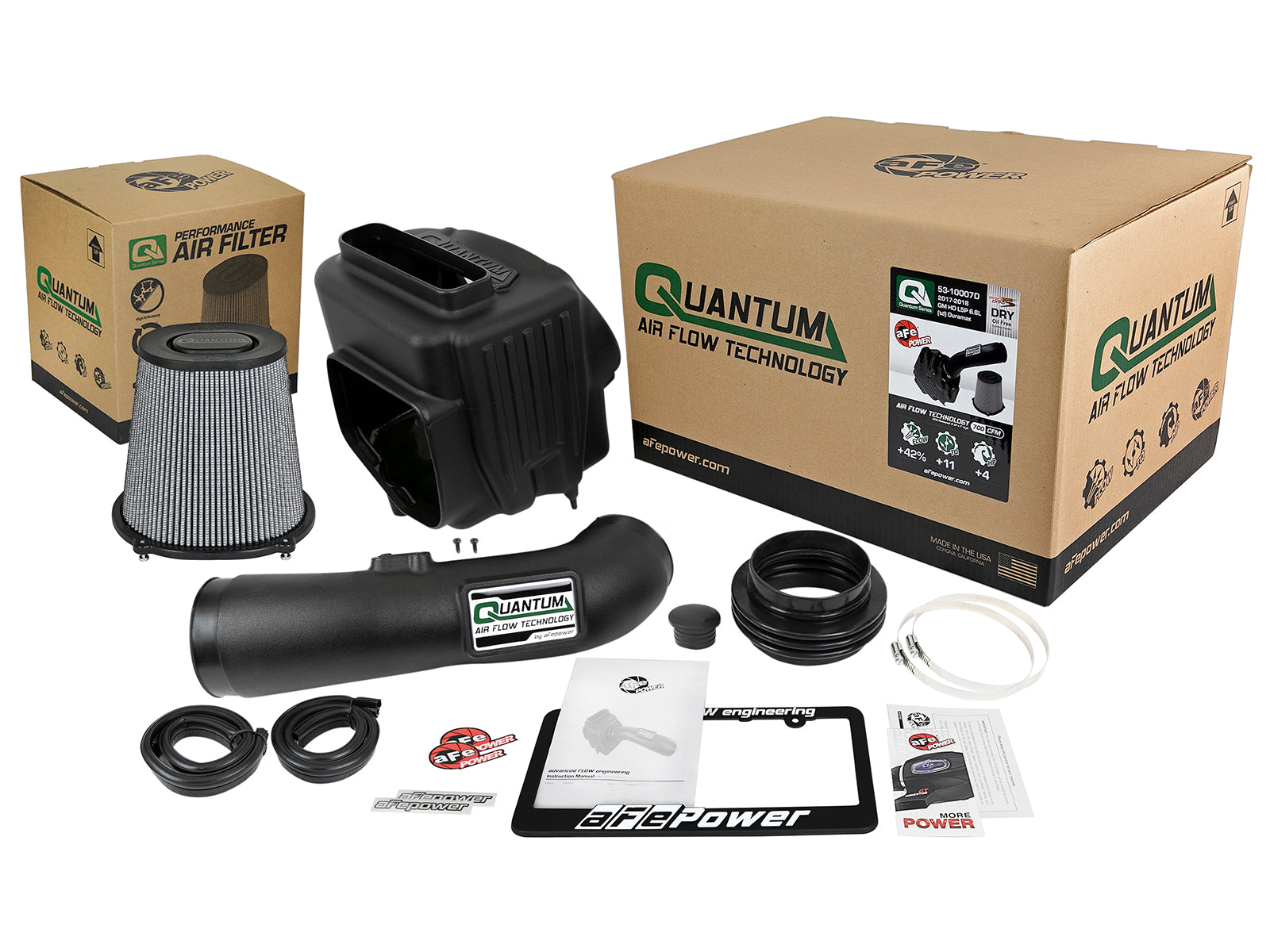

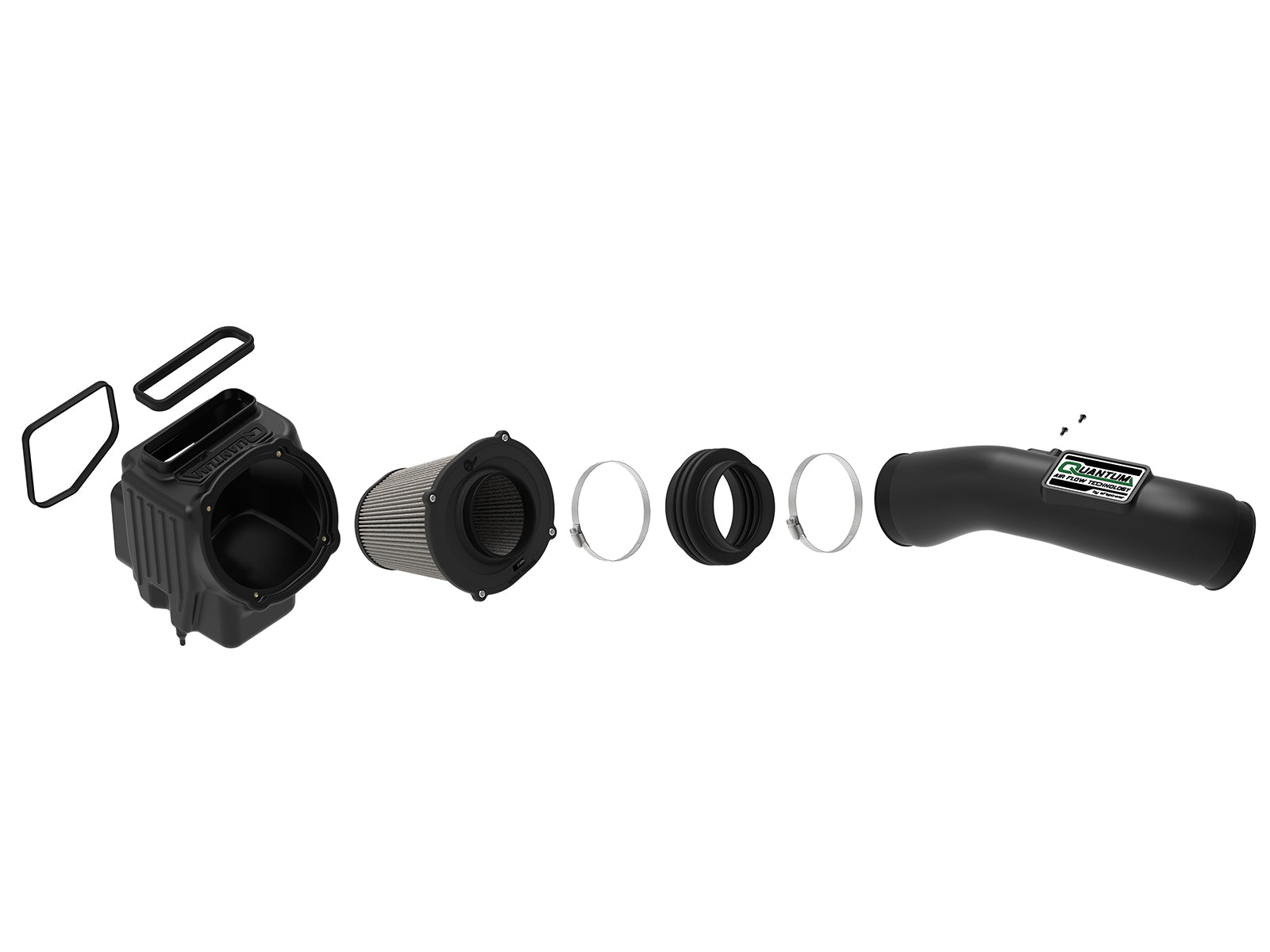

ONE 21-90098 selected filter assembly with THREE oil-free synthetic layers, 5-inch flange and 9-inch service height. Shared bill other-media entry is an alternative. ONE housing and ONE XLPE tube, ONE silicone bellows, TWO supplied clamps, TWO M4 Torx screws, ONE optional resonator plug and TWO distinct 7/16-inch seal lengths are listed. SHORT 21-inch seal fits TOP opening; 26-inch seal fits other housing opening. Original bottom retaining plug, mounting grommets, MAF WITH GASKET and downstream stock coupler remain. Resonator may remain; supplied plug closes its original coupler only if removing resonator. No new MAF, MAF gasket, humidity sensor, filter minder, turbo hump coupling or mounting-grommet pack is supplied.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
ONE 21-90098 selected filter assembly with THREE oil-free synthetic layers, 5-inch flange and 9-inch service height. Shared bill other-media entry is an alternative. ONE housing and ONE XLPE tube, ONE silicone bellows, TWO supplied clamps, TWO M4 Torx screws, ONE optional resonator plug and TWO distinct 7/16-inch seal lengths are listed. SHORT 21-inch seal fits TOP opening; 26-inch seal fits other housing opening. Original bottom retaining plug, mounting grommets, MAF WITH GASKET and downstream stock coupler remain. Resonator may remain; supplied plug closes its original coupler only if removing resonator. No new MAF, MAF gasket, humidity sensor, filter minder, turbo hump coupling or mounting-grommet pack is supplied.
Does this selected filter require oil?No. Selected filter uses THREE oil-free synthetic layers. Use correct dry-filter cleaning method.
Must the original resonator be removed?No. Removal is optional. If removed, insert supplied 05-00850 plug into its ORIGINAL STOCK COUPLER and secure original clamp. Do not leave that opening unsealed.
Which seal goes on the top opening?Use SHORT 21-inch seal on TOP housing opening. The separate 26-inch seal fits other housing opening. Both share 7/16-inch profile; do not combine lengths or assume one strip.
Which original sensor and mounting pieces remain?Transfer original MAF WITH GASKET using TWO supplied M4 Torx screws; length is not stated. Transfer original bottom retaining plug and retain original mounting grommets and downstream stock coupler.
Where does the new tube connect?Install tube filter-bellows end first, then original downstream stock coupler. Supplied #080 holds bellows to filter and #072 holds bellows to tube. Reuse original downstream clamp; no new turbo hump or separate elbow is listed.
Are the advertised gains peak-to-peak differences?Both exact linked flow images were viewed separately and print Pro 5R 755 CFM, Pro DRY S 705 CFM and stock 415 CFM at 7 inches H2O. Oiled improvement is 81.93%, rounded to 82%; selected dry improvement is 69.88%, rounded to 70%. These are bench-flow results, not horsepower percentages. Dry marked 2,017-rpm values are 325.06 versus 320.87 HP, plus 4.19 HP, and 846.40 versus 835.50 lb-ft, plus 10.90 lb-ft. Separate maxima are 425.40 versus 415.68 HP, plus 9.72 HP, and 849.49 versus 845.42 lb-ft, plus 4.07 lb-ft. Selected run June 18, 2018 at 8:58:41 AM: 71.34 F, 29.28 inHg, 43.03% humidity, SAE 1.01. Advertised 4 HP/11 lb-ft corresponds approximately to marked-point comparison, not both peak differences. Both compare a 2017 GM L5P 6.6L to February 6, 2018 baseline at 5:01:13 PM, 86.56 F, 29.24 inHg, 23.83% humidity, SAE 1.02. Both retain OE exhaust with fourth gear, 40% load, regular fan, OBD2 RPM and smoothing 5 printed. Dry test date and conditions differ markedly from baseline. Hood position and resonator configuration are not printed; neither optional resonator removal nor other model years are independently certified by these charts.
What engine, battery, torque and recheck restrictions apply?Exact current selected-media primary and shared sixteen-page manual specify 2017-2019 Chevrolet Silverado HD and GMC Sierra HD with Duramax L5P 6.6L turbo-diesel V8, including applicable Denali trucks. This is a V8, correcting older oiled-listing V6 wording. Original fourteen named rows and endpoints remain. Exact selected-part retailer tables restore Silverado 3500 HD LT and Sierra 3500 HD Base for 2017-2019. Every row requires the specified L5P diesel and matching original MAF/gasket, downstream stock coupler and airbox mounting interfaces. No LML, 1500, gasoline engine or 2020-and-later extension is inferred. Own manual requires negative-battery disconnection, gives no numeric torque and specifies recheck at 100-200 miles. Coolant-line clip is released for airbox removal; fluid circuit remains closed.
Verify aFe 53-10007D. Read all sixteen physical pages and figures A-L. Work cool and disconnect negative battery terminal. Unplug MAF and release its harness clip. Loosen original airbox and resonator-coupler clamps and remove original intake tube. Resonator removal is OPTIONAL: if removing it, loosen its original clamp, take resonator from stock coupler, insert supplied 05-00850 plug in that stock coupler and tighten original clamp; do not leave port open. Release coolant-line clip from original box and lift box upward to release retaining plug; coolant line is retained and its fluid circuit is not opened. Fit SHORT 21-inch seal to TOP housing opening. Transfer original BOTTOM RETAINING PLUG and fit 26-inch seal to other housing opening. Install selected filter with FOUR captive screws using #3 Phillips driver and attach bellows with supplied #080 clamp. Seat new housing into original mounting grommets. Transfer original MAF WITH GASKET to tube using TWO supplied M4 Torx screws; length not printed. Put supplied #072 clamp on tube side of bellows loosely. Insert new tube FILTER BELLOWS FIRST, then into ORIGINAL DOWNSTREAM STOCK COUPLER. Align and tighten supplied and original clamps. Reconnect MAF harness and verify all connections and retained coolant-line routing are secured clear of moving/hot parts. No new downstream turbo coupler, LML humidity-sensor closure or separate elbow is installed. Restore battery power when complete. No numeric torque is given. Recheck bolts, clamps and connectors at 100-200 miles.
Both exact linked flow images were viewed separately and print Pro 5R 755 CFM, Pro DRY S 705 CFM and stock 415 CFM at 7 inches H2O. Oiled improvement is 81.93%, rounded to 82%; selected dry improvement is 69.88%, rounded to 70%. These are bench-flow results, not horsepower percentages. Dry marked 2,017-rpm values are 325.06 versus 320.87 HP, plus 4.19 HP, and 846.40 versus 835.50 lb-ft, plus 10.90 lb-ft. Separate maxima are 425.40 versus 415.68 HP, plus 9.72 HP, and 849.49 versus 845.42 lb-ft, plus 4.07 lb-ft. Selected run June 18, 2018 at 8:58:41 AM: 71.34 F, 29.28 inHg, 43.03% humidity, SAE 1.01. Advertised 4 HP/11 lb-ft corresponds approximately to marked-point comparison, not both peak differences. Both compare a 2017 GM L5P 6.6L to February 6, 2018 baseline at 5:01:13 PM, 86.56 F, 29.24 inHg, 23.83% humidity, SAE 1.02. Both retain OE exhaust with fourth gear, 40% load, regular fan, OBD2 RPM and smoothing 5 printed. Dry test date and conditions differ markedly from baseline. Hood position and resonator configuration are not printed; neither optional resonator removal nor other model years are independently certified by these charts. Current non-CARB restriction governs. Keep original downstream coupler, MAF gasket and mounting pieces. Resonator deletion is optional and must leave its stock-coupler opening sealed; chart does not identify tested resonator state. No related-engine installation procedure or extra hardware is implied.
