aFe Rebel Axle-Back Exhaust with Dual Black Tips — Jeep Wrangler JK V6

Rebel axle-back with dual black tips for Wrangler JK V6

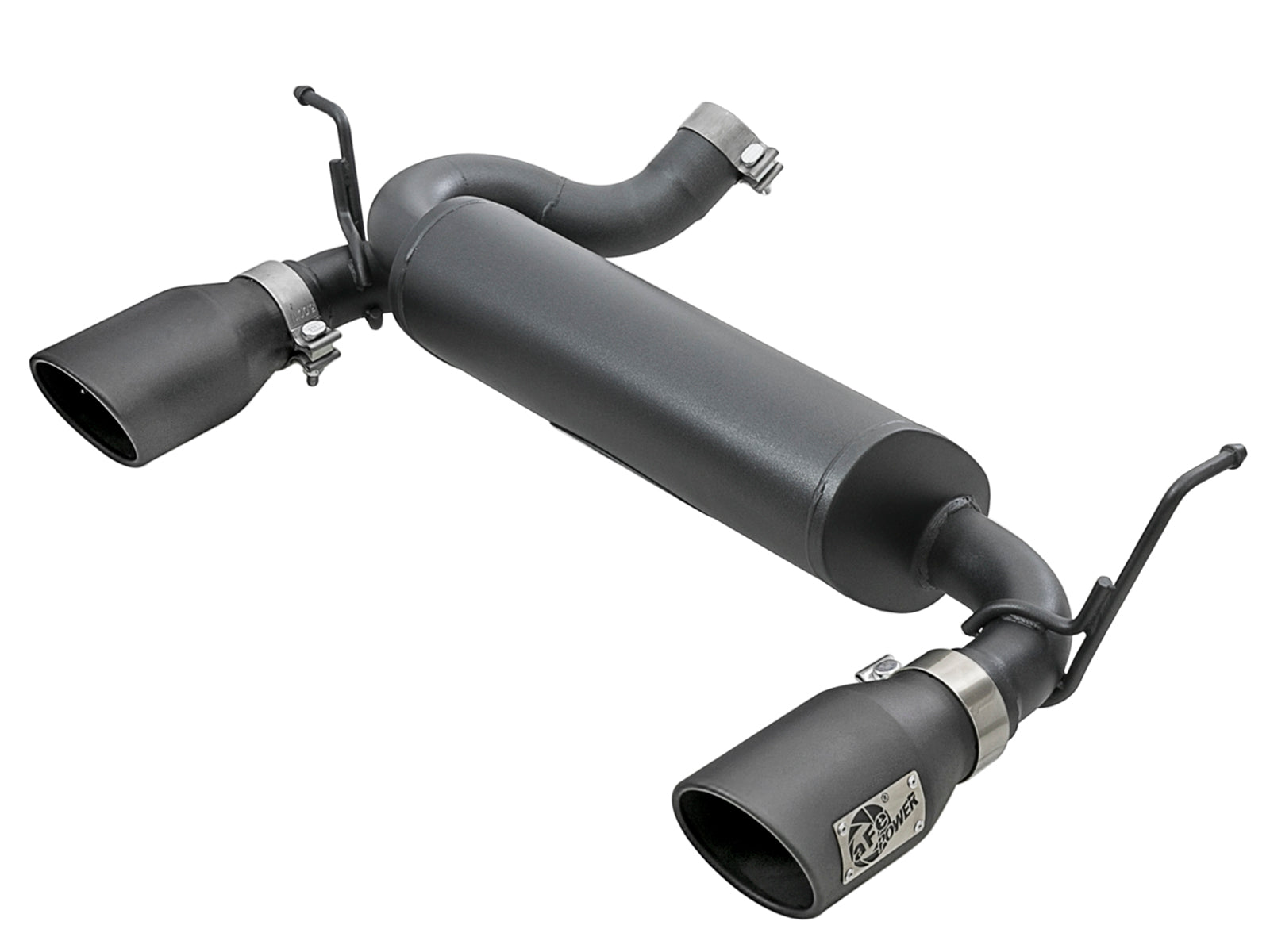

The aFe 49-48061-B Rebel axle-back uses 2.5-inch mandrel-bent 409 stainless tubing and an 18-inch free-flowing muffler, ending in two 4.5-inch high-temperature metallic black stainless tips. Factory mounting locations and bayonet-style hangers support direct bolt-on installation for the documented JK V6 application.

Key Features

• Selected aFe part 49-48061-B.
• 2.5-inch mandrel-bent 409 stainless tubing with hand MIG-welded construction.
• 18-inch free-flowing stainless muffler; this is an axle-back replacement.

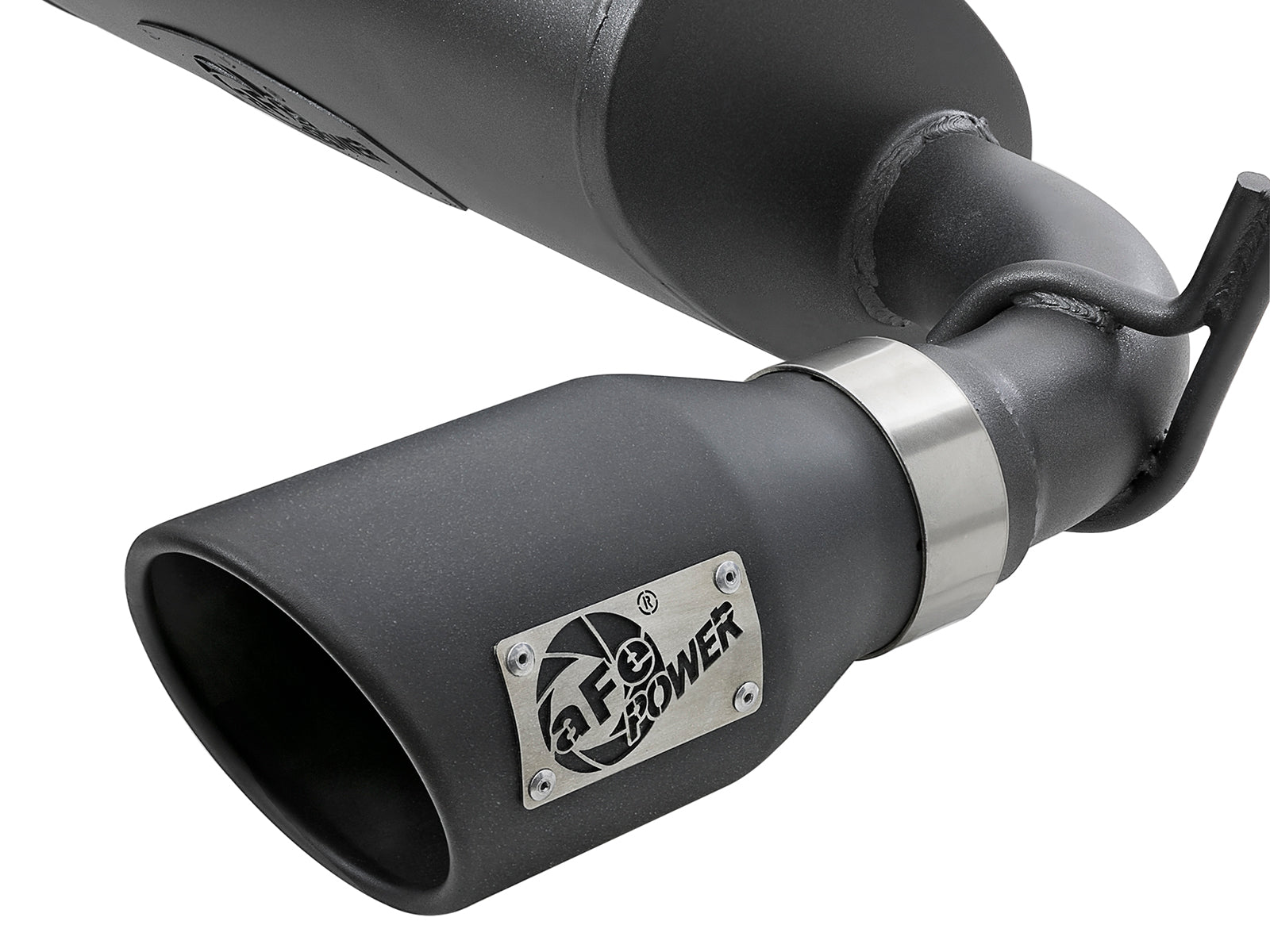

• Dual 4.5-inch angle-cut, rolled, metallic black stainless tips with laser-cut aFe POWER badges. The selected sources do not establish the tip alloy grade.
• Factory mounting locations and original rubber isolation mounts are retained.
• Current manufacturer specifies installation without modifications for the documented application.
• Two- and four-door JK V6 applications; a V8 label in the selected guide header is a source typo, not V8 fitment approval.

Fitment

The exact current manufacturer lists 2007–2011 JK gas V6 3.8L and 2012–2018 JK gas V6 3.6L. The guide covers two- and four-door vehicles but incorrectly prints V8 beside the V6 engine displacements; the current manufacturer V6 applications control. The complete exact named secondary table identifies 2007–2017 Wrangler scopes and eight actual 2018 Wrangler JK submodels. The obsolete JK-as-submodel entry and three 2018 Wrangler-name entries are replaced by those explicit Wrangler JK model scopes. No JL, V8 or unrelated engine coverage is inferred.

Specifications

What's Included

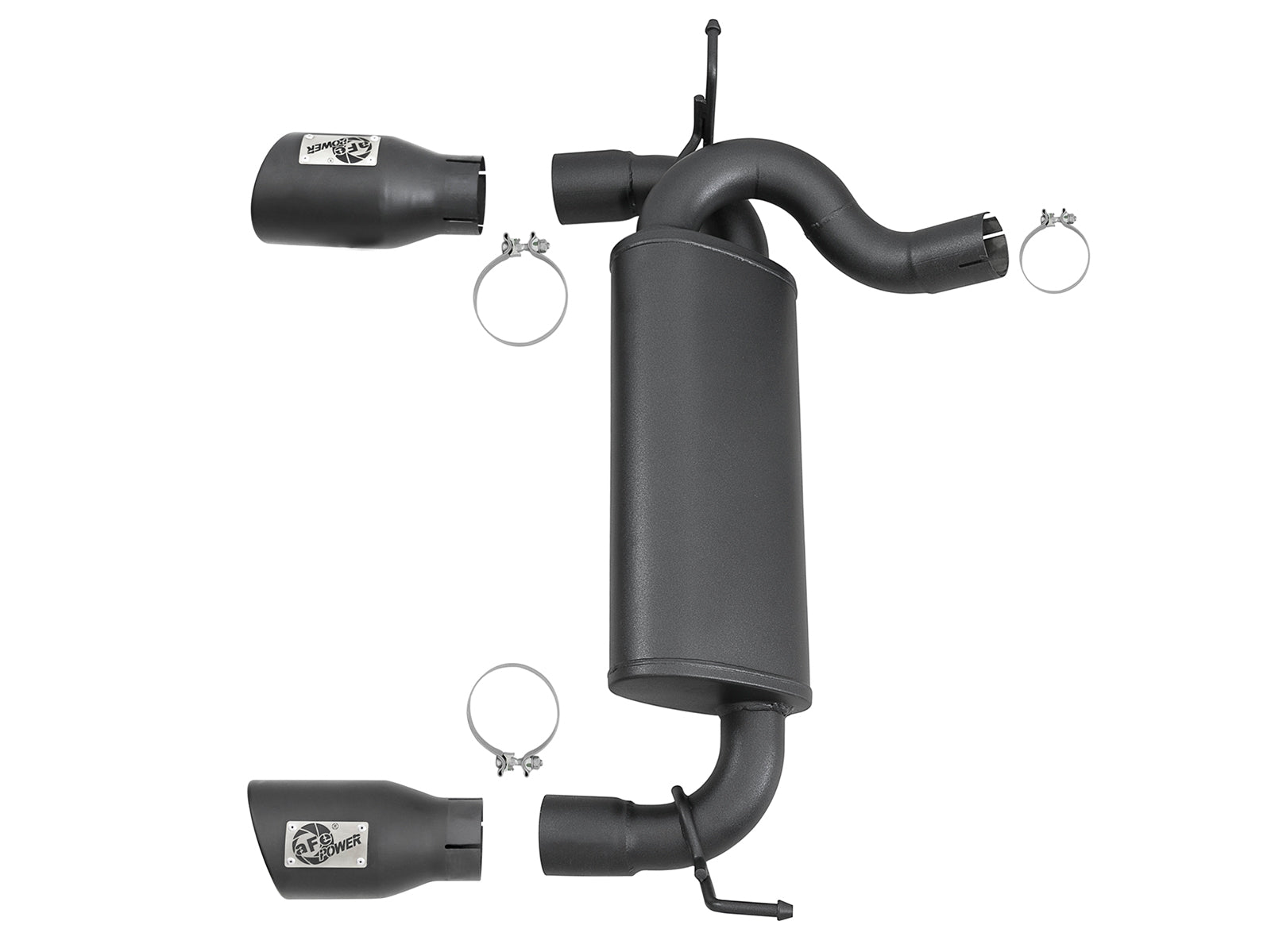

• The 49-48061-B kit includes one selected black muffler assembly 05-144359B.
• One black tip 49T30451-B091 and one black tip 49T30452-B091.
• One 2.5-inch band 05-41061 and two 3-inch bands 05-41055. The repeated polished diagram is a separate alternative, not another supplied set.
• Reuse the factory rubber isolation mounts. No new gasket, intake filter, silicone coupling, sensor or heat shield is established as supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact current manufacturer JK V6 applications and axle-back specifications
• Selected one-page guide and black component diagram
• Complete exact named Wrangler and 2018 Wrangler JK table
• Shop axle-back exhaust systems
• Shop aFe Power

FAQ

It is the selected 2.5-inch 409 stainless Rebel axle-back with an 18-inch muffler and two black 4.5-inch tips for documented 2007–2018 Wrangler JK V6 applications.

No. That header label conflicts with the current exact manufacturer applications: 2007–2011 V6 3.8L and 2012–2018 V6 3.6L. It is not an authorization to map a V8 or JL vehicle.

The exact selected sources describe metallic black stainless tips but do not establish their alloy grade. Do not infer it from a part-number prefix or another Rebel system.

The selected diagram shows one 2.5-inch connection band and two 3-inch tip bands. Its polished alternative diagram does not double the supplied quantities.

The current manufacturer specifies direct installation without modifications using factory mounting locations. No cutting or welding operation appears in the selected seven-step guide.

Keep the original rubber isolation mounts when removing the rear axle-back. The replacement muffler attaches to the factory over-axle pipe and hangs in those mounts.

It prints no numerical torque. It does specify 1/2–1 inch between the tailpipe and body panels, alignment before final tightening and re-tightening all clamps after 50–100 miles.

No. The selected manufacturer power data are marked coming soon, and its aggressive-sound description is qualitative. No exact measured gain, decibel reduction or drone guarantee is established.

Installation Instructions

1. Confirm aFe 49-48061-B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Read the full selected one-page guide, confirm the JK V6 application and inventory the selected black components. Let the exhaust cool, use appropriate protection and safely support the vehicle and the original muffler separately; professional installation is recommended.
3. Loosen the original connection and remove the factory axle-back toward the rear while retaining the rubber isolation mounts. The guide permits lubricating the isolators to help removal.
4. Place the supplied 2.5-inch band on the new muffler inlet, attach it to the factory over-axle pipe and locate its hangers in the original rubber isolation mounts. Leave the joint loose for adjustment.
5. Install the two black tips with their 3-inch bands. Align the system before tightening and retain the guide’s 1/2–1 inch tailpipe-to-body clearance. The selected guide gives no numerical tightening torque.
6. Tighten all connections, recheck alignment and clearance, and re-tighten all clamps after 50–100 miles. The guide notes that smoke for the first few minutes of startup can occur as protective oils burn off. No battery, sensor, cutting or heat-shield procedure is borrowed.
