aFe Rebel Cat-Back Exhaust with Dual Black Tips — Jeep Wrangler JK V6

Rebel dual-muffler cat-back with black tips for Wrangler JK V6

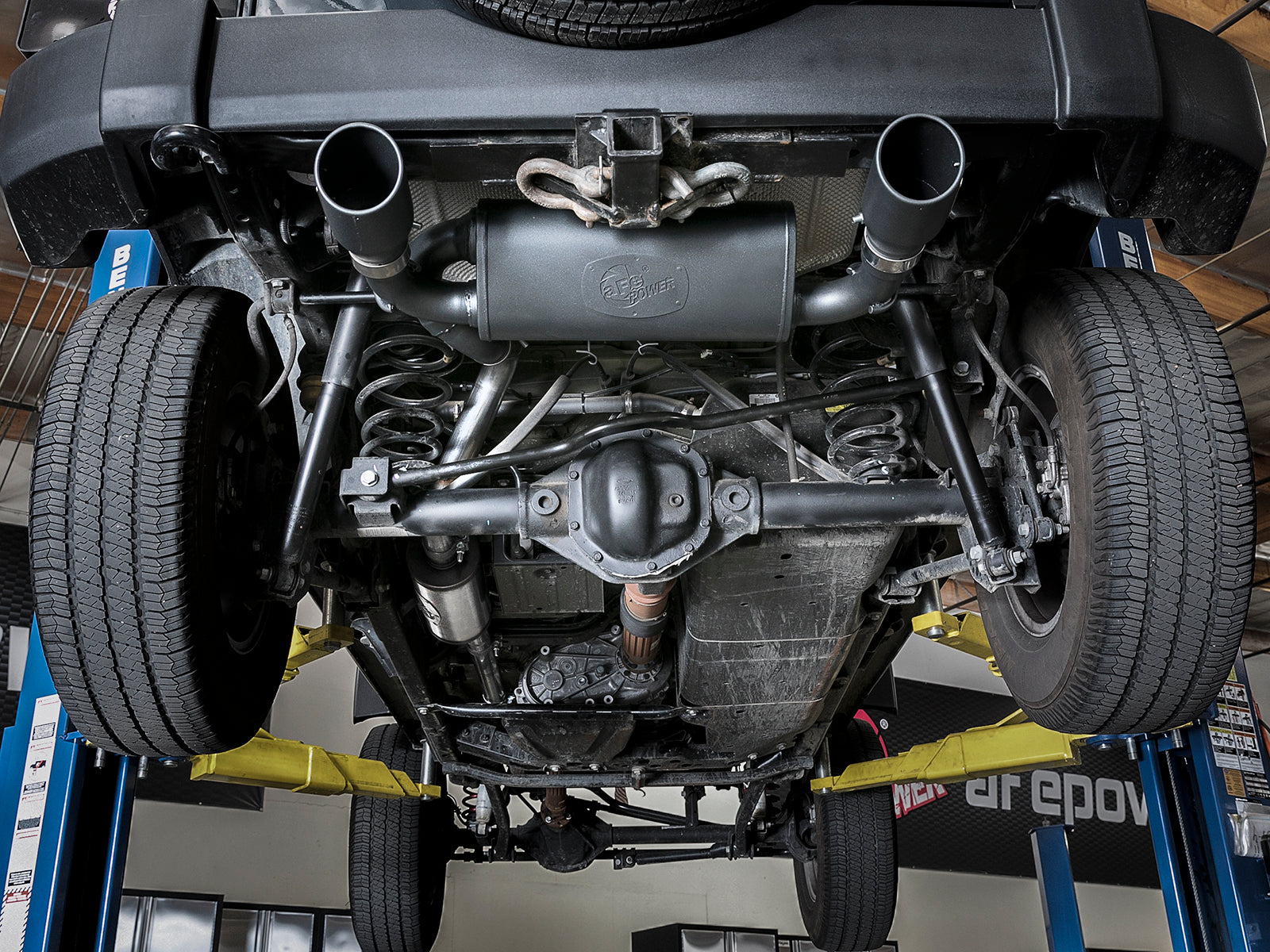

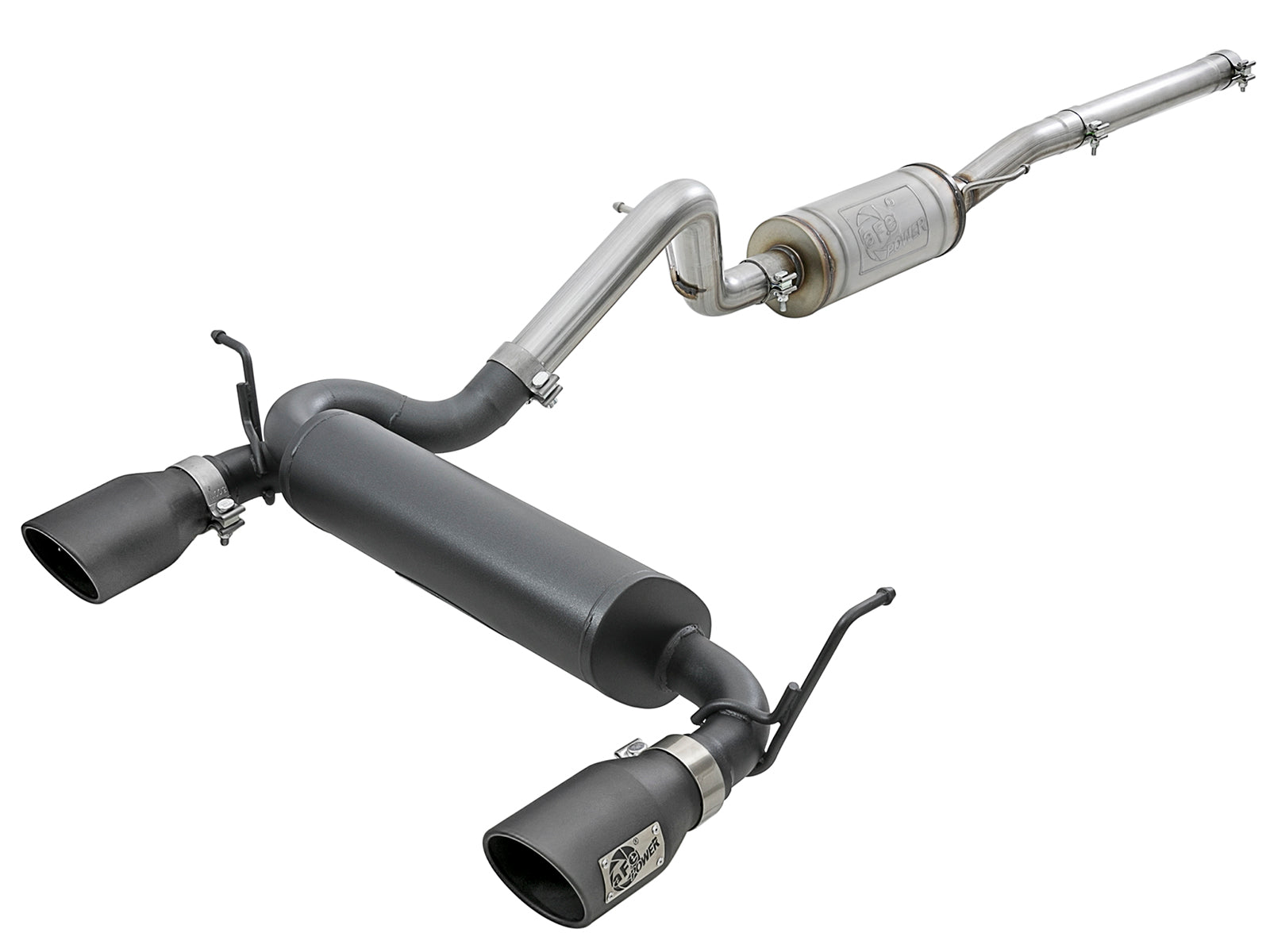

The aFe 49-48062-B Rebel cat-back uses 2.5-inch mandrel-bent 409 stainless tubing, a 14-inch round front muffler and an 18-inch oval rear muffler, ending in two metallic black 4.5-inch stainless tips. Hand MIG-welded construction, original mounting locations and the supplied crossmember hanger support the documented two- and four-door JK V6 installation.

Key Features

• Selected aFe part 49-48062-B.
• 2.5-inch mandrel-bent 409 stainless tubing with hand MIG-welded construction.

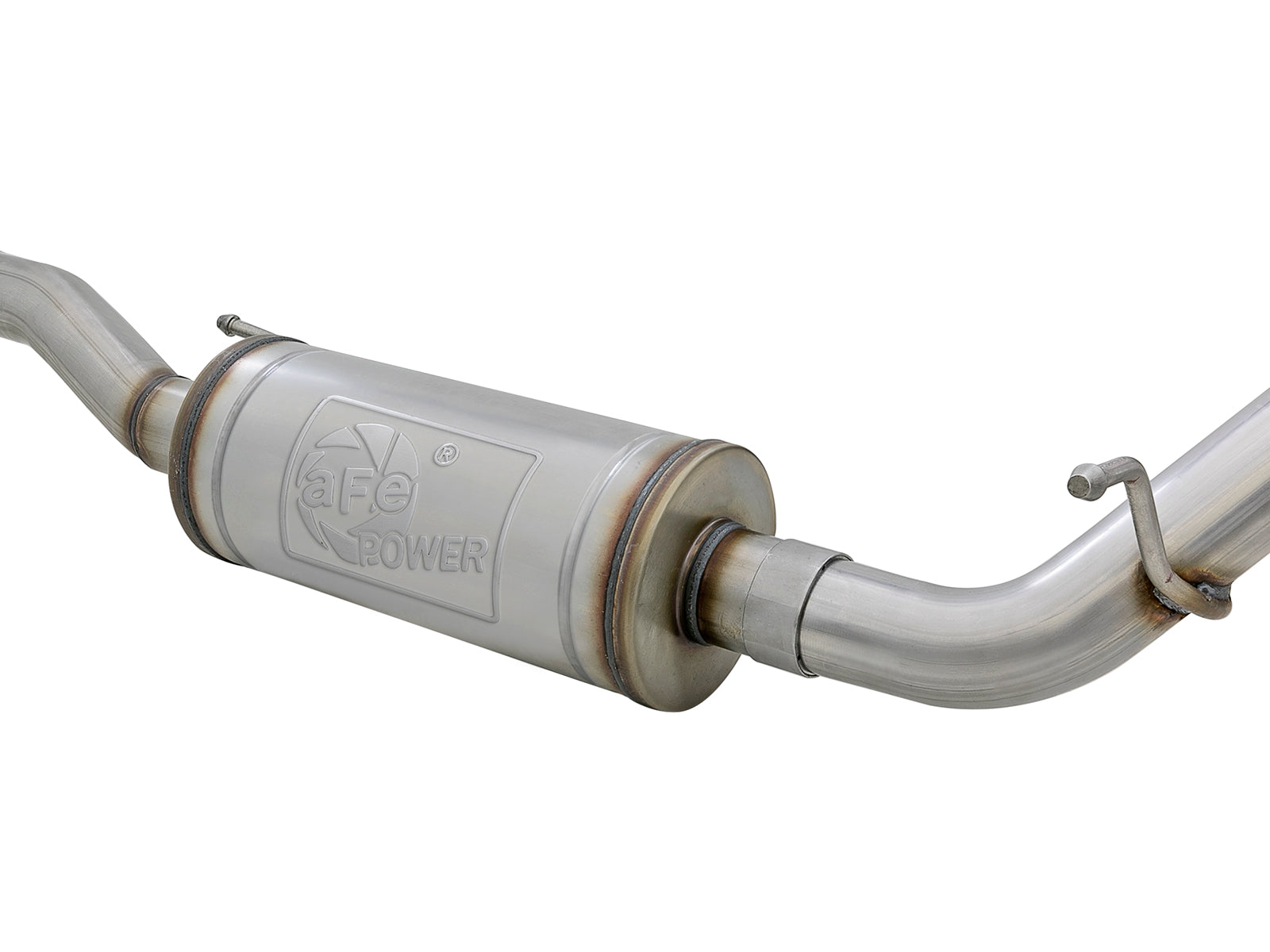

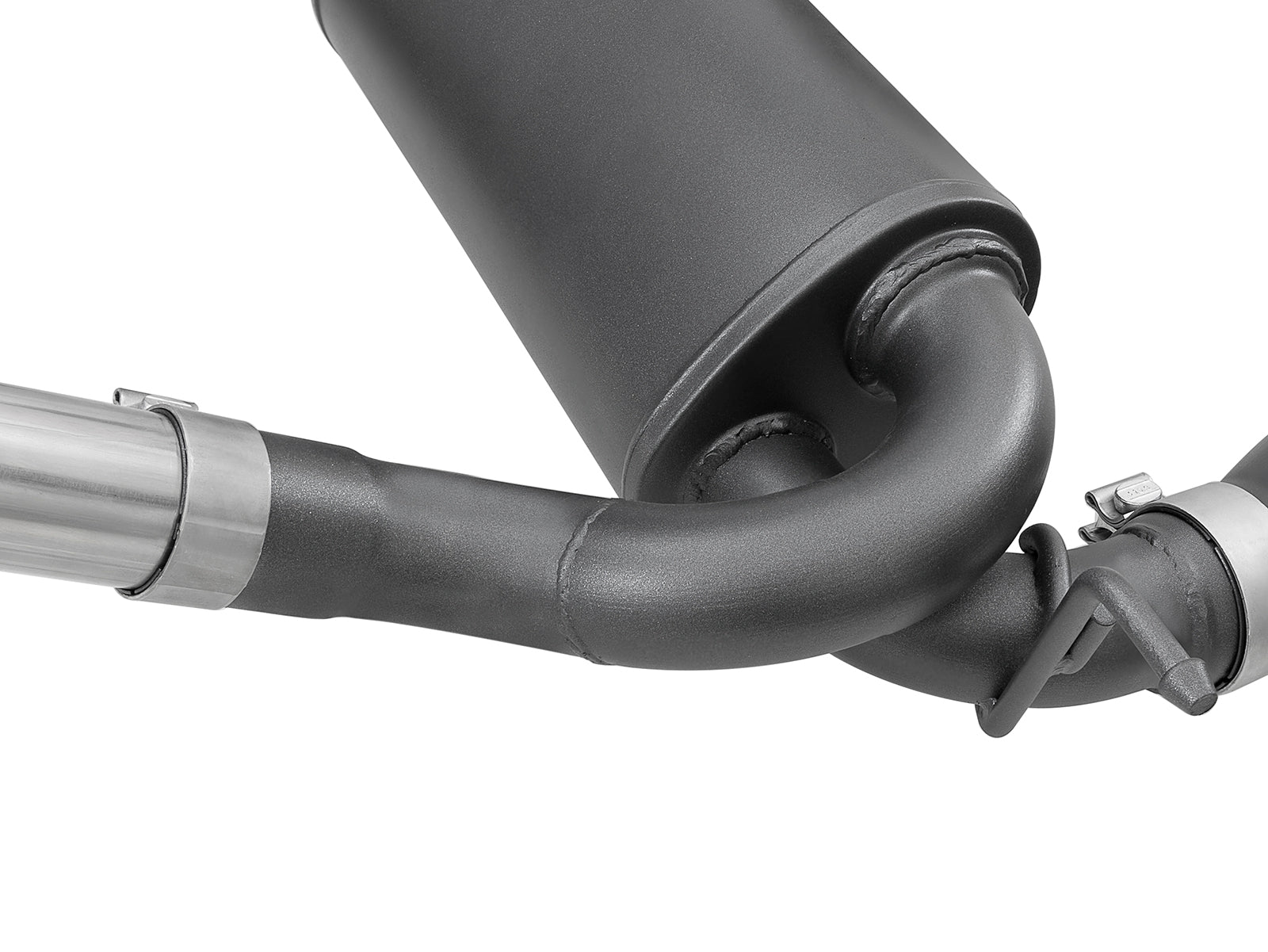

• Two mufflers: 14-inch round front and 18-inch oval rear; this is a complete selected cat-back rather than the rear axle-back alone.

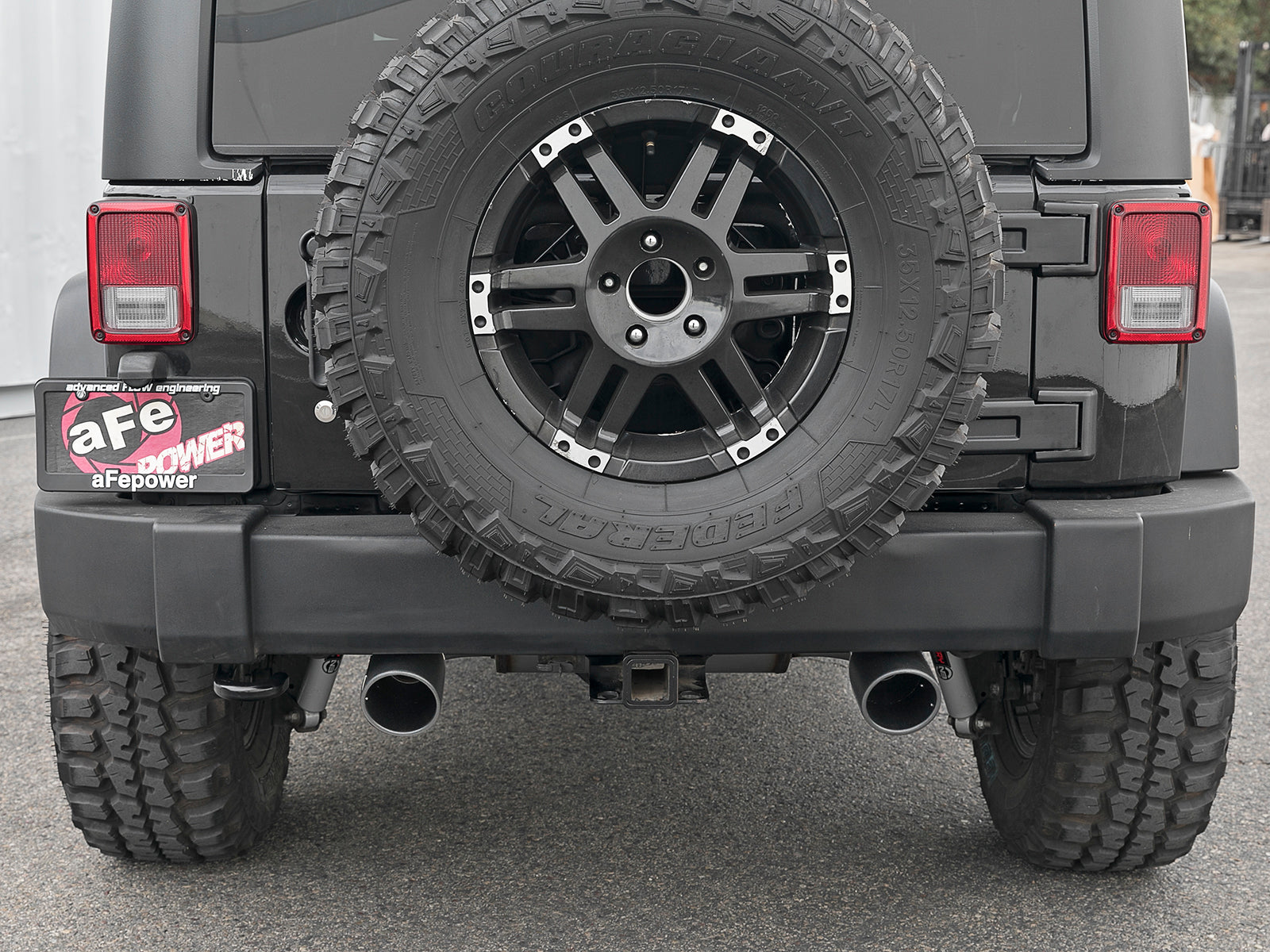

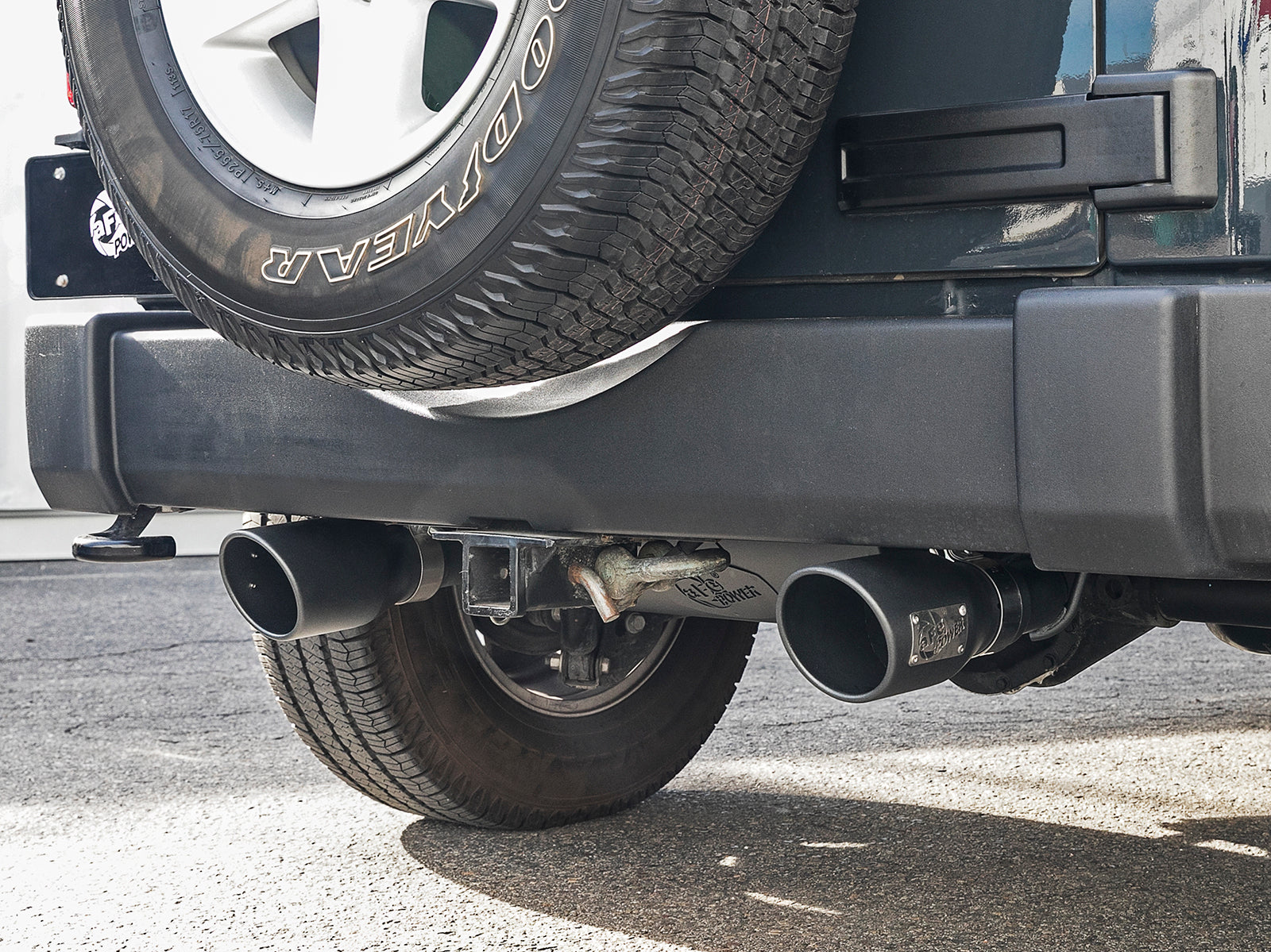

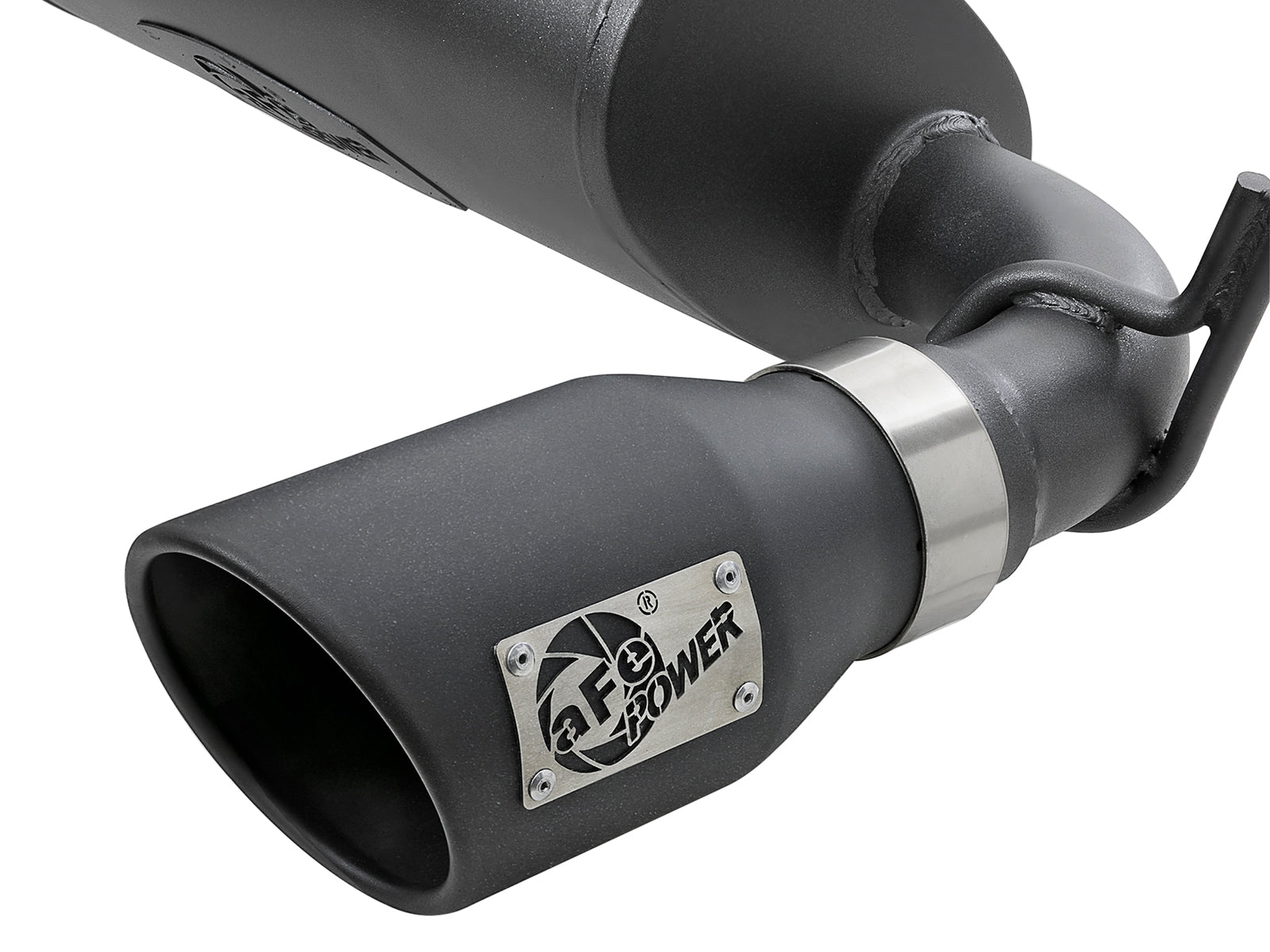

• Dual rear-exit metallic black 4.5-inch angle-cut, rolled stainless tips with laser-cut aFe POWER badges. Tip alloy grade is not established by the selected sources.

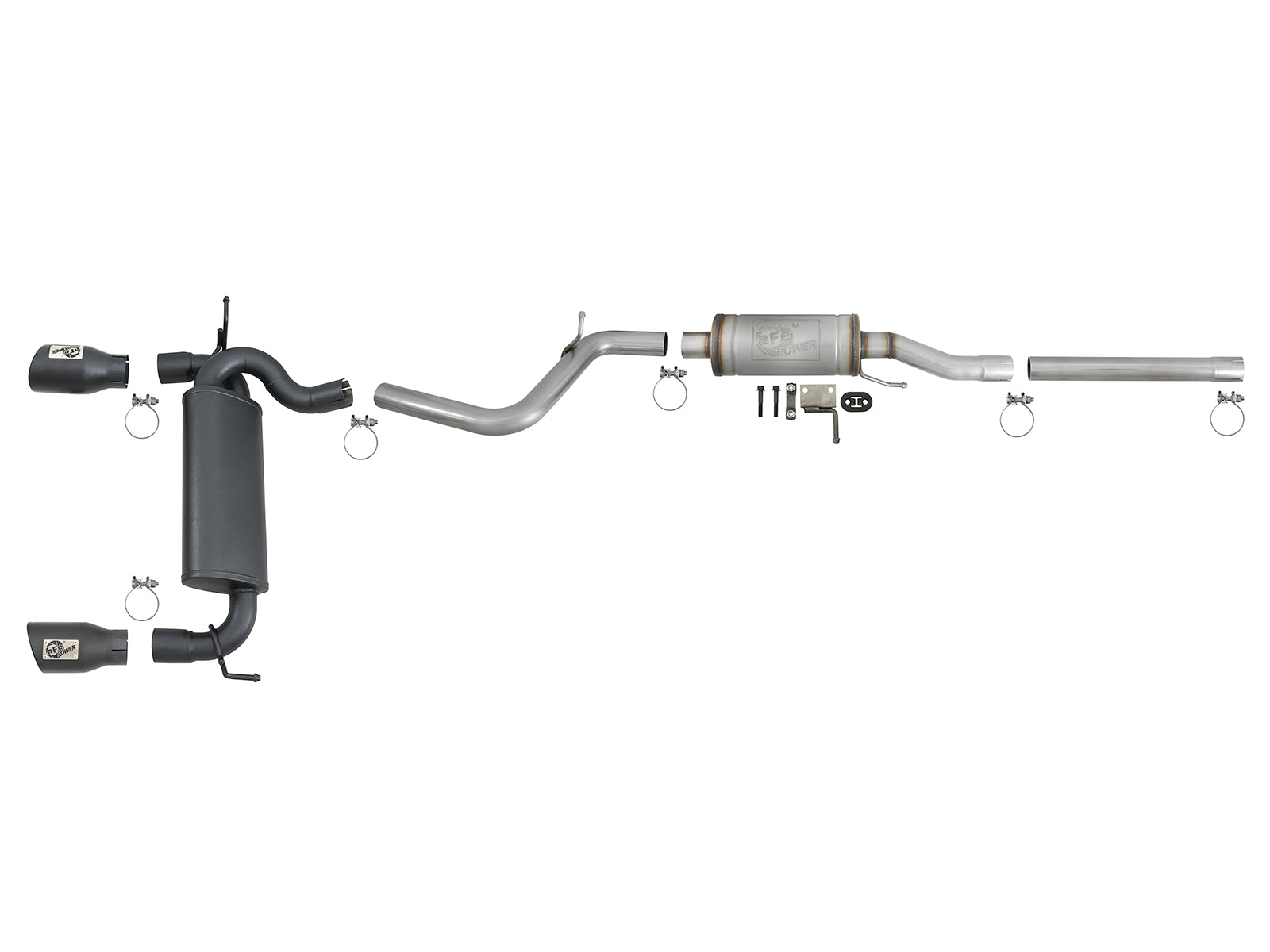

• Four principal assemblies: extension, round muffler assembly, over-axle tube and selected black rear muffler assembly.
• Supplied crossmember hanger bracket, top plate, isolation mount and two flanged screws supplement the retained factory rubber mounts.
• Current exact manufacturer specifies installation without modifications for documented two- and four-door JK V6 applications.

Fitment

Exact current manufacturer applications list 2007–2011 JK gas V6 3.8L and 2012–2018 JK gas V6 3.6L. The full selected guide covers two- and four-door models; four-door installation uses the extension first. The complete exact named secondary table supports 14 Wrangler scopes through 2017 and eight actual 2018 Wrangler JK names. The obsolete JK-as-submodel entry and three incorrectly named 2018 Wrangler scopes are replaced by explicit Wrangler JK model scopes. No JL, V8 or other engine approval is inferred.

Specifications

What's Included

• The 49-48062-B kit includes one extension 05-144088, one round muffler assembly 05-144081, one over-axle tube 05-144358 and one selected black rear muffler 05-144359B.
• One metallic black tip 49T30451-B091 and one metallic black tip 49T30452-B091. The opposite finish is a separate alternative.
• Four 2.5-inch bands 05-41061 and two 3-inch tip bands 05-41055, as counted from the individual arrows and joints in the selected diagram.
• One hanger bracket 05-46163, one top plate 05-46177, one isolation mount 05-46050 and two flanged screws 03-50209. Retain original rubber isolation mounts.
• No new gasket, intake filter, silicone coupling, sensor, EVAP canister or heat shield is established as supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact current manufacturer dual-muffler cat-back and V6 applications
• Selected full two-page guide, component diagrams and crossmember hanger
• Complete exact named secondary fitment table
• Shop cat-back exhaust systems
• Shop aFe Power

FAQ

It is the selected 2.5-inch 409 stainless Rebel cat-back for documented JK V6 applications, with round front and oval rear mufflers and dual black 4.5-inch tips.

Two: a 14-inch round muffler ahead of the over-axle pipe and an 18-inch oval rear muffler. The diagram calls the round assembly Rear Muffler, but its layout and current product description establish the front position.

The guide places bracket 05-46163 at the crossmember where the EVAP canister is located, using top plate 05-46177 above the crossmember and the two supplied flanged screws. It does not instruct removal or relocation of the EVAP canister.

The selected guide explicitly requires the extension tube first on four-door models. It does not supply a two-door cutting length or an extension-trimming operation; follow the selected diagram and application.

The selected diagram has four 2.5-inch connection bands, counting both extension joints, plus two 3-inch tip bands. Black and polished diagrams are alternatives, not two supplied systems.

The exact selected descriptions establish metallic black stainless tips but do not establish their alloy grade. Do not infer that grade from a prefix or another system’s replacement listing.

The selected guide prints no numerical tightening torque. It calls for 1/2–1 inch tailpipe-to-body clearance, front-to-rear clamp tightening after alignment and re-tightening all clamps after 50–100 miles.

No. The exact manufacturer marks performance data Coming Soon and describes the sound qualitatively. No exact measured gain, decibel result or drone guarantee is established.

Installation Instructions

1. Confirm aFe 49-48062-B against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Read the complete selected two-page guide and inventory the correct finish components. Let the exhaust cool, wear protective equipment and use at least two suitable stands or jacks as directed to support the vehicle and exhaust during removal and installation. Professional installation is highly recommended.
3. Remove the stock exhaust from rear toward front, retaining the factory rubber isolation mounts. The guide permits lubricating those mounts for removal and assembly. Lay out the new components and keep clamps loose until all sections are installed.
4. Install hanger bracket 05-46163 at the crossmember where the EVAP canister is located. Position plate 05-46177 above the crossmember, align the bracket and the two supplied flanged screws, then secure it as shown in Figure A. No EVAP canister removal or relocation is specified.
5. Connect the front round muffler assembly to the factory Y-pipe using the diagrammed 2.5-inch bands and retained/supplied isolation mounts. For four-door applications, install the extension first. Add the over-axle tube and selected rear muffler, locating hangers in the rubber mounts and leaving joints loose.
6. Install the two selected black tips with their 3-inch bands. Align the complete system with the guide’s 1/2–1 inch tailpipe-to-body clearance, then tighten all clamps from front to rear. The selected guide supplies no numerical tightening torque.
7. Recheck all work for tightness before removing supports. Re-tighten all clamps after 50–100 miles. The guide notes that smoke during the first few startup minutes can occur. No cutting, battery, sensor, EVAP or heat-shield procedure is borrowed.
