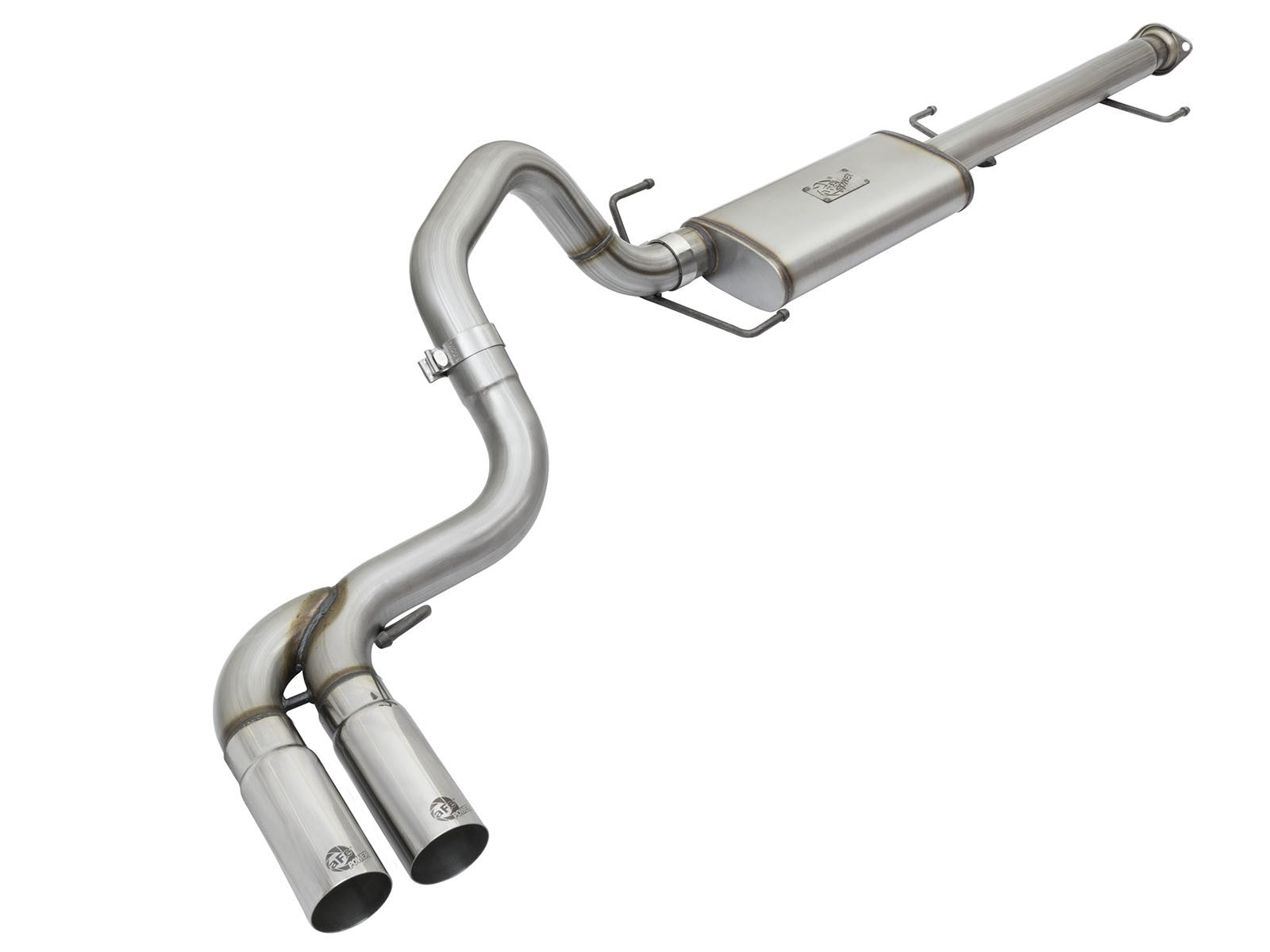

FJ Rebel POLISHED cat-back details
aFe 49-46030-P The manufacturer manual specifies a three-assembly FJ exhaust with selected POLISHED dual-outlet tailpipe and two bands. It reuses original Y-pipe bolts,gaskets and rubber mounts. Secondary specifications identify3-inch409 stainless construction with dual side exit.
Key Features
- Own manual explicitly covers selected POLISHED tailpipe05-144185.
- THREE selected assemblies and TWO bands05-41055.
- Original Y-pipe bolts,GASKETS and rubber mounts reused.
- Muffler supported with jack stand during installation.
- Tightening begins FRONT FLANGE and works BACK.
- Secondary:3-inch409 stainless,MIG-welded mandrel-bent tubing.
- Secondary:TWO polished304 stainless3.5-inch outlets ahead of rear passenger tire.
Fitment
Toyota FJ Cruiser4.0LV6. Own August2016 manufacturer manual explicitly names selected POLISHED and alternative POLISHED versions,2007-2014 and TRD Edition. Exact selected ML Performance North America table supports original Base2007-2014,TRD Special Edition2007 and Trail Teams Special Edition2008; all original bounds/tags remain. Secondary general07-18 headline is qualified because laterregional/named proof is not established. Confirm actual Y-pipe,gaskets,isolators and side-exit clearance. THIS manual supplies NO TRD rear-skid-plate/brace-removal step; do not import that procedure from Hi-Tuck systems. No other Toyota or Jeep application is inferred.
| Years | Make | Model | Named edition; actual FJ Y-pipe and selected side-exit routing apply |
|---|---|---|---|
| 2007-2014 | Toyota | FJ Cruiser | Base |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition |
Verify 49-46030-P against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49-46030-P |
| Own manufacturer application | FJ Cruiser4.0LV6;2007-2014;TRD Edition explicitly named |
| Original named rows | Base07-14/TRDSpecial07/TrailTeams08;unchanged |
| Selected assemblies | 05-144183muffler /05-144184over-axle /05-144185POLISHEDtailpipe |
| Alternative,not extra | 05-144186 BLACKtailpipe |
| Clamps | TWO05-41055bands |
| Secondary construction | 3-inch mandrel-bent MIG-welded409 stainless |
| Secondary outlet details | TWO polished304 stainless3.5-inch outlets;dual mid-side exit ahead of rear passenger tire |
| Original parts retained | Y-pipe bolts,GASKETS,rubber isolation mounts |
| Torque / sequence | No numeric torque supplied;FRONT FLANGE working BACK |
| Clearance / recheck | Half-to-one-inch body clearance;ALL exhaust components50-100miles |
| Exact-manual distinction | No TRD skid-plate/brace-removal step in this selected document |
| Evidence holds | Current PDP/emissions and actual readable dyno/flow charts unavailable;numeric gains not verified |
| UPC | 802959600344 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
What's Included
- 1 x 05-144183: Muffler assembly.
- 1 x 05-144184: Over-axle pipe.
- 1 x 05-144185: Selected POLISHED dual-outlet tailpipe assembly.
- 2 x 05-41055: Band clamps.
THREE selected assemblies: muffler05-144183,over-axle05-144184 and POLISHED dual-outlet tailpipe05-144185. TWO band clamps05-41055. BLACK05-144186 is the alternative tailpipe in shared manual,not an extra supplied assembly. Dual polished outlets are part of selected tailpipe; no separate tip service number is itemized. Retain ORIGINAL Y-pipe bolts,GASKETS and rubber isolation mounts. No original-bolt count,new gasket service number,new sensor,converter,valve motor,intake filter/coupler or wiring is billed.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer illustrated application and installation for 49-46030-P
- Shop the complete aFe Power collection
FAQ
What is the 49-46030-P?THREE selected assemblies: muffler05-144183,over-axle05-144184 and POLISHED dual-outlet tailpipe05-144185. TWO band clamps05-41055. BLACK05-144186 is the alternative tailpipe in shared manual,not an extra supplied assembly. Dual polished outlets are part of selected tailpipe; no separate tip service number is itemized. Retain ORIGINAL Y-pipe bolts,GASKETS and rubber isolation mounts. No original-bolt count,new gasket service number,new sensor,converter,valve motor,intake filter/coupler or wiring is billed.
Which FJ years and named editions apply?Toyota FJ Cruiser4.0LV6. Own August2016 manufacturer manual explicitly names selected POLISHED and alternative POLISHED versions,2007-2014 and TRD Edition. Exact selected ML Performance North America table supports original Base2007-2014,TRD Special Edition2007 and Trail Teams Special Edition2008; all original bounds/tags remain. Secondary general07-18 headline is qualified because laterregional/named proof is not established. Confirm actual Y-pipe,gaskets,isolators and side-exit clearance. THIS manual supplies NO TRD rear-skid-plate/brace-removal step; do not import that procedure from Hi-Tuck systems. No other Toyota or Jeep application is inferred.
Does the black tailpipe also come in this polished kit?NO. Own shared manual lists05-144185POLISHED and05-144186BLACK as alternatives. Selected POLISHED tailpipe is one assembly with dual outlets. No separate extra black tailpipe or decorative tip service part is billed.
Is TRD skid-plate and brace removal required by this manual?THIS selected8-step manual namesTRD Edition but prints NO rear-skid-plate/brace-removal step. Do not import the Hi-Tuck kit's requirement. Confirm actual selected-kit underbody and side-exit clearances.
Which original flange and gaskets are reused?Muffler attaches to STOCK Y-PIPE with ORIGINAL BOLTS,GASKETS and rubber mounts. Use JACK STAND to support muffler during installation. No original-bolt count,replacement gasket service number or numeric flange torque is supplied.
How do the new pieces assemble?Muffler to originalY-pipe,then over-axle with first supplied band,then selectedPOLISHED tailpipe with second. Set outlet/tip position with joints loose. Align before tightening FRONT FLANGE working BACK.
What torque,clearance and recheck apply?No numeric band/flange torque is printed. Tightening starts FRONT FLANGE and works BACK. Keep tailpipe at least half-to-one inch from body panels. Re-tighten ALL exhaust components after50-100miles.
Are material,tip dimensions and numeric gains independently verified?Exact current manufacturer product page was not located. Own manufacturer manual directly verifies selected POLISHED assembly and installation. Exact selected secondary CARiD describes3-inch mandrel-bent MIG-welded409 stainless,one muffler and TWO polished304 stainless3.5-inch outlets exiting in front of rear passenger tire; those dimensions/material/process facts are credited to secondary source rather than a new current primary certification. Numeric6HP11lb-ft and30%flow claims are not independently verified by an actual readable chart here; do not substitute the2.5-side-exit chart linked to other FJ systems. No measured drone guarantee or independent current primary emissions statement is established. Original Non-CARB:N classification remains unchanged without treating it as blanket legal clearance.
Installation Instructions
Verify aFe 49-46030-P.
- Read own August2016 ONE-page manufacturer manual,ALL EIGHT steps and complete selected B/P parts diagram. Confirm actualFJ4.0L Y-pipe,hangers and side-exit geometry. Cool exhaust,use eye/hand protection and securely support vehicle/exhaust. Professional installation is recommended. Leave joints loose until whole system is installed.
- Remove original exhaust up to catalytic converter from REAR working FORWARD. Preserve factory hardware and rubber isolation mounts. THIS selected manual prints NO cutting or TRD skid-plate/brace-removal step. Do not borrow Hi-Tuck removal requirements.
- Lay pieces alongside vehicle as diagrammed. Attach muffler05-144183 to STOCK Y-PIPE using ORIGINAL BOLTS,GASKETS and rubber isolation mounts. SUPPORT MUFFLER WITH JACK STAND during installation. No numeric flange torque,new gasket part or original-bolt count is supplied.
- Slide first supplied band onto muffler end and insert over-axle05-144184. Fit second band on selected POLISHED tailpipe05-144185 and insert tailpipe into over-axle. Do not substitute alternative BLACK05-144186 or add it as an extra part.
- Place selected outlet/tip at desired position while joints remain loose. Adjust and straighten entire system; tighten starting at FRONT FLANGE and working BACK. Maintain tailpipe at least ONE-HALF TO ONE INCH from body panels. No numeric band/flange torque is printed.
- Re-tighten ALL exhaust components after50-100miles. Own manual supplies no battery-disconnection,sensor/valve transfer or coding procedure. Check secure,sealed connections and surrounding clearance before use.
Exact current manufacturer product page was not located. Own manufacturer manual directly verifies selected POLISHED assembly and installation. Exact selected secondary CARiD describes3-inch mandrel-bent MIG-welded409 stainless,one muffler and TWO polished304 stainless3.5-inch outlets exiting in front of rear passenger tire; those dimensions/material/process facts are credited to secondary source rather than a new current primary certification. Numeric6HP11lb-ft and30%flow claims are not independently verified by an actual readable chart here; do not substitute the2.5-side-exit chart linked to other FJ systems. No measured drone guarantee or independent current primary emissions statement is established. Original Non-CARB:N classification remains unchanged without treating it as blanket legal clearance.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
