aFe ROCK BASHER Cat-Back Exhaust — Jeep Wrangler JK V6 Four-Door

ROCK BASHER pre-axle cat-back for four-door Wrangler JK V6

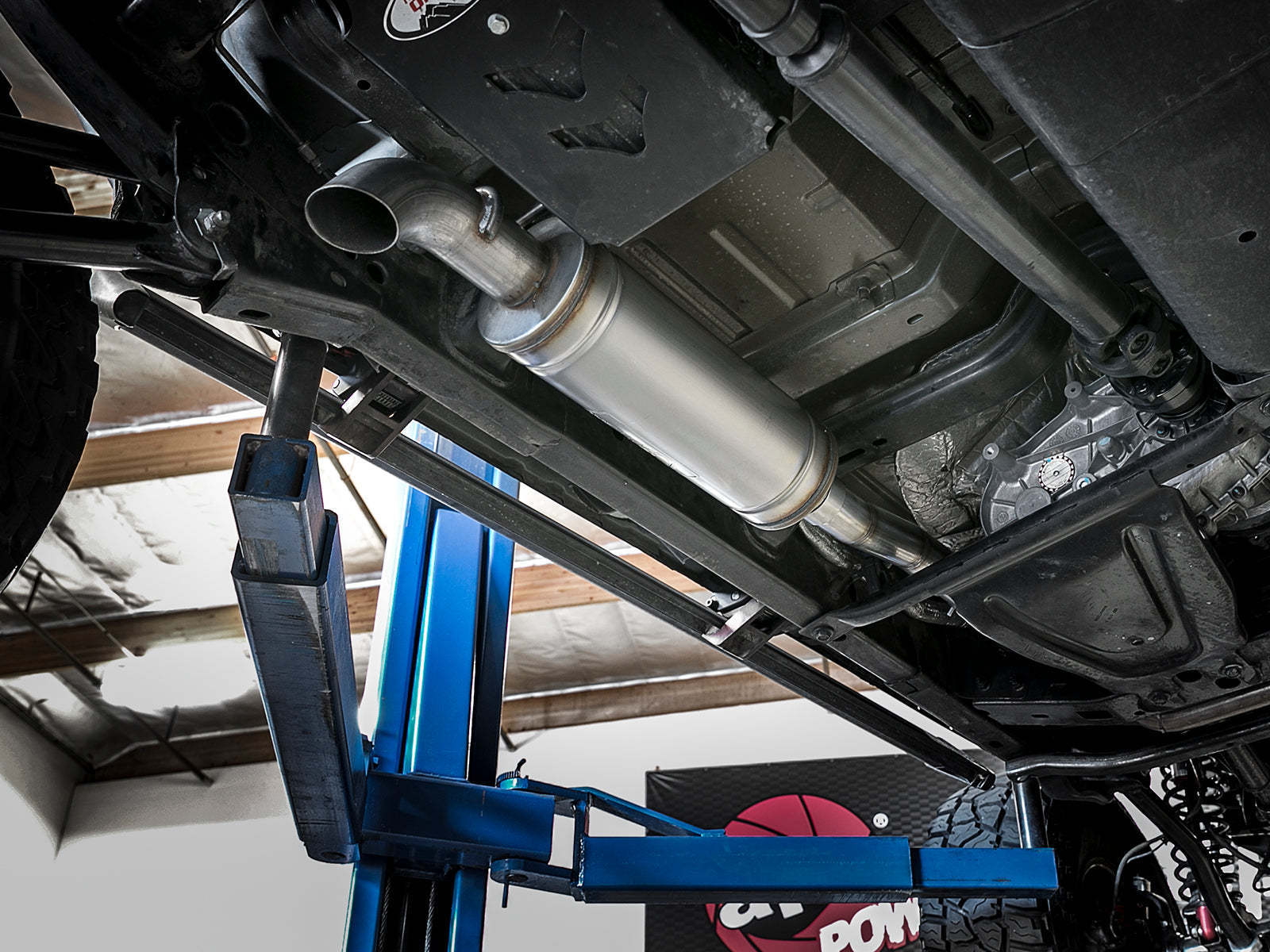

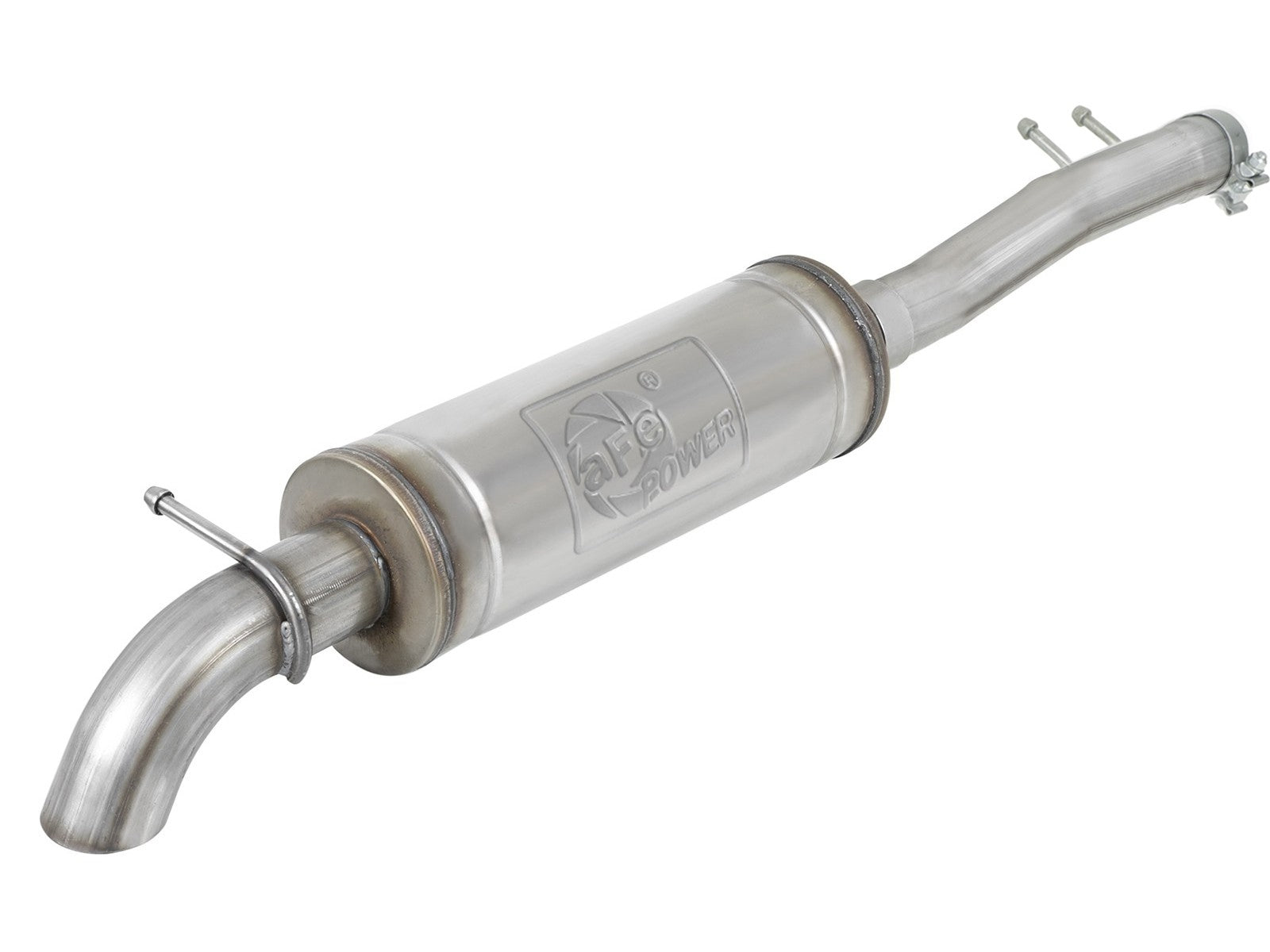

The aFe 49-48069 ROCK BASHER cat-back uses 2.5-inch-to-3-inch mandrel-bent 409 stainless tubing, an 18-inch free-flowing muffler and a pre-axle turndown outlet. The exact manufacturer and selected guide restrict this system to four-door JK V6 models. The outlet is part of the muffler assembly, without a separate decorative tip.

Key Features

• Selected aFe part 49-48069.
• 2.5-inch-to-3-inch mandrel-bent 409 stainless tubing with hand MIG-welded construction.

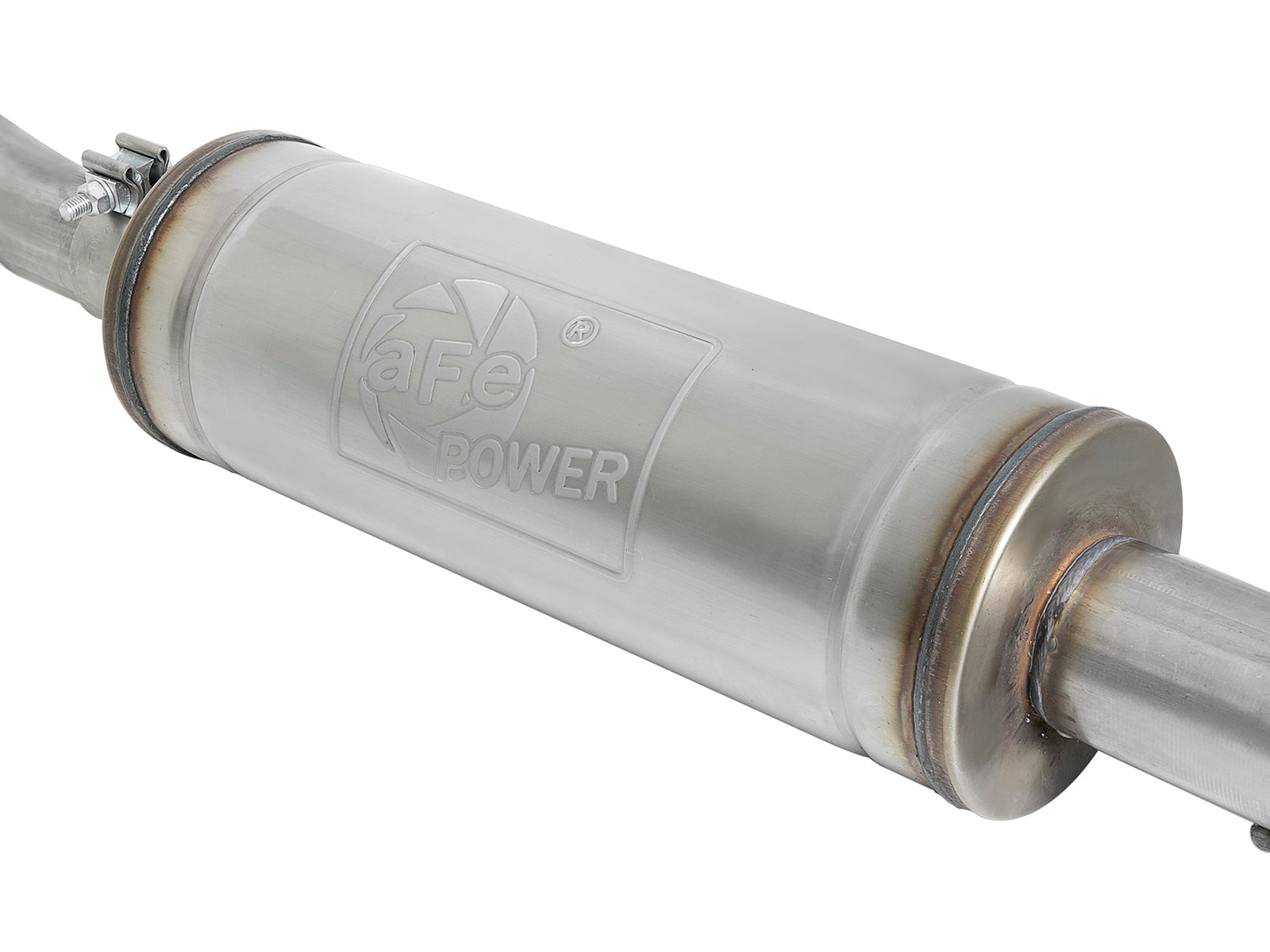

• 18-inch free-flowing stainless muffler with a turndown outlet ahead of the rear axle.
• Four-door JK only; no two-door or JL application is established.
• Two supplied 2.5-inch bands join the factory Y-pipe, mid-pipe and muffler assembly.
• Supplied hanger bracket and top plate use the original rubber isolation mount.
• The mid-pipe has two hanger positions; the guide says only one is used depending on the engine, without assigning a printed left/right choice.

Fitment

Exact current manufacturer applications list 2007–2011 JK gas V6 3.8L and 2012–2018 JK gas V6 3.6L, with an explicit four-door-only restriction. The selected guide independently specifies four-door models. The full exact named secondary table lists seven Unlimited scopes under Wrangler through 2017 and four actual 2018 Wrangler JK Unlimited scopes. The obsolete JK-as-submodel entry and three 2018 Wrangler-name scopes are replaced with the explicit Wrangler JK model rows; Unlimited Sport S 2016 is restored. No two-door, JL or related-engine approval is inferred.

Specifications

What's Included

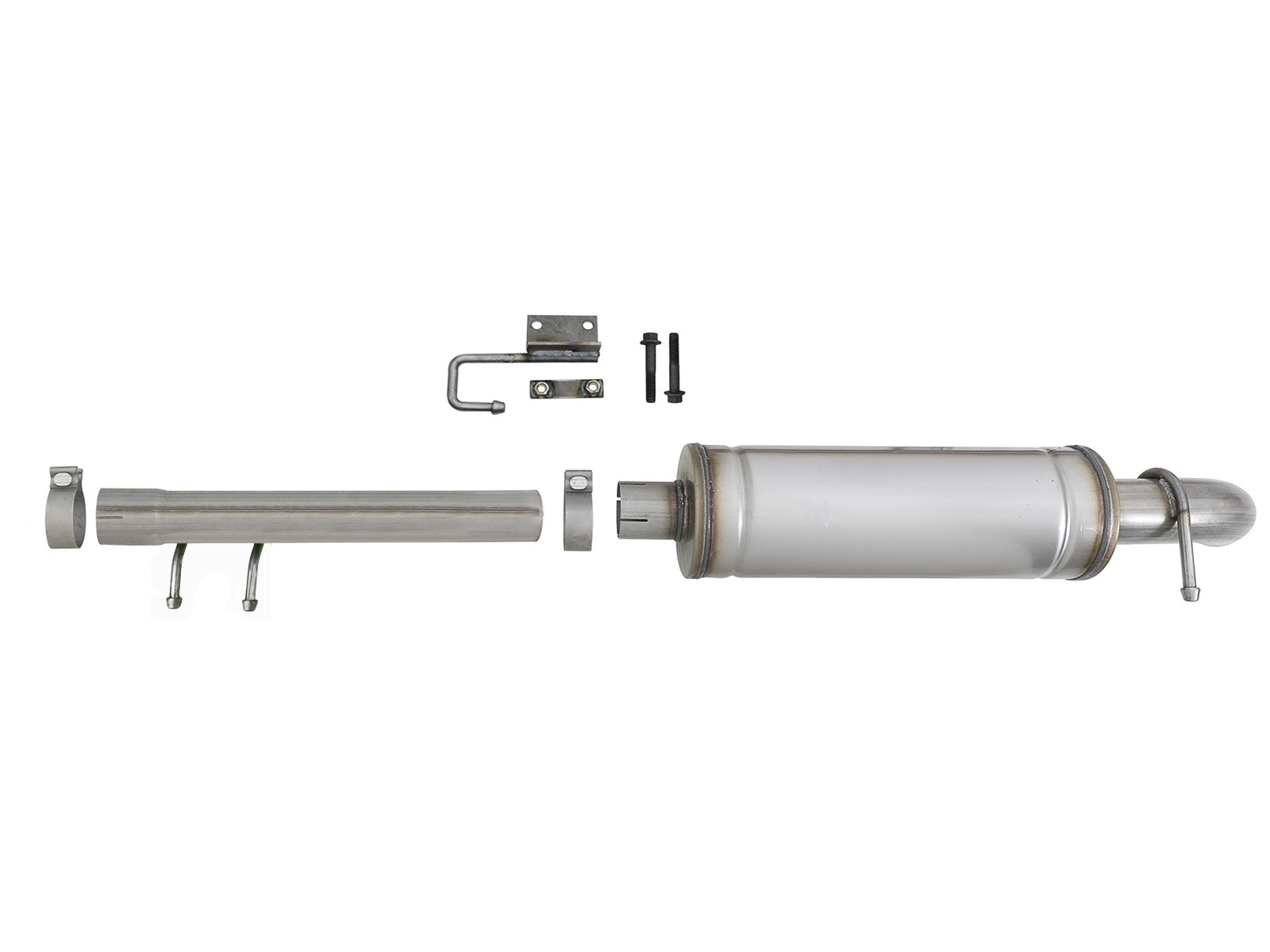

• The 49-48069 kit includes one mid-pipe 05-144414 and one muffler assembly 05-144415 with attached pre-axle turndown.
• Two 2.5-inch bands 05-41061.
• One hanger bracket 05-46303, one top plate 05-46177 and two flanged screws 03-50209, as pictured. Retain the original rubber isolation mounts.
• No separate decorative tip, extension from another system, new rubber isolator, gasket, heat shield, intake filter, silicone coupling or sensor is established as supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Exact manufacturer four-door JK scope and 2.5-to-3-inch system
• Selected one-page guide, component bill and single-hanger instruction
• Complete exact eleven named four-door secondary scopes
• Shop cat-back exhaust systems
• Shop aFe Power

FAQ

It is the selected 2.5-inch-to-3-inch 409 stainless ROCK BASHER cat-back with an 18-inch muffler and pre-axle turndown for documented four-door Wrangler JK V6 applications.

No such application is established. Both the exact current manufacturer and selected guide specify four-door JK models only, with V6 3.8L for 2007–2011 or V6 3.6L for 2012–2018.

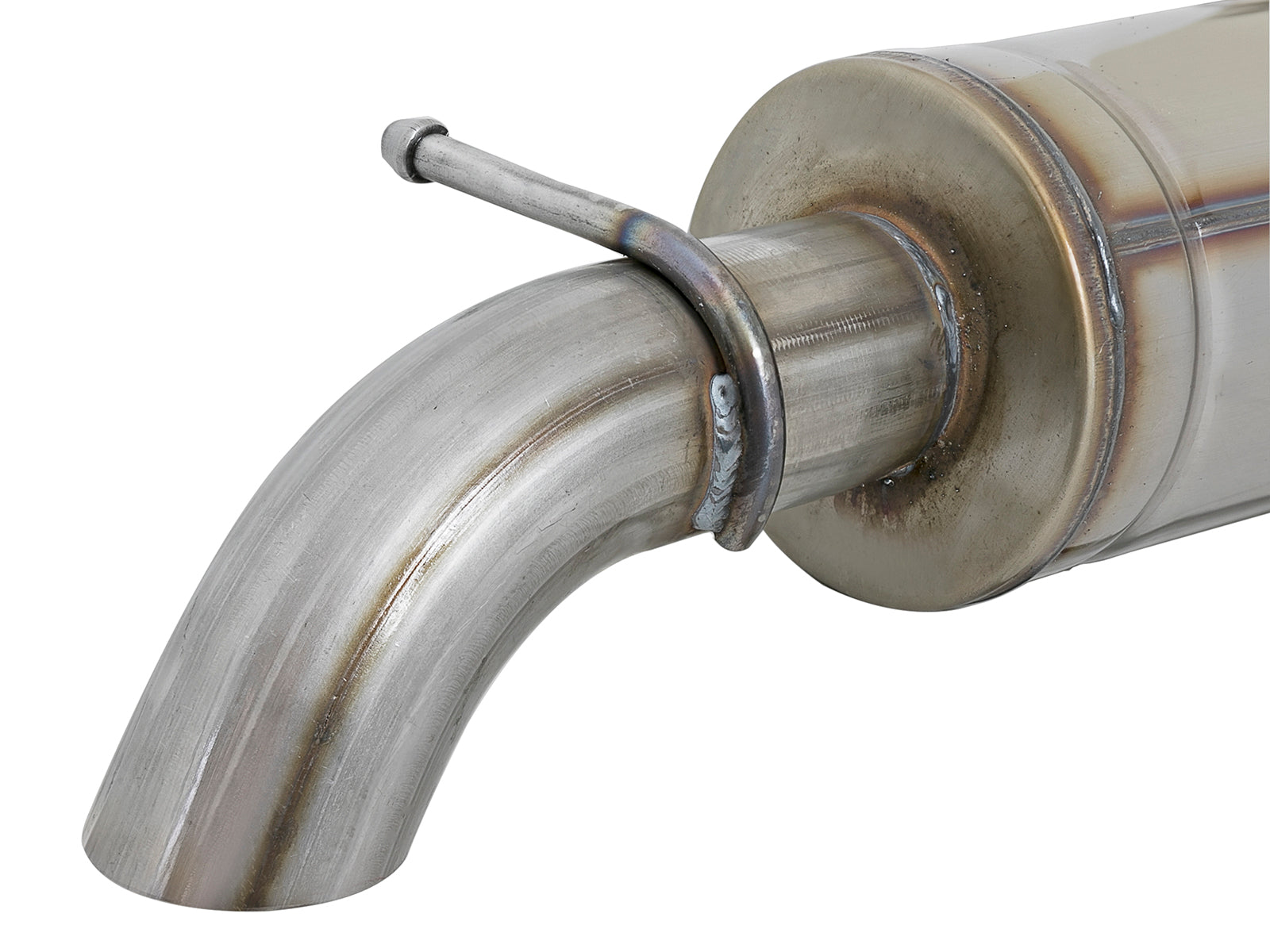

No. The pre-axle turndown is attached to the muffler assembly. No separate polished or black decorative tip is established as included.

The guide explicitly says only one of the two hangers is used, depending on the engine. It does not assign which hanger to each engine. Match the actual original mounting location and ask aFe if the correct position is uncertain.

The selected diagram and steps specify two 2.5-inch connection bands. The 2.5-to-3-inch system description does not authorize changing those joint sizes or adding a third clamp.

Keep the original rubber isolation mounts when removing the factory muffler and mid-pipe. Install the supplied hanger bracket with the original rubber mount as shown in the selected reference photo.

No numerical torque is printed in the selected guide. It directs front-to-rear tightening after alignment, 1/2–1 inch tailpipe-to-body clearance and re-tightening all clamps after 50–100 miles.

No selected measured gain, decibel result or drone guarantee is established. The exact manufacturer describes exhaust flow and sound qualitatively.

Installation Instructions

1. Confirm aFe 49-48069 against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
2. Read the complete selected one-page guide, confirm the four-door JK V6 application and inventory the actual components. Let the exhaust cool, use protective equipment and safely support the vehicle and exhaust separately. Professional installation is recommended.
3. Remove the original rear muffler and mid-pipe working rear to front. Preserve the rubber isolation mounts; the guide permits lubrication to help removal and installation. Keep new joints loose until fully assembled.
4. Install the supplied hanger bracket with the original rubber isolation mount as shown. Use only the appropriate one of the two mid-pipe hangers for the actual engine and mounting position. The guide does not assign a hanger to each engine; obtain aFe clarification if uncertain.
5. Connect the mid-pipe to the factory Y-pipe with one supplied 2.5-inch band. Add the muffler assembly with the second 2.5-inch band and place its hanger in the original rubber mount.
6. Align the system with 1/2–1 inch between the tailpipe and body panels, then tighten all clamps from front to rear. The selected guide supplies no numerical tightening torque. Re-tighten all clamps after 50–100 miles. No cutting, battery, sensor or heat-shield operation is borrowed.
