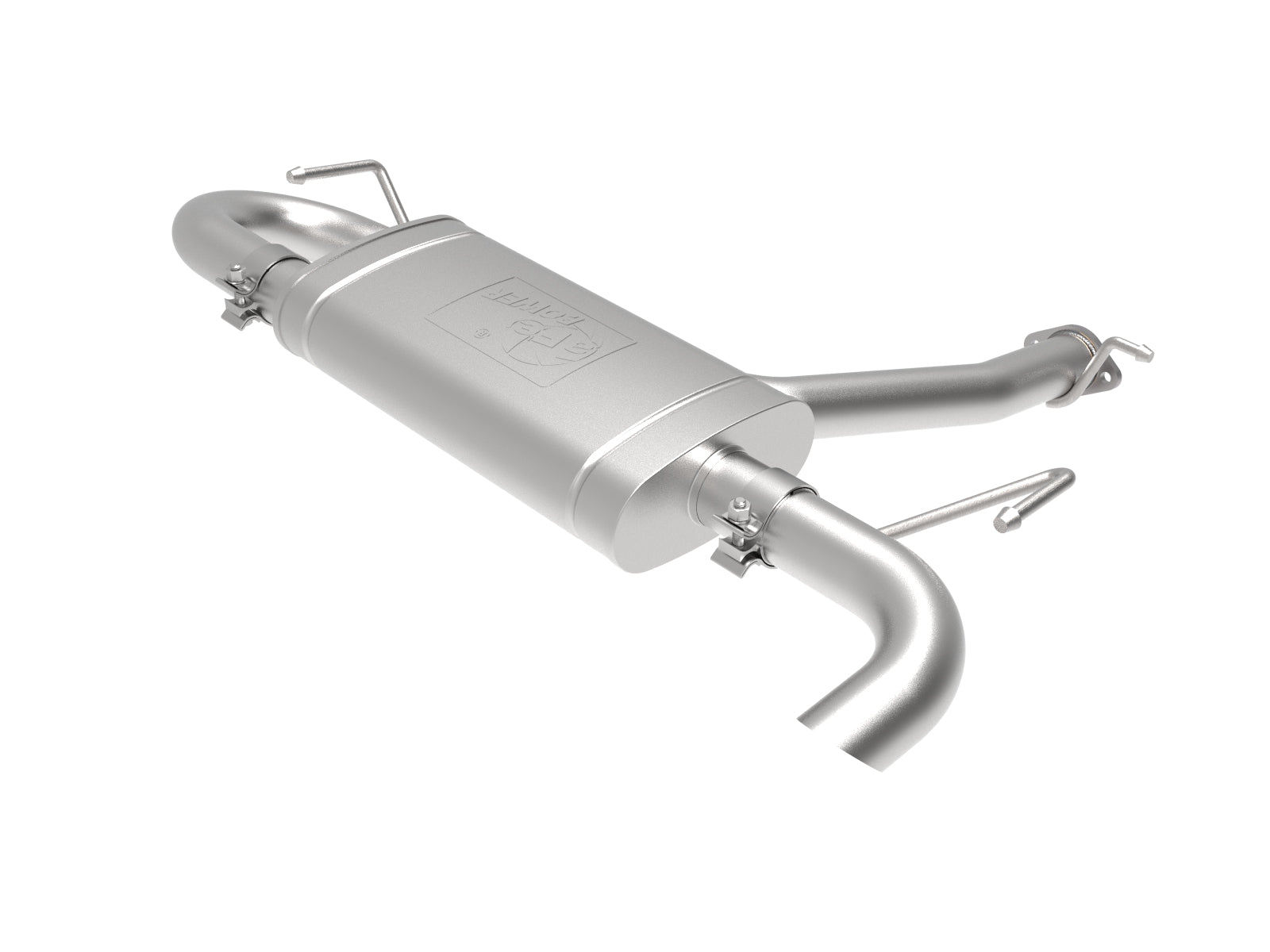

The aFe 49-37017 Takeda axle-back is the selected muffler-equipped, no-decorative-tip configuration in the complete manufacturer guide. That guide identifies 2018-2023 Kona gas turbo 1.6L, AWD only, and explicitly excludes FWD. The exact-part secondary description specifies 2.5-inch mandrel-bent 304 stainless tubing, a 304 stainless muffler and MIG welds.
The selected manufacturer guide supports 2018-2023 turbo 1.6L Kona AWD only. The full exact-part named table confirms the two original scopes, extends Limited through 2023 and supplies three additional actual named ranges below. Every row requires AWD and turbo 1.6L; no FWD, naturally aspirated 2.0L, Kona N or later-generation application is inferred.
| Years | Make | Model | Submodel | Required configuration |
|---|---|---|---|---|
| 2019 | Hyundai | Kona | Iron Man Edition | Turbo 1.6L AWD ONLY; FWD excluded |
| 2018-2023 | Hyundai | Kona | Limited | Turbo 1.6L AWD ONLY; FWD excluded |
| 2022-2023 | Hyundai | Kona | N Line | Turbo 1.6L AWD ONLY; FWD excluded |
| 2021 | Hyundai | Kona | Night | Turbo 1.6L AWD ONLY; FWD excluded |
| 2018-2021 | Hyundai | Kona | Ultimate | Turbo 1.6L AWD ONLY; FWD excluded |
| Detail | Value |
|---|---|
| Manufacturer Part Number | 49-37017 |
| Product type | Axle Back |
| Selected layout | Muffler-equipped axle-back and plain tailpipe; no separate decorative tip. |
| Construction evidence | Exact-part secondary: 2.5-inch mandrel-bent 304 stainless tubing, 304 stainless muffler and MIG welds. Exact selected current primary product page remains unlocated. |
| Manufacturer identity and source qualification | The exact current unsuffixed product page was not located. The catalog result was explicitly the black-tip suffixed variant and is not adopted as the selected part. The selected manufacturer guide is available and explicitly identifies the muffler/no-tip configuration, 2018-2023 turbo 1.6L and AWD only. Exact-part secondary description supplies the 304 stainless and MIG construction details. No discontinued status or variant equivalence is inferred. |

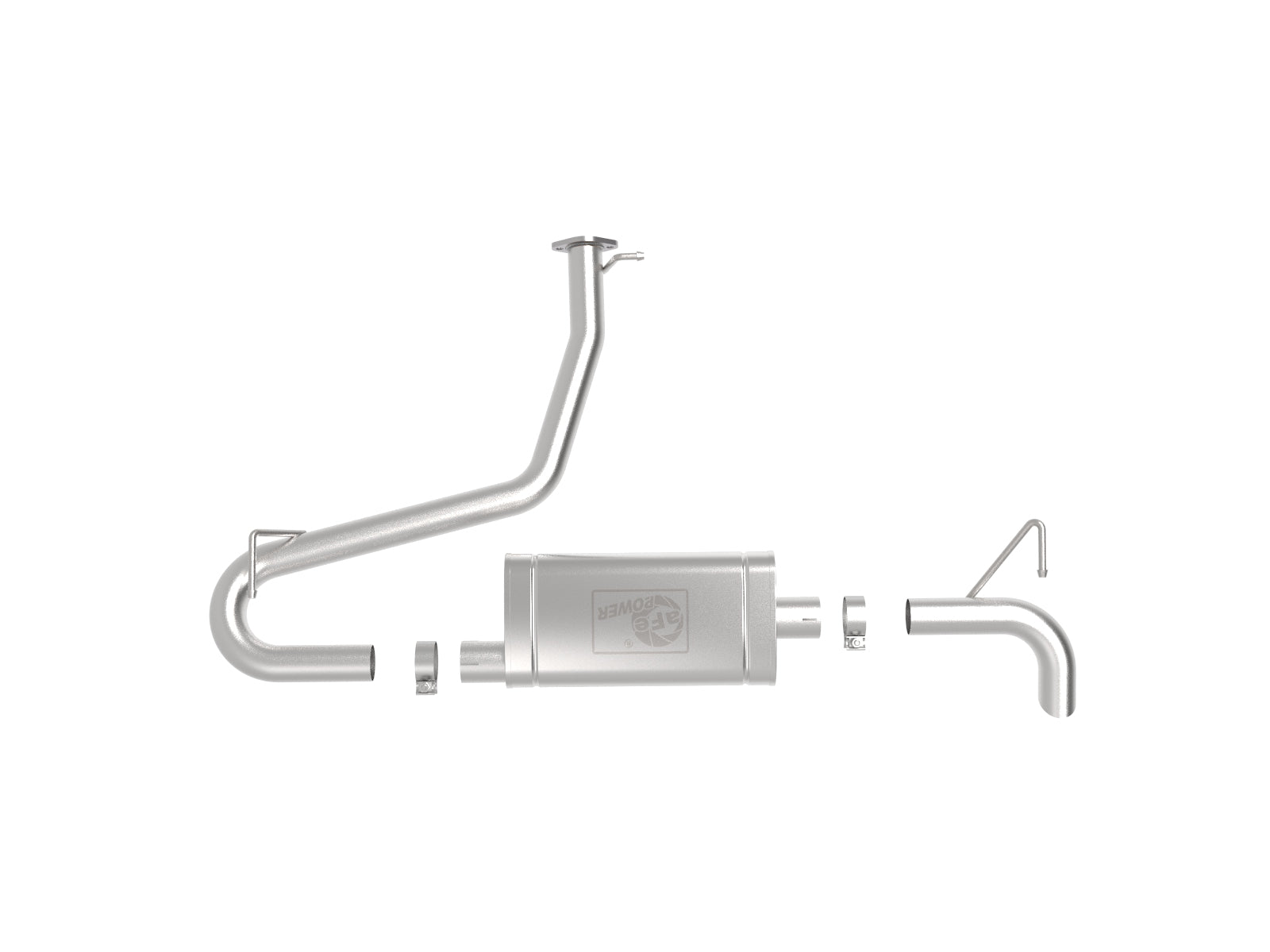

| Included alternatives | one inlet assembly 05-245027, one selected muffler assembly 05-245028, one plain tailpipe 05-245029 and two 2.5-inch bands 05-41061. Muffler-delete pipe 05-245030 belongs to the NM alternative and is not an extra supplied component. No separate decorative tip is listed for the selected unsuffixed kit. |
| Front connection qualification | The selected bill does not list a new front gasket or flange hardware, and the procedure does not specify gasket reuse or a numeric flange torque. Confirm actual front-flange sealing and hardware requirements with aFe and the vehicle service information before disassembly; do not borrow those details from the suffixed version or another exhaust. |
| Torque and recheck | Selected guide: 40-45 ft-lb for applicable band clamps only, not unspecified flange hardware. Align then tighten front to rear; retighten all clamps and hardware after 50-100 miles. |
| Power and sound | No exact selected dyno chart is established. Exact secondary describes a powerful sound without a measured level, power gain or drone-free guarantee. |
| UPC | 802959633434 |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
It is the selected muffler-equipped, plain-tailpipe Takeda axle-back for Kona turbo 1.6L AWD, with two 2.5-inch bands and no separate decorative tip.
Will this fit a front-wheel-drive Kona?No. The selected manufacturer guide explicitly identifies AWD only and says it does not fit FWD. All named rows require turbo 1.6L AWD.
Does this include a black or polished tip?No separate decorative tip is listed for the selected unsuffixed kit. The guide identifies it as muffler/no tip; NM and suffixed tip configurations are distinct alternatives.
What components are supplied?one inlet assembly 05-245027, one selected muffler assembly 05-245028, one plain tailpipe 05-245029 and two 2.5-inch bands 05-41061. Muffler-delete pipe 05-245030 belongs to the NM alternative and is not an extra supplied component. No separate decorative tip is listed for the selected unsuffixed kit.
What front connection details need confirmation?The selected bill does not list a new front gasket or flange hardware, and the procedure does not specify gasket reuse or a numeric flange torque. Confirm actual front-flange sealing and hardware requirements with aFe and the vehicle service information before disassembly; do not borrow those details from the suffixed version or another exhaust.
Which parts establish the material and year scope?The exact current unsuffixed product page was not located. The catalog result was explicitly the black-tip suffixed variant and is not adopted as the selected part. The selected manufacturer guide is available and explicitly identifies the muffler/no-tip configuration, 2018-2023 turbo 1.6L and AWD only. Exact-part secondary description supplies the 304 stainless and MIG construction details. No discontinued status or variant equivalence is inferred.
What tightening and mileage check apply?Use the selected 40-45 ft-lb setting only for applicable bands, with correct separate settings for front-flange hardware. Align safely and tighten front to rear; retighten all clamps and hardware after 50-100 miles.
Are dyno gains or guaranteed street approval established?No exact selected dyno chart or blanket vehicle-level approval is established. Preserve original emissions equipment, verify actual configuration and do not transfer another variant’s power, certification or sound claims.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
