aFe Honda Civic Sport Carbon Fiber Takeda Axle-Back

Honda Civic Sport Takeda axle-back details

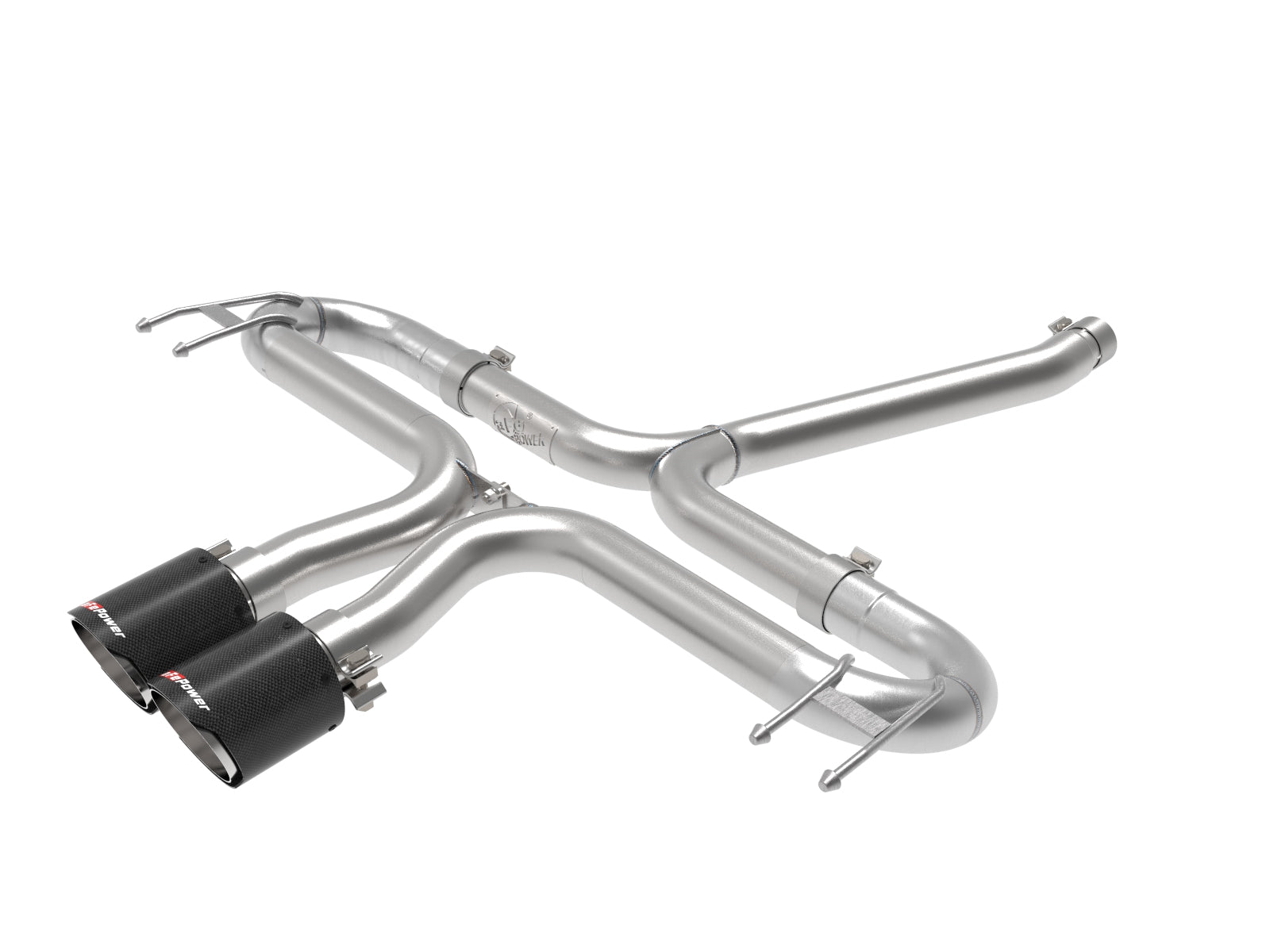

aFe 49-36625-C The selected Takeda axle-back uses a Y-pipe and separate driver/passenger tailpipes with TWO carbon fiber clamp-on tips. Its exact shared manual requires cutting the original exhaust, transferring four rubber mounts and restoring the original brace.

Key Features

• Exact selected Carbon Fiber tips: TWO 49T25454-C07.
• Y-pipe plus separate DRIVER and PASSENGER tailpipe assemblies.
• ONE 2-inch and TWO 2.5-inch main-section bands.
• TWO supplied M8 screws, FOUR washers and TWO nuts join tailpipe brackets.
• FOUR original muffler-section rubber mounts transferred.
• Original-exhaust cutting and deburring required.
• Brace restored; negative battery disconnected and reconnected.

Fitment

The manufacturer-authored February 2020 shared manual explicitly lists this selection for the 2017-2020 Honda Civic Sport HATCHBACK, 1.5L turbocharged four-cylinder. Current exact manufacturer product page was not located. Existing positive EX, EX-L, LX, Sport and Sport Touring application years are retained, including existing 2021 records, with their original gaps. Those broader records do not independently certify every hatchback bumper, rear outlet or a sedan/coupe configuration. Confirm the actual body, original exhaust routing and rear outlet before ordering; no new grade or year coverage is inferred.

Verify 49-36625-C against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-145863: Y-pipe assembly.
• 1 x 05-145864: DRIVER tailpipe assembly.
• 1 x 05-145865: PASSENGER tailpipe assembly.
• 1 x 05-41235: 2-inch main-section band.
• 2 x 05-41061: 2.5-inch main-section band.
• 2 x 03-50341: M8 x 1.25 x 20 socket-head screw.
• 4 x 03-50159: M8 flat washer, 16 mm outer diameter.
• 2 x 05-46057: M8 x 1.25 hex nut.
• 2 x 49T25454-C07: Carbon Fiber clamp-on tip.

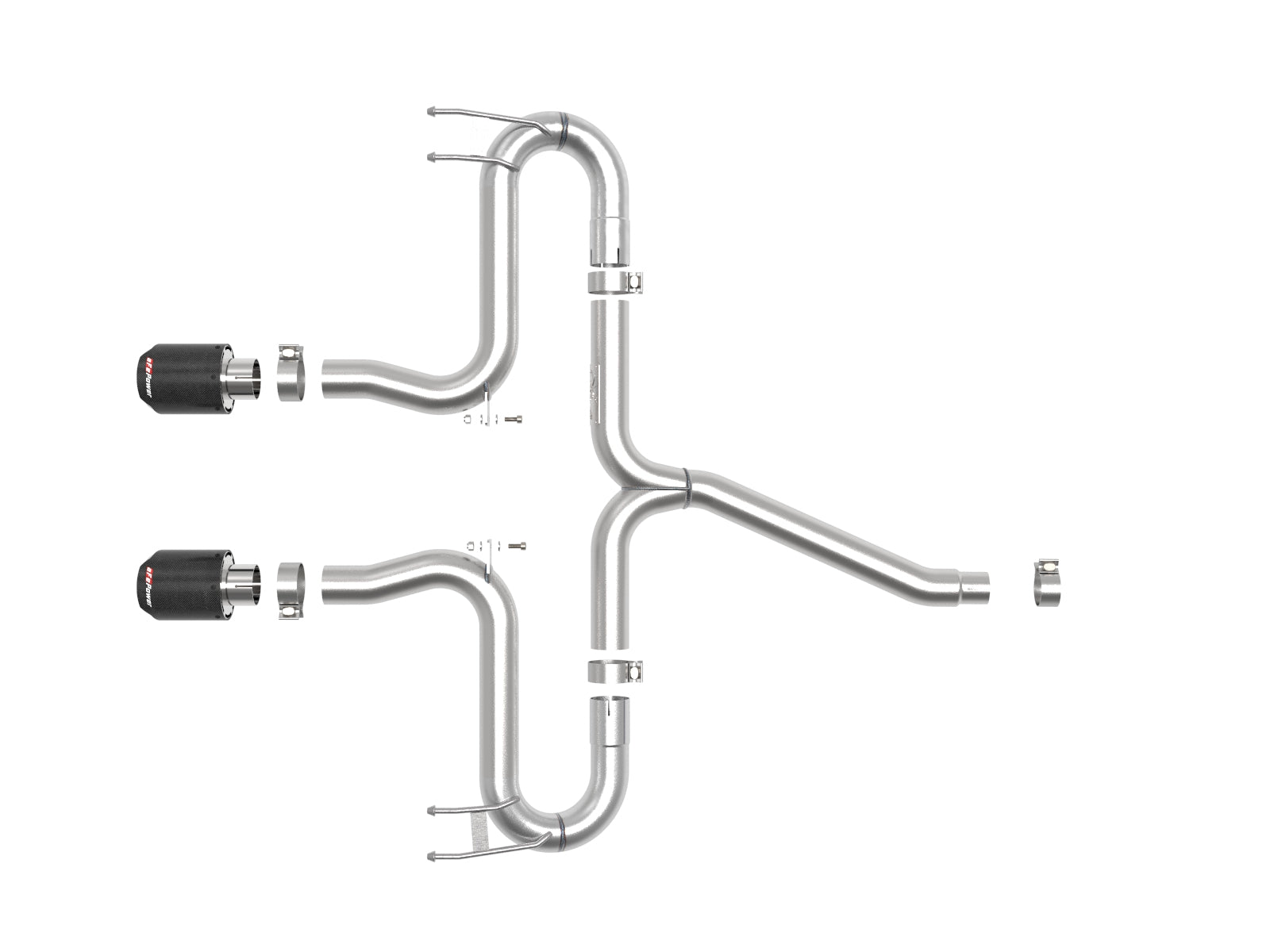

THREE main assemblies: Y-pipe 05-145863, DRIVER tailpipe 05-145864 and PASSENGER tailpipe 05-145865. ONE 2-inch band 05-41235 and TWO 2.5-inch bands 05-41061 connect the main sections. TWO selected Carbon Fiber clamp-on tips 49T25454-C07 are listed; other finishes in the shared bill are alternatives. TWO M8 x 1.25 x 20 socket-head screws 03-50341, FOUR M8 flat washers with 16 mm outer diameter 03-50159 and TWO M8 x 1.25 nuts 05-46057 join the tailpipe brackets. Step 16 also requires supplied tip band clamps, without a separate service number or separately itemized quantity in the bill. TRANSFER FOUR original muffler-section rubber mounts. Retain the original upstream exhaust section and restore the brace with FOUR original bolts. No new gasket, converter, sensor or wiring package is itemized.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer-authored shared illustrated manual (public mirror) for 49-36625-C
• Shop the complete aFe Power collection

FAQ

THREE main assemblies: Y-pipe 05-145863, DRIVER tailpipe 05-145864 and PASSENGER tailpipe 05-145865. ONE 2-inch band 05-41235 and TWO 2.5-inch bands 05-41061 connect the main sections. TWO selected Carbon Fiber clamp-on tips 49T25454-C07 are listed; other finishes in the shared bill are alternatives. TWO M8 x 1.25 x 20 socket-head screws 03-50341, FOUR M8 flat washers with 16 mm outer diameter 03-50159 and TWO M8 x 1.25 nuts 05-46057 join the tailpipe brackets. Step 16 also requires supplied tip band clamps, without a separate service number or separately itemized quantity in the bill. TRANSFER FOUR original muffler-section rubber mounts. Retain the original upstream exhaust section and restore the brace with FOUR original bolts. No new gasket, converter, sensor or wiring package is itemized.

The manufacturer-authored February 2020 shared manual explicitly lists this selection for the 2017-2020 Honda Civic Sport HATCHBACK, 1.5L turbocharged four-cylinder. Current exact manufacturer product page was not located. Existing positive EX, EX-L, LX, Sport and Sport Touring application years are retained, including existing 2021 records, with their original gaps. Those broader records do not independently certify every hatchback bumper, rear outlet or a sedan/coupe configuration. Confirm the actual body, original exhaust routing and rear outlet before ordering; no new grade or year coverage is inferred.

Mark 2 inches behind the tangent shown in exact reference image 1, toward the rear of the vehicle. After removing the stock exhaust, cut at the mark and deburr. Retain the upstream section for the Y-pipe connection.

TRANSFER FOUR original muffler-section rubber isolation mounts. Remove the brace for access and RESTORE it with FOUR original bolts. The manual removes THREE front-pipe nuts during original-exhaust removal; it does not itemize new flange nuts or a new gasket.

Install PASSENGER tailpipe before DRIVER tailpipe, using one supplied 2.5-inch band each. Position PASSENGER bracket IN FRONT OF DRIVER bracket and join with TWO M8 screws, FOUR washers and TWO nuts. Leave loose until final alignment.

TWO Carbon Fiber clamp-on tips 49T25454-C07 are listed. Shared polished, black and other-finish entries are alternatives. Step 16 calls for supplied tip band clamps but does not separately itemize their service number or quantity; the three main-section bands are separately listed.

Disconnect NEGATIVE BATTERY before removal and reconnect after alignment. Tighten evenly FRONT to REAR. BAND CLAMPS require 40-45 ft-lb; separate bracket/brace/flange torque is not supplied. Check leaks and re-tighten ALL CLAMPS AND HARDWARE after 50-100 miles.

The exact manufacturer-authored manual is supplied through a public document mirror and explicitly lists both selected finishes. A current exact manufacturer product page and actual dyno or bench-flow chart were not located; no numeric gain, sound level or drone guarantee is certified. Current exact emissions classification remains unconfirmed; the manual does not provide an EO determination. Existing broader positive application records require vehicle-specific confirmation against its Sport hatchback 1.5T scope. Tip dimensions and tubing alloy are not independently specified in this manual and are not inferred from service-number suffixes.

Installation Instructions

Verify aFe 49-36625-C.

1. Read BOTH pages of the exact February 2020 manual, all 23 steps and both reference images. Inspect shipping condition, cool the exhaust, use eye and hand protection and support vehicle at its specified jack-stand positions. Support the original exhaust separately. Professional installation is recommended; leave new joints loose until fully aligned.
2. DISCONNECT NEGATIVE BATTERY. Mark the original exhaust 2 inches behind the tangent shown in reference image 1, toward the rear of the vehicle. Remove FOUR brace bolts and the brace, then THREE nuts joining the original exhaust to the front pipe. Remove rubber isolation mounts from chassis and remove the stock exhaust.
3. TRANSFER FOUR muffler-section rubber isolation mounts to the Takeda system. CUT the removed original exhaust at the marked location and DEBURR the cut edges. This installation requires an original-exhaust cut.
4. Attach Y-pipe 05-145863 to the retained cut original section with ONE supplied 2-inch band. Engage rubber mounts on chassis. Fit PASSENGER tailpipe 05-145865 with one 2.5-inch band, followed by DRIVER tailpipe 05-145864 with the second 2.5-inch band; engage hangers.
5. Position the PASSENGER tailpipe bracket IN FRONT OF the DRIVER bracket, as reference image 2 shows. Join with TWO supplied M8 screws, FOUR washers and TWO nuts, leaving loose. Install both selected clamp-on tips with their supplied band clamps.
6. RESTORE brace with FOUR original bolts. Check clearance to wiring, hoses, brake lines, body and tires. Tighten evenly from FRONT to REAR. The manual specifies 40-45 ft-lb for BAND CLAMPS; it supplies no separate numeric bracket, brace or front-flange torque.
7. RECONNECT BATTERY, start engine and check for leaks; repair any leak before use. Lower vehicle safely. Re-tighten ALL CLAMPS AND HARDWARE after 50-100 miles. No sensor or valve transfer or coding procedure is printed.

The exact manufacturer-authored manual is supplied through a public document mirror and explicitly lists both selected finishes. A current exact manufacturer product page and actual dyno or bench-flow chart were not located; no numeric gain, sound level or drone guarantee is certified. Current exact emissions classification remains unconfirmed; the manual does not provide an EO determination. Existing broader positive application records require vehicle-specific confirmation against its Sport hatchback 1.5T scope. Tip dimensions and tubing alloy are not independently specified in this manual and are not inferred from service-number suffixes.
