aFe Accord V6 Coupe 2013-2017 Takeda Cat-Back

Accord V6 Takeda exhaust details

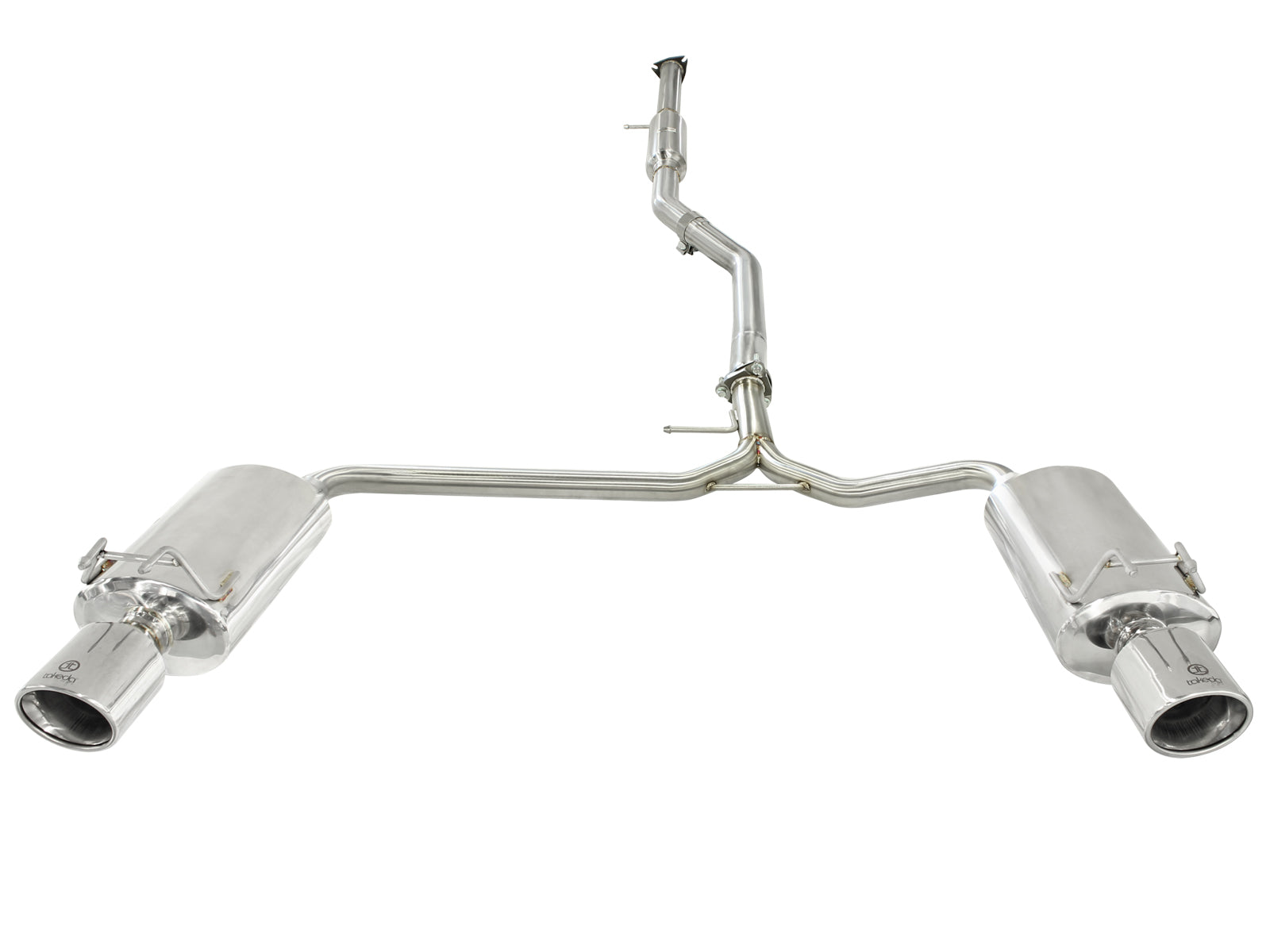

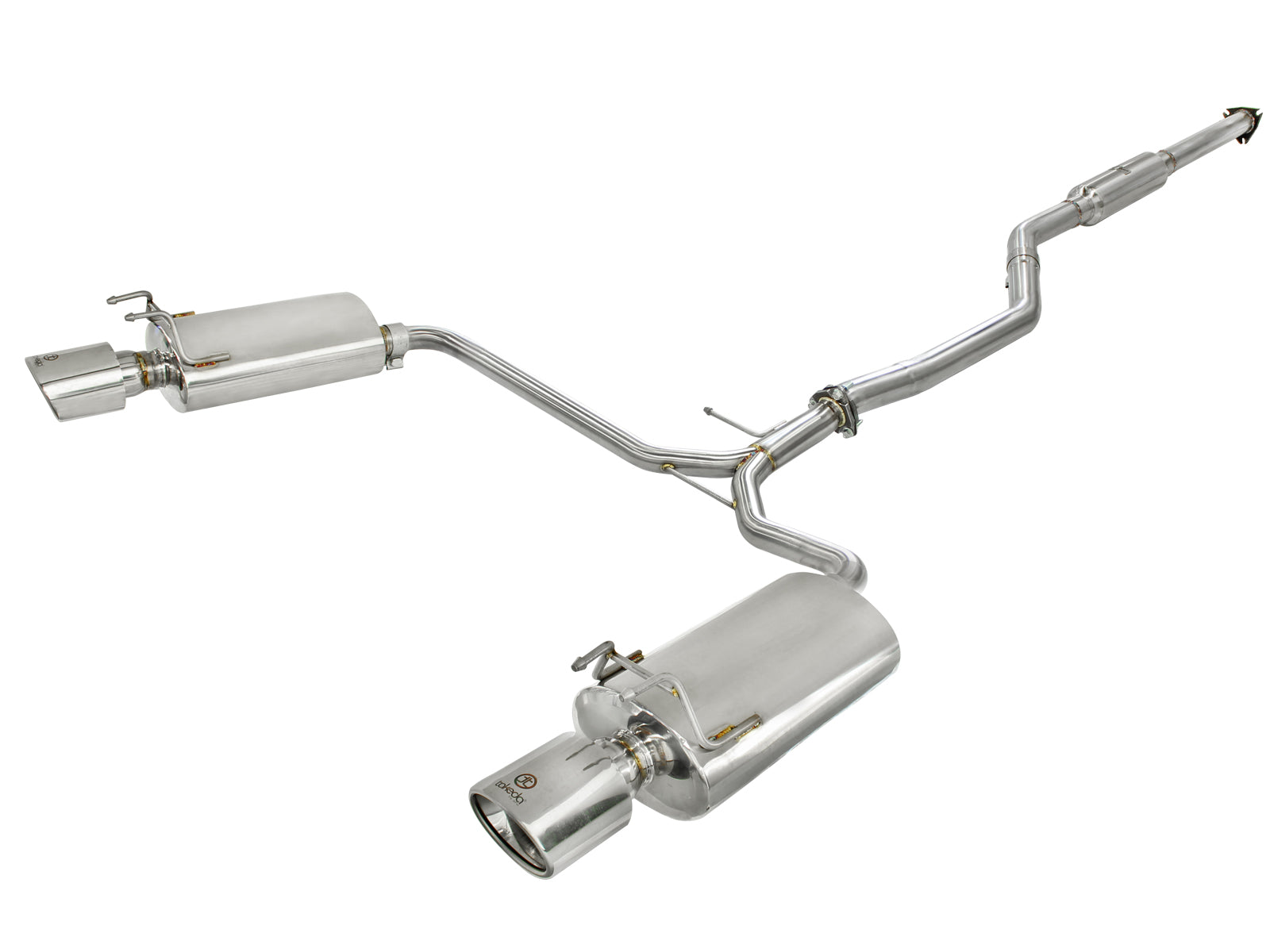

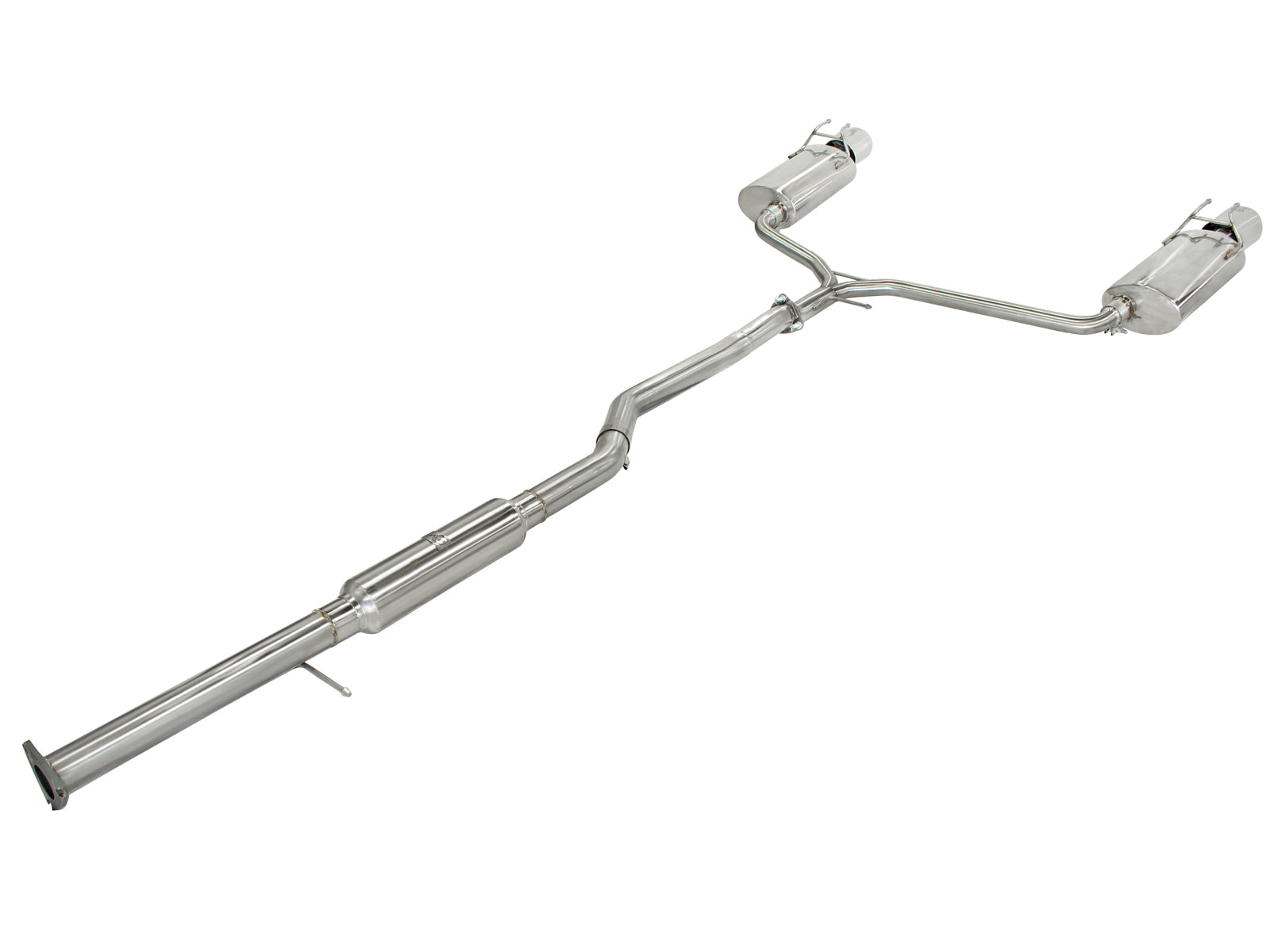

aFe 49-36609 Takeda replaces the V6 coupe exhaust with 2.5-inch into dual 1.75-inch brushed mandrel-bent 304 stainless tubing, a resonated front section and two polished stainless mufflers. Dual double-wall angle-cut polished tips and TIG-welded construction complete the full system.

Key Features

• 2.5-inch into dual 1.75-inch mandrel-bent brushed 304 stainless.

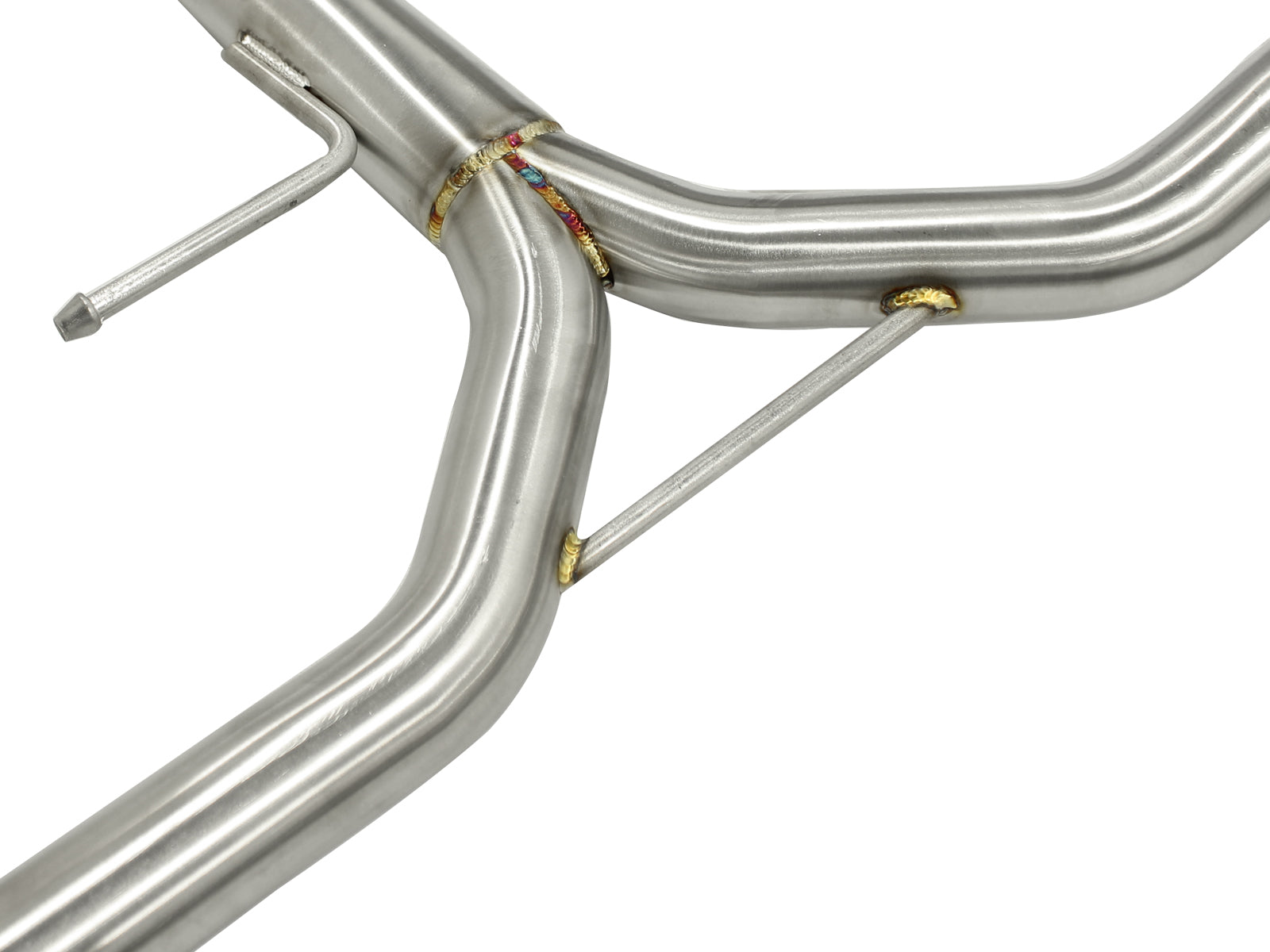

• 100% TIG-welded construction.
• FIVE sections, including resonator and two polished mufflers.

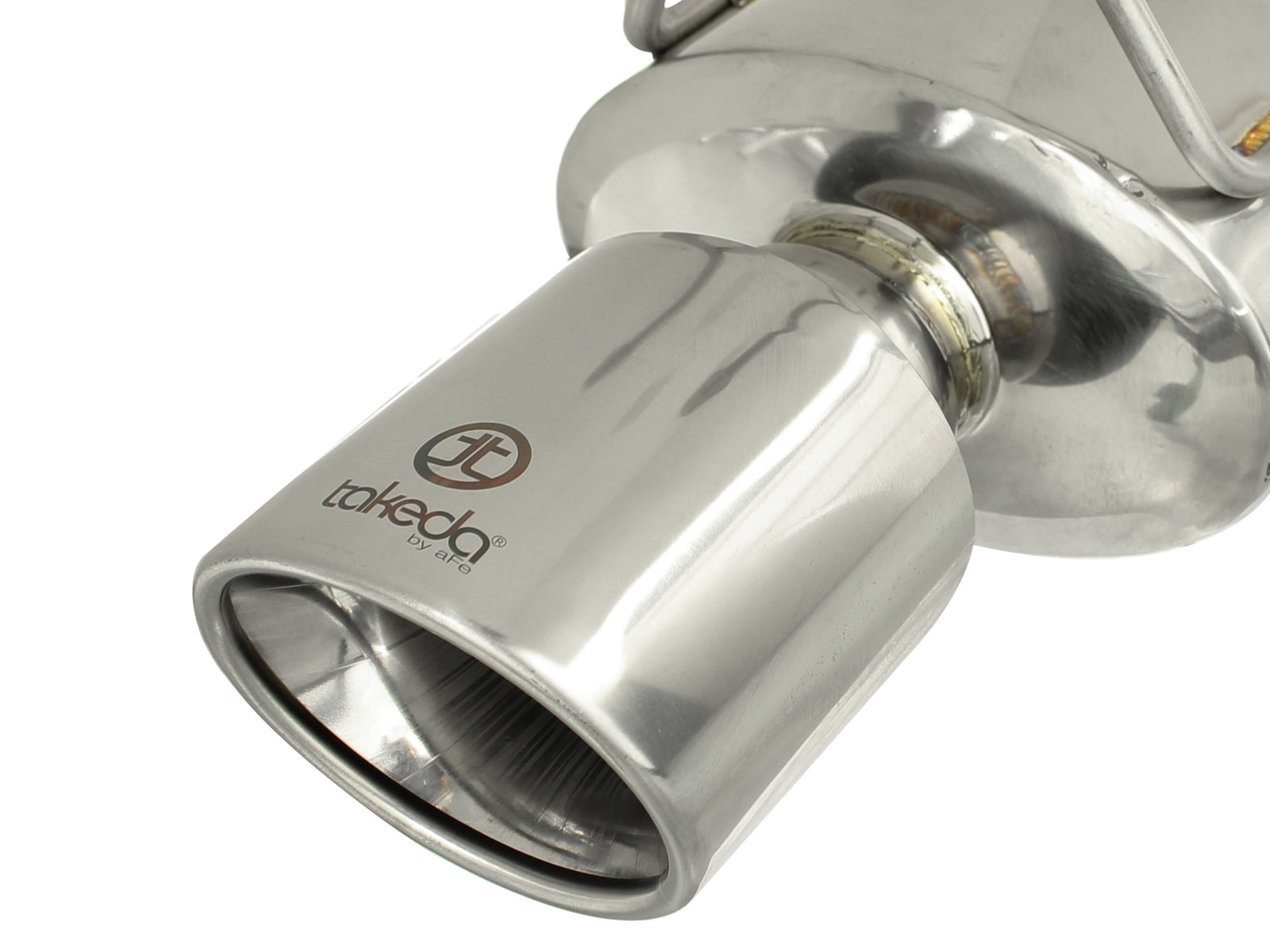

• Dual polished double-wall angle-cut stainless tips; exact outlet dimensions unprinted.
• ONE 2.5-inch and TWO 2-inch supplied band clamps.
• Original O-ring crush gasket and mounts transferred.
• Restore both floor braces using eight original bolts.

Fitment

Honda Accord COUPE with 3.5L V6: EX-L 2013-2017 and Touring 2016-2017 in exact named tables. Current manufacturer includes 2013-2017; own April 2016 manual ends at 2016, so the 2017 endpoint is qualified by current primary and exact retailer table. Confirm V6 COUPE, original flanges, mount positions and rear-system interface; model/grade alone does not establish 2.4L, hybrid or sedan routing. Original year bounds and native vehicle memberships are retained.

Verify 49-36609 against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-45819: Resonator pipe.
• 1 x 05-45821: Mid-pipe.
• 1 x 05-45591: Split tailpipe.
• 1 x 05-45822: LEFT muffler.
• 1 x 05-45823: RIGHT muffler.
• 1 x 05-41061: 2.5-inch band clamp.
• 2 x 05-41235: 2-inch band clamp.
• 3 x 03-50400: 10 mm nut; thread pitch unprinted.
• 3 x 03-50401: 10 mm bolt; thread/length unprinted.

FIVE assemblies: resonator pipe 05-45819, mid-pipe 05-45821, split tailpipe 05-45591, LEFT muffler 05-45822 and RIGHT muffler 05-45823. ONE 2.5-inch band clamp 05-41061, TWO 2-inch band clamps 05-41235, THREE 10 mm nuts 03-50400 and THREE 10 mm bolts 03-50401; hardware thread pitch/bolt length are unprinted. Transfer original O-RING CRUSH GASKET from old muffler section to new tail-back section, replacing if necessary; no new gasket is itemized. Reuse THREE original converter-flange nuts, all original rubber mounts and EIGHT original front/rear floor-brace bolts. No converter, sensor wiring, valve controller or intake filter/coupler is supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-36609
• Exact illustrated installation manual
• Shop the complete aFe Power collection

FAQ

FIVE assemblies: resonator pipe 05-45819, mid-pipe 05-45821, split tailpipe 05-45591, LEFT muffler 05-45822 and RIGHT muffler 05-45823. ONE 2.5-inch band clamp 05-41061, TWO 2-inch band clamps 05-41235, THREE 10 mm nuts 03-50400 and THREE 10 mm bolts 03-50401; hardware thread pitch/bolt length are unprinted. Transfer original O-RING CRUSH GASKET from old muffler section to new tail-back section, replacing if necessary; no new gasket is itemized. Reuse THREE original converter-flange nuts, all original rubber mounts and EIGHT original front/rear floor-brace bolts. No converter, sensor wiring, valve controller or intake filter/coupler is supplied.

Honda Accord COUPE with 3.5L V6: EX-L 2013-2017 and Touring 2016-2017 in exact named tables. Current manufacturer includes 2013-2017; own April 2016 manual ends at 2016, so the 2017 endpoint is qualified by current primary and exact retailer table. Confirm V6 COUPE, original flanges, mount positions and rear-system interface; model/grade alone does not establish 2.4L, hybrid or sedan routing. Original year bounds and native vehicle memberships are retained.

Transfer original O-ring crush gasket from old muffler section to new tail-back section, replacing if necessary. No new gasket is itemized. Supplied three nut/bolt pairs secure tailpipe flange.

Transfer original rubber hanger mounts. Remove and RESTORE BOTH front and rear floor braces using all EIGHT original bolts. Retain original converter-flange nuts for front connection.

ONE 2.5-inch band clamp and TWO 2-inch band clamps, THREE 10 mm nuts and THREE 10 mm bolts. Hardware pitch and bolt length are not printed; do not borrow dimensions from another kit.

No numeric torque or mileage re-tighten interval is supplied. Align, tighten connections, restore both braces and recheck work before lowering. Do not borrow a band torque or mileage interval from another exhaust manual.

Current full-system primary expressly says no cutting/drilling. Own manual supplies no battery, sensor-wiring, valve-transfer, coding or welding installation step. No replacement converter is itemized.

Manufacturer advertises +10 hp/+21 lb-ft for the full cat-back, but no actual dyno or airflow chart is linked. Test vehicle, run MAX values, point RPM, dates, correction factors, weather, fuel, intake, load and other exhaust equipment are unprinted. No guaranteed gain or measured cabin-drone result is established.

Installation Instructions

Verify aFe 49-36609.

1. Read own April 2016 one-page manual and all 19 steps/diagram. Confirm V6 coupe and current 2017 qualification. Cool exhaust, wear eye/hand protection and support vehicle/exhaust independently at approved stand locations.
2. Remove EIGHT bolts securing FRONT AND REAR FLOOR BRACES, retaining braces/hardware. Remove THREE nuts joining stock mufflers to mid-pipe, disengage muffler mounts and remove old muffler section.
3. Transfer original O-RING CRUSH GASKET from OE muffler section to new tail-back section; replace if necessary. Transfer original muffler rubber mounts to new mufflers. No new gasket is itemized.
4. Remove THREE original nuts at converter-to-mid-pipe flange, disengage its hanger and remove old mid-pipe. Transfer original mid-pipe rubber hanger mount. Install new resonator pipe at converter with THREE original nuts and tighten.
5. Join mid-pipe to resonator pipe using ONE supplied 2.5-inch band clamp, leaving it loose. Join new tailpipe using THREE supplied 10 mm nuts and THREE supplied 10 mm bolts, engage rubber hanger and tighten flange. Thread pitch/bolt length are not printed.
6. Fit LEFT muffler with first supplied 2-inch band and original rubber mount, then RIGHT muffler with second 2-inch band and original mount. Align both outlets and tighten all bands.
7. RESTORE BOTH FRONT AND REAR FLOOR BRACES using all EIGHT original bolts. Recheck complete installation and lower vehicle. No numeric torque or mileage re-tighten interval is printed.
8. Current primary specifies no cutting/drilling. Own manual supplies no cutting, drilling, battery-disconnection, sensor-wiring, valve-transfer, coding or installation welding step. Brief initial manufacturing-grease smoke is noted.

Manufacturer advertises +10 hp/+21 lb-ft for the full cat-back, but no actual dyno or airflow chart is linked. Test vehicle, run MAX values, point RPM, dates, correction factors, weather, fuel, intake, load and other exhaust equipment are unprinted. No guaranteed gain or measured cabin-drone result is established. Current 2017 endpoint is later than the April 2016 manual endpoint; exact named retailer coupe rows support retention. No sedan/hybrid or related-engine fitment is inferred. No new crush gasket or tip outlet dimension is invented.
