aFe Accord V6 Coupe 2013-2017 Takeda Resonated Mid-Pipe

Accord V6 Takeda exhaust details

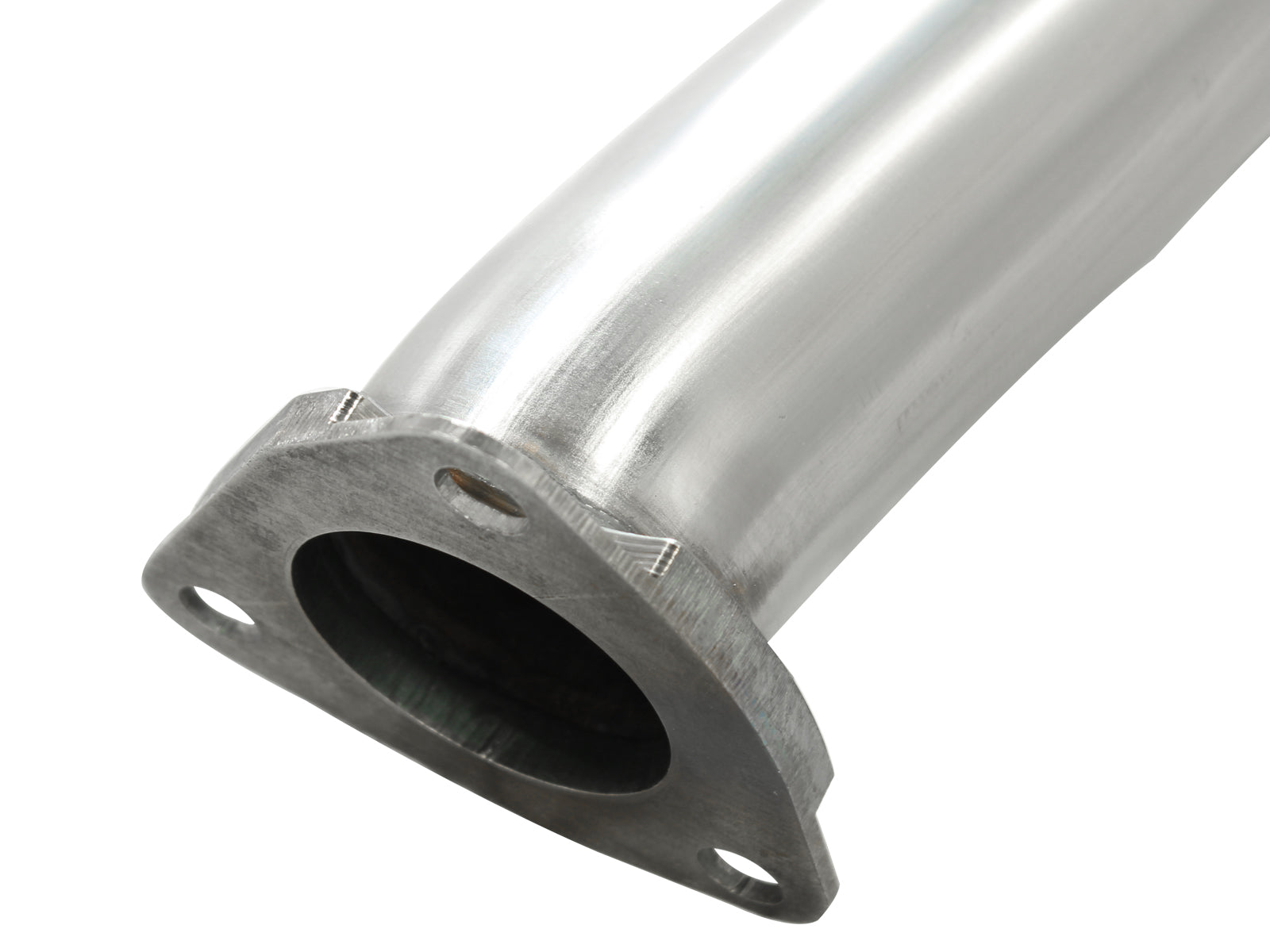

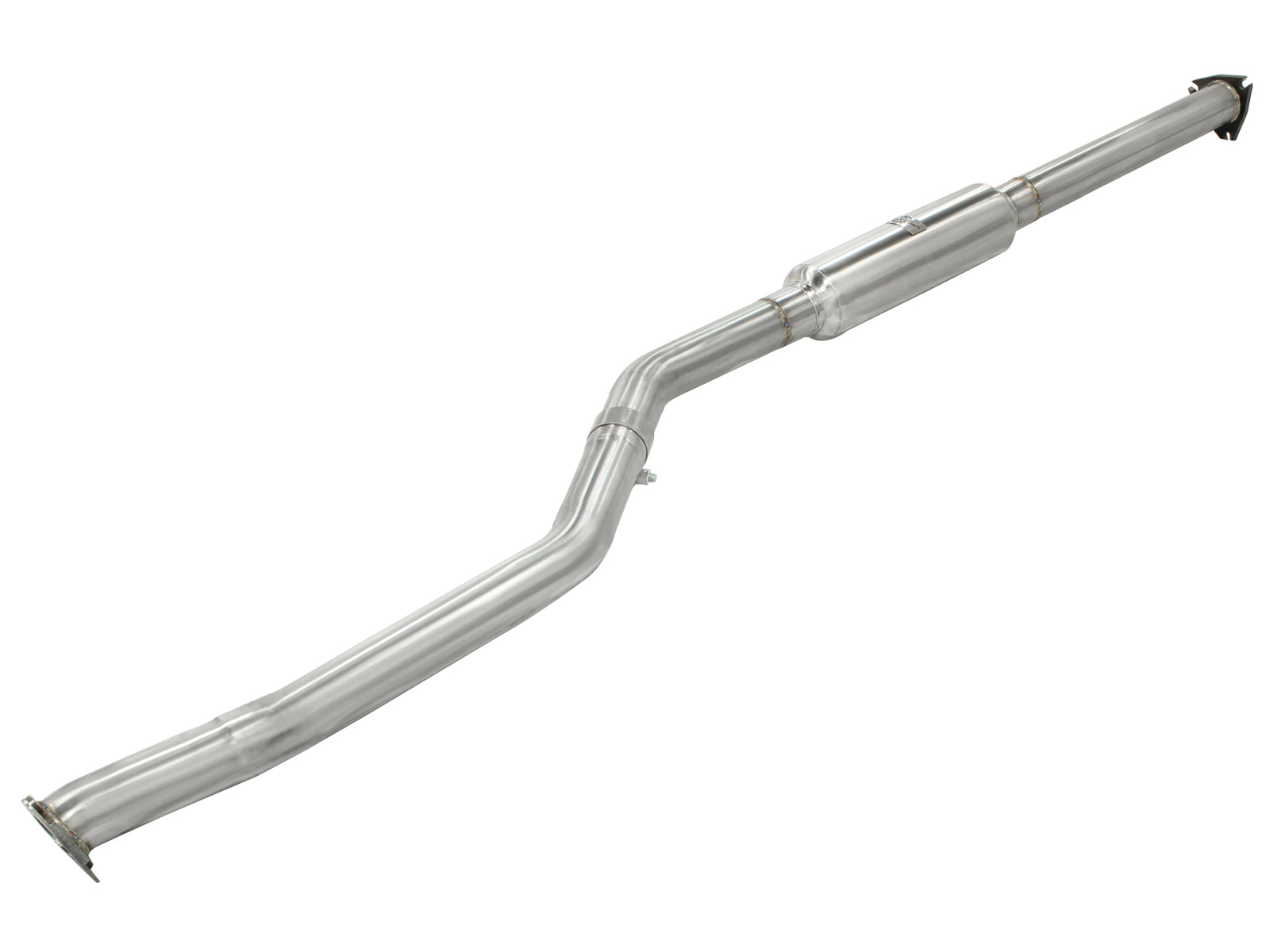

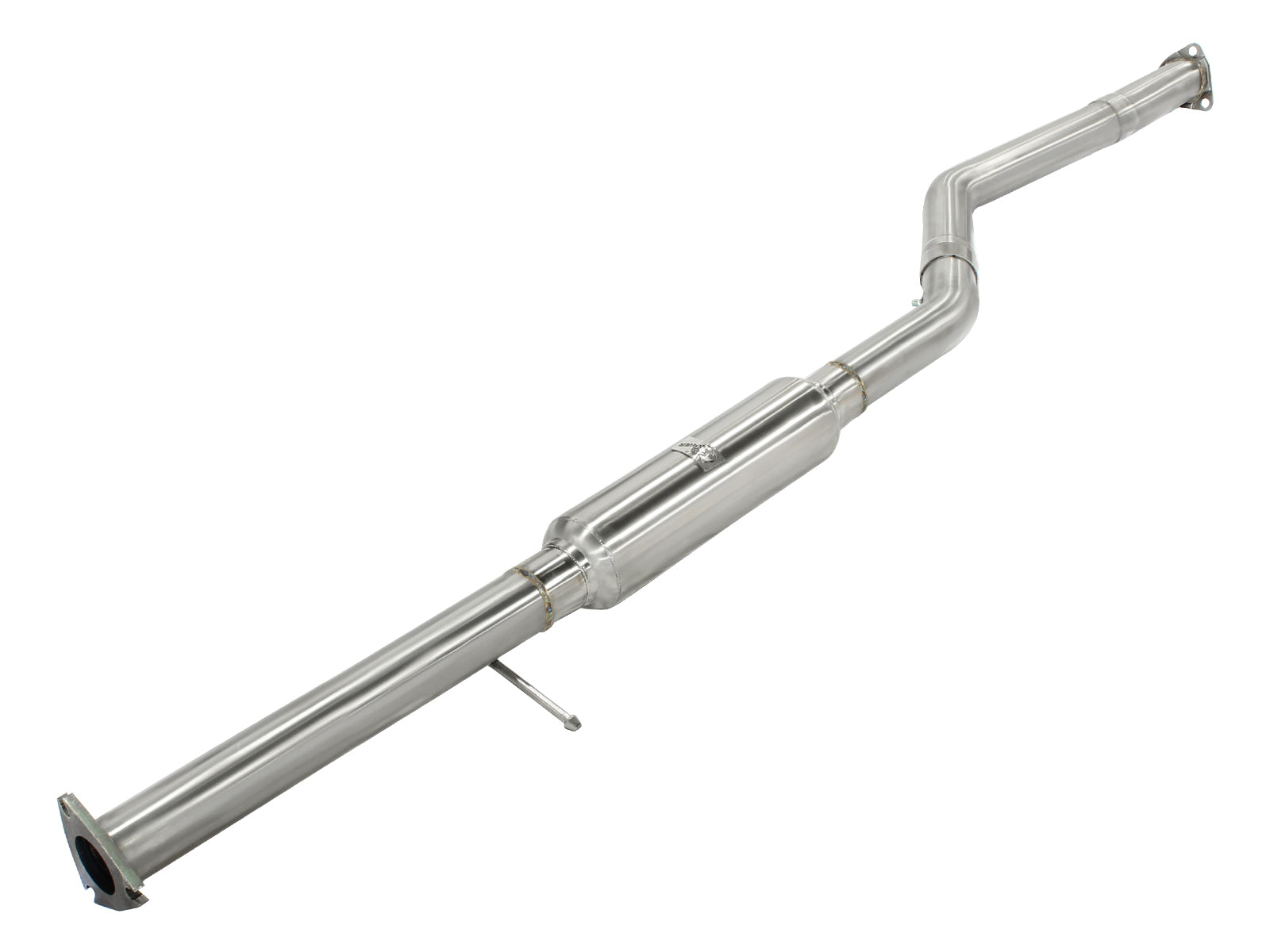

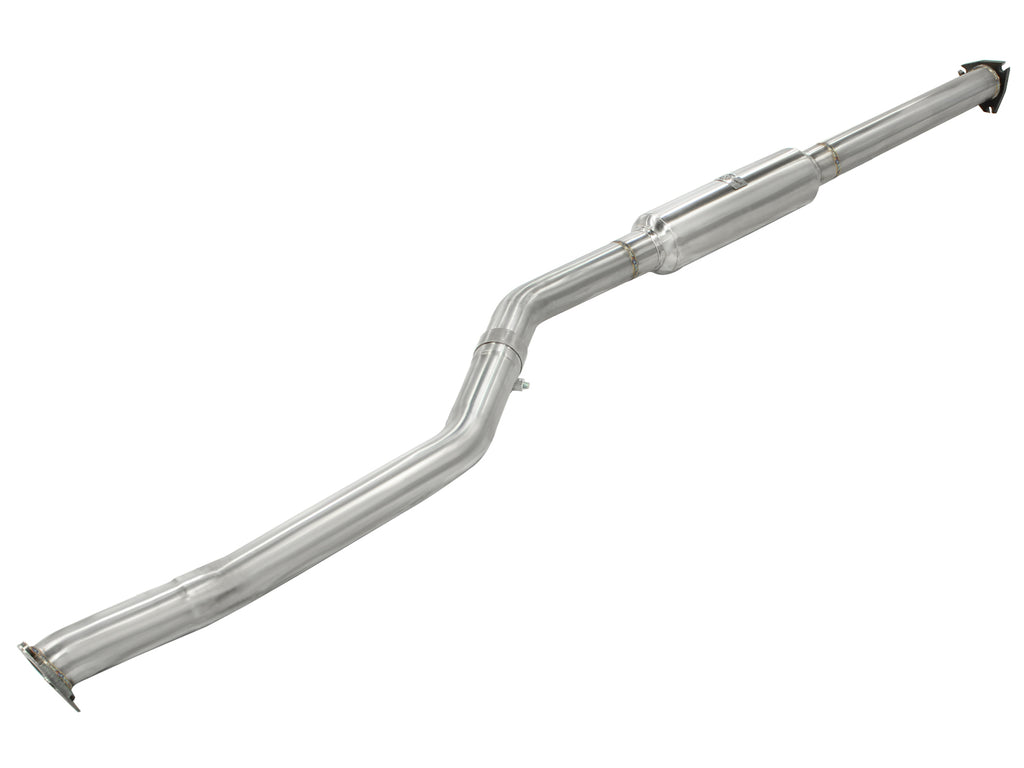

aFe 49-36608 Takeda uses 2.5-inch brushed mandrel-bent 304 stainless tubing and a 4-inch-diameter 304 stainless resonator. TIG-welded construction and OE-style flanges form a two-section mid-pipe that joins the retained converter to the specified Takeda rear system.

Key Features

• 2.5-inch mandrel-bent brushed 304 stainless tubing.
• TIG-welded construction.

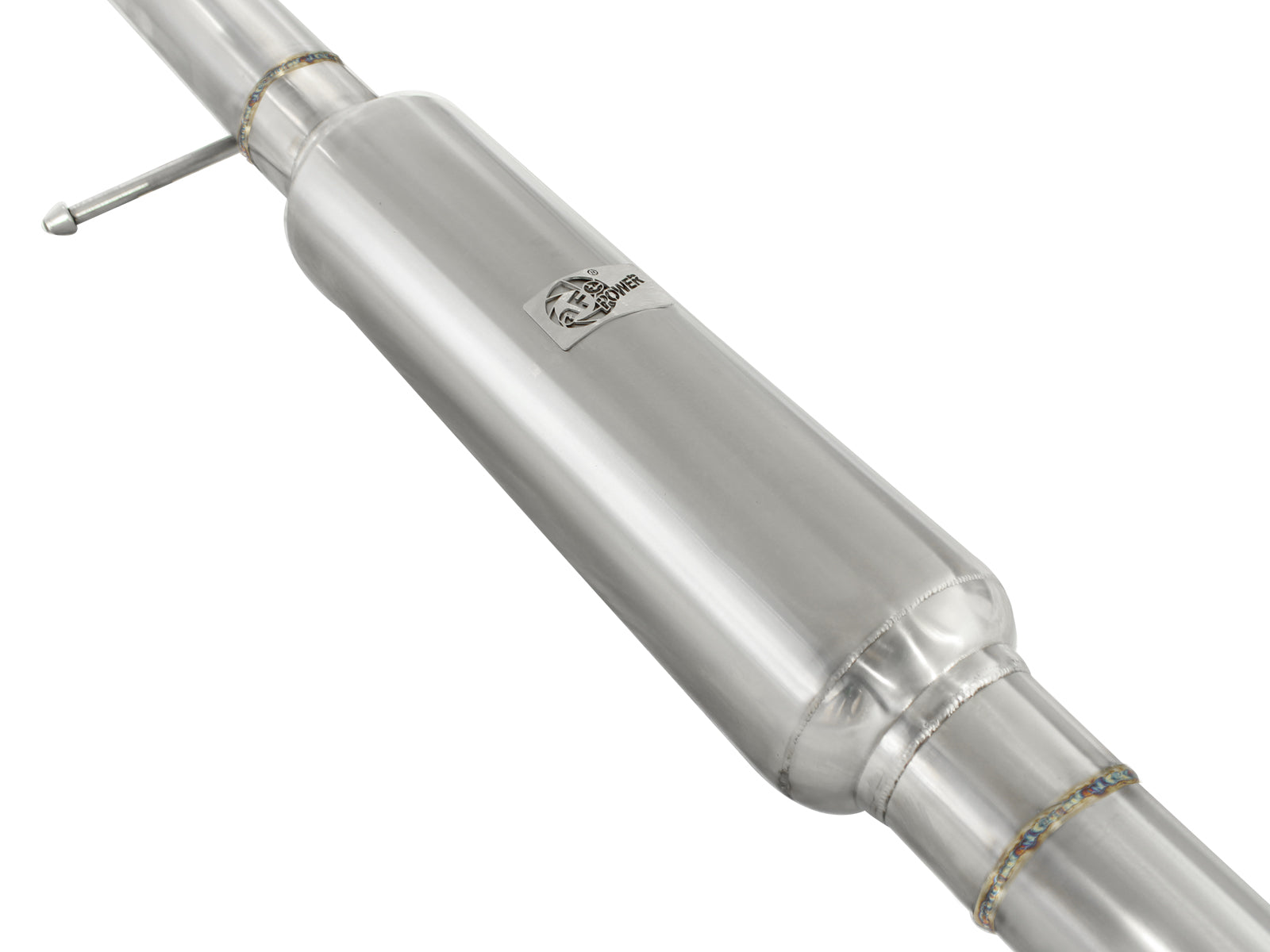

• 4-inch-diameter 304 stainless resonator retained in new design.
• TWO sections and ONE supplied 2.5-inch band.
• THREE supplied 10 mm nuts and THREE 10 mm bolts.
• Rear connection explicitly specified to Takeda axle-back.
• Restore both floor braces; no numeric torque or mileage interval.

Fitment

Honda Accord COUPE with 3.5L V6: EX-L 2013-2017 and Touring 2016-2017 in exact named tables. Current manufacturer includes 2013-2017; own April 2016 manual ends at 2016, so the 2017 endpoint is qualified by current primary and exact retailer table. Confirm V6 COUPE, original flanges, mount positions and rear-system interface; model/grade alone does not establish 2.4L, hybrid or sedan routing. Original year bounds and native vehicle memberships are retained.

Verify 49-36608 against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-45819: Resonator pipe.
• 1 x 05-45821: Mid-pipe.
• 1 x 05-41061: 2.5-inch band clamp.
• 3 x 03-50400: 10 mm nut; thread pitch unprinted.
• 3 x 03-50401: 10 mm bolt; thread/length unprinted.

TWO assemblies: resonator pipe 05-45819 and mid-pipe 05-45821. ONE 2.5-inch band clamp 05-41061, THREE 10 mm nuts 03-50400 and THREE 10 mm bolts 03-50401; thread pitch/bolt length are unprinted. Reuse original converter-flange nuts, mid-pipe rubber mount and EIGHT original front/rear floor-brace bolts. This is a resonated MID-PIPE, not an X-pipe or complete cat-back. No rear mufflers, tailpipe/tips, new gasket, converter, intake filter/coupler or wiring kit is itemized. Own rear connection procedure explicitly uses separately sold Takeda axle-back 49-36607; universal compatibility with every original or aftermarket rear system is not established.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-36608
• Exact illustrated installation manual
• Shop the complete aFe Power collection

FAQ

TWO assemblies: resonator pipe 05-45819 and mid-pipe 05-45821. ONE 2.5-inch band clamp 05-41061, THREE 10 mm nuts 03-50400 and THREE 10 mm bolts 03-50401; thread pitch/bolt length are unprinted. Reuse original converter-flange nuts, mid-pipe rubber mount and EIGHT original front/rear floor-brace bolts. This is a resonated MID-PIPE, not an X-pipe or complete cat-back. No rear mufflers, tailpipe/tips, new gasket, converter, intake filter/coupler or wiring kit is itemized. Own rear connection procedure explicitly uses separately sold Takeda axle-back 49-36607; universal compatibility with every original or aftermarket rear system is not established.

Honda Accord COUPE with 3.5L V6: EX-L 2013-2017 and Touring 2016-2017 in exact named tables. Current manufacturer includes 2013-2017; own April 2016 manual ends at 2016, so the 2017 endpoint is qualified by current primary and exact retailer table. Confirm V6 COUPE, original flanges, mount positions and rear-system interface; model/grade alone does not establish 2.4L, hybrid or sedan routing. Original year bounds and native vehicle memberships are retained.

Own step 9 connects mid-pipe to TAKEDA AXLE-BACK with three supplied nut/bolt pairs. Separate 49-36607 is not included. A universal fit to every original or aftermarket rear exhaust is not established.

Transfer original rubber hanger mounts. Remove and RESTORE BOTH front and rear floor braces using all EIGHT original bolts. Retain original converter-flange nuts for front connection.

ONE 2.5-inch band clamp, THREE 10 mm nuts and THREE 10 mm bolts. Hardware pitch and bolt length are not printed; do not borrow dimensions from another kit.

No numeric torque or mileage re-tighten interval is supplied. Align, tighten connections, restore both braces and recheck work before lowering. Do not borrow a band torque or mileage interval from another exhaust manual.

Current mid-pipe primary says no modifications necessary. Own manual supplies no battery, sensor-wiring, valve-transfer, coding or welding installation step. No replacement converter is itemized.

Manufacturer advertises an ADDITIONAL +2 hp/+3 lb-ft WHEN ADDED TO Takeda axle-back 49-36607. This is not a standalone mid-pipe-only result. No actual dyno or airflow sheet is linked, so test vehicle, run MAX values, point RPM, dates, correction factors, fuel, intake, weather and load are unavailable. No guaranteed gain or measured cabin-drone result is established.

Installation Instructions

Verify aFe 49-36608.

1. Read own April 2016 one-page manual and all 13 steps/diagram. Confirm V6 coupe and actual Takeda axle-back rear interface. Cool exhaust, wear eye/hand protection and support vehicle/exhaust independently at approved points.
2. Remove EIGHT original bolts securing FRONT AND REAR FLOOR BRACES; retain braces/bolts. Remove SIX original nuts at converter and muffler-pipe connections. Disengage original mid-pipe rubber hanger, remove old mid-pipe and transfer its rubber mount to new system.
3. Join new mid-pipe section to new resonator section with ONE supplied 2.5-inch band clamp; keep loose. Install new resonator/mid-pipe assembly at catalytic converter using original front-flange nuts and tighten.
4. At rear, use THREE supplied 10 mm nuts and THREE supplied 10 mm bolts to connect new mid-pipe to TAKEDA AXLE-BACK EXHAUST, explicitly named by own step 9. Separately sold 49-36607 is not included. No universal original-muffler interface or new gasket is established.
5. Tighten supplied 2.5-inch band. RESTORE BOTH FRONT AND REAR FLOOR BRACES with all EIGHT original bolts. Recheck work and lower vehicle. No numeric torque or mileage re-tighten interval is printed.
6. Current primary says no modifications necessary; own manual supplies no cutting, drilling, battery-disconnection, sensor-wiring, coding, valve-transfer or installation welding procedure. Brief initial manufacturing-grease smoke is noted.

Manufacturer advertises an ADDITIONAL +2 hp/+3 lb-ft WHEN ADDED TO Takeda axle-back 49-36607. This is not a standalone mid-pipe-only result. No actual dyno or airflow sheet is linked, so test vehicle, run MAX values, point RPM, dates, correction factors, fuel, intake, weather and load are unavailable. No guaranteed gain or measured cabin-drone result is established. Current 2017 endpoint is later than the April 2016 manual endpoint; exact named retailer coupe rows support retention. No sedan/hybrid or related-engine fitment is inferred. Compatibility statement is limited to the own Takeda axle-back procedure; no unrestricted original-muffler connection or blanket jurisdiction clearance is claimed.
