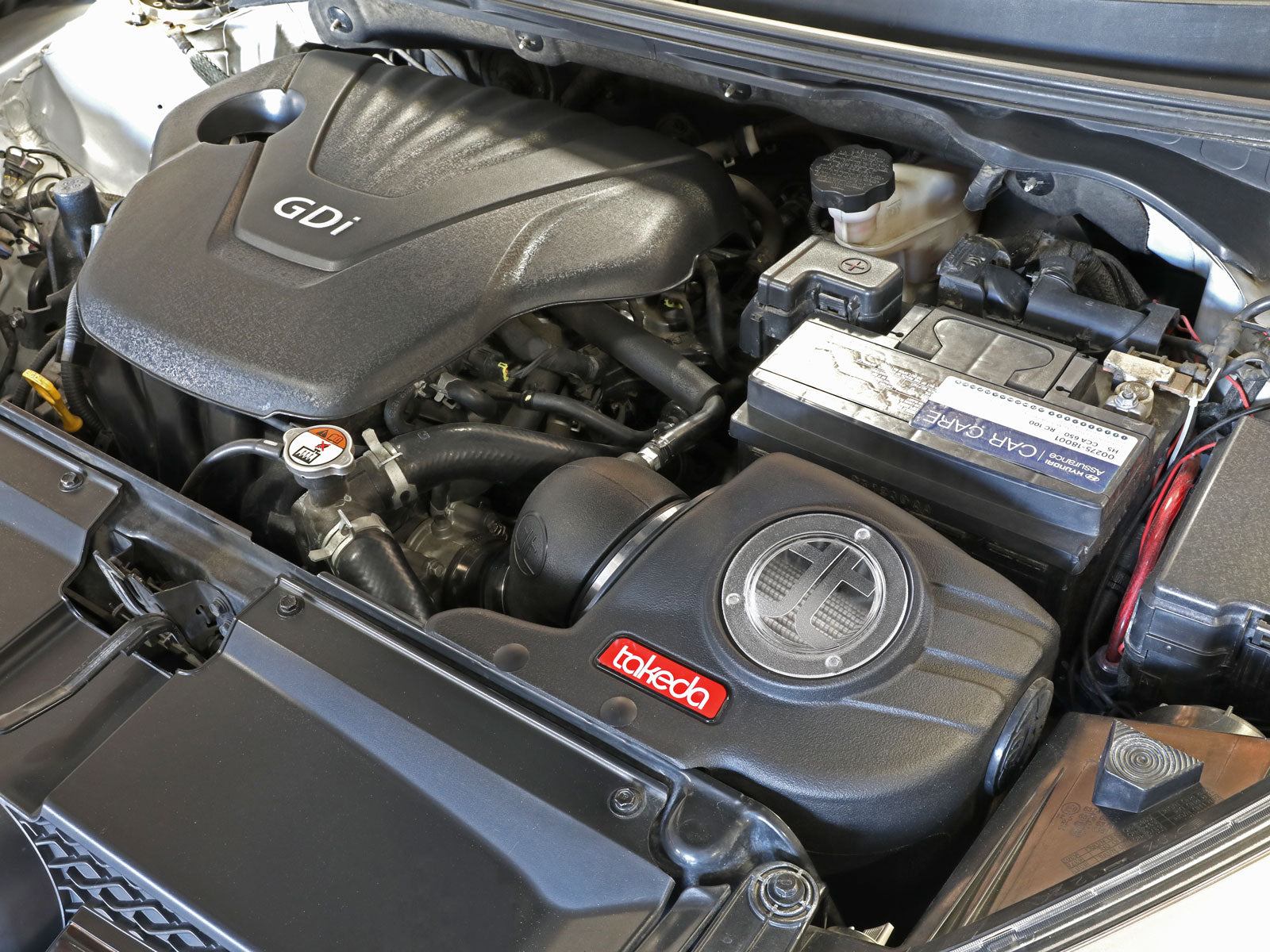

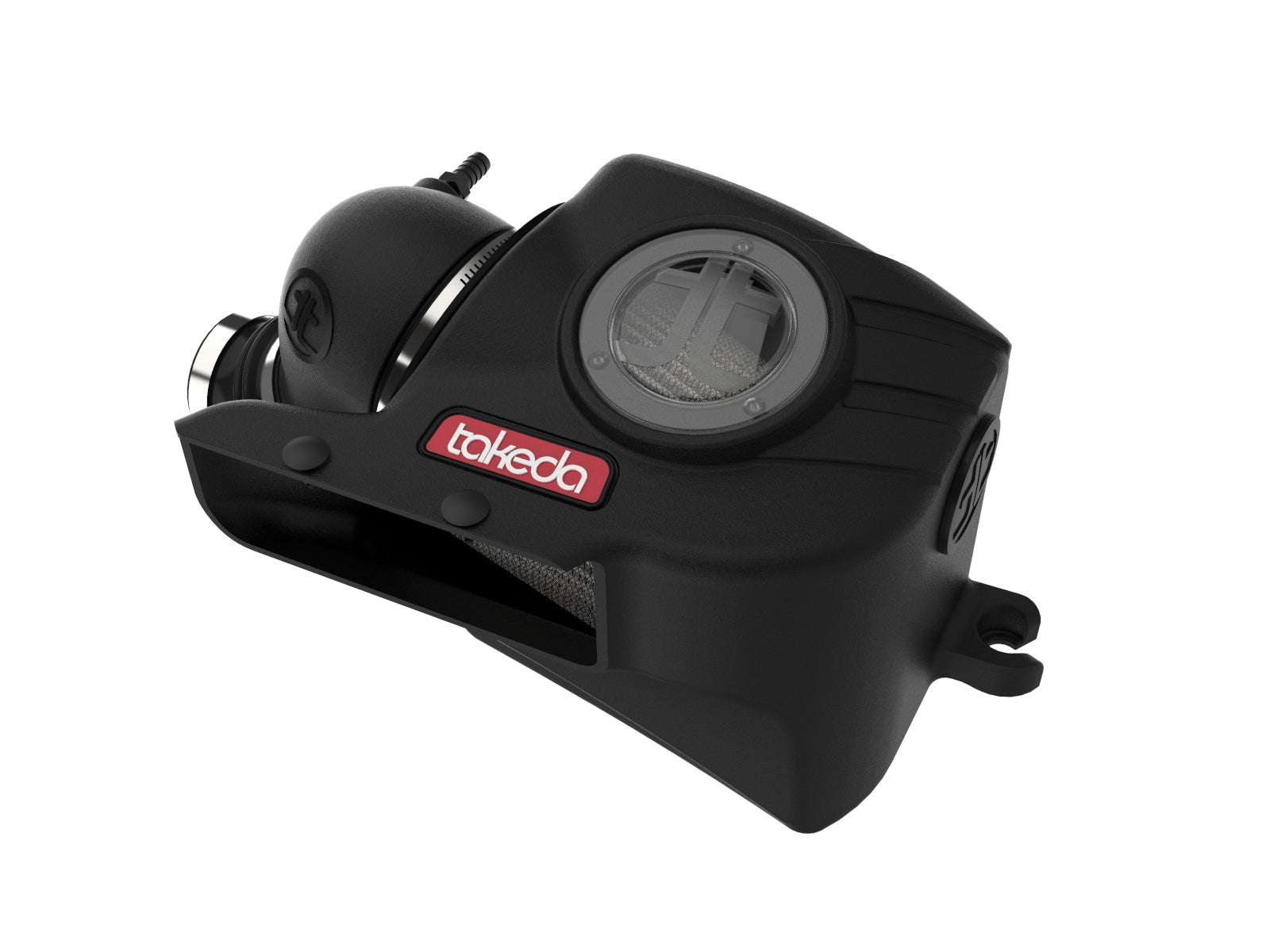

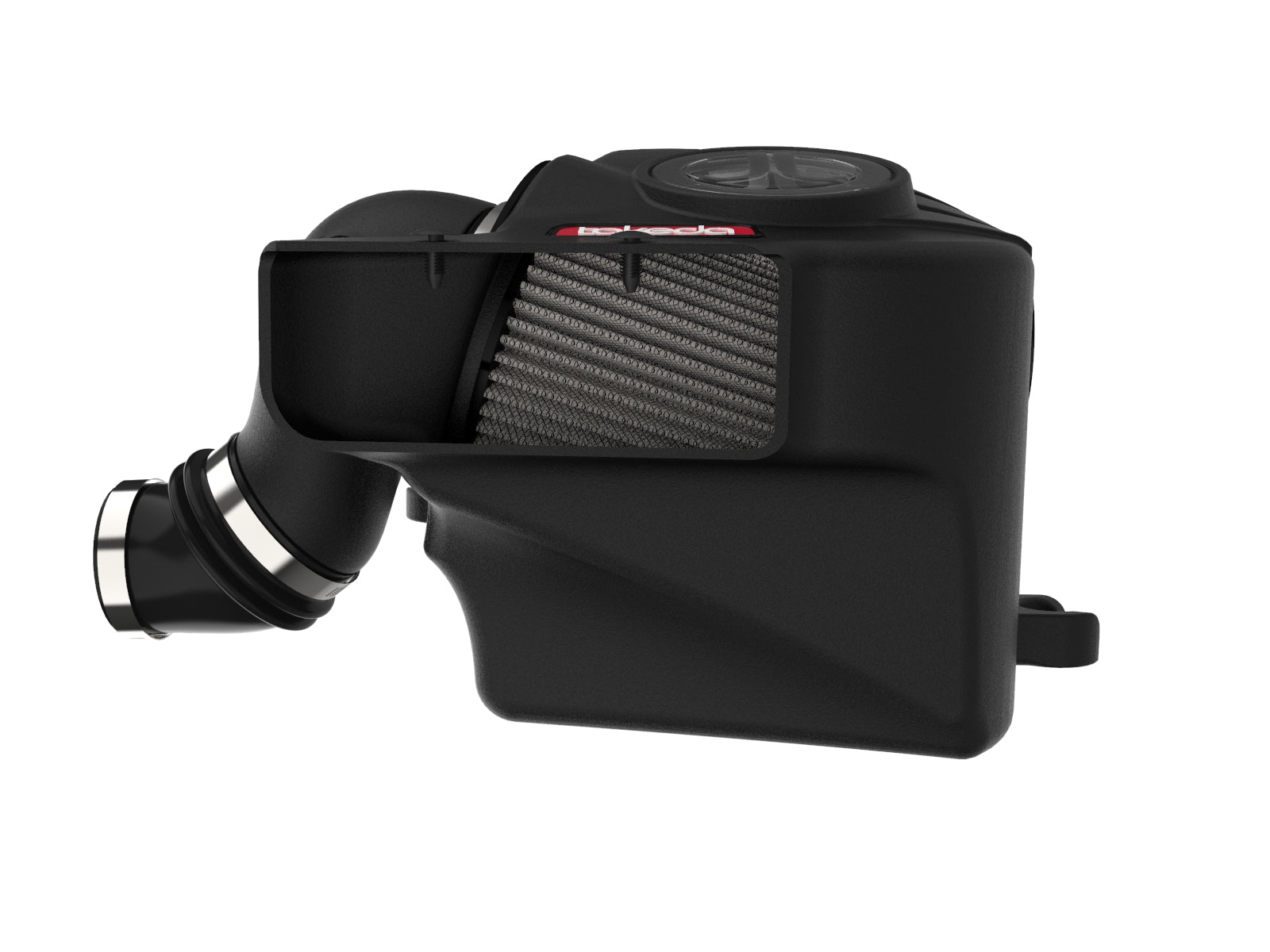

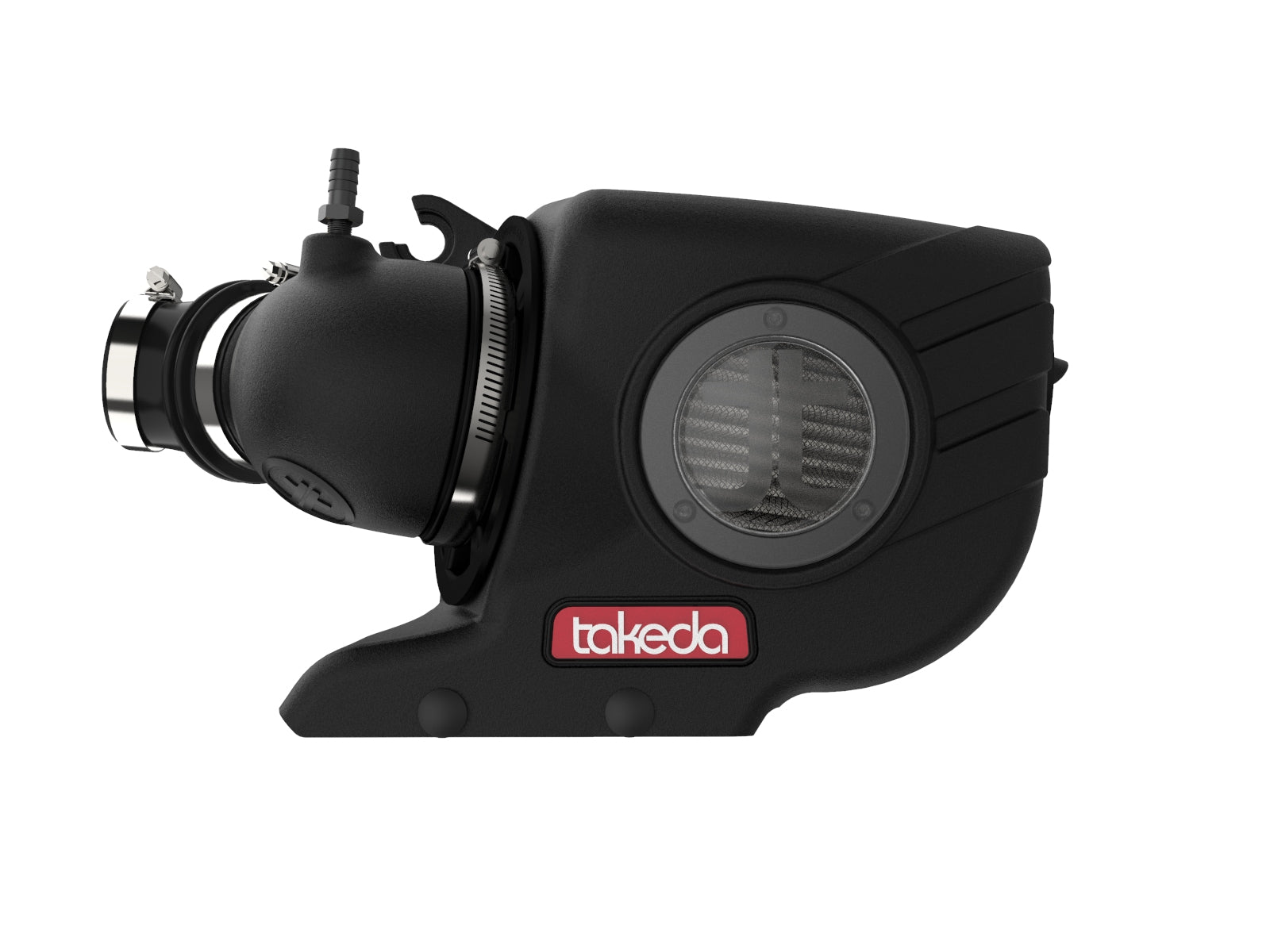

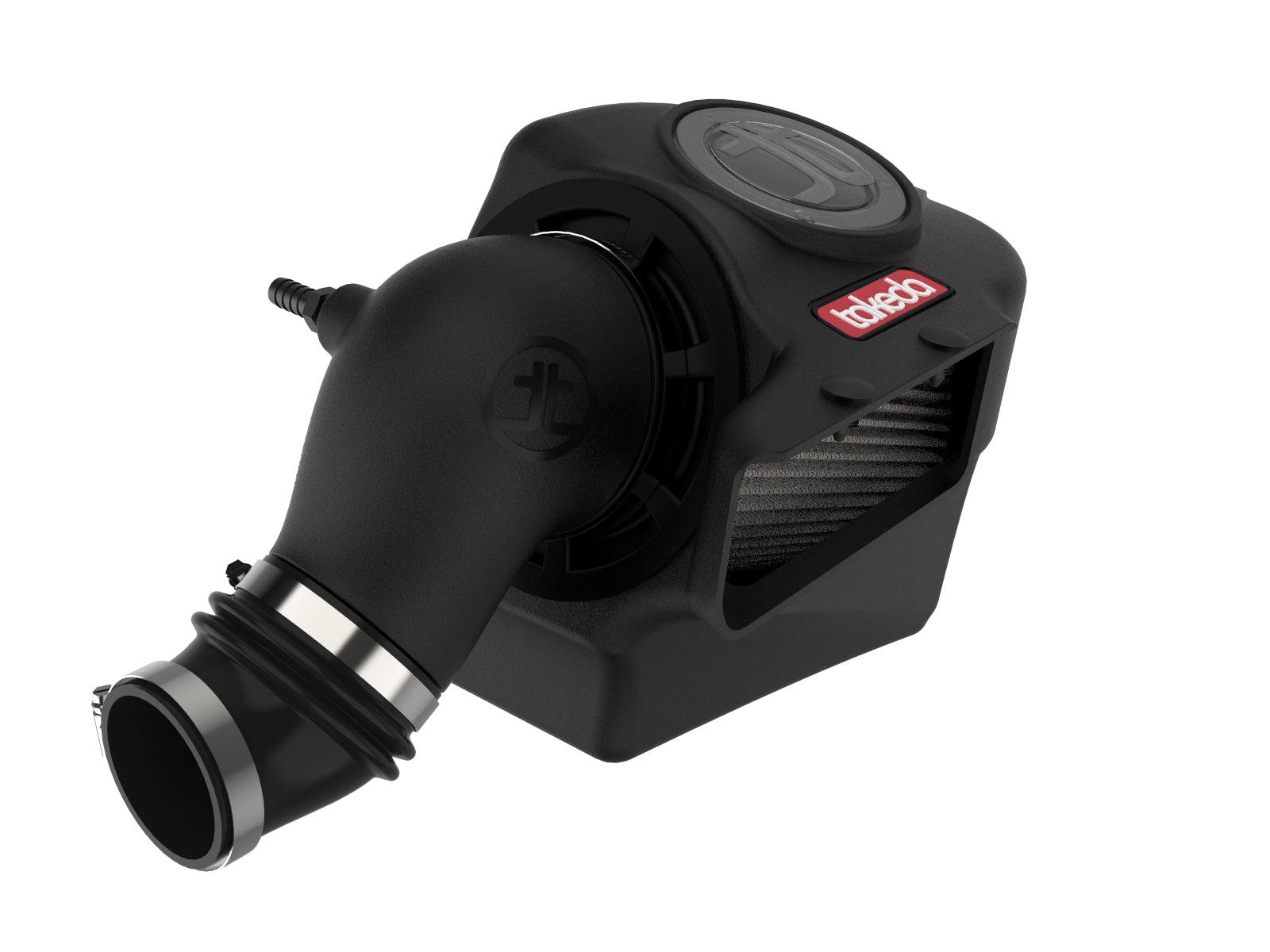

aFe 56-70029D is the Takeda Momentum intake for Hyundai Veloster 2012–2017 naturally aspirated 1.6L. One Pro DRY S filter locks into the enclosed XLPE housing with a clear inspection window. The current exact manufacturer page explicitly excludes Rally Edition, Turbo and Turbo R-Spec models.
The current exact manufacturer page and shared exact 20-page manual cover Veloster 2012–2017 1.6L naturally aspirated. Retained named applications are Base 2012–2017, RE:FLEX 2014–2015 and Value Edition 2017, subject to actual engine and original housing connections. Rally Edition, Turbo and Turbo R-Spec are explicitly excluded by the manufacturer; these turbocharged rows are removed from the application list. This does not authorize later 2.0L or Veloster N models.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2012-2017 | Hyundai | Veloster | Base |
| 2014-2015 | Hyundai | Veloster | RE:FLEX |
| 2017 | Hyundai | Veloster | Value Edition |
Verify 56-70029D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 56-70029D |
| Product type | Takeda Momentum enclosed cold air intake |
| Selected filter | One 21-91108, 4-inch flange x 6-inch base x 5.5-inch inverted top x 7.5-inch height |
| Media | Three-layer oil-free synthetic; washable/reusable |
| Tube / housing | XLPE 05-5670029B1 / enclosed 05-5670028B2 with clear window |
| Coupling | 05-01421 silicone elbow reducer at throttle body |
| Coupling clamps | One #044 03-50019 and one #048 03-50007 |
| Breather connection | One 11mm aluminum NPT 03-50615 in tube; original clamp reused |
| Mounting | Transfer two of three original grommets/sleeves and reuse two of three original screws |
| Auxiliary inlet | Optional 05-01527 plug; open can admit warmer engine-compartment air |
| Recheck / torque | 100–200-mile connection recheck; no numeric torque supplied |

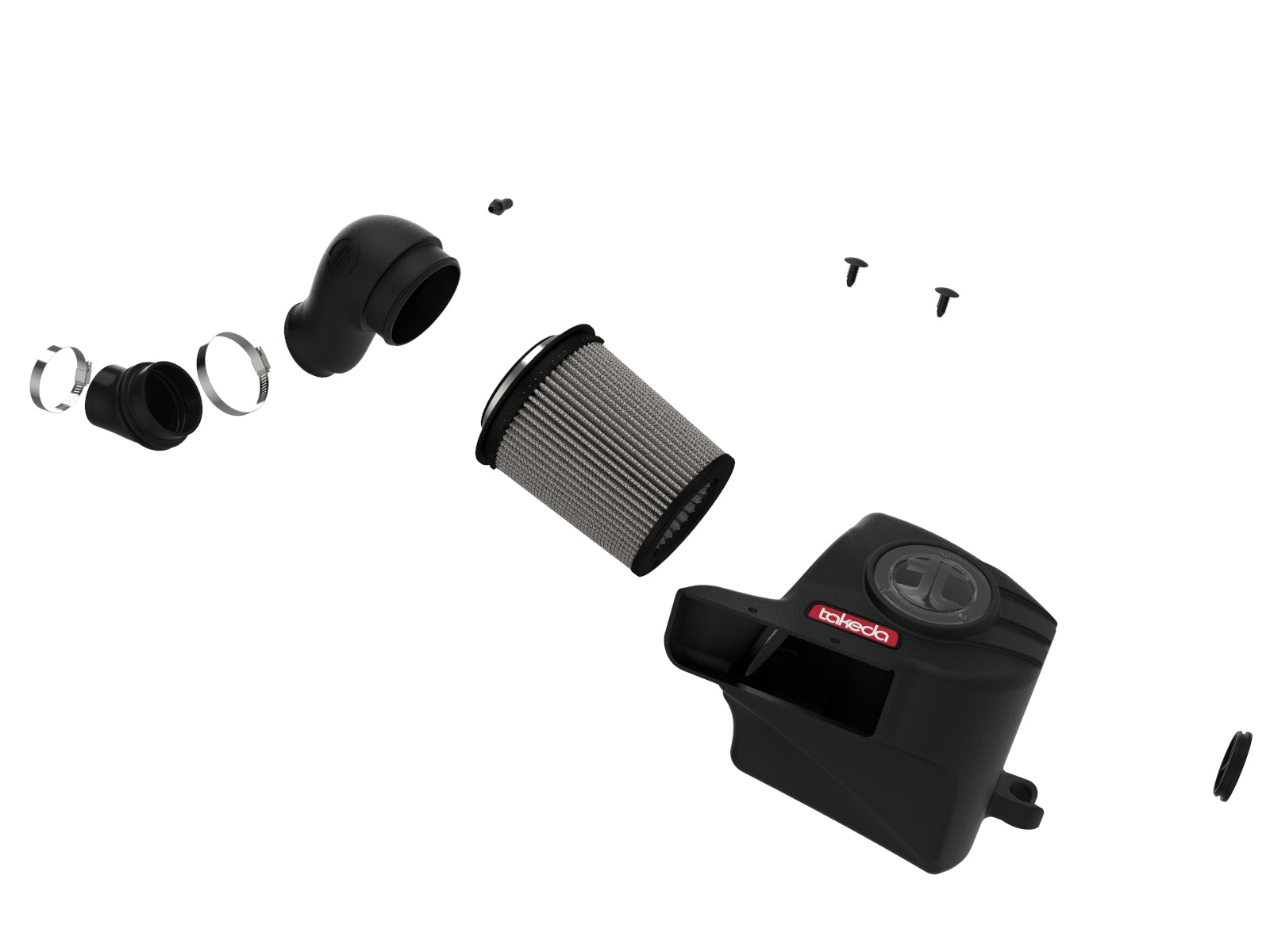

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 21-91108 | Selected filter; opposite-media row is an alternate |
| 1 | 05-5670029B1 | XLPE intake tube |
| 1 | 05-5670028B2 | Enclosed window housing |
| 1 | 05-01527 | Optional auxiliary-inlet plug |
| 1 | 05-01421 | Silicone elbow reducer |
| 1 | 03-50019, #044 | Throttle-body coupling clamp |
| 1 | 03-50007, #048 | Tube coupling clamp |
| 1 | 03-50615 | 11mm aluminum NPT fitting |
| 2 | 03-50616 | Replacement inlet clips |
The exact procedure transfers two of the three original grommets and sleeves and secures the replacement housing using two of the three original screws; do not borrow a three-mount procedure from another Kona or Elantra kit. The filter-flange clamp has no separate BOM service code/count. A small hex-to-tube gap is normal at the aluminum NPT fitting. Retain the original breather clamp. The optional plug closes the auxiliary inlet for front-fed air and reduced intake sound; leaving it open can admit warmer engine-compartment air. Service supplies are separate.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 21-91108 Pro DRY S filter. The alternate-media row is not a second filter.
Does the selected filter need oil?No. Three-layer synthetic Pro DRY S is washable/reusable without filter oil.
Will this fit a Turbo or Rally Edition?No. The current exact manufacturer page explicitly excludes Rally Edition, Turbo and Turbo R-Spec models.
How many original mounting points transfer?Two original grommets/sleeves and two original screws, from the three originally used.
Where does the breather hose connect?To the aluminum 11mm NPT fitting in the tube, secured with the retained original clamp.
What does the optional plug do?It closes the side auxiliary inlet for front-fed air and reduced sound; opening it can draw warmer engine-compartment air.
Was the dyno baseline completely stock?No. It used the original intake but aftermarket exhaust and wheels; the selected intake run also notes aftermarket exhaust.
What torque and recheck interval apply?The exact manual gives no numeric torque. Recheck screws, clamps and connectors after 100–200 miles.
Verify aFe 56-70029D. Work on a cool engine. Release the breather clamp, retain it and disconnect the hose. Loosen the airbox and throttle-body clamps and remove the original tube. Unlock the two inlet rivets and lift the scoop. Retain the three housing screws and remove the original housing/inlet. Transfer two grommets and sleeves to the replacement housing and secure it using two original screws. Attach the inlet with the two new push rivets. Lock the filter into the housing and leave its flange clamp loose. Install the aluminum fitting using a 16mm wrench; a small NPT hex-to-tube gap is normal. Place the elbow’s small end on the throttle body and snug #044 first so the coupling cannot move off. Leave #048 loose on the larger elbow end. Insert the tube’s small end into the elbow and align its larger end with the filter without inserting it yet. Snug #048, then insert the larger tube end into the filter. Align all components before tightening every clamp. Reconnect the breather using its original clamp and choose whether to install the auxiliary-inlet plug. Check every connection, then recheck screws, clamps and connectors after 100–200 miles. No numeric torque or sensor-transfer step is supplied.
The exact linked flow chart shows 245 CFM Pro DRY S versus stock 175 CFM at 7 inches H2O. The product page states 42% higher, while those printed chart values calculate to 40%; the discrepancy is unresolved. The selected-media Dynojet image uses SAE correction and smoothing 5. Its baseline is a 2016 naturally aspirated Veloster tested October 8, 2020, with original intake, aftermarket exhaust and wheels, fourth gear, 2,000-rpm start, red and silver fans, and SAE factor 1.02. The intake run is November 10, 2020, notes the selected filter and aftermarket exhaust, and uses SAE factor 0.98. Full baseline wheel/gear/fan notes are not repeated for the intake run. At the marked 6,365 rpm, 115.80 versus 110.78 hp and 95.54 versus 91.40 lb-ft differ by 5.02 hp and 4.14 lb-ft. Independent peak-to-peak values are not listed. This is not an all-stock-exhaust comparison or a guaranteed gain on every vehicle. The exact manufacturer page and manual state this product is not CARB exempt and unavailable for purchase in California or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
