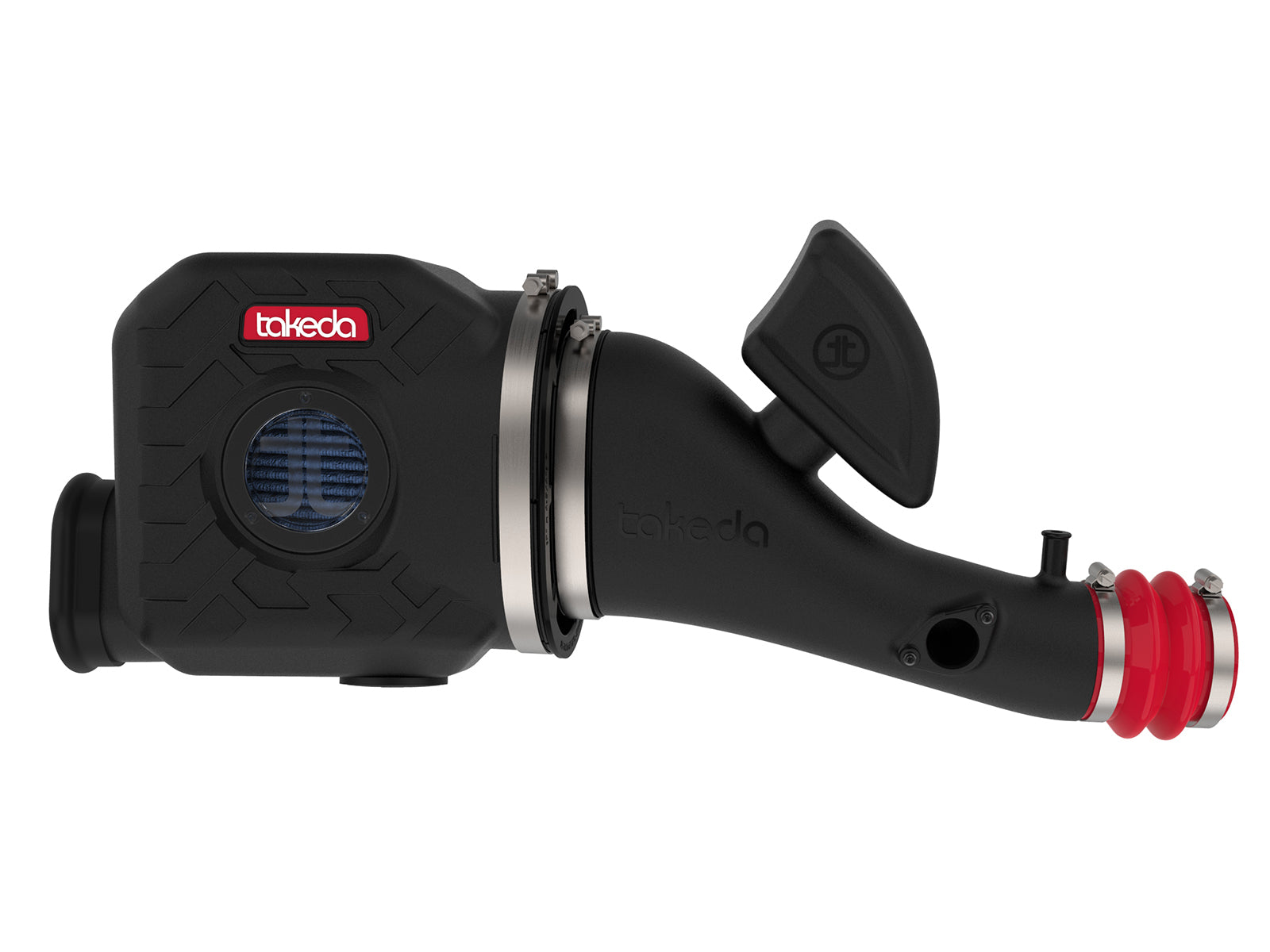

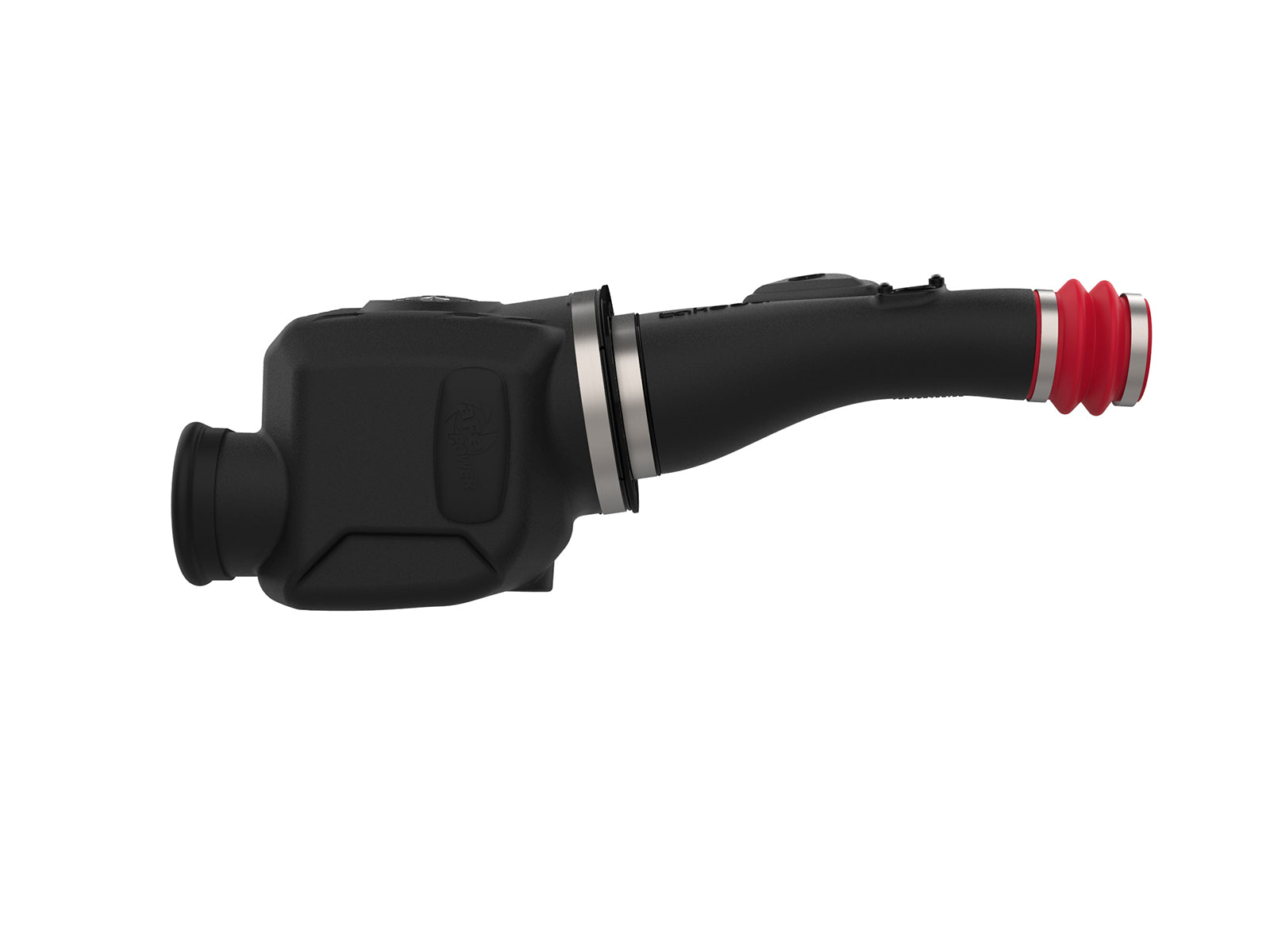

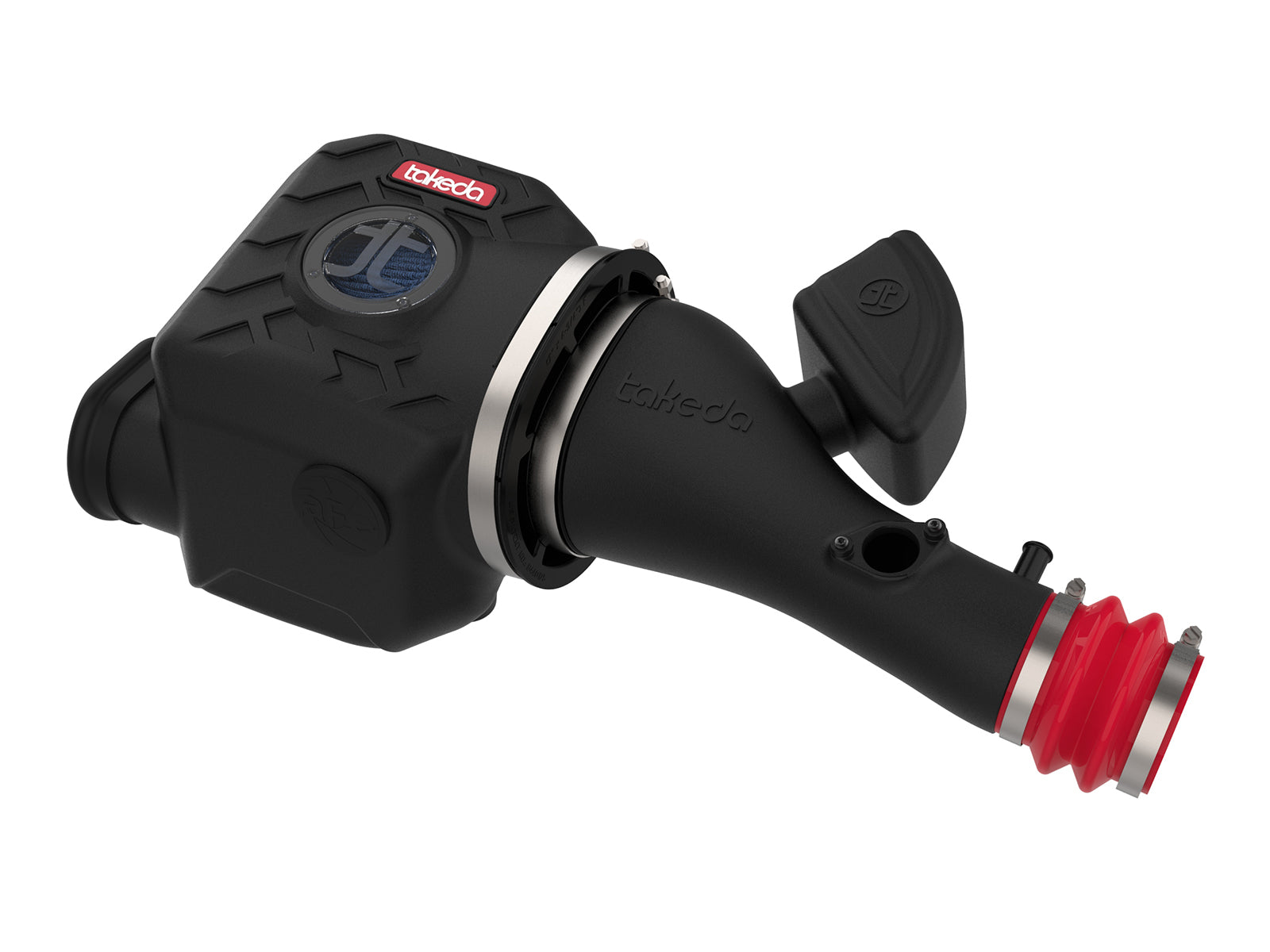

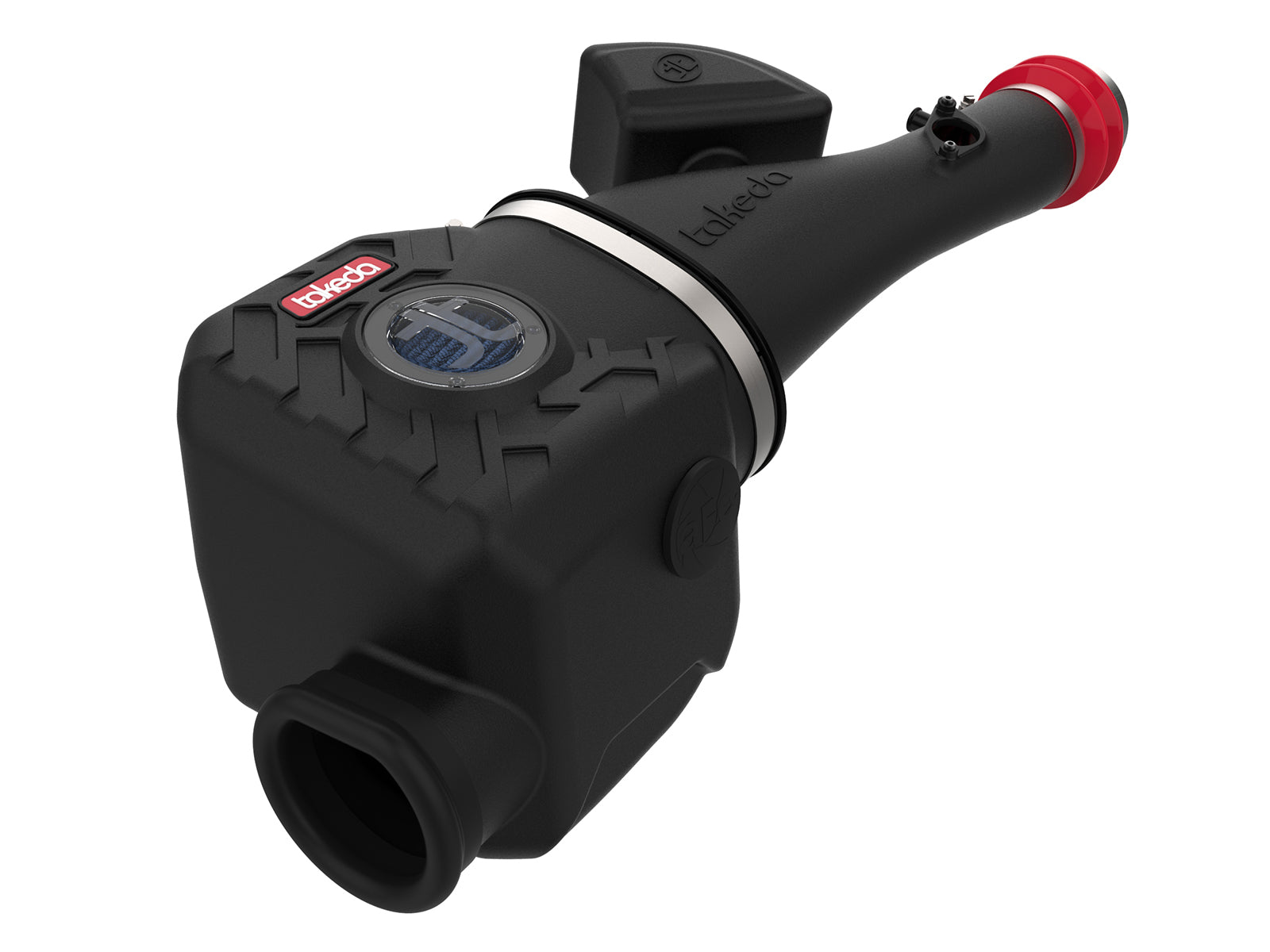

aFe 56-70012R is the Takeda Momentum enclosed intake for specified Toyota Tacoma V6-3.5L applications. One pre-oiled Pro 5R filter fits the XLPE window housing. The red silicone bellows, supplied M8 isolation mount and retained original CCV hose follow their exact illustrated installation.
The current exact manufacturer page lists Toyota Tacoma 2016–2023 V6-3.5L; its exact 24-page manual lists 2016–2020. Selected-part retailer tables support Limited/SR/SR5/TRD Off-Road/TRD Sport 2016–2023, TRD Pro 2017–2023, Trail 2021 and Trail Special Edition 2023. These named rows require the 3.5L engine: a trim shared with a 2.7L truck does not certify that engine. The two Trail names retain their separate years rather than filling an unproven 2022 gap. No 2024 turbo generation is inferred. Broader legacy Base/Pre Runner and additional Nightshade retailer entries require further exact configuration evidence before new rows are added.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2016-2023 | Toyota | Tacoma | Limited |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2023 | Toyota | Tacoma | Trail Special Edition |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
Verify 56-70012R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 56-70012R |
| Product type | Takeda Momentum enclosed cold air intake |
| Filter | One 24-91123 Pro 5R, 9-inch height; oval flange/base/inverted top |
| Media | Five-layer pre-oiled cotton gauze; washable/reusable |
| Tube / housing | XLPE 05-5670012B1 / window housing 05-5670012B2 |
| Bellows | Red 05-01470R, 3 x 3-1/8-inch ID x 3-1/2-inch length |
| Bellows clamps | Two #052 03-50008 |
| Housing clamp | T-bolt 03-50267, 8-5/16–8-5/8-inch range |
| Isolation hardware | M8x1x1 mount 03-50063, washer 03-50065 and M8 lock nut 03-50244 |
| Trim seal | 3/4-inch bulb x 14-inch length, 05-01507; trim to fit |
| MAF screws | Two Torx M4 03-50491; length not stated |
| Torque / recheck | No numeric torque; check bolts, clamps and connectors after 100–200 miles |

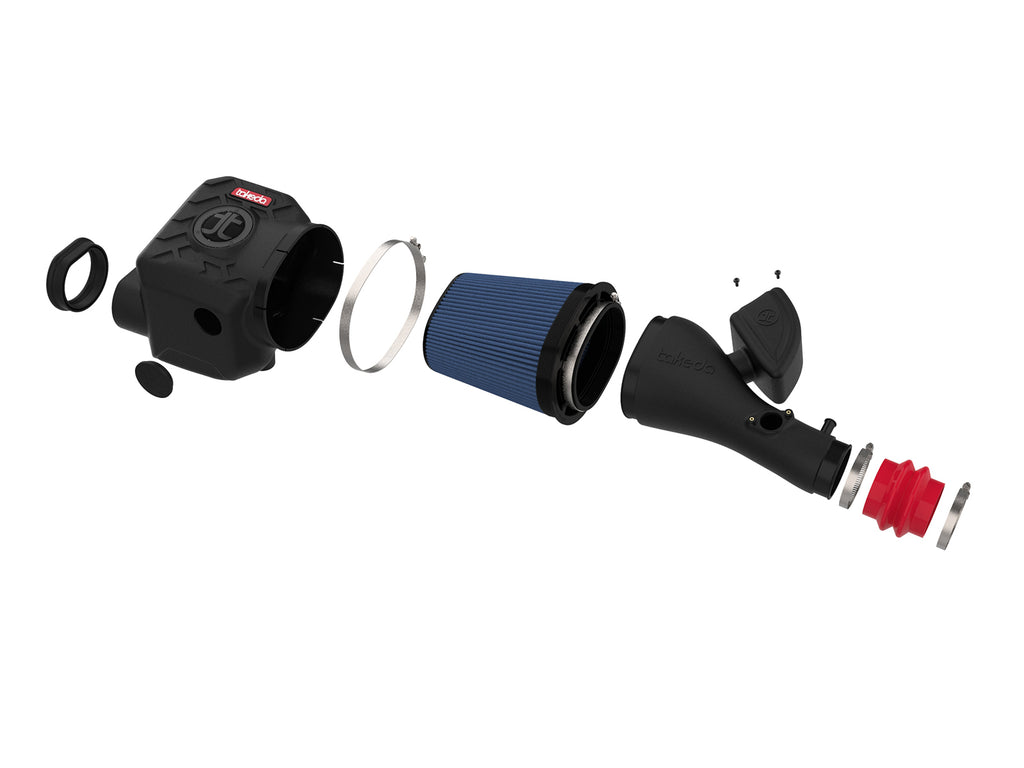

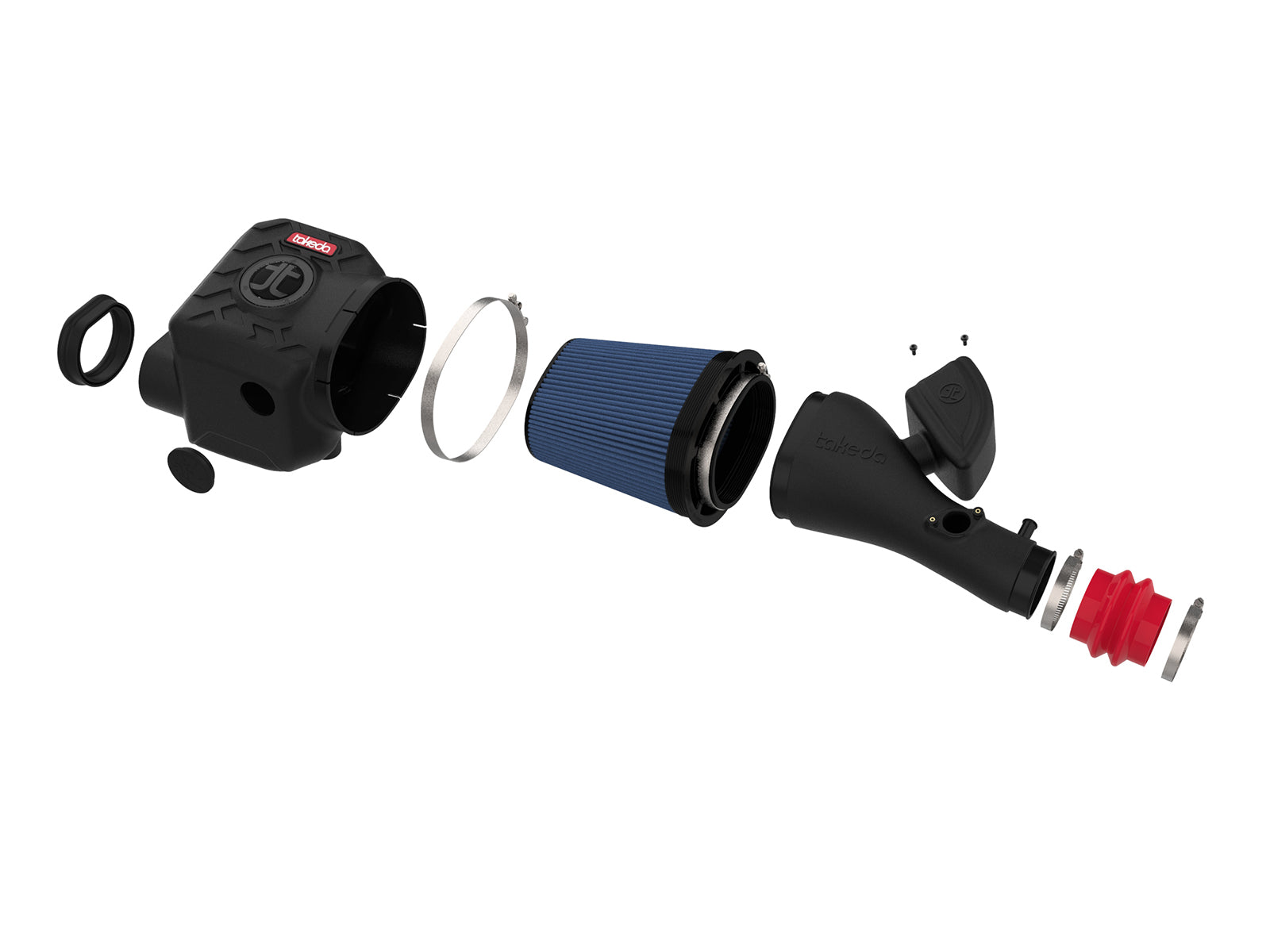

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91123 | Selected Pro 5R filter; alternate media not a second supplied filter |
| 1 | 05-5670012B1 | XLPE tube |
| 1 | 05-5670012B2 | XLPE window housing |
| 1 | 05-01470R | Red silicone bellows |
| 2 | 03-50008, #052 | Bellows clamps |
| 1 | 03-50267 | Housing T-bolt clamp |
| 1 | 05-01527 | Silicone auxiliary-inlet plug |
| 1 | 03-50063 | M8x1x1 isolation mount |
| 1 | 03-50065 | Flat washer |
| 1 | 03-50244 | M8 nylon-lock hex nut |
| 2 | 03-50491 | Torx M4 MAF screws; length not stated |
| 1 | 05-01507 | 3/4-inch bulb trim seal, 14 inches |
Remove three original airbox screws, but reuse only two with the new housing: the supplied M8 isolation mount replaces the frontmost mounting point. Transfer the two original bottom steel sleeves and rubber grommets. Trim the 14-inch seal to fit the housing inlet. Orient bellows lettering away from the throttle body. The filter-flange clamp is shown in the procedure without a separate BOM service code/count; it is distinct from the supplied housing T-bolt clamp. Retain the original CCV hose; no new vent hose, check valve, MAF sensor or extension harness is listed. No battery-disconnection step is given. Service filters, cleaning kits, pre-filter and throttle-body spacer shown on the accessory page are separate.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
One 24-91123 Pro 5R filter; the alternate-media BOM row is not a second supplied filter.
Does this filter need oil?Yes. It uses five-layer pre-oiled cotton gauze; service it using the appropriate oiled-filter procedure.
Are all three original housing screws reused?No. Reuse two; the frontmost mounting point uses the supplied M8 isolation mount, washer and lock nut.
Which original housing parts transfer?Two steel sleeves and rubber grommets, the original MAF and CCV hose transfer.
How should the red bellows face?Place the lettering away from the throttle body, tightening its throttle-body clamp before final tube alignment.
Is the auxiliary inlet always open?The supplied silicone plug can close it. The manual states best performance is achieved with the plug removed.
Does a Tacoma trim name prove 2.7L or 2024 fitment?No. These named rows require the 3.5L V6; no 2.7L or later turbo-generation approval is inferred.
What torque and recheck interval apply?No numeric torque is specified. Check all bolts, clamps and connectors after 100–200 miles.

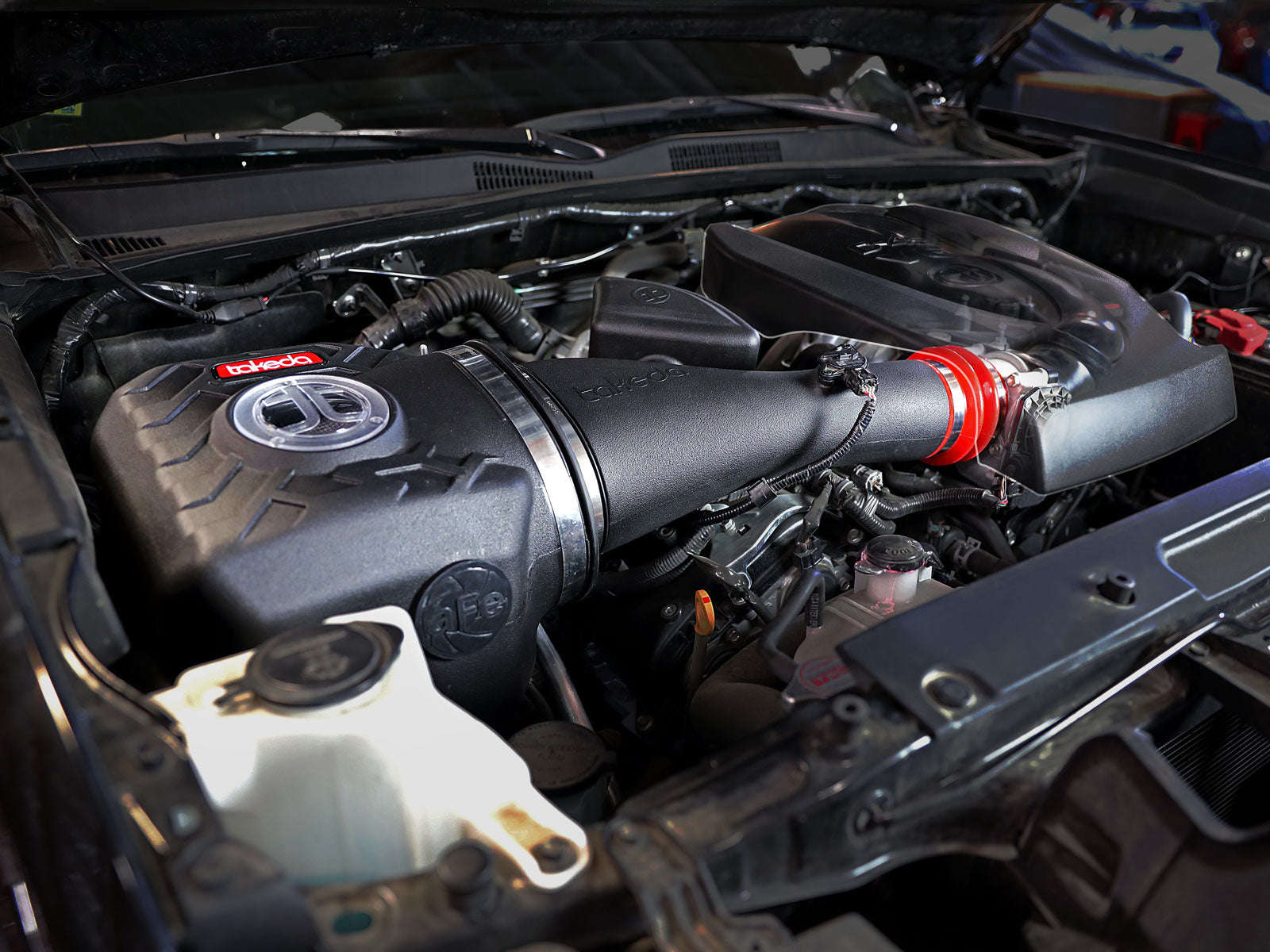

Verify aFe 56-70012R. Work on a cool engine. Pull the engine cover upward and away to release its grommets. Disconnect the MAF harness and unclip its loom from the airbox lid and resonance chamber. Loosen the throttle-body and airbox clamps, disconnect the original CCV hose and remove the original tube. Release the two airbox-lid clips, remove the lid and filter, then remove the three original housing screws and lift out the lower airbox. Transfer its two steel sleeves and rubber grommets to the new housing. Fit the supplied trim seal along the inlet and trim it to fit. Install the supplied M8 isolation mount at the frontmost vehicle mount. Seat the new housing over the stud and secure the other two locations with two original screws; secure the stud using the supplied washer and M8 lock nut. Transfer the MAF using the two supplied M4 screws and T20. Fit the red bellows to the throttle body with lettering facing away, tighten the first #052 clamp and leave the second loose. Fit the housing T-bolt clamp and filter with its clamp loose. Insert the tube into the throttle-body bellows first and then into the filter. Align and tighten the bellows, housing and filter clamps without overtightening. Reconnect the original MAF harness and CCV hose. Fit the silicone plug to close the auxiliary inlet if desired; the manual says best performance is achieved with it removed. Restore the engine cover. Check all bolts, clamps and connectors after 100–200 miles. The manual gives no numeric torque.
The page claims 385 CFM and 35% more flow. Its actual linked chart shows Pro 5R 385 CFM, Pro DRY S 385 CFM and stock 295 CFM at 7 inches H2O: 385 versus 295 is approximately 30.5%, so the page percentage and chart baseline are not interchangeable. The linked Dynojet image compares a December 14, 2018 stock-intake run, SAE factor 0.99, with an April 4, 2019 R-intake Rev 4 run, SAE factor 1.00. Both note stock exhaust, third gear, traction control off, 20% preload, blade fan and 285/70/17 tires. At marked 6,104 rpm, 244.23 versus 237.06 hp and 210.18 versus 204.01 lb-ft differ by 7.17 hp and 6.17 lb-ft, compared with the page headline 7 hp/9 lb-ft. Independent maxima 245.35 versus 237.06 hp differ by 8.29 hp; 228.47 versus 224.64 lb-ft differ by 3.83 lb-ft. Marked and peak comparisons differ and do not guarantee gains for every truck. The exact manufacturer page and manual state this product is not CARB exempt and unavailable for purchase in California or use on California-registered vehicles.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
