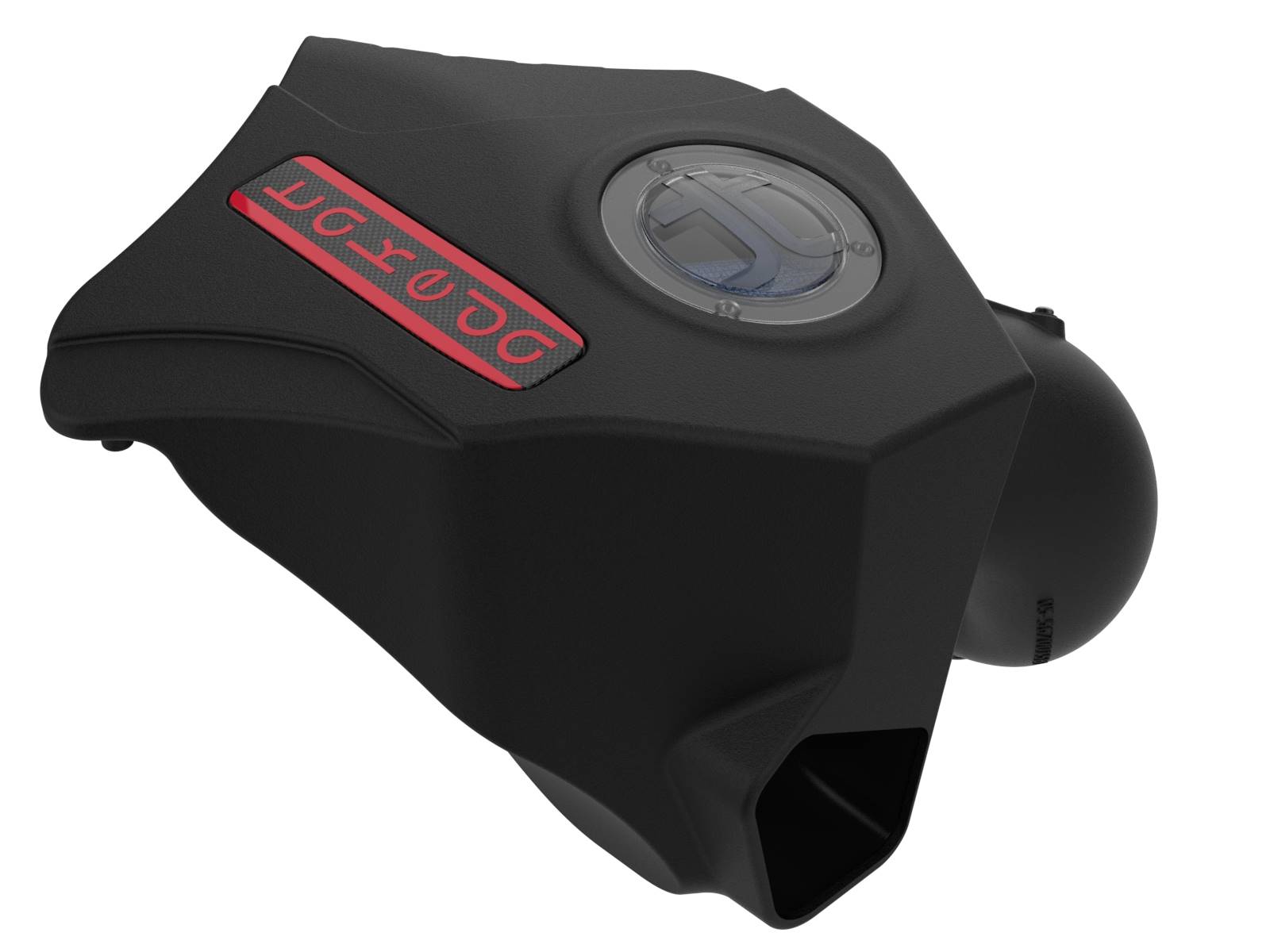

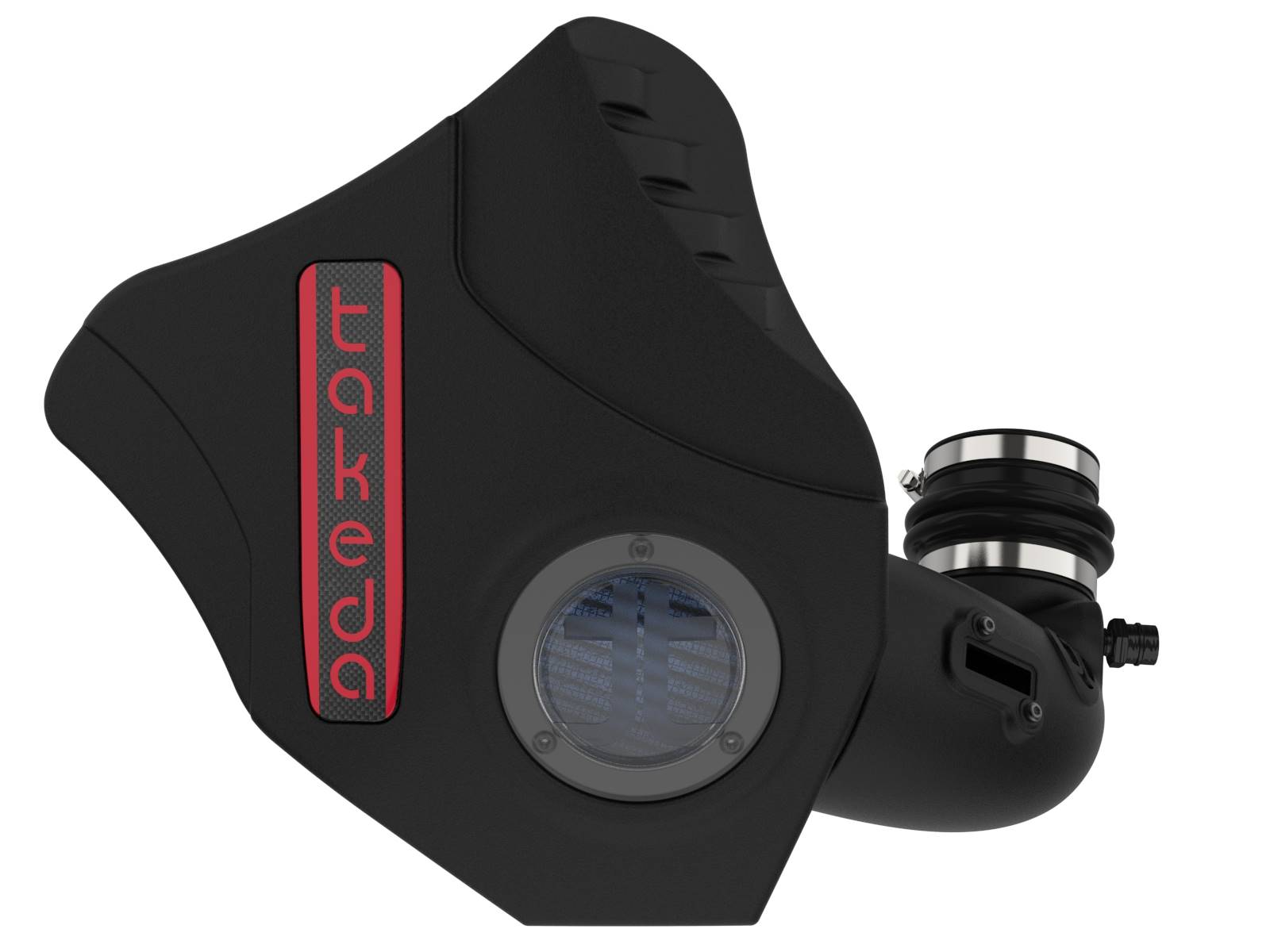

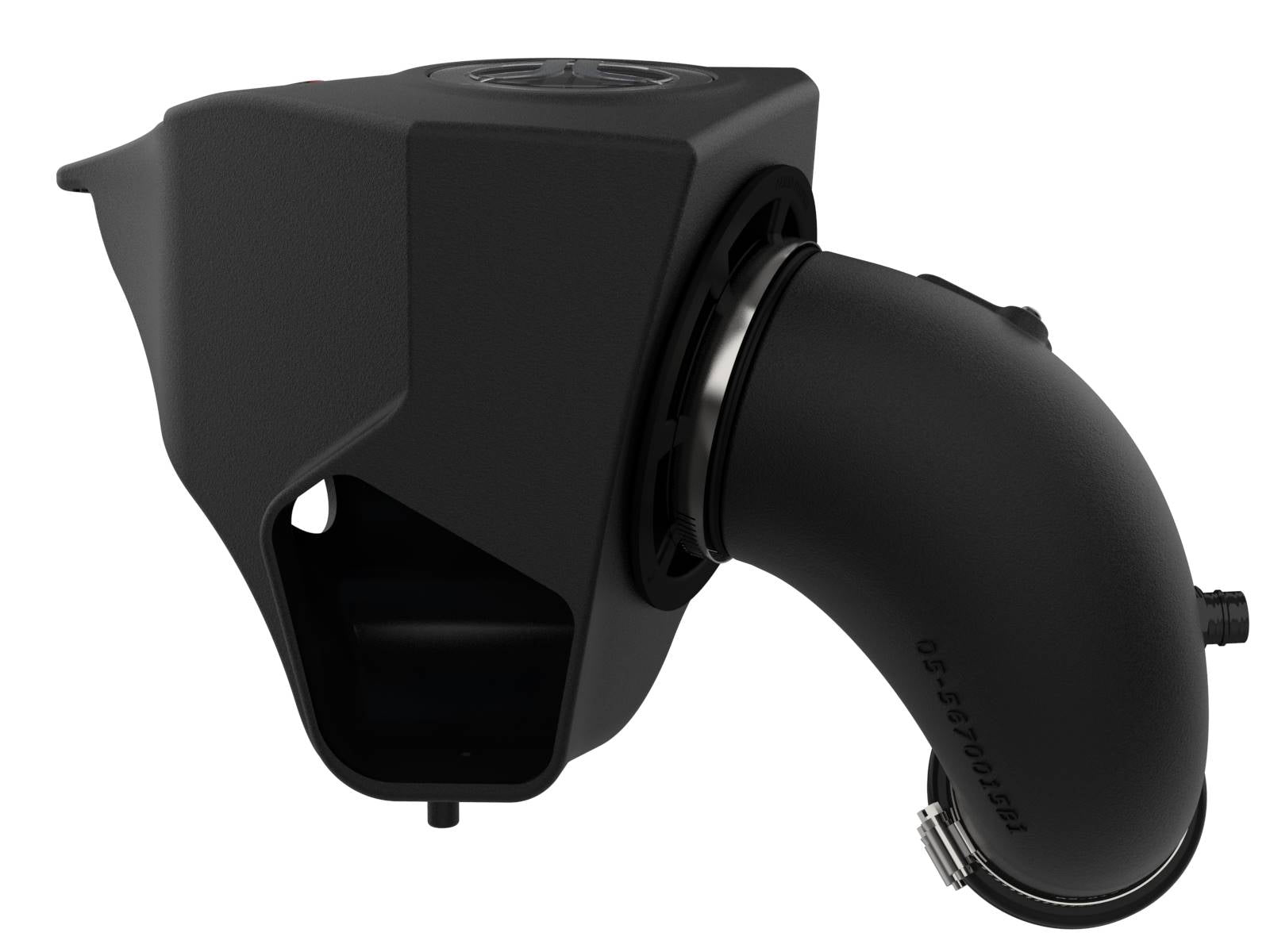

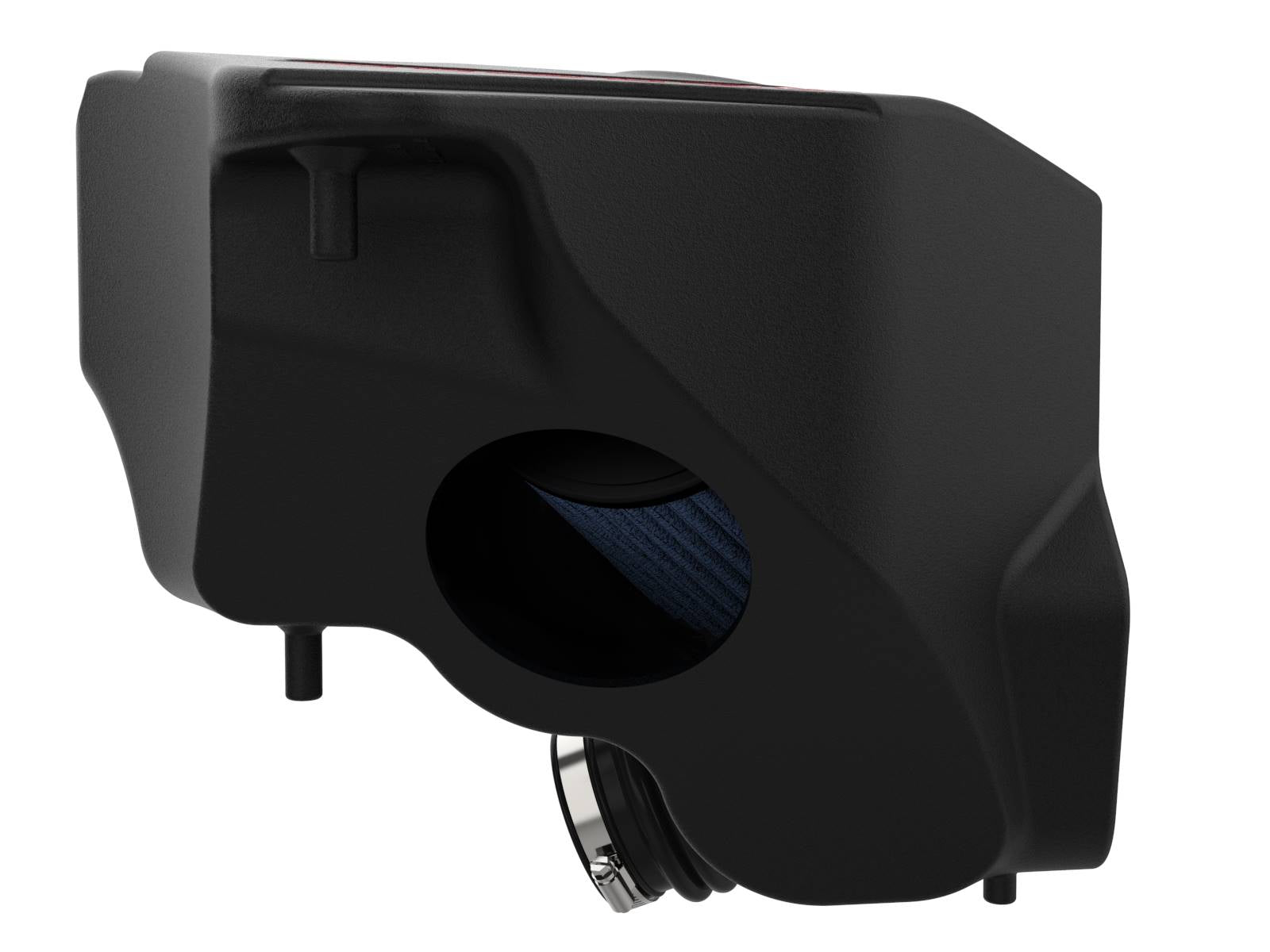

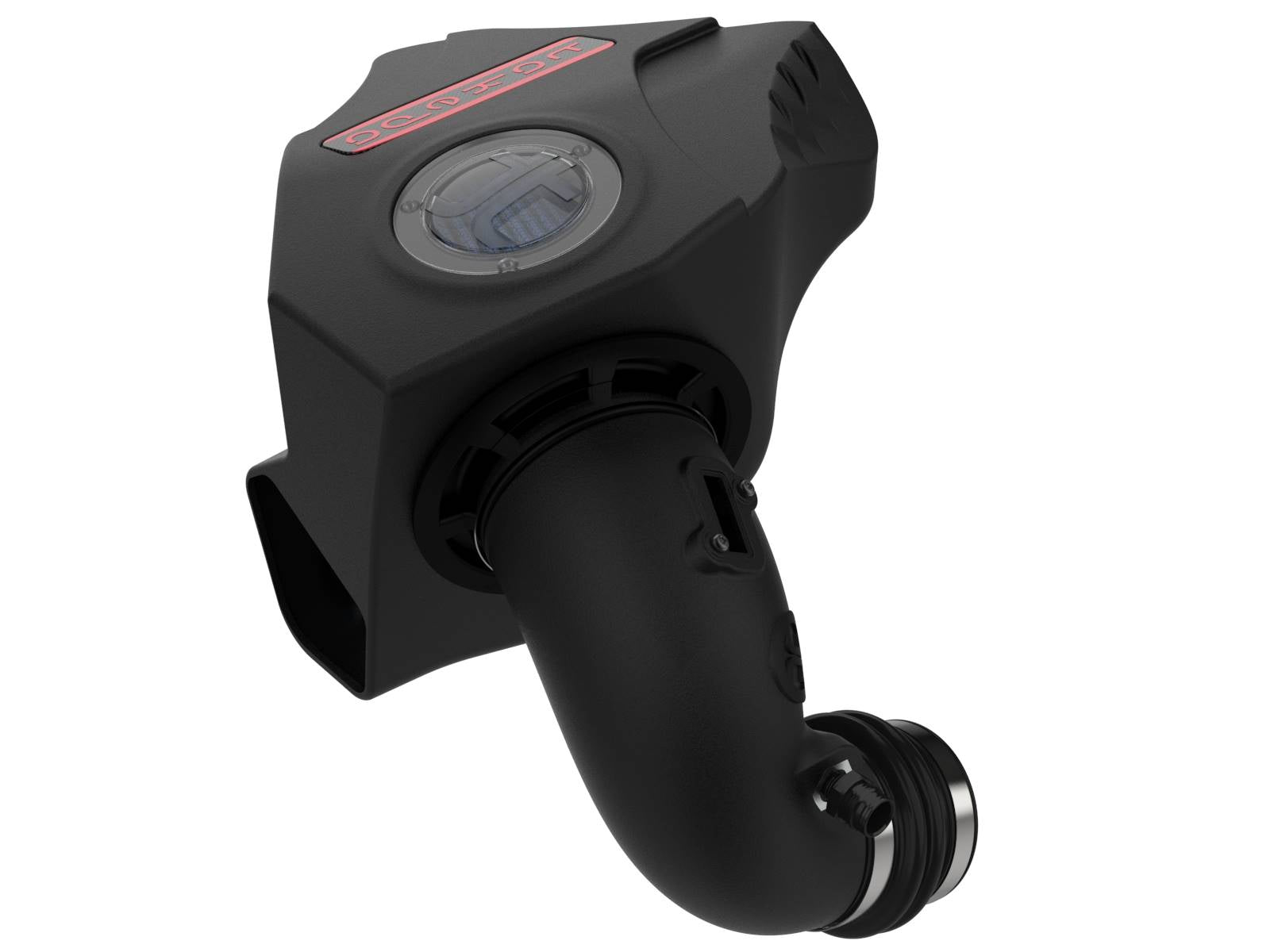

aFe 56-70050R is a Takeda Momentum sealed intake for the stated B58 Supra and Z4 M40i applications. It combines ONE five-layer pre-oiled cotton Pro 5R inverted filter, an XLPE intake tube and sight-window housing while retaining the original temperature sensor, crankcase breather line and three mounting grommets.
Toyota GR Supra A90 2021-2026 with the 3.0L turbo B58 and BMW Z4 G29 M40i 2020-2026 with the 3.0L turbo B58. The exact shared manual names Supra 2021-2023 and Z4 M40i 2020-2023; later named rows are separately supported by the exact-part retailer tables. The current cotton-kit manufacturer page extends Supra through 2026. The exact dry-kit manufacturer product page was not located in current search; its own identity and hardware are explicitly covered by the shared manual and selected-filter manufacturer page. This is not approval for the 2020 Supra engine arrangement, the 2.0L Supra/Z4 sDrive30i, other B58 vehicles, or unlisted trim and housing combinations. Match the original inlet, temperature-sensor and crankcase connections, three mounting grommets and strut-brace clearance.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2022-2026 | BMW | Z4 | M40i |
| 2020 | BMW | Z4 | M40i First Edition |
| 2020-2021 | BMW | Z4 | sDrive M40i |
| 2024 | Toyota | GR Supra | 45th Anniversary Edition |
| 2021-2022 | Toyota | GR Supra | A91 Edition |
| 2023 | Toyota | GR Supra | A91-MT Edition |
| 2021-2026 | Toyota | GR Supra | Base |
| 2026 | Toyota | GR Supra | MkV Final Edition |
| 2021-2026 | Toyota | GR Supra | Premium |
Verify 56-70050R against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 56-70050R |
| Selected filter | 24-91113; five-layer pre-oiled cotton Pro 5R; 7.5-inch height, 4-inch flange, inverted top. |
| Tube and housing | XLPE tube 05-5670015B1; sealed XLPE housing 05-5670037B2 with sight window. |
| Inlet connection | Silicone bellows 05-01525, 3.1-inch ID x 3-inch length; two #048 clamps. |
| Sensor and crankcase connections | Original TEMPERATURE sensor with two supplied M4 screws; original crankcase line connects to supplied aluminum NPT fitting. This procedure does not direct installation of a new MAF sensor. |
| Mounting and brace | THREE original mounting grommets. Remove then restore brace if fitted; no brace included. |
| Bench-flow qualification | The actual common manufacturer bench chart shows Pro 5R370CFM, Pro DRY S350CFM and stock320CFM at7inchesH2O. Selected cotton is15.625% above stock, rounded16%; dry is9.375%, rounded9%. These are bench-flow comparisons, not engine-power gains. |
| Dyno qualification | The actual current cotton-linked2021Supra chart marks223.03vs209.51hp (+13.52hp) and390.64vs367.10lb-ft (+23.54lb-ft) near2998rpm, supporting rounded14hp/24lb-ft point gains. Run maxima361.21vs353.69hp (+7.52hp) and394.31vs376.84lb-ft (+17.47lb-ft) are different comparisons. The run explicitly identifies P5R, original ECU/downpipe/exhaust,275/35R19 OEM tires,fifth gear,sport mode,dyno mode,hood OPEN and LARGE FANS. BaselineAugust5versusintakeSeptember2,2021 andSAE1.03versus1.02 limit generalization. No independent BMW or dry-media result is established by this chart; earlier8hp/14lb-ft retailer claims use another comparison. |
| Service and emissions | Check bolts, clamps and connectors after100-200miles; no numeric torque given. Exact manual and current cotton-kit page state NOT currently CARB exempt; selected filter-only EO language does not exempt the complete intake. |

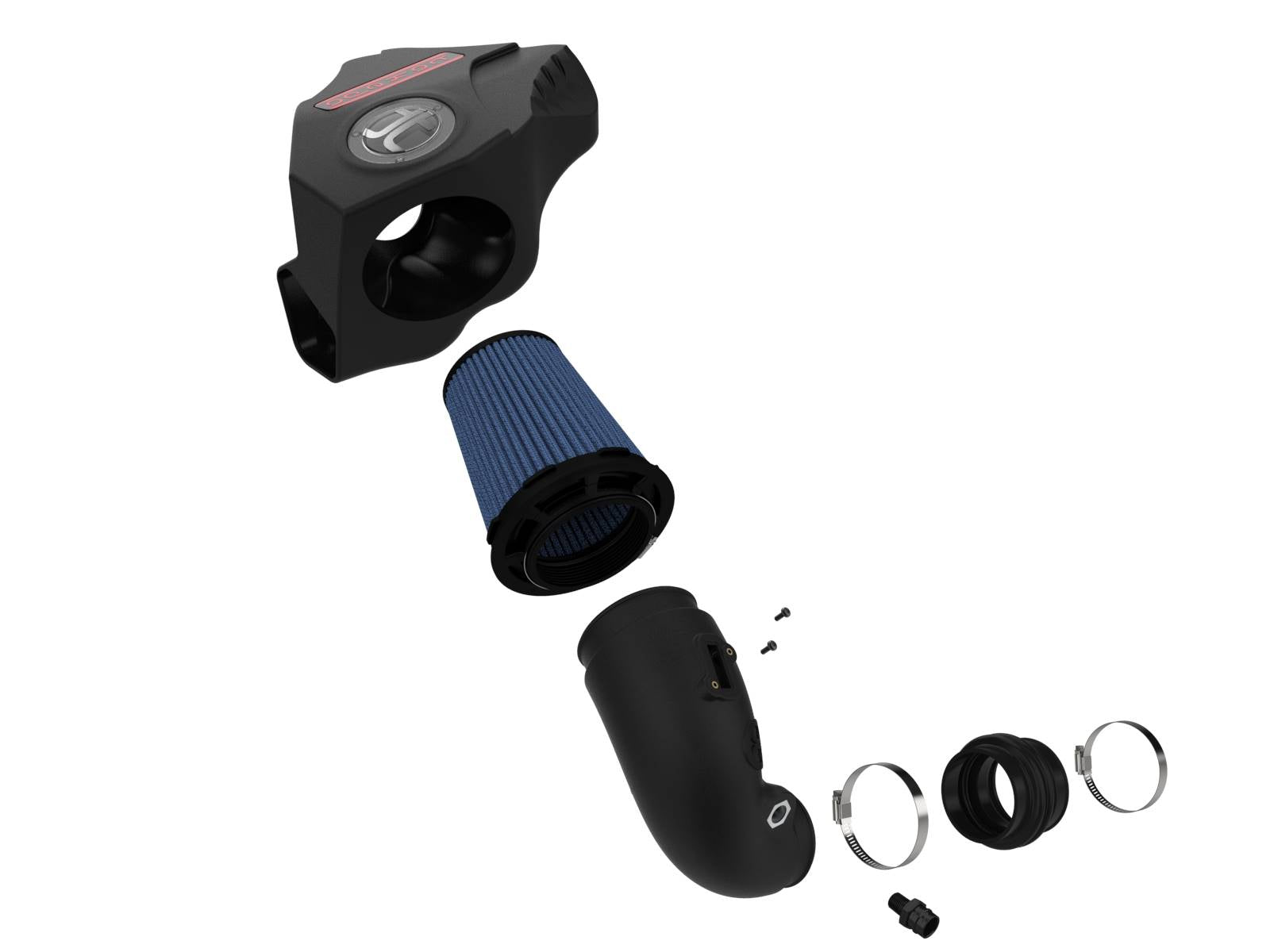

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 24-91113 | Selected five-layer pre-oiled cotton Pro 5R filter |
| 1 | 05-5670015B1 | XLPE intake tube |
| 1 | 05-5670037B2 | Sealed XLPE housing with sight window |
| 1 | 05-01525 | Silicone bellows,3.1-inch ID x3-inch length |
| 2 | 03-50007 | Hose clamp,#048 |
| 1 | 03-50644 | Aluminum NPT crankcase fitting |
| 2 | 03-50490 | M4 temperature-sensor screws |
The manual lists two alternate filter choices; this purchase contains ONE selected filter, not both. Two #048 coupling clamps are listed separately from the selected filter clamp. The original temperature sensor, crankcase breather line and THREE mounting grommets are reused, and the original brace is restored when fitted. No new sensor, sensor-extension harness, crankcase hose, replacement turbo inlet, pre-filter or strut brace is listed. The NPT fitting intentionally need not bottom its hex against the tube. Current housing and tube service codes differ: the housing carries a different family code in this exact manual; that does not change the kit identity.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
The table is restricted to actual3.0L turbo B58 Supra A90 and Z4 G29 M40i configurations. It does not approve a2020Supra,2.0L engine or another B58 platform.
How many filters are supplied?ONE selected 24-91113 five-layer pre-oiled cotton Pro 5R filter. The manual displays two alternate media choices, not two included elements.
Is this a metal tube or an open shield?The manufacturer describes an XLPE intake tube and sealed XLPE sight-window housing. It is not an aluminum tube or an exposed open heat shield.
Which original sensor and breather parts remain?Transfer the original TEMPERATURE SENSOR with the two supplied M4 screws and reconnect the original crankcase breather line to the supplied NPT fitting. No new sensor, extension or replacement breather hose is listed.
Must the NPT fitting hex touch the tube?No. The exact manual states a small gap is normal. Do not force the tapered fitting until its hex bottoms against the tube.
How does the turbo-side bellows locate?Its end sits flush at the turbo-inlet rim so the internal lip fits the groove. Confirm comfortable alignment before tightening the tube-side clamp.

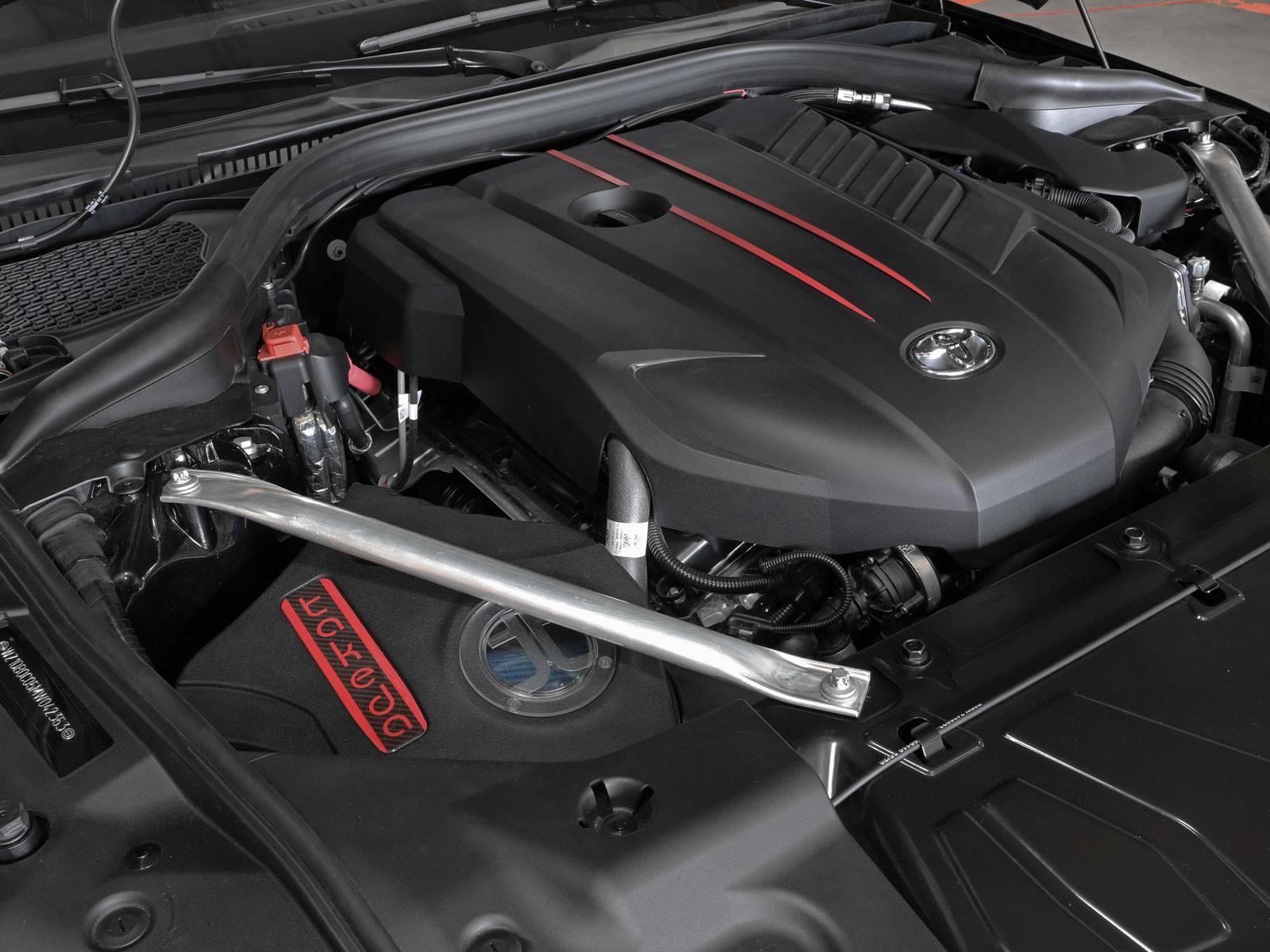

Are new mounts or a strut brace included?No. Press the housing into all THREE original mounting grommets and reinstall an overhead brace if removed. Manufacturer compatibility with factory or aFe CONTROL bars does not include a new bar.
What checks and emissions limits apply?Recheck bolts, clamps and connectors after100-200miles. No numeric clamp torque is given. The exact complete-kit manual states NOT currently CARB exempt; filter-only emissions language is not kit approval.
Verify aFe 56-70050R. Work only with a cool engine and retain original parts. Remove an intake-overhead brace if fitted and unplug the original temperature-sensor harness. Loosen the original airbox clamp, move the original tube away and pull up the airbox. Disconnect the crankcase breather line, detach the harness from the old tube and carefully release the turbo-inlet retention ring to remove that tube. Transfer the ORIGINAL TEMPERATURE SENSOR to the new tube using the TWO supplied M4 screws. Install the aluminum NPT fitting; a small gap between its hex and the tube is normal, not an instruction to force it flush. Push the selected filter into the housing until its tabs LOCK; leave the filter clamp loose. Place the silicone bellows and two supplied clamps at the turbo inlet, with its end FLUSH to the inlet rim so the internal lip seats in the inlet groove. Tighten the turbo-side clamp, insert the new tube, reconnect the ORIGINAL CRANKCASE BREATHER LINE, check relaxed alignment and tighten the tube-side clamp. Press the assembled housing into all THREE ORIGINAL MOUNTING GROMMETS, insert the tube into the filter and tighten its clamp. Reconnect the original sensor harness and REINSTALL THE STRUT BRACE if removed. Check all connections, bolts and clamps after 100-200 miles. The manual gives no numeric torque. Tools include 6mm/8mm drivers or sockets, socket wrench, flat screwdriver, T20 bit and panel popper; they are not supplied kit contents.
Manufacturer test results depend on the specified vehicle, filter and run configuration. Current manufacturer21-26 headline is broader than its linked21-23 manual; later named applications are separately table-supported. The exact manual states this complete intake is not currently CARB exempt and is unavailable for California purchase or California-registered vehicles. Filter-only no-EO language does not override the kit restriction. No performance, emissions, housing or cross-platform approval is inferred beyond these stated sources.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
