aFe 56-70051D Legacy/Outback 2.5 Pro DRY S Intake

aFe Takeda intake details

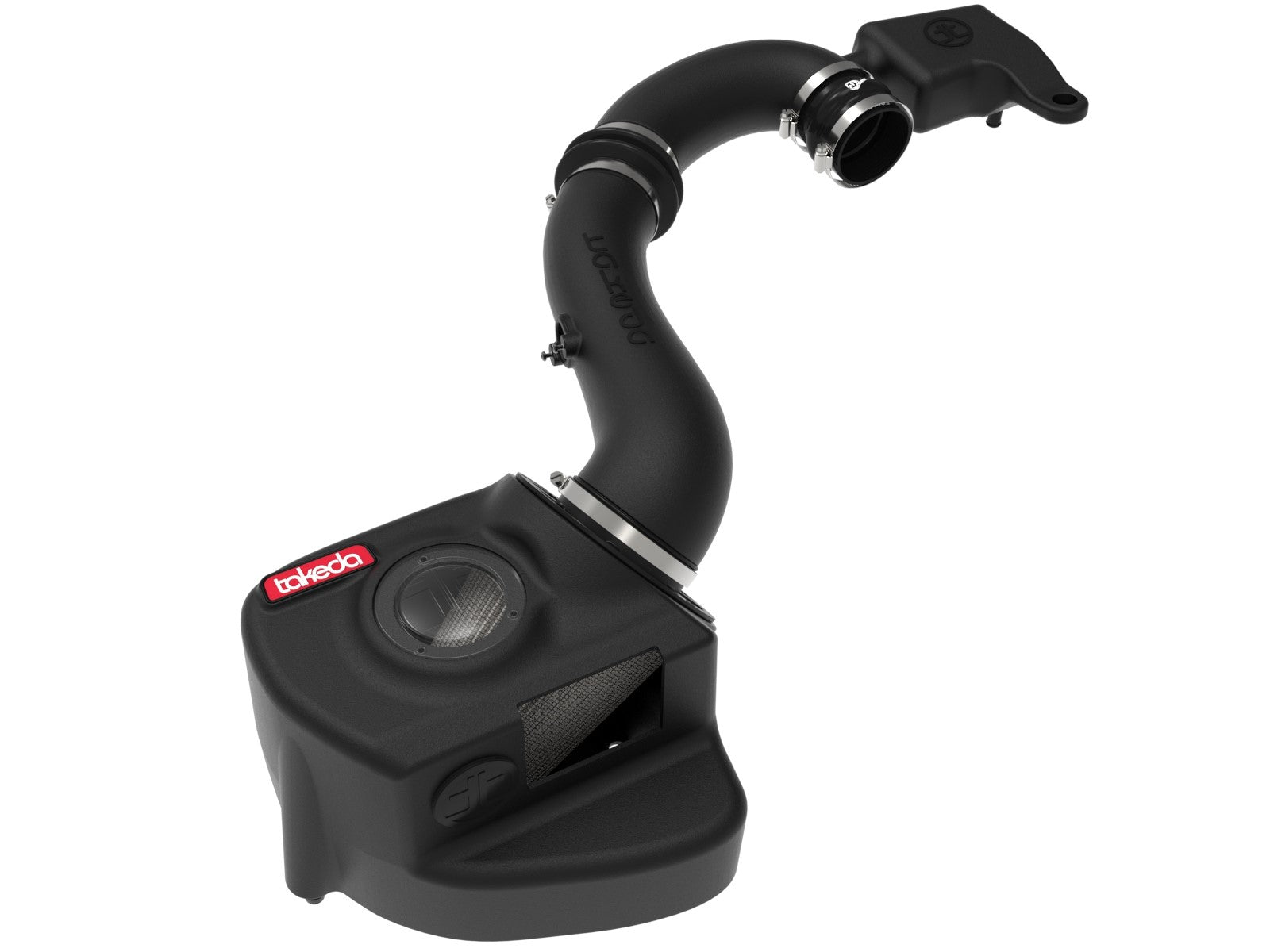

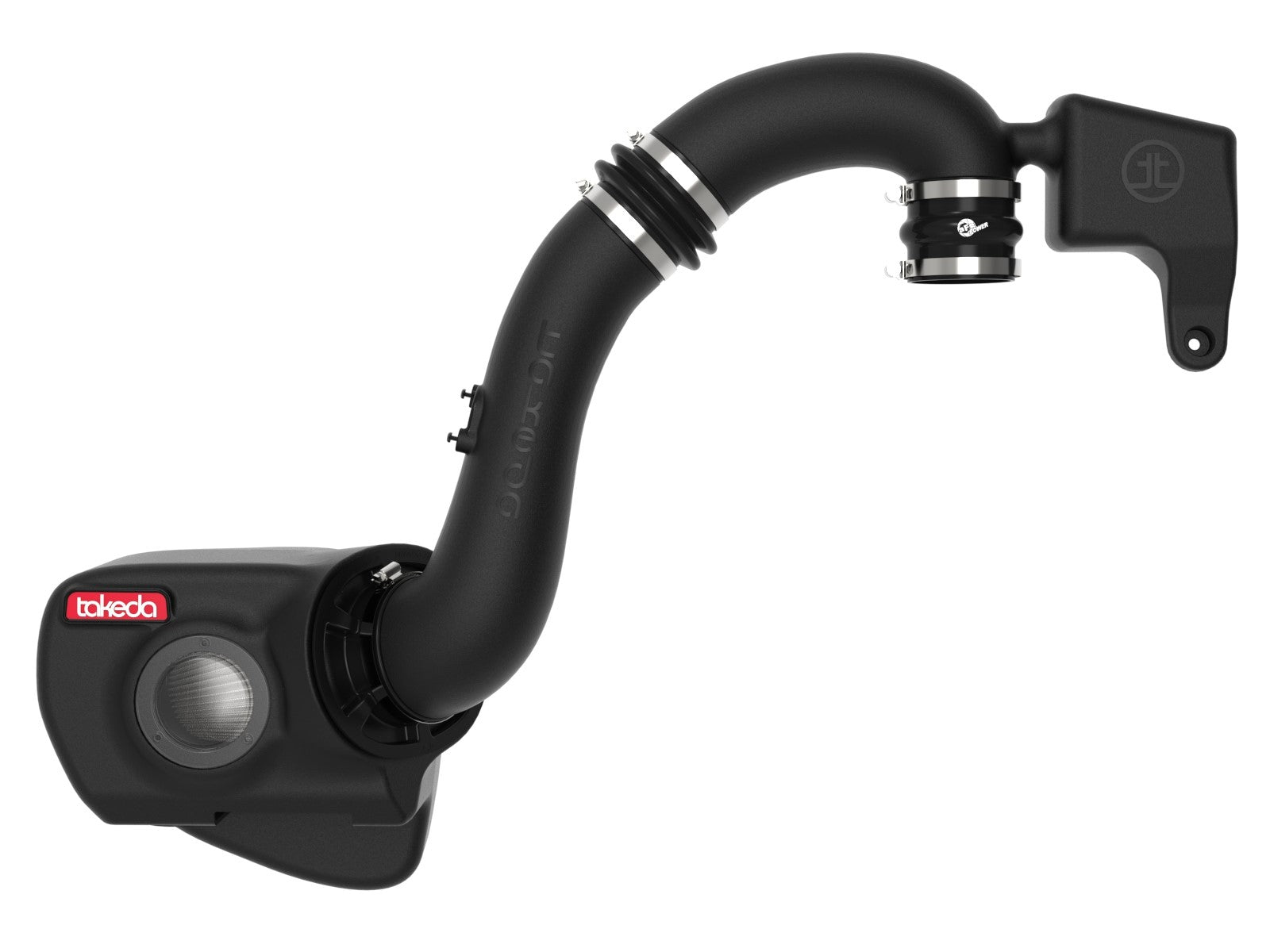

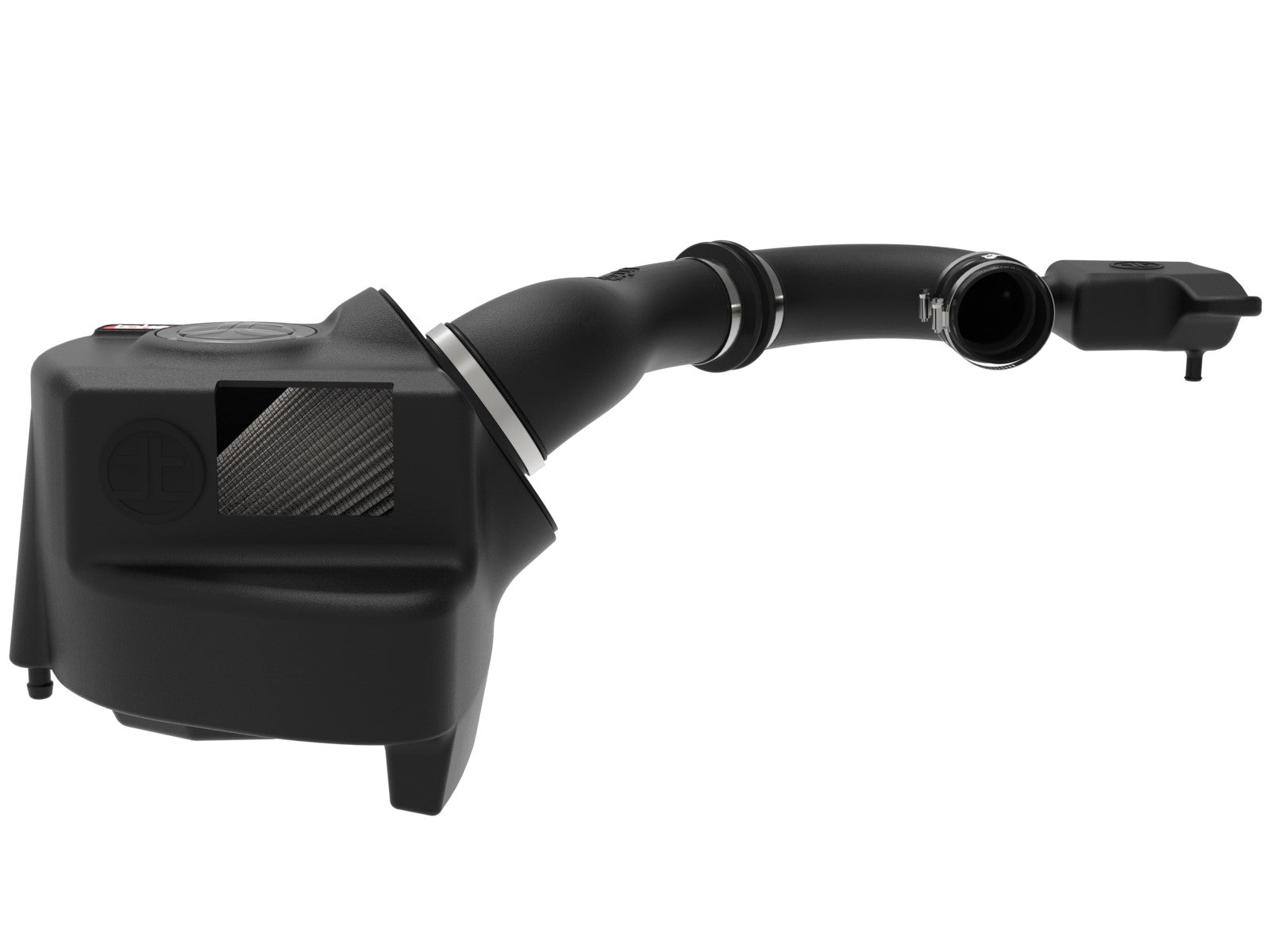

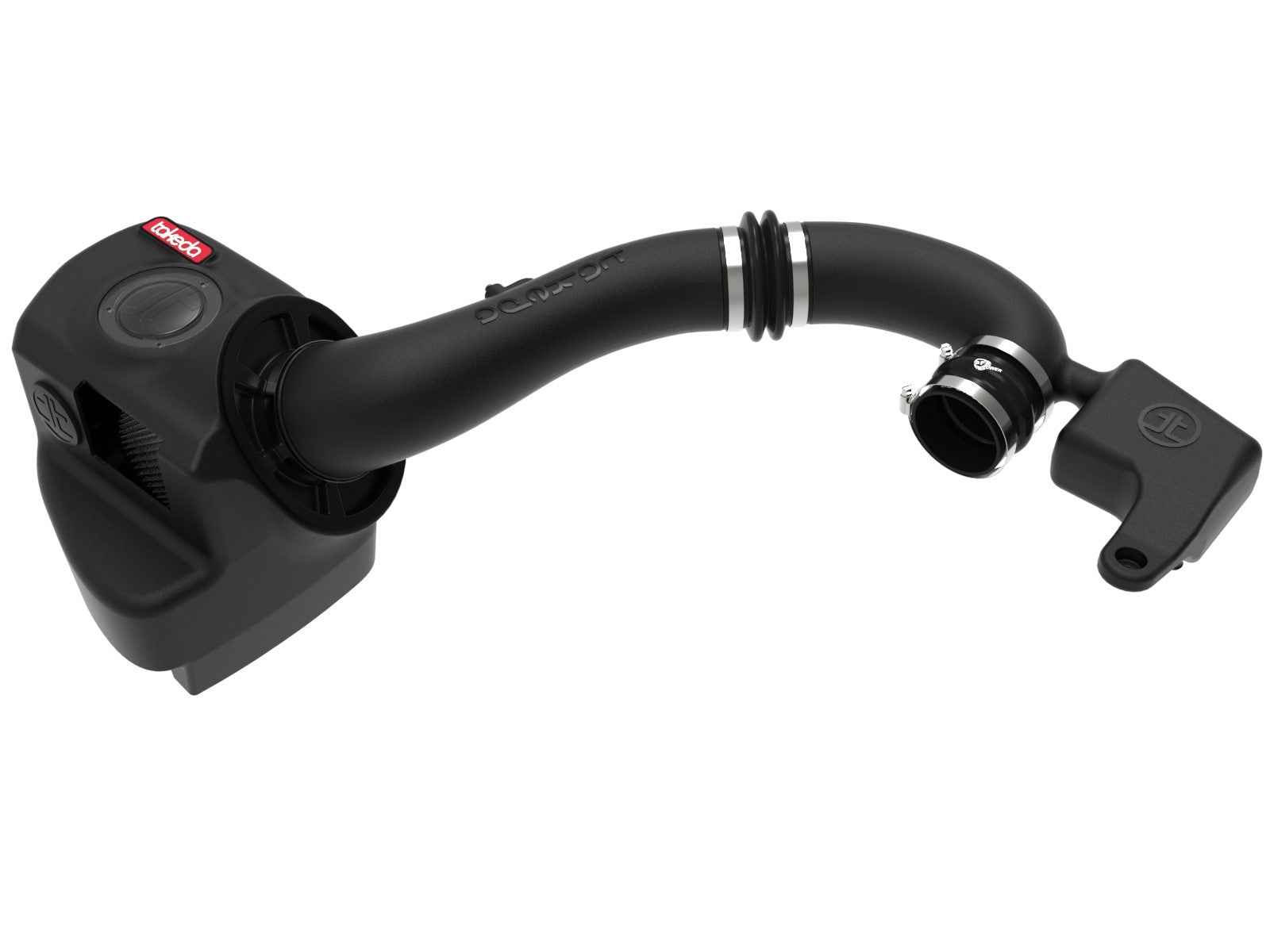

aFe 56-70051D is the Takeda Momentum intake for specified naturally aspirated Subaru Legacy and Outback H4-2.5L applications. One Pro DRY S filter fits the XLPE window housing. Two XLPE tube sections connect through a bellows; the original PCV hose, mounting isolators and inlet scoop remain in use.

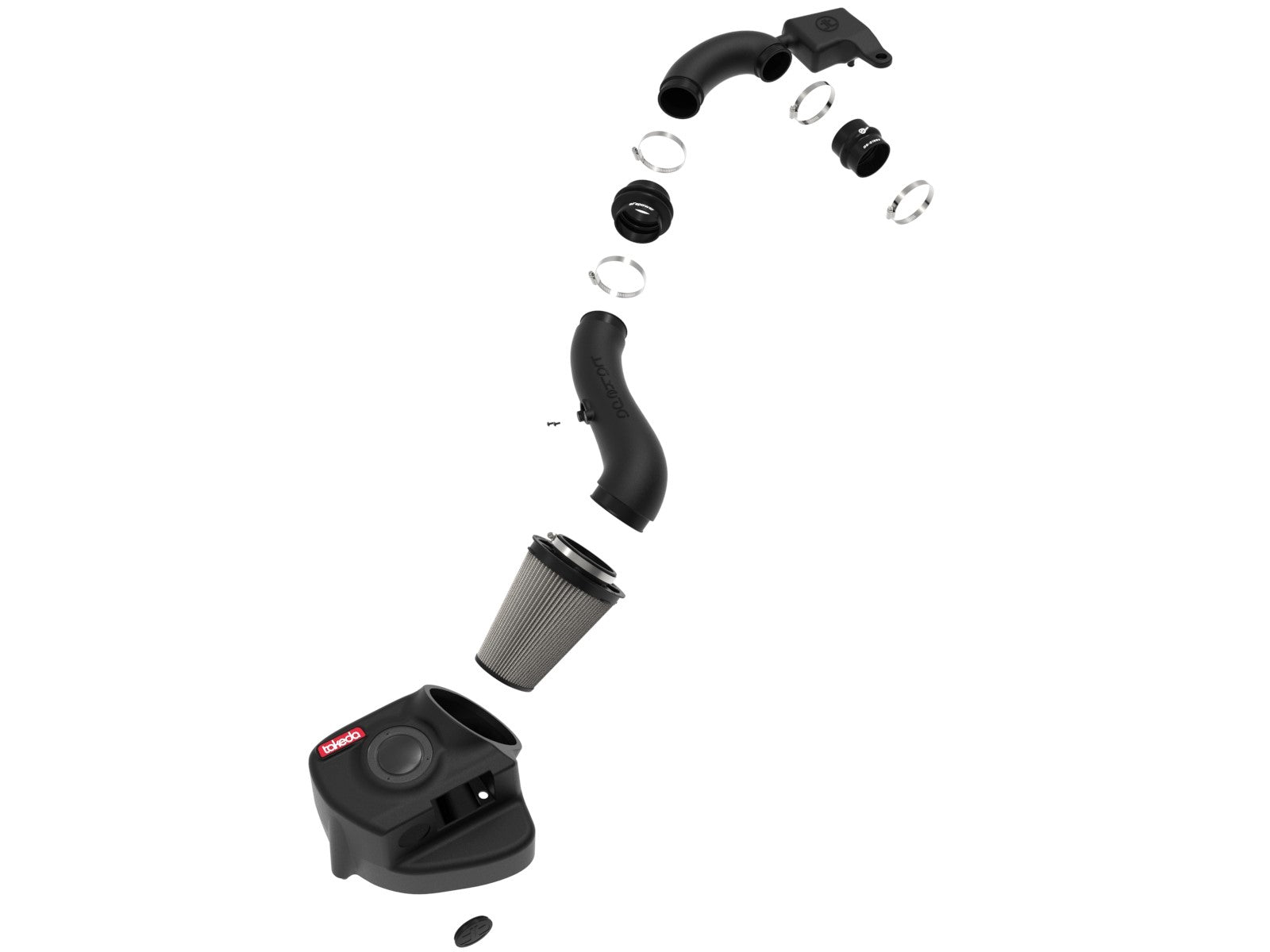

Key Features

• One 21-90101 filter: 4-inch flange, 8 x 6.5-inch base, 5.25 x 3.75-inch top and 7.5-inch height.
• Selected media: three-layer oil-free synthetic Pro DRY S.
• XLPE sensor/filter tube 05-5670042B1, chamber/PCV tube 05-5670042B2 and window housing 05-5670051B3.
• Throttle-body hump 05-01593, 3-inch ID x 3-inch length, with two #044 clamps.
• Inter-tube bellows 05-01480, 3.25-inch ID x 3-inch length, with two #048 clamps.
• Two M4 x 8mm MAF screws, one supplied tube push clip and one removable auxiliary-inlet plug.

Fitment

Both exact current manufacturer pages and both exact 20-page manuals list naturally aspirated 2020–2025 Subaru Legacy and Outback H4-2.5L. Exact selected-part retailer tables name Legacy Base/Limited/Premium 2020–2025 and Sport 2020–2022; Outback Base/Limited/Premium/Touring 2020–2025 and Onyx Edition 2023–2025. The later Legacy Sport is turbocharged and is not inferred from the earlier Sport name. Four existing Outback ranges extend through the directly supported 2025 endpoint and five named groups are restored. No XT, turbo Wilderness, 2026-generation or other-platform fitment is inferred. Some retailer descriptions incorrectly call the R filter Pro 10R or describe a 9-inch filter, 5.5-inch flange and T-bolt hardware; those descriptions do not override the exact manufacturer manual and selected-media specifications.

Verify 56-70051D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

Reuse the original PCV hose and its clamp, original scoop and both scoop clips, two original housing screws and both metal sleeves/rubber isolators. Transfer the isolators with their thicker sides facing the housing bottom. If the housing locating isolator pulls off the vehicle bracket with the factory airbox, remove it and reseat it on that bracket. The new housing mounting pin must pass completely through that isolator. The B2 tube uses the supplied push clip, not a claimed reused factory clip. No MAF extension, screw-access plugs, new scoop, damping nut, ECM bracket, replacement PCV hose or NPT fitting is listed. A current accessory widget names another bellows and a size-52 clamp; the exact supplied-kit manual specifies the bellows above with two #048 and two #044 clamps. The filter clamp is illustrated without a separate BOM service code. Service supplies are separate.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 56-70051D
• Exact illustrated installation manual
• Selected-media bench-flow comparison
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

Frequently Asked Questions

One 21-90101 Pro DRY S filter; the alternate-media manual row is not another supplied filter.

No. D uses three-layer oil-free synthetic media; R uses five-layer pre-oiled cotton gauze.

The 3-inch-ID hump uses two #044 clamps. The 3.25-inch-ID bellows joins the two tubes with two #048 clamps.

No. Transfer the original sensor with the supplied M4 x 8mm screws and reuse the original PCV hose and clamp.

The B2 chamber tube uses the supplied 03-50773 push clip.

Reseat it on the vehicle bracket and insert the new housing mounting pin completely through it.

No. The named naturally aspirated Sport row is 2020–2022; no later turbo or 2026-generation application is inferred.

No numeric torque is specified. Recheck bolts, clamps and connectors after 100–200 miles.

Installation Instructions

Verify aFe 56-70051D. Work on a cool engine. Remove the original scoop and retain its two clips. Disconnect the MAF and release the harness clip; loosen the factory airbox clamp and disconnect the tube, unclip the housing and remove its rear section and filter. Remove and retain both housing screws. Detach the airbox from its locating isolator and return that isolator to the vehicle bracket if it comes out with the airbox. Remove the factory tube clip, loosen the throttle-body clamp, disconnect the original PCV hose and remove the tube. Transfer both metal sleeves and rubber isolators to the new housing with thicker sides facing down. Install the housing first, seating its mounting pin all the way through the bracket isolator, and secure it with the two original screws. Seat the filter and its clamp in the housing without tightening. Fit the hump at the throttle body with a #044 clamp and tighten that first clamp; leave the second #044 loose. Transfer the MAF to the B1 tube with the two M4 x 8mm screws and T20. Insert the B2 tube into the hump first, restore the original PCV hose and clamp, secure B2 with the supplied push clip and tighten the hump connection. Fit the bellows to B2 with a #048 clamp and tighten that first clamp; leave its second #048 loose. Insert B1 into the bellows, then into the filter, align everything and tighten the remaining clamps. Fit the removable front auxiliary-inlet plug, reconnect the MAF and restore the original scoop using its two clips. Check all components and clearance. Recheck bolts, clamps and connectors after 100–200 miles. No numeric torque, battery-disconnection or engine-cover step is specified. The final illustration heading incorrectly refers to steps 34–35; its actual printed final steps are 30–32.

Important Disclosures

The exact linked family bench chart shows 325 CFM Pro DRY S, approximately 16% above stock 280 CFM at 7 inches H2O. The exact selected-media Dynojet image compares a December 1, 2022 baseline with a December 12 intake run, both SAE factor 0.99, on a 2022 Outback 2.5L naturally aspirated test vehicle. Both run notes state OE exhaust, OE wheels/tires, third gear and a 2,000-rpm start. At the marked 4,400 rpm, 127.32 versus 120.14 hp differs by 7.18 hp; 151.98 versus 143.42 lb-ft differs by 8.56 lb-ft. Neither exact image provides a separate maximum-value legend, so independent peak gains are not invented. Different-date point comparisons are not guaranteed gains or calibration compatibility for every vehicle. No fan, fuel or ambient-condition notes are borrowed from another chart. The exact manufacturer pages and manuals state this product is not CARB exempt and is unavailable for purchase in California or use on California-registered vehicles.
