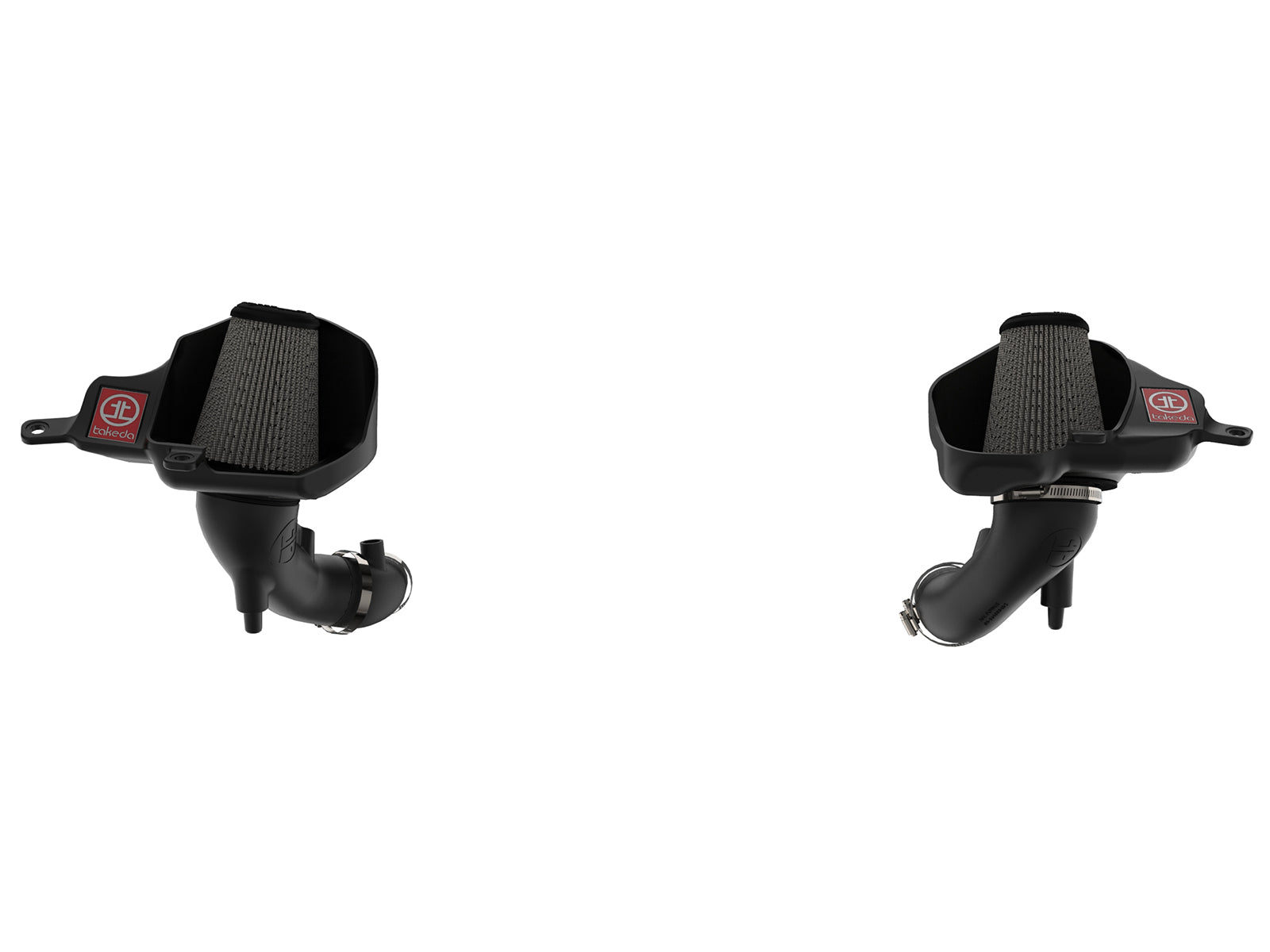

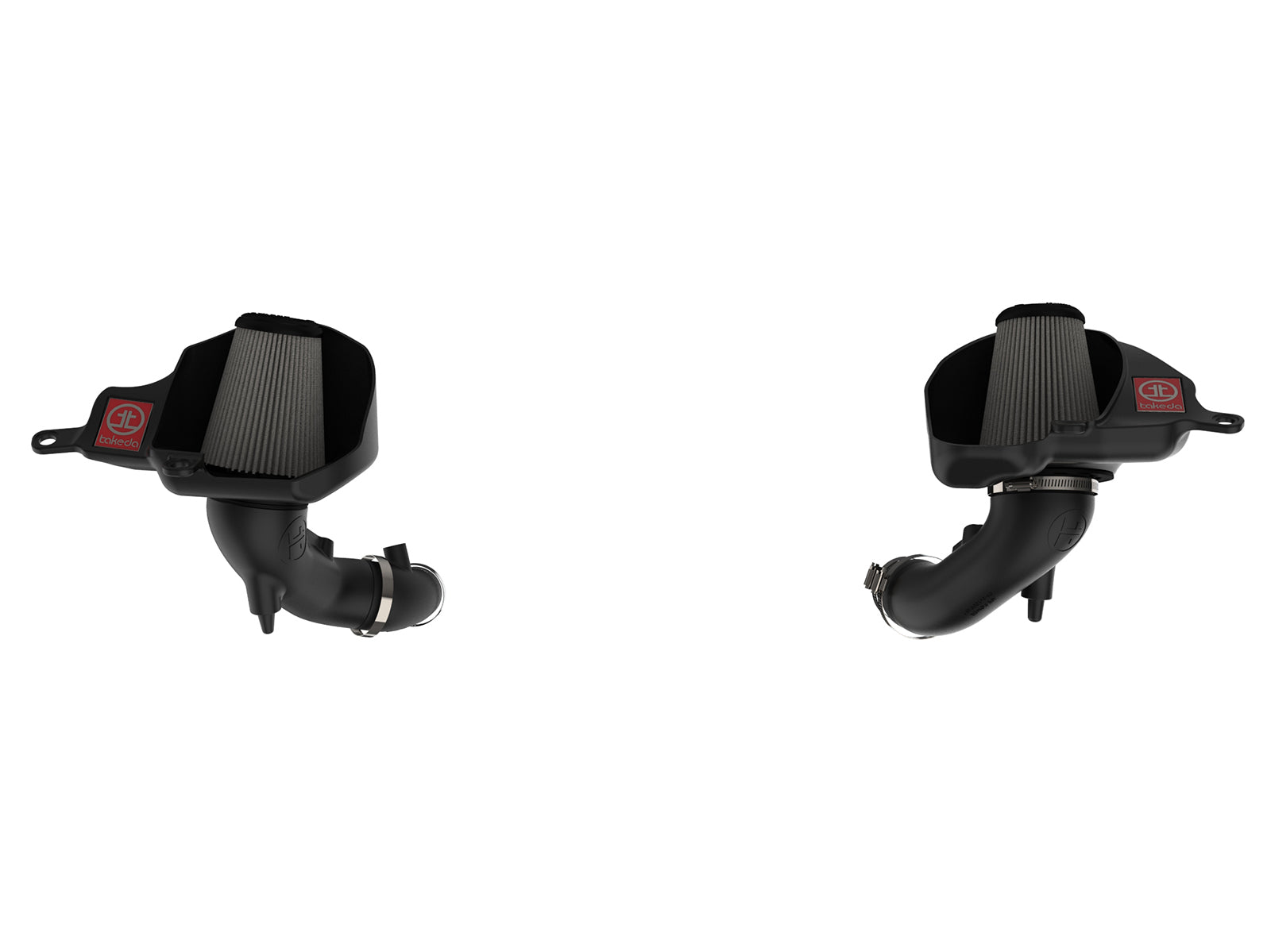

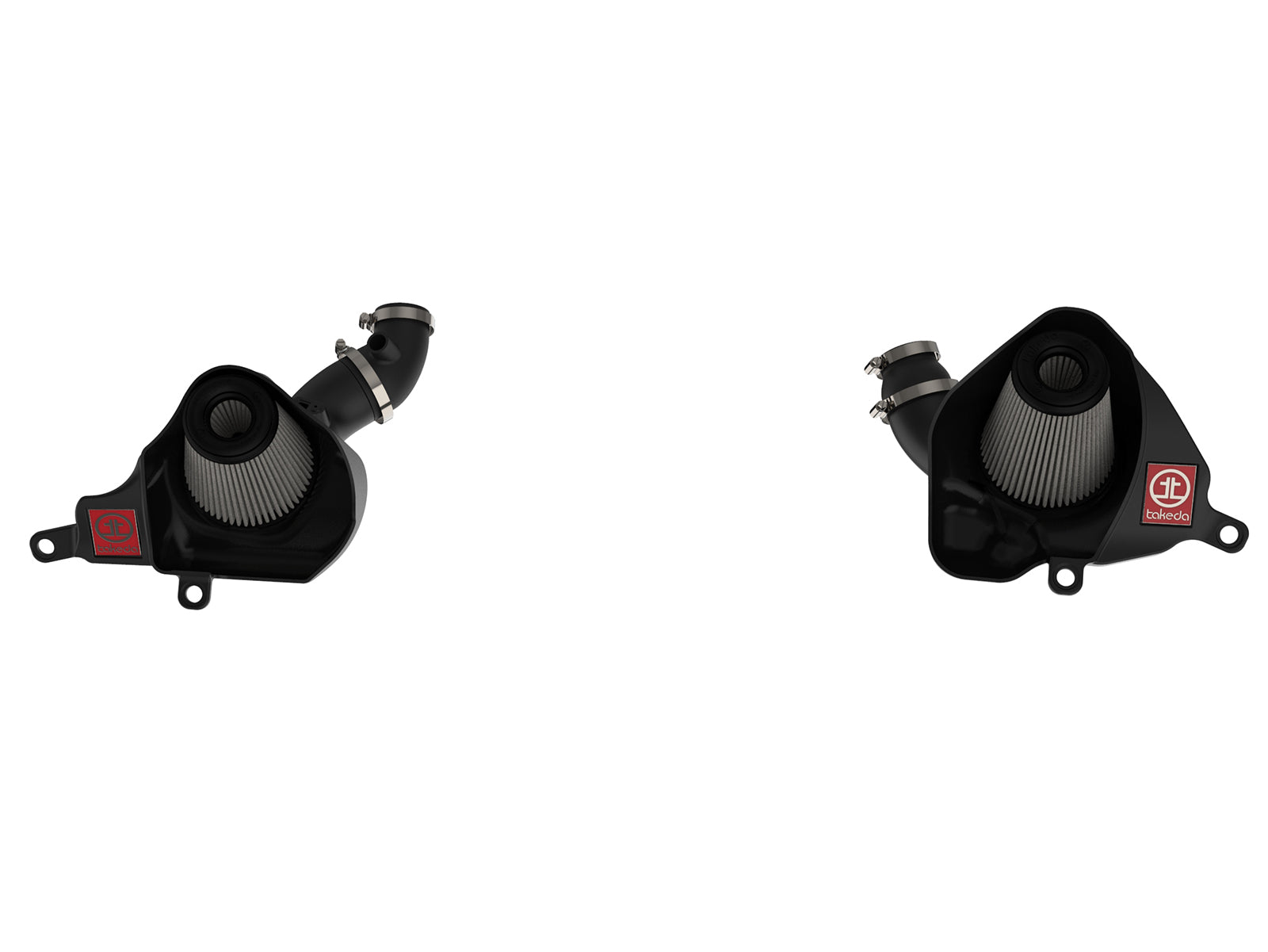

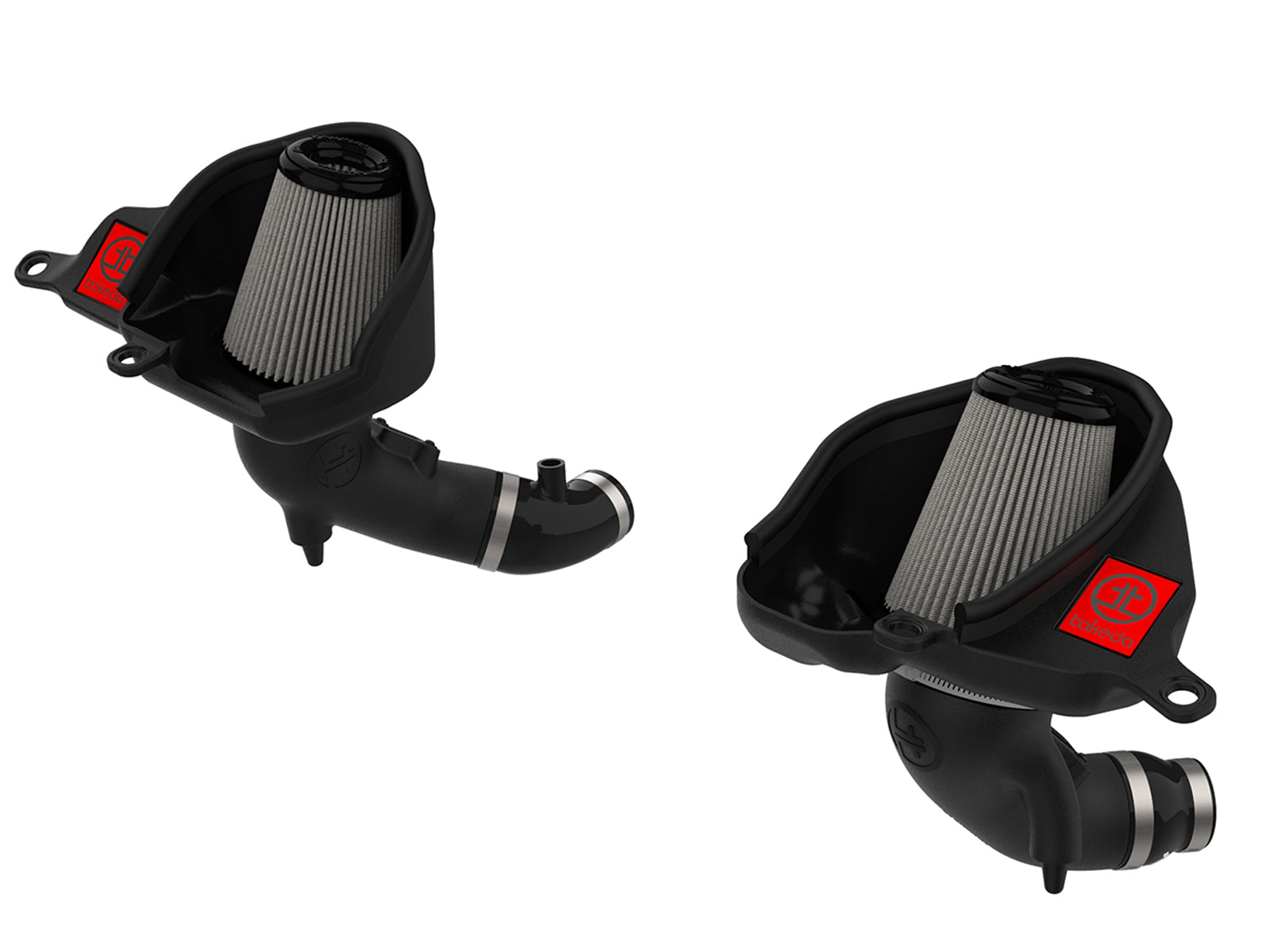

aFe 56-10004D is the Takeda Stage-2 intake for the Infiniti Q50/Q60 3.0L twin-turbo application. Two oil-free Pro DRY S filters use three synthetic-media layers and sit in separate open-element XLPE polymer housings. Two XLPE polymer tubes connect to the original turbo inlets; this is not a metal-tube system or a sealed Momentum airbox.
The current exact manufacturer page groups Q50/Q60 2016–2024 3.0L twin-turbo, while its actual shared 16-page manual specifies Q50 2016–2023 and Q60 2017–2022. The table below uses exact selected-part retailer named-trim records within the manufacturer family: Q50 through 2024 and Q60 only through 2022. Legacy Red Sport aliases are consolidated under the actual Red Sport 400 name. Signature Edition is limited to the corroborated 2021 row here; conflicting 2019/2020 retailer records do not establish additional scope. No hybrid, 2.0L, 3.7L, later Q60 or foreign-market trim coverage is inferred from a generic year headline.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2016-2017 | Infiniti | Q50 | Premium |
| 2020-2021 | Infiniti | Q50 | Pure |
| 2016-2024 | Infiniti | Q50 | Red Sport 400 |
| 2016-2020 | Infiniti | Q50 | Sport |
| 2018-2024 | Infiniti | Q50 | Luxe |
| 2021-2024 | Infiniti | Q50 | Sensory |
| 2021 | Infiniti | Q50 | Signature Edition |
| 2020 | Infiniti | Q50 | Edition 30 |
| 2017 | Infiniti | Q60 | Premium |
| 2019-2022 | Infiniti | Q60 | Pure |
| 2017-2022 | Infiniti | Q60 | Red Sport 400 |
| 2018-2022 | Infiniti | Q60 | Luxe |
| 2017-2018 | Infiniti | Q60 | Sport |
Verify 56-10004D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
| Brand | aFe POWER |
| Manufacturer Part Number | 56-10004D |
| Product type | Takeda Stage-2 open-element cold air intake |
| Selected filters | Two TF-9029D Pro DRY S; three-layer oil-free synthetic |
| Tubes | Two XLPE polymer tubes, 05-5610004B1 and B2 |
| Housings | Two open-element XLPE polymer housings, 05-5610004B3 and B4 |
| Reducers | 05-01488: 2.75 x 2.25-inch ID, 55 degrees; 05-01489: same IDs, 2.5 inches long |
| Listed connection clamps | Two #032 and two #044; secure the filter flange as illustrated |
| Original parts reused | Both MAF sensors, crankcase fitting/spring clamp, housing bolts, sleeved grommets, front scoop and eight push clips |
| Follow-up | Check bolts, clamps and connectors after 100–200 miles; no numeric torque specified |
| Manufacturer bench-flow claim | 590 CFM and 31% versus stock 450 CFM at 7 inches H2O; see chart-label qualification |

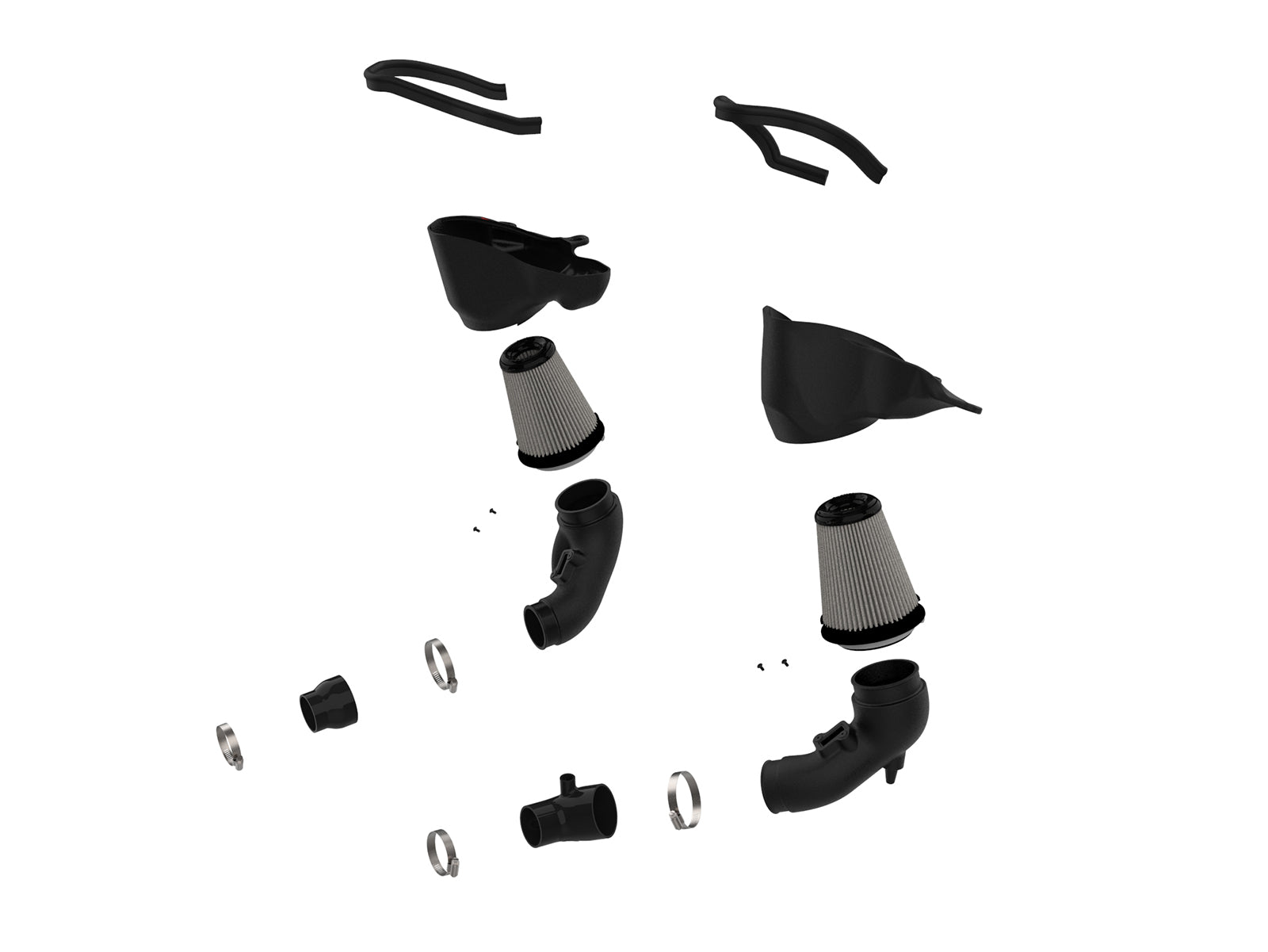

| Quantity | Manufacturer service part | Component |
|---|---|---|
| 2 | TF-9029D | Selected Pro DRY S filters; shared manual alternate media is not an additional pair |
| 1 each | 05-5610004B1 / 05-5610004B2 | XLPE intake tubes; see conflicting side labels in manual |
| 1 each | 05-5610004B3 / 05-5610004B4 | XLPE open-element housings |
| 1 | 05-01488 | 55-degree silicone reducer with crankcase connection |
| 1 | 05-01489 | Straight silicone reducer, 2.5 inches long |
| 2 | 03-50016, #032 | Listed smaller connection clamps |
| 2 | 03-50019, #044 | Listed larger connection clamps |
| 4 | 03-50491 | M4 Torx screws for original MAF sensors |
| 1 each | 05-01507 / 03-01507 | Two 22-inch bulb trim seals as printed in BOM |
Only the selected filter-media pair is included. Both original MAF sensors and the original crankcase fitting/spring clamp transfer; no new sensors are supplied. The manual BOM calls B1 passenger/B2 driver, but the installation text reverses those tube-side codes. Housing side wording is also inconsistent in the repeated steps. Match the actual illustrated geometry, crankcase-port elbow and sensor position rather than relying on the conflicting side labels. The two trim-seal prefixes are reproduced as printed, not certified as interchangeable service numbers.
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Two TF-9029D Pro DRY S filters, one for each intake path. The alternate pair in the shared manual is not also included.
Does this filter media require oil?No. Pro DRY S uses three synthetic layers and is serviced without filter oil.
Are the tubes and housings aluminum?No. The current manufacturer specifies XLPE polymer for both tubes and both open-element housings.
Do both original MAF sensors transfer?Yes, using the four supplied M4 Torx screws. Preserve each sensor’s original side and reconnect both harnesses.
Is the original front scoop retained?Yes. Remove it for access, then reinstall it using the original eight push clips.
Can I use the printed tube-side part labels alone?No. The BOM and procedure reverse B1/B2 side labels. Confirm actual geometry, sensor position and the crankcase-port elbow against the illustrations.
Are the advertised gains peak-to-peak increases?No. The marked curve differences and separate peak values differ. See the selected-media dyno conditions and comparisons above.
What torque and follow-up check are specified?The manual gives no numeric torque. It requires verifying all attachments and checking bolts, clamps and connectors after 100–200 miles.
Verify aFe 56-10004D. Work with the engine cool and retain factory parts. Remove eight push clips and lift off the original front scoop. Release each factory housing’s two bolts, clips and front half; disconnect both MAF plugs and harness retainers. Loosen turbo-inlet clamps, preserve the original crankcase fitting and spring clamp and remove the remaining factory assemblies. Transfer each MAF to its corresponding new tube with supplied M4 screws without interchanging sides. Fit the elbow with crankcase port on the illustrated side and reuse the original fitting/clamp. Position tube pegs fully in factory grommets before tightening; the port-side procedure tightens the turbo-inlet clamp before the tube clamp. Install the straight reducer on the other side, align and reconnect both MAF plugs. Transfer original sleeved housing grommets, apply trim seals, snap each filter into its housing, seat the housings next to the fenders and attach with original bolts. Secure filter-flange connections. Reinstall the original scoop and eight clips. Verify all attachments and recheck after 100–200 miles. No numeric torque is provided; the BOM and procedure reverse some side codes, so use the illustrated geometry.
The current manufacturer Pro DRY S page advertises 590 CFM, 31% more flow and up to 8 hp/11 lb-ft. The actual shared flow chart shows 450 CFM stock, 590 CFM Pro DRY S and 610 CFM labeled Pro 10R at 7 inches H2O; that Pro 10R label conflicts with this five-layer Pro 5R listing and does not change the supplied filter identity. The actual selected-media Dynojet comparison uses a 2019 Q50 3.0 twin-turbo with factory exhaust and fourth-gear automatic: baseline April 16, 2019 versus dry-filter test April 30, both SAE 1.00. Marked readings at about 3,967 rpm differ by 8.12 hp and 10.90 lb-ft; independent peak values differ by 0.16 hp and 1.15 lb-ft. These are configuration-specific curve comparisons, not guaranteed peak gains for every year or trim. Both current page and manual state this product is not CARB exempt and is unavailable for California purchase or use on a California-registered vehicle.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
