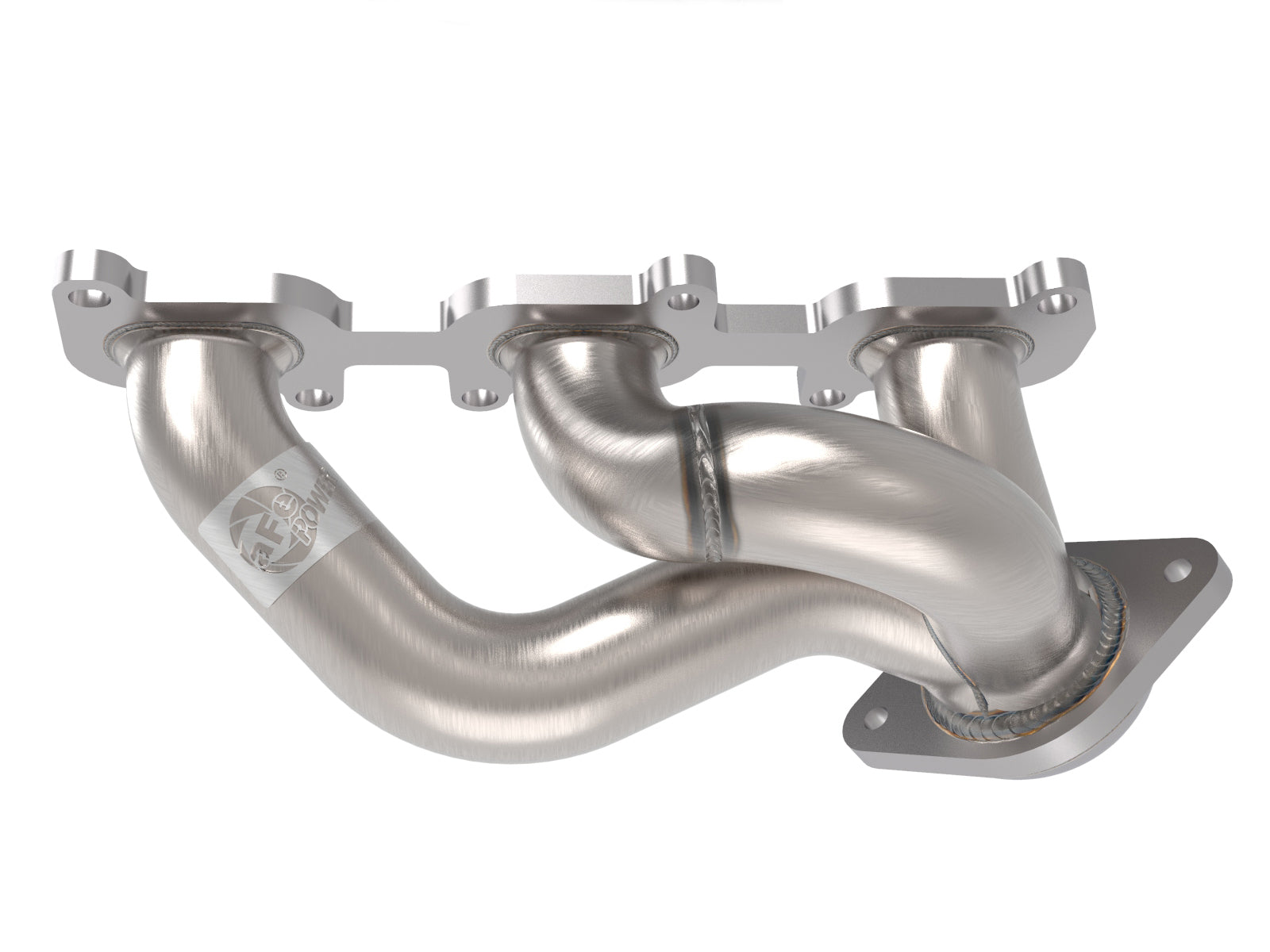

Twisted Steel raw shorty headers for Ford Mustang 3.7L V6
The aFe 48-43031 raw header pair uses 1-5/8-inch mandrel-bent 409 stainless tubing, MIG welding, 3-to-1 mitered merge collectors and laser-cut/machined MILD STEEL flanges. Exact manufacturer and complete selected guide list gas V6 3.7L Mustang 2011–2017. Supplied gaskets go on original head studs and supplied lower outlet hardware reconnects original connection pipes; no cutting or modification is specified. Confirm final original heatshield arrangement with aFe before work because the guide omits its disposition.
Key Features
- Selected aFe part 48-43031.
- 1-5/8-inch mandrel-bent 409 stainless tubing, MIG welding, 3-to-1 mitered merge collectors and mild steel flanges; raw finish, not the separate coated alternative.
- Selected DRIVER 05-244053 and PASSENGER 05-244052 assemblies, one each; T-suffixed rows are alternate finish identifiers, not four included headers.
- Two head gaskets 05-46489, four M8 nuts 05-46057 and four M8 x 50 mm bolts 03-50476.
- Place new supplied gaskets on original head studs, reuse original head nuts and tighten center outward; use supplied hardware at original connection pipes.
- Printed 40–45 ft-lb applies to BAND CLAMPS only, including the original exhaust/connection-pipe clamps addressed in the guide; no head-nut or supplied M8-bolt torque is printed.
- Not CARB exempt; manufacturer excludes California purchase and use on California DMV-registered vehicles.
Fitment
Current exact manufacturer application row and complete selected guide agree on Mustang 2011–2017 gas V6 3.7L. The full exact-MPN named table independently confirms Base 2011–2014 and actual V6 trim 2015–2017. Refine only the former blank 2015–2017 scope to V6; retain Base 2011–2014 and both year bounds. No GT, EcoBoost, later year or another engine is inferred.
| Years | Make | Model | Submodel | Required configuration / installation qualification |
|---|---|---|---|---|
| 2011-2014 | Ford | Mustang | Base | Gas V6 3.7L only. Confirm final original heatshield arrangement with aFe before work. |
| 2015-2017 | Ford | Mustang | V6 | Gas V6 3.7L only. Confirm final original heatshield arrangement with aFe before work. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 48-43031 |
| Product type | Headers & Manifolds |
| Construction | 1-5/8-inch 409 stainless mandrel-bent tubes, MIG welding, 3-to-1 mitered merge collectors and laser-cut/machined mild steel flanges. Current selected sources do not print tube gauge, flange thickness or outlet diameter. |
| Selected header identities | DRIVER 05-244053 and PASSENGER 05-244052, one each. Coated T-suffixed alternatives in the shared guide are not adopted for this raw selection. |
| Formal gaskets / hardware | Two head gaskets 05-46489, four M8 nuts 05-46057 and four M8 x 50 mm bolts 03-50476. Head installation uses new gaskets, original studs and original six nuts per side; supplied hardware is for original connection-pipe attachment. |
| Selected guide / heatshield gap | Two pages, all 18 steps, complete bill, diagram and installed photo; document 06-86729, January 2021. It removes original heatshield nuts and explicitly removes the driver shield for access but does not print final heatshield restoration/disposition. Obtain aFe confirmation of correct final shielding before work. |
| Torque / recheck | 40–45 ft-lb explicitly BAND CLAMPS only; do not apply it to head nuts or supplied M8 flange bolts. No numerical torque for those fasteners is printed. Align before final tightening; re-tighten all clamps/hardware after 50–100 miles. |
| Same-rpm dyno reference | 2015 Mustang 3.7L at 4959 rpm: red 227.68 versus blue 213.73 hp, +13.95 hp; red 241.15 versus blue 226.37 lb-ft, +14.78 lb-ft. Primary up-to 14 hp/15 lb-ft values approximate these same-rpm differences. |
| Separate peaks / conditions | Power peaks 258.44 hp at 6520 versus 251.21 at 6540, +7.23 hp at different rpm. Torque peaks 251.09 at 4000 versus 239.97 at 4040, +11.12 lb-ft at different rpm. Baseline November 5, 2020 12:25:52 PM SAE 1.02 versus header run November 13, 2020 7:31:03 AM SAE .99. Both factory AIS with aftermarket air filter, third gear automatic and silver/red fans; factory exhaust is printed for baseline only, not repeated in header-run notes. Smoothing 5. No both-stock, identical-exhaust or every-car guarantee. |
| UPC | 802959483558 |
What's Included

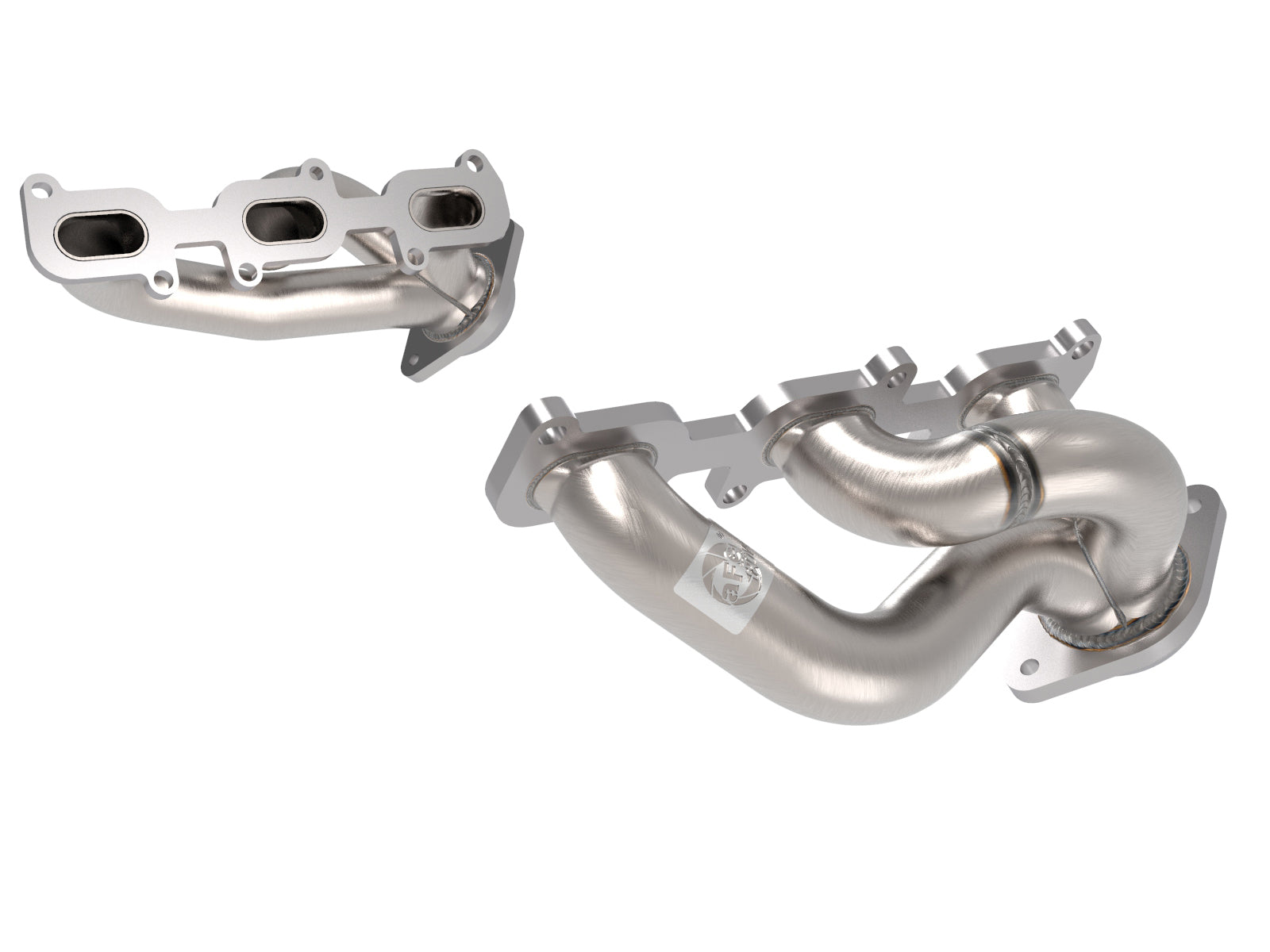

- The 48-43031 kit includes one RAW DRIVER header 05-244053 and one RAW PASSENGER header 05-244052.
- Two supplied head gaskets 05-46489, four M8 nuts 05-46057 and four M8 x 50 mm bolts 03-50476.
- Original head studs/nuts, connection pipes and exhaust hardware are retained as directed. No new catalysts, sensors, intake filter, coupler or band clamps are established as supplied.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Exact raw header selection and current 3.7L scope
- Complete selected 18-step guide, raw/coated bill and gasket procedure
- Exact manufacturer-linked 2015 Mustang dyno chart
- Full exact-MPN Base and V6 named fitment table
- Shop headers and manifolds
- Shop aFe Power
FAQ
What is the 48-43031?It is the selected raw 409 stainless shorty-header pair with two head gaskets and lower outlet hardware for listed Mustang 2011–2017 gas V6 3.7L configurations.
Does V6 in the fitment table mean a real trim?The exact selected named table lists Base 2011–2014 and V6 2015–2017. The former blank later scope is refined to that named V6 trim. Every row still requires the 3.7L gas engine; no GT or EcoBoost mapping is added.
Are coated headers also included?No. The shared guide lists raw and T-suffixed coated alternatives. This selection is one raw driver header and one raw passenger header, not both finish pairs.
Are head gaskets supplied or reused?Two new head gaskets are explicitly supplied and placed on the original cylinder-head studs in step 11. Reuse original head nuts; supplied M8 nuts/bolts reconnect original connection pipes.
Does 40–45 ft-lb apply to the head nuts?No. The selected numerical figure is explicitly for band clamps only. Tighten original head nuts center outward to exact applicable service requirements; no numerical head or supplied M8-bolt torque is printed.
What must be clarified about heatshields?The guide removes heatshield nuts and the driver heatshield for access, but contains no final restoration/disposition step. Confirm the correct final arrangement with aFe before work; no other header’s shielding procedure is substituted.
Does the chart show a 14 hp peak gain?No. It shows +13.95 hp/+14.78 lb-ft at 4959 rpm. Separate peak differences are +7.23 hp/+11.12 lb-ft at different rpm, with different dates and SAE factors. Both runs use an aftermarket air filter; the header run does not repeat baseline exhaust notes.
What is the specified recheck interval?Re-tighten all clamps and hardware after 50–100 miles. Align original pipes and safe clearances before final tightening, then check/repair leaks after complete correct reassembly.
Installation Instructions
- Confirm aFe 48-43031 against the exact vehicle and installed equipment. Inventory the actual components and follow the selected manufacturer instructions and current vehicle service requirements.
- Confirm exact 2011–2017 gas V6 3.7L application, selected raw finish and emissions eligibility. Read all 18 selected steps and confirm final original heatshield arrangement with aFe before work. Cool and safely support vehicle/exhaust; leave attachments loose until complete for alignment.
- Disconnect the negative battery terminal. Loosen the two original exhaust-to-connection-pipe band clamps, remove original heatshield nuts and the driver heatshield for access, release two original connection-pipe nuts per side and support the connection pipes.
- Remove six original driver head nuts and lift the original manifold/gasket out through the hood; repeat the manifold-removal process for the passenger side. Place the supplied gaskets on original head studs and install selected raw headers with original head nuts, tightening center outward to exact applicable service requirements.
- Restore original connection pipes with supplied M8 hardware. Confirm correct final original shielding separately; no restoration step is printed. No sensor removal, steering-shaft separation, spark-plug removal or engine-cover procedure is borrowed from another header.
- Align safe clearance from wires, hoses, brake lines, body and tires, then evenly tighten from the front. Apply the printed 40–45 ft-lb only to appropriate band clamps, not head nuts or supplied M8 flange hardware.
- Reconnect battery after complete correct reassembly, start/check/repair leaks, safely lower and re-tighten all clamps/hardware after 50–100 miles. No numerical torque for other fasteners or fixed clearance is invented.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
