aFe Ram TRX 2021-2024 Vulcan Black-Tip Cat-Back

Ram TRX Vulcan cat-back details

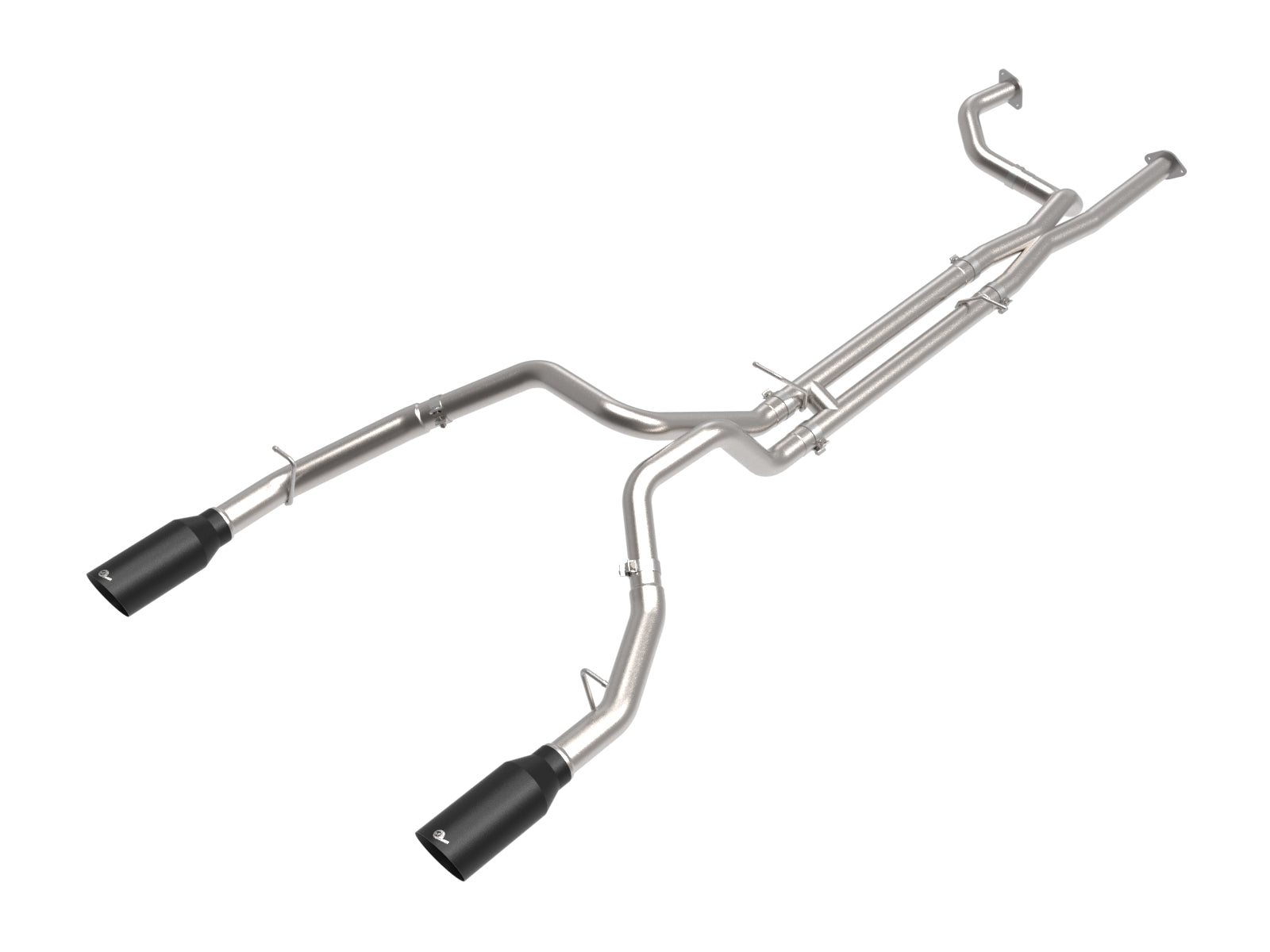

aFe 49-32084-B Vulcan uses 3-inch mandrel-bent 304 stainless tubing increasing to 3.5-inch tailpipes, with an X-pipe and H-style crossover balance tube replacing the mufflers. MIG-welded construction and dual 6-inch ceramic-coated matte-black stainless tips complete the system.

Key Features

• 3-inch tubing increasing to 3.5-inch tailpipes; 304 stainless.
• 100% MIG-welded construction.
• SEVEN pipe assemblies; no mufflers supplied.
• X-pipe and H-style crossover balance tube.
• Dual 6-inch ceramic-coated matte-black 304 stainless tips.
• SEVEN 3-inch bands; FOUR M10 x 1.25 x 35 bolt/nut pairs.
• Original converter gaskets reused; no-cut removal requires spare tire/heat shield removal.

Fitment

2021-2024 Ram 1500 TRX with supercharged 6.2L V8, per current exact manufacturer. Own September 2026 manual still prints 2021-2022, so later 2023-2024 coverage is qualified by current primary. Original TRX 2021-2024 row and native memberships are retained. Confirm actual TRX engine, original converter flanges, hangers and spare/heat-shield clearances; no non-TRX Ram, RHO or other engine fitment is inferred.

Verify 49-32084-B against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

• 1 x 05-245186: Front pipe.
• 1 x 05-245192: X-pipe.
• 1 x 05-245187: H-pipe.
• 1 x 05-245189: RIGHT over-axle.
• 1 x 05-245188: LEFT over-axle.
• 1 x 05-245191B: RIGHT black-tip tailpipe.
• 1 x 05-245190B: LEFT black-tip tailpipe.
• 7 x 05-41055: 3-inch band clamp.
• 4 x 03-50400: M10 x 1.25 nut.
• 4 x 03-50401: M10 x 1.25 x 35 mm bolt.

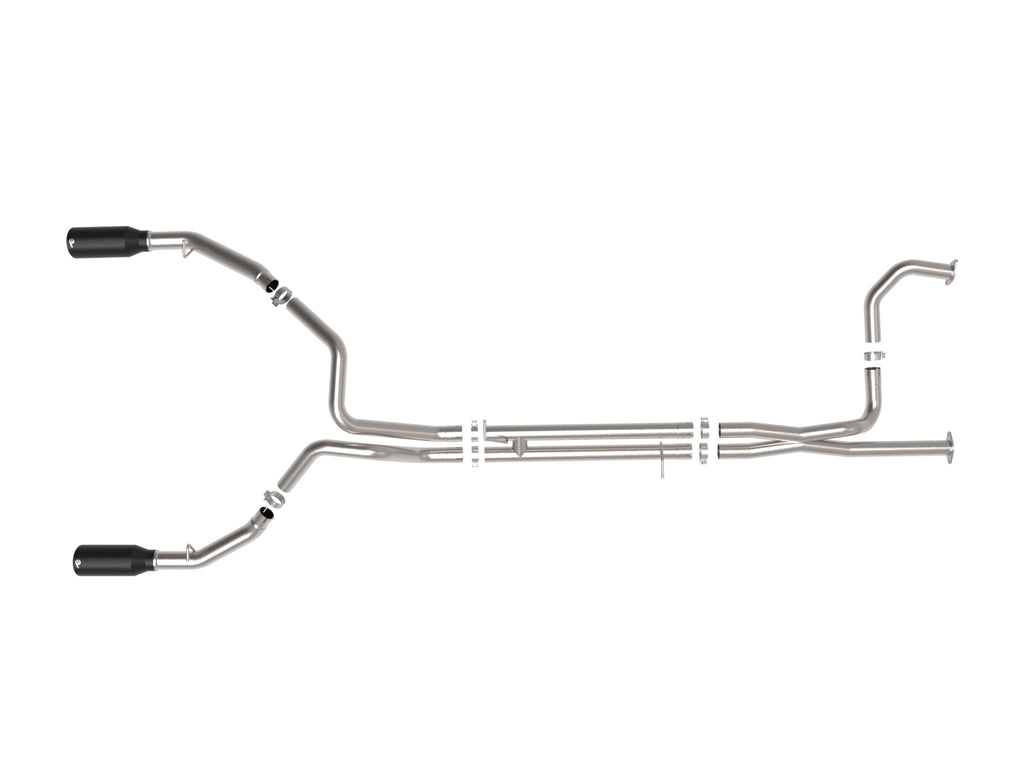

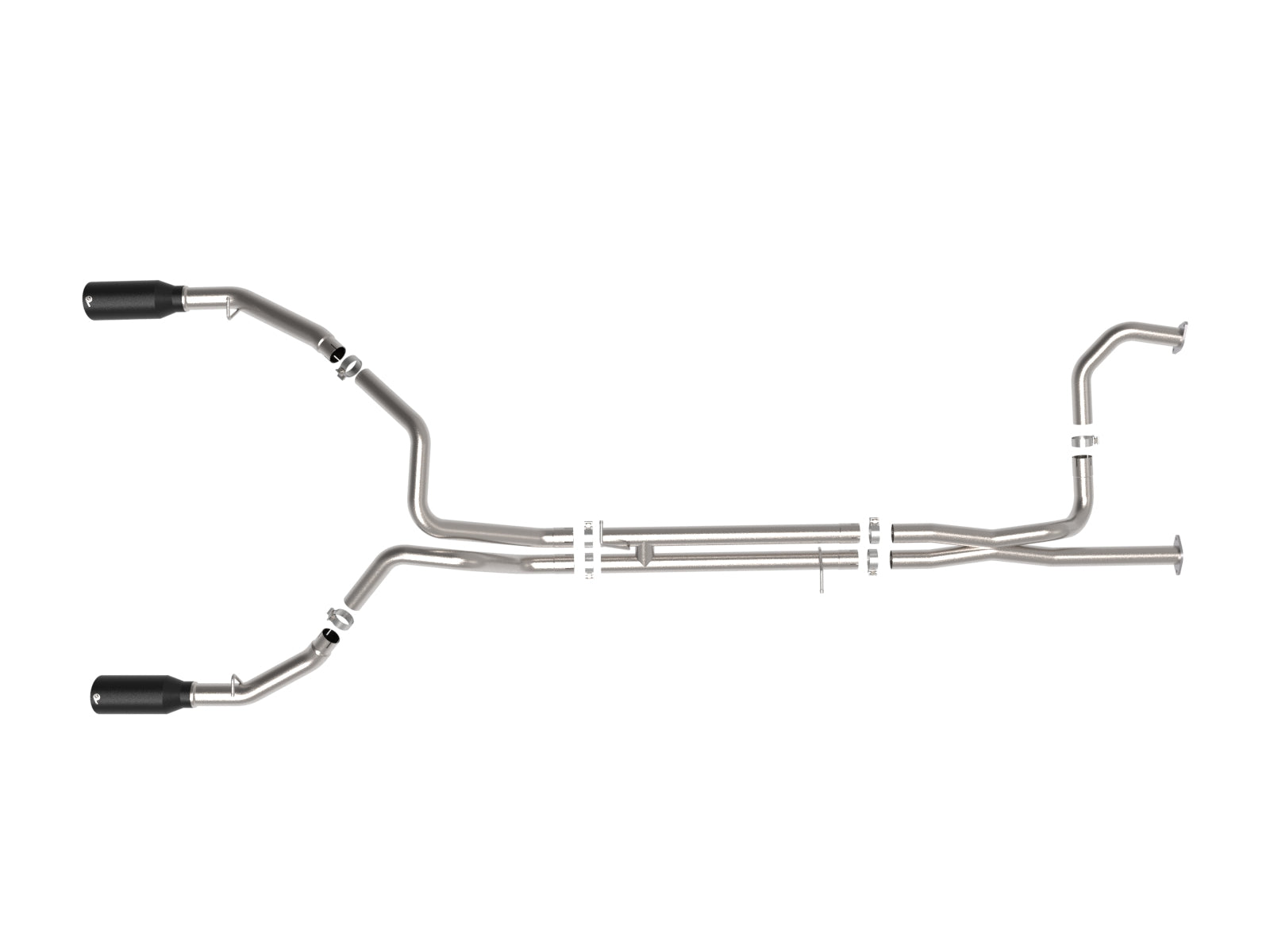

SEVEN pipe assemblies: front 05-245186, X-pipe 05-245192, H-pipe 05-245187, RIGHT over-axle 05-245189, LEFT over-axle 05-245188, RIGHT black-tip tailpipe 05-245191B and LEFT black-tip tailpipe 05-245190B. SEVEN 3-inch band clamps 05-41055, FOUR M10 x 1.25 nuts 03-50400 and FOUR M10 x 1.25 x 35 mm bolts 03-50401. Reuse ORIGINAL catalytic-converter flange gaskets and rubber isolators. Dual 6-inch ceramic-coated matte-black 304 stainless tips are part of selected tailpipe assemblies; no separate tip clamp package is itemized. No mufflers, replacement converters, new gaskets, valve motor, wiring or intake filter/coupler is supplied.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 49-32084-B
• Exact illustrated installation manual
• Manufacturer-linked dyno comparison and run configuration
• Shop the complete aFe Power collection

FAQ

SEVEN pipe assemblies: front 05-245186, X-pipe 05-245192, H-pipe 05-245187, RIGHT over-axle 05-245189, LEFT over-axle 05-245188, RIGHT black-tip tailpipe 05-245191B and LEFT black-tip tailpipe 05-245190B. SEVEN 3-inch band clamps 05-41055, FOUR M10 x 1.25 nuts 03-50400 and FOUR M10 x 1.25 x 35 mm bolts 03-50401. Reuse ORIGINAL catalytic-converter flange gaskets and rubber isolators. Dual 6-inch ceramic-coated matte-black 304 stainless tips are part of selected tailpipe assemblies; no separate tip clamp package is itemized. No mufflers, replacement converters, new gaskets, valve motor, wiring or intake filter/coupler is supplied.

2021-2024 Ram 1500 TRX with supercharged 6.2L V8, per current exact manufacturer. Own September 2026 manual still prints 2021-2022, so later 2023-2024 coverage is qualified by current primary. Original TRX 2021-2024 row and native memberships are retained. Confirm actual TRX engine, original converter flanges, hangers and spare/heat-shield clearances; no non-TRX Ram, RHO or other engine fitment is inferred.

Own step 5 says original exhaust can be removed WITHOUT CUTTING by removing SPARE TIRE AND HEAT SHIELD. Retain them and hardware; manual does not print later restoration, so restore retained vehicle equipment using original vehicle instructions and verify clearance before service.

No. This is a muffler-delete X/H crossover system. Reuse ORIGINAL converter gaskets and rubber isolators. No new converter, valve motor, wiring or extra gasket package is itemized.

SEVEN 3-inch band clamps, FOUR M10 x 1.25 nuts and FOUR M10 x 1.25 x 35 mm bolts. Selected black tips are part of LEFT/RIGHT tailpipe assemblies; no extra separate tip clamp package is itemized.

Align and tighten FRONT to REAR. Band clamps require 40-45 ft-lb. No separate converter-flange or spare/heat-shield fixing number is printed. Re-tighten all clamps/hardware after 50-100 miles.

Own manual supplies no battery-disconnection, sensor-wiring, valve-transfer, coding, drilling or installation welding step. Original converters remain and original flange gaskets are reused.

Linked chart compares a 2021 TRX 6.2L supercharged V8 baseline with cat-back. Marked differences at 2,695 rpm are 5.93 hp and 11.54 lb-ft; run MAX differences are 10.59 hp and 7.23 lb-ft. SAE correction and smoothing 5 are printed. Dates, weather, gear, fuel, intake, load, hood position and selected tip finish are unprinted. Advertised 11 hp/12 lb-ft does not establish both numbers as run MAX differences. No actual flow or measured cabin-drone chart is linked; crossover sound descriptions are not a drone-free guarantee.

Installation Instructions

Verify aFe 49-32084-B.

1. Read BOTH own September 2026 manual pages and all 21 steps/diagram. Inspect shipping condition, cool exhaust, wear eye/hand protection and support vehicle and exhaust independently at approved jack/stand points. Lay out pipes and leave joints loose until alignment.
2. To remove ORIGINAL exhaust WITHOUT CUTTING, own step 5 REQUIRES REMOVING SPARE TIRE AND HEAT SHIELD. Retain both and their hardware. Manual does not print a later restoration step; restore retained protective/vehicle equipment according to original vehicle instructions and verify clearances before returning vehicle to service.
3. Loosen clamps securing original tailpipes, remove tailpipes/tips, then loosen TWO clamps securing original mufflers to original X-pipe and remove mufflers. Remove FOUR original nuts at converter flanges and remove original X-pipe. Preserve ORIGINAL FLANGE GASKETS.
4. Slide first supplied 3-inch band onto new X-pipe and join new front pipe to X-pipe. Attach front-pipe/X-pipe combination to ORIGINAL catalytic converters using supplied FOUR M10 x 1.25 nuts, FOUR M10 x 1.25 x 35 mm bolts and ORIGINAL GASKETS. No new gasket is itemized.
5. Join H-pipe to X-pipe with supplied clamps and engage H-pipe hangers in ORIGINAL rubber isolators. Install LEFT and RIGHT over-axle pipes with supplied clamps, then selected LEFT and RIGHT black-tip tailpipe assemblies using remaining supplied clamps. Total supplied band count is SEVEN.
6. Align system and ensure safe clearance from wires, hoses, brake lines, body, tires and retained vehicle equipment. Tighten evenly FRONT to REAR. BAND CLAMPS require 40-45 FT-LB; no separate converter-flange or spare/heat-shield fixing torque is printed.
7. Start engine and inspect/repair leaks, lower vehicle and re-tighten all clamps/hardware after 50-100 miles. Current primary specifies no cutting/modifications, with original-system no-cut removal dependent on spare/heat-shield removal above. Own procedure supplies no battery-disconnection, sensor-wiring, valve-transfer, coding, drilling or installation welding step.

Linked chart compares a 2021 TRX 6.2L supercharged V8 baseline with cat-back. Marked differences at 2,695 rpm are 5.93 hp and 11.54 lb-ft; run MAX differences are 10.59 hp and 7.23 lb-ft. SAE correction and smoothing 5 are printed. Dates, weather, gear, fuel, intake, load, hood position and selected tip finish are unprinted. Advertised 11 hp/12 lb-ft does not establish both numbers as run MAX differences. No actual flow or measured cabin-drone chart is linked; crossover sound descriptions are not a drone-free guarantee. Current primary through 2024 is later than own manual 2022 endpoint. Original no-cut removal requires spare/heat-shield access; restoration is a retained-equipment requirement rather than an invented numbered manual step. No separate gasket or muffler is added to the bill.
