Air Lift LoadLifter 5000 Ultimate Rear Air Spring Kit with Cradles for 2021-2026 Ram 1500 TRX and RHO

Level Your Ram TRX or RHO for Towing and Hauling

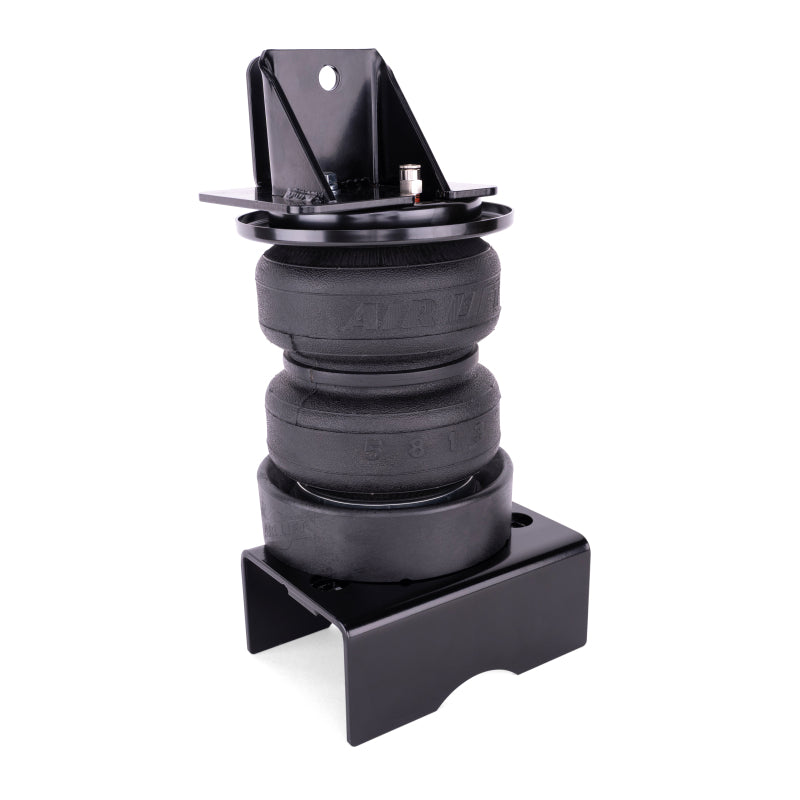

The Air Lift 88377 LoadLifter 5000 Ultimate rear air spring kit adds up to 5,000 pounds of load leveling support to a 2021-2024 Ram 1500 TRX or a 2025-2026 Ram 1500 RHO in 4WD form. Air Spring Cradles let each air spring separate from the lower bracket so the long travel rear suspension keeps its full extension off road, while the internal jounce bumper inside the bellows absorbs impacts and lets the springs be run safely at zero pressure. The springs adjust from 5 to 100 PSI through Schrader valves, so you can raise pressure for a loaded bed or a trailer tongue and drop it back down for an empty truck.

Key Features

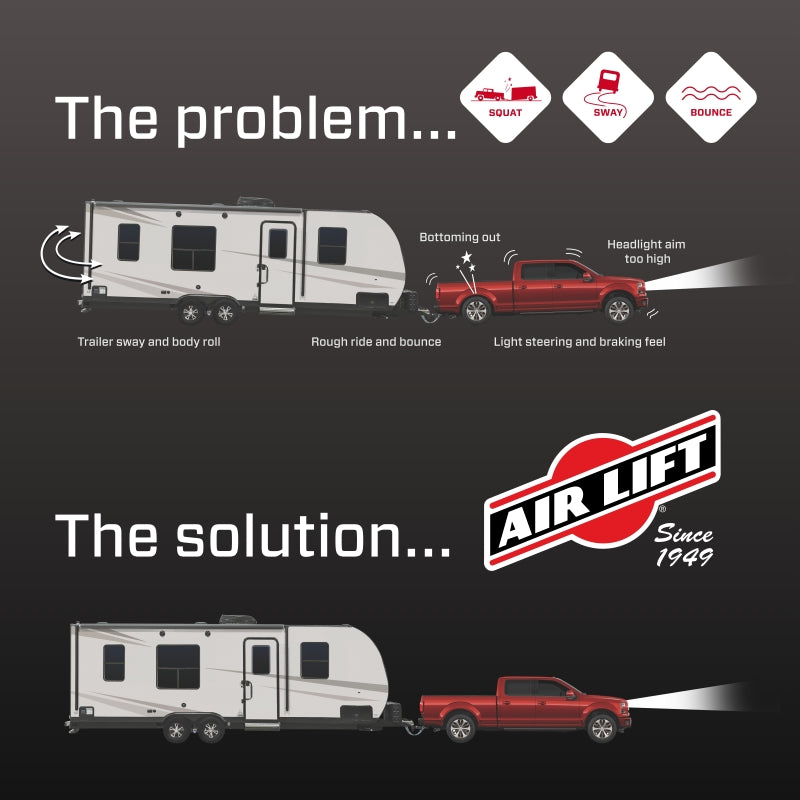

• Up to 5,000 pounds of rear load leveling support to reduce squat, trailer sway, and body roll

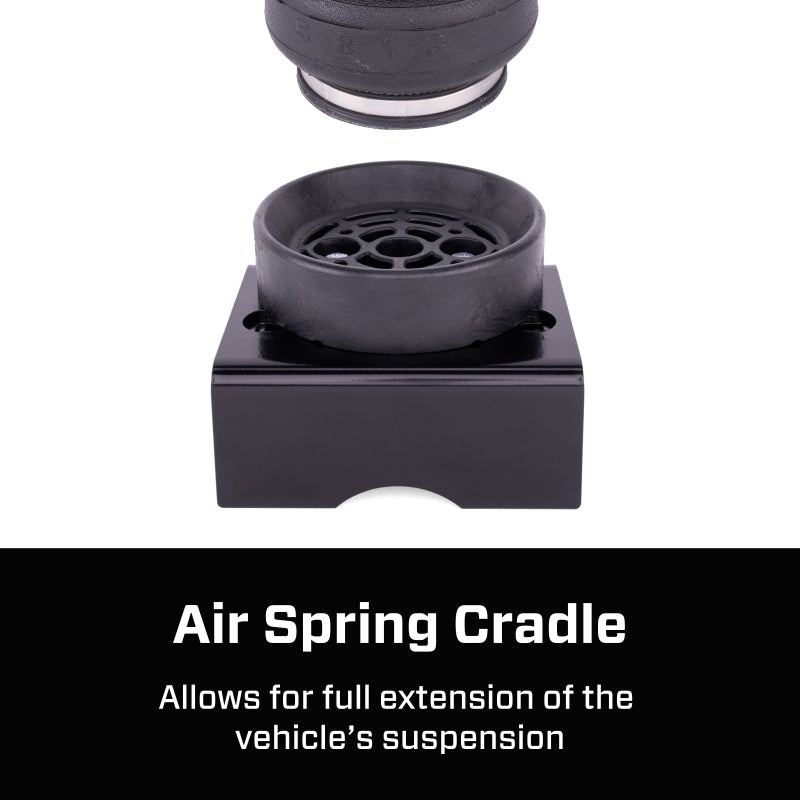

• Air Spring Cradles allow the air spring to detach from the lower bracket for full rear suspension extension

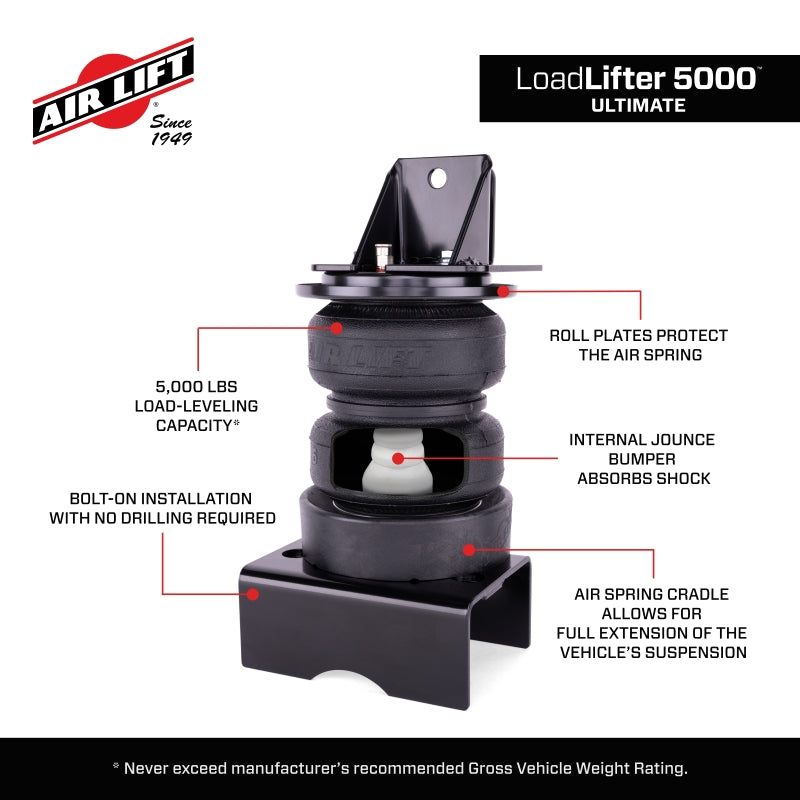

• Internal jounce bumper inside each bellows absorbs shock and allows safe operation at zero PSI
• Air adjustable from 5 to 100 PSI with manual Schrader valve inflation
• Underframe design installs without drilling the frame and works with most in bed hitches
• Heat shield and thermal sleeve protect the passenger side air line near the exhaust
• Air Lift limited lifetime air spring warranty and a 60 day ride satisfaction guarantee

Fitment

Specifications

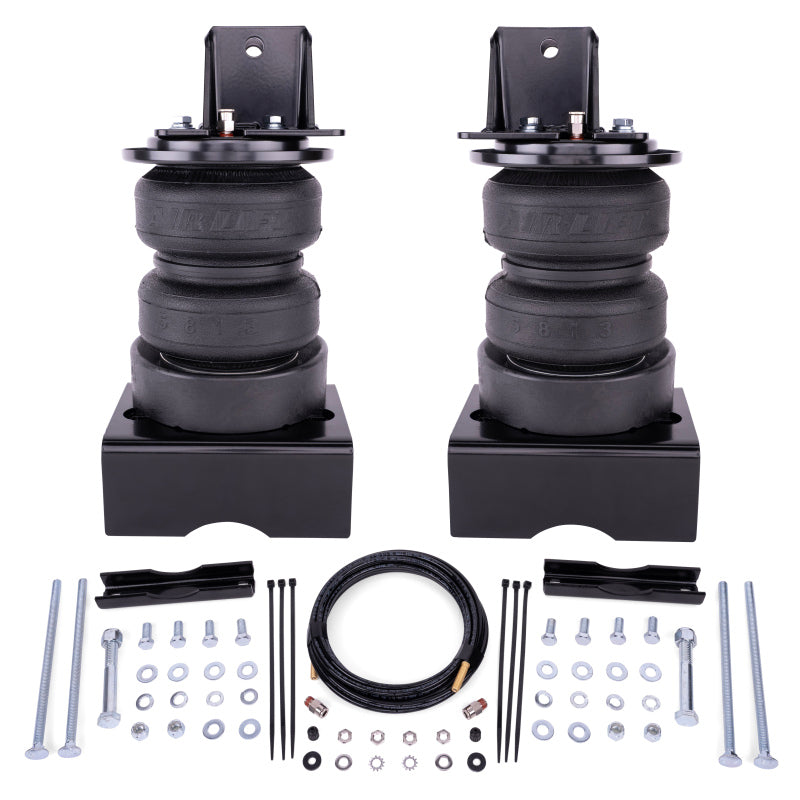

What's Included

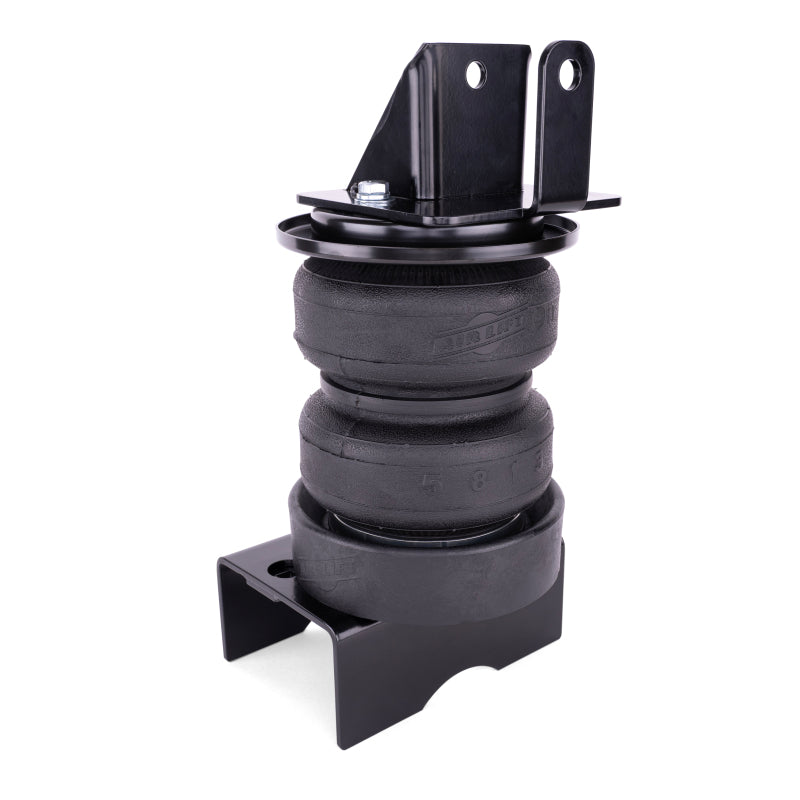

• 2 air springs with internal jounce bumper
• 1 air spring cradle kit with its mounting bolts, washers, and lock nuts
• 2 roll plates

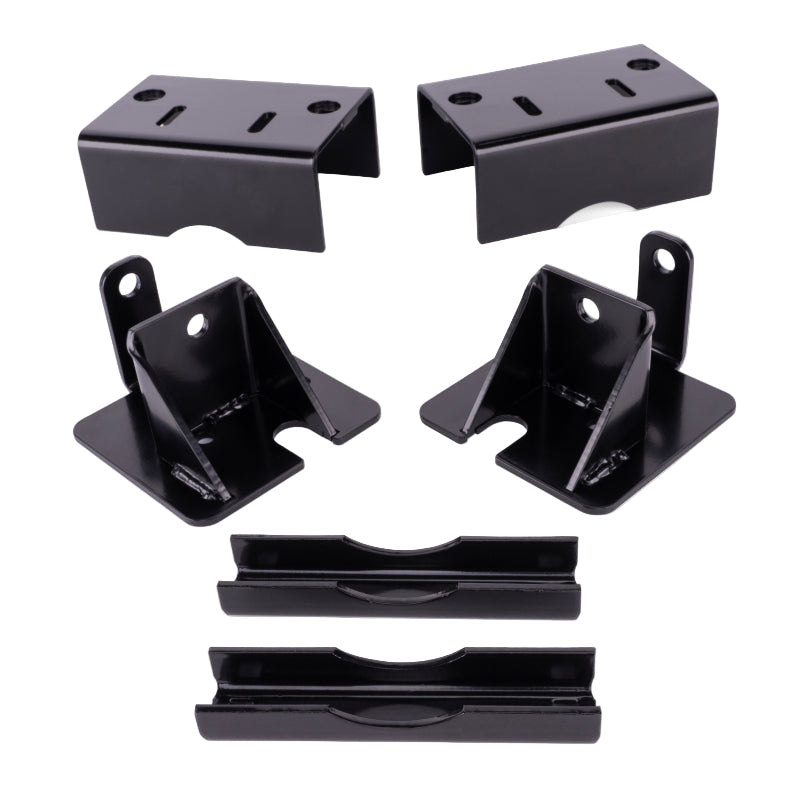

• 2 lower brackets and 2 clamp bars
• 1 left hand upper bracket and 1 right hand upper bracket
• 2 straight air fittings
• 1 air line assembly with 2 valve caps, 2 star washers, 2 rubber washers, and 4 hex nuts
• 1 heat shield kit and 1 thermal heat sleeve
• 4 carriage bolts, 4 hex cap screws for the air springs, 2 frame bolts, 6 nylon lock nuts, 8 flat washers, and 4 lock washers
• 6 zip ties
• 1 illustrated installation guide

About Air Lift

Air Lift Company builds air spring and air management products in Lansing, Michigan and has focused on load support for trucks, vans, and motorhomes since 1949. Every load support kit is engineered for a specific chassis, tested on the vehicle, and backed by factory technical support and a limited lifetime air spring warranty.

Related Parts

• Air Lift Loadlifter 5000 Ultimate Plus Stainless Steel Air Line Upgrade Kit
• Air Lift Wireless One (2nd Generation)
• Air Lift Load Controller II (Single Path, Standard Duty)

FAQ

Yes. The same rear kit covers the 2021-2024 Ram 1500 TRX and the 2025-2026 Ram 1500 RHO in 4WD form because both trucks share the wide track rear suspension and frame mounting points.

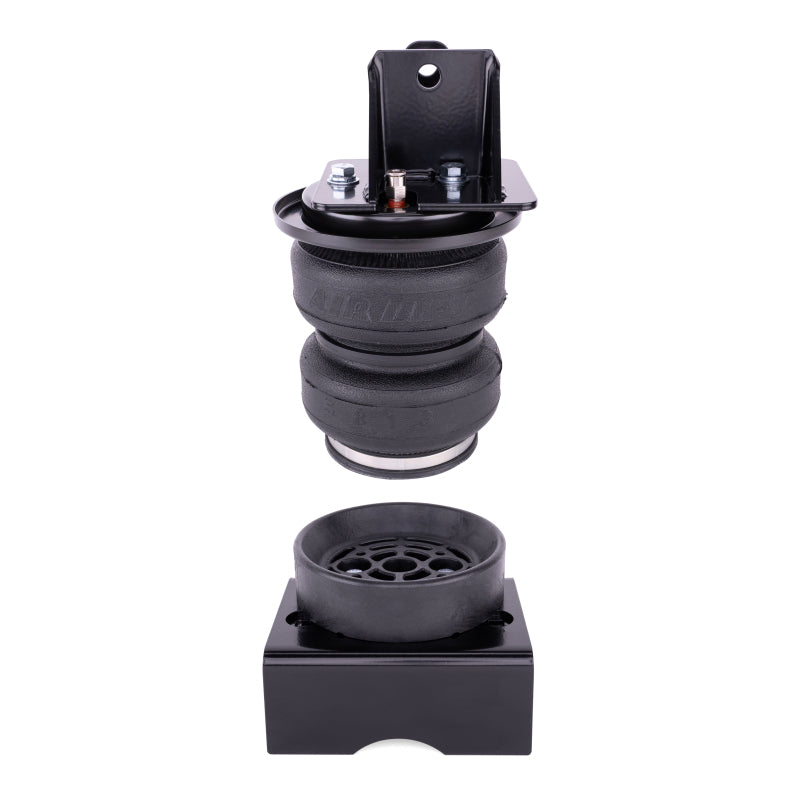

The cradles hold the base of each air spring instead of bolting it down. When the axle drops on rough ground or during unloading, the spring lifts out of the cradle so the long travel rear suspension can reach full extension without stretching the bellows.

Yes. The jounce bumper is built inside each bellows, so the kit can be run at zero pressure without damaging the spring. Air Lift asks for a minimum of 5 PSI in normal driving and at least 25 PSI once the truck is loaded or towing.

No frame drilling is needed. The brackets clamp under the frame and over the axle. A 5/16 inch hole is only drilled if you choose a mounting spot for the Schrader inflation valves that has no existing opening.

The kit mounts under the frame rails and is designed to work with most in bed hitch systems. Review the underframe bracket locations in the installation guide against your hitch mounts before ordering.

No. Air springs level the rear of the truck and restore steering, braking, and ride quality under load, but they do not raise the gross vehicle weight rating or payload set by the vehicle manufacturer.

Yes. The kit inflates manually through Schrader valves out of the box and can be upgraded later with an Air Lift onboard air system that controls pressure from the cab or a phone.

A heat shield kit clamps to the passenger side exhaust pipe and a thermal sleeve slides over the end of the air line. Air Lift also asks for at least 6 inches of clearance between the air lines and the exhaust system.

Most owners finish in an afternoon with a hoist or floor jack, safety stands, standard and metric sockets and wrenches, a torque wrench, and a hose cutter. A compressed air source is needed to inflate and leak test the springs.

The air springs carry the Air Lift limited lifetime warranty with no mileage restriction, and the kit is also covered by the 60 day ride satisfaction guarantee. Keep your receipt and complete the warranty registration after installation.

Installation Instructions

1. Raise the rear of the truck, support the frame on safety stands, and let the axle hang so the rear springs are fully extended
2. Assemble each lower bracket with its clamp bar carriage bolts, then bolt an air spring cradle onto each lower bracket and torque the cradle bolts to 16 lb ft
3. Set the driver side and passenger side lower assemblies over the axle with the cradles facing outward toward the tires and leave the clamp bars loose
4. Thread a straight air fitting into each air spring, add a roll plate and the correct upper bracket, and torque those bolts to 16 lb ft
5. Clamp the heat shield around the passenger side exhaust pipe in the location shown in the installation guide
6. Lift each air spring assembly into place, pass the frame bolt from inside the frame through the upper bracket, and start the lock nut
7. Lower the truck until each air spring centers in its cradle, then torque the clamp bar lock nuts to 16 lb ft
8. Route the air lines away from the exhaust with at least 6 inches of clearance, fit the thermal sleeve, and install the Schrader valves in your chosen locations
9. Lower the truck fully, inflate to 10 PSI, and torque both upper bracket bolts to 49 lb ft
10. Inflate to 40-60 PSI and check for at least 1/2 inch of clearance around each spring, then leak test every connection with soapy water
11. Recheck all fastener torque after 500 miles and check air pressure weekly
