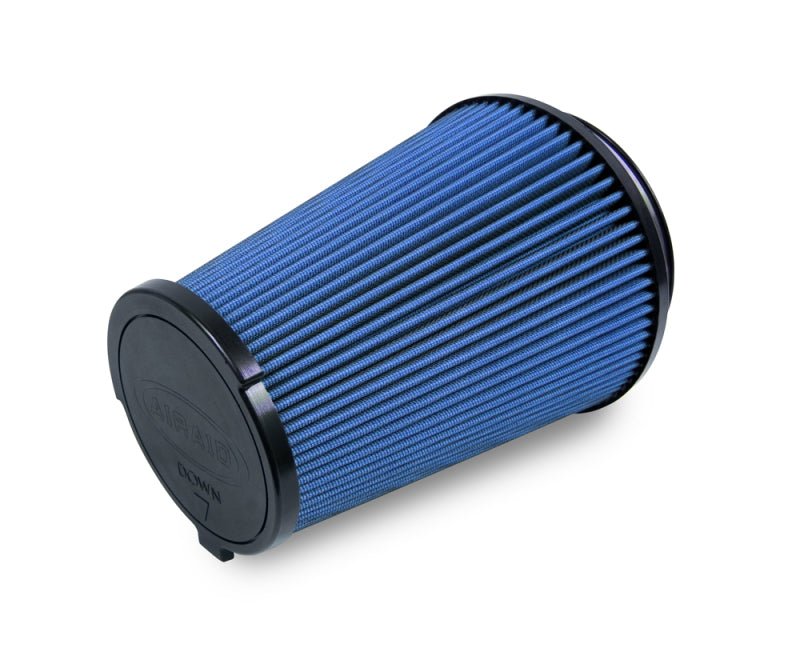

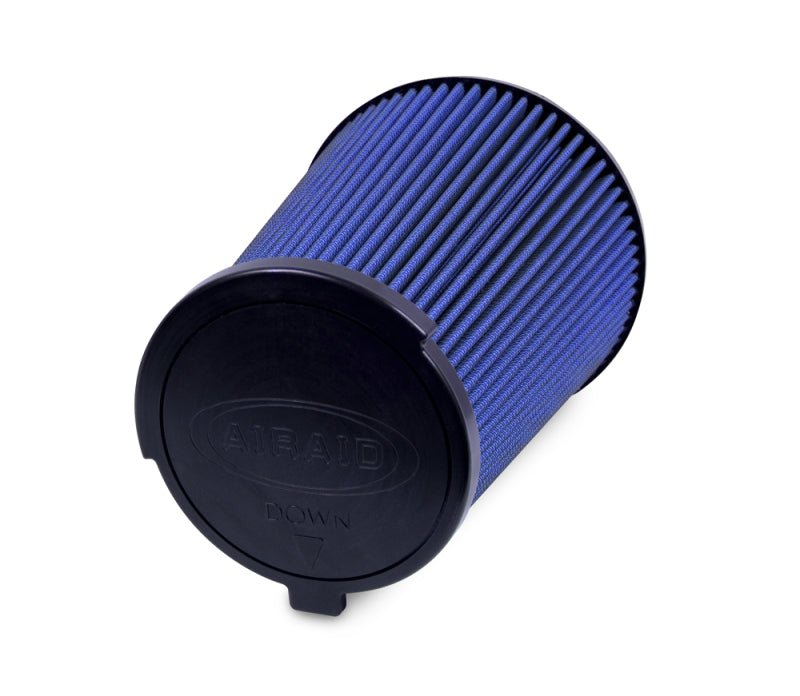

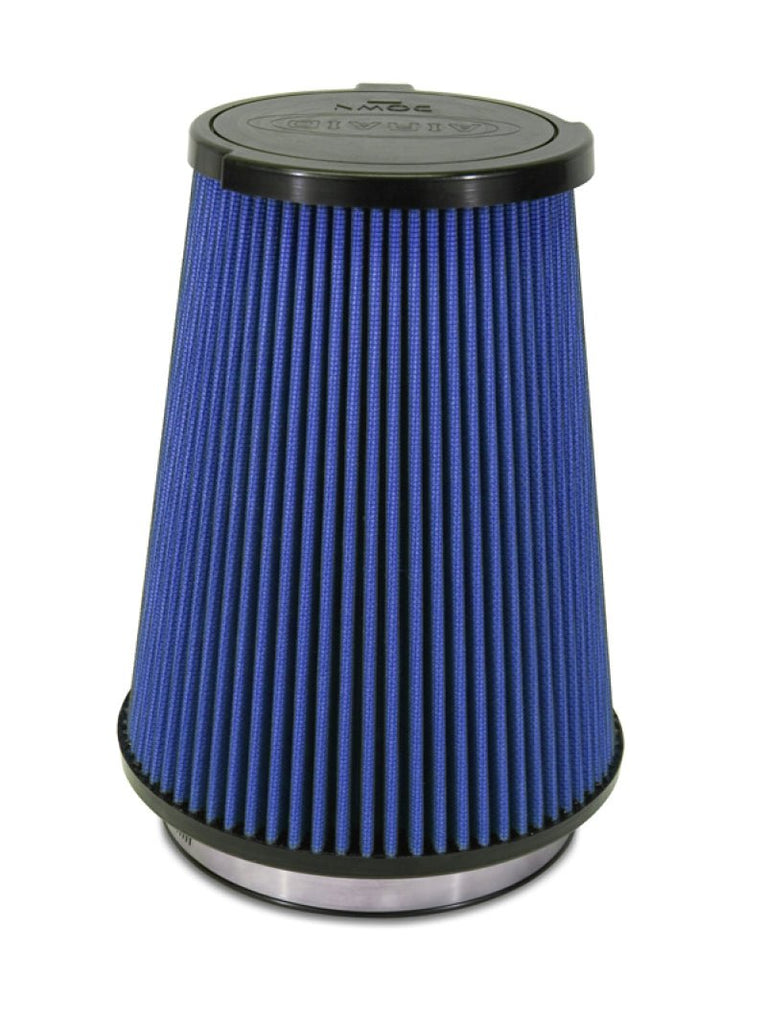

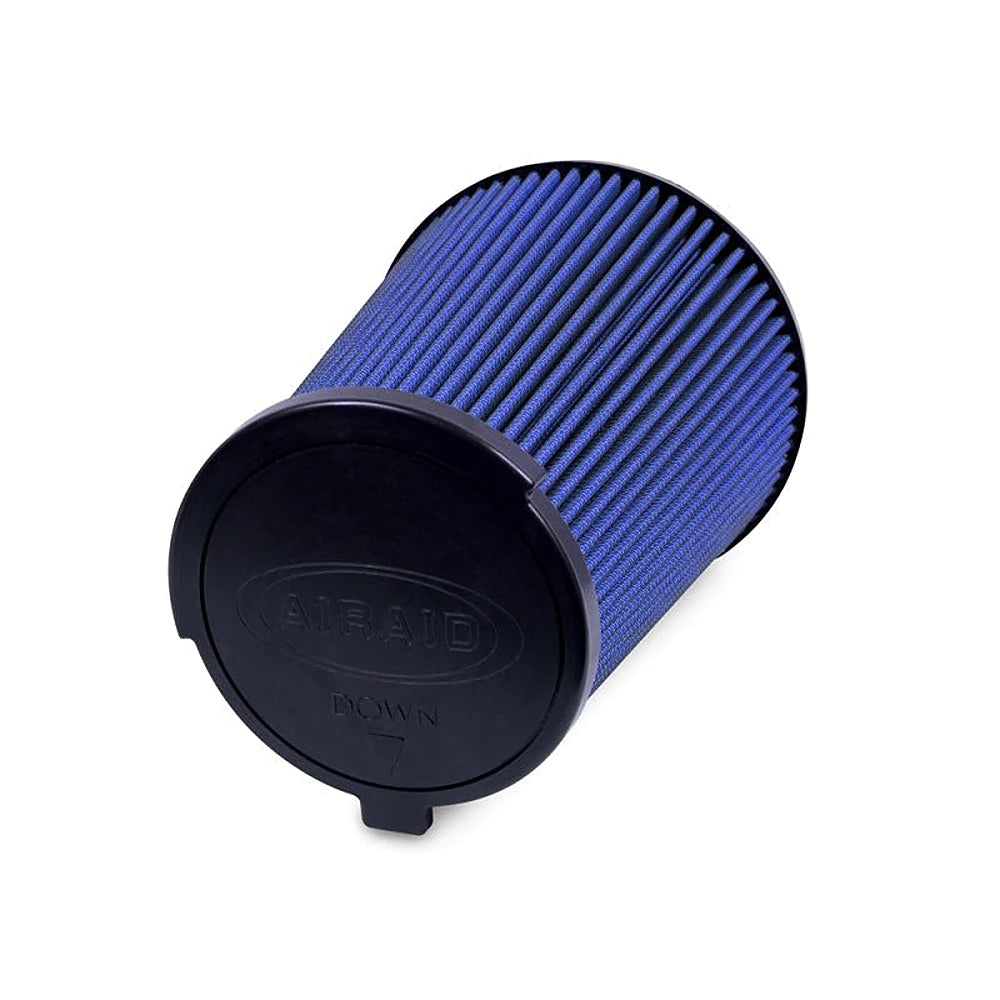

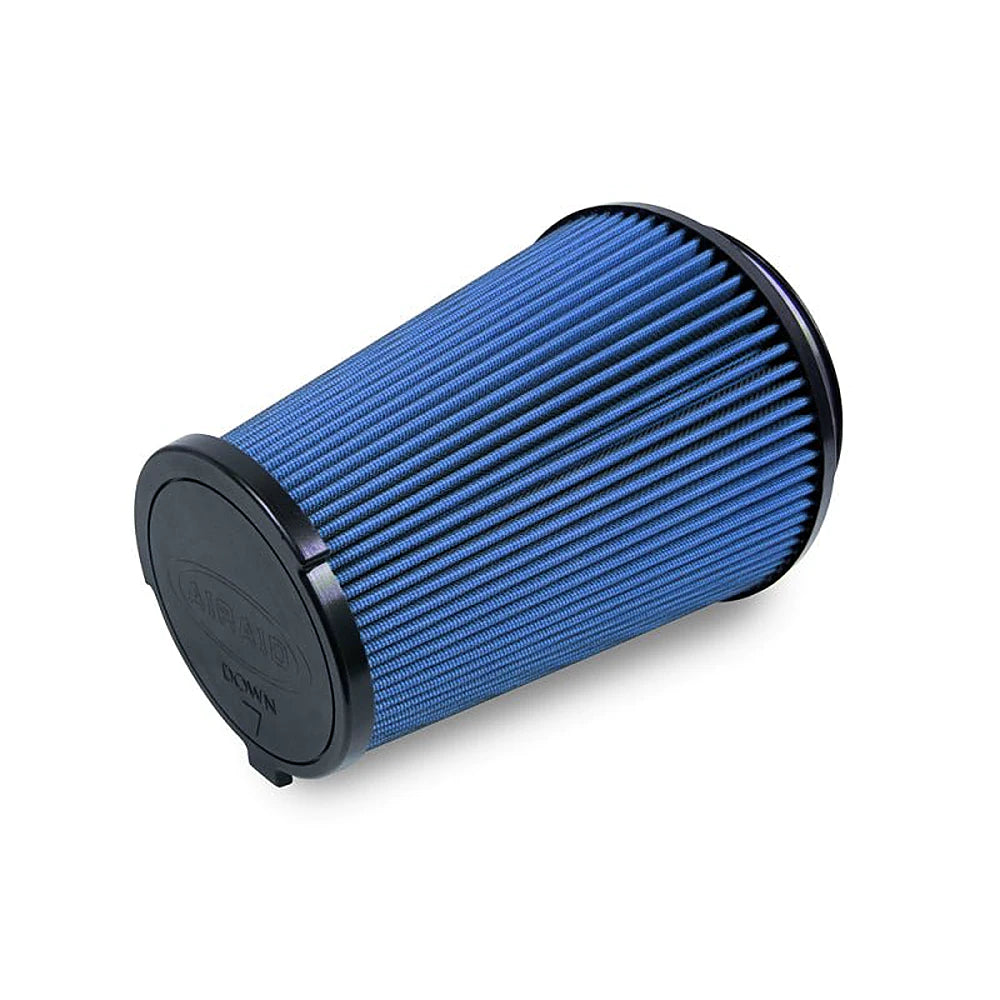

This Airaid air filter is the 10-14 Ford Mustang Shelby 5.4L Supercharged Direct Replacement Filter - Oiled / Blue Media. Select it by exact factory air-box or intake application, shape, flange or panel dimensions, media type, color, service method, sealing surface, and airflow direction rather than appearance alone.
Key Features
- Base Outside Diameter:7.5 in (191 mm).
- Flange Inside Diameter:5.625 in (143 mm).
- Top Outside Diameter:5.75 in (146 mm).
- Air Filter Material:Cotton Gauze &.
- Product Style:AIRAID Universal Cone Filter.
- Title:AIRAID AIR-860-512 Replacement Air Filter.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2010-2014 | Ford | Mustang | Shelby GT500 |
Specifications
| Brand | Airaid |
|---|---|
| Manufacturer Part Number | 860-512 |
| Product Type | Air Filters - Direct Fit |
| Condition | New |
| Configuration | 10-14 Ford Mustang Shelby 5.4L Supercharged Direct Replacement Filter - Oiled / Blue Media |
| Air Filter Color | Blue |
| Air Filter Material | Cotton Gauze & |
| Air Filter Shape | Round Tapered |
| Base Outside Diameter | 7.5 in (191 mm) |
| Flange Inside Diameter | 5.625 in (143 mm) |
| Flanges | 1 |
| Frame Design | Flexible |
| Height | 8 in (203 mm) |
| Item Type | High Performance |
| Oil Included | Yes |
| Outside Diameter | 7.5 in (191 mm) |
| Package Contents | 1 Air Filter |
| Package Quantity | 1 |
| Package Type | Box |
| Pre-Screened | No |
What's Included
One new Airaid air filters - direct fit in the exact configuration and quantity identified by this listing. Filters, tubes, boxes, adapters, spacers, couplers, clamps, gaskets, sensors, cleaner, oil, brackets, and hardware are included only when expressly stated for this part number.
About Airaid
Airaid develops vehicle-specific intake systems, PowerAid throttle-body spacers, replacement filters, universal intake components, and filter-service products. Exact fitment, media, dimensions, sensor provisions, and emissions status vary by part number and application.
Important Disclosures
- California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
Related Parts
- Airaid 10-14 Ford Mustang Shelby 5.4L Supercharged Direct Replacement Filter - Dry / Blue Media
- Airaid 99-14 Chevy / GMC Silverado (All Engines) Direct Replacement Filter
- Shop the complete Airaid collection
Frequently Asked Questions
How do I confirm Airaid 860-512, the 10-14 Ford Mustang Shelby 5.4L Supercharged Direct Replacement Filter - Oiled / Blue Media, fits my air box or intake?
Match the exact application plus every flange, panel, seal, height, width, length, angle, offset, and housing dimension shown for this part.
Is this Airaid filter washable and reusable?
Check the exact media specification. Serviceable filters can be reused when cleaned and treated according to the procedure for that media.
Should this filter be oiled after cleaning?
Only oiled media should receive the specified amount of filter oil. Never oil a dry-media filter, and allow every cleaned filter to dry fully before installation.
How often should the filter be inspected?
Inspect it based on operating conditions and restriction rather than mileage alone. Dust, off-road use, construction traffic, and moisture can shorten the service interval.
Installation Instructions
- Confirm Airaid part number 860-512, the complete application, emissions classification, and all required components before disassembly.
- Open the air box or intake and protect the clean side from loose dirt and debris.
- Compare every seal, flange, panel, dimension, orientation, and clearance before seating the replacement component.
- Secure the housing or clamp, inspect the full intake path for leaks, and verify the filter cannot shift or contact surrounding parts.
- Reinspect sealing and fasteners after the initial drive cycle.
