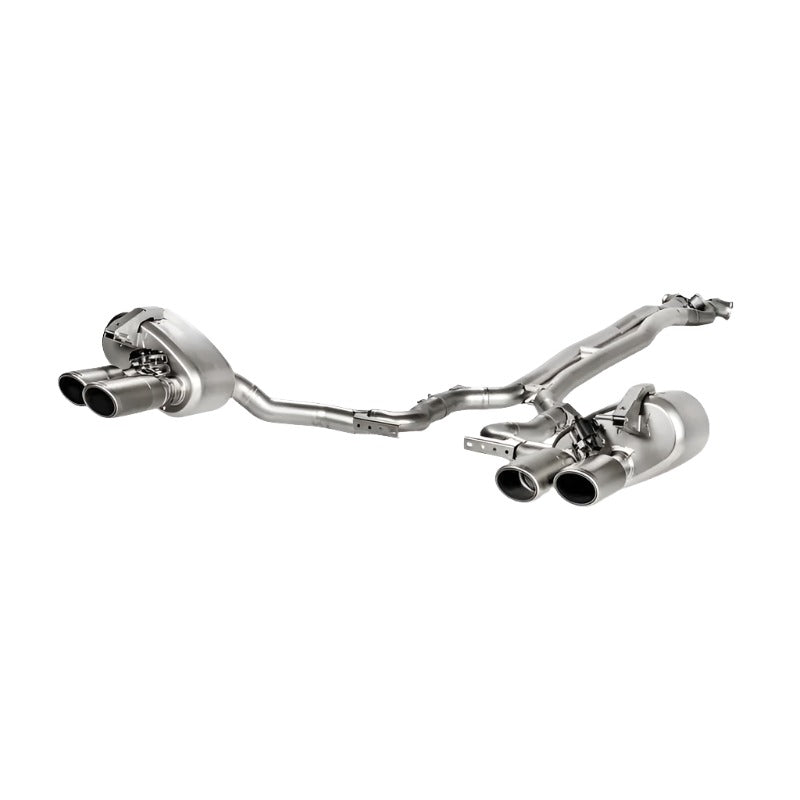

Evolution Line Titanium Cat-Back for 2017-2020 Porsche Panamera Turbo, GTS, and Turbo S E-Hybrid
The Akrapovic S-PO/TI/9H Evolution Line Cat-Back (Titanium) is a complete rear-section replacement for the 2017-2020 Porsche Panamera Turbo, Turbo Sport Turismo, GTS, GTS Sport Turismo, Turbo S E-Hybrid, and Turbo S E-Hybrid Sport Turismo. Engineered on the 971 platform around the 4.0L twin-turbocharged V8, S-PO/TI/9H replaces all exhaust components after the catalytic converters with a full titanium system that cuts 16.7 kg from the rear of the car and adds a measured 12 kW (16 hp) at 6,400 rpm and 20 Nm of torque at 2,700 rpm on the factory engine. Notes for purchase: exhaust tips are sold separately and not included with S-PO/TI/9H. This is a special order item with standard Akrapovic production lead times.
Key Features
- Full Titanium Cat-Back Construction achieves a complete system weight of 11.5 kg versus the OEM assembly at 28.2 kg, a 16.7 kg (59%) reduction that substantially improves handling balance on the 971 Panamera
- Proven Power Gains of 12 kW (16 hp) at 6,400 rpm and 20 Nm of torque at 2,700 rpm, dyno-tested by Akrapovic on the 4.0L twin-turbo V8 in factory configuration
- Complete Rear Section Replacement including titanium muffler assembly and full titanium link pipe set from catalytic converters to rear, retaining all OEM cats and emissions hardware
- Broad Multi-Variant Fitment covering six 971 Panamera configurations including Turbo, Turbo Sport Turismo, GTS, GTS Sport Turismo, Turbo S E-Hybrid, and Turbo S E-Hybrid Sport Turismo
- Deep Aggressive 4.0 V8 Exhaust Note tuned to enhance the audible character of the twin-turbo flat-plane V8 at all RPM ranges without cabin drone
- Direct Bolt-On Installation using all factory mounting points and OEM hanger locations, no cutting or modification to the vehicle required
- Tips Sold Separately for full customization with Akrapovic's range of titanium and carbon tailpipe tip options for the Panamera platform
- Akrapovic 2-Year Warranty extendable to 3 years with registration at akrapovic.com
This Part Fits
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2017-2020 | Porsche | Panamera | Turbo |
| 2018-2020 | Porsche | Panamera | Turbo Sport Turismo |
| 2019-2020 | Porsche | Panamera | GTS |
| 2019-2020 | Porsche | Panamera | GTS Sport Turismo |
| 2018-2020 | Porsche | Panamera | Turbo S E-Hybrid |
| 2018-2020 | Porsche | Panamera | Turbo S E-Hybrid Sport Turismo |
Specifications
| Detail | Value |
|---|---|
| MPN | S-PO/TI/9H |
| UPC | 3831113561471 |
| Brand | Akrapovic |
| System Type | Evolution Line Cat-Back (Titanium) |
| Material | Titanium throughout (muffler and link pipes) |
| System Weight | 11.5 kg (OEM: 28.2 kg) |
| Weight Savings | 16.7 kg (59% reduction) |
| Power Gain | +12 kW (16 hp) at 6,400 rpm |
| Torque Gain | +20 Nm at 2,700 rpm |
| Engine Compatibility | Porsche 4.0L Twin-Turbo V8 (971 platform) |
| Tips Included | No — tips sold separately |
| Country of Origin | Slovenia |
| Warranty | 2 years standard (3 years with registration) |
What's Included
- Titanium rear muffler assembly
- Full titanium link pipe set (front-to-middle and middle-to-rear sections)
- Stainless exhaust clamps and hardware
- Akrapovic installation instructions and product documentation
- Note: Exhaust tips are NOT included and must be purchased separately
Frequently Asked Questions
Does the Akrapovic S-PO/TI/9H fit both the Panamera Turbo and the Panamera GTS?Yes. S-PO/TI/9H is designed for six 971 Panamera variants: the 2017-2020 Turbo, 2018-2020 Turbo Sport Turismo, 2019-2020 GTS, 2019-2020 GTS Sport Turismo, 2018-2020 Turbo S E-Hybrid, and 2018-2020 Turbo S E-Hybrid Sport Turismo. All share the same 4.0L twin-turbo V8 architecture and exhaust mounting on the 971 platform.
Are exhaust tips included with S-PO/TI/9H?No. S-PO/TI/9H does not include exhaust tips. Akrapovic offers a full range of titanium and carbon tailpipe tips for the Panamera 971 platform that are purchased separately. This allows buyers to select the tip style and diameter that best matches their preference.
How much weight does S-PO/TI/9H remove from the Porsche Panamera?S-PO/TI/9H weighs 11.5 kg compared to the OEM cat-back system at 28.2 kg, a reduction of 16.7 kg or 59%. On a grand touring sedan like the 971 Panamera, removing this mass from the rear improves overall weight balance and steering feel.
What power gains does Akrapovic publish for S-PO/TI/9H?Akrapovic dyno testing on the 4.0L twin-turbo V8 shows S-PO/TI/9H adds 12 kW (16 hp) at 6,400 rpm and 20 Nm of torque at 2,700 rpm over the factory exhaust system. Both figures are manufacturer-verified from controlled testing on the 971 platform.
Does S-PO/TI/9H fit the Panamera Turbo S E-Hybrid?Yes. S-PO/TI/9H fits both the 2018-2020 Panamera Turbo S E-Hybrid and the 2018-2020 Panamera Turbo S E-Hybrid Sport Turismo. The hybrid powertrain shares the same 4.0L V8 exhaust architecture and rear-section mounting points on these variants.
Does S-PO/TI/9H retain the factory catalytic converters?Yes. S-PO/TI/9H is a cat-back system that replaces components after the OEM catalytic converters. All factory emissions hardware is preserved, maintaining street legality where applicable. No ECU remap or oxygen sensor modifications are needed.
Is S-PO/TI/9H a special order item and how long does it take?Yes. S-PO/TI/9H is a special order item. Typical lead time is 4 to 6 weeks from Akrapovic's production in Slovenia. Contact us to check current stock availability prior to ordering.
What exhaust tips are recommended for S-PO/TI/9H on the Panamera?Akrapovic offers several tip options for the 971 Panamera including carbon fiber, polished titanium, and brushed titanium configurations. The Panamera Turbo uses a quad-exit layout. We can recommend specific tip part numbers based on your preferred finish when you contact us.
What warranty does Akrapovic provide on S-PO/TI/9H?Akrapovic provides a 2-year standard warranty on S-PO/TI/9H covering manufacturing defects. Registering the product at akrapovic.com within 30 days of purchase extends the warranty period to 3 years.
Installation Instructions
- Allow the Panamera exhaust system to cool completely before beginning any work
- Safely raise and support the vehicle on jack stands at factory recommended lift points
- Locate the factory cat-back connection point immediately after the OEM catalytic converters
- Remove the factory muffler clamps and disconnect the stock hangers from all OEM rear-section components
- Carefully remove the OEM link pipes and muffler assembly and set aside
- Inspect all connection ends for damage or corrosion before proceeding
- Install the Akrapovic front link pipe section to the OEM cat outlet using the supplied clamps per the instructions
- Connect the middle link pipe section and then the titanium muffler assembly, engaging the OEM hanger points
- Tighten all Akrapovic clamps to the torque specifications shown in the documentation
- Lower the vehicle and start the engine, verifying there are no exhaust leaks at any connection point before attaching the optional tip set
