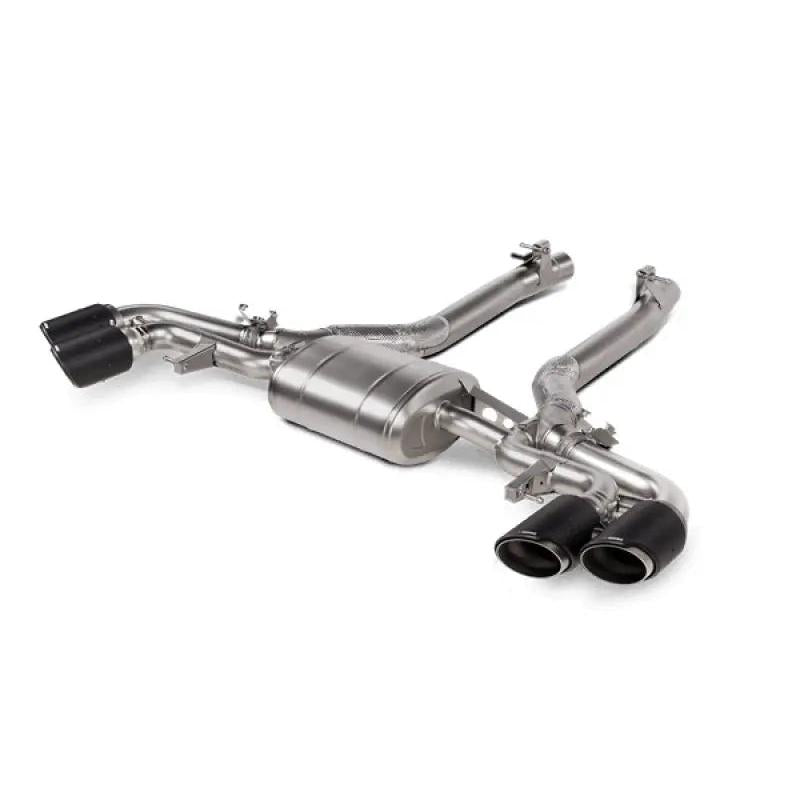

Lightweight Titanium Muffler System for the 2020-2023 BMW X5M F95 and X6M F96
The Akrapovic S-BM/T/16H Slip-On Line (Titanium) is engineered for the 2020-2023 BMW X5M (F95) and X6M (F96) with the S63 4.4L twin-turbo V8. S-BM/T/16H replaces the heavy OEM muffler assembly with a handcrafted titanium system that cuts 14.1 kg from the rear section while delivering measurable power and torque gains on the factory S63 engine. With four 90 mm double-wall carbon fiber and titanium round tips and a +12 dB(A) volume increase over stock, S-BM/T/16H transforms the auditory character of these high-performance SAVs to match their engineering pedigree. A direct bolt-on replacement that retains all OEM emissions components, S-BM/T/16H is the choice for BMW M Performance owners who demand genuine Akrapovic craftsmanship.
Key Features
- Full Titanium Muffler Assembly weighs just 11.3 kg versus the OEM system at 25.4 kg, a 14.1 kg (56%) reduction that directly improves rear handling balance on the F95/F96 platform
- Four 90 mm Carbon Fiber and Titanium Tips in a double-wall round exit configuration deliver heat resistance, premium finish, and unmistakable Akrapovic aesthetics on both X5M and X6M body styles
- Dyno-Verified Performance Gains of 7 kW (9 hp) at 5,050 rpm and 10 Nm of torque at 3,100 rpm on the S63 4.4L twin-turbo V8
- Sound Enhancement of +12 dB(A) delivers a deep, aggressive twin-turbo V8 exhaust note without objectionable drone inside the cabin at highway speeds
- Direct Bolt-On Installation to 2020-2023 BMW X5M and X6M factory mid-pipe connection points using OEM hangers and supplied Akrapovic hardware, no cutting or welding required
- Titanium Link Pipes Included providing complete rear-section replacement for the S63 exhaust system behind the catalytic converters
- Handcrafted at Akrapovic Headquarters in Slovenia with precision TIG welding and motorsport-grade quality control standards developed over decades of championship racing
- Akrapovic 2-Year Warranty standard with 3-year extension available via product registration at akrapovic.com
This Part Fits
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2020-2023 | BMW | X5 M | Competition |
| 2020-2023 | BMW | X6 M | Competition |
Specifications
| Detail | Value |
|---|---|
| MPN | S-BM/T/16H |
| UPC | 3831113594660 |
| Brand | Akrapovic |
| System Type | Slip-On Line (Muffler and Link Pipe Replacement) |
| Material | Titanium mufflers and link pipes with carbon fiber and titanium tips |
| System Weight | 11.3 kg (OEM: 25.4 kg) |
| Weight Savings | 14.1 kg (56% reduction) |
| Power Gain | +7 kW (9 hp) at 5,050 rpm |
| Torque Gain | +10 Nm at 3,100 rpm |
| Sound Increase | +12 dB(A) over stock |
| Tip Diameter | 90 mm round, double-wall |
| Engine Compatibility | BMW S63 4.4L Twin-Turbo V8 |
| Chassis | BMW F95 (X5M) and F96 (X6M) |
| Country of Origin | Slovenia |
| Warranty | 2 years standard (3 years with registration) |
What's Included
- 2 titanium muffler silencers (left and right)
- 4 titanium inlet link pipes
- 4 carbon fiber and titanium round exhaust tips (90 mm)
- Stainless exhaust clamps and mounting hardware
- Akrapovic installation instructions and product documentation
Frequently Asked Questions
Does the Akrapovic S-BM/T/16H fit both the BMW X5M F95 and X6M F96?Yes. S-BM/T/16H is engineered for both the 2020-2023 BMW X5 M (F95) and the 2020-2023 BMW X6 M (F96). Both models share the same S63 twin-turbo V8 and rear exhaust architecture on this generation of BMW M Performance SAVs.
Does S-BM/T/16H fit the standard X5M or only the X5M Competition?S-BM/T/16H fits all 2020-2023 BMW X5M F95 and X6M F96 variants including both the standard M and Competition models. Both share the same S63 engine and exhaust mounting points for this generation.
How much weight does Akrapovic S-BM/T/16H save on the BMW X5M?S-BM/T/16H weighs 11.3 kg complete versus the OEM muffler system at 25.4 kg, a savings of 14.1 kg or 56%. Removing this mass from the rear of the vehicle improves handling balance and reduces rotational inertia.
What are the dyno-tested power gains from S-BM/T/16H on the S63 V8?Akrapovic's own dynamometer testing shows S-BM/T/16H adds 7 kW (approximately 9 hp) at 5,050 rpm and 10 Nm of torque at 3,100 rpm over the stock BMW exhaust system on the S63 4.4L twin-turbo V8.
How much louder is the Akrapovic S-BM/T/16H compared to stock?S-BM/T/16H produces +12 dB(A) more sound than the OEM muffler system. At road speeds the added volume delivers a deep, authoritative twin-turbo V8 tone. Akrapovic tunes the sound profile to minimize interior drone while maximizing the performance character at higher RPMs.
Does S-BM/T/16H require an ECU tune or catalytic converter changes?No. S-BM/T/16H is a slip-on muffler replacement that connects behind the existing OEM catalytic converters. No ECU remap, cat removal, or oxygen sensor modifications are required. The system retains full OBD-II compatibility.
What are the tip specifications on S-BM/T/16H?S-BM/T/16H features four 90 mm round double-wall tips combining carbon fiber outer sleeves with titanium inner construction. The four-tip exit configuration is positioned to align with the stock rear diffuser cutouts on both X5M and X6M body styles.
Is S-BM/T/16H a special order item and what is the lead time?S-BM/T/16H is a special order item with a typical lead time of 4 to 6 weeks depending on current Akrapovic production scheduling. Contact us for current stock availability before placing your order.
What does the Akrapovic warranty cover on S-BM/T/16H?Akrapovic provides a standard 2-year warranty on S-BM/T/16H covering defects in materials and workmanship. Registering at akrapovic.com within 30 days of purchase extends coverage to 3 years.
Installation Instructions
- Allow the BMW X5M or X6M exhaust system to cool fully before beginning installation
- Safely raise and support the vehicle on jack stands at factory lift points
- Locate the OEM muffler connection points on the mid-pipes behind the catalytic converters
- Remove the factory muffler clamps and detach the OEM hangers from the muffler assemblies
- Slide out both stock muffler assemblies and set aside for storage or disposal
- Clean and inspect the OEM mid-pipe connection ends for corrosion or damage
- Install the Akrapovic link pipes onto the factory mid-pipe ends per the included instructions
- Slide the Akrapovic titanium muffler assemblies onto the link pipes and engage the OEM hangers
- Attach and tighten all Akrapovic supplied clamps to the torque specifications in the documentation
- Lower the vehicle, start the engine and inspect all connection points for exhaust leaks
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
