The Missing Link Between Your Calipers and Your Axle

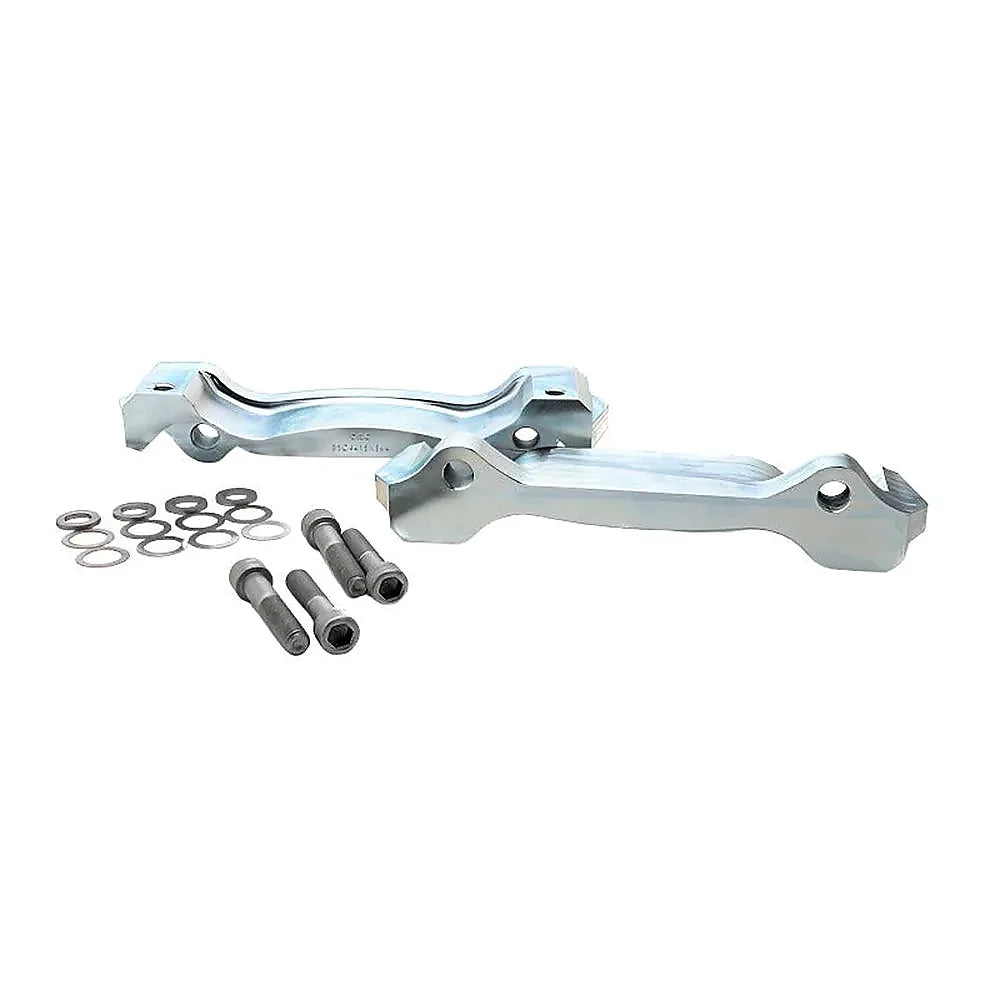

The ALCBSK4415X564 is a bracket kit engineered by Alcon for 2010-2020 Ford F-150 Raptor; 2010-2020 Ford F-150. This bracket relocates and secures the Alcon caliper to the factory spindle or axle, maintaining proper rotor to pad alignment and caliper clearance. Constructed from solid steel, the bracket is designed to handle the increased clamping loads of a big brake upgrade without flexing.
Key Features
- Solid steel construction for maximum rigidity under load
- Precise caliper positioning for correct pad to rotor alignment
- Direct fit for the listed Alcon caliper application
- Includes mounting hardware
- Corrosion resistant finish
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2010-2020 | Ford | F-150 Raptor |
| 2010-2020 | Ford | F-150 |
Specifications
| Detail | Value |
|---|---|
| Contents | One bracket and four bolts/washers |
| Caliper Compatibility | Alcon RED Raptor calipers with two caliper mounting holes |
| UPC | 854071009048 |
What's Included
- 1 bracket
- 4 bolts
- 4 washers
About Alcon
Alcon has engineered braking systems for over four decades, supplying motorsport teams from grassroots racing to top tier international competition. Every road going Alcon kit is derived directly from that racing experience, using the same seal materials, caliper alloys, and rotor metallurgy proven under sustained track loads. The result is a braking system built to perform consistently whether towing, off roading, or lapping a circuit.
Related Parts
- Alcon 2010-2014 Ford Raptor Tie Rod End Kit (ALCAC011507NANA)
- Alcon 09-20 F-150/Raptor Gen1-2 347x36mm Rotors 6-Piston Red Front Brake Kit Requires alcAC011507NAN (ALCBKF1559BE11)
- Alcon 10-14 & 17-18 Raptor/09-17 F150 360x32 Rotors 4-Piston Red Rear Brake Kit w/o Elect Park Brake (ALCBKR5059D07)
- Alcon 2010+ Ford F-150 347x36mm Front Rotor Kit (ALCDKF3430X986C)
- Alcon 2010+ Ford F-150 360x32mm Rear Rotor Kit (ALCDKR3430X987C)
FAQ
What is the ALCBSK4415X564?The ALCBSK4415X564 is an Alcon bracket kit built for 2010-2020 Ford F-150 Raptor; 2010-2020 Ford F-150. It is designed as a direct fit upgrade or replacement part using Alcon's motorsport engineering.
Does this part come with a warranty?Yes, Alcon backs this part with a 12 month, 12,000 mile warranty against factory defects and material issues.
Will this fit my vehicle if it has aftermarket wheels?Most 17 inch and larger aftermarket wheels clear this application, but wheel fitment should always be confirmed against the manufacturer's wheel template before ordering.
Is professional installation required?Alcon recommends installation by a qualified technician familiar with brake system service, as proper torque specs and bedding procedures are critical to safe operation.
Does this part work with the factory master cylinder and ABS system?Yes, this part is designed to work with the stock master cylinder and ABS system with no additional modification required.
What does this bracket kit include?This listing includes the bracket and mounting hardware described in the specifications above.
Do I need one or two of these brackets?Most vehicles require one bracket per side, so order two for a complete axle unless otherwise noted.
Where is this part manufactured?Alcon parts are engineered and manufactured to motorsport standards with quality control derived from decades of racing supply experience.
Install Instructions
- Raise and safely support the vehicle, then remove the wheel on the side being serviced.
- Remove the factory or existing caliper, rotor, and bracket per the vehicle service manual.
- Install the Alcon bracket and torque all fasteners to the manufacturer specified values.
- Mount the new rotor and caliper assembly, confirming clearance around the wheel and suspension.
- Connect and bleed the brake lines if the caliper or lines were disturbed during installation.
- Reinstall the wheel and torque to the vehicle manufacturer's specification.
- Perform several low speed brake applications to seat the pads before normal driving.
- Recheck all fasteners and fluid level after a short test drive.
