Alcon Ford F-150 Raptor Gen 3 Front Big Brake Kit
Alcon BKF1559BE74 combines the calipers, friction components and mounting arrangement for Supported 2021-2024 Ford F-150 Raptor Gen 3 applications; verify Raptor R and modified suspension separately. Choose the system by its complete application and clearance requirements so the brake package matches the vehicle and intended use.
Key Features

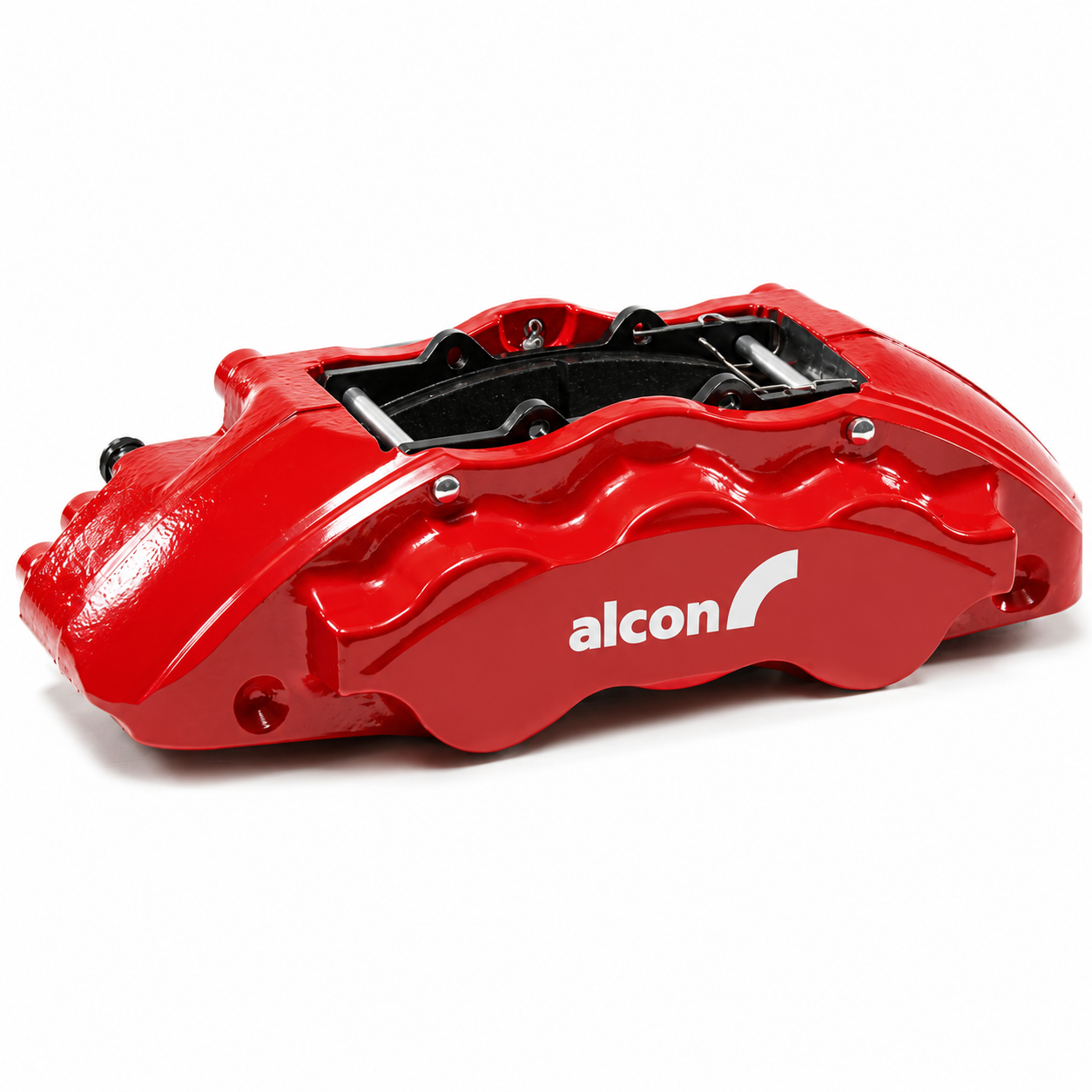

- Calipers: Six-piston ductile iron
- Replacement pads: PNS4415X504.4
- Ductile-iron calipers with high-temperature seals are designed for demanding truck service.
Fitment
| Detail | Value |
|---|---|
| Application | Supported 2021-2024 Ford F-150 Raptor Gen 3 applications; verify Raptor R and modified suspension separately |
| Position | Front |
| Selection notes | Match the original brake package, hub and wheel template. Suspension changes, aftermarket knuckles and wheel spoke profiles can affect clearance. Follow the current kit instructions for any required adapters or spacers. Manufacturer notes that modifications may be needed; confirm the current application instructions. |
Match BKF1559BE74 to the complete brake configuration and the application notes above.
Specifications
| Detail | Value |
|---|---|
| Brand | Alcon |
| Manufacturer part number | BKF1559BE74 |
| Product type | Big Brake Kits |
| Condition | New |
| Position | Front |
| Calipers | Six-piston ductile iron |
| Replacement pads | PNS4415X504.4 |
What’s Included

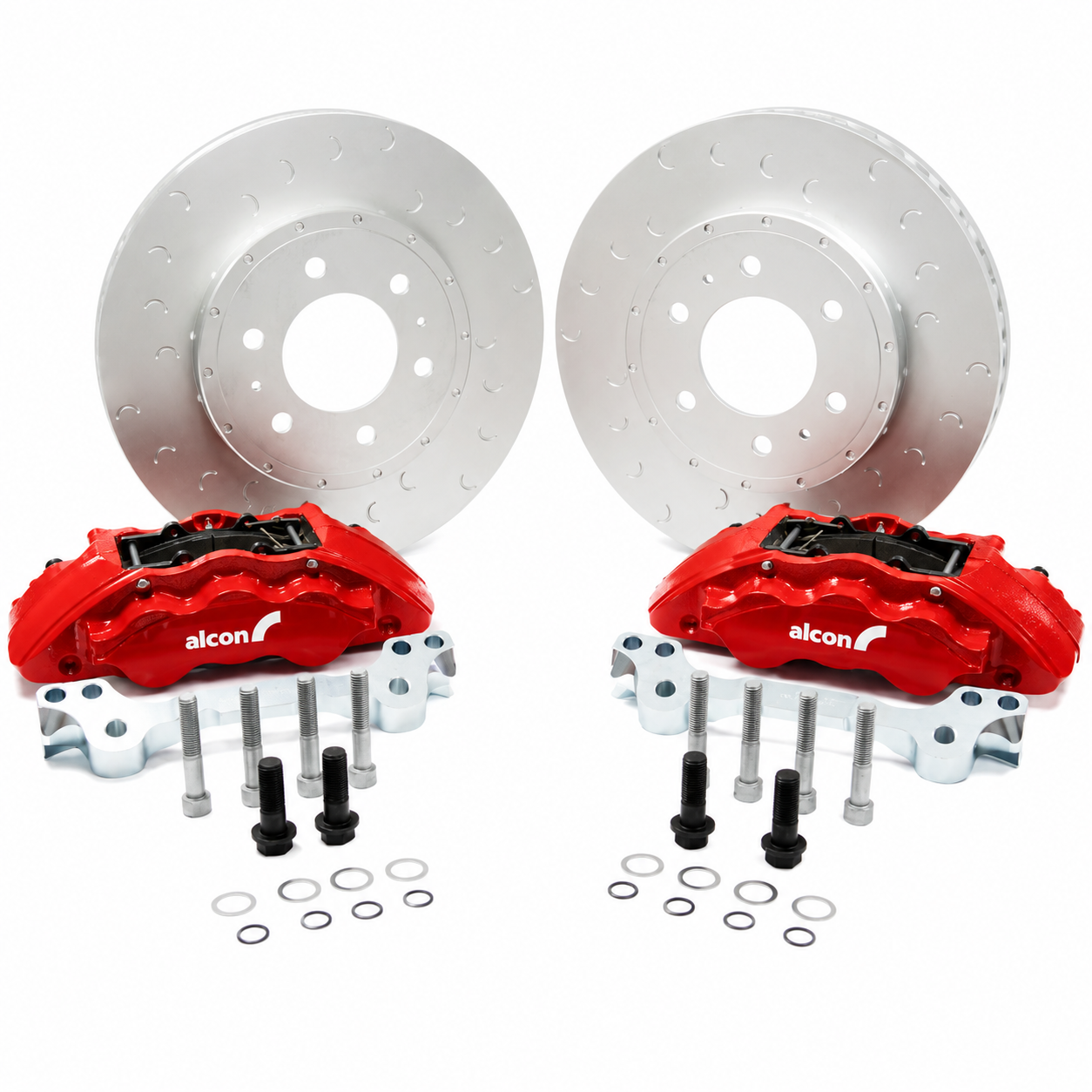

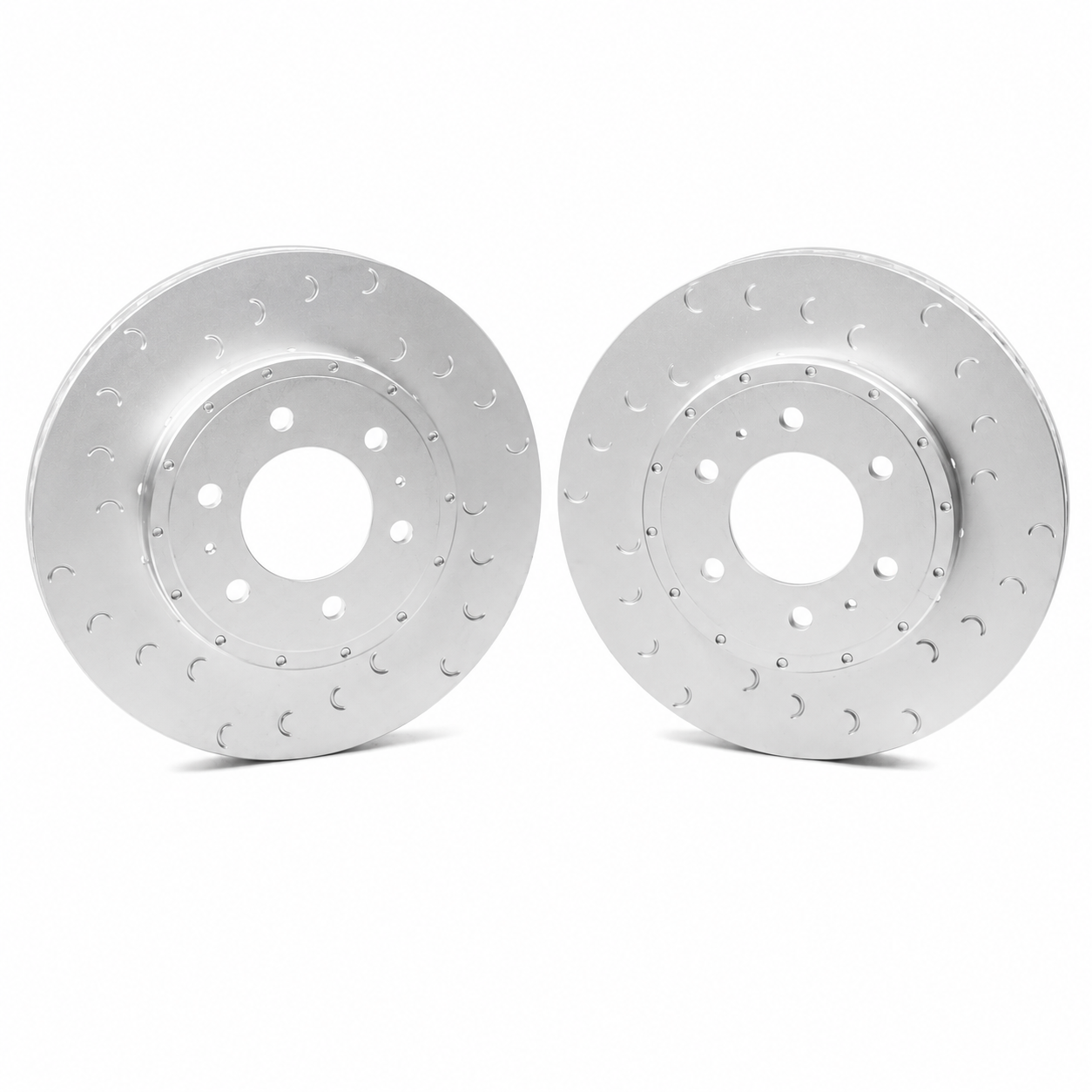

- Matched front calipers, brake pads and rotors

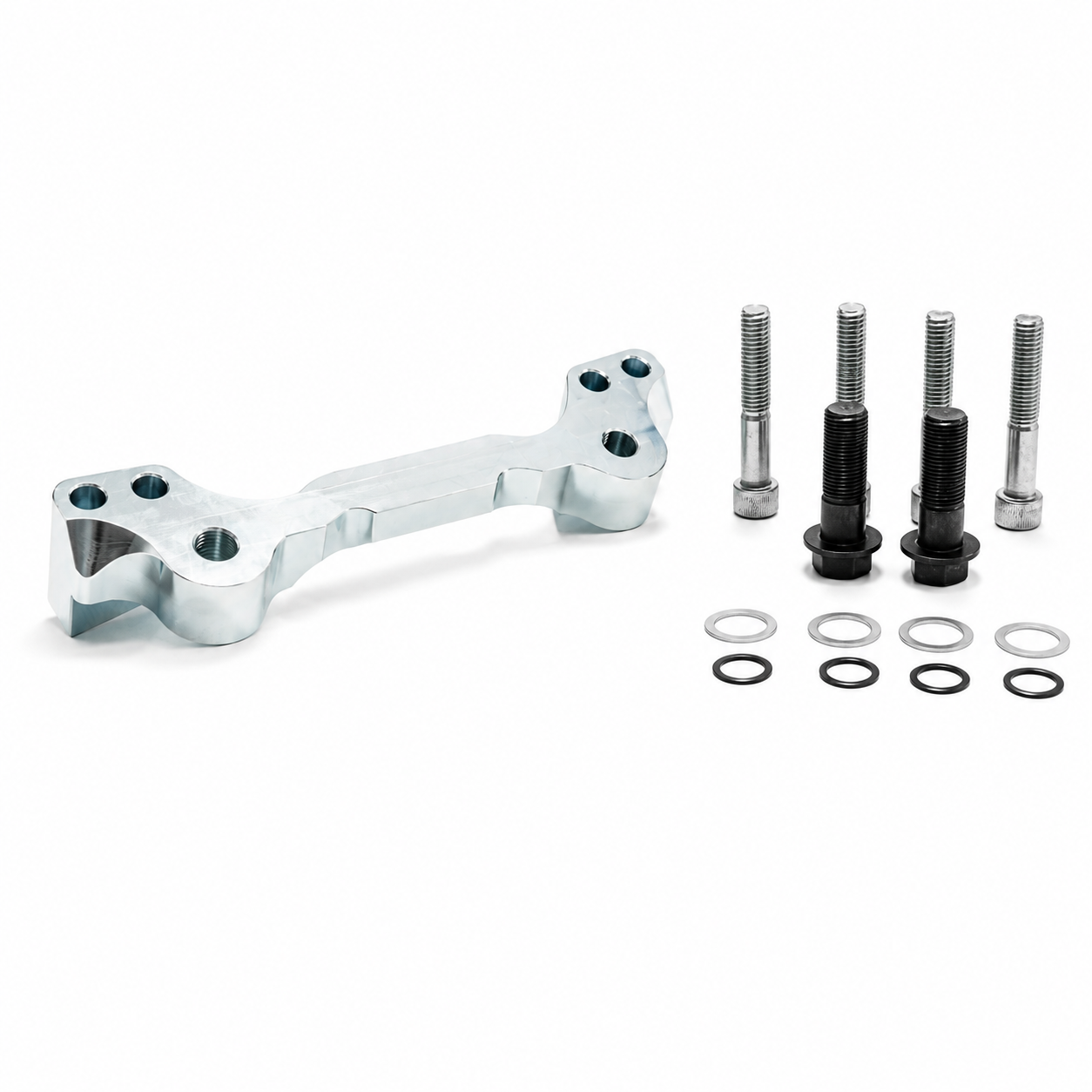

- Application-specific mounting brackets and supplied hardware
The components listed above describe BKF1559BE74. Separate service parts and other axle kits are not included unless expressly listed.
About Alcon
Alcon develops braking systems and replacement components for motorsport, performance road vehicles, trucks and specialized applications. Its Pro-System range pairs Alcon calipers with application-specific rotor and mounting packages. Service parts must be selected for the exact system.
Related Parts
FAQ
What is the BKF1559BE74?It is an Alcon brake kit designed for Supported 2021-2024 Ford F-150 Raptor Gen 3 applications; verify Raptor R and modified suspension separately.
What application does it fit?Supported 2021-2024 Ford F-150 Raptor Gen 3 applications; verify Raptor R and modified suspension separately. Match the original brake package, hub and wheel template. Suspension changes, aftermarket knuckles and wheel spoke profiles can affect clearance. Follow the current kit instructions for any required adapters or spacers. Manufacturer notes that modifications may be needed; confirm the current application instructions.
What is included?Matched front calipers, brake pads and rotors; Application-specific mounting brackets and supplied hardware. Package details apply to this listing.
Does it replace the factory brake component?It is a brake-system upgrade for the specified application. Compare the original brake package and the kit instructions, including wheel and suspension clearance.
Which measurements should I check?Calipers: Six-piston ductile iron; Replacement pads: PNS4415X504.4. Match all applicable dimensions and interfaces.
What else should I check before ordering?Use the current wheel template at the specified print scale. Check barrel and spoke clearance, the hub and knuckle, brake lines, axle configuration and any required adapters.
Is professional installation recommended?Brake work should be performed by a qualified technician using the current vehicle and Alcon procedures. Fastener torque, routing, clearances and safe operation must be verified.
What procedure should I follow after installation?Follow the specified inspection and bedding procedure for the exact components. Bleed the system whenever the hydraulic circuit is opened, inspect for leaks and confirm pedal operation before driving.
Installation Instructions
- Verify the vehicle, existing brake system and all supplied BKF1559BE74 components against the current instructions.
- Safely support the vehicle and remove the appropriate wheel or wheels.
- Remove the worn components using the brake-system service procedure; support any displaced caliper without straining its hose.
- Install the replacement components in the specified orientation, using required new hardware and the exact torque values from the current instructions.
- Inspect clearances and line routing, bleed the hydraulic system if opened, and verify fluid level, leak-free operation and a firm pedal.
- Refit the wheels, torque the wheel fasteners and complete the component-specific bedding and operational checks before normal use.
