AlphaRex 15-23 Ford Mustang NOVA-Series Prismatic LED Tail Lights Black-Clear

The AlphaRex NOVA-Series Prismatic LED tail lights give the 6th-gen S550 Mustang a factory-correct fit with a dramatically upgraded visual presence. 655020 replaces both OEM tail light assemblies with full LED units built around three crystal-clear trapezoidal prism tubes that refract light into a layered, three-dimensional prismatic glow. The result is a tail lamp that reads as unmistakably custom while remaining completely street legal in all 50 states.

NOVA-Series Prismatic Technology

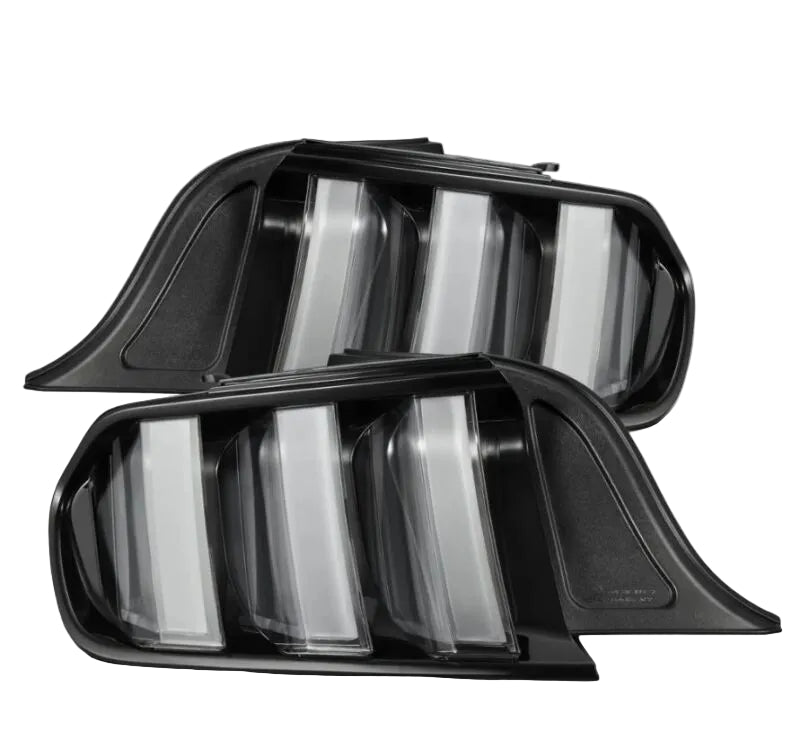

Where conventional LED tail lights use flat emitters behind a lens, the NOVA-Series Prismatic design routes each LED through a trapezoidal prism optic. The three-tube array creates depth, dimension, and a signature light bar appearance that is unique to AlphaRex. The black polypropylene housing frames the crystal-clear polycarbonate lens, producing a clean contrast that suits both stock-color and custom-painted Mustangs. A UV-resistant anti-yellowing coating on the lens keeps that clarity long-term.

Sequential Turn Signal and Activation Sequence

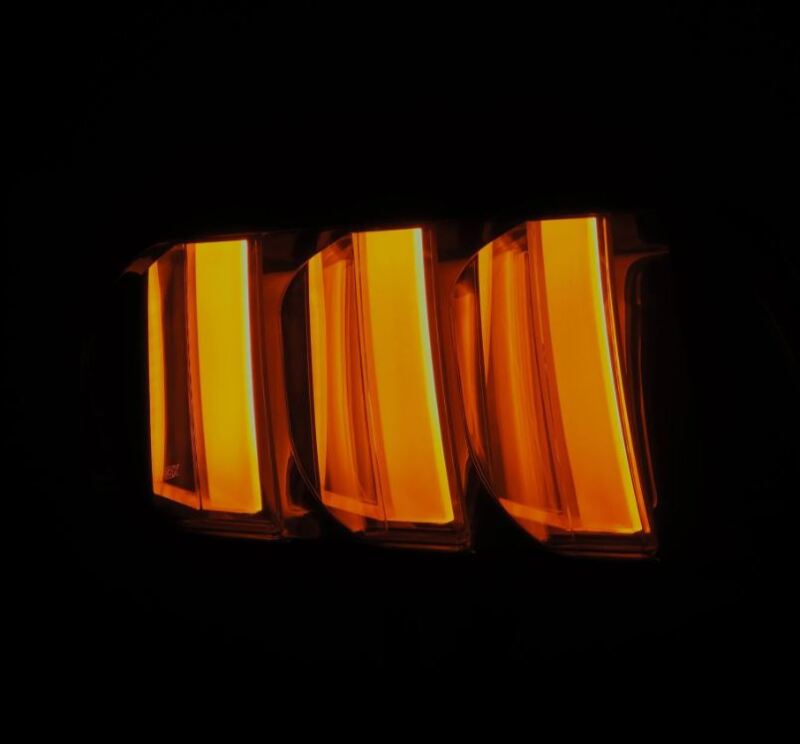

The turn signal on 655020 runs a sweeping amber sequential pattern, activating from the inboard end and flowing outward in one continuous dynamic motion. This is not a simple flash; it is a full left-to-right (or right-to-left) sweep that communicates intent with authority. Separately, a startup activation sequence fires automatically whenever the vehicle is unlocked or the parking lights are switched on, animating the full tail light array as a visual signature before any driving begins. These two features together define the NOVA-Series experience and set this set apart from any stock or generic LED replacement.

What's Included

• Driver side NOVA-Series Prismatic LED tail light assembly (1)
• Passenger side NOVA-Series Prismatic LED tail light assembly (1)
• Plug-and-play wiring harness
• Mounting hardware
• Integrated LED array (fully built-in, no bulb replacement required)

Functions

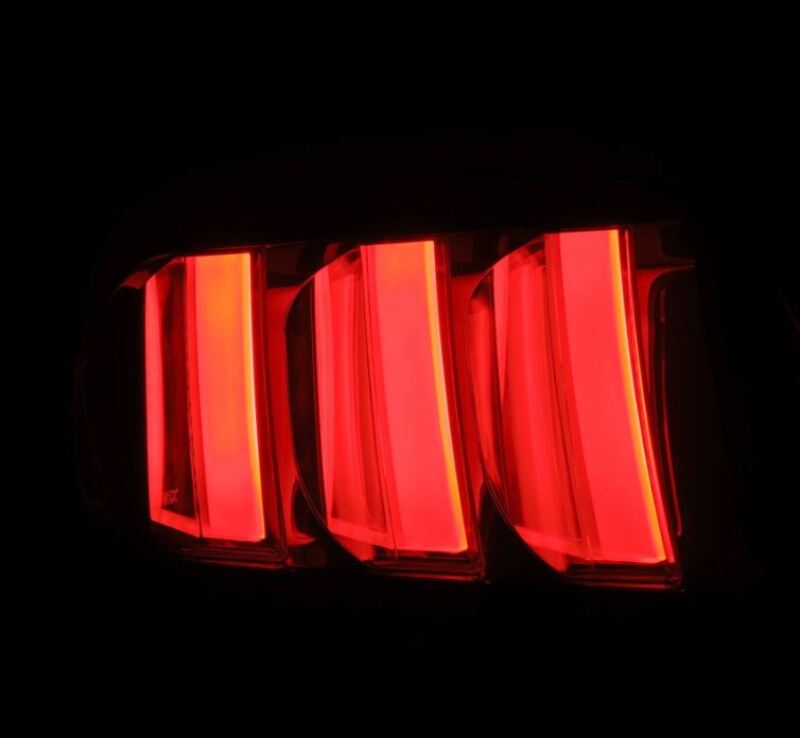

• Tail / Parking: Red LED

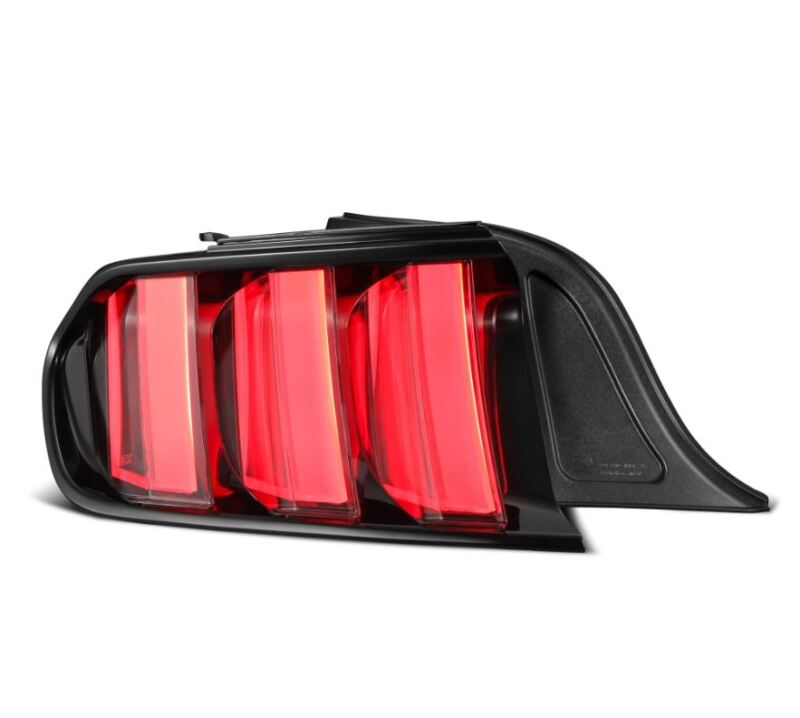

• Brake / Stop: Red LED, intensified brightness

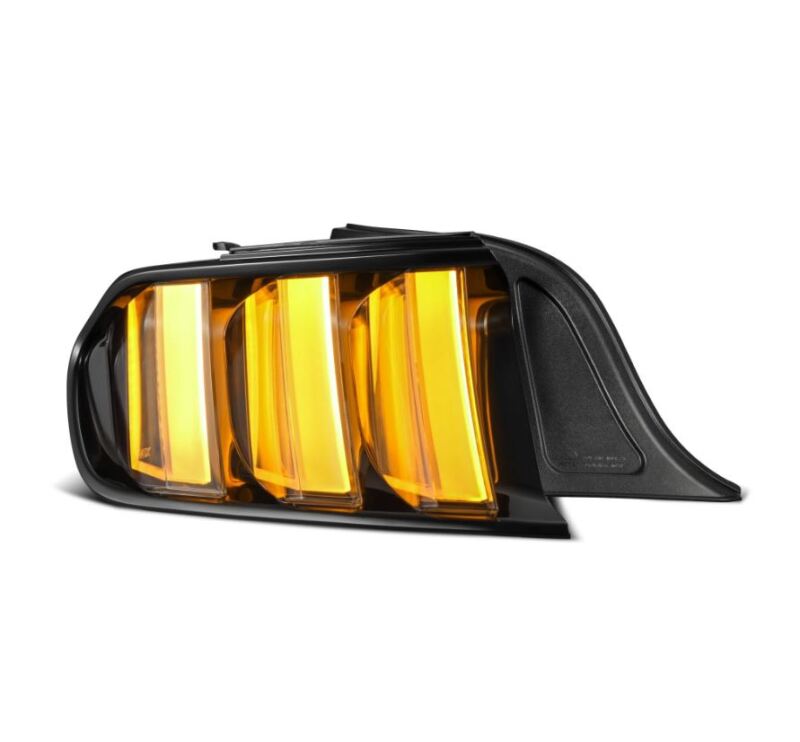

• Turn Signal: Amber LED, sweeping sequential pattern
• Reverse / Backup: White LED

50-State Street Legal Status

655020 is fully SAE and DOT compliant. It is street legal in all 50 states, including California. Tail lights are exterior lighting components, not emission-control devices. CARB regulations do not apply to this product. California residents may use this product on public roads without restriction under emissions or lighting modification laws.

Installation

This set is a direct plug-and-play OEM replacement. No drilling, cutting, or wiring modification is required. The connectors mate to the stock Mustang harness without adapters. Installation typically takes approximately 30 minutes. AlphaRex recommends disconnecting the negative battery terminal before beginning work and having a qualified mechanic perform the install if you are not comfortable working with automotive electrical components.

Important: Do not apply dielectric grease or any weather-sealing compound to the connectors or sockets. Doing so will cause connection failures and will void the warranty.

655020 vs. 655010: Which Finish Is Right for Your Build?

Both share the same prismatic LED tube design, sequential turn signal, and activation sequence. The only difference is the lens tint and housing finish. The clear lens on this set maximizes the visual impact of the prism optics in daylight. The smoked lens on ARX655010 gives a darker, more blacked-out appearance at the cost of some daytime light signature visibility.

Full Specifications

Vehicle Fitment

655020 fits the full 6th-generation S550 Ford Mustang platform, model years 2015 through 2023. All trims are supported. Special editions and Shelby models are confirmed compatible within the years they were produced.

Shelby GT350 and GT350R compatibility covers 2015-2020 only (trim discontinued after 2020). Shelby GT500 compatibility covers 2020-2022 (not offered in 2023). Mach 1 compatibility covers 2021-2023. Bullitt covers 2019-2020. GT 50 Years Limited Edition is 2015 only. V6 trim covers 2015-2017 only. All fitment is for US-specification vehicles.

Frequently Asked Questions

Will these fit my 2019 Shelby GT350?
Yes. The S550 platform uses a shared tail light opening across all trims from 2015 through 2023. Shelby GT350 and GT350R fitment is confirmed for 2015 through 2020. The connector and mounting points are identical to any other S550 trim.

Does the Shelby GT500 require any adapter?
No adapter is needed. The 2020-2022 Shelby GT500 uses the same S550 tail light mounting and wiring connector as the standard GT. These are confirmed compatible with no modification required.

Is the turn signal actually sequential, or does it just flash amber?
It is a true sequential sweeping pattern. The amber LEDs activate progressively from the inboard edge to the outboard edge in a single flowing motion on each activation cycle. This is a genuine dynamic sweep, not a simultaneous flash.

What is the activation sequence?
When you unlock the vehicle with the key fob or switch on the parking lights, the full tail light array runs a brief animated startup sequence before settling into normal parking light mode. It is a visual signature that fires every time the car wakes up.

Is this truly plug-and-play? Do I need any decoder or resistor?
These are designed as direct-fit OEM replacements for the S550 Mustang. The wiring harness included with the kit connects directly to the factory connector. Most owners do not need load resistors or CANBUS decoders. If your specific vehicle displays a turn signal hyperflash warning on the gauge cluster after installation, a load resistor kit resolves it.

Will I get CANBUS errors or hyperflash after installing these?
The majority of S550 Mustang owners install these without any fault codes or hyperflash. Some vehicles are more sensitive to the lower current draw of LED turn signals. If hyperflash occurs, an inexpensive load resistor or LED-compatible flasher relay will correct it. This is a common LED upgrade consideration, not a defect in the lights.

How long does installation take?
Most owners complete the swap in under 30 minutes. The process involves removing the trunk liner trim panel, unplugging the OEM connectors, swapping the assemblies, and connecting the included harness. No cutting, drilling, or splicing is required.

How does this set compare to the smoked version (ARX655010)?
Both use the identical NOVA-Series Prismatic LED internals, sequential turn signal, and startup sequence. The difference is purely aesthetic. This set has a clear lens that maximizes the visual impact of the prism optics and shows the full prismatic glow. The 655010 has a smoked tinted lens that darkens the appearance and suits blacked-out or dark-colored Mustangs.

Does installing aftermarket tail lights affect my factory powertrain warranty?
Under the Magnuson-Moss Warranty Act, a dealer cannot void your vehicle's powertrain warranty simply because you installed aftermarket lighting. The dealer would need to demonstrate that the aftermarket part caused the specific failure being claimed. Exterior LED tail light replacement does not interact with powertrain components.

Warranty

This product is covered by a 2-Year Limited Manufacturer's Warranty from AlphaRex against defects in design and materials. The warranty applies to the original purchaser or gift recipient from the date shown on the purchase invoice. Coverage includes material defects present at delivery and water leaks under normal unmodified use. AlphaRex will repair, replace, or refund at its discretion.

The warranty does not cover carrier damage, misuse, modification, normal wear and tear, damage from solvents or extreme weather, installation errors, labor costs, or vehicle downtime.

To submit a warranty claim, email Sales@Blackopsautoworks.com with your invoice number from the original purchase confirmation. AlphaRex covers return shipping on approved claims.
