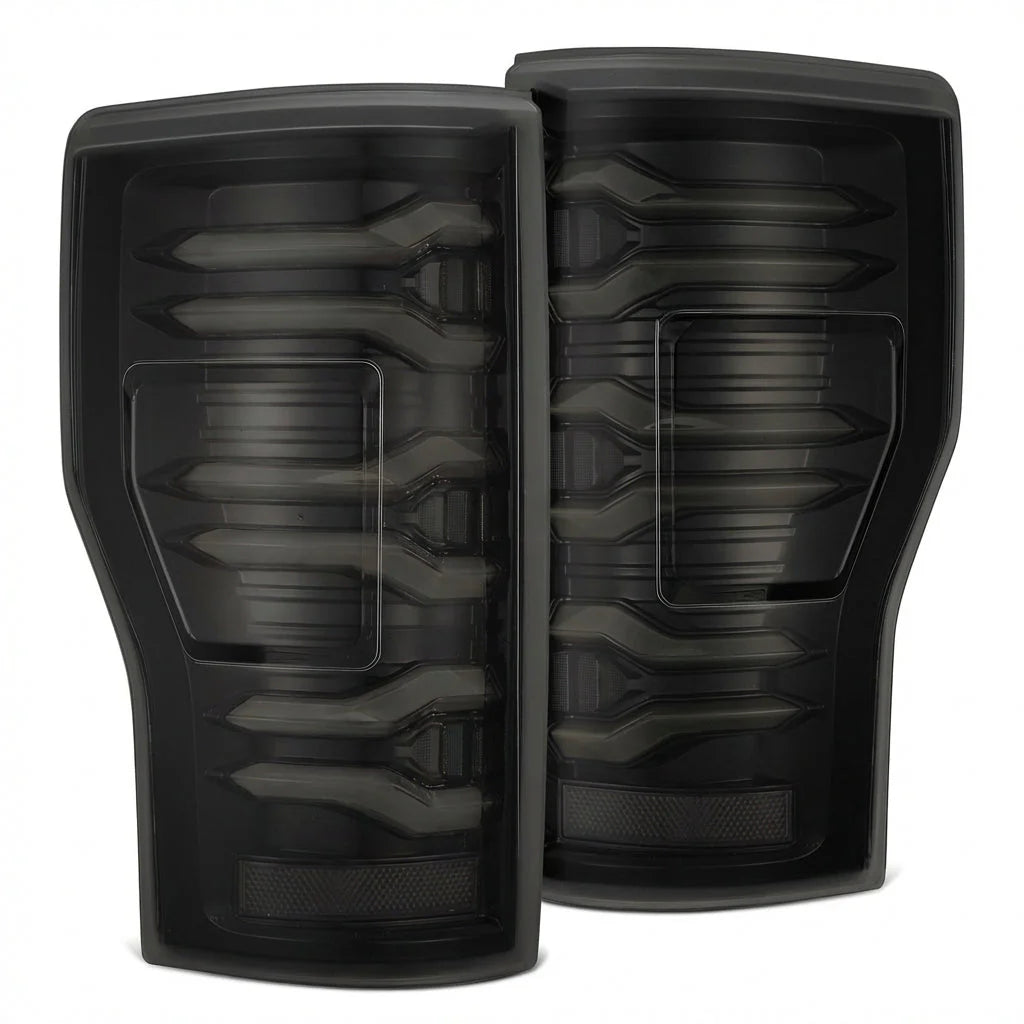

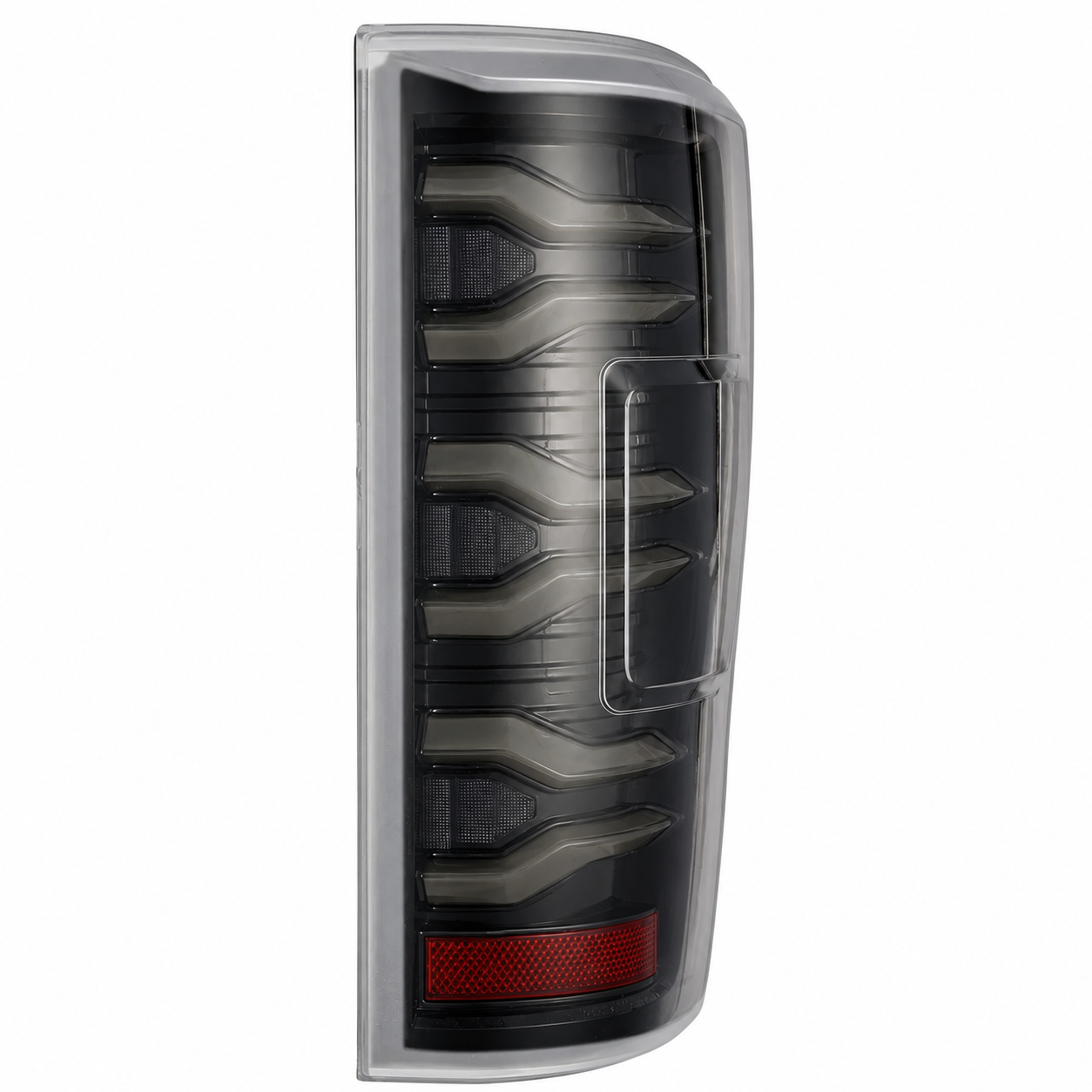

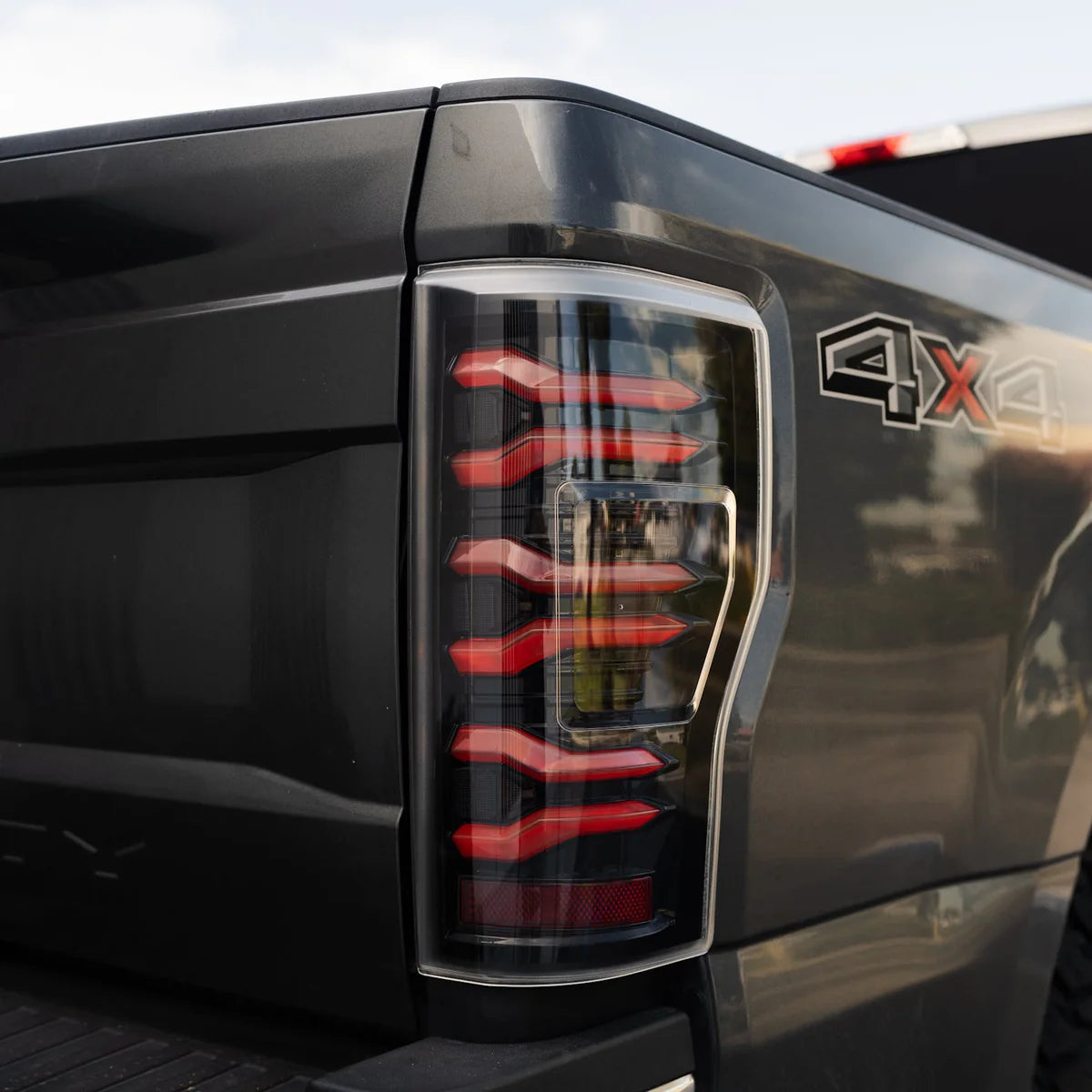

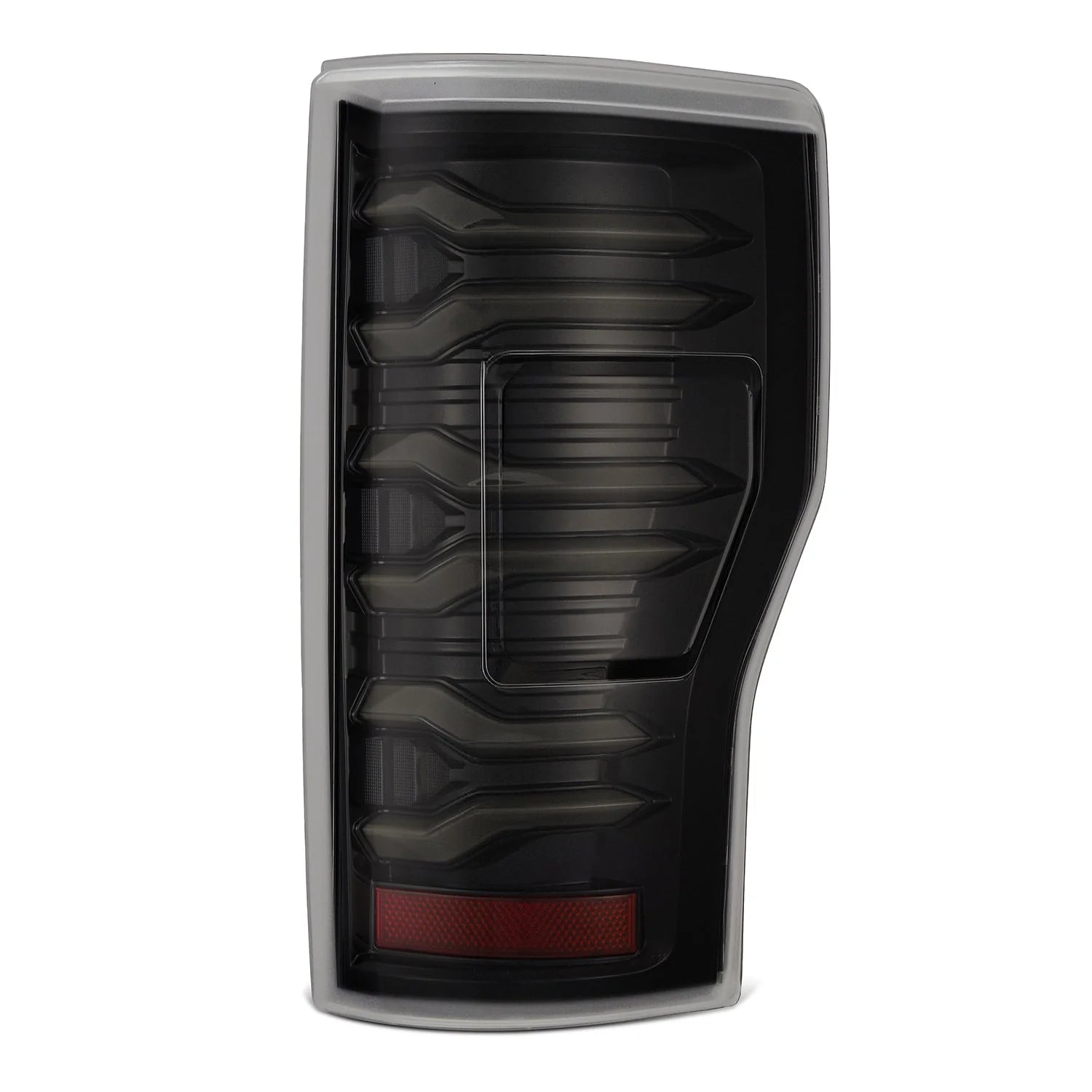

The ARX659090 AlphaRex LUXX-Series LED Tail Lights bring a custom-built lighting system to your 2017-2022 Ford F-250 and F-350 Super Duty. Engineered with a distinctive Alpha-Black housing and clear lens, these ARX659090 tail lights deliver a bold chrome-delete appearance while upgrading every lighting function to full LED technology. Three pairs of switchable LED tubes handle parking, braking, reverse, and sequential turn signals through a direct plug-and-play harness, requiring no cutting or splicing on non-BLIS-equipped trucks. The ARX659090 meets SAE and DOT FMVSS108 compliance standards and is backed by a 2-year limited warranty from AlphaRex.
| Year Range | Make | Model |
|---|---|---|
| 2017-2022 | Ford | F-250 Super Duty (without BLIS) |
| 2017-2022 | Ford | F-350 Super Duty (without BLIS) |
| Detail | Value |
|---|---|
| Part Number | ARX659090 |
| MPN | RTL-FD17-SA-YS-LB |
| UPC | 810015619940 |
| Light Source | AlphaRex LUXX LED |
| Lens Material | Polycarbonate (PC) |
| Lens Color | Clear |
| Housing Material | Polypropylene (PP) |
| Housing Color | Alpha-Black |
| Weight | 152 oz (approx. 9.5 lbs) |
| Dimensions | 11.81 in L x 19.69 in H x 12.2 in W |
| Installation | Plug-and-play, no cutting or splicing (non-BLIS trucks only) |
| Compliance | SAE and DOT FMVSS108 compliant |
| Warranty | 2-Year Limited Warranty |
| BLIS Compatibility | Not compatible with factory Blind Spot Information System (BLIS) |
AlphaRex brings over 20 years of automotive lighting manufacturing experience to every product it builds. The company designs and patents its own LED components in-house and engineers each product to exceed SAE and DOT requirements. The LUXX-Series represents AlphaRex's commitment to blending custom aesthetics with OEM-grade reliability, using polycarbonate lenses, polypropylene housings, and UV-protective coatings built to last. Technical support is available Monday through Friday, 9 AM to 5 PM Pacific Time via phone, live chat, and email.
The ARX659090 is an AlphaRex LUXX-Series full LED tail light set designed for 2017-2022 Ford F-250 and F-350 Super Duty trucks without the factory Blind Spot Information System. It features an Alpha-Black housing with a clear lens and three pairs of switchable LED tubes for parking, braking, sequential turn, and reverse light functions.
Will the ARX659090 fit my Ford F-150?No. The ARX659090 is engineered exclusively for the 4th-generation Ford Super Duty platform, covering the F-250 and F-350 from 2017 through 2022. Ford F-150 tail lights use a different body opening and a separate AlphaRex SKU family. If you own an F-150, contact us and we can point you to the correct AlphaRex fitment.
Does the ARX659090 work with trucks that have the factory BLIS sensor?No. The ARX659090 is designed for Super Duty trucks without the factory Blind Spot Information System (BLIS). Trucks equipped with BLIS require a different AlphaRex part number to maintain sensor functionality. Check your truck's options or door jamb sticker to confirm whether BLIS is installed before ordering.
What is the difference between the Alpha-Black and Black finish on AlphaRex Super Duty tail lights?The Alpha-Black finish on the ARX659090 features a glossy black housing paired with a clear lens, giving a clean view of the LED tube internals. The Black finish (ARX659091) uses the same black housing but with a smoked lens for a darker, more understated appearance. Both deliver identical LED performance and sequential turn signal function.
Are the ARX659090 tail lights street legal?Yes. The ARX659090 meets and exceeds SAE and DOT FMVSS108 lighting regulations and is manufactured under ISO 9000, ISO 9001, ISO 9002, and ISO 17949 automotive quality standards. These lights are designed for on-road use in all 50 states.

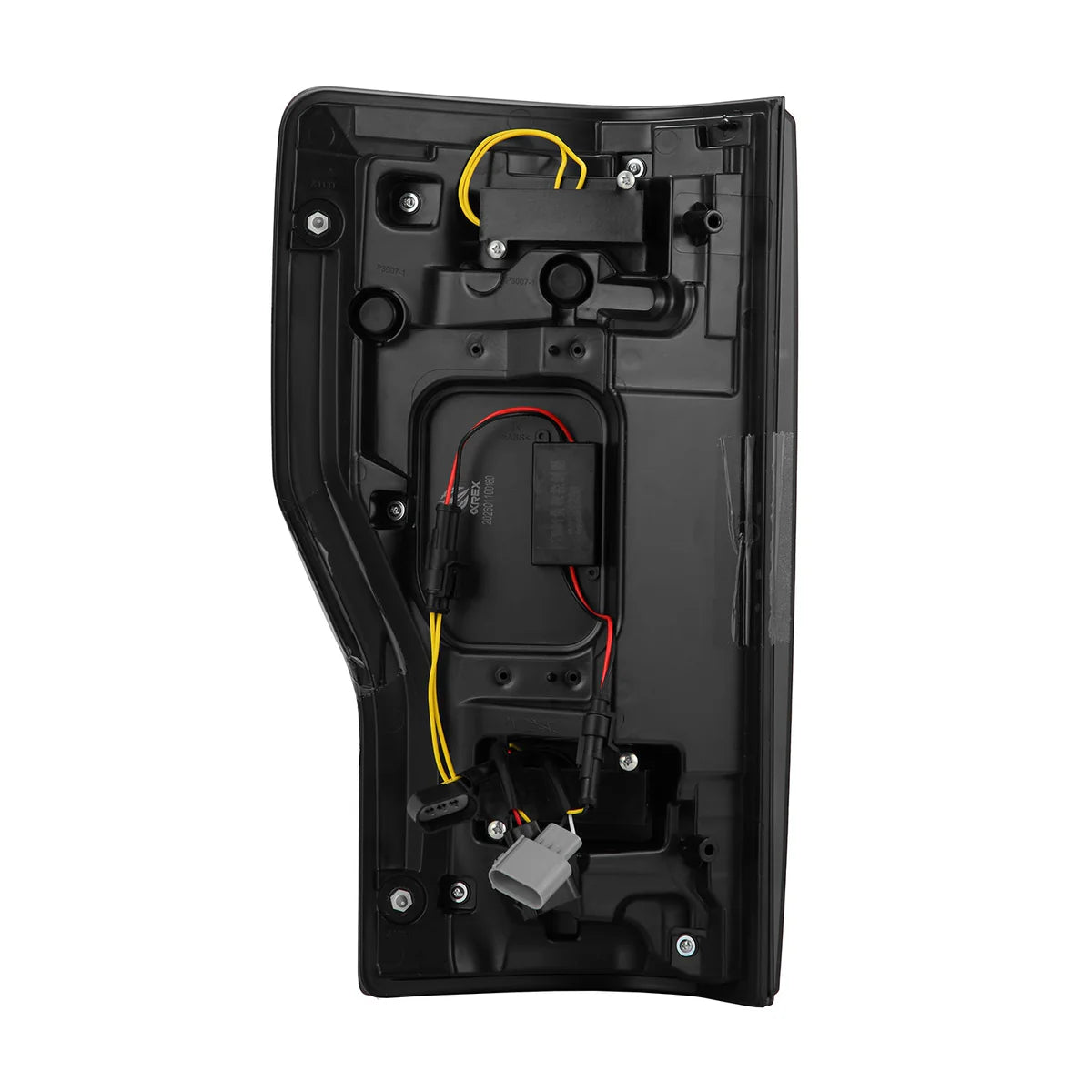

How difficult is it to install the ARX659090 tail lights?Installation is a direct plug-and-play procedure on non-BLIS Super Duty trucks. The tail lights use the factory mounting points and wiring harness connector, requiring no cutting, drilling, or additional wiring. Common tools needed include a plastic panel popper, a 1/4-inch ratchet, extension, and an 8mm socket. AlphaRex provides installation guides and video resources at installation.alpharexusa.com, and tech support is available Monday through Friday during Pacific business hours.

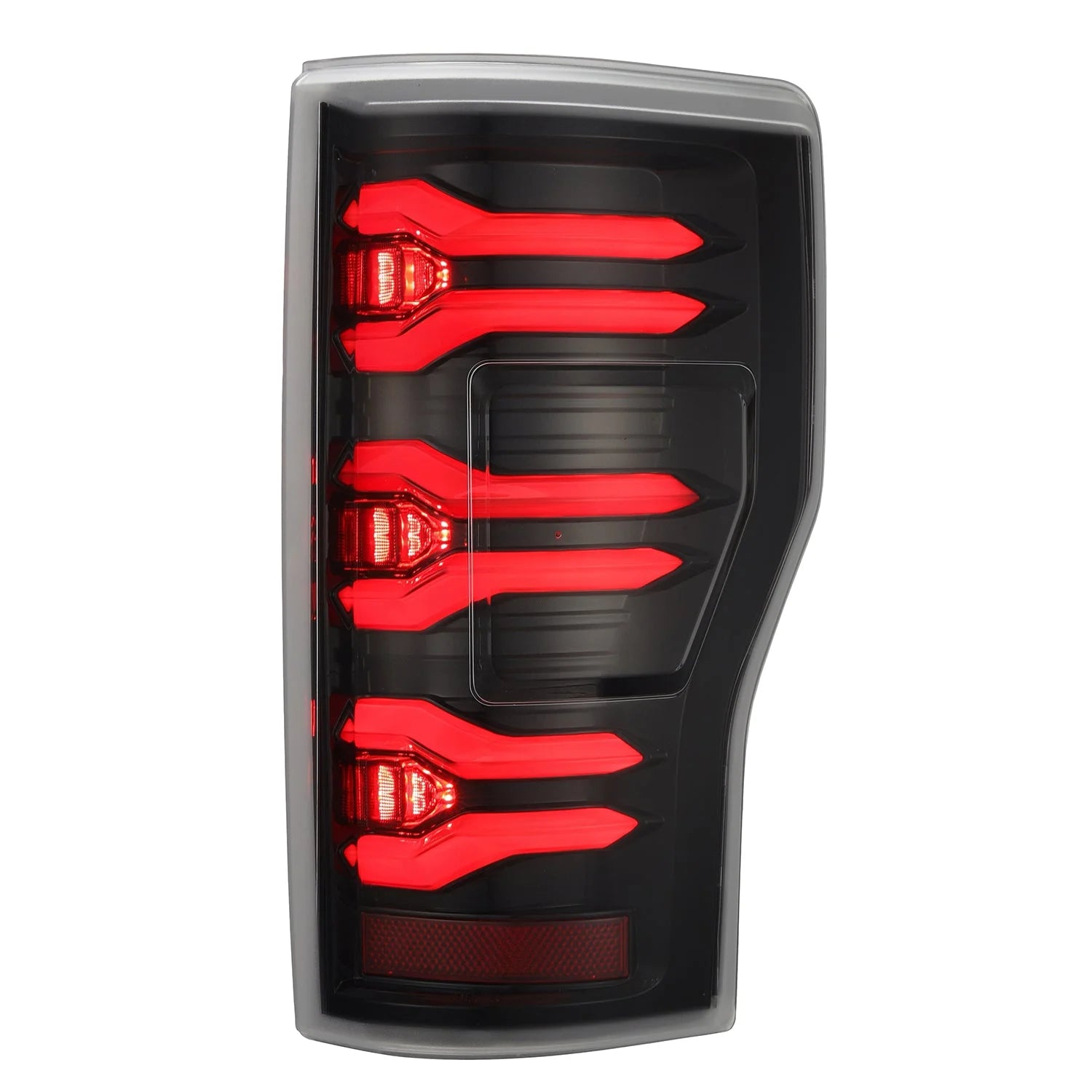

What LED functions are included on the ARX659090?The ARX659090 provides full LED coverage for all four tail light functions: red LEDs serve as parking lights and brake lights, amber LEDs produce a sequential flowing turn signal pattern, and reverse light output is also fully LED. The three pairs of switchable LED tubes allow you to customize which tube configuration is active. An AlphaRex Activation Light sequence runs each time the parking lights are switched on.
What warranty covers the ARX659090?AlphaRex covers the ARX659090 with a 2-year limited warranty against defects in design and manufacturing. The warranty applies to the original purchaser from the date of purchase. It does not cover installation errors, labor costs, normal wear and tear, misuse, modifications, accident damage, or acts of God. Contact AlphaRex technical support with any warranty questions.
Do the sequential turn signals require any additional wiring or programming?No additional wiring or programming is required for the sequential turn signals on the ARX659090. The dynamic amber flowing turn signal pattern is built into the LED assembly and activates through the factory wiring harness. No resistors, load equalizers, or CAN bus modules are typically required on non-BLIS 2017-2022 Ford Super Duty trucks.
