GT-R50 Inspired Optics for the R35

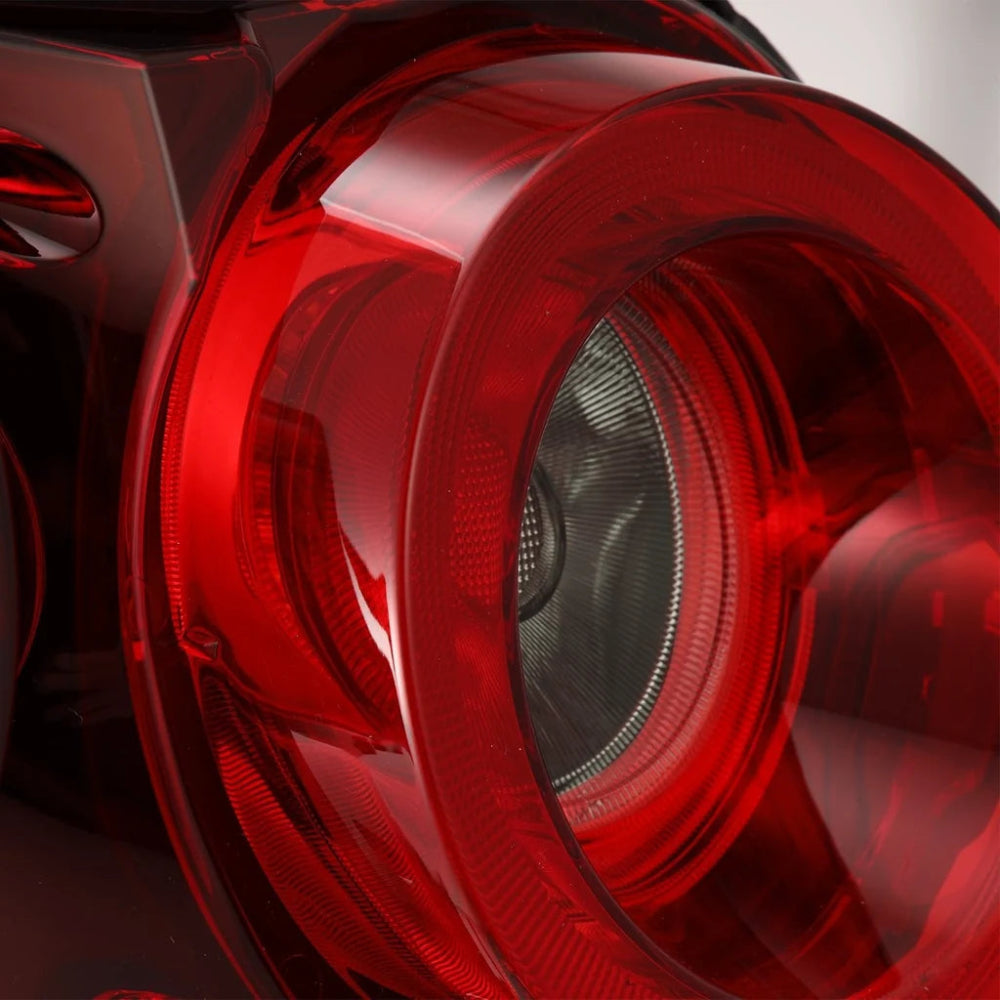

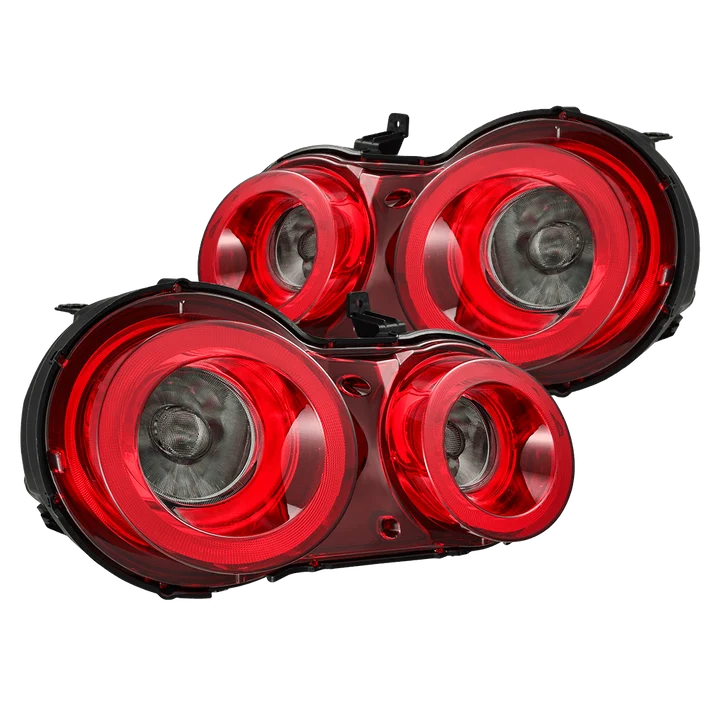

This is AlphaRex part number 692003, a pair of NOVA-Series prismatic LED tail lights for the 2009 to 2025 Nissan GT-R R35 in the red smoke lens finish. The design takes its cue from the Italdesign GT-R50 concept, with a 3D double circle layout and a prismatic LED tube forming the outer loop, so the car reads as a modern GT-R rather than a facelifted one. AlphaRex designs its lighting from inception, patents the components it develops and states that its products comply with SAE and DOT requirements.
Key Features
- NOVA-Series prismatic LED tail lights, styled after the Italdesign GT-R50 concept
- Bold 3D double circle layout with a prismatic LED tube forming the outer loop
- Outer ring uses AlphaRex prism optics for a crisp, dimensional parking light glow
- Outer ring intensifies to a vivid red under braking
- Amber LED turn signals housed in both circular sections
- Bright white LED reverse light in the inner section closest to the centre
- Activation light sequence fires as the parking lights come on
- Red smoke lens finish, sold as a complete left and right pair
- AlphaRex states its lighting is designed to comply with SAE and DOT requirements
Fitment
| Years | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009-2025 | Nissan | GT-R (R35) | Rear, both sides | Direct replacement for the factory tail lights on the listed years |
This listing is AlphaRex part number 692003, the red smoke lens version. The clear, smoke and red clear lens versions of the same light are separate AlphaRex part numbers.
Sold as a pair. A single side is not available under this part number.
AlphaRex publishes a model specific installation guide for the 2009 to 2025 GT-R R35 NOVA-Series prismatic tail lights, and that guide should be followed for the wiring and mounting detail on your car.
Lens material, housing material and box contents beyond the pair of tail lights are not published for this part number, so no claim is made about them here.
Specifications
| Detail | Value |
|---|---|
| Product line | AlphaRex NOVA-Series Prismatic LED tail lights |
| Lens finish | Red smoke |
| Light source | LED |
| Parking and brake light | Prismatic LED tube outer ring, intensifies to red under braking |
| Turn signal | Amber LED in both circular sections |
| Reverse light | White LED in the inner section |
| Special function | Activation light sequence on parking light switch on |
| Quantity | Pair, driver and passenger side |
| Compliance | AlphaRex states compliance with SAE and DOT requirements |
| Manufacturer part number | 692003 |
| Brand | AlphaRex |
| Condition | New |
What's Included
- Two AlphaRex NOVA-Series prismatic LED tail lights, driver and passenger side, red smoke lens
- Manufacturer installation guide reference for the 2009 to 2025 Nissan GT-R R35
About AlphaRex
AlphaRex designs its lighting from inception and patents the components it develops, and the company states that its products are built to comply with SAE and DOT requirements. The NOVA-Series is the company's prism optics line, which uses layered optical elements to create a three dimensional lit appearance rather than a flat lens glow.
FAQ
What is 692003?692003 is the AlphaRex part number for the NOVA-Series prismatic LED tail lights for the 2009 to 2025 Nissan GT-R in the red smoke lens finish. Ordering by that number is the only way to be sure of the lens finish, because the clear, smoke and red clear versions share the same housing and description.
What is the difference between the red smoke, smoke and clear versions?The optics and functions are the same. The difference is the lens finish, which changes how dark the light looks when it is off and how the red and amber output reads when it is on. Red smoke is the darkest red tinted option in this range.
Do the turn signals sweep?AlphaRex lists an activation light sequence that fires when the parking lights switch on for this NOVA-Series light. The turn signals are amber LED units in both circular sections. AlphaRex does not publish a sequential sweep claim for this specific part number, so we do not make one.
Are these street legal?AlphaRex states that it designs its lighting to comply with SAE and DOT requirements. Local rules on lens tint still vary, so check your state or provincial regulations before fitting a tinted lens.
Will these fit my GT-R?They are listed for the 2009 through 2025 Nissan GT-R R35. Send us your model year with part number 692003 and we will confirm the application before the order ships.
Is any wiring modification needed?AlphaRex publishes a dedicated installation guide for this GT-R application. Follow that guide, because connector and harness detail can vary across the long production run of the R35.
Do these come as a pair?Yes. Part number 692003 covers both the driver and passenger side lights.
Is there a warranty?Warranty is handled under the AlphaRex consumer warranty that applies to part number 692003 at the time of purchase. Keep your order confirmation, because claims are processed against the original purchase record.
How quickly does this ship?Orders normally leave the warehouse within one to three business days once the order is verified. If part number 692003 is on factory backorder we will tell you before charging the order.
Installation Instructions
- Download the AlphaRex installation guide for the 2009 to 2025 Nissan GT-R R35 NOVA-Series prismatic tail lights and read it fully before starting.
- Park on level ground, switch the ignition off and disconnect the negative battery terminal.
- Open the boot and remove the trim panels and any liner needed to reach the back of the tail light housings.
- Unplug the factory tail light harness connectors, releasing each locking tab rather than pulling on the wires.
- Remove the factory tail light fasteners, then withdraw each light from the body, taking care with the paint around the opening.
- Compare the new AlphaRex light to the factory unit to confirm the mounting points and connector match before fitting.
- Fit each AlphaRex light into the body, start all fasteners by hand and tighten them evenly so the lens sits flush with the panel.
- Reconnect the harness connectors until each one clicks, then reconnect the battery.
- Test the parking lights, brake lights, both turn signals, the hazards and reverse before reinstalling any trim.
- Refit the boot trim and liner, then check the panel gaps and lens alignment on both sides in daylight.
