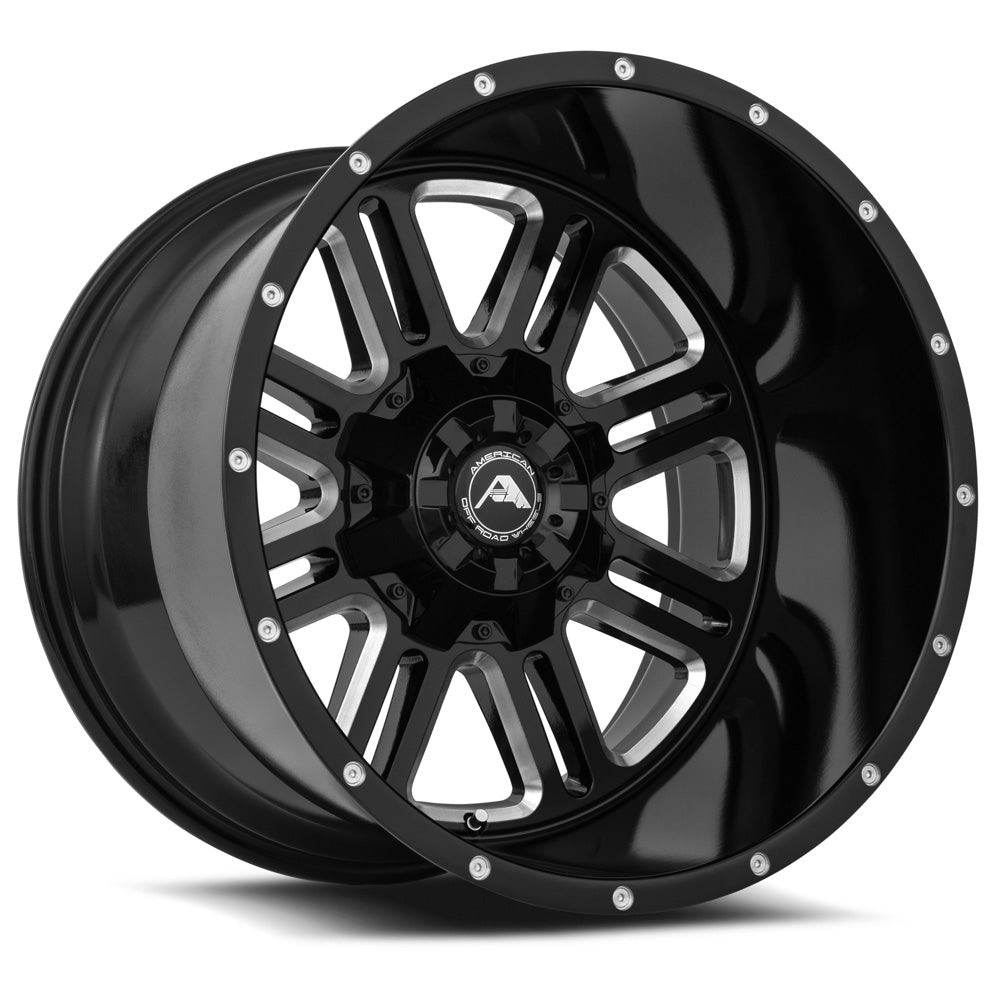

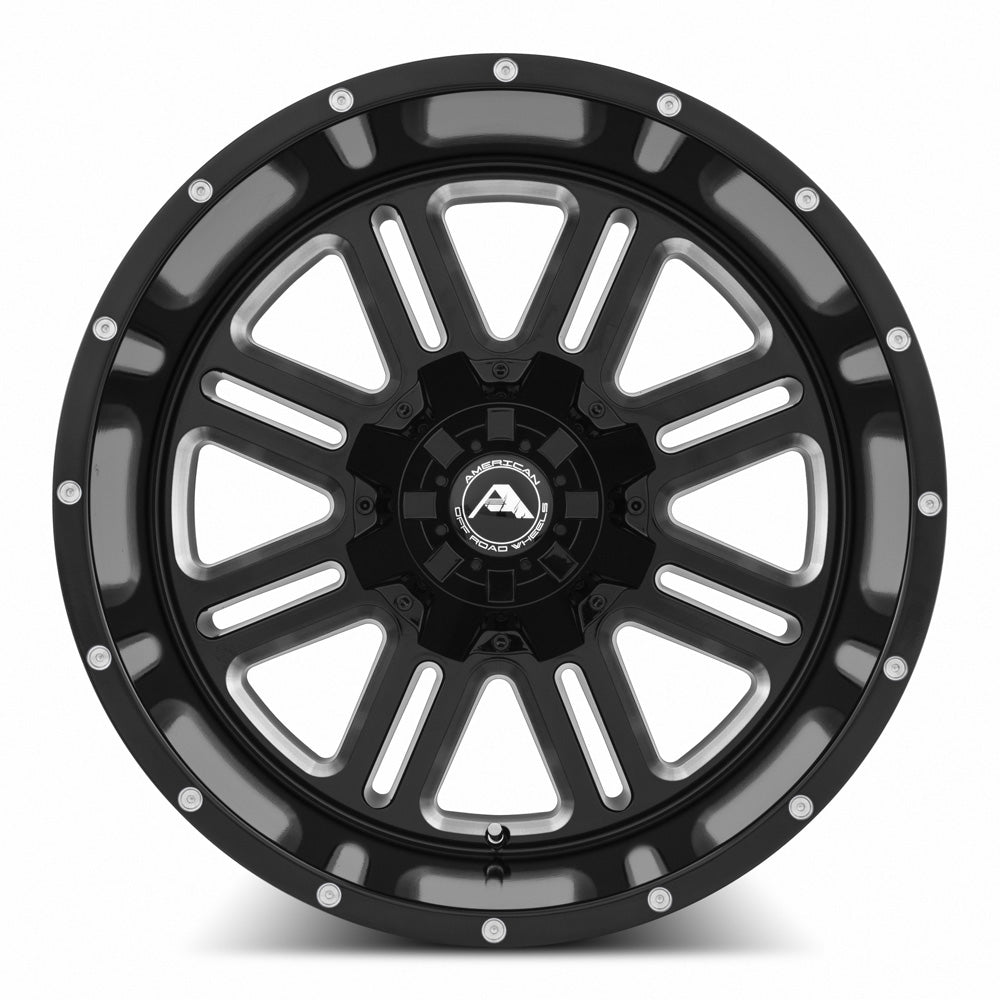

The American Off-Road A106 is a 20x14 truck and SUV wheel in Black Milled with a -76 mm offset. This listing uses catalog identifier A10620A4865-76BMI. Wheel fitment must be confirmed from the complete bolt pattern, center bore, width, offset, brake clearance, load requirement, tire size, suspension, and body clearance before ordering.
Key Features
- 20x14 wheel with -76 mm offset and 8.25 in lip size
- Black Milled finish
- DSF dual-stage forged
- Rated load: 3,500 lb
- Sold individually. Tire, lug nuts, TPMS sensor, and mounting service are not included unless expressly added
Fitment
Use catalog identifier A10620A4865-76BMI only after confirming the complete wheel specification against the vehicle, brakes, suspension, tires, and intended load. Do not assign year-make-model fitment from bolt pattern alone.
Specifications
| Brand | American Off-Road Wheels |
|---|---|
| Model | A106 |
| Catalog Identifier | A10620A4865-76BMI |
| Wheel Size | 20x14 |
| Bolt Pattern | 8x165.1 (8x6.5) |
| Offset | -76 mm |
| Center Bore | 125.2 mm |
| Lip Size | 8.25 in |
| Finish | Black Milled |
| Construction | DSF dual-stage forged |
| Load Rating | 3,500 lb |
| Approximate Weight | 44 lb |
| Condition | New |
| Quantity | One wheel |
What's Included
One wheel. Tires, lug nuts, TPMS sensors, hub-centric rings, and mounting or balancing service are not included unless expressly shown in the order.
About American Off-Road Wheels
American Off-Road Wheels produces application-specific truck and SUV wheels in aggressive sizes, offsets, and finishes. Correct selection depends on the exact catalog configuration and the vehicle's complete fitment requirements.
Related Parts
Frequently Asked Questions
Will the American Off-Road A106 20x14 8x165.1 (8x6.5) wheel fit my truck or SUV?
Fitment is not established by diameter or bolt count alone. Match 20x14, 8x165.1 (8x6.5), 125.2 mm center bore, -76 mm offset, brake clearance, load rating, tire size, and all vehicle-specific clearance requirements.
Is this listing for one wheel or a set of four?
This listing is for one wheel. Order four matching wheels for a complete set unless a staggered or replacement configuration requires a different quantity.
Will my factory lug nuts and TPMS sensors work?
Compatibility depends on the vehicle's thread pitch, the wheel's lug-seat design, sensor style, valve-stem opening, and available clearance. Verify those details before reusing factory hardware.
Installation
Confirm the complete wheel specification for A10620A4865-76BMI before mounting a tire. Use vehicle-approved hardware and torque procedures, verify brake and suspension clearance through full steering travel, then recheck lug torque after the initial drive.
