Make room for a winch without giving up charge-air cooling
AMS AMS.55.09.0002-2 moves charge-air cooling high in the grille opening so an off-road bumper or winch can use the lower opening. This silver uncoated version is supplied without an exterior logo and connects to the factory intercooler piping on supported EcoBoost trucks.
Key Features
- AMS AMS.55.09.0002-2 exact silver uncoated and no logo configuration

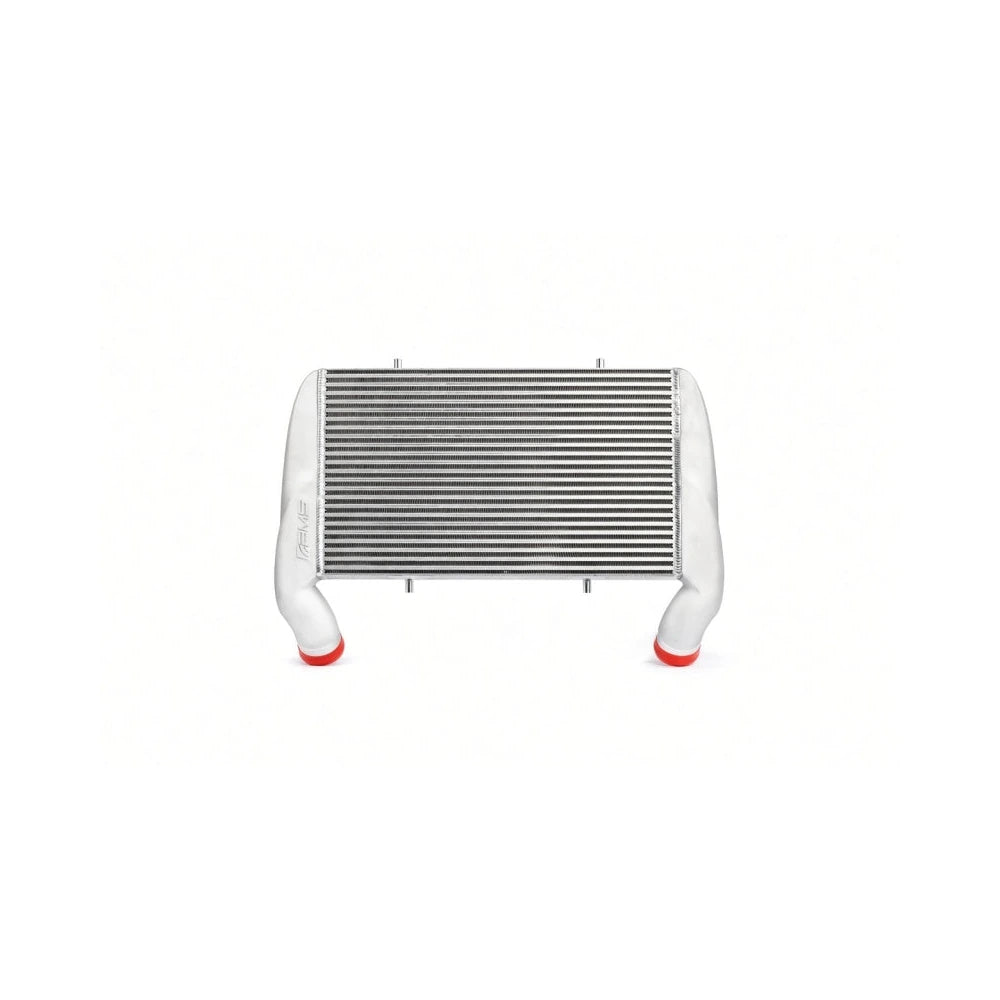

- 24 x 14 x 3.5-inch bar-and-plate core with 1,176 cubic inches of volume
- 113 percent more core volume than the 552-cubic-inch factory intercooler

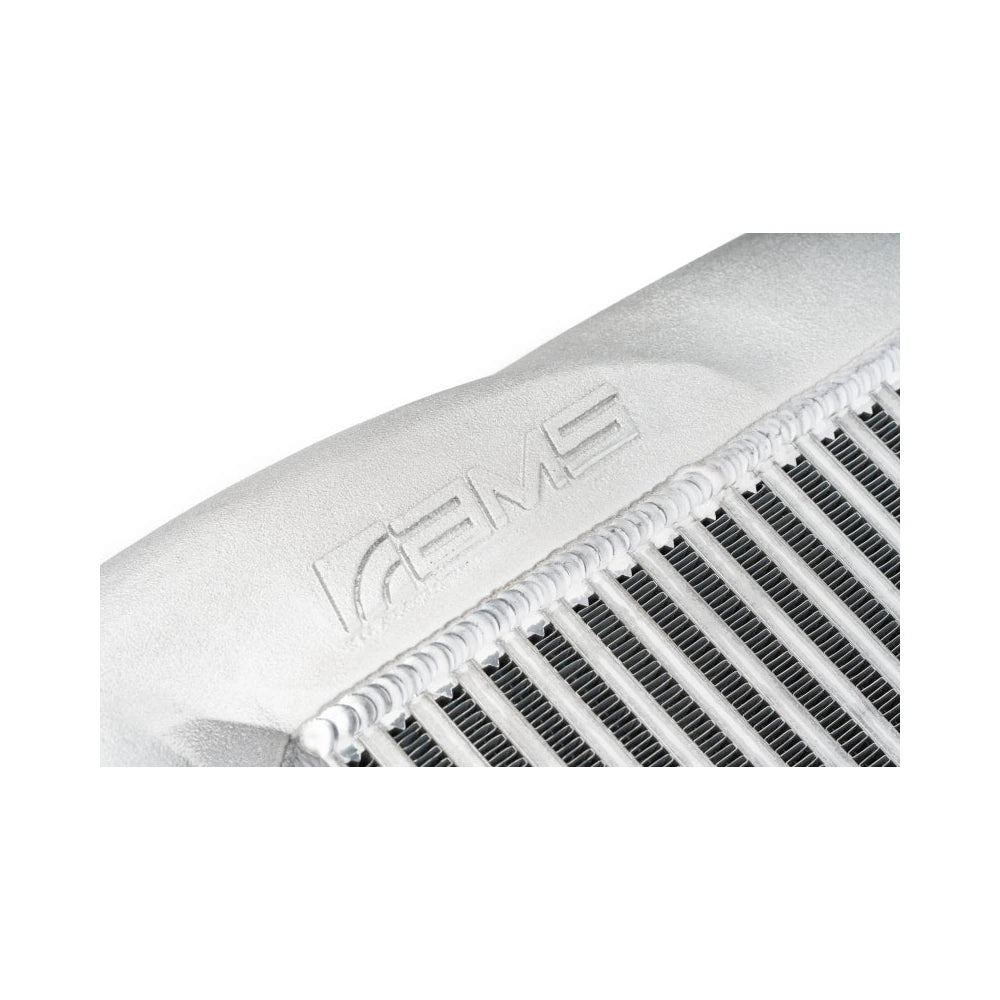

- CAD-designed cast-aluminum end tanks with 3-inch inlet and outlet ports

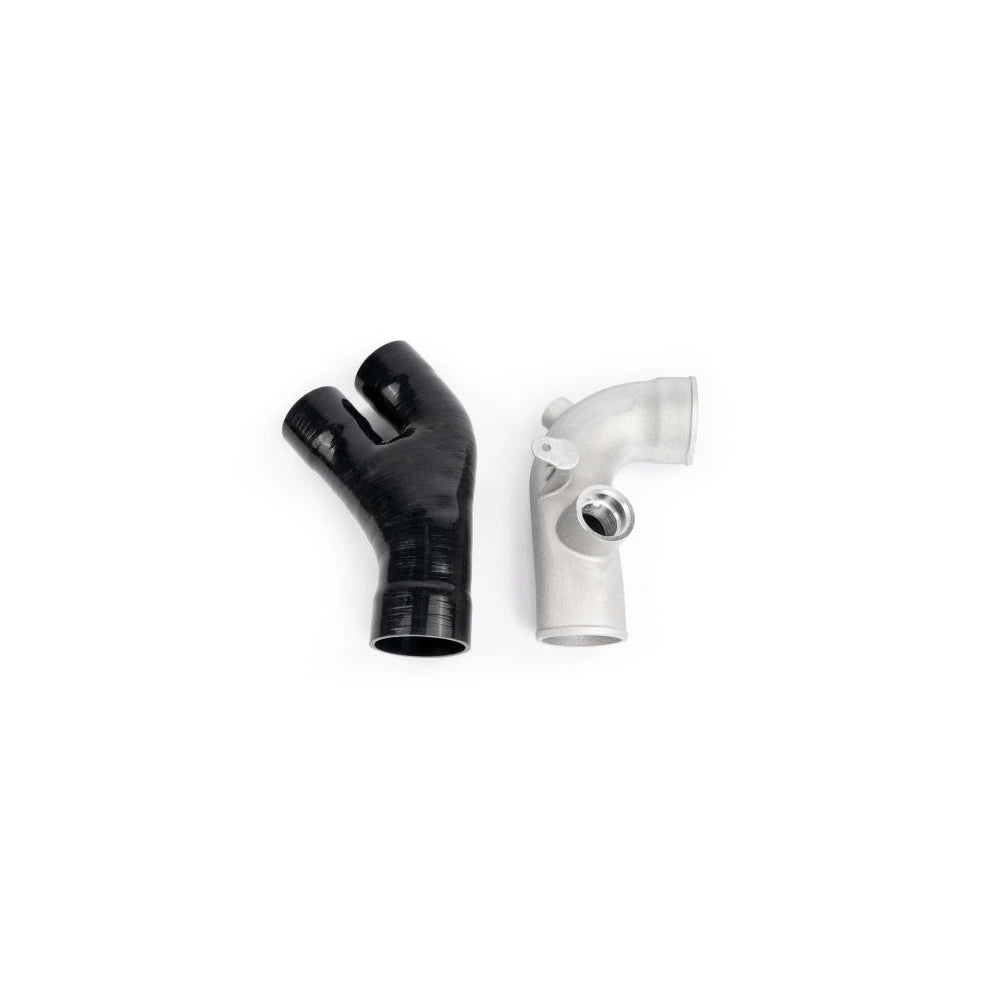

- Cast outlet tube accepts the factory blow-off valve or a Turbosmart VeePort

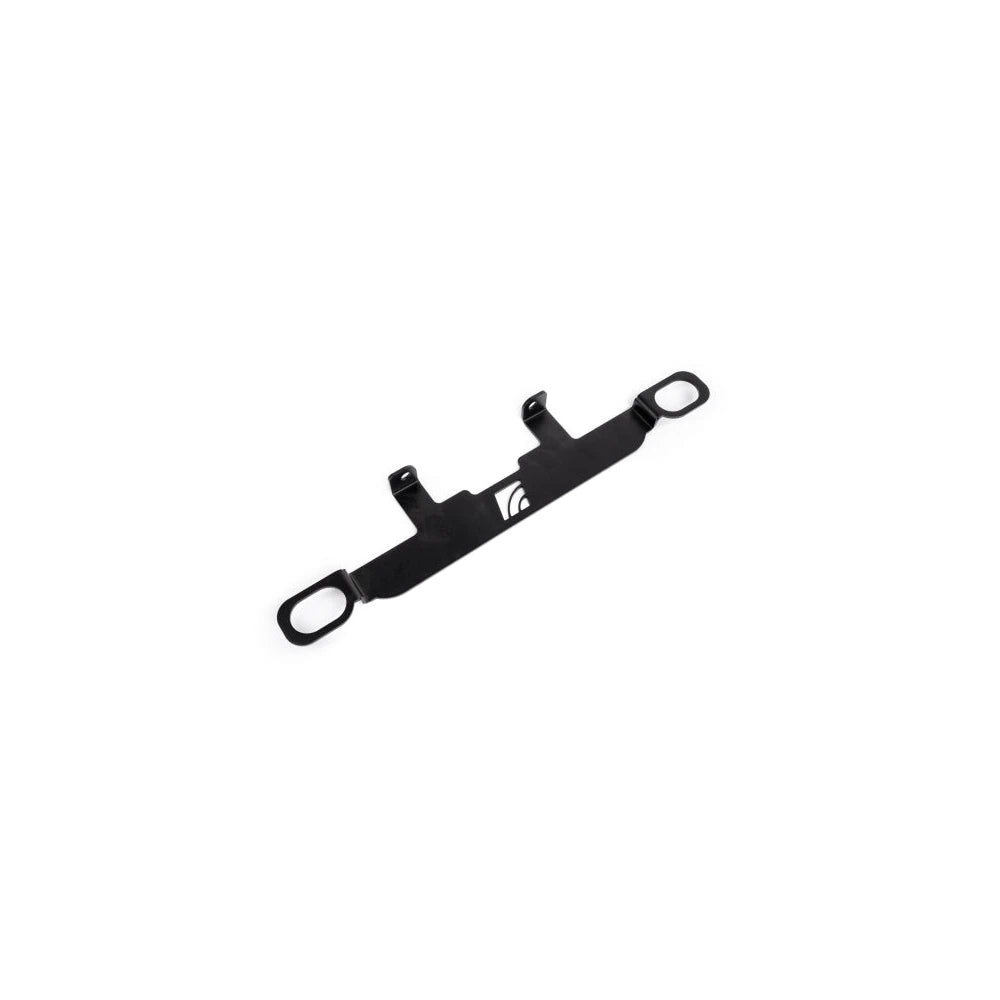

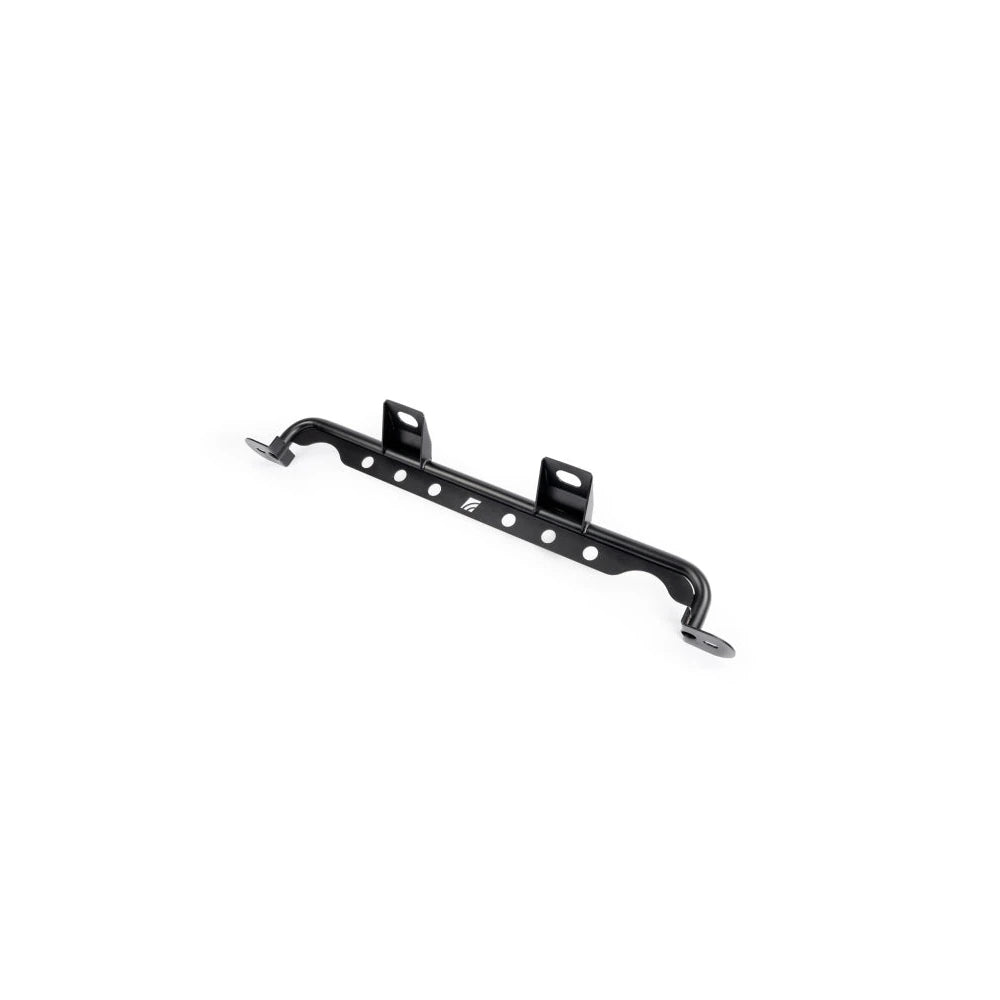

- Gusseted one-inch 304 stainless lower support and stainless upper bracket
- Drain plug at the low point of the intercooler system
Fitment
| Years | Make | Model | Verified Engine and Notes |
|---|---|---|---|
| 2017-2026 | Ford | F-150 | 2.7L or 3.5L EcoBoost; factory intercooler piping |
| 2017-2026 | Ford | F-150 Raptor | 3.5L EcoBoost; factory intercooler piping |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | AMS.55.09.0002-2 |
| Product Type | High-mount intercooler kit |
| Finish | Silver Uncoated |
| Logo | No Logo |
| Core Construction | Bar and plate |
| Core Size | 24 x 14 x 3.5 inches |
| Core Volume | 1,176 cubic inches |
| Inlet and Outlet | 3 inches |
| End Tanks | Cast aluminum |
| Shipping Weight | 25 pounds |
| Shipping Dimensions | 38 x 27 x 8 inches |

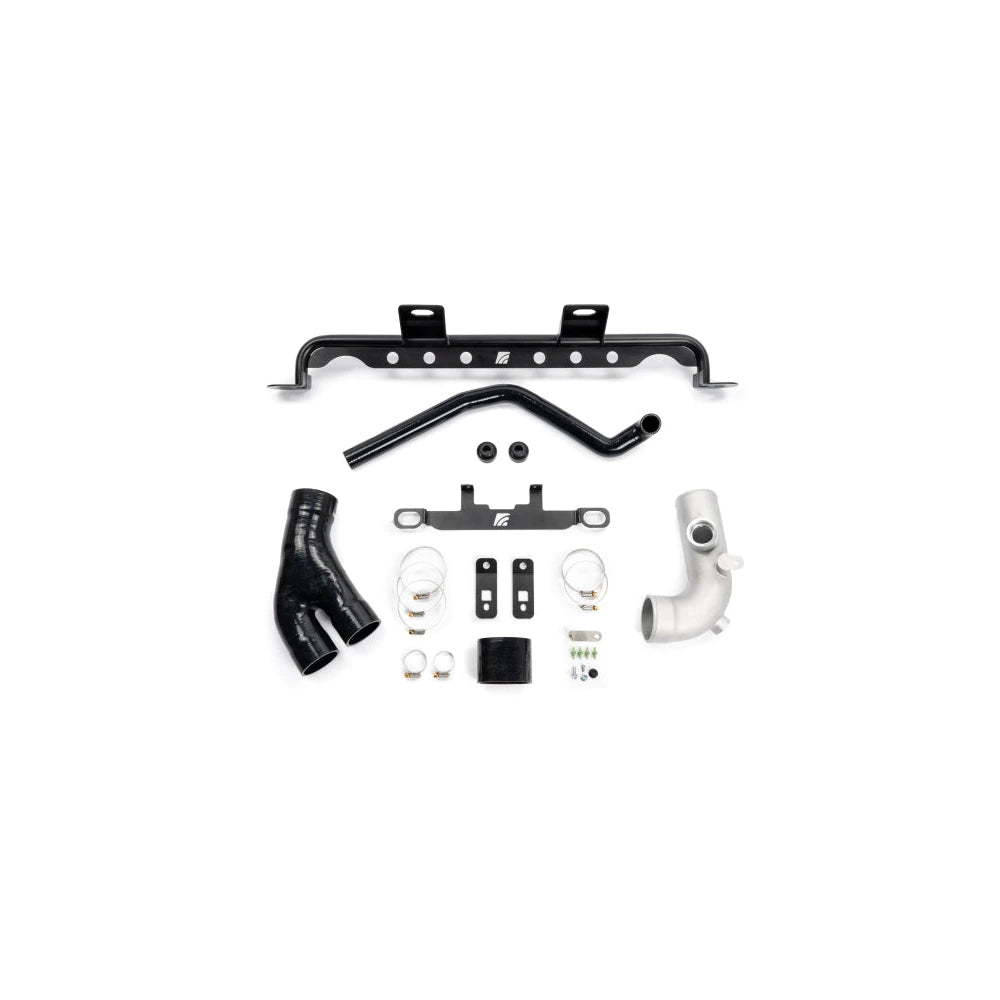

What's Included
- One AMS AMS.55.09.0002-2 high-mount intercooler in silver uncoated
- Cast outlet tube and silicone couplers
- Gusseted stainless lower support and stainless upper bracket
- Application-specific brackets, clamps, and installation hardware shown with the kit
- Aftermarket charge pipes, blow-off valve, tools, and unrelated vehicle parts are not included
About AMS Performance
AMS Performance develops and tests forced-induction and cooling systems for high-output street and motorsport applications. This Ford kit combines cast-aluminum flow paths, a large bar-and-plate core, and stainless mounting hardware around the factory charge-pipe connections.
Related Parts
- Factory-compatible blow-off valve service parts
- Turbosmart VeePort valve verified for the integrated outlet mount
- Off-road bumper or winch hardware selected for the truck and retained lower-opening clearance
FAQ
What is the AMS.55.09.0002-2?It is the silver uncoated AMS high-mount intercooler kit supplied without an exterior logo for supported Ford EcoBoost trucks.
Why is the intercooler mounted high?The high position leaves the lower grille opening available for an off-road bumper or winch while increasing charge-air cooling capacity.
Which engines are supported?The verified applications use the 2.7-liter or 3.5-liter EcoBoost in the F-150 and the 3.5-liter EcoBoost in the F-150 Raptor.
How large is the core?The bar-and-plate core measures 24 by 14 by 3.5 inches and provides 1,176 cubic inches of volume.
Will it connect to aftermarket intercooler pipes?No. AMS specifies this kit for factory intercooler piping only.
Which blow-off valves can be used?The cast outlet mount supports the factory valve or a Turbosmart VeePort.
Does installation require trimming?AMS states that the upper grille shutters are removed and surrounding duct material must be trimmed, so professional installation is recommended.
Can it be shipped to California?AMS states that emissions compliance testing is incomplete and restricts California sales or shipment without its completed race-waiver process.
Installation Instructions
- Confirm the package identifies AMS AMS.55.09.0002-2, the required finish and logo option, and a supported EcoBoost application.
- Allow the vehicle to cool, disconnect the battery, and review the current AMS installation instructions and emissions notice.
- Remove the required grille components and factory intercooler while protecting the air-conditioning condenser and surrounding cooling components.
- Remove the upper grille shutters and trim only the duct material specified by AMS.
- Install the stainless lower support, upper bracket, intercooler, cast outlet tube, couplers, and supplied hardware in the documented order.
- Reconnect the factory intercooler piping and the selected compatible blow-off valve, then verify every clamp and fastener.
- Check clearance around the intercooler, bumper or winch hardware, radiator stack, wiring, and body panels before reassembly.
- Start the engine, inspect for boost leaks or contact, and recheck all connections after initial heat cycles.
California Proposition 65 Warning: Cancer and reproductive harm. See www.P65Warnings.ca.gov.
