Illuminate the Road with Full LED Projector Technology Built for the New-Generation Silverado

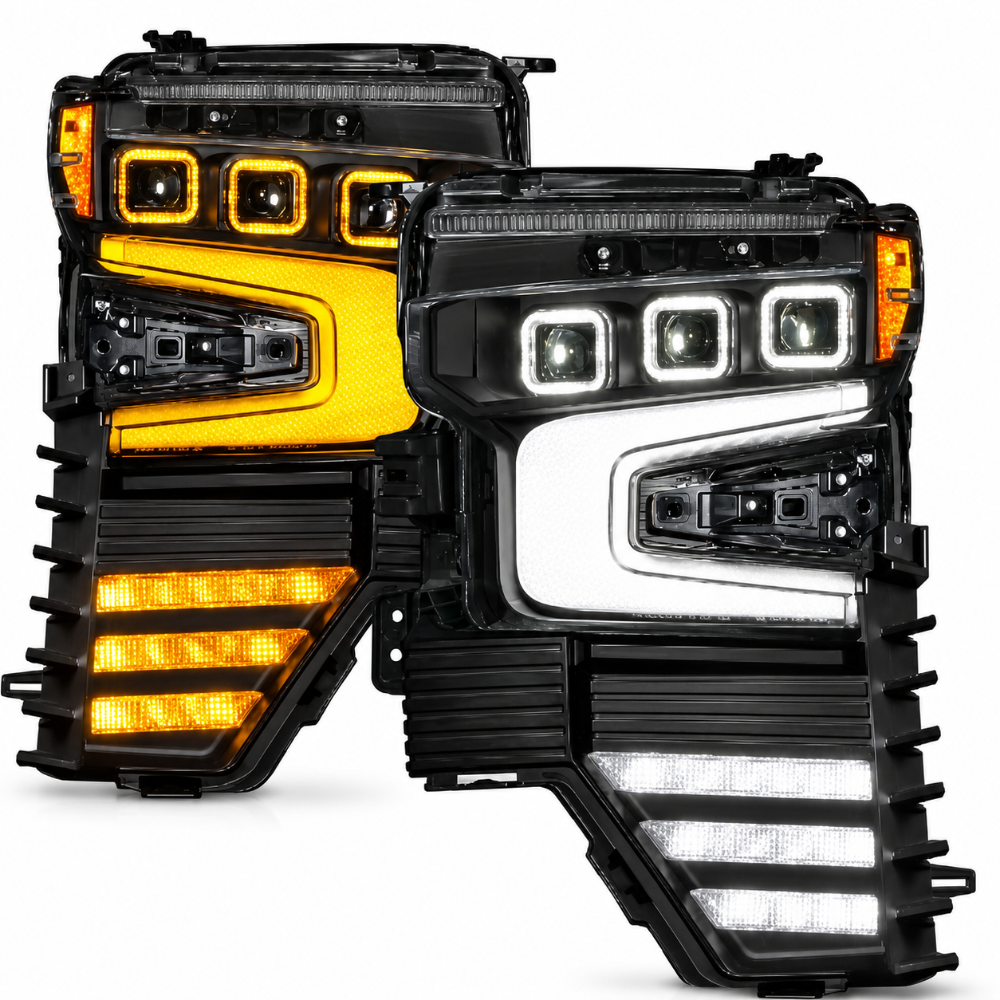

The ANZO ANZ111638X-R Z-Series Full LED Projector Headlight brings OEM-grade illumination engineering to the 2022-2026 Chevrolet Silverado 1500. Sold as the passenger side replacement unit, this headlight delivers a complete lighting upgrade with active DRL switching, an initiation startup sequence, and sequential LED turn signals. Projector optics focus the full LED output for precision beam shaping, reducing scatter and increasing useful road coverage compared to factory halogen reflector designs. The black housing and clear lens match the aggressive face of the T1XX Silverado platform, and the unit is DOT/SAE FMVSS108 compliant for 50-state street legality right out of the box.
Key Features
- Full LED projector headlight with precision beam optics for the 2022-2026 Chevy Silverado 1500
- Active DRL switch function for daytime running light control
- Initiation startup sequence activates LED elements on power-up for a premium lighting effect
- Sequential LED turn signal for a dynamic, eye-catching signal sweep
- Black housing with clear polycarbonate lens matches the T1XX Silverado front fascia
- DOT and SAE FMVSS108 certified for 50-state street legal use
- Direct-fit replacement using OEM mounting locations, no modifications required
- Passenger side only unit (right side) to replace a damaged or upgraded single assembly
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2022-2026 | Chevrolet | Silverado 1500 | WT, Custom, Custom Trail Boss, LT, LT Trail Boss, RST, LTZ, High Country |
Specifications
| Detail | Value |
|---|---|
| Part Number | ANZ111638X-R |
| Side | Passenger Side (Right) |
| Light Source | Full LED |
| Headlight Type | Projector |
| Housing Color | Black |
| Lens Color | Clear |
| DRL Switch | Yes |
| Initiation Feature | Yes |
| Sequential Turn Signal | Yes |
| Certification | DOT / SAE FMVSS108 |
| Installation | Direct fit, OEM mounting locations |
| Quantity | 1 (Passenger Side Only) |
| Brand | ANZO USA |
| UPC | N/A |
What's Included
- ANZ111638X-R Z-Series full LED projector headlight assembly (passenger side)
- All OEM-replacement mounting hardware
- ANZO USA installation documentation
About ANZO USA
ANZO USA is a California-based automotive lighting manufacturer with over 35 years of experience producing aftermarket headlights, tail lights, and auxiliary lighting. ANZO's Z-Series product line represents the company's flagship LED projector platform, engineered for modern truck fitments with advanced sequential signaling and initiation lighting. Every ANZO headlight undergoes DOT and SAE certification testing before release to ensure full street legality across all 50 states.
Frequently Asked Questions
Is the ANZ111638X-R the driver side or passenger side headlight?The ANZ111638X-R is the passenger side (right side) headlight only. The driver side headlight for the 2022-2026 Silverado 1500 is sold separately under part number ANZ111638X-L. If you are replacing both headlights, you will need to order both the -L and -R units.
What years of Chevy Silverado 1500 does the ANZ111638X-R fit?The ANZ111638X-R is designed for the 2022-2026 Chevrolet Silverado 1500, covering the refreshed T1XX platform. It fits all trim levels that use the factory halogen headlight design, including WT, Custom, LT, RST, LTZ, and High Country trims. Verify that your specific Silverado does not have factory LED projector headlights from the factory before ordering, as this unit is designed to replace a halogen assembly.
Does the ANZ111638X-R require any wiring modifications?The ANZ111638X-R is a plug-and-play direct fit replacement using the OEM mounting locations and factory wiring harness connectors. No cutting, splicing, or relay wiring is required for the standard headlight and DRL functions. The initiation feature may require a simple two-wire harness connection to battery power and ground if activation of the startup sequence is desired. ANZO provides all installation documentation in the box.
What is the initiation feature on the ANZ111638X-R?The initiation feature is a startup lighting sequence that activates the LED elements in a visual sweep pattern when the vehicle is powered on. This is an aesthetic feature common to ANZO Z-Series headlights that creates a premium, high-end lighting startup effect. The initiation function requires a dedicated two-wire connection to battery power and ground, which is included in the installation guide.
How do the sequential turn signals work on the ANZ111638X-R?The sequential turn signal sweeps the LED turn signal elements from the inboard side to the outboard side of the headlight housing in a flowing motion when the turn signal is activated. This replaces the standard static flash of a factory halogen or LED turn signal and creates a distinctive dynamic signaling effect. The sequential signal function operates through the standard factory turn signal wiring with no modifications required.
Is the ANZ111638X-R street legal?Yes. The ANZ111638X-R carries DOT and SAE FMVSS108 certification, making it fully legal for road use in all 50 US states. The headlight meets federal motor vehicle safety standards for photometric output, beam pattern, and lens construction. No additional certification or inspection waiver is needed for street use.
Does the ANZ111638X-R use projector optics or reflector optics?The ANZ111638X-R uses projector optics, which focus the LED light source through a precision-engineered lens to create a controlled, defined beam pattern. Projector headlights typically produce a sharper cutoff line than reflector designs, reducing glare to oncoming drivers while maximizing usable road illumination. The full LED projector design in the ANZ111638X-R provides a significant visibility upgrade over factory halogen reflector assemblies.
Can I install the ANZ111638X-R myself?Yes. The ANZ111638X-R is a direct bolt-in replacement using the factory mounting hardware and connector locations. Basic hand tools including a socket set are sufficient for removal of the factory headlight and installation of the new unit. The primary headlight and DRL functions are fully plug-and-play. The initiation feature connection adds a minor step requiring two wires to be routed to a switched battery source, which is a straightforward process documented in the included instructions.
Installation Instructions
- Open the hood and locate the passenger side headlight assembly mounting bolts (typically 10mm).
- Disconnect the negative battery terminal before beginning electrical work.
- Remove all mounting bolts securing the factory headlight assembly to the vehicle.
- Disconnect the OEM wiring harness connectors from the back of the factory headlight.
- Slide the factory headlight assembly out of the mounting pocket and set aside.
- Unbox the ANZ111638X-R and verify the assembly is the correct side (passenger) before installation.
- Connect the OEM harness connectors to the corresponding plugs on the ANZ111638X-R.
- Route the two-wire initiation harness leads (red positive, black negative) toward the battery if the initiation startup sequence is desired.
- Set the ANZ111638X-R into the headlight mounting pocket and align all OEM mounting points.
- Reinstall all mounting bolts and torque to OEM specification.
- Reconnect the negative battery terminal.
- Power on the vehicle and verify all functions: low beam, high beam, DRL, sequential turn signal, and initiation sequence.
- If the initiation sequence is connected, connect the two-wire harness leads to the battery terminals as instructed and secure all wiring with zip ties away from moving components.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
