RAM DT flanged muffler delete details

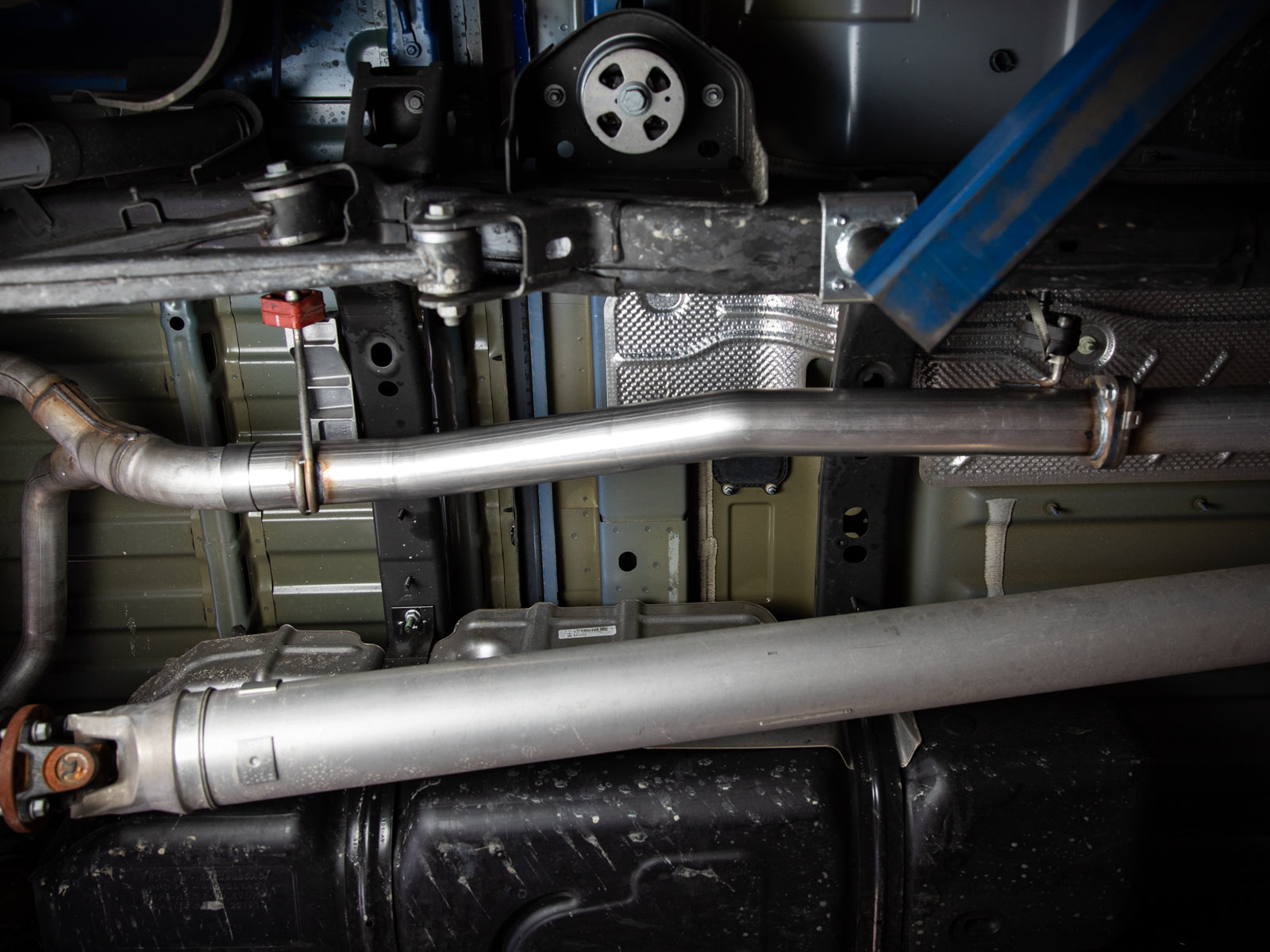

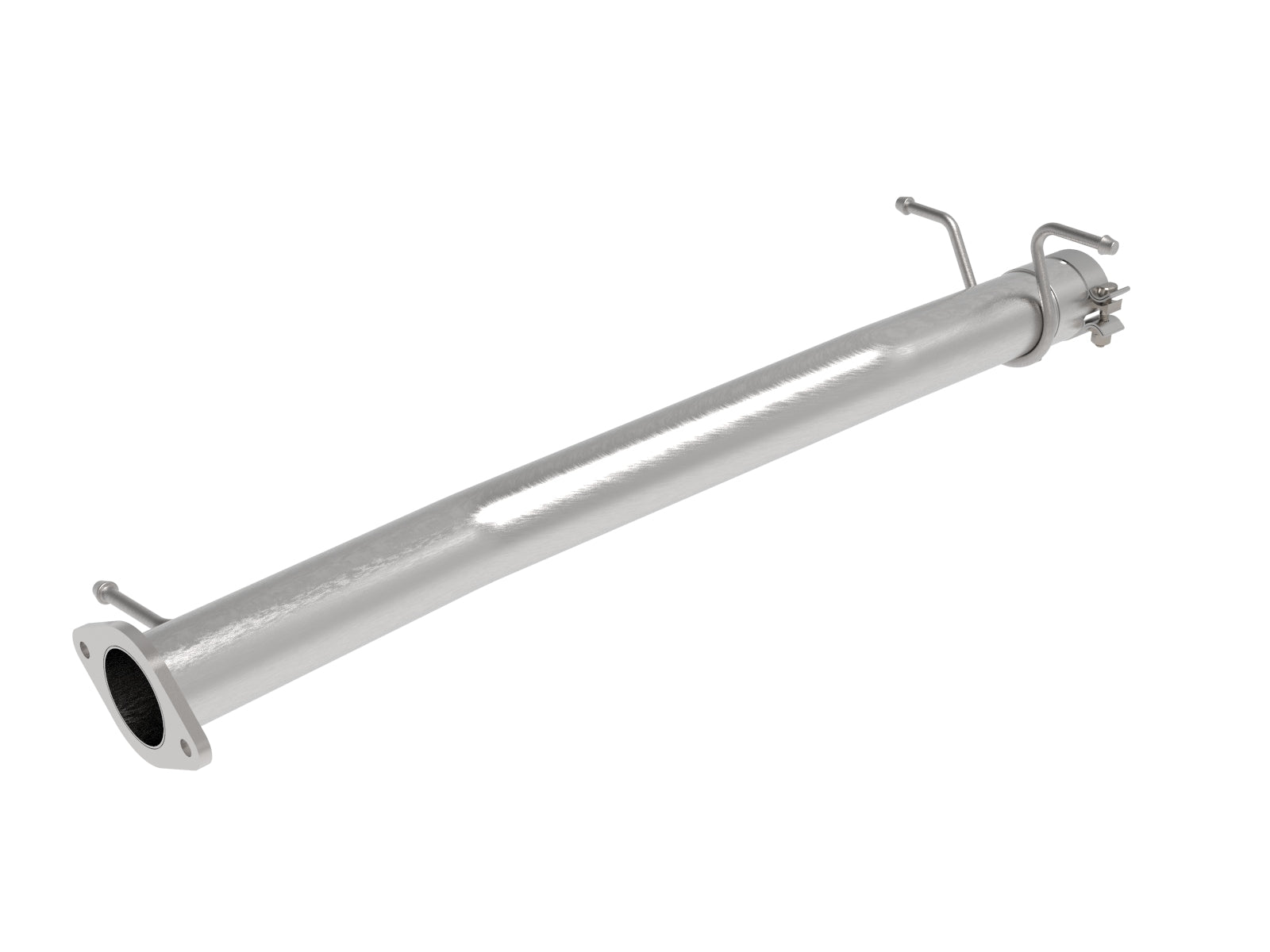

aFe 49C42076NM This 3-inch mandrel-bent 409 stainless pipe replaces the factory muffler section and retains the original rear exhaust. Factory-style flange and hanger connections are combined with one supplied band clamp; removal requires cutting.
Key Features
- RAM 1500 DT 5.7L HEMI application; both factory single and dual exhaust configurations.
- 3-inch mandrel-bent 409 stainless tubing.
- 100% MIG-welded construction, per the exact manufacturer page.
- One selected flanged assembly and one 3-inch connecting band.
- Original flange nuts, rubber mounts, rear exhaust and tips reused.
- Cut behind the original muffler and deburr all edges.
- Band clamp 40–45 ft-lb; all clamps and hardware rechecked after 50–100 miles.
Fitment
RAM 1500 DT with the 5.7L HEMI, using the factory flange and hanger layout. The manufacturer explicitly supports both factory SINGLE and DUAL exhausts. The September 2026 manual lists 2019–2024 and 2026, omitting 2025; the broader product-page 2019–2026 headline does not fill that gap. The named application table below is supported through 2024; 2026 named-trim coverage requires separate confirmation. Special Service support is verified for 2020–2021 4WD; no additional drivetrain application is inferred. This DT application does not establish fitment to the separate 1500 Classic.
| Years | Make | Model | Named trim; actual DT 5.7L flange and exhaust layout apply |
|---|---|---|---|
| 2019-2024 | Ram | 1500 | Big Horn |
| 2019-2024 | Ram | 1500 | Laramie |
| 2019-2021 | Ram | 1500 | Laramie Longhorn |
| 2019-2024 | Ram | 1500 | Limited |
| 2021-2024 | Ram | 1500 | Limited Longhorn |
| 2019-2024 | Ram | 1500 | Lone Star |
| 2021 | Ram | 1500 | Longhorn |
| 2019-2024 | Ram | 1500 | Rebel |
| 2020-2021 | Ram | 1500 | Special Service |
| 2019-2024 | Ram | 1500 | Tradesman |
Verify 49C42076NM against the actual engine, flange, hangers and mounting locations and applicable emissions requirements before ordering.
Specifications
| Detail | Value |
|---|---|
| Brand | aFe POWER |
| Manufacturer Part Number | 49C42076NM |
| System | Muffler delete assembly |
| Selected service assembly | 05-144843 |
| Alternative excluded | Muffled assembly 05-144844 |
| Material / tubing | 409 stainless steel; 3-inch mandrel-bent tubing; MIG welded |
| Application | RAM 1500 DT 5.7L HEMI; factory single or dual exhaust |
| Manufacturer model years | Manual: 2019–2024 and 2026; no 2025 application added |
| Named years | See table through 2024; later named-trim proof held |
| Original parts retained | Flange nuts, rubber hanger mounts, rear exhaust and tips |
| Supplied clamp | ONE 3-inch band 05-41055 |
| Cutting | Behind muffler at reference photo 3; deburr edges |
| Torque / order | 40–45 ft-lb BAND only; front toward rear; no numeric flange torque |
| Recheck | All clamps and hardware after 50–100 miles |
| UPC | 802959603376 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
What's Included
- 1 x 05-144843: Muffler-delete flanged assembly.
- 1 x 05-41055: 3-inch band clamp.
One muffler-delete assembly 05-144843 and ONE 3-inch band clamp 05-41055. The shared bill shows the muffled and unmuffled assemblies as ALTERNATIVES, not two assemblies in this selected kit. Reuse the ORIGINAL FLANGE NUTS and original rubber hanger mounts. The manual does not itemize a new flange gasket, nut quantity, thread size, separate decorative tips, sensor or valve motor. The original rear exhaust and tips are retained.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 49C42076NM
- Exact illustrated installation manual
- Shop the complete aFe Power collection
FAQ
What is the 49C42076NM?One muffler-delete assembly 05-144843 and ONE 3-inch band clamp 05-41055. The shared bill shows the muffled and unmuffled assemblies as ALTERNATIVES, not two assemblies in this selected kit. Reuse the ORIGINAL FLANGE NUTS and original rubber hanger mounts. The manual does not itemize a new flange gasket, nut quantity, thread size, separate decorative tips, sensor or valve motor. The original rear exhaust and tips are retained.
Which RAM applications and model years are supported?RAM 1500 DT with the 5.7L HEMI, using the factory flange and hanger layout. The manufacturer explicitly supports both factory SINGLE and DUAL exhausts. The September 2026 manual lists 2019–2024 and 2026, omitting 2025; the broader product-page 2019–2026 headline does not fill that gap. The named application table below is supported through 2024; 2026 named-trim coverage requires separate confirmation. Special Service support is verified for 2020–2021 4WD; no additional drivetrain application is inferred. This DT application does not establish fitment to the separate 1500 Classic.
Does the replacement require cutting?Yes. The selected manual requires removing the original cat-back to the flanged joint, marking BEHIND THE MUFFLER at reference image 3, cutting with a reciprocating saw and deburring all edges. The product page contains conflicting no-cut and cutting statements; the illustrated selected manual establishes the cutting requirement.
Which original mounting parts are reused?Reuse the original flange nuts and rubber hanger mounts. Reconnect the original rear exhaust with the one supplied 3-inch band. No new gasket or replacement flange fasteners are itemized, and no original-nut count or thread specification is provided.
Are new tips or both assembly options included?No. The selected delete assembly 05-144843 is supplied with one 3-inch band. The other assembly in the shared diagram is an alternative. Retain the original tips and center them in the bumper cutouts where fitted.
What torque and tightening order apply?Align the complete installation and check surrounding clearances. Start at the front and evenly tighten clamps and fasteners. The BAND CLAMP requires 40–45 ft-lb; no separate numeric flange torque is supplied.
When should the connections be rechecked?Re-tighten ALL clamps and hardware after 50–100 miles. At installation, start the vehicle and repair any leaks before lowering it safely. No battery, sensor or valve-coding procedure is specified.
Are measured power gains or a CARB EO supplied?The manufacturer states no CARB EO number is required. This does not waive local sound or usage requirements or authorize changes to unrelated emissions equipment. No actual dyno or airflow chart is linked for this selection, so no numeric horsepower, torque or drone claim is made. Generic product-page filter/coupler fields do not add intake components to this exhaust bill.
Installation Instructions
Verify aFe 49C42076NM.
- Read both pages of the selected September 2026 B/NM instructions, all 15 numbered steps, the parts diagram and all three reference photos. Inspect the DT 5.7L flange, hangers and single/dual factory exhaust arrangement. Allow the exhaust to cool, wear eye and hand protection, and support the vehicle and exhaust safely. Leave new joints loose for alignment.
- Remove the ORIGINAL CAT-BACK EXHAUST up to its FLANGED JOINT. Mark the exhaust BEHIND THE MUFFLER as shown in reference image 3. The selected manual requires cutting; no distance from a different GM or RAM kit is substituted.
- Use a reciprocating saw to cut at the marked position behind the muffler, then DEBURR ALL EDGES. The manufacturer’s flanged replacement connection does not eliminate this original-exhaust cutting step.
- Install the selected delete assembly 05-144843 using the ORIGINAL FLANGE NUTS. Slide its hanger into the ORIGINAL RUBBER HANGER MOUNTS. The manual supplies no nut count or numeric flange-fastener torque.
- Install the BACK HALF of the original exhaust using the ONE supplied 3-inch band clamp 05-41055. Adjust the ORIGINAL EXHAUST TIPS to the CENTER of the bumper cutouts where fitted. No new tips or extra tailpipe kit are supplied.
- Align all components and check clearance from wires, hoses, brake lines, body and tires. Start at the FRONT and evenly tighten clamps and fasteners. The manual specifies 40–45 ft-lb for the BAND CLAMP; no separate flange torque is given.
- Start the vehicle and identify and repair any leaks before lowering it safely. Re-tighten ALL clamps and hardware after 50–100 miles. The manual gives no battery-disconnection, sensor-transfer, valve-motor transfer or coding procedure.
The manufacturer states no CARB EO number is required. This does not waive local sound or usage requirements or authorize changes to unrelated emissions equipment. No actual dyno or airflow chart is linked for this selection, so no numeric horsepower, torque or drone claim is made. Generic product-page filter/coupler fields do not add intake components to this exhaust bill.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
