Click to zoom in
SKU: 3423210

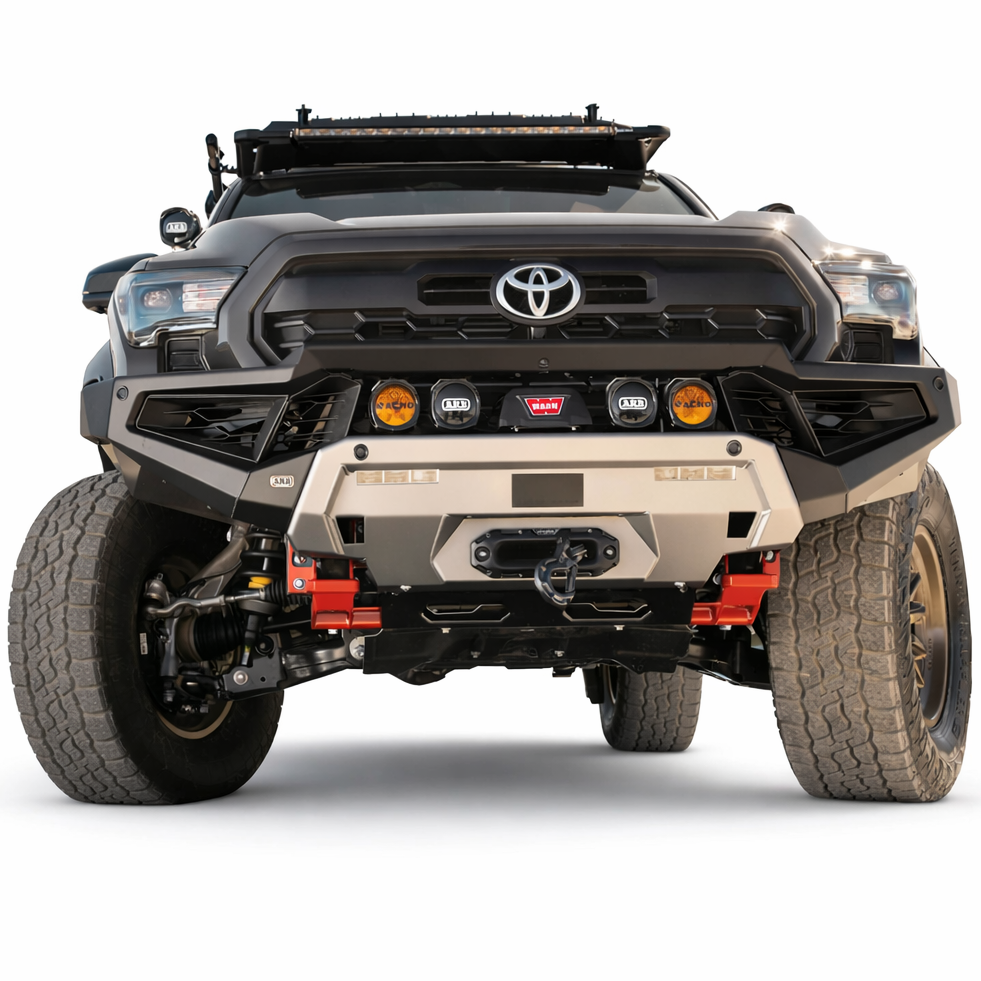

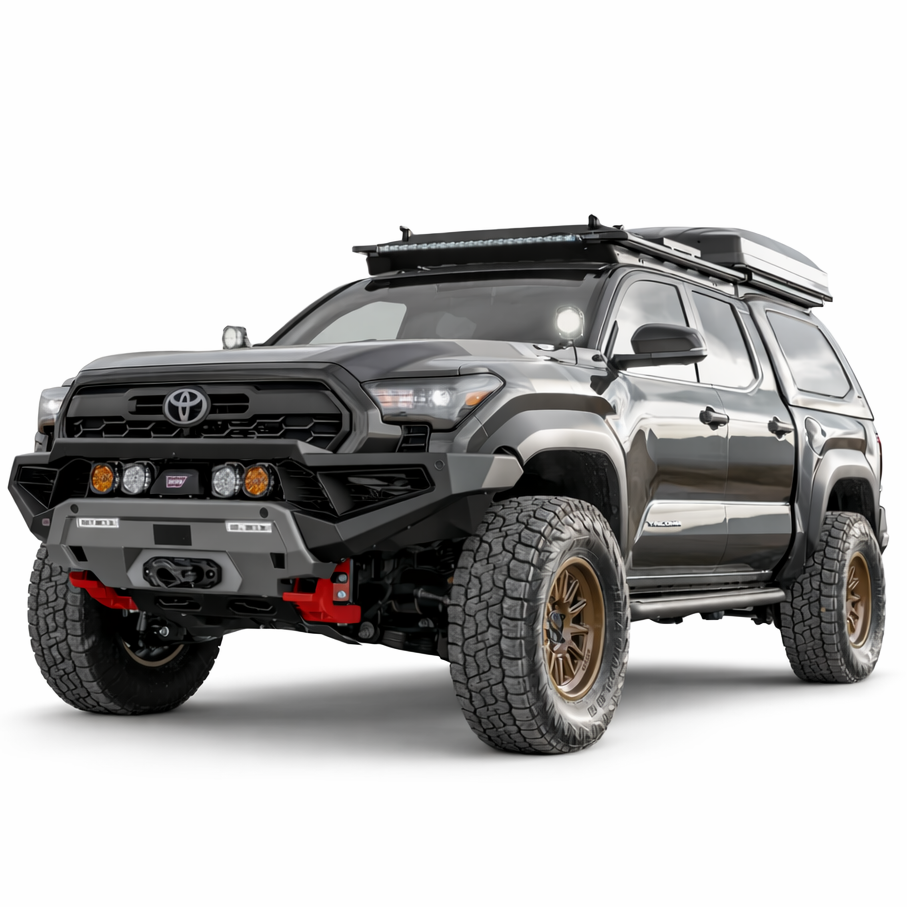

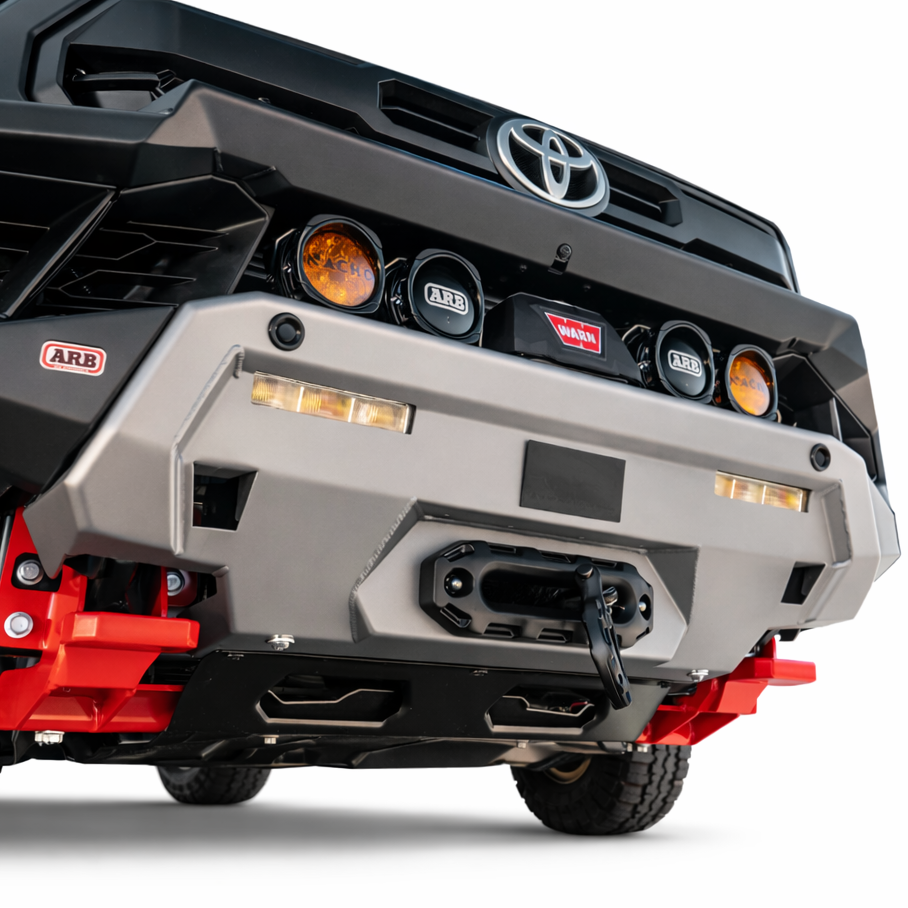

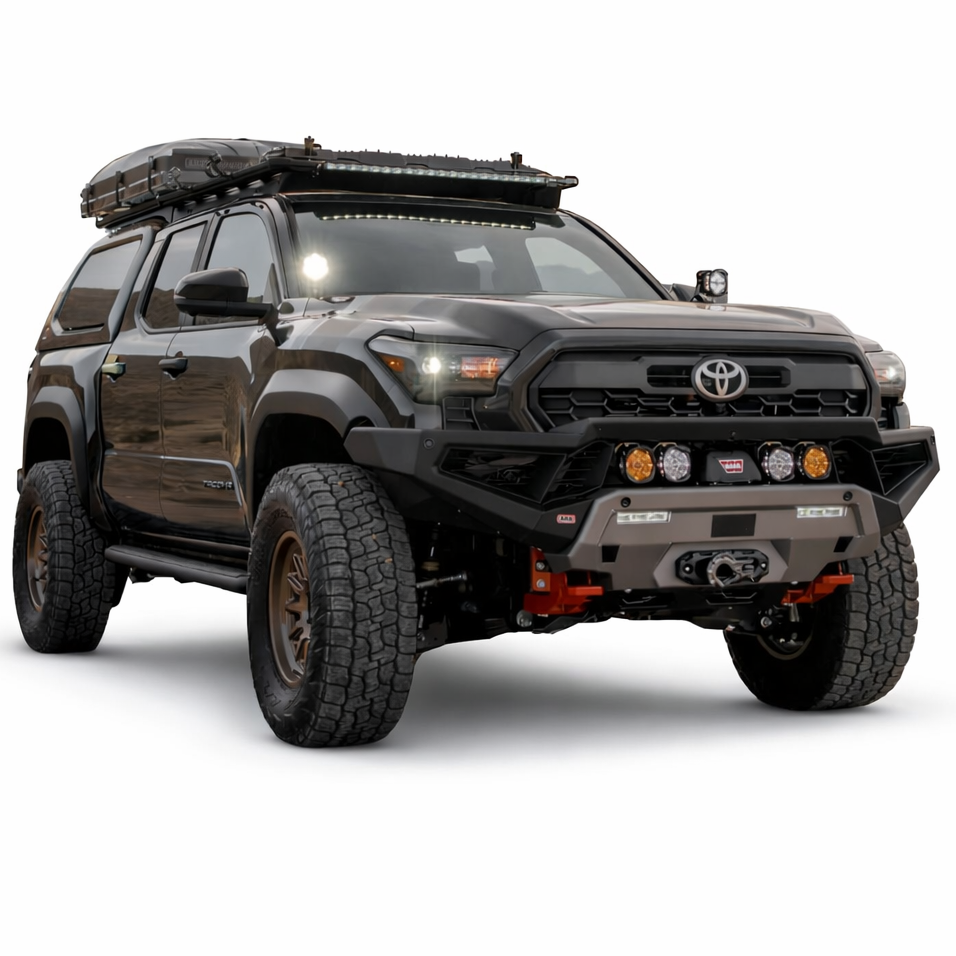

ARB Zenith Winch Bumper Bar – 2024+ Toyota Tacoma (TXT Black)
The ARB Zenith Winch Bumper Bar is a premium, low-profile steel winch bumper bar engineered for the 2024+ Toyota Tacoma. Bridging functionality and style, it delivers ARB’s industry-leading protection and performance while turning heads with its modern, aggressive design.
Constructed from laser-cut and formed durable 3mm steel, the Zenith features e-coat, metal prep, and a satin black powder coat finish for ultimate corrosion resistance. Extensive engineering has maximized strength and aesthetics in this new low-profile design. Twin integrated 8-ton (17,637 lb) rated recovery points, finished in red powder coat, provide a complete recovery solution. The forged recovery points are shaped to protect soft shackles and prevent point loading on steel bow shackles. Integrated front bash plates, along with the wings and pans of the bumper, offer superior protection to vulnerable vehicle components. The design ensures maximum airflow to critical cooling systems without affecting powertrain performance.
OEM fog lamps are utilized via dual apertures, and radar/ADAS systems are accommodated where required. The built-in winch cradle is compatible with most low-mount winches up to 12,000 lbs. A removable center grille allows installation of up to seven 4-inch pod lights or a light bar up to 30 inches. Twin recessed recovery jack points provide safe, secure locations for an ARB Jack or traditional farm jacks.
Key Features
- Integrated 8-Ton Recovery Points – Two forged points rated to 17,637 lbs (8T), finished in red powder coat for high visibility
- Heavy-Duty Bash Plates – One heavy forged center bash plate plus additional side plates for comprehensive protection
- Winch Cradle – Built-in cradle compatible with most low-mount winches up to 12,000 lbs
- OEM Compatibility – Retains factory fog lights, radar/ADAS, parking sensors, and airbag systems
- Slimline Low-Profile Design – Minimal front overhang with excellent cooling airflow
- Removable Center Grille – Supports up to 7x 4" pod lights or a 30" light bar
- Twin Recessed Recovery Jack Points – Safe and secure locations for ARB Jack or traditional farm jacks
- Durable Finish – Satin black powder coat over e-coat and metal prep for superior corrosion resistance
| Spec | Detail |
|---|---|
| Part Number | 3423210 |
| Brand | ARB |
| Type | Zenith Winch Bumper Bar |
| Compatibility | 2024+ Toyota Tacoma |
| Material | 3mm Laser-Cut and Formed Steel |
| Recovery Points | 2x 8-Ton (17,637 lb) rated, red powder-coated |
| Winch Capacity | Up to 12,000 lbs (low-mount) |
| Finish | Satin Black Powder Coat (TXT Black) |
| Country of Origin | Australia |
| Warranty | ARB Limited Warranty |
Whats Included
- ARB Zenith Winch Bumper Bar Only not the full bumper order (SKU: 3423210B) for the complete Bumper
- Integrated recovery points and bash plates
- Mounting hardware
- Installation instructions
Product Notes
- Designed specifically for the 2024+ Toyota Tacoma
- Requires separate Zenith Bumper Mounting Kit (ARB 6178462) and optional Bashplate Kit (ARB 6178463)
- Compatible with factory fog lights, radar/ADAS, and airbag systems where applicable
Installation Notes
- Professional installation recommended
- Estimated time: 4–6 hours (depending on vehicle configuration)
- Dry fit before final installation verify sensor compatibility and alignment
This Part Fits
| Year Range | Make | Model | Trim | Notes |
|---|---|---|---|---|
| 2024-2025 | Toyota | Tacoma | All trims (Limited, SR, SR5, Trailhunter, TRD Off-Road, TRD Pro, TRD Sport) | Zenith Winch Bumper Bar (requires mounting kit 6178462 and optional bashplate kit 6178463 for full kit) |
Why Choose ARB Zenith Bumpers?
- Industry-leading protection with integrated high-rated recovery points and bash plates
- Precision engineering for perfect fitment and factory sensor compatibility
- Durable 3mm steel construction and premium satin black finish built to withstand the harshest conditions
Frequently Asked Questions
-
Q: Is a winch included with this bumper bar?
A: No, the bumper bar includes a winch cradle compatible with most low-mount winches up to 12,000 lbs (winch sold separately). -
Q: Does this bumper bar work with factory fog lights?
A: Yes, it is compatible with OE fog lights on applicable models. -
Q: Is professional installation recommended?
A: Yes, professional installation ensures proper fitment, sensor alignment, and structural integrity.
Shipping & Handling
- Method: Freight (due to size and weight)
- Availability: In stock – ships within standard lead time
- Packaging: Secure double-boxed with foam protection
- Shipping Weight: Approximately 65 lbs (box dimensions 79" x 26" x 17")
