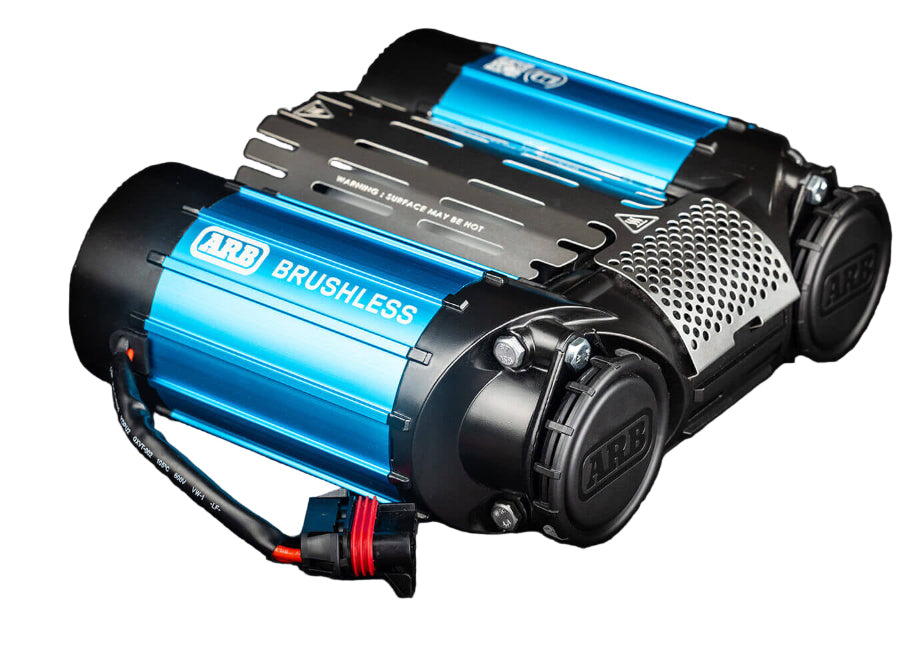

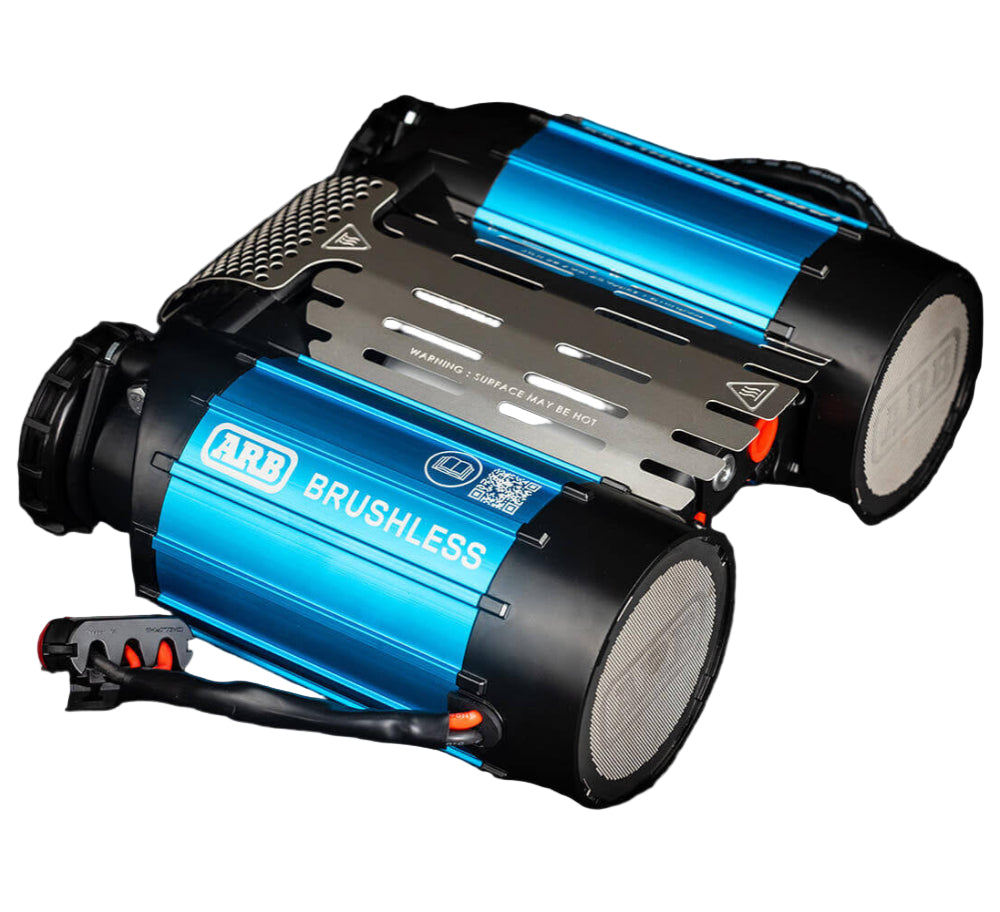

ARB Brushless Twin Motor On-Board 12V Air Compressor Kit

SKU: CKBLTA12 / UPC: 09332018082442

ARB Brushless Twin Motor On-Board 12V Air Compressor Kit for High-Performance Off-Road Air Compression

Experience unmatched power and efficiency with the ARB Brushless Twin Motor On-Board 12V Air Compressor Kit (SKU: CKBLTA12, UPC: 09332018082442). Designed for off-road enthusiasts and professionals who demand reliable, high-volume air delivery, this compressor sets the standard for performance, durability, and versatility. Whether you’re inflating large tires, powering air tools, or activating ARB Air Lockers, the CKBLTA12 delivers the airflow and dependability needed to conquer any terrain with confidence.

Why Choose ARB?

The ARB Brushless Twin Motor Compressor outperforms other options with its innovative design, featuring brushless electric motors that provide a 50% increase in air output compared to ARB’s traditional brushed compressors. This means faster tire inflation and less downtime, letting you focus on your adventure. With advanced smart technology, active cooling, and a compact, lightweight build, this compressor is engineered to thrive in the harshest off-road conditions while offering seamless integration with your vehicle and ARB accessories.

Key Features and Benefits

• High-Output Brushless Motors: Dual brushless motors deliver 9.18 CFM at 0 PSI and 6.20 CFM at 29 PSI, ensuring rapid inflation for large tires and efficient operation for air tools and ARB Air Lockers.
• 100% Duty Cycle: Run continuously without needing cooldown periods, ideal for demanding tasks.
• Active Cooling System: Built-in fans in each motor/compressor assembly maintain performance and extend lifespan by preventing overheating.
• Smart Technology: Electronic speed control adjusts for temperature and vehicle charging system variations, while live diagnostics via audio and visual alerts keep you informed of system status.
• Voltage and Overload Protection: Safeguards the compressor and vehicle’s power supply from spikes, drops, overcurrent, and motor stalls.
• Quick-Release Mounts: Cam-lock mounts simplify installation and removal, making it easy to reposition or service the unit.
• Relay-Free Design: Brushless motors eliminate the need for relays, reducing installation complexity and time.
• Smart Start Technology: Staggered power-on for twin motors reduces startup power spikes, enabling use on vehicles with smaller charging systems.
• IP67 Water-Resistant Rating: Sealed against dust and water, ensuring reliable performance in extreme conditions.
• Compatibility: Works seamlessly with ARB’s existing air accessories, hose kits, and Air Lockers for easy system upgrades.

What’s Included in the Purchase

• ARB Brushless Twin Motor On-Board 12V Air Compressor (Part Number: CKBLTA12)
• Full wiring loom for simplified installation and plug-in connectivity to ARB Air Locker control solenoids
• Quick-release cam-lock mounting hardware for secure and easy installation
• Air filter assembly to ensure clean air intake
• Installation instructions for straightforward setup

Note: ARB Air Locker Manifold Kit (Part Number: 171503) is required for mounting solenoids and is sold separately.

Specifications

• Part Number: CKBLTA12
• UPC: 09332018082442
• Voltage: 12V
• Maximum PSI: 150
• Maximum Amps: 90
• Duty Cycle: 100%
• Air Flow: 9.18 CFM at 0 PSI, 6.20 CFM at 29 PSI
• IP Rating: IP67 (Water-Resistant and Dustproof)
• Weight: 15.8 lbs (7.16 kg)
• Dimensions:
• Height: 6.69 inches (170 mm)
• Width: 13.31 inches (338 mm)
• Length: 14.49 inches (368 mm)
• Warranty: 3 years
• Shipping Box Dimensions: Not explicitly listed in sources, but based on similar ARB compressor kits, approximate shipping dimensions are 16” x 14” x 8”

Vehicle Fitment

The ARB CKBLTA12 is a universal-fit compressor designed for a wide range of 4x4 vehicles, particularly those requiring high-volume air for large tires, trailers, or ARB Air Lockers. Common mounting locations include engine bays, under seats, under rear storage decks, or cargo areas, provided there is a flat surface and adequate support for the compressor’s weight.

Confirmed Fitment for Popular Models (vehicle-specific mounting brackets may be required):

• Jeep:
• Wrangler (JK, JL, including Rubicon 392): 2007–2025
• Gladiator (JT): 2020–2025
• Toyota:
• Tundra: 2007–2025
• Tacoma: 2005–2025
• 4Runner: 2003–2025
• Land Cruiser: 2008–2025
• Ford:
• Bronco (6th Gen): 2021–2025
• F-150: 2009–2025
• Ram:
• 1500 (including TRX): 2009–2025
• Land Rover:
• Defender: 1990–2025
• Range Rover: 2013–2025
• Other 4x4 Vehicles: Compatible with most 4WD vehicles with sufficient space and 12V power supply.

Installation Notes

• Mounting: The CKBLTA12 features a different mounting footprint than ARB’s brushed compressor range, so ensure compatibility with existing brackets or purchase vehicle-specific mounts.
• Air Intake: For optimal performance and longevity, mount air filters away from water and dust sources. Users recommend upgrading to 1/2-inch air intake lines for remote mounting to prevent airflow restrictions.
• Heat Management: The compressor can generate significant heat during operation. Avoid mounting near carpet or flammable materials, and consider using steel-braided or hydraulic hoses for air lines to prevent heat-related damage.
• Wiring: The included wiring loom simplifies installation, with plug-in connectivity for ARB Air Locker solenoids. Ensure proper grounding and battery connection to avoid voltage issues.

Why It’s the Best Choice

The ARB CKBLTA12 stands out for its high airflow, robust construction, and advanced features that ensure reliable performance in extreme conditions. Unlike single-motor compressors, the twin-motor design provides greater air volume and efficiency, making it ideal for large tires and high-demand applications. Its smart technology, including self-monitoring diagnostics and adaptive performance adjustments, ensures consistent operation even in challenging environments. With a 100% duty cycle, IP67 rating, and compatibility with ARB’s trusted accessory ecosystem, this compressor is built to last and perform where others fall short.

Manufacturer Information

ARB, Australia’s leading manufacturer of 4x4 accessories, designs the CKBLTA12 to withstand the rigors of off-road adventures. Each compressor undergoes rigorous leak, current draw, and flow testing before leaving the factory, ensuring quality and reliability.
