Service fixed-eye leaf spring bushings without removing the pin assembly
Old Man Emu OMEGP9 provides twin greasable pins and crush tubes for compatible EL049R and EL068R leaf-spring installations, allowing lubricant to reach the bushing contact surfaces during routine suspension maintenance.
Key Features
- Manufacturer-specified for Old Man Emu EL049R and EL068R leaf springs
- Twin greasable pin arrangement supports both sides of the compatible fixed-eye installation
- Cross-drilled pins distribute grease toward the matching bushing contact surfaces
- Heat-treated steel pins are designed for suspension loads and repeated service
- Separate crush tubes support correct bushing compression when installed to specification
- Grease fittings permit routine lubrication without removing the complete pin assembly
- Captive-torque nuts complete the two-pin service kit
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | No broad year-make-model fitment applies. The current Old Man Emu catalog specifies this pin kit for EL049R and EL068R leaf springs. Confirm the installed spring part number, fixed-eye arrangement, matching polyurethane bushings, spring-hanger geometry, service clearances, and the vehicle-specific suspension instructions before ordering. |
Specifications
| Detail | Value |
|---|---|
| Brand | Old Man Emu |
| Manufacturer Part Number | OMEGP9 |
| Product Type | Greasable Fixed-End Leaf Spring Pin Kit |
| Application Method | Select by compatible Old Man Emu leaf spring part number |
| Compatible Springs | EL049R and EL068R |
| Pin Quantity | 2 |
| Grease Fitting Quantity | 2 |
| Crush Tube Quantity | 2 |
| Captive-Torque Nut Quantity | 4 |
| Service Requirement | Grease gun and moly grease |
| Barcode | 9332018070418 |

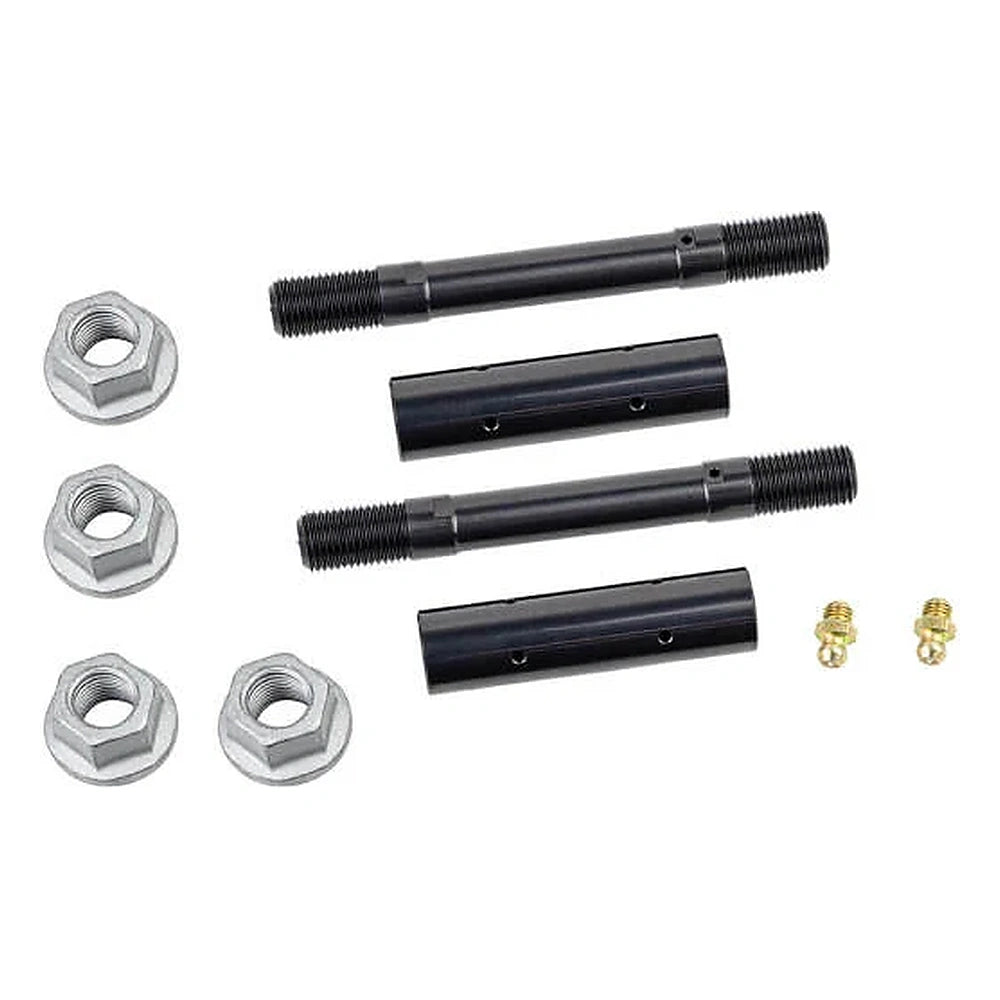

What's Included
- Two greasable fixed-end pins
- Two greasable crush tubes
- Four captive-torque nuts
- Two grease fittings
- Not included: Leaf springs, polyurethane bushings, shackles, D-washers, grease, tools, and installation labor
About Old Man Emu
Old Man Emu is ARB's suspension brand, engineering springs, dampers, bushings, and supporting fit hardware as matched systems for load control, wheel travel, and serviceability.
Related Parts
- Select related suspension parts only after confirming the exact EL049R or EL068R spring, matching bush kit, fixed-eye geometry, vehicle application, and every note in the current Old Man Emu catalog.
FAQ
What is the OMEGP9?It is a two-pin greasable fixed-end service kit for compatible Old Man Emu leaf-spring installations.
Which leaf springs are supported?The current Old Man Emu catalog specifically lists EL049R and EL068R springs for this pin kit.
Is this a universal year-make-model part?No. Selection must be based on the exact spring part number and the complete vehicle-specific suspension application.
How many pins are included?The package contains two greasable pins, supporting the matching left and right fixed-eye service arrangement.
Are bushings included?No. The correct polyurethane bushings must be selected separately for the confirmed spring and vehicle application.
What maintenance equipment is required?Routine service requires a grease gun and suitable moly grease, along with normal suspension inspection tools.
Can the hardware be installed with an impact tool?An impact tool may be used only for disassembly where appropriate; final installation requires a calibrated torque wrench and the applicable service specifications.
Why use a greasable pin kit?It allows lubricant to reach the bushing contact area during service without removing the complete fixed-eye pin assembly.
Installation Instructions
- Confirm the installed leaf springs are EL049R or EL068R and verify the vehicle-specific Old Man Emu suspension instructions before disassembly.
- Securely support the vehicle and axle, unload the leaf-spring fixed eye, and inspect the hanger, spring eye, and matching bushings for wear or damage.
- Apply the specified bushing lubricant, install the matching bushings and crush tube, and position each greasable pin without damaging the grease passages.
- Install the captive-torque nuts and tighten all suspension fasteners with a calibrated torque wrench to the vehicle and suspension manufacturer's specifications at the required ride-height position.
- Install the grease fittings, apply moly grease until the contact surfaces are properly lubricated, check free movement and clearances, and re-inspect the hardware after the recommended settling interval.
California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and reproductive harm.
