SKU: 155-3601 | UPC: 672036004255
ARP High Performance Series Head Bolt Kit – Ford FE 390-428 V8 1958-1976
The ARP 155-3601 head bolt kit upgrades Ford FE-series big block engines including 390, 406, 427, 428, Cobra Jet and Side-Oiler models from 1958-1976. These 8740 chrome-moly steel bolts provide 180,000 psi tensile strength and 30-50% more clamping force than OEM for reliable head gasket sealing in high compression, nitrous or boosted setups. Precision rolled threads after heat treatment ensure fatigue resistance on engines producing 600-1000+ horsepower.
Key Features
- 8740 Chrome-Moly Steel: 180,000 psi tensile strength handles extreme cylinder pressures in race and street engines
- Black Oxide Finish: Resists corrosion while rolled threads boost fatigue strength over cut threads
- Hardened Washers: Parallel-ground design promotes even load distribution and prevents galling

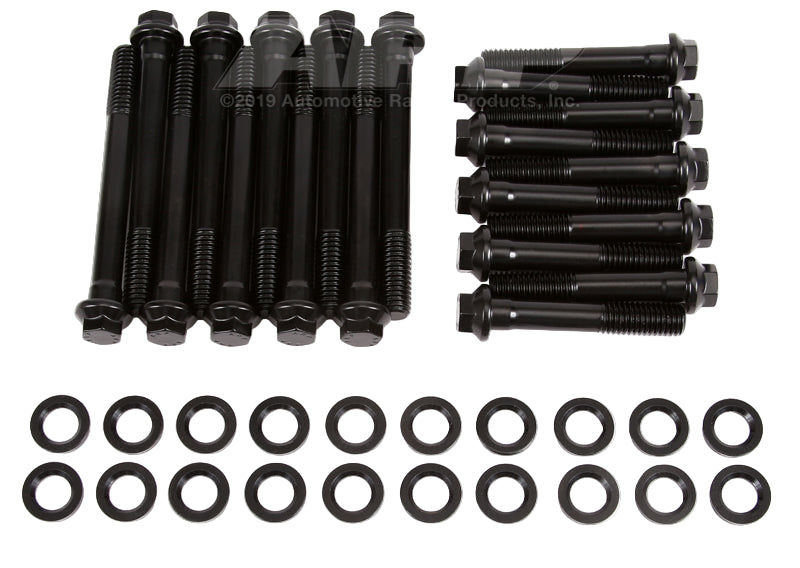

- Complete Kit: 26 bolts and 26 washers replace all factory head bolts on both cylinder heads
- Direct Fit: No modifications needed for FE blocks, rated for 1000+ HP applications
Product Notes
- Fits all Ford FE 390-428 engines 1958-1976 including Cobra Jet, Side-Oiler, SOHC Cammer
- Includes bolts for both cylinder heads with torque specs of 95 ft-lbs oil or 105 ft-lbs ARP Ultra-Torque
- Limited lifetime warranty against manufacturing defects for original purchaser
Installation Notes
- Professional installation recommended.
- Use ARP Ultra-Torque fastener assembly lube for accurate torque.
- Torque in 3 steps and re-torque after first heat cycle.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1958-1976 | Ford | F-100 | w/ 390-428 FE V8 |
| 1958-1976 | Ford | F-250 | w/ 390-428 FE V8 |
| 1958-1976 | Ford | F-350 | w/ 390-428 FE V8 |
| 1960-1970 | Ford | Galaxie | w/ 390-428 FE V8 |
| 1960-1968 | Ford | LTD | w/ 390-428 FE V8 |
| 1966-1968 | Ford | Thunderbird | w/ 390-428 FE V8 |
| 1967-1970 | Ford | Fairlane | w/ 390-428 FE V8 |
| 1967-1970 | Ford | Torino | w/ 390-428 FE V8 |
| 1968-1974 | Ford | Mustang | w/ 390 FE V8 |
Why Choose ARP?
- Over 60 years engineering fasteners for championship race engines
- Trusted by NHRA, NASCAR, Formula 1 teams and top FE engine builders
- Proven reliability prevents head lift and gasket failures in high HP FE builds
Frequently Asked Questions
-
Q: Fits 427 SOHC Cammer?
A: Yes, uses same head bolt pattern as all FE 390-428 engines -
Q: What material and finish?
A: 8740 chrome-moly steel bolts with black oxide finish and rolled threads for maximum strength -
Q: Torque specs and reusability?
A: 95 ft-lbs with oil or 105 ft-lbs ARP lube. bolts reusable if undamaged and within torque spec
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective retail box
- Weight: 2.80 lbs
