SKU: 330-2802 | UPC: 672036020378

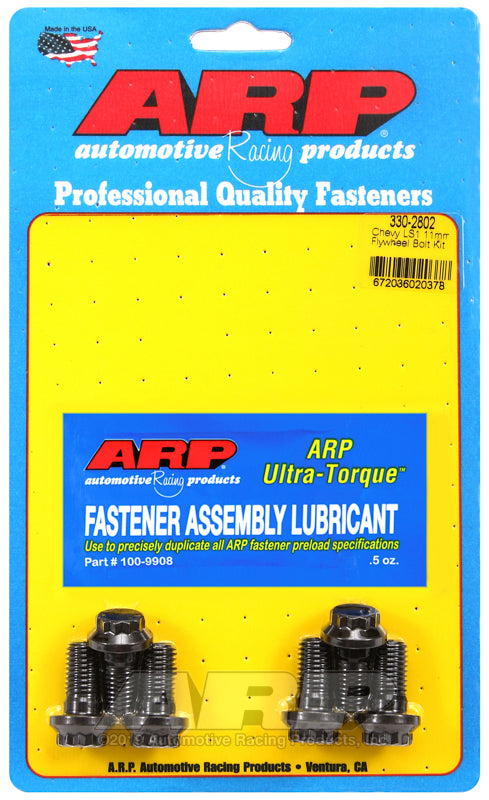

ARP Flywheel Bolt Kit for Chevy LS1 M11 1997-2004 Corvette Camaro Firebird
Secure your engine's flywheel or flexplate with ARP's high-strength bolt kit designed specifically for GM LS1 and LS6 engines in 1997-2004 Chevrolet Corvette Camaro and Pontiac Firebird models. These bolts deliver reliable clamping force to prevent slippage under high torque loads common in performance builds. Engineered with larger shank diameter and precise fit for direct replacement of stock hardware.
Key Features
- Material: 8740 Chrome Moly alloy forged and heat-treated for maximum durability in racing and street applications
- Tensile Strength: High Performance Series rated at 180,000 PSI to handle extreme horsepower without failure
- Head Design: Exclusive 12-point flat head for better tool grip and flywheel registration over factory bolts
- Finish: Black oxide coating resists corrosion and simplifies installation
- Dimensions: M11 x 1.5 thread pitch 2.600 inch overall length with increased shank diameter for added strength
Product Notes
- Kit includes 6 bolts complete with hardened washers for full assembly
- Threads rolled after heat treatment for superior fatigue resistance
- Made in USA for consistent quality control
Installation Notes
- Professional installation recommended.
- Torque to ARP specification of 75 ft-lbs with moly lubricant on threads and under heads
- Compatible with stock or aftermarket flywheels and flexplates on LS1/LS6 engines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Chevrolet | Corvette | Base LS1/LS6 Z06 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS LS1 |
| 1998-2002 | Pontiac | Firebird | Formula Trans Am LS1 |
| 2004 | Pontiac | GTO | Base LS1 |
Why Choose ARP?
- Trusted by NASCAR teams for high-stress competition use
- Aerospace-grade alloys ensure longevity in demanding conditions
- Precision machining provides exact fit and repeatable torque values
Frequently Asked Questions
-
Q: Does this kit fit LS2 engines in later models?
A: Yes ARP 330-2802 fits LS1 LS6 and LS2 flexplate applications including 2005-2006 GTO and some trucks with matching M11 threads -
Q: What material and finish are used?
A: Constructed from 8740 chromoly steel with black oxide finish for corrosion protection and easy maintenance -
Q: What is the warranty and return policy?
A: ARP offers defect-free guarantee contact manufacturer directly for claims backed by racing-proven reliability
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 1 x 5.1 x 7.3 inches
- Weight: 0.31 lbs
