SKU: 151-1001 | UPC: 672036042868

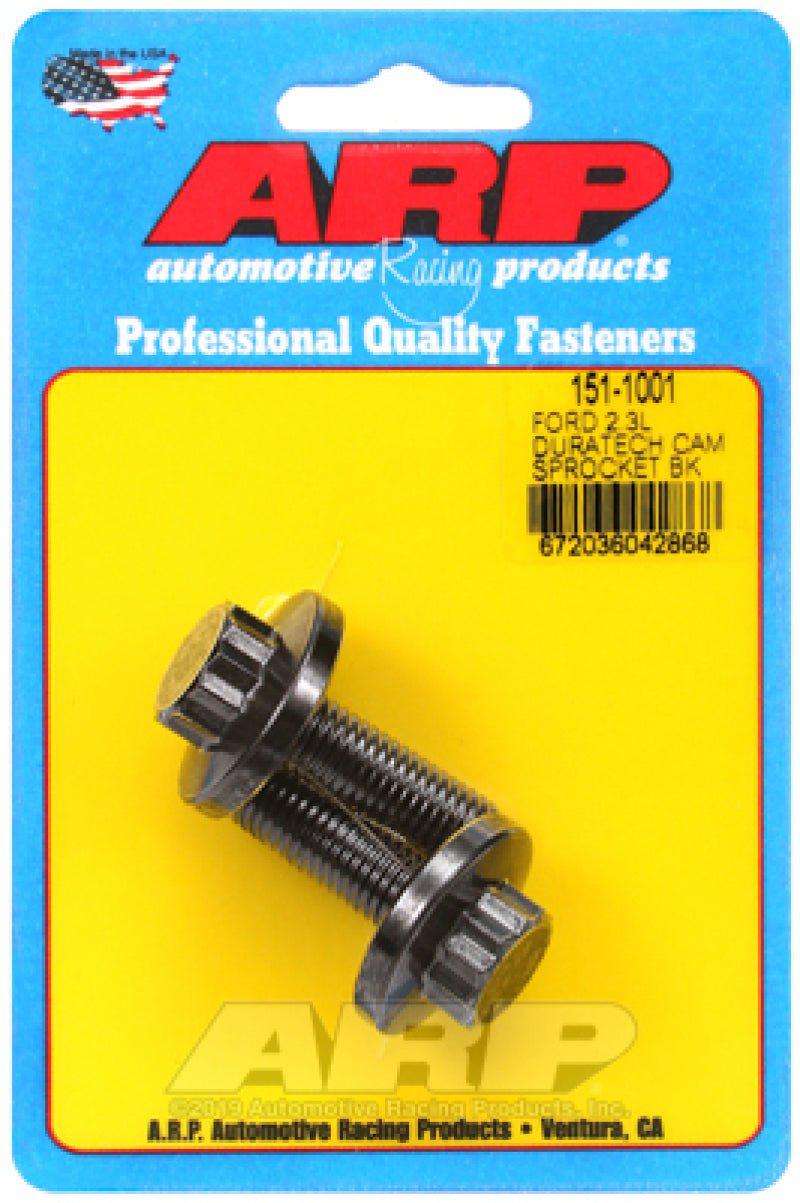

ARP Cam Sprocket Bolt Kit for Ford 2.3L Duratec 2001-2011 Ranger 2005-2011 Focus
ARP Cam Sprocket Bolt Kit 151-1001 upgrades Ford 2.3L Duratec engines in 2001-2011 Ranger and 2005-2011 Focus models. High-strength bolts replace factory hardware to deliver greater pre-load clamping force and maintain positive timing gear alignment. This kit handles valve train harmonics and stress for consistent performance in modified or high-rpm engines.
Key Features
- 8740 Chrome Moly Material: Provides high tensile strength to withstand extreme engine loads and prevent bolt stretch.
- Black Oxide Finish: Resists corrosion in engine environments and simplifies cleaning during service.
- Increased Pre-Load Clamping Force: Locks cam sprocket securely to eliminate timing slippage under boost or high rpm.
- Oversized Bolt Head Flange: Retains cam button position for accurate valve timing and reduced wear.
- Reduced Socket Head Size: Enables simple installation and removal using common 12-point sockets without clearance issues.
Product Notes
- Kit includes complete set of bolts for one cam sprocket application.
- Inspect timing components during install for best results.
- Packaged in protective box to arrive ready for immediate use.
Installation Notes
- Professional installation recommended.
- Torque to ARP spec 25-30 ft-lbs dry after applying oil to threads.
- Works with OEM and aftermarket cam sprockets on 2.3L Duratec.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001-2011 | Ford | Ranger | 2.3L Duratec L4 |
| 2005-2011 | Ford | Focus | 2.3L Duratec L4 |
| 2006-2011 | Ford | Fusion | 2.3L Duratec L4 |
Why Choose ARP?
- ARP fasteners power NHRA Pro Stock and Top Fuel engines worldwide.
- Every bolt forged from premium steel then heat treated for durability.
- Precision threads and fit engineered for automotive and racing use.
Frequently Asked Questions
-
Q: Does this fit 2007 Ford Ranger 2.3L Duratec?
A: Yes fits all 2001-2011 Ford Ranger models with 2.3L Duratec L4 engine. -
Q: What material and finish does the kit use?
A: Constructed from 8740 Chrome Moly steel with black oxide finish for strength and protection. Made in USA. -
Q: What warranty coverage applies?
A: ARP offers limited lifetime warranty against breakage if installed and torqued correctly.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box approx 4 x 3 x 1 inches
- Weight: 0.25 lbs
