SKU: 150-2505 | UPC: 672036044909

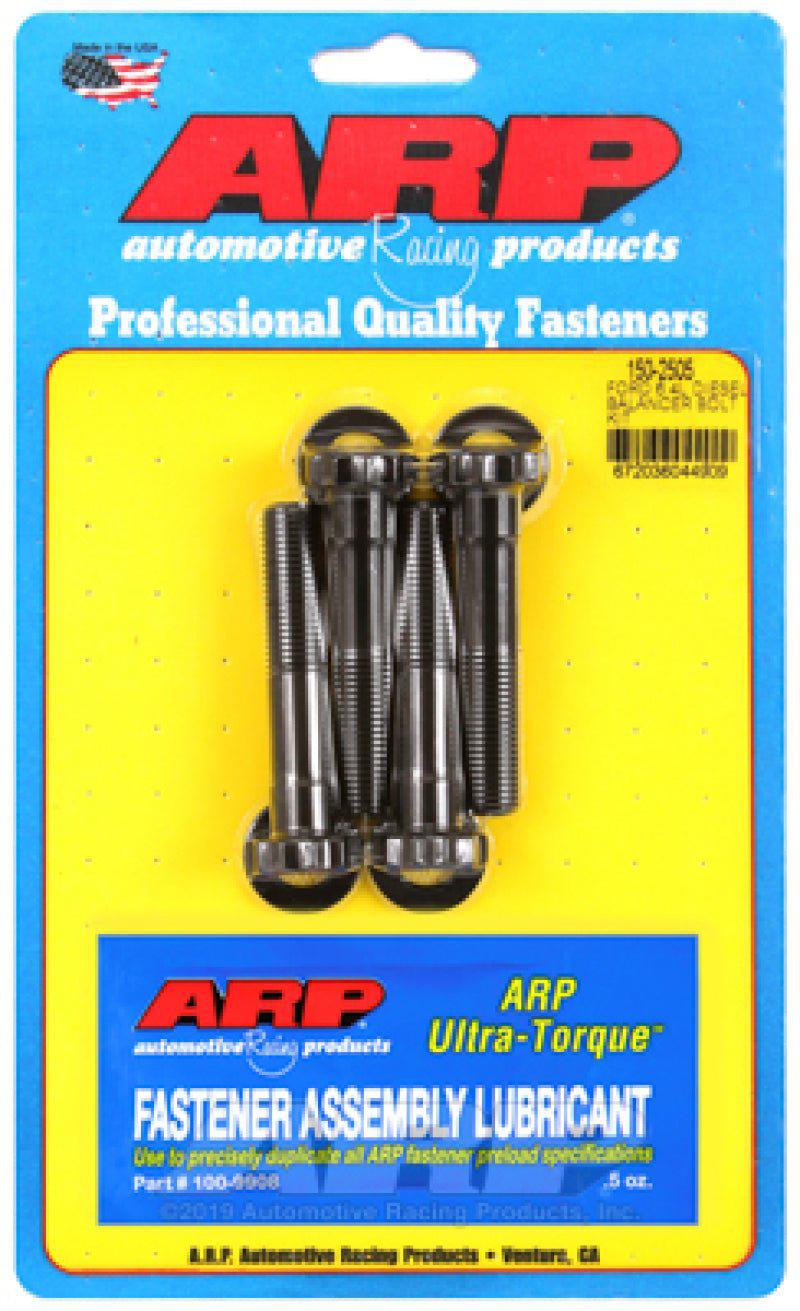

ARP Harmonic Damper Kit for 2003-2010 Ford 6.0L & 6.4L Power Stroke - Bolt & Washer
The ARP Harmonic Damper Kit delivers a high-strength bolt and washer to lock the harmonic damper on Ford F-Series Super Duty trucks and Excursion models powered by 6.0L or 6.4L Power Stroke diesel engines from 2003 to 2010. Crankshaft flex and twist generate massive kinetic energy that this kit absorbs while providing unyielding clamping force to prevent slippage. Built for diesel performance demands this fastener kit ensures long-term engine stability under high torque loads.
Key Features
- 190,000 PSI Tensile Strength: Delivers extreme clamping load to keep the harmonic damper firmly in place during high-rpm operation and heavy towing.
- 8740 Chrome Moly Construction: Heat-treated alloy resists fatigue and maintains integrity in hot oily engine environments.
- Black Oxide Finish: Provides corrosion protection for reliable performance in harsh underhood conditions.
- 1/4-Inch Thick Wide-Area Washer: Spreads clamping pressure evenly across the damper hub to avoid distortion and ensure precise alignment.
- Extra Tall 12-Point Bolt Head: Accepts deep impact sockets for secure torquing without stripping even under maximum effort.
Product Notes
- Inspect crankshaft nose threads for damage prior to installation.
- Use ARP thread lubricant or moly assembly lube on bolt for accurate torque.
- Packaged in ARP branded box for protection during shipping and storage.
Installation Notes
- Professional installation recommended.
- Torque bolt to 250 ft-lbs in two steps with angle tightening for proper stretch.
- Works with OEM Ford and aftermarket ATI Fluidampr or ATI Super Dampers.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Ford | F-250 Super Duty | 6.0L Power Stroke Diesel |
| 2003-2007 | Ford | F-350 Super Duty | 6.0L Power Stroke Diesel |
| 2005-2007 | Ford | F-450 Super Duty | 6.0L Power Stroke Diesel |
| 2005-2007 | Ford | F-550 Super Duty | 6.0L Power Stroke Diesel |
| 2003-2005 | Ford | Excursion | 6.0L Power Stroke Diesel |
| 2008-2010 | Ford | F-250 Super Duty | 6.4L Power Stroke Diesel |
| 2008-2010 | Ford | F-350 Super Duty | 6.4L Power Stroke Diesel |
| 2008-2010 | Ford | F-450 Super Duty | 6.4L Power Stroke Diesel |
| 2008-2010 | Ford | F-550 Super Duty | 6.4L Power Stroke Diesel |
Why Choose ARP?
- ARP fasteners power winners in NHRA Top Fuel and Pro Stock racing classes.
- Every bolt undergoes rigorous testing for proof load and fatigue resistance.
- Precision machined threads and rolled fillets reduce stress concentrations.
Frequently Asked Questions
-
Q: Will this kit fit my 2006 F-350 6.0L Power Stroke?
A: Yes it fits all 2003-2007 Ford Super Duty trucks with 6.0L Power Stroke and 2008-2010 models with 6.4L including F-250 F-350 F-450 F-550 and 2003-2005 Excursion. -
Q: What material and strength rating does the bolt have?
A: Forged from 8740 Chrome Moly steel heat treated to 190,000 psi tensile strength with black oxide finish for durability. -
Q: What torque specs apply and is warranty included?
A: Torque to 250 ft-lbs ARP provides limited lifetime warranty against manufacturing defects when installed per instructions.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact retail box 6 x 4 x 1 inches
- Weight: 0.38 lbs
